Product 141007

Description
Brake pad set
Axe
Front
No. of Pieces
4
Barcode
EAN13 Code
8424073016447
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=141007
Weight (gr.)
1520
System
Sumitomo
R90 Homologation
R90 90R-01109/152

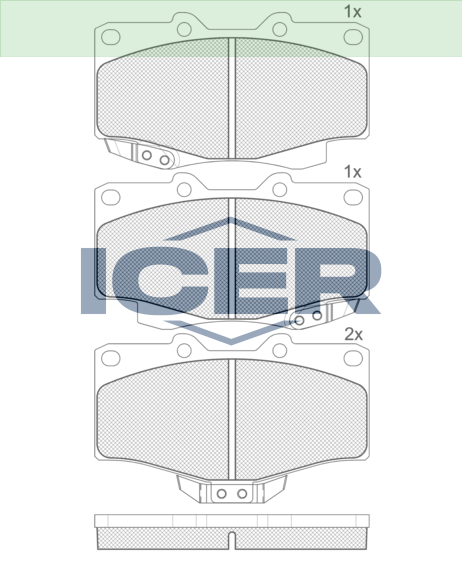

Measures
119.2x67.95x15
119.3x73.5x15
Reference applications
Brand OE Reference
TOYOTA 04465-04050
TOYOTA 04465-33030
TOYOTA 04465-35030
TOYOTA 04465-35031
TOYOTA 04465-35040
TOYOTA 04465-35080
TOYOTA 04465-35100
TOYOTA 04465-35190
TOYOTA 04465-35200
TOYOTA 04465-35230
TOYOTA 04465-35240
TOYOTA 04465-35260
TOYOTA 04465-35280
TOYOTA 04465-60030
TOYOTA 04465-60080
TOYOTA 04465-60130
TOYOTA 04465-60260
TOYOTA 04465-YZZ57
TOYOTA 04465-YZZAF
TOYOTA 04465-YZZBD
TOYOTA 04465-YZZDH
TOYOTA 04465-YZZDJ
TOYOTA 04491-35110
TOYOTA 04491-35111
TOYOTA 04491-35160
TOYOTA 04491-35170
TOYOTA 04491-35171
TOYOTA 04491-35190
TOYOTA 04491-35260
TOYOTA 04491-60070
TOYOTA 04491-60080
TOYOTA 04491-60090
VW J04 465 350 40
VW J04 491 351 60
VW J04 665 350 40
Maker Cross reference
ATE 13.0460-5992.2
ATE 605992
B.M. DB1149
BENDIX ANTIGUO 572140B
BENDIX-ROULUNDS 510105
BOSCH 0 986 424 268
BREMBO P 83 009
DELPHI LOCKHEED LP854
FERODO FDB797
FMSI D436-7298
FMSI D436-7549
GIRLING 6107979
HELLA-PAGID 8DB 355 016-401
HELLA-PAGID T3011
MINTEX MDB1647
NECTO FD6579A
ROAD HOUSE 2315.04
ROAD HOUSE 2315.14
TEXTAR 21679 150 0 5 T4067
TEXTAR 21679 150 0 5 T4136
TEXTAR 21679 150 0 5
TEXTAR 21679 170 0 5
TEXTAR 2167901
TEXTAR 2167904
TEXTAR 2167907
TRW GDB797
VALEO 598897
WVA 21679
WVA 21680
WVA 21681
WVA 21785
BAW
YUSHENG 007 () Hatchback 01/2011-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 1 01/2011- 1977 90 122 1
2.4 1 01/2011- 2438 105 143 1
2.4 1 01/2011- 2438 105 143 1
2.5 A las 4 ruedas 2 12/2012- 2499 100 136 2
YUSHENG 007 () SUV 01/2011-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 4WD

4G63-S4T

 1 04/2015- 1997 190 140 3
2.0 T

4G63-S4T

 1 04/2015- 1997 140 190 2
FUQI
FQ6480 () Hatchback 02/1999-
Vehicle Engine Fuel Date CC KW CV Traction
4.5 1 02/1999- 4477 151 205 1
GREAT WALL
SAFE F1 () SUV 04/2006-04/2009
Vehicle Engine Fuel Date CC KW CV Traction
2.2

491Q-E

 1 04/2006-04/2009 2237 78 106 2
2.2 A las 4 ruedas

491Q-E

 1 04/2006-04/2009 2237 78 106 3
TIANMA
HILUX () Pickup 10/1996-08/2002
Vehicle Engine Fuel Date CC KW CV Traction
2.4 1 10/1997-08/2002 2367 88 120 1
TOYOTA
4RUNNER / HILUX SURF (_N5_, _N6_, _N7_) SUV 07/1984-10/1989
Vehicle Engine Fuel Date CC KW CV Traction
2.4 4WD (RN50, RN55, RN60)

22REC

 1 08/1987-07/1989 2367 82 112 3
4 RUNNER II / HILUX SURF / SURF (_N1_) SUV 08/1987-12/1996
Vehicle Engine Fuel Date CC KW CV Traction
2.7 i 1 11/1995-03/1996 2694 112 152 1
3.0 (VZN100_, VZN110_, VZN130_, VZN131_) 1 08/1988-10/1995 2959 112 152 1
3.0 (VZN130_, VZN130G, VZN130R)

3VZ-E

 1 01/1990-10/1995 2959 105 143 3
3.0 4WD (VZN130_)

3VZ-FE

 1 02/1990-12/1996 2959 106 144 3
3.0 RWD (VZN130_)

3VZ-E

 1 09/1989-03/1996 2959 112 152 2
3.4 i 1 11/1995-03/1996 3378 136 185 1
2.4 D (LN130)

2L-T

 2 08/1989-11/1995 2446 66 90 3
2.8 D 4WD (KDN170)

3L

 2 08/1989-10/1995 2779 61 83 3
3.0 Turbo-D (KZN130_, KZN130G, KZN130W)

1KZ-T

 2 10/1993-03/1996 2982 92 125 3
4RUNNER III (_N18_) SUV 11/1995-07/2003
Vehicle Engine Fuel Date CC KW CV Traction
2.7 (RZN180)

3RZ-FE

 1 11/1995-07/2002 2694 112 152 2
2.7 4WD (RZN185_, RZN185W)

3RZ-FE

 1 11/1995-08/2002 2694 112 152 3
3.4 (VZN180)

5VZ-FE

 1 11/1995-11/2002 3378 136 185 2
3.4 4WD (VZN185)

5VZ-FE

 1 11/1995-11/2002 3378 136 185 3
3.0 TDi (KZN185, KZN185W)

1KZ-TE

 2 09/2000-07/2002 2982 103 140 3
3.0 Turbo-D (KZN185)

1KZ-T

 2 11/1995-11/2002 2982 92 125 3
HILUX IV / PICKUP (_N5_, _N6_) Pickup 11/1982-11/1998
Vehicle Engine Fuel Date CC KW CV Traction
2.2 (YN58)

4Y

 1 08/1983-12/1989 2237 69 94 2
2.2 4WD (YN67)

4Y

 1 11/1985-12/1989 2237 69 94 3
HiLux SUV V / HiLux SURF (LN_, KZN1_, VZN1_, RN1_) SUV 08/1988-11/1998
Vehicle Engine Fuel Date CC KW CV Traction
3.0 EFI 4WD (VZN130)

3VZ-E

 1 08/1989-11/1995 2959 105 143 3
3.0 EFI 4WD (VZN130)

3VZ-E

 1 08/1989-11/1995 2959 112 152 3
2.4 TD (LN85) 2 10/1991-07/1997 2446 66 90 2
2.4 TD 4WD (LN130_)

2L-T

 2 08/1988-08/1997 2446 92 125 3
2.4 TD 4WD (LN130)

2L-T

2L-TE

 2 04/1989-11/1998 2446 66 90 3
3.0 TDiC 4WD (KZN130) 2 08/1993-07/1997 2982 92 125 3
HILUX V (_N_, KZN1_, VZN1_) Pickup 09/1988-08/2001
Vehicle Engine Fuel Date CC KW CV Traction
2.2 (YN87_, YN87R)

4Y

 1 03/1989-07/1994 2237 69 94 2
2.4 (RN90, RN85) 1 10/1988-12/1998 2367 75 102 2
2.4 4WD (RN110, RN105, RN106) 1 10/1988-08/1997 2367 75 102 3
2.4 EFI 4WD (RN106_, RN110_, RN106R, RN110R)

22RE

 1 01/1989-07/1997 2367 84 114 3
2.4 i 1 08/1991-08/1997 2383 84 114 1
2.4 D (LN85_, LN110, LN90)

2L

 2 09/1988-08/1997 2446 61 83 2
2.4 D (LN85, LN90)

2L

 2 10/1991-07/1997 2446 59 80 2
2.4 D 4WD (LN105_, LN108_, LN110_)

2L

 2 09/1994-07/1997 2446 55 75 3
2.4 D 4WD (LN105, LN110)

2L

 2 09/1988-08/1997 2446 61 83 3
2.4 D 4WD (LN110_, LN110R)

2L

 2 01/1994-12/1997 2446 58 79 3
2.4 TD (LN90) 2 01/1992-01/1999 2446 66 90 2
HILUX VI (_N1_) Pickup 08/1994-03/2006
Vehicle Engine Fuel Date CC KW CV Traction
2.0 EFI (RZN147, RZN152)

1RZ-E

 1 08/1997-07/2005 1998 81 110 2
2.4 4WD

2RZ-FE

 1 08/2000-07/2005 2438 107 145 3
2.4 i 4WD (RZN14_, RZN16_, RZN19_)

2RZ-FE

 1 08/1997-10/2005 2438 103 140 3
2.7 EFI (RZN149, RZN154) 1 06/1997-07/2000 2694 110 150 2
2.7 EFI 4WD (RZN140, RZN169)

3RZ-FE

 1 06/1997-12/2000 2694 110 150 3
2.7 EFI 4WD (RZN174, RZN169)

3RZ-FE

 1 11/1997-04/2005 2694 108 147 3
3.4 4WD 1 08/1997-07/2000 3378 136 185 3
3.4 4WD (RZN140)

5VZ-FE

 1 01/1995-07/2005 3378 140 190 3
2.4 D (LN150, LN145)

2L

 2 08/1997-04/2005 2446 55 75 2
2.4 TD 4WD (LN165_, LN170_, LN190_, LN165, LN165H,...

2L-T

 2 08/1998-01/2002 2446 66 90 3
2.5 D-4D (KDN150, KDN155, KDN190) 2 08/2001-08/2005 2494 75 102 2
2.5 D-4D 4WD (KDN165, KDN170, KDN190)

2KD-FTV

 2 11/2001-07/2005 2494 75 102 3
2.8 D 4WD (LN166)

3L

 2 08/1997-07/2005 2779 65 88 3
3.0 D 2 11/1997-05/2005 2986 70 95 2
3.0 D 4WD 2 11/1997-05/2005 2986 70 95 3
3.0 D 4WD (LN14_, LN152_, N140) 2 11/1997-04/2005 2986 65 88 3
3.0 D 4WD (LN172, LN167)

5L

 2 08/1997-07/2005 2986 67 91 3
3.0 TD 4WD (KZN165) 2 11/2001-04/2005 2982 85 116 3
HiLux SUV VI / SW4 (_N1_, _N2_) SUV 01/1995-08/2005
Vehicle Engine Fuel Date CC KW CV Traction
3.4 EFI 4WD (VZN185) 1 11/1995-07/2000 3378 136 185 3
2.4 TD 4WD (LN165) 2 08/1997-07/2001 2446 66 90 3
2.5 D-4D 4WD (KDN165) 2 08/2001-08/2005 2494 75 102 3
3.0 D (LN157) 2 11/1997-05/2005 2986 70 95 2
3.0 D 4WD (LN157) 2 11/1997-05/2005 2986 70 95 3
3.0 TD 4WD (KZN205) 2 01/1998-04/2005 2982 87 118 3
LAND CRUISER (_J7_, _JL7_) Closed Off-Road Vehicle 03/1984-
Vehicle Engine Fuel Date CC KW CV Traction
2.4 (RJ70_, RJ73_, RJ70RV)

22R

 1 11/1984-05/1993 2367 81 110 3
2.4 (RJ70_, RJ73_)

22R

 1 11/1984-05/1993 2367 77 105 3
2.4 (RJ70_V, RJ73_V)

22RE

 1 12/1988-12/1996 2367 84 114 3
4.5 4x4 (FZJ75, FZJ75RV)

1FZ-FE

 1 08/1992-11/1999 4477 158 215 3
4.5 MPFi 4x4 (FZJ78, FZJ70, FZJ78R, FZJ79) 1 08/1992-06/2009 4477 165 224 3
2.4 TD (LJ70)

2L-T

 2 01/1990-05/1993 2446 66 90 3
2.8 D 4x4 (LJ79) 2 04/1990-03/1996 2779 61 83 3
3.0 TD (KZJ70_, KZJ73_, KZJ77_, KZJ78, KZJ71)

1KZ-T

1KZ-TE

 2 05/1993-05/1996 2982 92 125 3
3.4 D (BJ70_V, BJ73_)

3B

 2 11/1984-12/1996 3432 70 95 3
3.5 D 4x4 (PZJ70, PZJ73, PZJ70RV) 2 01/1990-08/1991 3470 72 98 3
3.5 D 4x4 (PZJ75, PZJ70)

1PZ

 2 01/1990-12/1994 3470 85 116 3
4.0 TD 4x4 (RJ70_, LJ70_, BJ7_, HJ75_, FJ7_)

12HT

 2 01/1997-08/2001 3980 100 136 3
4.2 D (HZJ76, HZJ78, HZJ70, HZJ73, HZJ75, HZJ79, HZJ77,...

1H-Z

 2 01/1990- 4164 96 131 3
4.2 D 4x4 (HZJ74, HZJ78, HZJ75)

1H-Z

 2 08/1990-08/2001 4164 123 167 3
LAND CRUISER (_J7_) Open Off-Road Vehicle 11/1984-08/2001
Vehicle Engine Fuel Date CC KW CV Traction
2.4 TD (LJ70_, LJ70R)

2L-T

 2 07/1990-05/1996 2446 66 90 3
3.0 TD (KZJ70_, KZJ70R)

1KZ-T

 2 05/1993-05/1996 2982 92 125 3
3.5 D 4x4 (PZJ75_)

1PZ

 2 01/1990-08/1992 3470 85 116 3
LAND CRUISER (_J7_, _JL7_) Platform/Chassis 11/1984-
Vehicle Engine Fuel Date CC KW CV Traction
4.5 4x4 (FZJ75, FZJ75RP) 1 08/1992-11/1999 4477 158 215 3
4.5 MPFi 4x4 (FZJ79, FZJ79R)

1FZ-FE

 1 11/1990-11/2007 4477 165 224 3
4.2 D 4x4 (HZJ7__V, HZJ75RP, HZJ79R)

1H-Z

 2 01/1990-02/2007 4164 96 131 3
LAND CRUISER 80 (_J8_) Closed Off-Road Vehicle 01/1990-02/2001
Vehicle Engine Fuel Date CC KW CV Traction
4.5 1 08/1992-01/1998 4477 215 292 1
4.5 24V (FZJ80_)

1FZ-FE

 1 08/1992-12/1997 4477 151 205 3
4.5 4WD (FZJ80_)

1FZ-FE

 1 08/1992-01/1998 4477 215 292 3
3.5 D

1PZ

 2 01/1990-08/1992 3470 85 116 3
4.2 TD (HDJ80, HDJ81)

1HD-T

 2 01/1990-12/1997 4164 123 167 3
4.2 TD (HDJ80)

1HD-T

 2 08/1992-12/1997 4164 118 160 3
4.2 TD 24V (HDJ80_, HDJ80, HDJ81V)

1HD-FT

 2 01/1995-12/1997 4164 125 170 3
LAND CRUISER 90 (_J9_) Closed Off-Road Vehicle 04/1995-
Vehicle Engine Fuel Date CC KW CV Traction
2.7 (RZJ95, RZJ90)

3RZ-FE

 1 06/1995-08/2002 2694 110 150 3
3.4 i 24V (VZJ90_, VZJ95_, VZJ90R, VZJ95R, VZJ90W,...

5VZ-FE

 1 03/1996-08/2002 3378 131 178 3
4.7 1 08/2002- 4664 175 238 3
3.0 D-4D (KDJ90, KDJ95, KZJ9_, LJ9_, RZJ9_, VZJ9_)

1KD-FTV

 2 02/2000-08/2002 2982 125 170 3
3.0 D-4D 4WD (KDJ90_, KDJ95_, KDJ90W, KDJ95W)

1KD-FTV

 2 08/2000-08/2002 2982 120 163 3
3.0 TD (KZJ90_, KZJ95_, KZJ90R, KZJ95R, KZJ90W, KZJ95W)

1KZ-TE

 2 04/1996-12/2002 2982 92 125 3
3.0 TD (KZJ90, KZJ95)

1KZ-TE

 2 04/1995-07/2000 2982 103 140 3
4.2 D

1H-Z

 2 08/1999-08/2001 4164 123 167 3
STOUT III-IV (_K11_) Pickup 04/1988-02/2000
Vehicle Engine Fuel Date CC KW CV Traction
2.2 1 04/1988-02/2000 2237 69 94 1
SURF () Pickup 01/1987-
Vehicle Engine Fuel Date CC KW CV Traction
2.4 4WD 1 01/1987- 2395 1
TACOMA (_N1_) Pickup 09/1994-08/2004
Vehicle Engine Fuel Date CC KW CV Traction
2.4 16V 1 09/1994- 2395 1
2.4 16V 4WD 1 09/1994- 2395 1
2.4 16V 4WD 1 09/1994- 2395 1
2.4 16V 4WD 1 09/1994- 2395 1
2.7 16V 1 09/1994- 2695 107 145 1
2.7 16V 4WD 1 09/1994- 2695 1
2.7 16V 4WD 1 09/1994- 2695 1
2.7 16V 4WD 1 09/1994- 2695 107 145 1
3.4 16V 4WD 1 09/1994- 3395 1
3.4 16V 4WD 1 09/1994- 3395 1
3.4 16V 4WD 1 09/1994- 3395 1
3.4 24V 1 09/1994- 3395 1
3.4 4WD (VZN160_)

5VZ-FE

 1 01/1995-08/2004 3378 140 190 3
4.0 24V 1 09/1994- 3995 1
4.0 24V 4WD 1 09/1994- 3995 1
TACOMA () Pickup 01/1995-
Vehicle Engine Fuel Date CC KW CV Traction
2.4 16V 1 01/1995- 2395 1
2.4 16V 4WD 1 01/1995- 2395 1
2.4 16V 4WD 1 01/1995- 2395 1
2.4 16V 4WD 1 01/1995- 2395 1
2.7 16V 1 01/1995- 2695 107 145 1
2.7 16V 4WD 1 01/1995- 2695 1
2.7 16V 4WD 1 01/1995- 2695 1
2.7 16V 4WD 1 01/1995- 2695 107 145 1
3.4 16V 4WD 1 01/1995- 3395 1
3.4 16V 4WD 1 01/1995- 3395 1
3.4 16V 4WD 1 01/1995- 3395 1
3.4 24V 1 01/1995- 3395 1
4.0 24V 1 01/1995- 3995 1
4.0 24V 4WD 1 01/1995- 3995 1
TACOMA (U.S.A.) Pickup 09/1995-12/2006
Vehicle Engine Fuel Date CC KW CV Traction
2.4 16V 1 09/1995- 2395 1
2.4 16V 4WD 1 09/1995- 2395 1
2.7 16V 1 09/1995- 2695 1
2.7 16V 4WD 1 09/1995- 2695 1
3.4 24V 1 09/1995- 3395 1
3.4 24V 4WD 1 09/1995- 3395 1
VW
TARO () Pickup 04/1989-03/1997
Vehicle Engine Fuel Date CC KW CV Traction
2.2 4x4

4Y

 1 06/1989-07/1994 2237 69 94 3
2.4 i 4x4

22R

 1 06/1989-03/1997 2366 84 114 3
2.4 D 4x4

2L

 2 07/1994-03/1997 2446 58 79 3
2.4 D 4x4

2L

 2 04/1989-03/1997 2446 61 83 3
Return
