Product 180697-700 - Web Catalogo

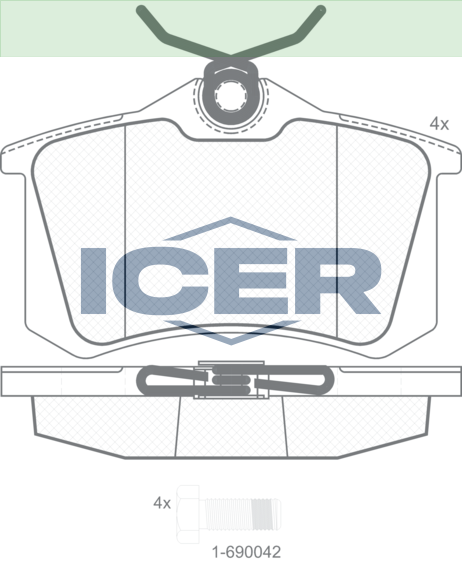

Description: Brake pad set
Axe: Rear
No. of Pieces: 4
Barcode: 8424073054906
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=180697-700
Weight (gr.): 949

System: Lucas - Girling
R90 Homologation: 90R-01033/142
Measures: 87x52.8x17.2

Reference applications

Brand	OE Reference
AUDI	150 698 451
AUDI	1J0 698 451 H
AUDI	2Q0 698 451 B
AUDI	5M21-2M008-CA
AUDI	5M2J-2M008-CA
CITROËN	4252.33
CITROËN	4254.67
DS	16 172 504 80
FORD	1 001 096
FORD	1 027 640
FORD	1 205 557
FORD	1 343 514
FORD	1 345 340
FORD	1115107
FORD	7 354 162
FORD	95VWX-2M008-AA
FORD	95WX-2M008-BA
FORD	YM21-2M008-CA
LANCIA	9 404 252 328
LANCIA	9 467 529 088
LANCIA	9 467 648 988
MG	10030811
PEUGEOT	4252.32
PEUGEOT	E172281
RENAULT	86 60 004 460
RENAULT	86 71 005 852
RENAULT	86 71 005 867
RENAULT	86 71 016 554
SEAT	5Q0 698 451 M
SKODA	2Q0 698 451 C
VW	1H0 698 451 D
VW	1H0 698 451 H
VW	1J0 698 451 C
VW	1J0 698 451 G
VW	1J0 698 451 K
VW	1J0 698 451 L
VW	1K0 698 451 M
VW	3B0 698 451 E
VW	5C0 698 451 B
VW	5C0 698 451 C
VW	5C0 698 451 D
VW	5Q0 698 451 D
VW	5Q0 698 451 E
VW	6X0 698 451
VW	6X0 698 451 A
VW	7M0 698 451
VW	JZW 698 451 C

Maker	Cross reference
ATE	13.0460-2740.2
ATE	13.0460-2787.2
ATE	13.0460-2819.2
ATE	13.0460-2820.2
ATE	13.0460-2864.2
ATE	13.0460-2984.2
ATE	13.0470-2787.2
ATE	602740
ATE	602787
ATE	602819
ATE	602820
ATE	602864
ATE	602984
ATE	702787
BENDIX ANTIGUO	571906B
BENDIX ANTIGUO	573032B
BENDIX-ROULUNDS	510070
BOSCH	0 986 461 769
BREMBO	P 85 020
BREMBO	P 85 020X
BREMBO	P 85 089
DELPHI LOCKHEED	LP3640
DELPHI LOCKHEED	LP565
FERODO	FDB1083
FERODO	FDB1637
FERODO	FDB1788
FERODO	FDB4178
FERODO	FDB5026
FMSI	D1017-7920
FMSI	D1023-7773
FMSI	D340-7335
FMSI	D894-7773
GIRLING	6110551
GIRLING	6111961
GIRLING	6113301
GIRLING	6113721
GIRLING	6114581
GIRLING	6115041
GIRLING	6120401
HELLA-PAGID	8DB 355 010-361
HELLA-PAGID	8DB 355 018-111
HELLA-PAGID	T1351
HELLA-PAGID	T1644
HELLA-PAGID	T5075
MINTEX	MDB1377
MINTEX	MDB2256
NECTO	FD6720A
NECTO	FD6720E
NECTO	FD7388A
ROAD HOUSE	2263.01
ROAD HOUSE	2263.07
ROAD HOUSE	2263.45
ROAD HOUSE	2263.87
ROAD HOUSE	2263.89
TEXTAR	20961 172 1 4 T4122
TEXTAR	20961 172 1 4 T456
TEXTAR	2096104
TEXTAR	2096108
TEXTAR	23554 172 1 4 T4222
TEXTAR	23554 172 1 4 T4415
TEXTAR	23554 172 1 4
TEXTAR	2355412
TEXTAR	2355423
TEXTAR	2355481
TRW	GDB1055
TRW	GDB1196
TRW	GDB1267
TRW	GDB1311
TRW	GDB1330
TRW	GDB1372
TRW	GDB1438
TRW	GDB1458
TRW	GDB1504
TRW	GDB2040
TRW	GDB7612
VALEO	598463
VALEO	598573
VALEO	601463
WVA	20960
WVA	23554

AUDI

A1 (8X1, 8XK) Hatchback 05/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TFSI	CHZE	1	01/2016-10/2018	999	60	82	1
1.0 TFSI	CHZB DKLD	1	03/2015-10/2018	999	70	95	1
1.2 TFSI	CBZA	1	05/2010-04/2015	1197	63	86	1
1.4 TFSI	CAXA CNVA	1	05/2010-04/2015	1390	90	122	1
1.4 TFSI	CAVG CTHG	1	01/2011-04/2015	1390	136	185	1
1.4 TFSI	CZCA CZDD	1	11/2014-10/2018	1395	92	125	1
1.4 TFSI	CPTA	1	04/2012-04/2015	1395	103	140	1
1.4 TSI	CZEA	1	11/2014-10/2018	1395	110	150	1
1.8 TFSI	DAJB	1	02/2015-10/2018	1798	141	192	1
1.4 TDI	CUSB	2	11/2014-10/2018	1422	66	90	1
1.6 TDI	CAYB	2	03/2011-04/2015	1598	66	90	1
1.6 TDI	CAYC	2	05/2010-04/2015	1598	77	105	1
1.6 TDI	CXMA	2	11/2014-10/2018	1598	85	115	1
2.0 TDI	CFHB	2	05/2012-04/2015	1968	100	136	1
2.0 TDI	CFHD	2	09/2011-04/2015	1968	105	143	1

A1 Sportback (8XA, 8XF) Hatchback 09/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TFSI	CHZE	1	01/2016-10/2018	999	60	82	1
1.0 TFSI	CHZB DKLD	1	03/2015-10/2018	999	70	95	1
1.2 TFSI	CBZA	1	01/2012-04/2015	1197	63	86	1
1.4 TFSI	CAXA CNVA	1	11/2011-04/2015	1390	90	122	1
1.4 TFSI	CAVG CTHG	1	11/2011-04/2015	1390	136	185	1
1.4 TFSI	CZCA CZDD	1	11/2014-10/2018	1395	92	125	1
1.4 TFSI	CPTA	1	04/2012-04/2015	1395	103	140	1
1.4 TSI	CZEA	1	11/2014-10/2018	1395	110	150	1
1.8 TFSI	DAJB	1	02/2015-10/2018	1798	141	192	1
1.4 TDI	CUSB	2	11/2014-10/2018	1422	66	90	1
1.6 TDI	CAYB	2	11/2011-04/2015	1598	66	90	1
1.6 TDI	CAYC	2	11/2011-04/2015	1598	77	105	1
1.6 TDI	CXMA	2	11/2014-10/2018	1598	85	115	1
2.0 TDI	CFHB	2	05/2012-04/2015	1968	100	136	1
2.0 TDI	CFHD	2	09/2011-04/2015	1968	105	143	1

A1 II Sportback (GBA) Hatchback 07/2018-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
25 TFSI	DKLA DLAC	1	11/2018-	999	70	95	1
30 TFSI	DLAA	1	09/2020-	999	81	110	1
30 TFSI	DKJA DKRF	1	07/2018-	999	85	116	1
35 TFSI	DADA DPCA	1	09/2018-	1498	110	150	1
40 TFSI	CZPC DKZC	1	09/2018-	1984	147	200	1
40 TFSI		1	04/2021-	1984	152	207	1

A1 CITY CARVER (GBH) Hatchback 07/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
25 TFSI	DKLA	1	07/2019-06/2022	999	70	95	1
30 TFSI	DLAA	1	09/2020-06/2022	999	81	110	1
30 TFSI	DKJA DKRF	1	07/2019-06/2022	999	85	116	1
35 TFSI	DPCA	1	07/2019-06/2022	1498	110	150	1

A2 (8Z0) Hatchback 02/2000-08/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 FSI	BAD	1	05/2002-08/2005	1598	81	110	1
1.4 TDI	ATL	2	11/2003-08/2005	1422	66	90	1

A3 (8L1) Hatchback 09/1996-09/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	AEH AKL APF	1	09/1996-05/2003	1595	74	101	1
1.6	AVU BFQ	1	08/2000-05/2003	1595	75	102	1
1.8	AGN APG	1	09/1996-05/2003	1781	92	125	1
1.8 T	AGU AQA ARZ AUM	1	12/1996-05/2003	1781	110	150	1
1.8 T	AJQ APP ARY AUQ	1	12/1998-05/2003	1781	132	180	1
1.8 T quattro	AGU AQA ARX	1	12/1996-05/2003	1781	110	150	3
1.8 T quattro	AJQ ARY	1	10/1998-05/2003	1781	132	180	3
S3 quattro	AMK APY AUL	1	03/1999-04/2002	1781	154	210	3
S3 quattro	BAM	1	10/2001-05/2003	1781	165	224	3
1.9 TDI	AGR ALH	2	09/1996-07/2001	1896	66	90	1
1.9 TDI	ATD AXR	2	10/2000-05/2003	1896	74	100	1
1.9 TDI	AHF ASV	2	08/1997-07/2001	1896	81	110	1
1.9 TDI	ASZ	2	08/2000-05/2003	1896	96	130	1
1.9 TDI quattro	ASZ	2	08/2000-05/2003	1896	96	130	3

A3 II (8P1) Hatchback 05/2003-12/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	04/2010-08/2012	1197	77	105	1
1.4 TFSI	CAXC CMSA	1	09/2007-08/2012	1390	92	125	1
1.6	BGU BSE BSF	1	05/2003-08/2012	1595	75	102	1
1.6 FSI	BAG BLF BLP	1	08/2003-09/2007	1598	85	115	1
1.8 T	BPU	1	08/2006-08/2012	1781	110	150	1
1.8 TFSI	BYT BZB CDAA	1	11/2006-08/2012	1798	118	160	1
1.8 TFSI quattro	CDAA	1	07/2008-08/2012	1798	118	160	3
2.0 FSI	AXW BLR BLX BLY BMB BVY BVZ	1	05/2003-06/2008	1984	110	150	1
2.0 TFSI	AXX BWA CAWB CCZA	1	09/2004-08/2012	1984	147	200	1
1.6 E-Power	CCSA CMXA	19	01/2011-08/2012	1595	75	102	1
1.6 TDI	CAYB	2	05/2009-08/2012	1598	66	90	1
1.6 TDI	CAYC	2	05/2009-08/2012	1598	77	105	1
1.9 TDI	BKC BLS BXE	2	05/2003-05/2010	1896	77	105	1
2.0 TDI	AZV CBAA CFFA	2	05/2003-08/2012	1968	100	136	1
2.0 TDI	BMM	2	06/2005-06/2008	1968	103	140	1
2.0 TDI	BUY	2	06/2006-06/2008	1968	120	163	1
2.0 TDI	BMN CBBB CFGB	2	03/2006-08/2012	1968	125	170	1
2.0 TDI 16V	BKD CBAB CBEA CFFB CLJA	2	05/2003-08/2012	1968	103	140	1
2.0 TDI quattro	AZV	2	05/2003-06/2008	1968	100	136	3
2.0 TDI quattro	BMN CBBB CFGB	2	03/2006-08/2012	1968	125	170	3

A3 II Sportback (8PA) Hatchback 09/2004-12/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	04/2010-03/2013	1197	77	105	1
1.4 TFSI	CAXC CMSA	1	09/2007-03/2013	1390	92	125	1
1.6	BGU BSE BSF	1	09/2004-03/2013	1595	75	102	1
1.6 FSI	BLF BLP	1	09/2004-09/2007	1598	85	115	1
1.8 FSI	BPU	1	08/2006-06/2008	1781	110	150	1
1.8 TFSI	BYT BZB CDAA	1	11/2006-03/2013	1798	118	160	1
1.8 TFSI quattro	CDAA	1	07/2008-03/2013	1798	118	160	3
2.0 FSI	AXW BLR BLX BLY BMB BVY BVZ	1	09/2004-06/2008	1984	110	150	1
2.0 TFSI	AXX BPY BWA CAWB CBFA CCTA CCZA	1	09/2004-03/2013	1984	147	200	1
1.6 E-Power	CCSA CMXA	19	01/2011-03/2013	1595	75	102	1
1.6 TDI	CAYB	2	05/2009-03/2013	1598	66	90	1
1.6 TDI	CAYC	2	05/2009-03/2013	1598	77	105	1
1.9 TDI	BKC BLS BXE	2	09/2004-05/2010	1896	77	105	1
2.0 TDI	AZV CBAA CFFA	2	09/2004-03/2013	1968	100	136	1
2.0 TDI	BMM	2	06/2005-06/2008	1968	103	140	1
2.0 TDI		2	01/2010-03/2013	1968	104	141	1
2.0 TDI	BUY	2	06/2006-06/2008	1968	120	163	1
2.0 TDI	BMN CBBB CFGB	2	03/2006-03/2013	1968	125	170	1
2.0 TDI 16V	BKD CBAB CBEA CFFB CLJA	2	09/2004-03/2013	1968	103	140	1

A3 II (8P7) Convertible 04/2008-05/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TFSI	CBZB	1	03/2010-05/2013	1197	77	105	1
1.4 TFSI	CAXC	1	02/2011-05/2013	1390	92	125	1
1.6	BSE	1	09/2008-05/2010	1595	75	102	1
1.8 TFSI	BZB CDAA	1	04/2008-05/2013	1798	118	160	1
1.6 TDI	CAYC	2	05/2009-05/2013	1598	77	105	1
1.9 TDI	BLS	2	04/2008-10/2009	1896	77	105	1
2.0 TDI	CBAA CFFA	2	04/2008-05/2013	1968	100	136	1
2.0 TDI	CBAB CFFB	2	04/2008-05/2013	1968	103	140	1

A4 B5 (8D2) Saloon 11/1994-12/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ADP AHL ANA ARM	1	11/1994-10/2000	1595	74	100	1
1.6	ALZ	1	07/2000-11/2000	1595	75	102	1
1.8	AFY	1	04/1995-11/2000	1781	85	115	1
1.8	ADR APT ARG AVV	1	11/1994-11/2000	1781	92	125	1
1.8 quattro	AFY	1	07/1995-11/2000	1781	85	115	3
1.8 quattro	ADR APT ARG	1	01/1995-11/2000	1781	92	125	3
1.8 T	AEB ANB APU ARK ATW AWT	1	01/1995-11/2000	1781	110	150	1
1.8 T	AMB	1	05/2000-09/2000	1781	125	170	1
1.8 T		1	01/1995-11/2000	1781	125	170	1
1.8 T	AJL	1	12/1997-11/2000	1781	132	180	1
1.8 T quattro	AEB ANB APU ARK ATW AWT	1	01/1995-11/2000	1781	110	150	3
1.8 T quattro	AJL	1	12/1997-11/2000	1781	132	180	3
2.4		1	07/1995-07/1997	2393	110	150	1
2.4	AJG AMM APZ	1	08/1997-11/2000	2393	120	163	1
2.4	AGA ALF AML APS ARJ	1	03/1997-11/2000	2393	121	165	1
2.4 quattro	AJG APZ	1	08/1997-11/2000	2393	120	163	3
2.4 quattro	AGA ALF AML APS ARJ	1	03/1997-11/2000	2393	121	165	3
2.6	ACZ	1	01/1996-07/1997	2598	102	139	1
2.6	ABC	1	01/1995-11/2000	2598	110	150	1
2.6 quattro	ABC	1	01/1995-11/2000	2598	110	150	3
2.7 Turbo quattro		1	02/1999-09/2000	2671	169	230	3
2.8	AAH AFC	1	09/1995-07/1997	2771	128	174	1
2.8	ATX	1	09/1999-10/2000	2771	140	190	1
2.8	ACK AHA ALG AMX APR AQD ATQ	1	10/1996-11/2000	2771	142	193	1
2.8 quattro	AAH AFC	1	01/1995-07/1997	2771	128	174	3
2.8 quattro	ATX	1	09/1999-10/2000	2771	140	190	3
2.8 quattro	ACK AHA ALG AMX APR AQD ATQ	1	10/1996-08/2001	2771	142	193	3
S4		1	10/1997-12/1998	2671	187	254	1
S4 quattro	AGB AZB	1	09/1997-09/2001	2671	195	265	3
1.9 TDI	AFF	2	12/1995-11/2000	1896	55	75	1
1.9 TDI	1Z AHH AHU	2	01/1995-11/2000	1896	66	90	1
1.9 TDI	AFN AVG	2	10/1995-11/2000	1896	81	110	1
1.9 TDI	AJM	2	03/2000-11/2000	1896	85	116	1
1.9 TDI quattro	AFN AVG	2	07/1996-01/2000	1896	81	110	3
1.9 TDI quattro	AJM ATJ	2	03/2000-11/2000	1896	85	116	3
2.5 TDI	AFB AKN	2	09/1997-11/2000	2496	110	150	1
2.5 TDI quattro	AFB AKN	2	09/1997-11/2000	2496	110	150	3

A4 B5 Avant (8D5) Estate 11/1994-12/2002

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ADP AHL ANA ARM	1	11/1994-09/2001	1595	74	100	1
1.6	ALZ	1	07/2000-09/2001	1595	75	102	1
1.8	AFY	1	07/1995-09/2001	1781	85	115	1
1.8	ADR APT ARG AVV	1	02/1996-09/2001	1781	92	125	1
1.8 quattro	AFY	1	07/1995-09/2001	1781	85	115	3
1.8 quattro	ADR APT ARG	1	01/1996-09/2001	1781	92	125	3
1.8 T	AEB ANB APU ARK AWT	1	03/1996-09/2001	1781	110	150	1
1.8 T	AJL	1	12/1997-09/2001	1781	132	180	1
1.8 T quattro	AEB ANB APU ARK ATW AWT	1	01/1996-09/2001	1781	110	150	3
1.8 T quattro	AJL	1	12/1997-09/2001	1781	132	180	3
2.4		1	07/1995-07/1997	2393	110	150	1
2.4	AJG AMM APZ	1	08/1997-09/2001	2393	120	163	1
2.4	AGA ALF AML APS ARJ	1	03/1997-09/2001	2393	121	165	1
2.4 quattro	AJG APZ	1	08/1997-09/2001	2393	120	163	3
2.4 quattro	AGA ALF AML APS ARJ	1	03/1997-09/2001	2393	121	165	3
2.6	ABC	1	02/1996-09/2001	2598	110	150	1
2.6 quattro	ABC	1	01/1996-09/2001	2598	110	150	3
2.8	AAH	1	03/1996-09/1996	2771	128	174	1
2.8	ATX	1	03/1999-09/2000	2771	140	190	1
2.8	ACK AHA ALG APR AQD	1	10/1996-09/2001	2771	142	193	1
2.8 quattro	AAH	1	01/1996-09/1996	2771	128	174	3
2.8 quattro	ATX	1	03/1999-09/2000	2771	140	190	3
2.8 quattro	ACK AHA ALG AMX APR AQD ATQ	1	10/1996-09/2001	2771	142	193	3
S4 quattro	APB	1	01/2001-12/2002	2671	185	252	3
S4 quattro	AGB AZB	1	09/1997-09/2001	2671	195	265	3
1.9 TDI	AFF	2	03/1996-09/2001	1896	55	75	1
1.9 TDI	1Z AHH AHU	2	02/1996-09/2001	1896	66	90	1
1.9 TDI	AFN AVG	2	02/1996-09/2001	1896	81	110	1
1.9 TDI	AJM ATJ	2	03/2000-09/2001	1896	85	115	1
1.9 TDI quattro	AFN AVG	2	09/1996-09/2001	1896	81	110	3
1.9 TDI quattro	ATJ	2	03/2000-09/2001	1896	85	115	3
2.5 TDI	AFB AKN	2	09/1997-09/2001	2496	110	150	1
2.5 TDI quattro	AFB AKN	2	09/1997-09/2001	2496	110	150	3
1.9 Hybrid	AHU	14	03/1998-06/2000	1896	66	90	1

A4 II B6 Avant (8E5) Estate 02/2000-12/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ALZ	1	09/2001-12/2004	1595	75	102	1
1.8 T	AVJ	1	09/2001-07/2002	1781	110	150	1
1.8 T	BEX	1	11/2002-12/2004	1781	140	190	1
1.8 T quattro	AVJ	1	09/2001-07/2002	1781	110	150	3
1.8 T quattro	AMB	1	09/2001-12/2004	1781	125	170	3
1.8 T quattro	AWM	1	04/2001-12/2004	1781	127	173	3
1.8 T quattro	BEX	1	11/2002-12/2004	1781	140	190	3
2.0	ALT	1	09/2001-12/2004	1984	96	130	1
2.0 FSI	AWA	1	07/2002-12/2004	1984	110	150	1
2.4	AMM	1	09/2001-12/2004	2393	120	163	1
3.0	BBJ	1	04/2001-12/2004	2976	160	218	1
3.0	ASN	1	09/2001-12/2004	2976	162	220	1
3.0 quattro	BBJ	1	04/2001-12/2004	2976	160	218	3
3.0 quattro	AK,BGN	1	09/2001-12/2004	2976	164	223	3
1.9 TDI	AVB	2	11/2001-12/2004	1896	74	101	1
1.9 TDI	BKE	2	06/2004-12/2004	1896	85	116	1
1.9 TDI	AVF AWX	2	09/2001-12/2004	1896	96	130	1
1.9 TDI quattro	AVF	2	11/2001-12/2004	1896	96	130	3

A4 II B6 (8E2) Saloon 11/2000-12/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ALZ	1	11/2000-12/2004	1595	75	102	1
1.8 T	AVJ	1	11/2000-07/2002	1781	110	150	1
1.8 T	AMB	1	07/2001-12/2004	1781	125	170	1
1.8 T	AWM	1	01/2001-12/2004	1781	127	173	1
1.8 T quattro	AVJ	1	11/2000-07/2002	1781	110	150	3
1.8 T quattro	BFB	1	07/2002-12/2004	1781	120	163	3
1.8 T quattro	AMB AWM	1	07/2001-12/2004	1781	125	170	3
1.8 T quattro	BEX	1	11/2002-12/2004	1781	140	190	3
2.0	ALT	1	11/2000-12/2004	1984	96	130	1
2.0 FSI	AWA	1	07/2002-12/2004	1984	110	150	1
3.0	BGN	1	01/2005-12/2005	2976	164	223	1
3.0 quattro	BGN	1	01/2005-12/2005	2976	164	223	1
1.9 TDI	AVB	2	05/2001-12/2004	1896	74	101	1
1.9 TDI	BKE	2	06/2004-12/2004	1896	85	116	1
1.9 TDI	AVF AWX	2	11/2000-12/2004	1896	96	130	1
1.9 TDI quattro	AVF	2	11/2001-12/2004	1896	96	130	3

A4 II B6 (8H7) Convertible 01/2002-12/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 T	BFB	1	07/2002-12/2005	1781	120	163	1
1.8 T	AMB	1	10/2002-10/2005	1781	125	170	1
1.8 T quattro	BFB	1	05/2003-12/2005	1781	120	163	3
2.0	ALT	1	09/2004-12/2005	1984	96	130	1
2.0 TFSI		1	11/2005-03/2009	1984	147	200	1
3.0	BBJ	1	04/2002-12/2005	2976	160	218	1

A4 III B7 (8HE) Convertible 01/2002-01/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 TFSI 16V	BWE BWT	1	01/2006-03/2009	1984	147	200	1
2.0 TDI	BRC	2	01/2006-03/2009	1968	100	136	1
2.0 TDI	BPW	2	01/2006-03/2009	1968	103	140	1

A6 II C5 (4B2) Saloon 01/1997-12/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	AFY	1	05/1997-01/2005	1781	85	116	1
1.8	AJP AQE ARH	1	07/1997-01/2005	1781	92	125	1
1.8 T	AEB ANB APU ARK AWT	1	01/1997-01/2005	1781	110	150	1
1.8 T	AJL	1	12/1997-01/2005	1781	132	180	1
1.8 T quattro	AEB ANB APU ARK AWT	1	02/1997-01/2005	1781	110	150	3
1.8 T quattro	AJL	1	12/1997-01/2005	1781	132	180	3
2.4	ALW ARN ASM	1	07/1998-01/2005	2393	100	136	1
2.4	APC	1	02/1997-01/2005	2393	115	156	1
2.4	AJG AMM APZ	1	02/1997-01/2005	2393	120	163	1
2.4	AGA ALF AML APS ARJ	1	02/1997-01/2005	2393	121	165	1
2.4 quattro	APC	1	08/1998-07/1999	2393	115	156	3
2.4 quattro	AJG APZ	1	02/1997-01/2005	2393	120	163	3
2.4 quattro	AGA ALF AML APS ARJ	1	02/1997-01/2005	2393	121	165	3
2.7 T	AJK	1	02/1999-01/2005	2671	169	230	1
2.7 T quattro	AJK AZA	1	12/1997-01/2005	2671	169	230	3
2.7 T quattro	ARE BES	1	08/2001-01/2005	2671	184	250	3
2.8	AGE	1	10/1997-05/2000	2771	132	180	1
2.8	ATX	1	07/1999-01/2005	2771	140	190	1
2.8	ACK ALG AMX APR AQD ATQ	1	02/1997-01/2005	2771	142	193	1
2.8 quattro	AGE	1	01/1998-04/2000	2771	132	180	3
2.8 quattro	ACK ALG AMX APR AQD ATQ	1	02/1997-01/2005	2771	142	193	3
3.7	AQG	1	03/1999-01/2005	3697	191	260	1
3.7 quattro	AQG	1	03/1999-01/2005	3697	191	260	3
4.2 quattro	ARS ART ASG AWN	1	11/1998-01/2005	4172	220	299	3
1.9 TDI	AFN AVG	2	04/1997-10/2000	1896	81	110	1
1.9 TDI	AJM	2	07/2000-01/2005	1896	85	115	1
2.5 TDI	AFB AKN	2	07/1997-01/2005	2496	110	150	1
2.5 TDI	AKE BAU BDH	2	02/2000-01/2005	2496	132	180	1
2.5 TDI quattro	AFB AKN	2	07/1997-01/2005	2496	110	150	3
2.5 TDI quattro	AKE BAU BDH	2	02/2000-01/2005	2496	132	180	3

A6 II C5 Avant (4B5) Estate 11/1997-01/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	AFY	1	02/1998-01/2005	1781	85	116	1
1.8	AJP AQE ARH	1	12/1997-01/2005	1781	92	125	1
1.8 T	AEB ANB APU ARK AWT	1	12/1997-01/2005	1781	110	150	1
1.8 T	AJL	1	04/1999-01/2005	1781	132	180	1
1.8 T quattro	AEB ANB APU ARK AWT	1	12/1997-01/2005	1781	110	150	3
1.8 T quattro	AJL	1	12/1997-01/2005	1781	132	180	3
2.4	ALW ARN ASM	1	07/1998-01/2005	2393	100	136	1
2.4	APC	1	12/1997-01/2005	2393	115	156	1
2.4	AJG AMM APZ	1	12/1997-01/2005	2393	120	163	1
2.4	AGA ALF AML APS ARJ	1	12/1997-01/2005	2393	121	165	1
2.4 quattro	APC	1	08/1998-05/2001	2393	115	156	3
2.4 quattro	AJG APZ	1	12/1997-01/2005	2393	120	163	3
2.4 quattro	AGA ALF AML APS ARJ	1	12/1997-01/2005	2393	121	165	3
2.7 T	AJK	1	02/1999-01/2005	2671	169	230	1
2.7 T quattro	AJK AZA	1	12/1997-01/2005	2671	169	230	3
2.8	AGE	1	12/1997-05/2000	2771	132	180	1
2.8	ATX	1	07/1999-01/2005	2771	140	190	1
2.8	ACK ALG AMX APR AQD	1	12/1997-01/2005	2771	142	193	1
2.8 quattro	ACK ALG AMX APR AQD ATQ	1	12/1997-01/2005	2771	142	193	3
3.7	AQG	1	03/1999-01/2005	3697	191	260	1
3.7 quattro	AQG	1	03/1999-01/2005	3697	191	260	3
4.2 quattro	ARS ASG	1	11/1998-01/2005	4172	220	299	3
1.9 TDI	AFN AVG	2	02/1998-04/2001	1896	81	110	1
1.9 TDI	AJM	2	07/2000-01/2005	1896	85	115	1
2.5 TDI	AFB AKN	2	12/1997-01/2005	2496	110	150	1
2.5 TDI	AKE BAU BDH	2	02/2000-01/2005	2496	132	180	1
2.5 TDI quattro	AFB AKN	2	12/1997-01/2005	2496	110	150	3
2.5 TDI quattro	AKE BAU BDH	2	02/2000-01/2005	2496	132	180	3

A8 D2 (4D2, 4D8) Saloon 03/1994-12/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.8	ACK ALG AMX APR AQD	1	04/1996-09/2002	2771	142	193	1
2.8 quattro	ACK ALG AMX APR AQD	1	04/1996-09/2002	2771	142	193	3
3.7	AEW	1	07/1995-12/1998	3697	169	230	1
3.7	AKC AQG	1	11/1998-09/2002	3697	191	260	1
3.7 quattro	AKC AQG	1	11/1998-09/2002	3697	191	260	3
4.2 40V		1	09/1999-12/2002	4172	224	305	1
4.2 quattro	ARU	1	02/1999-04/2000	4172	175	238	3
4.2 quattro	AKB AQF AUW AUX	1	11/1998-09/2002	4172	228	310	3
4.2 quattro	AKB	1	01/2000-12/2002	4172	231	314	3
6.0 W12 quattro	AZC	1	01/2001-09/2002	5998	309	420	3
S8 quattro	AHC AKH	1	07/1996-06/1999	4172	250	340	3
S8 quattro	AQH AVP AYS BCS	1	06/1999-09/2002	4172	265	360	3
2.5 TDI	AFB AKN	2	01/1997-04/2000	2496	110	150	1
2.5 TDI	AKE	2	09/2000-09/2002	2496	132	180	1
2.5 TDI quattro	AFB AKN	2	07/1997-04/2000	2496	110	150	3
2.5 TDI quattro	AKE	2	09/2000-09/2002	2496	132	180	3
3.3 TDI quattro	AKF	2	06/2000-09/2002	3328	165	224	3

A8 II (U.S.A. D3) Saloon 01/2002-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
4.2		1	09/2002-12/2003	4172	224	305	1

ALLROAD C5 (4BH) Estate 05/2000-08/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.7 quattro	APB BEL	1	09/2000-08/2005	2671	187	254	3
2.7 T quattro	ARE BES	1	05/2000-08/2005	2671	184	250	3
4.2 V8 quattro	BAS	1	07/2002-08/2005	4163	220	299	3
2.5 TDI quattro	BCZ	2	05/2003-08/2005	2496	120	163	3
2.5 TDI quattro	AKE BAU	2	05/2000-08/2005	2496	132	180	3

TT (8N3) Coupe 10/1998-02/2007

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 T	AUM	1	09/2002-06/2006	1781	110	150	1
1.8 T	BVP	1	09/2005-06/2006	1781	120	163	1
1.8 T	AJQ APP ATC AUQ	1	10/1998-06/2006	1781	132	180	1
1.8 T	AWP	1	09/1999-06/2006	1781	134	182	1
1.8 T		1	09/1999-06/2006	1781	134	182	1
1.8 T	BVR	1	09/2005-06/2006	1781	140	190	1
1.8 T		1	09/1999-06/2006	1781	168	228	1
1.8 T quattro	AJQ ARY ATC AUQ	1	10/1998-06/2006	1781	132	180	3
1.8 T quattro		1	09/1999-06/2006	1781	134	182	3
1.8 T quattro	BVR	1	09/2005-06/2006	1781	140	190	3
1.8 T quattro	APX BAM BEA	1	10/1998-06/2006	1781	165	224	3
1.8 T quattro	BFV	1	03/2005-06/2006	1781	180	245	3
3.2 VR6 quattro	BHE BPF	1	07/2003-06/2006	3189	184	250	3

TT (8N9) Convertible 10/1999-02/2007

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 T	AUM	1	01/2001-06/2006	1781	110	150	1
1.8 T	BVP	1	09/2005-06/2006	1781	120	163	1
1.8 T	AJQ APP ATC AUQ AWP	1	10/1999-06/2006	1781	132	180	1
1.8 T		1	10/1999-08/2002	1781	134	182	1
1.8 T	AWP	1	01/2001-12/2005	1781	134	182	1
1.8 T	BVR	1	09/2005-06/2006	1781	140	190	1
1.8 T		1	09/2000-06/2006	1781	168	228	1
1.8 T quattro	AJQ ARY AUQ	1	02/2000-06/2006	1781	132	180	3
1.8 T quattro	BVR	1	09/2005-06/2006	1781	140	190	3
1.8 T quattro	APX BAM BEA	1	10/1999-06/2006	1781	165	224	3
3.2 VR6 quattro	BHE BPF	1	07/2003-06/2006	3189	184	250	3

BAIC

BJ40 () SUV 12/2013-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.4 4WD		1	12/2013-	2438	105	143	1

BAIC-ORV

BJ40 () SUV 12/2013-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	B201R	1	04/2016-	1985	150	204	2
2.0	B201R	1	04/2016-	1985	150	204	3
2.0 4WD		1	08/2020-	1967	165	224	3
2.0 TDI 4WD	YC4Y20-15058	2	01/2018-	1999	110	150	3

BJ40L () Closed Off-Road Vehicle 04/2016-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 4WD	HY4C20B	1	05/2020-	1967	165	224	3
2.0 4WD	4G20TI3	1	12/2018-	1981	160	218	3
2.0 4WD	B201R	1	04/2016-	1985	150	204	3
2.0 4WD	4F20TC13	2	03/2021-	1968	120	163	3

BAW

QISHI () Hatchback 06/2006-12/2012

Vehicle	Fuel	Date	CC	KW	CV	Traction
2.0	1	06/2006-	1977	90	122	1
2.0	1	06/2006-	1977	90	122	1
2.2	1	06/2006-	2237	104	141	1
2.2	1	06/2006-	2237	104	141	1

QISHI II (S12) Hatchback 01/2007-12/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0		1	01/2011-	1977	90	122	1
2.2		1	01/2011-	2237	104	141	1

YONGSHI () Closed Off-Road Vehicle 07/2008-12/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.7		2	07/2008-	2693	110	150	2
2.9		2	07/2008-	2951	102	139	2

YONGSHI () Pickup 03/2018-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 4WD	4G63-S4T	1	03/2018-	1997	140	190	3
2.2 4WD	4G22C	1	03/2018-	2237	82	112	3
2.4	YCY24140-60A	1	06/2020-	2360	103	140	3
2.4 4WD	4K22D4T	1	06/2019-	2378	150	204	3

CITROËN

BERLINGO / BERLINGO FIRST (MF_, GJK_, GFK_) MPV 07/1996-12/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V (MFNFU)	NFU (TU5JP4)	1	10/2000-12/2011	1587	80	109	1
1.6 16V (MFNFU)	NFU (TU5JP4)	1	11/2002-10/2008	1587	81	110	1
1.6 HDI 90 (MF9HX)	9HX (DV6ATED4)	2	07/2005-05/2008	1560	66	90	1
1.6 HDI 92	9HJ (DV6DTEDM) 9HP (DV6DTED)	2	11/2009-12/2010	1560	68	92	1
2.0 HDI 90 (MFRHY)	RHY (DW10TD)	2	12/1999-10/2005	1997	66	90	1

BERLINGO / BERLINGO FIRST (M_) Box Body/MPV 07/1996-12/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	NFU (TU5JP4)	1	08/2005-12/2007	1587	81	110	1
1.6 16V (MBNFU)	NFU (TU5JP4)	1	10/2000-03/2008	1587	80	109	1
1.4 BiFuel (MBKFXB, MCKFXB)	KFW (TU3JP)	18	07/1996-10/2002	1360	55	75	1
1.6 HDI 90 (MB9HX, MC9HX)	9HX (DV6ATED4)	2	07/2005-12/2011	1560	66	90	1
1.6 HDI 92	9HJ (DV6DTEDM) 9HP (DV6DTED)	2	11/2009-12/2010	1560	68	92	1
2.0 HDI 90 (MBRHY, MCRHY)	RHY (DW10TD)	2	12/1999-12/2011	1997	66	90	1
Electric		11	01/2010-12/2010		42	57	1

BERLINGO II (B9) Box Body/MPV 04/2008-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	NFR (TU5JP4B)	1	04/2008-	1587	66	90	1
1.6	NFU (TU5JP4)	1	04/2008-	1587	80	109	1
1.6 VTI 120	5FS (EP6C)	1	11/2009-	1598	88	120	1
1.6 VTi 95	5FK (EP6CB)	1	07/2010-	1598	72	98	1
1.6 BlueHDi 100	BHY (DV6FD)	2	12/2014-	1560	73	99	1
1.6 BlueHDi 120	BHZ (DV6FC)	2	12/2014-	1560	88	120	1
1.6 HDi / BlueHDi 75	9HN (DV6ETED) BHW (DV6FE)	2	07/2010-	1560	55	75	1
1.6 HDi 110	9HZ (DV6TED4)	2	04/2008-	1560	80	109	1
1.6 HDi 110	9HL (DV6C) 9HR (DV6C)	2	07/2010-	1560	82	112	1
1.6 HDi 115	9HL (DV6C)	2	07/2010-	1560	84	114	1
1.6 HDi 75	9HT (DV6BTED4) 9HT (DV6BUTED4)	2	04/2008-	1560	55	75	1
1.6 HDi 90	9HE (DV6DBM) 9HF (DV6DTED)	2	07/2010-12/2017	1560	66	90	1
1.6 HDi 90	9HJ (DV6DTEDM) 9HP (DV6DTED)	2	07/2010-	1560	68	92	1
1.6 HDi 90 16V	9HS (DV6TED4BU) 9HX (DV6AUTED4)	2	04/2008-	1560	66	90	1
Electric	Y4F1	11	01/2013-		35	48	1
Electric	Y4F1	11	01/2013-		49	67	1

BERLINGO II (B9) Platform/Chassis 04/2008-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 BlueHDi 100	BHY (DV6FD)	2	12/2014-	1560	73	99	1
1.6 HDi 90	9HF (DV6DTED)	2	07/2010-	1560	66	90	1
1.6 HDi 90 16V	9HX (DV6ATED4)	2	04/2008-	1560	66	90	1
1.6 HDI 92	9HJ (DV6DTEDM)	2	07/2010-12/2017	1560	68	92	1

BERLINGO II MULTISPACE (B9) MPV 04/2008-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 PureTech 110	HNZ (EB2DT)	1	02/2016-	1199	81	110	1
1.6	NFR (TU5JP4B)	1	04/2008-	1587	66	90	1
1.6	NFU (TU5JP4)	1	04/2008-	1587	80	109	1
1.6 VTI 120	5FS (EP6C)	1	11/2009-	1598	88	120	1
1.6 VTi 95	5FK (EP6CB)	1	07/2010-	1598	72	98	1
1.6 BlueHDi 100	BHY (DV6FD)	2	12/2014-	1560	73	99	1
1.6 BlueHDi 120	BHZ (DV6FC)	2	12/2014-	1560	88	120	1
1.6 HDi 110	9HZ (DV6TED4)	2	04/2008-	1560	80	109	1
1.6 HDi 110	9HL (DV6C) 9HR (DV6C)	2	07/2010-	1560	82	112	1
1.6 HDi 115	9HR (DV6C)	2	07/2010-	1560	84	114	1
1.6 HDi 75 / BlueHDi 75	9HN (DV6ETED) BHW (DV6FE)	2	04/2008-	1560	55	75	1
1.6 HDi 75 16V	9HT (DV6BTED4)	2	04/2008-	1560	55	75	1
1.6 HDi 90	9HV (DV6TED4B) 9HX (DV6ATED4)	2	04/2008-	1560	66	90	1
1.6 HDi 90	9HJ (DV6DTEDM) 9HP (DV6DTED)	2	07/2010-	1560	68	92	1
Electric	Y4F1	11	09/2017-		49	67	1

BERLINGO III (K9) Box Body/MPV 06/2018-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
PureTech 110	HNP (EB2ADT)	1	06/2018-	1199	81	110	1

C2 (JM_) Hatchback 07/2003-09/2017

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	KFV (TU3A) KFV (TU3JP)	1	09/2003-12/2009	1360	54	73	1
1.4	KFV (TU3JP)	1	10/2006-12/2009	1360	55	75	1
1.4 16V	KFU (ET3J4)	1	04/2005-12/2009	1360	65	90	1
1.6	NFU (TU5JP4)	1	07/2003-10/2010	1587	80	109	1
1.6	NFU(TU5JP4)	1	01/2008-09/2017	1587	81	110	1
1.6 VTS	NFS (TU5JP4S)	1	10/2004-12/2009	1587	90	122	1
1.4 HDi	8HX (DV4TD) 8HZ (DV4TD)	2	07/2003-12/2009	1398	50	68	1
1.4 HDi	8HX (DV4TD)	2	09/2003-04/2005	1398	51	69	1
1.6 HDi	9HZ (DV6TED4)	2	09/2005-12/2009	1560	80	109	1

C2 II ENTERPRISE (JG_) Hatchback Van 11/2003-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 HDi	8HX (DV4TD)	2	09/2006-12/2009	1398	50	68	1
1.4 HDi	8HZ (DV4TD)	2	11/2003-04/2005	1398	51	69	1

C3 (FC_, FN_) Hatchback 02/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	KFU (ET3J4)	1	12/2003-08/2010	1360	65	88	1
1.6 16V	NFU (TU5JP4)	1	02/2002-08/2010	1587	80	109	1
1.6 16V	NFU (TU5JP4)	1	05/2003-09/2005	1587	81	110	1
1.6 BioFlex	NFU (TU5JP4)	19	06/2005-12/2013	1587	83	113	1
1.4 16V HDi	8HY (DV4TED4)	2	02/2002-06/2008	1398	66	90	1
1.6 16V HDi	9HX (DV6ATED4)	2	10/2005-12/2009	1560	66	90	1
1.6 16V HDi	9HZ (DV6TED4)	2	09/2005-12/2009	1560	80	109	1

C3 Pluriel (HB_) Convertible 05/2003-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	NFU (TU5JP4)	1	05/2003-	1587	80	109	1

C3 AIRCROSS () MPV 08/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5		1	11/2015-	1449	66	90	1
1.6	NFU(TU5JP4)	1	08/2010-	1587	81	110	1
1.6 VTi		1	06/2013-	1587	85	116	1
1.4 Flex	YFY (TU4M)	19	11/2015-09/2017	1449	68	92	1
1.6 Flex	NFU (TU5JP4)	19	12/2014-	1587	83	113	1
1.6 Flex	EC5	19	07/2012-	1587	90	122	1

C3 II Picasso (SH_) MPV 12/2008-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 THP 110 (SHHNZ6)	HNZ (EB2DT)	1	01/2015-12/2015	1199	81	110	1
1.4 VTi 95 (SH8FSC, SH8FP0, SH8FP6)	8FN (EP3) 8FP (EP3C) 8FS (EP3)	1	12/2008-12/2015	1397	70	95	1
1.5 Flex		1	05/2014-	1449	68	92	1
1.5 i		1	06/2013-	1449	66	90	1
1.6		1	04/2011-06/2013	1587	81	110	1
1.6		1	07/2012-	1587	85	115	1
1.6 Flex		1	07/2012-	1590	90	122	1
1.6 VTi 115 (SH5FP0, SH5FP8)	5FP (EP6)	1	07/2009-12/2015	1598	84	114	1
1.6 VTI 120	5FS (EP6C) 5FW (EP6)	1	02/2009-07/2015	1598	88	120	1
1.4 VTi 95 LPG (SH8FN0)	8FN (EP3)	18	09/2010-11/2015	1397	70	95	1
1.6 Exclusive Flex	NFX (TU5JP4)	19	05/2011-06/2012	1587	83	113	1
1.6 BlueHDi 100	BHY (DV6FD)	2	01/2015-08/2017	1560	73	99	1
1.6 HDi	9HX (DV6ATED4)	2	02/2009-03/2015	1560	66	90	1
1.6 HDi	9HZ (DV6TED4)	2	02/2009-12/2010	1560	80	109	1
1.6 HDi 110	9HR (DV6C)	2	05/2010-02/2013	1560	82	112	1
1.6 HDi 115	9HD (DV6C)	2	01/2013-03/2015	1560	84	114	1
1.6 HDi 90	9HP (DV6DTED)	2	07/2010-03/2015	1560	68	92	1

C3 II (SC_) Hatchback 09/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.1 i	HFV (TU1A) HFX (TU1A)	1	09/2009-01/2013	1124	44	60	1
1.2 THP 110	HNZ (EB2DT)	1	10/2014-09/2016	1199	81	110	1
1.2 VTI 82	HMZ (EB2) HMZ (EB2F)	1	06/2012-09/2016	1199	60	82	1
1.4	K6E (TU3A) KFT (TU3AE5)	1	11/2009-09/2016	1360	54	73	1
1.4 Flex		1	11/2009-	1360	58	80	1
1.4 VTi	8FR (EP3)	1	11/2009-09/2016	1397	72	98	1
1.4 VTi 95	8FP (EP3C)	1	11/2009-09/2016	1397	70	95	1
1.5 i		1	01/2012-	1449	65	89	1
1.6 Flex		1	11/2009-	1587	81	110	1
1.6 VTI 120	5FS (EP6C)	1	11/2009-09/2016	1598	88	120	1
1.2 PureTech Flex		19	06/2016-06/2021	1199	66	90	1
1.5 Flex		19	08/2012-12/2016	1449	68	92	1
1.4 HDi 70 (SC8HZC, SC8HR0, SC8HP4)	8HR (DV4C) 8HZ (DV4TD)	2	11/2009-09/2016	1398	50	68	1
1.6 HDi	9HJ (DV6DTEDM) 9HP (DV6DTED)	2	11/2009-09/2016	1560	68	92	1
1.6 HDi 110	9HR (DV6C)	2	11/2009-09/2016	1560	82	112	1
1.6 HDi 115	9HD (DV6C)	2	09/2012-09/2016	1560	84	114	1
1.6 HDi 90	9HX (DV6ATED4)	2	11/2009-09/2016	1560	66	90	1

C3 III (SX) Hatchback 07/2016-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 PureTech 82	HMR (EB2FA)	1	05/2018-	1199	61	83	1
1.2 VTi 68	HMM (EB2FAD) HMP (EB2FB)	1	07/2016-	1199	50	68	1
1.2 VTI 82	HMZ (EB2F)	1	07/2016-	1199	60	82	1
1.6 VTi (SXNFPT)	NFP (EC5)	1	02/2017-	1587	85	115	1
1.2 PureTech 82 LPG	HMR (EB2FA)	18	05/2018-	1199	61	83	1
1.2 VTi 82 LPG	HMZ (EB2F)	18	07/2016-	1199	60	82	1
1.5 BlueHDi 100 (SXYHYP, SXYHTU)	YHY (DV5RD)	2	05/2018-	1499	75	102	1
1.6 BlueHDi 100	BHY (DV6FD)	2	07/2016-	1560	73	99	1
1.6 BlueHDi 75	BHW (DV6FE)	2	07/2016-	1560	55	75	1

C3 III Van (SX_, SY_) Hatchback Van 07/2016-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
PureTech 110	HNZ (EB2DT)	1	03/2019-	1199	81	110	1
PureTech 82	HMR (EB2FA)	1	03/2019-	1199	61	83	1
BlueHDi 100	YHY (DV5RD)	2	03/2019-	1499	75	102	1
BlueHDi 100	BHY (DV6FD)	2	03/2019-	1560	73	99	1
BlueHDi 75	BHW (DV6FE)	2	03/2019-	1560	55	75	1

C3 III AIRCROSS II (2R_, 2C_) SUV 06/2017-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 PureTech 110 (2RHNZB, 2RHNZW, 2RHNPX, 2RHNPJ)	HNP (EB2ADT) HNV (EB2DTM) HNZ (EB2DT)	1	06/2017-	1199	81	110	1
1.2 PureTech 130 (2RHNYH)	HNS (EB2ADTS) HNY (EB2DTS)	1	07/2017-	1199	96	131	1
1.2 PureTech 82 (2RHMRC, 2RHMZB)	HMR (EB2FA) HMZ (EB2F)	1	06/2017-	1199	60	82	1
1.5 BlueHDi 100 (2CYHYJ)	YHY (DV5RD)	2	08/2018-	1499	73	99	1
1.5 BlueHDi 100 (2CYHYJ)	YHY (DV5RD)	2	08/2018-	1499	75	102	1
1.5 BlueHDi 110	YHS (DV5RCE)	2	10/2020-	1499	81	110	1
1.5 BlueHDi 120 (2CYHXX)	YHX (DV5RC)	2	08/2018-	1499	88	120	1
1.6 BlueHDi 100 (2CBHYB)	BHY (DV6FD)	2	07/2017-	1560	73	99	1
1.6 BlueHDi 115 (2CBHXH)	BHX (DV6FC)	2	06/2017-	1560	85	115	1
1.6 BlueHDi 120 (2CBHZH)	BHZ (DV6FC)	2	07/2017-	1560	88	120	1
1.6 HDi 92 (2C9HPA)	9HP (DV6D) 9HP (DV6DTED)	2	10/2017-	1560	68	92	1

C3 III AIRCROSS II Van (2C_, 2R_) SUV Van 06/2017-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
PureTech 82	HMZ (EB2F)	1	05/2019-	1199	60	82	1
PureTech 82	HNZ (EB2DT)	1	05/2019-	1199	81	110	1
1.5 BlueHDi 100	YHY (DV5RD)	2	05/2019-	1499	73	99	1
1.5 BlueHDI 120	YHX (DV5RC)	2	05/2019-	1499	88	120	1
1.6 BlueHDi 100	BHY (DV6FD)	2	05/2019-	1560	73	99	1

C4 (LC_) Hatchback 11/2004-12/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	KFU (ET3J4)	1	11/2004-07/2011	1360	65	88	1
1.6 16V	NFU (TU5JP4)	1	11/2004-07/2011	1587	80	109	1
1.6 THP 140	5FT (EP6DT)	1	07/2008-07/2011	1598	103	140	1
1.6 THP 150	5FX (EP6DT)	1	07/2008-07/2011	1598	110	150	1
1.6 VTI 120	5FW (EP6)	1	07/2008-07/2011	1598	88	120	1
2.0 16V	RFN (EW10J4)	1	11/2004-07/2007	1997	100	136	1
2.0 16V	RFJ (EW10A)	1	11/2004-07/2011	1997	103	140	1
2.0 16V	RFJ (EW10A)	1	09/2006-07/2009	1997	105	143	1
2.0 16V	RFK (EW10J4S)	1	11/2004-07/2008	1997	130	177	1
1.6 16V Bio-Flex	NFU (TU5JP4)	19	09/2007-07/2008	1587	80	109	1
1.6 GLX	NGA (TU5JP4)	19	09/2007-09/2010	1587	83	113	1
1.6 HDi	9HX (DV6ATED4)	2	11/2004-07/2011	1560	66	90	1
1.6 HDi	9HY (DV6TED4) 9HZ (DV6TED4)	2	11/2004-07/2011	1560	80	109	1
1.6 HDi		2	07/2006-07/2011	1560	85	116	1
2.0 HDi	RHZ (DW10ATED)	2	04/2007-07/2008	1997	81	110	1
2.0 HDi	RHR (DW10BTED4)	2	11/2004-07/2011	1997	100	136	1
2.0 HDi	RHF (DW10BTED4)	2	07/2008-07/2011	1997	103	140	1

C4 (LA_) Coupe 11/2004-12/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	KFU (ET3J4)	1	11/2004-07/2011	1360	65	88	1
1.6 16V	NFU (TU5JP4)	1	11/2004-07/2011	1587	80	109	1
1.6 16V	NFU (TU5JP4)	1	03/2011-12/2013	1587	81	110	1
1.6 THP	5FT (EP6DT)	1	06/2008-07/2011	1598	103	140	1
1.6 THP 150	5FX (EP6DT)	1	07/2008-07/2011	1598	110	150	1
1.6 VTI 120	5FW (EP6)	1	07/2008-07/2011	1598	88	120	1
2.0 16V	RFN (EW10J4)	1	11/2004-07/2007	1997	100	136	1
2.0 16V	RFK (EW10J4S)	1	11/2004-12/2010	1997	130	177	1
2.0 VTR	RFJ (EW10A)	1	10/2006-12/2007	1997	103	140	1
1.6 HDi	9HX (DV6ATED4)	2	11/2004-07/2011	1560	66	90	1
1.6 HDi	9HY (DV6TED4) 9HZ (DV6TED4)	2	11/2004-07/2011	1560	80	109	1
2.0 HDi	RHR (DW10BTED4)	2	11/2004-12/2010	1997	100	136	1
2.0 HDi	RHF (DW10BTED4)	2	07/2008-07/2011	1997	103	140	1

C4 (LR_) Hatchback Van 02/2005-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 HDi	RHR (DW10BTED4)	2	02/2005-12/2010	1997	100	136	1

C4 / C4 PALLAS () Saloon 07/2006-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	03/2011-11/2014	1587	81	110	1
1.6 16V	NFU (TU5JP4)	1	07/2006-07/2011	1587	80	109	1
2.0 16V	RFJ (EW10A)	1	07/2006-07/2011	1997	103	140	1
2.0 Exclusive 16V	RFJ (EW10A)	1	07/2007-11/2014	1997	105	143	1
2.0 Flex	RFJ (EW10A)	19	10/2008-07/2013	1997	109	148	1
2.0 Flex	RFJ (EW10A)	19	07/2006-08/2013	1997	111	151	1
1.6 HDi	9HY (DV6TED4) 9HZ (DV6TED4)	2	07/2006-07/2011	1560	80	109	1
2.0 HDi		2	04/2007-12/2011	1997	81	110	2
2.0 HDi		2	06/2007-12/2010	1997	103	140	2

C4 II (NC_) Hatchback 02/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 THP 110 (NCHNZ6, NCHNV6)	HNZ (EB2DT)	1	02/2015-12/2017	1199	81	110	1
1.4 VTi 95 (NC8FP0)	8FP (EP3C)	1	11/2009-11/2015	1397	70	95	1
1.6 (NCNFU0)		1	01/2010-	1587	81	110	1
1.6 Flex		1	11/2009-	1587	83	113	1
1.6 THP 155	5FV (EP6CDT)	1	11/2009-12/2016	1598	115	156	1
1.6 VTi 120 (NC5FS0, NC5FS9)	5FS (EP6C)	1	11/2009-12/2016	1598	88	120	1
2.0 Flex		1	11/2009-	1997	111	151	1
1.6 VTi 120 LPG (NC5FS0)	5FS (EP6C)	18	09/2011-	1598	88	120	1
2.0 Exclusive GLX Flex		19	02/2009-07/2013	1997	109	148	1
1.6 BlueHDi 100	BHY (DV6FD)	2	07/2014-	1560	73	99	1
1.6 BlueHDi 115	BHX (DV6FC)	2	08/2014-	1560	85	115	1
1.6 HDi 110	9HR (DV6C)	2	11/2009-	1560	82	112	1
1.6 HDi 115	9HD (DV6C)	2	07/2012-	1560	84	114	1
1.6 HDi 90	9HJ (DV6DTEDM) 9HP (DV6DTED)	2	11/2009-	1560	68	92	1
2.0 HDi / BlueHDi 150	AHR (DW10FD) RHE (DW10CTED4)	2	11/2009-	1997	110	150	1

C4 II (NC_) Hatchback Van 11/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 BlueHDi	BHY (DV6FD)	2	07/2014-	1560	73	99	1
1.6 BlueHDi	BHZ (DV6FC)	2	02/2015-	1560	88	120	1
1.6 HDi	9HP (DV6DTED)	2	06/2010-	1560	68	92	1
1.6 HDi	9HR (DV6C)	2	11/2009-	1560	82	111	1

C4 II (NC_) Saloon 01/2013-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	NFP (EC5)	1	01/2013-	1587	85	116	1
1.6	5FS (EP6C)	1	01/2013-	1598	88	120	1
1.6 Flex		1	12/2014-	1598	127	173	1
1.6 THP	5FE (EP6CDTMD)	1	01/2013-	1598	110	150	1
1.6 THP 165		1	08/2013-	1598	121	165	1
2.0 16V		1	09/2013-	1997	105	143	1
2.0 Flex		1	08/2013-	1997	111	151	1

C4 CACTUS () Hatchback 09/2014-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 PureTech 130	HNS (EB2ADTS) HNY (EB2DTS)	1	11/2017-	1199	96	131	1
1.2 THP 110	HNP (EB2ADT) HNV (EB2DTM) HNZ (EB2DT)	1	09/2014-	1199	81	110	1
1.2 VTi 75 / PureTech 75	HMU (EB2D) HMU (EB2FD)	1	09/2014-	1199	55	75	1
1.2 VTI 82	HMZ (EB2F)	1	09/2014-	1199	60	82	1
1.5 BlueHDi 100	YHY (DV5RD)	2	06/2018-	1499	75	102	1
1.5 BlueHDI 120	YHX (DV5RC)	2	09/2018-	1499	88	120	1
1.6 BlueHDi 100	BHY (DV6FD)	2	09/2014-	1560	73	99	1
1.6 HDi 90	9HJ (DV6DTEDM) 9HP (DV6D) 9HP (DV6DTED)	2	09/2014-	1560	68	92	1

C4 CACTUS Van (0B_, 0P_) Hatchback Van 09/2014-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
PureTech 110	HNP (EB2ADT) HNZ (EB2DT)	1	05/2019-	1199	81	110	1
PureTech 130	HNY (EB2DTS)	1	05/2019-	1199	96	131	1
PureTech 82	HMZ (EB2)	1	05/2019-	1199	60	82	1
BlueHDi 100	YHY (DV5RD)	2	05/2019-	1499	73	99	1
BlueHDi 100	BHY (DV6FD)	2	05/2019-	1560	73	99	1

C8 (EA_, EB_) MPV 06/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	RFN (EW10J4)	1	07/2002-	1997	100	136	1
2.0 16V	RFJ (EW10A)	1	09/2005-	1997	103	140	1
2.0 16V		1	09/2005-	1997	104	141	1
2.2	3FZ (EW12J4)	1	07/2002-	2230	116	158	1
3.0 V6	XFX (ES9J4S)	1	07/2002-	2946	150	204	1
2.0 HDi	RHM (DW10ATED4) RHT (DW10ATED4)	2	07/2002-	1997	79	107	1
2.0 HDi	RHW (DW10ATED4)	2	07/2002-	1997	80	109	1
2.0 HDi	RHT (DW10ATED4)	2	07/2002-	1997	81	110	1
2.0 HDi	RHK (DW10UTED4)	2	07/2006-	1997	88	120	1
2.0 HDi 135	RHD (DW10CB) RHD (DW10CTED4) RHR (DW10BTED4)	2	03/2006-	1997	100	136	1
2.0 HDi 165	RHH (DW10CTED4)	2	03/2006-	1997	120	163	1
2.2 HDi	4HW (DW12TED4)	2	07/2002-	2179	94	128	1
2.2 HDi	4HP (DW12BTED4) 4HR (DW12BTED4)	2	06/2007-	2179	120	163	1
2.2 HDi	4HT (DW12BTED4)	2	06/2006-12/2012	2179	125	170	1

C8 (EA_, EB_) Box Body/MPV 06/2002-

Vehicle	Fuel	Date	CC	KW	CV	Traction
2.0 (EBRFJC)	1	06/2004-12/2011	1997	103	140	1
2.0 (EBRFNC, EBRFNE)	1	11/2003-11/2004	1997	100	136	1
2.2 (EB3FZC)	1	11/2003-08/2007	2230	116	158	1
3.0 (EBXFWF, EAXFWF)	1	11/2003-10/2007	2946	150	204	1
HDi (EB4HWB)	2	11/2003-07/2006	2179	94	128	1
HDi 110 (EBRHTB)	2	11/2003-12/2009	1997	81	110	1

DS3 (SA_) Hatchback 11/2009-12/2016

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 THP 110	HNZ (EB2DT)	1	10/2014-03/2015	1199	81	110	1
1.2 VTI 82	HMZ (EB2) HMZ (EB2F)	1	01/2013-03/2015	1199	60	82	1
1.4 VTi 95	8FP (EP3C)	1	04/2010-07/2015	1397	70	95	1
1.4 VTi 98	8FR (EP3C)	1	11/2009-07/2015	1397	72	98	1
1.6 Racing	5FF (EP6DTS)	1	02/2011-07/2015	1598	149	203	1
1.6 Racing	5FD (EP6DTS)	1	02/2011-07/2015	1598	152	207	1
1.6 THP 150	5FN (EP6CDT) 5FX (EP6DT)	1	01/2010-07/2015	1598	110	150	1
1.6 THP 155	5FR (EP6DT) 5FV (EP6CDT)	1	04/2010-07/2015	1598	115	156	1
1.6 THP 165	5GZ (EP6FDT)	1	10/2014-06/2015	1598	121	165	1
1.6 THP160	5FM (EP6DT)	1	01/2012-07/2015	1598	120	163	1
1.6 VTI 120	5FS (EP6C)	1	04/2010-07/2015	1598	88	120	1
1.4 VTi 95 LPG	8FR (EP3C)	18	08/2012-07/2015	1397	70	95	1
1.4 HDi 70 (SA8HP4)	8HR (DV4C)	2	04/2010-07/2015	1398	50	68	1
1.6 BlueHDi 100	BHY (DV6FD)	2	07/2014-07/2015	1560	73	99	1
1.6 BlueHDi 120	BHZ (DV6FC)	2	10/2013-07/2015	1560	88	120	1
1.6 BlueHDi 75	BHW (DV6FE)	2	03/2015-07/2015	1560	55	75	1
1.6 HDi 110	9HR (DV6C)	2	11/2009-07/2015	1560	82	112	1
1.6 HDi 115	9HD (DV6C)	2	08/2012-07/2015	1560	84	114	1
1.6 HDi 115	BHX (DV6FC)	2	10/2013-07/2015	1560	85	115	1
1.6 HDi 90	9HP (DV6DTED)	2	11/2009-07/2015	1560	68	92	1

DS3 () Convertible 01/2013-07/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 THP 110	HNZ (EB2DT)	1	10/2014-07/2015	1199	81	110	1
1.2 VTI 82	HMZ (EB2F)	1	01/2013-07/2015	1199	60	82	1
1.6 Racing	5FF (EP6DTS)	1	03/2014-07/2015	1598	149	203	1
1.6 Racing	5FD (EP6DTS)	1	03/2014-07/2015	1598	152	207	1
1.6 THP 150	5FN (EP6CDT)	1	01/2013-07/2015	1598	110	150	1
1.6 THP 155	5FV (EP6CDT)	1	01/2013-07/2015	1598	115	156	1
1.6 THP 165	5FM (EP6DT)	1	02/2015-07/2015	1598	120	163	1
1.6 THP 165	5GZ (EP6FDT)	1	10/2014-07/2015	1598	121	165	1
1.6 VTI 120	5FS (EP6C)	1	01/2013-07/2015	1598	88	120	1
1.6 BlueHDi 100	BHY (DV6FD)	2	07/2014-07/2015	1560	73	99	1
1.6 BlueHDi 100	BHY (DV6FD)	2	07/2014-07/2015	1560	75	102	1
1.6 BlueHDi 115	BHX (DV6FC)	2	10/2013-07/2015	1560	85	115	1
1.6 BlueHDi 120	BHZ (DV6FC)	2	07/2014-07/2015	1560	88	120	1
1.6 HDi 90	9HP (DV6DTED)	2	01/2013-07/2015	1560	68	92	1

DS4 (NX_) Hatchback 03/2011-07/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 THP 155	5FV (EP6CDT)	1	04/2011-07/2015	1598	115	156	1
1.6 THP160	5FM (EP6CDTM)	1	04/2012-07/2015	1598	120	163	1
1.6 THP200	5FU (EP6DTX)	1	04/2011-07/2015	1598	147	200	1
1.6 VTI 120	5FS (EP6C)	1	04/2011-07/2015	1598	88	120	1
1.6 BlueHDi 120	BHZ (DV6FC)	2	07/2014-07/2015	1560	88	120	1
1.6 HDi 110	9HR (DV6C)	2	04/2011-07/2015	1560	82	112	1
1.6 HDi 115	9HD (DV6C)	2	08/2012-07/2015	1560	84	114	1
1.6 HDi 90	9HP (DV6DTED)	2	05/2011-07/2015	1560	68	92	1
2.0 BlueHDi 150	AHX (DW10FD)	2	07/2014-07/2015	1997	110	150	1
2.0 BlueHDi 180	AHW (DW10FC)	2	07/2014-07/2015	1997	133	180	1
2.0 HDi / BlueHDi 135	AHS (DW10FD) AHV (DW10FD) RHD (DW10CB) RHD (DW10CTED4)	2	09/2011-07/2015	1997	100	136	1
2.0 HDi 165	RHH (DW10CTED4)	2	04/2011-07/2015	1997	120	163	1

XSARA PICASSO (N68) MPV 09/1999-06/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	NFZ (TU5JP)	1	12/1999-09/2001	1587	65	88	1
1.6	NFZ (TU5JP)	1	06/2002-08/2005	1587	67	91	1
1.6	NFV (TU5JP)	1	12/1999-12/2010	1587	70	95	1
1.6 16V	NFU (TU5JP4)	1	09/2005-12/2011	1587	80	109	1
1.6 16V	NFU (TU5JP4)	1	06/2005-09/2006	1587	81	110	1
1.6 Chrono	NFV (TU5JP)	1	04/2001-10/2004	1587	74	101	1
1.6 Flex		1	11/2009-	1587	81	110	1
1.8 16V	6FZ (EW7J4)	1	02/2000-08/2005	1749	85	115	1
1.8 SX		1	06/2000-08/2005	1761	76	103	1
2.0		1	02/2004-10/2004	1997	88	120	1
2.0 16V	RFN (EW10J4)	1	01/2003-06/2012	1997	100	136	1
2.0 16V	RFN (EW10J4)	1	12/1999-11/2011	1997	101	138	1
1.6 16V LPG		18	06/2004-12/2010	1587	80	109	1
1.6 Flex	NFU (TU5JP4)	19	10/2006-06/2012	1587	83	113	1
1.6 HDi	9HX (DV6ATED4)	2	09/2005-12/2011	1560	66	90	1
1.6 HDi	9HY (DV6TED4) 9HZ (DV6TED4)	2	05/2004-12/2011	1560	80	109	1
2.0 HDi	RHY (DW10TD)	2	12/1999-12/2011	1997	66	90	1
2.0 HDi	RHM (DW10ATED4)	2	10/2005-12/2011	1997	76	103	1

DS

DS 3 (SA_) Hatchback 04/2015-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 THP 110 / PureTech 110 (SAHNPS, SAHNZ6, SAHNZT)	HNP (EB2ADT) HNZ (EB2DT)	1	04/2015-07/2019	1199	81	110	1
1.2 THP 130 (SAHNYM)	HNY (EB2DTS)	1	09/2015-07/2019	1199	96	130	1
1.6 THP (SA5GWM)	5GW (EP6FDT)	1	07/2015-07/2019	1598	110	150	1
1.6 THP (SA5GZM)	5GZ (EP6FDT)	1	07/2015-07/2019	1598	120	163	1
1.6 THP 156	5FV (EP6CDT)	1	07/2016-07/2019	1598	115	156	1
1.6 THP 165 (SA5GZM)	5GZ (EP6FDT)	1	07/2015-07/2019	1598	121	165	1
1.6 THP 208 (SA5GRM)	5GR (EP6FDTX)	1	09/2015-07/2019	1598	153	208	1
1.6 VTi	5FS (EP6C)	1	07/2015-07/2019	1597	88	120	1
1.6 BlueHDi 100 (SABHY0, SABHYT)	BHY (DV6FD)	2	04/2015-07/2019	1560	73	99	1
1.6 BlueHDi 116 (SABHXM)	BHX (DV6FC)	2	07/2015-07/2019	1560	85	116	1
1.6 BlueHDi 120 (SABHZM)	BHZ (DV6FC)	2	07/2015-07/2019	1560	88	120	1
1.6 BlueHDi 75 (SABHW6)	BHW (DV6FE)	2	07/2015-07/2019	1560	55	75	1

DS 3 (SB_) Convertible 07/2015-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 THP 110	HNP (EB2ADT) HNZ (EB2DT)	1	07/2015-07/2019	1199	81	110	1
1.2 THP 130	HNY (EB2DTS)	1	09/2015-07/2019	1199	96	130	1
1.2 VTI 82	HMZ (EB2F)	1	07/2015-07/2019	1199	60	82	1
1.6 THP	5GZ (EP6FDT)	1	07/2015-07/2019	1598	120	163	1
1.6 THP (SB5GWM)	5GX (EP6FDTMD)	1	07/2015-07/2019	1598	110	150	1
1.6 THP 165	5GZ (EP6FDT)	1	07/2015-07/2019	1598	121	165	1
1.6 THP 208	5GR (EP6FDTX)	1	09/2015-07/2019	1598	153	208	1
1.6 BlueHDi 100	BHY (DV6FD)	2	07/2015-07/2019	1560	73	99	1
1.6 BlueHDi 116	BHX (DV6FC)	2	07/2015-07/2019	1560	85	116	1
1.6 BlueHDi 120	BHZ (DV6FC)	2	07/2015-07/2019	1560	88	120	1

DS 4 / DS 4 CROSSBACK (NX_) Hatchback 07/2015-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 THP 208	5GR (EP6FDTX)	1	03/2017-12/2018	1598	153	208	1
1.6 THP 210	5GM (EP6FDTX)	1	07/2015-12/2018	1598	155	210	1
1.6 VTi	5FS (EP6C)	1	07/2015-12/2018	1598	88	120	1
1.6 BlueHDi 100	BHY (DV6FD)	2	04/2016-12/2018	1560	73	99	1
1.6 BlueHDi 120	BHZ (DV6FC)	2	07/2015-12/2018	1560	88	120	1
2.0 BlueHDi 180	AHW (DW10FC)	2	07/2015-12/2018	1997	133	180	1

FIAT

ULYSSE II (179_) MPV 08/2002-06/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 (179BXA11, 179BXA1A)	RFN (EW10J4)	1	08/2002-06/2011	1997	100	136	1
3.0	XFW	1	08/2002-06/2011	2946	150	204	1
2.0 D Multijet	RHK	2	05/2006-06/2011	1997	88	120	1
2.0 D Multijet	RHR	2	05/2006-06/2011	1997	100	136	1
2.0 JTD	RHM (DW10ATED4)	2	05/2003-08/2006	1997	79	107	1
2.0 JTD	RHW (DW10ATED4)	2	08/2002-08/2006	1997	80	109	1
2.2 D Multijet	4HS 4HT (DW12BTED4)	2	03/2008-06/2011	2179	125	170	1
2.2 JTD	4HW (DW12ATED4)	2	08/2002-08/2006	2179	94	128	1
2.2 JTD	4HP 4HR	2	03/2008-06/2011	2179	120	163	1

FORD

GALAXY () MPV 05/1992-12/1996

Vehicle	Fuel	Date	CC	KW	CV	Traction
1.8	1	08/1994-10/1996	1781	68	92	1
2.0	1	05/1992-12/1996	1984	74	101	1
2.0	1	05/1992-12/1996	1984	82	111	1

GALAXY (WGR) MPV 03/1995-05/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 i	NSE ZVSA	1	11/1995-05/2006	1998	85	116	1
2.3		1	09/1996-04/2000	2295	107	145	1
2.3 16V	E5SB	1	09/2001-05/2006	2295	103	140	1
2.3 16V	E5SA Y5B	1	01/1997-05/2006	2295	107	146	1
2.8 i V6	AAA AMY	1	11/1995-04/2000	2792	128	174	1
2.8 i V6 4x4	AAA AMY	1	04/1996-04/2000	2792	128	174	3
1.9 TDI	1Z AHU ANU	2	03/1995-05/2006	1896	66	90	1
1.9 TDI	AFN AVG	2	08/1997-04/2000	1896	81	110	1

GALAXY (WGR) Box Body/MPV 03/1995-05/2006

Vehicle	Fuel	Date	CC	KW	CV	Traction
2.0	1	03/1996-03/2006	1998	85	116	1
2.3	1	11/2002-03/2006	2295	103	140	1
2.3	1	05/2000-10/2002	2295	107	145	1
2.8	1	11/1995-07/2000	2792	128	174	1
1.9 TDI	2	09/1996-03/2006	1896	66	90	1
1.9 TDI	2	05/2000-03/2006	1896	85	116	1

JETTA

VA3 (0M2) Saloon 09/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5	DLFA	1	09/2019-	1498	82	112	1

LANCIA

PHEDRA (179_) MPV 09/2002-11/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 (179AXA11, 179AXA1A)	RFN (EW10J4)	1	09/2002-11/2010	1997	100	136	1
3.0 V6 (179.BXD11)	ES9 J4S	1	09/2002-11/2010	2946	150	204	1
2.0 D Multijet (179.AXL1B, 179.BXL1B)	RHR (DW10BTED4)	2	07/2006-11/2010	1997	100	136	1
2.0 JTD (179.AXE1A)	RHM (DW10ATED4)	2	07/2003-11/2010	1997	79	107	1
2.0 JTD (179.AXH1B, 179.BXH1B)	RHK (DW10UTED4)	2	06/2006-11/2010	1997	88	120	1
2.0 JTD (179AXB1A)	RHW (DW10ATED4)	2	09/2002-11/2010	1997	80	109	1
2.2 D Multijet (179.AXM1B, 179.AXP11, 179.BXM1B,...	4HS 4HT	2	03/2008-11/2010	2179	125	170	1
2.2 JTD (179.AXN1B, 179.AXQ11, 179.BXN1B, 179.BXQ11)	4HP 4HR	2	04/2006-11/2010	2179	120	163	1
2.2 JTD (179AXC1A)	4HW (DW12ATED4)	2	09/2002-11/2010	2179	94	128	1

MG

MG 5 () Hatchback 03/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5	15S4U	1	03/2012-	1498	78	106	1

MG 350 (AP11) Saloon 01/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5	15S4U	1	01/2011-	1498	78	106	1

MG (SAIC)

3 () Hatchback 08/2017-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5	15S4C	1	08/2017-	1498	86	117	1

5 () Hatchback 03/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5		1	03/2012-12/2017	1498	80	109	1
1.5	15S4G	1	03/2012-12/2017	1498	95	129	1

5 II () Saloon 11/2020-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
180 DVVT		1	11/2020-	1498	88	120	1
300TGI		1	11/2020-	1490	127	173	1

GT () Saloon 11/2014-

Vehicle	Fuel	Date	CC	KW	CV	Traction
1.4 TGI	1	11/2014-	1368	110	150	1
1.5	1	06/2016-	1498	80	109	1
1.5 TCI	1	11/2014-12/2020	1498	95	129	1

PEUGEOT

207 (WA_, WC_) Hatchback 02/2006-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	N6A (TU5JP4)	1	08/2008-12/2013	1587	81	110	1
1.6 16V		1	08/2008-12/2013	1587	79	106	1
1.6 16V	NFU (TU5JP4)	1	02/2006-10/2013	1587	80	109	1
1.6 16V RC	5FY (EP6DTS)	1	02/2007-12/2012	1598	128	174	1
1.6 16V Turbo	5FX (EP6DT)	1	02/2006-10/2013	1598	110	150	1
1.6 16V Turbo	5FR (EP6DT)	1	10/2009-12/2012	1598	115	156	1
1.6 16V VTi	EP6	1	09/2008-12/2012	1598	81	110	1
1.6 16V VTi	5FS (EP6C) 5FW (EP6) EP6	1	02/2007-12/2012	1598	88	120	1
1.6 Flex	N6A (TU5JP4)	19	08/2008-12/2013	1587	83	113	1
1.6 HDi	9HV (DV6TED4B) 9HV (DV6TED4BU) 9HX (DV6ATED4)	2	02/2006-10/2013	1560	66	90	1
1.6 HDi	9HP (DV6DTED)	2	11/2009-12/2012	1560	68	92	1
1.6 HDi	9HY (DV6TED4) 9HZ (DV6TED4)	2	02/2006-10/2013	1560	80	109	1
1.6 HDi 110	9HR (DV6C)	2	08/2009-12/2012	1560	82	112	1
1.9 D		2	10/2008-12/2012	1868	51	69	1
2.0 HDi		2	10/2008-12/2012	1997	66	90	1

207 (WA_, WC_) Hatchback Van 04/2006-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 VTi	5FW (EP6)	1	03/2007-12/2012	1598	88	120	1
1.6 HDi	9HX (DV6ATED4)	2	04/2007-10/2012	1560	66	90	1
1.6 HDi	9HP (DV6DTED)	2	11/2009-03/2013	1560	68	92	1
1.6 HDi	9HZ (DV6TED4)	2	04/2006-12/2012	1560	80	109	1

207 CC (WD_) Convertible 02/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	5FS (EP6C) 5FW (EP6) EP6	1	02/2007-10/2013	1598	88	120	1
1.6 16V Turbo	5FX (EP6DT)	1	02/2007-12/2012	1598	110	150	1
1.6 16V Turbo	5FR (EP6DT) 5FV (EP6CDT)	1	10/2009-12/2013	1598	115	156	1
1.6 HDi	9HZ (DV6TED4)	2	02/2007-01/2015	1560	80	109	1
1.6 HDi	9HR (DV6C)	2	08/2009-10/2013	1560	82	112	1

207 SW (WK_) Estate 02/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	08/2008-12/2012	1587	81	110	1
1.6 16V	5FS (EP6C) 5FW (EP6) EP6	1	06/2007-10/2013	1598	88	120	1
1.6 16V RC	5FY (EP6DTS)	1	02/2007-12/2012	1598	128	174	1
1.6 16V Turbo	5FX (EP6DT)	1	02/2007-12/2012	1598	110	150	1
1.6 Flex		19	08/2008-12/2013	1587	83	113	1
1.6 HDi	9HV (DV6TED4B) 9HV (DV6TED4BU)	2	06/2007-12/2012	1560	66	90	1
1.6 HDi	9HP (DV6DTED)	2	11/2009-12/2013	1560	68	92	1
1.6 HDi	9HZ (DV6TED4)	2	06/2007-12/2012	1560	80	109	1
1.6 HDi	9HR (DV6C)	2	08/2009-10/2013	1560	82	112	1
2.0 HDi		2	10/2008-12/2012	1997	66	90	1

207 SW (WK_) Estate Van 08/2007-12/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 HDi	9HX (DV6ATED4)	2	08/2007-12/2012	1560	66	90	1
1.6 HDi	9HZ (DV6TED4)	2	08/2007-12/2012	1560	80	109	1

207 / 207 PASION () Saloon 12/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	09/2009-12/2011	1597	81	110	1
1.6 16V		1	11/2008-10/2013	1587	80	109	1
1.6 BioFlex	N6A (TU5JP4)	19	01/2008-12/2013	1587	83	113	1
1.9 XSD		2	12/2007-12/2012	1868	51	69	1
2.0 HDi		2	12/2007-12/2012	1997	66	90	1

208 (CA_, CC_) Hatchback 03/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 BlueHDi 100	YHY (DV5RD)	2	05/2018-12/2019	1499	75	102	1
1.6 BlueHDi 100	BHY (DV6FD)	2	01/2015-12/2019	1560	73	100	1
1.6 e-HDi	9HR (DV6C)	2	07/2015-12/2019	1560	82	112	1

208 (CR_) Hatchback Van 02/2013-12/2019

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 VTI 68 / PureTech 68 (CRHMP6, CRHMM6)	HMM (EB2FAD) HMP (EB2FB)	1	06/2015-12/2019	1199	50	68	1
1.5 BlueHDi 100	YHY (DV5RD)	2	05/2018-12/2019	1499	75	102	1
1.6 BlueHDi 100	BHY (DV6FD)	2	06/2015-12/2019	1560	73	99	1
1.6 BlueHDi 75	BHW (DV6FE)	2	04/2015-12/2019	1560	55	75	1
1.6 HDI 92	9HP (DV6DTED)	2	03/2014-12/2019	1560	68	92	1

307 (3A/C) Hatchback 08/2000-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	KFW (TU3JP)	1	08/2000-09/2003	1360	55	75	1
1.4 16V	KFU (ET3J4)	1	11/2003-07/2007	1360	65	88	1
1.6	NFU (TU5JP4)	1	07/2006-04/2012	1587	81	110	1
1.6 16V	NFU (TU5JP4)	1	08/2000-11/2007	1587	80	109	1
2.0	RFJ (EW10A) RFN (EW10J4)	1	08/2008-12/2011	1997	105	143	1
2.0 16V	RFN (EW10J4)	1	08/2000-06/2005	1997	100	136	1
2.0 16V	RFJ (EW10A)	1	03/2005-11/2007	1997	103	140	1
2.0 16V	RFK (EW10J4S)	1	06/2005-11/2007	1997	130	177	1
2.0 Flex		1	08/2008-	1997	111	151	1
1.6 BioFlex	NFU (TU5JP4)	19	09/2007-04/2009	1587	80	109	1
1.6 Flex	N6A (TU5JP4)	19	07/2006-12/2012	1587	83	113	1
1.4 HDi	8HX (DV4TD) 8HZ (DV4TD)	2	10/2001-06/2005	1398	50	68	1
1.6 HDi	9HV (DV6TED4B) 9HV (DV6TED4BU) 9HX (DV6ATED4)	2	04/2005-03/2009	1560	66	90	1
1.6 HDi 110	9HY (DV6TED4) 9HZ (DV6TED4)	2	02/2004-03/2009	1560	80	109	1
2.0 HDI 110	RHS (DW10ATED)	2	08/2000-03/2007	1997	79	107	1
2.0 HDi 135	RHR (DW10BTED4)	2	10/2003-11/2007	1997	100	136	1
2.0 HDI 90	RHY (DW10TD)	2	08/2000-03/2007	1997	66	90	1

307 () Saloon 01/2001-

Vehicle	Fuel	Date	CC	KW	CV	Traction
1.6	1	08/2006-12/2012	1587	81	110	1
1.6 Flex	1	08/2006-	1587	81	110	1
1.6 Flex	1	08/2006-	1587	83	113	1
2.0	1	09/2006-12/2008	1997	103	140	1
2.0	1	03/2004-04/2009	1997	105	143	1
2.0 Flex	1	08/2008-	1997	105	143	1
2.0 Flex	1	12/2007-	1997	111	151	1
2.0 HDi	2	09/2006-10/2010	1997	66	90	2
2.0 HDi	2	09/2006-03/2012	1997	80	109	1

307 (3E) Estate 03/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	KFW (TU3JP)	1	04/2002-09/2003	1360	55	75	1
1.4 16V	KFU (ET3J4)	1	11/2003-07/2007	1360	65	88	1
1.6 16V	NFU (TU5JP4)	1	03/2002-04/2008	1587	80	109	1
2.0	RFN (EW10J4)	1	03/2002-06/2005	1997	100	136	1
2.0 16V	RFJ (EW10A)	1	03/2005-04/2008	1997	103	140	1
2.0 16V	RFK (EW10J4S)	1	06/2005-04/2008	1997	130	177	1
1.6 BioFlex	NFU (TU5JP4)	19	09/2007-04/2008	1587	80	109	1
1.4 HDi	8HZ (DV4TD)	2	03/2002-06/2005	1398	50	68	1
1.6 HDi	9HV (DV6TED4B) 9HV (DV6TED4BU) 9HX (DV6ATED4) 9HX (DV6AUTED4)	2	04/2005-
