Product 180697-703 - Web Catalogo

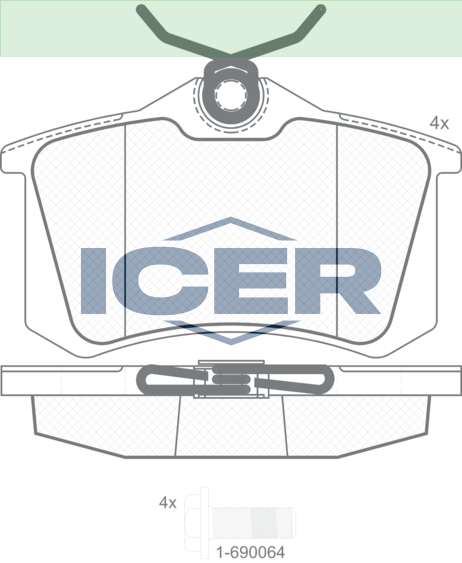

Description: Brake pad set
Axe: Rear
No. of Pieces: 4
Barcode: 8424073082213
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=180697-703
Weight (gr.): 950

System: Lucas - Girling
R90 Homologation: 90R-01033/142
Measures: 87x52.8x17.2

Reference applications

Brand	OE Reference
AUDI	150 698 451
AUDI	1E0 698 451 C
AUDI	1J0 698 451 E
AUDI	4B0 698 451
AUDI	4B0 698 451 A
AUDI	4B0 698 451 B
AUDI	4B0 698 451 E
AUDI	4D0 698 451 D
AUDI	4D0 698 451 E
AUDI	4D0 698 451C
AUDI	6C0 698 451 A
CITROËN	16 086 815 80
CITROËN	16 114 563 80
CITROËN	4252.41
CITROËN	4254.28
CITROËN	4254.C1
CITROËN	E172204
PEUGEOT	16 085 203 80
PEUGEOT	16 231 805 80
PEUGEOT	4252.23
PEUGEOT	4254.41
PEUGEOT	4254.C5
SEAT	1J0 698 451 F
SEAT	1J0 698 451 N
SEAT	1J0 698 451 P
SEAT	1J0 698 451 S
SEAT	2Q0 698 451
SEAT	2QB 698 481
SKODA	5K0 698 451 E
SKODA	5Q0 698 451 A
SKODA	JZW 698 451
SKODA	JZW 698 451 A
SKODA	JZW 698 451 AC
VW	1E0 698 451 B
VW	1E0 698 451 D
VW	1E0 698 451 E
VW	1E0 698 451 G
VW	1J0 698 451
VW	1J0 698 451 B
VW	1J0 698 451 D
VW	1J0 698 451 J
VW	1J0 698 451 M
VW	1J0 698 451 R
VW	1JD 698 451
VW	1JD0 698 451E
VW	1K0 698 451 C
VW	1K0 698 451 J
VW	3B0 698 451
VW	3B0 698 451 A
VW	4D0 698 451 C
VW	5C0 698 451
VW	5C0 698 451 A
VW	5K0 698 451 B
VW	6C0 698 451
VW	6R0 698 451
VW	8E0 698 451
VW	8E0 698 451 A
VW	8E0 698 451 K

Maker	Cross reference
ATE	13.0460-2775.2
ATE	13.0460-2787.2
ATE	13.0460-2820.2
ATE	13.0460-2823.2
ATE	13.0460-2894.2
ATE	602775
ATE	602787
ATE	602820
ATE	602823
ATE	602894
B.M.	DB1449
BENDIX-ROULUNDS	510070
BOSCH	0 986 494 518
BREMBO	P 61 088
DELPHI LOCKHEED	LP1131
DELPHI LOCKHEED	LP2254
DELPHI LOCKHEED	LP2255
FERODO	FDB4004
FERODO	FDB4260
FMSI	D1017-7920
FMSI	D1023-7773
FMSI	D340-7335
FMSI	D894-7773
GIRLING	6113281
GIRLING	6115871
HELLA-PAGID	8DB 355 012-801
NECTO	FD7187A
NECTO	FD7326A
NECTO	FD7453A
ROAD HOUSE	2263.00
ROAD HOUSE	2263.05
ROAD HOUSE	2263.06
ROAD HOUSE	2263.50
ROAD HOUSE	2263.92
TEXTAR	20961 174 1 4 T4131
TEXTAR	2096110
TEXTAR	2355402
TRW	GDB1328
TRW	GDB1587
VALEO	598242
VALEO	601463
WVA	20960
WVA	23554

AUDI

A1 (8X1, 8XK) Hatchback 05/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TFSI	CHZE	1	01/2016-10/2018	999	60	82	1
1.0 TFSI	CHZB DKLD	1	03/2015-10/2018	999	70	95	1
1.2 TFSI	CBZA	1	05/2010-04/2015	1197	63	86	1
1.4 TFSI	CAXA CNVA	1	05/2010-04/2015	1390	90	122	1
1.4 TFSI	CAVG CTHG	1	01/2011-04/2015	1390	136	185	1
1.4 TFSI	CZCA CZDD	1	11/2014-10/2018	1395	92	125	1
1.4 TFSI	CPTA	1	04/2012-04/2015	1395	103	140	1
1.4 TSI	CZEA	1	11/2014-10/2018	1395	110	150	1
1.8 TFSI	DAJB	1	02/2015-10/2018	1798	141	192	1
1.4 TDI	CUSB	2	11/2014-10/2018	1422	66	90	1
1.6 TDI	CAYB	2	03/2011-04/2015	1598	66	90	1
1.6 TDI	CAYC	2	05/2010-04/2015	1598	77	105	1
1.6 TDI	CXMA	2	11/2014-10/2018	1598	85	115	1
2.0 TDI	CFHB	2	05/2012-04/2015	1968	100	136	1
2.0 TDI	CFHD	2	09/2011-04/2015	1968	105	143	1

A1 Sportback (8XA, 8XF) Hatchback 09/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TFSI	CHZE	1	01/2016-10/2018	999	60	82	1
1.0 TFSI	CHZB DKLD	1	03/2015-10/2018	999	70	95	1
1.2 TFSI	CBZA	1	01/2012-04/2015	1197	63	86	1
1.4 TFSI	CAXA CNVA	1	11/2011-04/2015	1390	90	122	1
1.4 TFSI	CAVG CTHG	1	11/2011-04/2015	1390	136	185	1
1.4 TFSI	CZCA CZDD	1	11/2014-10/2018	1395	92	125	1
1.4 TFSI	CPTA	1	04/2012-04/2015	1395	103	140	1
1.4 TSI	CZEA	1	11/2014-10/2018	1395	110	150	1
1.8 TFSI	DAJB	1	02/2015-10/2018	1798	141	192	1
1.4 TDI	CUSB	2	11/2014-10/2018	1422	66	90	1
1.6 TDI	CAYB	2	11/2011-04/2015	1598	66	90	1
1.6 TDI	CAYC	2	11/2011-04/2015	1598	77	105	1
1.6 TDI	CXMA	2	11/2014-10/2018	1598	85	115	1
2.0 TDI	CFHB	2	05/2012-04/2015	1968	100	136	1
2.0 TDI	CFHD	2	09/2011-04/2015	1968	105	143	1

A1 II Sportback (GBA) Hatchback 07/2018-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
25 TFSI	DKLA DLAC	1	11/2018-	999	70	95	1
30 TFSI	DLAA	1	09/2020-	999	81	110	1
30 TFSI	DKJA DKRF	1	07/2018-	999	85	116	1
35 TFSI	DADA DPCA	1	09/2018-	1498	110	150	1

A1 CITY CARVER (GBH) Hatchback 07/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
25 TFSI	DKLA	1	07/2019-06/2022	999	70	95	1
30 TFSI	DLAA	1	09/2020-06/2022	999	81	110	1
30 TFSI	DKJA DKRF	1	07/2019-06/2022	999	85	116	1
35 TFSI	DPCA	1	07/2019-06/2022	1498	110	150	1

A2 (8Z0) Hatchback 02/2000-08/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 FSI	BAD	1	05/2002-08/2005	1598	81	110	1
1.4 TDI	ATL	2	11/2003-08/2005	1422	66	90	1

A3 (8L1) Hatchback 09/1996-09/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	AEH AKL APF	1	09/1996-05/2003	1595	74	101	1
1.6	AVU BFQ	1	08/2000-05/2003	1595	75	102	1
1.8	AGN APG	1	09/1996-05/2003	1781	92	125	1
1.8 T	AGU AQA ARZ AUM	1	12/1996-05/2003	1781	110	150	1
1.8 T	AJQ APP ARY AUQ	1	12/1998-05/2003	1781	132	180	1
1.8 T quattro	AGU AQA ARX	1	12/1996-05/2003	1781	110	150	3
1.8 T quattro	AJQ ARY	1	10/1998-05/2003	1781	132	180	3
S3 quattro	AMK APY AUL	1	03/1999-04/2002	1781	154	210	3
S3 quattro	BAM	1	10/2001-05/2003	1781	165	224	3
1.9 TDI	AGR ALH	2	09/1996-07/2001	1896	66	90	1
1.9 TDI	ATD AXR	2	10/2000-05/2003	1896	74	100	1
1.9 TDI	AHF ASV	2	08/1997-07/2001	1896	81	110	1
1.9 TDI	ASZ	2	08/2000-05/2003	1896	96	130	1
1.9 TDI quattro	ASZ	2	08/2000-05/2003	1896	96	130	3

A3 II (8P1) Hatchback 05/2003-12/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	04/2010-08/2012	1197	77	105	1
1.4 TFSI	CAXC CMSA	1	09/2007-08/2012	1390	92	125	1
1.6	BGU BSE BSF	1	05/2003-08/2012	1595	75	102	1
1.6 FSI	BAG BLF BLP	1	08/2003-09/2007	1598	85	115	1
1.8 T	BPU	1	08/2006-08/2012	1781	110	150	1
1.8 TFSI	BYT BZB CDAA	1	11/2006-08/2012	1798	118	160	1
1.8 TFSI quattro	CDAA	1	07/2008-08/2012	1798	118	160	3
2.0		1	06/2006-08/2012	1984	120	163	1
2.0 FSI	AXW BLR BLX BLY BMB BVY BVZ	1	05/2003-06/2008	1984	110	150	1
2.0 TFSI	AXX BWA CAWB CCZA	1	09/2004-08/2012	1984	147	200	1
S3 quattro	BZC CDLC	1	02/2007-08/2012	1984	188	256	3
1.6 E-Power	CCSA CMXA	19	01/2011-08/2012	1595	75	102	1
1.6 TDI	CAYB	2	05/2009-08/2012	1598	66	90	1
1.6 TDI	CAYC	2	05/2009-08/2012	1598	77	105	1
1.9 TDI	BKC BLS BXE	2	05/2003-05/2010	1896	77	105	1
2.0 TDI	AZV CBAA CFFA	2	05/2003-08/2012	1968	100	136	1
2.0 TDI	BMM	2	06/2005-06/2008	1968	103	140	1
2.0 TDI	BUY	2	06/2006-06/2008	1968	120	163	1
2.0 TDI	BMN CBBB CFGB	2	03/2006-08/2012	1968	125	170	1
2.0 TDI 16V	BKD CBAB CBEA CFFB CLJA	2	05/2003-08/2012	1968	103	140	1
2.0 TDI 16V quattro	BKD CBAB CFFB	2	08/2004-08/2012	1968	103	140	3
2.0 TDI quattro	AZV	2	05/2003-06/2008	1968	100	136	3
2.0 TDI quattro	BMM	2	01/2006-06/2008	1968	103	140	3
2.0 TDI quattro	BMN CBBB CFGB	2	03/2006-08/2012	1968	125	170	3

A3 II Sportback (8PA) Hatchback 09/2004-12/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	04/2010-03/2013	1197	77	105	1
1.4 TFSI	CAXC CMSA	1	09/2007-03/2013	1390	92	125	1
1.6	BGU BSE BSF	1	09/2004-03/2013	1595	75	102	1
1.6 FSI	BLF BLP	1	09/2004-09/2007	1598	85	115	1
1.8 TFSI	BYT BZB CDAA	1	11/2006-03/2013	1798	118	160	1
1.8 TFSI quattro	CDAA	1	07/2008-03/2013	1798	118	160	3
2.0		1	06/2006-03/2013	1984	120	163	1
2.0 FSI	AXW BLR BLX BLY BMB BVY BVZ	1	09/2004-06/2008	1984	110	150	1
2.0 TFSI	AXX BPY BWA CAWB CBFA CCTA CCZA	1	09/2004-03/2013	1984	147	200	1
2.0 TFSI quattro	AXX BPY BWA CBFA CCTA CCZA	1	09/2004-03/2013	1984	147	200	3
S3 quattro	CDLC	1	07/2008-03/2013	1984	188	256	3
S3 quattro	BHZ CDLA	1	06/2008-03/2013	1984	195	265	3
1.6 E-Power	CCSA CMXA	19	01/2011-03/2013	1595	75	102	1
1.6 TDI	CAYB	2	05/2009-03/2013	1598	66	90	1
1.6 TDI	CAYC	2	05/2009-03/2013	1598	77	105	1
1.9 TDI	BKC BLS BXE	2	09/2004-05/2010	1896	77	105	1
2.0 TDI	AZV CBAA CFFA	2	09/2004-03/2013	1968	100	136	1
2.0 TDI	BMM	2	06/2005-06/2008	1968	103	140	1
2.0 TDI	BUY	2	06/2006-06/2008	1968	120	163	1
2.0 TDI	BMN CBBB CFGB	2	03/2006-03/2013	1968	125	170	1
2.0 TDI 16V	BKD CBAB CBEA CFFB CLJA	2	09/2004-03/2013	1968	103	140	1
2.0 TDI 16V quattro	BKD CBAB CFFB	2	11/2005-03/2013	1968	103	140	3
2.0 TDI quattro	BMM	2	01/2006-06/2008	1968	103	140	3
2.0 TDI quattro	BMN CBBB CFGB	2	03/2006-03/2013	1968	125	170	3

A3 II (8P7) Convertible 04/2008-05/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TFSI	CBZB	1	03/2010-05/2013	1197	77	105	1
1.4 TFSI	CAXC	1	02/2011-05/2013	1390	92	125	1
1.6	BSE	1	09/2008-05/2010	1595	75	102	1
1.8 TFSI	BZB CDAA	1	04/2008-05/2013	1798	118	160	1
2.0 TFSI	CAWB CCZA	1	04/2008-05/2013	1984	147	200	1
1.6 TDI	CAYC	2	05/2009-05/2013	1598	77	105	1
1.9 TDI	BLS	2	04/2008-10/2009	1896	77	105	1
2.0 TDI	CBAA CFFA	2	04/2008-05/2013	1968	100	136	1
2.0 TDI	CBAB CFFB	2	04/2008-05/2013	1968	103	140	1

A4 B5 (8D2) Saloon 11/1994-12/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ADP AHL ANA ARM	1	11/1994-10/2000	1595	74	100	1
1.6	ALZ	1	07/2000-11/2000	1595	75	102	1
1.8	AFY	1	04/1995-11/2000	1781	85	115	1
1.8	ADR APT ARG AVV	1	11/1994-11/2000	1781	92	125	1
1.8		1	01/1995-11/2000	1781	95	129	1
1.8 quattro	AFY	1	07/1995-11/2000	1781	85	115	3
1.8 quattro	ADR APT ARG	1	01/1995-11/2000	1781	92	125	3
1.8 T	AEB ANB APU ARK ATW AWT	1	01/1995-11/2000	1781	110	150	1
1.8 T	AMB	1	05/2000-09/2000	1781	125	170	1
1.8 T	AJL	1	12/1997-11/2000	1781	132	180	1
1.8 T quattro	AEB ANB APU ARK ATW AWT	1	01/1995-11/2000	1781	110	150	3
1.8 T quattro	AJL	1	12/1997-11/2000	1781	132	180	3
2.4	AJG AMM APZ	1	08/1997-11/2000	2393	120	163	1
2.4	AGA ALF AML APS ARJ	1	03/1997-11/2000	2393	121	165	1
2.4 quattro	AJG APZ	1	08/1997-11/2000	2393	120	163	3
2.4 quattro	AGA ALF AML APS ARJ	1	03/1997-11/2000	2393	121	165	3
2.6	ACZ	1	01/1996-07/1997	2598	102	139	1
2.6	ABC	1	01/1995-11/2000	2598	110	150	1
2.6 quattro	ABC	1	01/1995-11/2000	2598	110	150	3
2.7 Turbo quattro		1	02/1999-09/2000	2671	169	230	3
2.8	AAH AFC	1	09/1995-07/1997	2771	128	174	1
2.8	ATX	1	09/1999-10/2000	2771	140	190	1
2.8	ACK AHA ALG AMX APR AQD ATQ	1	10/1996-11/2000	2771	142	193	1
2.8		1	10/1996-07/1999	2771	142	193	1
2.8 quattro	AAH AFC	1	01/1995-07/1997	2771	128	174	3
2.8 quattro	ATX	1	09/1999-10/2000	2771	140	190	3
2.8 quattro	ACK AHA ALG AMX APR AQD ATQ	1	10/1996-08/2001	2771	142	193	3
S4		1	10/1997-12/1998	2671	187	254	1
S4 quattro	AGB AZB	1	09/1997-09/2001	2671	195	265	3
1.9 TDI	AFF	2	12/1995-11/2000	1896	55	75	1
1.9 TDI	1Z AHH AHU	2	01/1995-11/2000	1896	66	90	1
1.9 TDI	AFN AVG	2	10/1995-11/2000	1896	81	110	1
1.9 TDI	AJM	2	03/2000-11/2000	1896	85	116	1
1.9 TDI quattro	AFN AVG	2	07/1996-01/2000	1896	81	110	3
1.9 TDI quattro	AJM ATJ	2	03/2000-11/2000	1896	85	116	3
2.5 TDI	AFB AKN	2	09/1997-11/2000	2496	110	150	1
2.5 TDI quattro	AFB AKN	2	09/1997-11/2000	2496	110	150	3

A4 B5 Avant (8D5) Estate 11/1994-12/2002

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ADP AHL ANA ARM	1	11/1994-09/2001	1595	74	100	1
1.6	ALZ	1	07/2000-09/2001	1595	75	102	1
1.8	AFY	1	07/1995-09/2001	1781	85	115	1
1.8	ADR APT ARG AVV	1	02/1996-09/2001	1781	92	125	1
1.8 quattro	AFY	1	07/1995-09/2001	1781	85	115	3
1.8 quattro	ADR APT ARG	1	01/1996-09/2001	1781	92	125	3
1.8 T	AEB ANB APU ARK AWT	1	03/1996-09/2001	1781	110	150	1
1.8 T	AJL	1	12/1997-09/2001	1781	132	180	1
1.8 T quattro	AEB ANB APU ARK ATW AWT	1	01/1996-09/2001	1781	110	150	3
1.8 T quattro	AJL	1	12/1997-09/2001	1781	132	180	3
2.4	AJG AMM APZ	1	08/1997-09/2001	2393	120	163	1
2.4	AGA ALF AML APS ARJ	1	03/1997-09/2001	2393	121	165	1
2.4 quattro	AJG APZ	1	08/1997-09/2001	2393	120	163	3
2.4 quattro	AGA ALF AML APS ARJ	1	03/1997-09/2001	2393	121	165	3
2.6	ABC	1	02/1996-09/2001	2598	110	150	1
2.6 quattro	ABC	1	01/1996-09/2001	2598	110	150	3
2.8	ATX	1	03/1999-09/2000	2771	140	190	1
2.8	ACK AHA ALG APR AQD	1	10/1996-09/2001	2771	142	193	1
2.8		1	10/2000-09/2001	2771	280	381	1
2.8 quattro	ATX	1	03/1999-09/2000	2771	140	190	3
2.8 quattro	ACK AHA ALG AMX APR AQD ATQ	1	10/1996-09/2001	2771	142	193	3
S4 quattro	AGB AZB	1	09/1997-09/2001	2671	195	265	3
1.9 TDI	AFF	2	03/1996-09/2001	1896	55	75	1
1.9 TDI	1Z AHH AHU	2	02/1996-09/2001	1896	66	90	1
1.9 TDI	AFN AVG	2	02/1996-09/2001	1896	81	110	1
1.9 TDI	AJM ATJ	2	03/2000-09/2001	1896	85	115	1
1.9 TDI quattro	AFN AVG	2	09/1996-09/2001	1896	81	110	3
1.9 TDI quattro	ATJ	2	03/2000-09/2001	1896	85	115	3
2.5 TDI	AFB AKN	2	09/1997-09/2001	2496	110	150	1
2.5 TDI quattro	AFB AKN	2	09/1997-09/2001	2496	110	150	3
1.9 Hybrid	AHU	14	03/1998-06/2000	1896	66	90	1

A4 II B6 Avant (8E5) Estate 02/2000-12/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ALZ	1	09/2001-12/2004	1595	75	102	1
1.8 T	AVJ	1	09/2001-07/2002	1781	110	150	1
1.8 T	BFB	1	07/2002-12/2004	1781	120	163	1
1.8 T	BEX	1	11/2002-12/2004	1781	140	190	1
1.8 T quattro	AVJ	1	09/2001-07/2002	1781	110	150	3
1.8 T quattro	BFB	1	07/2002-12/2004	1781	120	163	3
1.8 T quattro	AMB	1	09/2001-12/2004	1781	125	170	3
1.8 T quattro	BEX	1	11/2002-12/2004	1781	140	190	3
2.0	ALT	1	09/2001-12/2004	1984	96	130	1
2.0 FSI	AWA	1	07/2002-12/2004	1984	110	150	1
2.4	AMM	1	09/2001-12/2004	2393	120	163	1
2.4	BDV	1	09/2001-12/2004	2393	125	170	1
3.0	BBJ	1	04/2001-12/2004	2976	160	218	1
3.0	ASN	1	09/2001-12/2004	2976	162	220	1
3.0 quattro	BBJ	1	04/2001-12/2004	2976	160	218	3
3.0 quattro	ASN AVK	1	09/2001-12/2004	2976	162	220	3
1.9 TDI	AVB	2	11/2001-12/2004	1896	74	101	1
1.9 TDI	BKE	2	06/2004-12/2004	1896	85	116	1
1.9 TDI	AVF AWX	2	09/2001-12/2004	1896	96	130	1
1.9 TDI quattro	AVF	2	11/2001-12/2004	1896	96	130	3
2.5 TDI	AYM	2	09/2001-07/2002	2496	114	155	1
2.5 TDI	BCZ BDG BFC	2	07/2002-12/2004	2496	120	163	1
2.5 TDI		2	04/2001-05/2003	2496	132	179	2
2.5 TDI quattro	AKE BAU BDH	2	09/2001-12/2004	2496	132	180	3

A4 II B6 (8E2) Saloon 11/2000-12/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ALZ	1	11/2000-12/2004	1595	75	102	1
1.8 T	AVJ	1	11/2000-07/2002	1781	110	150	1
1.8 T	BFB	1	07/2002-12/2004	1781	120	163	1
1.8 T	AMB	1	07/2001-12/2004	1781	125	170	1
1.8 T	BEX	1	11/2002-12/2004	1781	140	190	1
1.8 T quattro	AVJ	1	11/2000-07/2002	1781	110	150	3
1.8 T quattro	BFB	1	07/2002-12/2004	1781	120	163	3
1.8 T quattro	AMB AWM	1	07/2001-12/2004	1781	125	170	3
1.8 T quattro	BEX	1	11/2002-12/2004	1781	140	190	3
2.0	ALT	1	11/2000-12/2004	1984	96	130	1
2.0 FSI	AWA	1	07/2002-12/2004	1984	110	150	1
2.4	AMM	1	09/2001-12/2004	2393	120	163	1
2.4	BDV	1	09/2001-12/2004	2393	125	170	1
3.0	BBJ	1	04/2001-12/2004	2976	160	218	1
3.0	ASN AVK	1	11/2000-12/2004	2976	162	220	1
3.0 quattro	BBJ	1	04/2001-12/2004	2976	160	218	3
3.0 quattro	ASN AVK	1	11/2000-12/2004	2976	162	220	3
1.9 TDI	AVB	2	05/2001-12/2004	1896	74	101	1
1.9 TDI	BKE	2	06/2004-12/2004	1896	85	116	1
1.9 TDI	AVF AWX	2	11/2000-12/2004	1896	96	130	1
1.9 TDI quattro	AVF	2	11/2001-12/2004	1896	96	130	3
2.5 D		2	10/2000-05/2003	2496	132	179	2
2.5 TDI	AYM	2	08/2001-07/2002	2496	114	155	1
2.5 TDI	BCZ BDG BFC	2	07/2002-12/2004	2496	120	163	1
2.5 TDI quattro	AKE BAU BDH	2	11/2000-12/2004	2496	132	180	3

A4 II B6 (8H7) Convertible 01/2002-12/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 T	BFB	1	07/2002-12/2005	1781	120	163	1
1.8 T	AMB	1	10/2002-10/2005	1781	125	170	1
1.8 T quattro	BFB	1	05/2003-12/2005	1781	120	163	3
2.0	ALT	1	09/2004-12/2005	1984	96	130	1
2.0		1	11/2005-03/2009	1984	147	200	1
2.0 TFSI		1	11/2005-03/2009	1984	147	200	1
2.4	AMM	1	04/2002-12/2005	2393	120	163	1
2.4	BDV	1	04/2002-12/2005	2393	125	170	1
3.0	BBJ	1	04/2002-12/2005	2976	160	218	1
3.0	ASN AVK BGN	1	04/2002-12/2005	2976	162	220	1
3.0 quattro	ASN AVK BGN	1	05/2003-12/2005	2976	162	220	3
2.5 TDI	BCZ BDG BFC	2	08/2002-12/2005	2496	120	163	1

A4 III B7 (8HE) Convertible 01/2002-01/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 TFSI 16V	BWE BWT	1	01/2006-03/2009	1984	147	200	1
3.2 FSI	AUK	1	01/2006-03/2009	3123	188	255	1
3.2 FSI quattro	AUK BKH	1	01/2006-03/2009	3123	188	255	3
2.0 TDI	BRC	2	01/2006-03/2009	1968	100	136	1
2.0 TDI	BPW	2	01/2006-03/2009	1968	103	140	1
2.7 TDI	BPP	2	06/2006-03/2009	2698	132	180	1
3.0 TDI quattro	ASB	2	01/2006-03/2009	2967	171	233	3

A6 II (U.S.A. C5) Saloon 09/1995-12/2004

Vehicle	Fuel	Date	CC	Traction
2.7 30V Quattro	1	09/1995-	2695	1
2.7 30V Quattro	1	09/1995-	2695	1
2.8 30V	1	09/1995-	2795	1
2.8 V30 Quattro	1	09/1995-	2795	1
2.8 V30 Quattro	1	09/1995-	2795	1
2.8 V30 Quattro	1	09/1995-	2795	1
3.0 30V	1	09/1995-	2995	1
3.0 30V	1	09/1995-	2995	1
3.0 V30 Quattro	1	09/1995-	2995	1
3.0 V30 Quattro	1	09/1995-	2995	1
3.0 V30 Quattro	1	09/1995-	2995	1
3.0 V30 Quattro	1	09/1995-	2995	1

A6 II C5 (4B2) Saloon 01/1997-12/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	AFY	1	05/1997-01/2005	1781	85	116	1
1.8	AJP AQE ARH	1	07/1997-01/2005	1781	92	125	1
1.8 T	AEB ANB APU ARK AWT	1	01/1997-01/2005	1781	110	150	1
1.8 T	AJL	1	12/1997-01/2005	1781	132	180	1
1.8 T quattro	AEB ANB APU ARK AWT	1	02/1997-01/2005	1781	110	150	3
1.8 T quattro	AJL	1	12/1997-01/2005	1781	132	180	3
2.0	ALT	1	08/2001-01/2005	1984	96	130	1
2.4	ALW ARN ASM	1	07/1998-01/2005	2393	100	136	1
2.4	APC	1	02/1997-01/2005	2393	115	156	1
2.4	AJG AMM APZ	1	02/1997-01/2005	2393	120	163	1
2.4	AGA ALF AML APS ARJ	1	02/1997-01/2005	2393	121	165	1
2.4	BDV	1	08/2001-01/2005	2393	125	170	1
2.4 quattro	APC	1	08/1998-07/1999	2393	115	156	3
2.4 quattro	AJG APZ	1	02/1997-01/2005	2393	120	163	3
2.4 quattro	AGA ALF AML APS ARJ	1	02/1997-01/2005	2393	121	165	3
2.4 quattro	BDV	1	08/2001-01/2005	2393	125	170	3
2.7		1	05/2001-07/2004	2671	187	254	1
2.7		1	11/2003-07/2004	2671	195	265	1
2.7 quattro	APB BEL	1	05/2001-07/2004	2671	187	254	3
2.7 T	AJK	1	02/1999-01/2005	2671	169	230	1
2.7 T quattro	AJK AZA	1	12/1997-01/2005	2671	169	230	3
2.7 T quattro	ARE BES	1	08/2001-01/2005	2671	184	250	3
2.8	AGE	1	10/1997-05/2000	2771	132	180	1
2.8	ATX	1	07/1999-01/2005	2771	140	190	1
2.8	ACK ALG AMX APR AQD ATQ	1	02/1997-01/2005	2771	142	193	1
2.8 24V		1	05/1997-07/1999	2771	142	193	1
2.8 quattro	AGE	1	01/1998-04/2000	2771	132	180	3
2.8 quattro	ATX	1	07/1999-05/2001	2771	140	190	3
2.8 quattro	ACK ALG AMX APR AQD ATQ	1	02/1997-01/2005	2771	142	193	3
3.0	BBJ	1	06/2001-01/2005	2976	160	218	1
3.0	ASN	1	08/2001-01/2005	2976	162	220	1
3.0 quattro	BBJ	1	06/2001-07/2004	2976	160	218	3
3.0 quattro	ASN	1	08/2001-01/2005	2976	162	220	3
3.7	AQG	1	03/1999-01/2005	3697	191	260	1
3.7 quattro	AQG	1	03/1999-01/2005	3697	191	260	3
4.2 quattro	ARS ART ASG AWN	1	11/1998-01/2005	4172	220	299	3
S6 quattro	ANK AQJ	1	09/1999-01/2005	4172	250	340	3
1.9 TDI	AFN AVG	2	04/1997-10/2000	1896	81	110	1
1.9 TDI	AJM	2	07/2000-01/2005	1896	85	115	1
1.9 TDI	AVF AWX	2	08/2001-01/2005	1896	96	130	1
2.5 TDI	AFB AKN	2	07/1997-01/2005	2496	110	150	1
2.5 TDI	AYM	2	08/2001-01/2005	2496	114	155	1
2.5 TDI	BCZ BDG BFC	2	07/2002-01/2005	2496	120	163	1
2.5 TDI	AKE BAU BDH	2	02/2000-01/2005	2496	132	180	1
2.5 TDI quattro	AFB AKN	2	07/1997-01/2005	2496	110	150	3
2.5 TDI quattro	AKE BAU BDH	2	02/2000-01/2005	2496	132	180	3

A6 II C5 Avant (4B5) Estate 11/1997-01/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	AFY	1	02/1998-01/2005	1781	85	116	1
1.8	AJP AQE ARH	1	12/1997-01/2005	1781	92	125	1
1.8 T	AEB ANB APU ARK AWT	1	12/1997-01/2005	1781	110	150	1
1.8 T	AJL	1	04/1999-01/2005	1781	132	180	1
1.8 T quattro	AEB ANB APU ARK AWT	1	12/1997-01/2005	1781	110	150	3
1.8 T quattro	AJL	1	12/1997-01/2005	1781	132	180	3
2.0	ALT	1	08/2001-01/2005	1984	96	130	1
2.4	ALW ARN ASM	1	07/1998-01/2005	2393	100	136	1
2.4	APC	1	12/1997-01/2005	2393	115	156	1
2.4	AJG AMM APZ	1	12/1997-01/2005	2393	120	163	1
2.4	AGA ALF AML APS ARJ	1	12/1997-01/2005	2393	121	165	1
2.4	BDV	1	08/2001-01/2005	2393	125	170	1
2.4 quattro	APC	1	08/1998-05/2001	2393	115	156	3
2.4 quattro	AJG APZ	1	12/1997-01/2005	2393	120	163	3
2.4 quattro	AGA ALF AML APS ARJ	1	12/1997-01/2005	2393	121	165	3
2.4 quattro	BDV	1	08/2001-01/2005	2393	125	170	3
2.7 T	AJK	1	02/1999-01/2005	2671	169	230	1
2.7 T quattro	AJK AZA	1	12/1997-01/2005	2671	169	230	3
2.7 T quattro	ARE BES	1	08/2001-01/2005	2671	184	250	3
2.8	AGE	1	12/1997-05/2000	2771	132	180	1
2.8	ATX	1	07/1999-01/2005	2771	140	190	1
2.8	ACK ALG AMX APR AQD	1	12/1997-01/2005	2771	142	193	1
2.8 quattro	ACK ALG AMX APR AQD ATQ	1	12/1997-01/2005	2771	142	193	3
3.0	BBJ	1	06/2001-01/2005	2976	160	218	1
3.0	ASN	1	08/2001-01/2005	2976	162	220	1
3.0 quattro	BBJ	1	06/2001-01/2005	2976	160	218	3
3.0 quattro	ASN	1	08/2001-01/2005	2976	162	220	3
3.7	AQG	1	03/1999-01/2005	3697	191	260	1
3.7 quattro	AQG	1	03/1999-01/2005	3697	191	260	3
4.2 quattro	ARS ASG	1	11/1998-01/2005	4172	220	299	3
S6 quattro	ANK AQJ BBD	1	09/1999-01/2005	4172	250	340	3
1.9 TDI	AFN AVG	2	02/1998-04/2001	1896	81	110	1
1.9 TDI	AJM	2	07/2000-01/2005	1896	85	115	1
1.9 TDI	AVF AWX	2	08/2001-01/2005	1896	96	130	1
2.5 TDI	AFB AKN	2	12/1997-01/2005	2496	110	150	1
2.5 TDI	AYM	2	08/2001-01/2005	2496	114	155	1
2.5 TDI	BCZ BDG BFC	2	07/2002-01/2005	2496	120	163	1
2.5 TDI	AKE BAU BDH	2	02/2000-01/2005	2496	132	180	1
2.5 TDI quattro	AFB AKN	2	12/1997-01/2005	2496	110	150	3
2.5 TDI quattro	AKE BAU BDH	2	02/2000-01/2005	2496	132	180	3

A8 D2 (4D2, 4D8) Saloon 03/1994-12/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.8	AEJ	1	07/1995-03/1996	2771	120	163	1
2.8	AAH	1	03/1994-03/1996	2771	128	174	1
2.8	ACK ALG AMX APR AQD	1	04/1996-09/2002	2771	142	193	1
2.8 quattro	AEJ	1	07/1995-03/1996	2771	120	163	3
2.8 quattro	AAH	1	03/1994-03/1996	2771	128	174	3
2.8 quattro	ACK ALG AMX APR AQD	1	04/1996-09/2002	2771	142	193	3
3.7	AEW	1	07/1995-12/1998	3697	169	230	1
3.7	AKC AQG	1	11/1998-09/2002	3697	191	260	1
3.7 quattro	AEW AKJ	1	07/1995-11/1998	3697	169	230	3
3.7 quattro	AKC AQG	1	11/1998-09/2002	3697	191	260	3
4.2 quattro	ARU	1	02/1999-04/2000	4172	175	238	3
4.2 quattro	AEM	1	03/1994-07/1996	4172	180	245	3
4.2 quattro		1	07/1995-09/1998	4172	210	286	3
4.2 quattro	ABZ AKG	1	03/1994-11/1998	4172	220	299	3
4.2 quattro	AKB AQF AUW AUX	1	11/1998-09/2002	4172	228	310	3
6.0 W12 quattro	AZC	1	01/2001-09/2002	5998	309	420	3
S8 quattro	AHC AKH	1	07/1996-06/1999	4172	250	340	3
S8 quattro	AQH AVP AYS BCS	1	06/1999-09/2002	4172	265	360	3
2.5 TDI	AFB AKN	2	01/1997-04/2000	2496	110	150	1
2.5 TDI	AKE	2	09/2000-09/2002	2496	132	180	1
2.5 TDI quattro	AFB AKN	2	07/1997-04/2000	2496	110	150	3
2.5 TDI quattro	AKE	2	09/2000-09/2002	2496	132	180	3
3.3 TDI quattro	AKF	2	06/2000-09/2002	3328	165	224	3

A8 (U.S.A. D2) Saloon 09/1996-12/2002

Vehicle	Fuel	Date	CC	Traction
4.2 40V Quattro SP	1	09/1996-	4195	1
4.2 40V Quattro SP	1	09/1996-	4195	1
4.2 quattro	1	09/1996-	4195	1
4.2 quattro	1	09/1996-	4195	1

ALLROAD C5 (4BH) Estate 05/2000-08/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.7 quattro	APB BEL	1	09/2000-08/2005	2671	187	254	3

TT (8N3) Coupe 10/1998-02/2007

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 T		1	09/2002-06/2006	1598	134	182	1
1.8 T	AUM	1	09/2002-06/2006	1781	110	150	1
1.8 T	BVP	1	09/2005-06/2006	1781	120	163	1
1.8 T	AJQ APP ATC AUQ	1	10/1998-06/2006	1781	132	180	1
1.8 T	BVR	1	09/2005-06/2006	1781	140	190	1
1.8 T quattro	AJQ ARY ATC AUQ	1	10/1998-06/2006	1781	132	180	3
1.8 T quattro	BVR	1	09/2005-06/2006	1781	140	190	3
1.8 T quattro	APX BAM BEA	1	10/1998-06/2006	1781	165	224	3
1.8 T quattro	BFV	1	03/2005-06/2006	1781	180	245	3
3.2 VR6 quattro	BHE BPF	1	07/2003-06/2006	3189	184	250	3

TT (8N9) Convertible 10/1999-02/2007

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 T	AUM	1	01/2001-06/2006	1781	110	150	1
1.8 T	BVP	1	09/2005-06/2006	1781	120	163	1
1.8 T	AJQ APP ATC AUQ AWP	1	10/1999-06/2006	1781	132	180	1
1.8 T	BVR	1	09/2005-06/2006	1781	140	190	1
1.8 T quattro	AJQ ARY AUQ	1	02/2000-06/2006	1781	132	180	3
1.8 T quattro	BVR	1	09/2005-06/2006	1781	140	190	3
1.8 T quattro	APX BAM BEA	1	10/1999-06/2006	1781	165	224	3
3.2 VR6 quattro	BHE BPF	1	07/2003-06/2006	3189	184	250	3

AUDI (FAW)

A6 C5 (4Y8) Saloon 09/1999-12/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8		1	01/2000-12/2005	1781	92	125	1

CITROËN

BERLINGO / BERLINGO FIRST (MF_, GJK_, GFK_) MPV 07/1996-12/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V (MFNFU)	NFU (TU5JP4)	1	10/2000-12/2011	1587	80	109	1
1.6 16V (MFNFU)	NFU (TU5JP4)	1	11/2002-10/2008	1587	81	110	1
1.6 HDI 90 (MF9HX)	9HX (DV6ATED4)	2	07/2005-05/2008	1560	66	90	1
1.6 HDI 92	9HJ (DV6DTEDM) 9HP (DV6DTED)	2	11/2009-12/2010	1560	68	92	1

BERLINGO / BERLINGO FIRST (M_) Box Body/MPV 07/1996-12/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	NFU (TU5JP4)	1	08/2005-12/2007	1587	81	110	1
1.6 16V (MBNFU)	NFU (TU5JP4)	1	10/2000-03/2008	1587	80	109	1
1.6 HDI 90 (MB9HX, MC9HX)	9HX (DV6ATED4)	2	07/2005-12/2011	1560	66	90	1
1.6 HDI 92	9HJ (DV6DTEDM) 9HP (DV6DTED)	2	11/2009-12/2010	1560	68	92	1
Electric		11	01/2010-12/2010		42	57	1

C2 (JM_) Hatchback 07/2003-09/2017

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	KFV (TU3A) KFV (TU3JP)	1	09/2003-12/2009	1360	54	73	1
1.4	KFV (TU3JP)	1	10/2006-12/2009	1360	55	75	1
1.6	NFU (TU5JP4)	1	07/2003-10/2010	1587	80	109	1
1.6 Sport WRC		1	07/2003-	1595	165	225	1
1.6 VTS	NFS (TU5JP4S)	1	10/2004-12/2009	1587	90	122	1
1.4 HDi	8HX (DV4TD) 8HZ (DV4TD)	2	07/2003-12/2009	1398	50	68	1
1.4 HDi	8HX (DV4TD)	2	09/2003-04/2005	1398	51	69	1
1.6 HDi	9HZ (DV6TED4)	2	09/2005-12/2009	1560	80	109	1

C2 II ENTERPRISE (JG_) Hatchback Van 11/2003-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 HDi	8HX (DV4TD)	2	09/2006-12/2009	1398	50	68	1
1.4 HDi	8HZ (DV4TD)	2	11/2003-04/2005	1398	51	69	1

C3 (FC_, FN_) Hatchback 02/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	NFU (TU5JP4)	1	02/2002-08/2010	1587	80	109	1
1.6 16V	NFU (TU5JP4)	1	05/2003-09/2005	1587	81	110	1
1.4 16V HDi	8HY (DV4TED4)	2	02/2002-06/2008	1398	66	90	1
1.6 16V HDi	9HX (DV6ATED4)	2	10/2005-12/2009	1560	66	90	1
1.6 16V HDi	9HZ (DV6TED4)	2	09/2005-12/2009	1560	80	109	1

C3 Pluriel (HB_) Convertible 05/2003-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	NFU (TU5JP4)	1	05/2003-	1587	80	109	1
1.4 HDi	8HX (DV4TD)	2	04/2004-	1398	50	68	1

C4 (LC_) Hatchback 11/2004-12/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	KFU (ET3J4)	1	11/2004-07/2011	1360	65	88	1
1.6 16V	NFU (TU5JP4)	1	11/2004-07/2011	1587	80	109	1
1.6 THP 140	5FT (EP6DT)	1	07/2008-07/2011	1598	103	140	1
1.6 THP 150	5FX (EP6DT)	1	07/2008-07/2011	1598	110	150	1
1.6 VTI 120	5FW (EP6)	1	07/2008-07/2011	1598	88	120	1
2.0 16V	RFN (EW10J4)	1	11/2004-07/2007	1997	100	136	1
2.0 16V	RFJ (EW10A)	1	11/2004-07/2011	1997	103	140	1
2.0 16V	RFJ (EW10A)	1	09/2006-07/2009	1997	105	143	1
2.0 16V	RFK (EW10J4S)	1	11/2004-07/2008	1997	130	177	1
1.6 16V Bio-Flex	NFU (TU5JP4)	19	09/2007-07/2008	1587	80	109	1
1.6 Flex		19	02/2009-07/2011	1587	81	110	1
1.6 HDi	9HX (DV6ATED4)	2	11/2004-07/2011	1560	66	90	1
1.6 HDi	9HY (DV6TED4) 9HZ (DV6TED4)	2	11/2004-07/2011	1560	80	109	1
1.6 HDi		2	04/2010-11/2012	1560	80	109	1
1.6 HDi		2	04/2010-11/2012	1560	84	114	1
2.0 HDi	RHZ (DW10ATED)	2	04/2007-07/2008	1997	81	110	1
2.0 HDi	RHR (DW10BTED4)	2	11/2004-07/2011	1997	100	136	1
2.0 HDi	RHF (DW10BTED4)	2	07/2008-07/2011	1997	103	140	1

C4 (LA_) Coupe 11/2004-12/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	KFU (ET3J4)	1	11/2004-07/2011	1360	65	88	1
1.6 16V	NFU (TU5JP4)	1	11/2004-07/2011	1587	80	109	1
1.6 THP	5FT (EP6DT)	1	06/2008-07/2011	1598	103	140	1
1.6 THP 150	5FX (EP6DT)	1	07/2008-07/2011	1598	110	150	1
1.6 VTI 120	5FW (EP6)	1	07/2008-07/2011	1598	88	120	1
2.0 16V	RFN (EW10J4)	1	11/2004-07/2007	1997	100	136	1
2.0 16V	RFK (EW10J4S)	1	11/2004-12/2010	1997	130	177	1
2.0 VTR	RFJ (EW10A)	1	10/2006-12/2007	1997	103	140	1
1.6 HDi	9HX (DV6ATED4)	2	11/2004-07/2011	1560	66	90	1
1.6 HDi	9HY (DV6TED4) 9HZ (DV6TED4)	2	11/2004-07/2011	1560	80	109	1
2.0 HDi	RHR (DW10BTED4)	2	11/2004-12/2010	1997	100	136	1
2.0 HDi	RHF (DW10BTED4)	2	07/2008-07/2011	1997	103	140	1

C4 (LR_) Hatchback Van 02/2005-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 HDi	RHR (DW10BTED4)	2	02/2005-12/2010	1997	100	136	1

C4 / C4 PALLAS () Saloon 07/2006-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	NFU (TU5JP4)	1	07/2006-07/2011	1587	80	109	1
2.0 16V	RFJ (EW10A)	1	07/2006-07/2011	1997	103	140	1
1.6 HDi	9HY (DV6TED4) 9HZ (DV6TED4)	2	07/2006-07/2011	1560	80	109	1
1.6 HDi		2	04/2010-11/2012	1560	80	109	1
1.6 HDi		2	04/2010-11/2012	1560	84	114	1

C4 Grand Picasso (UA_) MPV 10/2006-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 i 16V	RFJ (EW10A)	1	10/2006-08/2013	1997	103	140	1
1.6 HDi	9HY (DV6TED4) 9HZ (DV6TED4)	2	10/2006-06/2011	1560	80	109	1
2.0 HDi 138	RHJ (DW10BTED4) RHR (DW10BTED4)	2	10/2006-12/2013	1997	100	136	1
2.0 HDi 150	RHE (DW10CTED4)	2	07/2009-08/2013	1997	110	150	1

C4 Picasso (UD_) MPV 10/2006-12/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 i 16V	RFJ (EW10A)	1	09/2007-08/2013	1997	103	140	1
1.6 HDi	9HY (DV6TED4) 9HZ (DV6TED4)	2	02/2007-08/2013	1560	80	109	1
1.6 HDi 110	9HR (DV6C)	2	09/2010-08/2013	1560	82	112	1
2.0 HDi 138	RHJ (DW10BTED4) RHR (DW10BTED4)	2	10/2006-08/2013	1997	100	136	1
2.0 HDi 150	RHE (DW10CTED4)	2	07/2009-08/2013	1997	110	150	1

C4 II (NC_) Hatchback 02/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 VTi 95 (NC8FP0)	8FP (EP3C)	1	11/2009-11/2015	1397	70	95	1
1.6 THP 155	5FV (EP6CDT)	1	11/2009-12/2016	1598	115	156	1
1.6 VTi 120 (NC5FS0, NC5FS9)	5FS (EP6C)	1	11/2009-12/2016	1598	88	120	1
1.6 VTi 120 LPG (NC5FS0)	5FS (EP6C)	18	09/2011-	1598	88	120	1
1.6 BlueHDi 115	BHX (DV6FC)	2	08/2014-	1560	85	115	1
1.6 HDi 110	9HR (DV6C)	2	11/2009-	1560	82	112	1
1.6 HDi 115	9HD (DV6C)	2	07/2012-	1560	84	114	1
1.6 HDi 90	9HJ (DV6DTEDM) 9HP (DV6DTED)	2	11/2009-	1560	68	92	1

C4 II (NC_) Hatchback Van 11/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 HDi	9HP (DV6DTED)	2	06/2010-	1560	68	92	1
1.6 HDi	9HR (DV6C)	2	11/2009-	1560	82	111	1

C4 II (NC_) Saloon 01/2013-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	NFP (EC5)	1	01/2013-	1587	85	116	1
1.6	5FS (EP6C)	1	01/2013-	1598	88	120	1
1.6 Flex		1	12/2014-	1598	127	173	1

C4 II PICASSO (DD_) Box Body/MPV 01/2013-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
e-HDi (DD9HC8, DD9HCT)		2	02/2013-	1560	85	116	1

DS4 (NX_) Hatchback 03/2011-07/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 THP 155	5FV (EP6CDT)	1	04/2011-07/2015	1598	115	156	1
1.6 THP160	5FM (EP6CDTM)	1	04/2012-07/2015	1598	120	163	1
1.6 THP200	5FU (EP6DTX)	1	04/2011-07/2015	1598	147	200	1
1.6 VTI 120	5FS (EP6C)	1	04/2011-07/2015	1598	88	120	1
1.6 HDi 110	9HR (DV6C)	2	04/2011-07/2015	1560	82	112	1
1.6 HDi 115	9HD (DV6C)	2	08/2012-07/2015	1560	84	114	1
1.6 HDi 90	9HP (DV6DTED)	2	05/2011-07/2015	1560	68	92	1
2.0 HDi 165	RHH (DW10CTED4)	2	04/2011-07/2015	1997	120	163	1
1.6 HDi 110		14	04/2011-07/2015	1560	81	110	1

XSARA PICASSO (N68) MPV 09/1999-06/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	NFZ (TU5JP)	1	06/2002-08/2005	1587	67	91	1
1.6	NFV (TU5JP)	1	12/1999-12/2010	1587	70	95	1
1.6 16V	NFU (TU5JP4)	1	09/2005-12/2011	1587	80	109	1
1.6 16V	NFU (TU5JP4)	1	06/2005-09/2006	1587	81	110	1
1.6 Chrono	NFV (TU5JP)	1	04/2001-10/2004	1587	74	101	1
1.8 16V	6FZ (EW7J4)	1	02/2000-08/2005	1749	85	115	1
1.8 SX		1	06/2000-08/2005	1761	76	103	1
2.0		1	02/2004-10/2004	1997	88	120	1
2.0 16V	RFN (EW10J4)	1	01/2003-06/2012	1997	100	136	1
2.0 16V	RFN (EW10J4)	1	12/1999-11/2011	1997	101	138	1
1.6 16V LPG		18	06/2004-12/2010	1587	80	109	1
1.6 HDi	9HX (DV6ATED4)	2	09/2005-12/2011	1560	66	90	1
1.6 HDi	9HY (DV6TED4) 9HZ (DV6TED4)	2	05/2004-12/2011	1560	80	109	1
2.0 HDi	RHY (DW10TD)	2	12/1999-12/2011	1997	66	90	1

CITROËN (DF-PSA)

C-TRIOMPHE () Saloon 05/2006-12/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 Exclusive Limousine		1	05/2006-	1997	103	140	1

C2 (T11) Hatchback 10/2006-12/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	10/2006-	1587	78	105	1

DS

DS 4 / DS 4 CROSSBACK (NX_) Hatchback 07/2015-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 THP 210	5GM (EP6FDTX)	1	07/2015-12/2018	1598	155	210	1
1.6 BlueHDi 100	BHY (DV6FD)	2	04/2016-12/2018	1560	73	99	1
1.6 BlueHDi 120	BHZ (DV6FC)	2	07/2015-12/2018	1560	88	120	1
2.0 BlueHDi 180	AHW (DW10FC)	2	07/2015-12/2018	1997	133	180	1

PEUGEOT

307 (3A/C) Hatchback 08/2000-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	KFW (TU3JP)	1	08/2000-09/2003	1360	55	75	1
1.4 16V	KFU (ET3J4)	1	11/2003-07/2007	1360	65	88	1
1.6	NFU (TU5JP4)	1	07/2006-04/2012	1587	81	110	1
1.6 16V	NFU (TU5JP4)	1	08/2000-11/2007	1587	80	109	1
2.0 16V	RFN (EW10J4)	1	08/2000-06/2005	1997	100	136	1
2.0 16V	RFJ (EW10A)	1	03/2005-11/2007	1997	103	140	1
2.0 16V	RFK (EW10J4S)	1	06/2005-11/2007	1997	130	177	1
1.6 BioFlex	NFU (TU5JP4)	19	09/2007-04/2009	1587	80	109	1
1.6 Flex	N6A (TU5JP4)	19	07/2006-12/2012	1587	83	113	1
1.4 HDi	8HX (DV4TD) 8HZ (DV4TD)	2	10/2001-06/2005	1398	50	68	1
1.6 HDi	9HV (DV6TED4B) 9HV (DV6TED4BU) 9HX (DV6ATED4)	2	04/2005-03/2009	1560	66	90	1
1.6 HDi 110	9HY (DV6TED4) 9HZ (DV6TED4)	2	02/2004-03/2009	1560	80	109	1
2.0 HDI 110	RHS (DW10ATED)	2	08/2000-03/2007	1997	79	107	1
2.0 HDi 135	RHR (DW10BTED4)	2	10/2003-11/2007	1997	100	136	1
2.0 HDI 90	RHY (DW10TD)	2	08/2000-03/2007	1997	66	90	1

307 (3E) Estate 03/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	KFW (TU3JP)	1	04/2002-09/2003	1360	55	75	1
1.4 16V	KFU (ET3J4)	1	11/2003-07/2007	1360	65	88	1
1.6 16V	NFU (TU5JP4)	1	03/2002-04/2008	1587	80	109	1
2.0	RFN (EW10J4)	1	03/2002-06/2005	1997	100	136	1
2.0 16V	RFJ (EW10A)	1	03/2005-04/2008	1997	103	140	1
2.0 16V	RFK (EW10J4S)	1	06/2005-04/2008	1997	130	177	1
1.6 BioFlex	NFU (TU5JP4)	19	09/2007-04/2008	1587	80	109	1
1.4 HDi	8HZ (DV4TD)	2	03/2002-06/2005	1398	50	68	1
1.6 HDi	9HV (DV6TED4B) 9HV (DV6TED4BU) 9HX (DV6ATED4) 9HX (DV6AUTED4)	2	04/2005-04/2008	1560	66	90	1
1.6 HDi 110	9HY (DV6TED4) 9HZ (DV6TED4)	2	02/2004-04/2008	1560	80	109	1
2.0 HDI 110	RHS (DW10ATED)	2	03/2002-12/2009	1997	79	107	1
2.0 HDi 135	RHR (DW10BTED4)	2	02/2004-04/2008	1997	100	136	1
2.0 HDI 90	RHY (DW10TD)	2	03/2002-04/2008	1997	66	90	1

307 SW (3H) Estate 03/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	KFW (TU3JP)	1	04/2002-09/2003	1360	55	75	1
1.4 16V	KFU (ET3J4)	1	11/2003-07/2007	1360	65	88	1
1.6 16V	NFU (TU5JP4)	1	03/2002-04/2008	1587	80	109	1
2.0 16V	RFN (EW10J4)	1	03/2002-06/2005	1997	100	136	1
2.0 16V	RFJ (EW10A)	1	03/2005-04/2008	1997	103	140	1
1.6 BioFlex	NFU (TU5JP4)	19	09/2007-04/2008	1587	80	109	1
1.4 HDi		2	04/2002-06/2005	1398	51	69	2
1.4 HDi 70		2	03/2002-06/2005	1398	50	68	1
1.6 HDi 110	9HY (DV6TED4) 9HZ (DV6TED4)	2	11/2003-12/2007	1560	80	109	1
1.6 HDi 90	9HV (DV6TED4B) 9HV (DV6TED4BU) 9HX (DV6ATED4) 9HX (DV6AUTED4)	2	04/2005-04/2008	1560	66	90	1
2.0 HDI 110	RHS (DW10ATED)	2	03/2002-12/2009	1997	79	107	1
2.0 HDi 135	RHR (DW10BTED4)	2	02/2004-04/2008	1997	100	136	1
2.0 HDI 90	RHY (DW10TD)	2	03/2002-04/2008	1997	66	90	1

307 SW (3E_, 3H_) Estate Van 04/2002-12/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 HDi	8HZ (DV4TD)	2	04/2002-06/2005	1398	51	69	1
1.6 HDi	9HX (DV6ATED4)	2	04/2006-10/2008	1560	66	90	1
2.0 HDi	RHY (DW10TD)	2	04/2003-04/2008	1997	66	90	1
2.0 HDi	RHZ (DW10ATED)	2	01/2003-12/2009	1997	79	107	1
2.0 HDi	RHR (DW10BTED4)	2	04/2004-11/2007	1997	100	136	1

307 (3B) Convertible 03/2003-06/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	NFU (TU5JP4)	1	03/2003-04/2009	1587	80	110	1
2.0 16V	RFN (EW10J4)	1	10/2003-06/2005	1997	100	136	1
2.0 16V	RFJ (EW10A)	1	12/2004-04/2009	1997	103	140	1
2.0 16V	RFK (EW10J4S)	1	10/2003-04/2009	1997	130	177	1
2.0 HDi 135	RHR (DW10BTED4)	2	06/2005-04/2009	1997	100	136	1

308 (4A_, 4C_) Hatchback 09/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	8FS (EP3) EP3	1	09/2007-10/2014	1397	70	95	1
1.4 16V	8FR (EP3)	1	12/2009-10/2014	1397	72	98	1
1.6		1	01/2012-12/2015	1598	120	163	1
1.6 16V	5FW (EP6) EP6	1	09/2007-10/2014	1598	88	120	1
1.6 16V	5FT (EP6DT)	1	09/2007-10/2014	1598	103	140	1
1.6 16V	5FX (EP6DT)	1	09/2007-10/2014	1598	110	150	1
1.6 16V	5FY (EP6DTS)	1	03/2008-10/2014	1598	128	174	1
1.6 THP 16V	5FV (EP6CDT)	1	10/2009-10/2014	1598	115	156	1
1.6 BioFlex	NFU (TU5JP4)	19	04/2008-10/2014	1587	80	109	1
2.0 Bioflex	RFJ (EW10A)	19	01/2008-12/2012	1997	103	140	1
1.6 HDi	9HV (DV6TED4B) 9HV (DV6TED4BU) 9HX (DV6ATED4)	2	09/2007-10/2014	1560	66	90	1
1.6 HDi	9HJ (DV6DTEDM) 9HP (DV6DTED)	2	11/2009-10/2014	1560	68	92	1
1.6 HDi	9HZ (DV6TED4)	2	09/2007-10/2014	1560	80	109	1
1.6 HDi	9HR (DV6C)	2	12/2009-10/2014	1560	82	112	1
1.6 HDi	9HD (DV6C) 9HG (DV6C M)	2	03/2013-10/2014	1560	84	114	1
2.0 HDi	RHR (DW10BTED4) RHR (DW10CB)	2	09/2007-10/2014	1997	100	136	1
2.0 HDi	RHR (DW10BTED4)	2	07/2010-12/2012	1997	103	140	1
2.0 HDi	RHE (DW10CTED4)	2	10/2011-10/2014	1997	110	150	1
2.0 HDi	RHH (DW10CTED4)	2	04/2012-10/2014	1997	120	163	1

308 SW (4E_, 4H_) Estate 09/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	8FS (EP3)	1	09/2007-10/2014	1397	70	95	1
1.4 16V	8FR (EP3)	1	12/2009-10/2014	1397	72	98	1
1.6 16V	5FW (EP6) EP6	1	09/2007-10/2014	1598	88	120	1
1.6 16V	5FT (EP6DT)	1	09/2007-10/2014	1598	103	140	1
1.6 16V	5FX (EP6DT)	1	09/2007-10/2014	1598	110	150	1
1.6 16V	5FY (EP6DTS)	1	03/2008-10/2014	1598	128	174	1
1.6 THP 16V	5FV (EP6CDT)	1	10/2009-10/2014	1598	115	156	1
1.6 BioFlex	NFU (TU5JP4)	19	03/2009-10/2014	1587	82	112	1
2.0 Bioflex	RFJ (EW10A)	19	01/2008-12/2011	1997	103	140	1
1.6 HDi	9HV (DV6TED4BU) 9HX (DV6ATED4)	2	09/2007-10/2014	1560	66	90	1
1.6 HDi	9HP (DV6DTED)	2	11/2009-10/2014	1560	68	92	1
1.6 HDi	9HZ (DV6TED4)	2	09/2007-10/2014	1560	80	109	1
1.6 HDi	9HR (DV6C)	2	12/2009-10/2014	1560	82	112	1
1.6 HDi	9HD (DV6C)	2	03/2013-10/2014	1560	84	114	1
2.0 HDi	RHR (DW10BTED4)	2	09/2007-12/2012	1997	100	136	1
2.0 HDi	RHR (DW10BTED4)	2	09/2007-10/2014	1997	103	140	1
2.0 HDi	RHE (DW10CTED4)	2	04/2011-10/2014	1997	110	150	1
2.0 HDi	RHH (DW10CTED4)	2	06/2009-10/2014	1997	120	163	1

308 SW (4E_) Estate Van 01/2008-12/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 HDi	9HX (DV6ATED4)	2	01/2008-12/2011	1560	66	90	1
1.6 HDi	9HZ (DV6TED4)	2	01/2008-12/2012	1560	80	109	1
2.0 HDi	RHR (DW10BTED4)	2	01/2008-12/2011	1997	100	136	1

308 CC (4B_) Convertible 02/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	EP6	1	06/2009-12/2014	1598	88	120	1
1.6 16V	5FT (EP6DT)	1	06/2009-12/2014	1598	103	140	1
1.6 16V	5FX (EP6DT)	1	06/2009-12/2014	1598	110	150	1
1.6 16V	5FV (EP6CDT)	1	06/2009-12/2014	1598	115	156	1
1.6 THP	EP6CDTX	1	10/2010-12/2014	1598	147	200	1
2.0 CVVT	RFJ (EW10A)	1	07/2009-12/2014	1997	103	140	1
1.6 HDi	9HR (DV6C)	2	06/2009-12/2014	1560	82	112	1
1.6 HDi	9HZ (DV6TED4)	2	02/2009-05/2012	1560	82	111	1
1.6 HDi	9HD (DV6C)	2	03/2013-12/2014	1560	84	114	1
2.0 HDi	RHF (DW10BTED4)	2	04/2009-12/2012	1997	103	140	1
2.0 HDi	RHH (DW10CTED4)	2	06/2009-12/2014	1997	120	163	1
2.0 HDi (4BRHRH, 4BRHRJ)	RHR (DW10BTED4)	2	04/2009-12/2014	1997	100	136	1

807 (EB_) MPV 06/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	RFN (EW10J4)	1	06/2002-	1997	100	136	1
2.0 16V	RFJ (EW10A)	1	09/2005-	1997	103	140	1
2.2	3FZ (EW12J4)	1	06/2002-	2230	116	158	1
3.0 V6	XFX (ES9J4S)	1	06/2002-	2946	150	204	1
2.0 HDi	RHM (DW10ATED4) RHT (DW10ATED4) RHW (DW10ATED4)	2	06/2002-05/2006	1997	79	107	1
2.0 HDi	RHW (DW10ATED4)	2	04/2004-	1997	80	109	1
2.0 HDi	RHK (DW10UTED4)	2	02/2006-	1997	88	120	1
2.0 HDi	RHR (DW10BTED4) RHR (DW10CB)	2	06/2006-	1997	100	136	1
2.0 HDi	RHH (DW10CTED4)	2	06/2009-	1997	120	163	1
2.2 HDi	4HW (DW12BTED4)	2	06/2002-	2179	94	128	1
2.2 HDi	4HW (DW12TED4)	2	04/2004-05/2006	2179	100	136	1
2.2 HDi	4HR (DW12BTED4)	2	06/2006-	2179	120	163	1
2.2 HDi	4HT (DW12BTED4)	2	06/2006-06/2010	2179	125	170	1

807 (EB_) Box Body/MPV 06/2002-

Vehicle	Fuel	Date	CC	KW	CV	Traction
2.0 HDi	2	05/2010-	1997	120	163	1
2.0 HDi (EBRHMEF)	2	06/2002-05/2006	1997	79	107	1
2.0 HDi (EBRHTBF, EBRHWBF)	2	04/2004-05/2006	1997	80	109	1
HDi (EB4HWGF)	2	04/2004-05/2006	2179	94	128	1

1007 (KM_) Hatchback 04/2005-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	NFU (TU5JP4)	1	04/2005-	1587	80	109	1
1.6 HDi	9HZ (DV6TED4)	2	06/2007-	1560	80	109	1

PARTNER / GRAND RAID / RANCH (5_, G_) MPV 05/1996-12/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	NFU (TU5JP4)	1	07/2001-03/2008	1587	80	109	1
1.6 HDi 75	9HW (DV6BTED4)	2	08/2005-07/2008	1560	55	75	1
1.6 HDi 90	9HX (DV6ATED4)	2	08/2005-12/2015	1560	66	90	1
1.6 HDI 92	9HJ (DV6DTEDM) 9HP (DV6DTED)	2	11/2009-12/2010	1560	68	92	1
1.9 D	WJY (DW8B) WJZ (DW8)	2	01/1999-07/2008	1868	51	69	1
2.0 HDi	RHY (DW10TD)	2	02/2000-07/2008	1997	66	90	1

PARTNER / RANCH (5_, G_) Box Body/MPV 06/1996-12/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4		1	10/2005-12/2010	1360	48	65	1
1.4 CNG	KFW (TU3JP)	16	04/2003-10/2006	1360	55	75	1
1.6 HDi 75	9HW (DV6BTED4)	2	08/2005-07/2008	1560	55	75	1
1.6 HDi 90	9HX (DV6ATED4)	2	08/2005-12/2015	1560	66	90	1
1.9 D	WJY (DW8B) WJZ (DW8)	2	06/1996-12/2015	1868	51	69	1
2.0 HDi	RHY (DW10TD)	2	04/2000-07/2008	1997	66	90	1
2.0 HDi 4x4	RHY (DW10TD)	2	04/2004-08/2005	1997	66	90	3

PARTNER II ORIGIN (G_) MPV 07/2008-12/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	NFU (TU5JP4)	1	09/2011-12/2013	1587	81	110	1
1.6 HDi 75	9HW (DV6BTED4)	2	08/2008-12/2013	1560	55	75	1
1.9 D	WJY (DW8B)	2	08/2008-12/2013	1868	51	69	1

PARTNER II ORIGIN (G_) Box Body/MPV 07/2008-12/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	NFU (TU5JP4)	1	09/2011-12/2015	1587	81	110	1
1.6 HDi 75	9HW (DV6BTED4)	2	08/2008-12/2015	1560	55	75	1
1.6 HDi 90	9HX (DV6ATED4)	2	08/2008-12/2015	1560	66	90	1
1.9 D	WJY (DW8B)	2	08/2008-12/2015	1868	51	69	1

PEUGEOT (DF-PSA)

307 () Saloon 08/2004-12/2014

Vehicle	Fuel	Date	CC	KW	CV	Traction
1.6	1	08/2004-	1587	78	105	1
2.0	1	08/2004-	1997	99	133	1
2.0	1	08/2004-	1997	108	145	1

SEAT

ALTEA (5P1) MPV 03/2004-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	04/2010-07/2015	1197	77	105	1
1.4 16V	BXW CGGB	1	05/2006-05/2011	1390	63	86	1
1.4 TSI	CAXC	1	11/2007-07/2015	1390	92	125	1
1.6	BGU BSE BSF CCSA	1	03/2004-03/2010	1595	75	102	1
1.8 TFSI	BYT BZB CDAA	1	01/2007-07/2015	1798	118	160	1
2.0 FSI	BLR BLY BVY BVZ	1	05/2004-03/2009	1984	110	150	1
2.0 TFSI	BWA	1	04/2006-05/2009	1984	147	200	1
1.6 LPG	CHGA	18	09/2009-06/2013	1595	75	102	1
1.6 MultiFuel	CMXA	19	11/2010-05/2011	1595	75	102	1
1.6 TDI	CAYB	2	11/2010-07/2015	1598	66	90	1
1.6 TDI	CAYC	2	10/2009-07/2015	1598	77	105	1
1.9 TDI	BXF	2	08/2009-12/2010	1896	66	90	1
1.9 TDI	BJB BKC BLS BXE	2	04/2004-12/2010	1896	77	105	1
2.0 TDI	AZV	2	03/2004-05/2009	1968	100	136	1
2.0 TDI	BMM	2	11/2005-11/2010	1968	103	140	1
2.0 TDI	BMN CEGA	2	03/2006-05/2010	1968	125	170	1
2.0 TDI 16V	BKD CFHC	2	03/2004-07/2015	1968	103	140	1
2.0 TDI 16V 4WD	CFHC	2	10/2010-	1968	103	140	3

ALTEA XL (5P5, 5P8) MPV 10/2006-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	04/2010-07/2015	1197	77	105	1
1.4 16V	BXW CGGB	1	10/2006-06/2013	1390	63	86	1
1.4 TSI	CAXC	1	11/2007-07/2015	1390	92	125	1
1.6	BGU BSE BSF CCSA	1	10/2006-11/2010	1595	75	102	1
1.8 TFSI	BYT BZB CDAA	1	01/2007-07/2015	1798	118	160	1
2.0 FSI	BVY BVZ	1	10/2006-03/2009	1984	110	150	1
2.0 TFSI 4x4	BWA	1	06/2007-05/2009	1984	147	200	3
2.0 TFSI 4x4	CCZB	1	05/2009-07/2015	1984	155	211	3
1.6 LPG	CHGA	18	09/2009-06/2013	1595	75	102	1
1.6 MultiFuel	BSE BSF CCSA CMXA	19	10/2006-11/2010	1595	75	102	1
1.6 TDI	CAYB	2	11/2010-07/2015	1598	66	90	1
1.6 TDI	CAYC	2	10/2009-07/2015	1598	77	105	1
1.9 TDI	BXF	2	08/2009-12/2010	1896	66	90	1
1.9 TDI	BKC BLS BXE	2	10/2006-12/2010	1896	77	105	1
1.9 TDI 4x4	BLS	2	06/2009-12/2010	1896	77	105	3
2.0 TDI	AZV	2	11/2006-03/2009	1968	100	136	1
2.0 TDI	BMM	2	10/2006-11/2010	1968	103	140	1
2.0 TDI	BMN CEGA	2	06/2007-12/2013	1968	125	170	1
2.0 TDI 16V	BKD CFHC	2	10/2006-07/2015	1968	103	140	1
2.0 TDI 16V 4x4	CFHC	2	10/2010-07/2015	1968	103	140	3
2.0 TDI 4x4	BMM	2	06/2007-11/2010	1968	103	140	3
2.0 TDI 4x4	BMN CEGA CFJA	2	06/2007-06/2013	1968	125	170	3

ARONA (KJ7, KJP) SUV 07/2017-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZL DKLA	1	07/2017-	999	70	95	1
1.0 TSI	CHZJ DKJA DKRF	1	07/2017-	999	85	115	1
1.5 TSI	DADA DPCA	1	07/2017-	1498	110	150	1
1.6 SRE	CWVA	1	07/2017-	1598	81	110	1
1.0 TGI	DBYA	16	11/2018-	999	66	90	1
1.6 TDI	DGTD	2	11/2017-	1598	70	95	1
1.6 TDI	DGTA	2	07/2017-	1598	85	115	1

AROSA (6H1) Hatchback 05/1997-06/2004

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	AFK AQQ AUB	1	01/2000-06/2004	1390	74	100	1

CORDOBA (6K1, 6K2) Saloon 02/1993-12/2002

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 T 20V Cupra	AQX AYP	1	07/2000-10/2002	1781	115	156	1
1.9 TDI	AFN ASV	2	03/1997-10/2002	1896	81	110	1

CORDOBA Vario (6K5) Estate 07/1996-12/2002

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.9 TDI	AFN ASV	2	07/1997-12/2002	1896	81	110	1

CORDOBA II (6K5) Estate Van 08/2000-12/2002

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.9 TDI		2	08/2000-12/2002	1896	81	110	1

CORDOBA III (6L2) Saloon 09/2002-11/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2	AZQ BME	1	10/2002-06/2006	1198	47	64	1
1.4 16V	BBY BKY	1	09/2002-12/2007	1390	55	75	1
1.4 16V	BXW	1	05/2006-11/2009	1390	63	86	1
1.4 16V	BBZ	1	10/2002-11/2009	1390	74	100	1
1.6	BAH	1	04/2003-11/2009	1598	74	101	1
1.6 16V	BTS	1	11/2006-11/2009	1598	77	105	1
2.0	AZL BBX	1	09/2002-11/2009	1984	85	115	1
1.4 TDI	BNM	2	05/2005-11/2009	1422	51	70	1
1.4 TDI	AMF	2	10/2002-12/2005	1422	55	75	1
1.4 TDI	BMS BNV	2	06/2005-11/2009	1422	59	80	1
1.4 Tdi 14"		2	09/2002-	1395	51	69	2
1.4 Tdi 15"		2	09/2002-	1395	51	69	2
1.9 SDI	ASY	2	09/2002-11/2009	1896	47	64	1
1.9 TDI	ATD AXR BMT	2	09/2002-11/2009	1896	74	100	1
1.9 TDI	ASZ BLT	2	10/2002-11/2009	1896	96	131	1

IBIZA II (6K1) Hatchback 03/1993-05/2002

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i 16V	AFH AQQ AUB	1	06/1997-02/2002	1390	74	101	1
1.6 i	AEH AFT AKL APF AUR	1	04/1996-02/2002	1595	74	101	1
1.8 T 20V Cupra	AQX AYP	1	07/2000-02/2002	1781	115	156	1
1.8 T 20V Cupra R	AYP	1	07/2000-02/2002	1781	132	180	1
1.9 TDI	AFN ASV	2	02/1997-02/2002	1896	81	110	1

IBIZA III (6L1) Hatchback 02/2002-11/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	BBY BKY	1	02/2002-12/2007	1390	55	75	1
1.4 16V	BXW	1	05/2006-11/2009	1390	63	86	1
1.4 16V	AUB BBZ	1	02/2002-11/2009	1390	74	100	1
1.6	BAH	1	02/2003-11/2009	1598	74	101	1
1.6 16V	BTS	1	11/2006-11/2009	1598	77	105	1
1.8 T Cupra R	BBU BLZ	1	01/2004-02/2008	1781	132	180	1
1.8 T FR	BJX BKV	1	12/2003-05/2008	1781	110	150	1
1.4 TDI	BNM	2	05/2005-11/2009	1422	51	70	1
1.4 TDI	AMF	2	05/2002-12/2005	1422	55	75	1
1.4 TDI	BMS BNV	2	06/2005-11/2009	1422	59	80	1
1.9 TDI	ATD AXR BMT	2	02/2002-11/2009	1896	74	100	1
1.9 TDI	ASZ BLT	2	02/2002-11/2009	1896	96	131	1
1.9 TDI Cupra R	BPX BUK	2	03/2004-02/2008	1896	118	160	1

IBIZA IV (6J5, 6P1) Hatchback 03/2008-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0	CHYB	1	05/2015-06/2017	999	55	75	1
1.0 TSI	CHZB	1	05/2015-06/2017	999	70	95	1
1.0 TSI	CHZC	1	05/2015-06/2017	999	81	110	1
1.2	CGPB	1	07/2009-05/2011	1198	44	60	1
1.2	BZG CGPA CJLB	1	03/2008-05/2015	1198	51	70	1
1.2 TSI	CBZA	1	08/2012-05/2015	1197	63	86	1
1.2 TSI	CJZC	1	05/2015-06/2017	1197	66	90	1
1.2 TSI	CBZB	1	09/2010-03/2012	1197	77	105	1
1.2 TSI	CJZD	1	09/2015-06/2017	1197	81	110	1
1.4	BXW CGGB	1	03/2008-05/2015	1390	63	85	1
1.4 TSI	CAVF CNUB CTHF CTJB	1	06/2009-05/2015	1390	110	150	1
1.4 TSI	CPTA	1	10/2013-05/2015	1395	103	140	1
1.4 TSI	CZEA	1	11/2015-06/2017	1395	110	150	1
1.6	BTS	1	05/2008-03/2012	1598	77	105	1
1.6	CWVA	1	07/2015-06/2017	1598	81	110	1
2.0	CEKA	1	10/2008-05/2015	1984	85	115	1
1.2 LPG	BZG	18	03/2008-05/2011	1198	51	70	1
1.4 LPG	BXW	18	03/2008-05/2011	1390	63	85	1
1.6 LPG	CNKA	18	05/2011-05/2015	1598	60	81	1
1.2 TDI	CFWA	2	06/2010-05/2015	1199	55	75	1
1.4 TDI	CUSA	2	05/2015-06/2017	1422	55	75	1
1.4 TDI	BMS	2	07/2008-06/2010	1422	59	80	1
1.4 TDI	CUSB	2	05/2015-06/2017	1422	66	90	1
1.4 TDI	CUTA CYZA	2	05/2015-06/2017	1422	77	105	1
1.6 TDI		2	05/2010-06/2010	1598	55	75	2
1.6 TDI	CAYA	2	05/2009-06/2010	1598	55	75	1
1.6 TDI	CAYB	2	05/2009-05/2015	1598	66	90	1
1.6 TDI	CAYC CLNA	2	05/2009-05/2015	1598	77	105	1
1.9 TDI	BXJ	2	07/2008-06/2010	1896	66	90	1
1.9 TDI	BLS	2	03/2008-06/2010	1896	77	105	1
2.0 TDI	CFHD	2	01/2010-05/2015	1968	105	143	1

IBIZA IV (6J1) Hatchback Van 04/2008-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2	CGPA	1	04/2008-05/2015	1198	51	69	1
1.2 TDI	CFWA	2	05/2010-05/2015	1199	55	75	1
1.6 TDI	CAYB	2	05/2009-05/2015	1598	66	90	1

IBIZA IV SC (6J1, 6P5) Coupe 06/2008-12/2018

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0	CHYB	1	05/2015-12/2016	999	55	75	1
1.0 TSI	CHZB	1	05/2015-12/2016	999	70	95	1
1.0 TSI	CHZC	1	05/2015-12/2016	999	81	110	1
1.2	CGPB	1	07/2009-05/2015	1198	44	60	1
1.2	BZG CGPA	1	07/2008-05/2015	1198	51	70	1
1.2 TSI	CBZA	1	08/2012-05/2015	1197	63	86	1
1.2 TSI	CJZC	1	05/2015-12/2016	1197	66	90	1
1.2 TSI	CBZB	1	09/2010-05/2015	1197	77	105	1
1.2 TSI	CJZD	1	09/2015-12/2016	1197	81	110	1
1.4	BXW CGGB	1	07/2008-05/2015	1390	63	85	1
1.4 TSI	CAVF CNUB CTHF CTJB	1	01/2009-05/2015	1390	110	150	1
1.4 TSI	CPTA	1	10/2013-05/2015	1395	103	140	1
1.4 TSI	CZEA	1	11/2015-12/2016	1395	110	150	1
1.4 TSI Cupra	CAVE CTHE CTJC	1	06/2009-05/2015	1390	132	180	1
1.6	BTS	1	07/2008-05/2015	1598	77	105	1
1.6	CWVA	1	07/2015-12/2016	1598	81	110	1
1.8 TSI Cupra	DAJA	1	11/2015-12/2016	1798	141	192	1
2.0	CEKA	1	10/2008-05/2015	1984	85	115	1
1.4 LPG		18	07/2008-05/2011	1390	63	85	1
1.6 LPG	CNKA	18	05/2011-05/2015	1598	60	81	1
1.2 TDI	CFWA	2	05/2010-05/2015	1199	55	75	1
1.4 TDI	CUSA	2	05/2015-12/2016	1422	55	75	1
1.4 TDI	BMS	2	07/2008-06/2010	1422	59	80	1
1.4 TDI	CUSB	2	05/2015-12/2016	1422	66	90	1
1.4 TDI	CUTA CYZA	2	05/2015-12/2016	1422	77	105	1
1.6 TDI		2	05/2010-06/2010	1598	55	75	2
1.6 TDI	CAYA	2	05/2010-06/2010	1598	55	75	1
1.6 TDI	CAYB	2	05/2009-05/2015	1598	66	90	1
1.6 TDI	CAYC	2	05/2009-05/2015	1598	77	105	1
1.9 TDI	BXJ	2	06/2008-06/2010	1896	66	90	1
1.9 TDI	BLS	2	07/2008-06/2010	1896	77	105	1
2.0 TDI	CFHD	2	01/2010-05/2015	1968	105	143	1

IBIZA IV ST (6J8, 6P8) Estate 03/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0	CHYB	1	05/2015-07/2016	999	55	75	1
1.0 TSI	CHZB	1	05/2015-07/2016	999	70	95	1
1.0 TSI	CHZC	1	05/2015-07/2016	999	81	110	1
1.2	CGPB	1	05/2010-05/2015	1198	44	60	1
1.2	BZG CGPA CJLB	1	05/2010-05/2015	1198	51	70	1
1.2 TSI	CBZA	1	09/2012-05/2015	1197	63	86	1
1.2 TSI	CJZC	1	05/2015-07/2016	1197	66	90	1
1.2 TSI	CBZB	1	09/2010-05/2015	1197	77	105	1
1.2 TSI	CJZD	1	09/2015-07/2016	1197	81	110	1
1.4	CGGB	1	03/2010-05/2015	1390	63	85	1
1.4 TSI	CAVF CNUB CTHF CTJB	1	02/2012-05/2015	1390	110	150	1
1.4 TSI	CPTA	1	10/2013-05/2015	1395	103	140	1
1.4 TSI	CZEA	1	11/2015-07/2016	1395	110	150	1
1.6		1	02/2012-	1598	77	105	1
1.6	BTS	1	02/2012-05/2015	1598	77	105	1
1.2 TDI	CFWA	2	04/2010-05/2015	1199	55	75	1
1.4 TDI	CUSA	2	05/2015-07/2016	1422	55	75	1
1.4 TDI	CUSB	2	05/2015-07/2016	1422	66	90	1
1.4 TDI	CUTA CYZA	2	05/2015-07/2016	1422	77	105	1
1.6 TDI	CAYB	2	03/2010-05/2015	1598	66	90	1
1.6 TDI	CAYC CLNA	2	03/2010-05/2015	1598	77	105	1

IBIZA V (KJ1, KJG) Hatchback 01/2017-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0	CHYC DFNB	1	07/2017-	999	48	65	1
1.0	CHYB	1	01/2017-	999	55	75	1
1.0 MPi	DFNA DSGB	1	07/2018-	999	59	80	1
1.0 TSI	CHZL DKLA	1	01/2017-	999	70	95	1
1.0 TSI	DLAA	1	06/2020-	999	81	110	1
1.0 TSI	CHZJ DKJA DKRF	1	01/2017-	999	85	115	1
1.5 TSI	DADA	1	07/2017-	1498	110	150	1
1.6	CWVA	1	05/2017-	1598	81	110	1
1.0 TGI	DBYA	16	11/2017-	999	66	90	1
1.6 TDI	DGTC	2	11/2017-	1598	59	80	1
1.6 TDI	DGTD	2	09/2017-	1598	70	95	1
1.6 TDI	DGTA	2	12/2017-	1598	85	115	1

LEON (1M1) Hatchback 11/1999-06/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	AHW APE AXP BCA	1	11/1999-06/2006	1390	55	75	1
1.6	AEH AKL	1	11/1999-06/2006	1595	74	100	1
1.6	BFQ	1	10/2005-06/2006	1595	75	102	1
1.6 16V	AUS AZD BCB	1	09/2000-06/2006	1598	77	105	1
1.8 20V	AGN APG	1	11/1999-06/2006	1781	92	125	1
1.8 20V T 4	AJQ ARY	1	11/1999-06/2006	1781	132	180	3
1.8 20VT	APP AUQ	1	11/1999-06/2006	1781	132	180	1
1.8 T Cupra R	AMK	1	02/2002-06/2006	1781	154	209	1
1.8 T Cupra R	BAM	1	07/2003-06/2006	1781	165	225	1
1.8 Turbo		1	05/2002-05/2003	1781	154	209	1
2.3 VR5		1	09/2000-11/2003	2324	125	170	1
2.8	BDE	1	05/2002-06/2004	2792	150	204	1
2.8 Cupra 4	AUE BDE	1	02/2001-06/2006	2792	150	204	3
1.9 SDI	AQM	2	11/1999-06/2006	1896	50	68	1
1.9 TDI	AGR ALH	2	11/1999-06/2006	1896	66	90	1
1.9 TDI	AXR	2	10/2005-06/2006	1896	74	100	1
1.9 TDI	AHF ASV	2	11/1999-06/2006	1896	81	110	1
1.9 TDI	ASZ	2	05/2003-06/2006	1896	96	130	1
1.9 TDI	ARL	2	09/2000-06/2006	1896	110	150	1
1.9 TDI Syncro	ARL	2	05/2002-06/2006	1896	110	150	3

LEON II (1P1) Hatchback 05/2005-12/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	02/2010-12/2012	1197	77	105	1
1.4 16V	BXW CGGB	1	06/2006-12/2012	1390	63	86	1
1.4 TSI	CAXC	1	11/2007-12/2012	1390	92	125	1
1.6	BSE BSF CCSA	1	07/2005-12/2012	1595	75	102	1
1.8 TSI	BZB CDAA	1	06/2007-12/2012	1798	118	160	1
2.0 Cupra R	CDLA	1	09/2009-12/2012	1984	195	265	1
2.0 FSI	BLR BLY BVY BVZ	1	07/2005-05/2010	1984	110	150	1
2.0 TFSI	BWA1	1	09/2005-05/2006	1984	136	185	1
2.0 TFSI	BWA	1	05/2005-03/2009	1984	147	200	1
2.0 TFSI	CCZB	1	06/2009-12/2012	1984	155	211	1
2.0 TFSI	BWJ CDLD	1	11/2006-05/2011	1984	177	240	1
1.6 LPG	CHGA	18	12/2009-12/2012	1595	75	102	1
1.6 MultiFuel	BSE CCSA CMXA	19	07/2005-08/2013	1595	75	102	1
1.6 TDI	CAYB	2	11/2010-12/2012	1598	66	90	1
1.6 TDI	CAYC	2	02/2010-12/2012	1598	77	105	1
1.9 TDI	BXF	2	06/2007-12/2010	1896	66	90	1
1.9 TDI	BKC BLS BXE	2	07/2005-12/2010	1896	77	105	1
1.9 TDI		2	10/2005-12/2012	1896	81	110	2
2.0 TDI	AZV	2	07/2005-05/2010	1968	100	136	1
2.0 TDI	BMM	2	10/2005-10/2010	1968	103	140	1
2.0 TDI	BMN CEGA CFJA	2	05/2006-12/2012	1968	125	170	1
2.0 TDI 16V	BKD CFHC CLCB	2	07/2005-12/2012	1968	103	140	1

LEON III (5F1) Hatchback 09/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	DKLB	1	09/2018-08/2020	999	63	86	1
1.0 TSI	CHZD DKRF	1	05/2015-08/2020	999	85	115	1
1.2 TSI	CJZB CYVA	1	12/2012-08/2018	1197	63	86	1
1.2 TSI	CJZA	1	01/2013-08/2020	1197	77	105	1
1.2 TSI	CYVB	1	04/2014-08/2020	1197	81	110	1
1.4 TSI	CMBA CXSA	1	11/2012-10/2016	1395	90	122	1
1.4 TSI	CZCA	1	05/2014-08/2020	1395	92	125	1
1.4 TSI	CHPA CPTA	1	09/2012-08/2020	1395	103	140	1
1.4 TSI	CZDA CZEA	1	05/2014-08/2020	1395	110	150	1
1.5 TSI	DACA DPBA	1	09/2018-08/2020	1495	96	130	1
1.5 TSI	DADA DPCA	1	09/2018-08/2020	1498	110	150	1
1.8 TSI	CJSA	1	02/2013-08/2018	1798	132	180	1
1.4 TGI	CPWA	16	02/2013-08/2018	1395	81	110	1
1.5 TGI	DHFA	16	10/2018-08/2020	1498	96	131	1
1.6 TDI	CLHB CXXA DDYB	2	11/2012-08/2018	1598	66	90	1
1.6 TDI	CLHA	2	09/2012-08/2020	1598	77	105	1
1.6 TDI	CRKB CXXB DBKA	2	09/2013-08/2020	1598	81	110	1
1.6 TDI	DDYA DGTE	2	11/2016-08/2020	1598	85	115	1
2.0 TDI	CRLD CRVA	2	05/2013-08/2020	1968	81	110	1
2.0 TDI	CRVC	2	05/2013-08/2020	1968	105	143	1
2.0 TDI	CKFC CRMB DFFA	2	10/2012-08/2020	1968	110	150	1
2.0 TDI	CUNA CUPA DJGA	2	09/2012-08/2020	1968	135	184	1

LEON III (5F1) Hatchback Van 09/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZD	1	05/2015-08/2020	999	85	115	1
1.2 TSI	CJZB CYVA	1	01/2013-08/2018	1197	63	86	1
1.2 TSI	CYVB	1	04/2014-08/2018	1197	81	110	1
1.4 TSI	CMBA CXSA	1	09/2012-10/2016	1395	90	122	1
1.4 TSI	CHPA CPTA	1	09/2012-10/2016	1395	103	140	1
1.4 TSI	CZEA	1	05/2014-08/2020	1395	110	150	1
1.6 TDI	CLHB	2	11/2012-10/2016	1598	66	90	1
1.6 TDI	CLHA	2	09/2012-10/2016	1598	77	105	1
1.6 TDI	CRKB CXXB DBKA	2	09/2013-10/2016	1598	81	110	1
1.6 TDI	DDYA	2	11/2016-08/2020	1598	85	115	1
2.0 TDI	CKFC CRMB	2	10/2012-08/2018	1968	110	150	1

LEON III ST (5F8) Estate 09/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	DKLB	1	09/2018-08/2020	999	63	86	1
1.0 TSI	CHZD DKRF	1	05/2015-08/2020	999	85	115	1
1.2 TSI	CJZB CYVA	1	11/2013-08/2018	1197	63	86	1
1.2 TSI	CJZA	1	08/2013-08/2020	1197	77	105	1
1.2 TSI	CYVB	1	05/2014-08/2020	1197	81	110	1
1.4 TSI	CMBA CXSA	1	09/2012-06/2015	1395	90	122	1
1.4 TSI	CZCA	1	05/2014-08/2018	1395	92	125	1
1.4 TSI	CHPA CPTA	1	10/2013-08/2020	1395	103	140	1
1.4 TSI	CZEA	1	05/2014-08/2020	1395	110	150	1
1.5 TSI	DACA DPBA	1	09/2018-08/2020	1495	96	130	1
1.5 TSI	DADA DPCA	1	09/2018-08/2020	1498	110	150	1
1.8 TSI	CJSA	1	10/2013-08/2018	1798	132	180	1
1.8 TSI 4Drive	CJSA CJSB	1	11/2014-08/2018	1798	132	180	3
1.4 TGI	CPWA	16	10/2013-08/2018	1395	81	110	1
1.5 TGI	DHFA	16	10/2018-08/2020	1498	96	131	1
1.6 TDI	CLHB CXXA DDYB	2	11/2013-08/2018	1598	66	90	1
1.6 TDI	CLHA	2	10/2013-08/2020	1598	77	105	1
1.6 TDI	CRKB CXXB DBKA	2	09/2013-08/2020	1598	81	110	1
1.6 TDI	DDYA DGTE	2	11/2016-08/2020	1598	85	115	1
1.6 TDI 4Drive	CLHA	2	04/2014-08/2020	1598	77	105	3
1.6 TDI 4Drive	CXXB	2	11/2014-08/2020	1598	81	110	3
1.6 TDI 4Drive	DGTE	2	07/2018-08/2020	1598	85	115	3
2.0 TDI	CRVA	2	02/2013-12/2016	1968	81	110	1
2.0 TDI	CRVC	2	10/2013-08/2018	1968	105	143	1
2.0 TDI	CKFC CRBC CRLB CRMB DFFA DFGA	2	10/2013-08/2020	1968	110	150	1
2.0 TDI	CUNA CUPA DJGA	2	08/2013-08/2020	1968	135	184	1
2.0 TDI 4Drive	CRBC CRLB CRMB DCYA DFGA	2	04/2014-08/2020	1968	110	150	3
2.0 TDI 4Drive	CUNA DJGA	2	11/2014-08/2018	1968	135	184	3

LEON III SC (5F5) Coupe 01/2013-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZD	1	05/2015-08/2018	999	85	115	1
1.2 TSI	CJZB CYVA	1	01/2013-08/2018	1197	63	86	1
1.2 TSI	CJZA	1	02/2013-04/2014	1197	77	105	1
1.2 TSI	CYVB	1	05/2014-08/2018	1197	81	110	1
1.4 TSI	CMBA CXSA	1	02/2013-06/2015	1395	90	122	1
1.4 TSI	CZCA	1	05/2014-08/2018	1395	92	125	1
1.4 TSI	CHPA CPTA	1	02/2013-11/2016	1395	103	140	1
1.4 TSI	CZEA	1	05/2014-08/2018	1395	110	150	1
1.8 TSI	CJSA	1	02/2013-08/2018	1798	132	180	1
1.6 TDI	CLHB CXXA DDYB	2	02/2013-08/2018	1598	66	90	1
1.6 TDI	CLHA	2	02/2013-08/2018	1598	77	105	1
1.6 TDI	CRKB CXXB	2	09/2013-11/2016	1598	81	110	1
1.6 TDI	DDYA	2	11/2016-08/2018	1598	85	115	1
2.0 TDI		2	02/2013-	1968	81	110	1
2.0 TDI	CRVA	2	02/2013-08/2018	1968	81	110	1
2.0 TDI	CRVC	2	05/2013-08/2018	1968	105	143	1
2.0 TDI	CKFC CRMB	2	02/2013-08/2018	1968	110	150	1
2.0 TDI	CUNA CUPA	2	03/2013-08/2018	1968	135	184	1

LEON III ST (5F8) Estate Van 01/2013-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZD	1	05/2015-08/2020	999	85	115	1
1.2 TSI	CJZB CYVA	1	01/2013-08/2018	1197	63	86	1
1.2 TSI	CYVB	1	05/2014-08/2018	1197	81	110	1
1.4 TSI	CZDA CZEA	1	05/2014-08/2020	1395	110	150	1
1.6 TDI	CRKB CXXB DBKA	2	09/2013-08/2020	1598	81	110	1
1.6 TDI	DDYA	2	11/2016-08/2020	1598	85	115	1
2.0 TDI	CKFC CRBC CRLB CRMB	2	04/2013-08/2018	1968	110	150	1

LEON IV (KL1, KLG) Hatchback 11/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 TSI	DPBA	1	11/2019-	1495	96	131	1
1.5 TSI	DPCA	1	11/2019-	1498	110	150	1
1.5 TGI CNG	DHFA	16	08/2020-	1498	96	131	1
2.0 TDI	DSUD	2	11/2019-	1968	85	116	1
2.0 TDI	DSTB	2	11/2019-	1968	110	150	1

LEON IV Sportstourer (KL8, KLD) Estate 03/2020-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 TGI		16	05/2021-	1498	96	131	1
2.0 TDI		2	11/2020-	1968	85	115	1

TOLEDO II (1M2) Saloon 10/1998-05/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	AHW APE AXP BCA	1	01/2000-05/2002	1390	55	75	1
1.6	AEH AKL	1	10/1998-07/2004	1595	74	100	1
1.6		1	08/2005-05/2006	1595	75	102	1
1.6 16V	AUS AZD BCB	1	06/2000-05/2006	1598	77	105	1
1.8		1	05/2001-04/2004	1781	132	179	1
1.8		1	05/2002-05/2003	1781	154	209	1
1.8		1	05/2003-10/2005	1781	165	224	1
1.8 20V	AGN APG	1	10/1998-07/2004	1781	92	125	1
1.8 20VT	APP ARY AUQ	1	09/2000-07/2004	1781	132	180	1
2.3 V5	AGZ	1	10/1998-11/2000	2324	110	150	1
2.3 V5 20V	AQN	1	09/2000-11/2003	2324	125	170	1
2.8		1	10/2000-07/2001	2792	150	204	1
2.8		1	05/2002-04/2004	2792	150	204	1
1.9 TDI	AGR ALH	2	03/1999-07/2004	1896	66	90	1
1.9 TDI	AXR	2	08/2005-05/2006	1896	74	101	1
1.9 TDI	AHF ASV	2	10/1998-07/2004	1896	81	110	1
1.9 TDI	ASZ	2	05/2003-05/2006	1896	96	130	1
1.9 TDI	ARL	2	10/2000-07/2004	1896	110	150	1

TOLEDO III (5P2) MPV 04/2004-05/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	BXW	1	05/2006-05/2009	1390	63	86	1
1.4 TSI	CAXC	1	11/2007-05/2009	1390	92	125	1
1.6	BGU BSE BSF CCSA	1	10/2004-05/2009	1595	75	102	1
1.8 TFSI	BYT BZB CDAA	1	01/2007-05/2009	1798	118	160	1
2.0 FSI	BLR BLY BVY BVZ	1	10/2004-05/2009	1984	110	150	1
2.0 TFSI	BWA	1	11/2005-05/2009	1984	147	200	1
1.9 TDI	BJB BKC BLS BXE	2	10/2004-05/2009	1896	77	105	1
2.0 TDI	AZV	2	09/2004-05/2009	1968	100	136	1
2.0 TDI	BMM	2	11/2005-05/2009	1968	103	140	1
2.0 TDI	BMN CEGA	2	01/2006-05/2009	1968	125	170	1
2.0 TDI 16V	BKD	2	04/2004-05/2009	1968	103	140	1

TOLEDO IV (KG3) Hatchback 07/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZB DKLD	1	05/2017-04/2019	999	70	95	1
1.0 TSI	CHZC DKRC	1	05/2017-04/2019	999	81	110	1
1.2	CGPC	1	07/2012-06/2015	1198	55	75	1
1.2 TSI	CBZA	1	07/2012-06/2015	1197	63	86	1
1.2 TSI	CJZC	1	05/2015-05/2017	1197	66	90	1
1.2 TSI	CBZB	1	07/2012-06/2015	1197	77	105	1
1.2 TSI	CJZD	1	05/2015-05/2017	1197	81	110	1
1.4 TSI	CAXA	1	07/2012-06/2015	1390	90	122	1
1.4 TSI	CZCA	1	05/2015-04/2019	1395	92	125	1
1.6	CFNA	1	07/2013-06/2015	1598	77	105	1
1.6	CWVA	1	05/2015-04/2019	1598	81	110	1
1.4 TDI	CUSB	2	05/2015-04/2019	1422	66	90	1
1.6 TDI	CAYB	2	06/2013-06/2015	1598	66	90	1
1.6 TDI	CAYC CLNA	2	07/2012-06/2015	1598	77	105	1
1.6 TDI	CXMA	2	05/2015-04/2019	1598	85	115	1

SKODA

FABIA (6Y2) Hatchback 08/1999-03/2008

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	AUB BBZ	1	12/1999-03/2008	1390	74	100	1
2.0	AZL	1	12/1999-03/2008	1984	85	116	1
1.9 TDI	ATD AXR	2	01/2000-03/2008	1896	74	100	1
1.9 TDI RS	ASZ BLT	2	06/2003-03/2008	1896	96	130	1

FABIA (6Y3) Saloon 10/1999-12/2007

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	AUB BBZ	1	12/1999-12/2007	1390	74	100	1
2.0	AZL	1	12/1999-12/2007	1984	85	116	1
1.9 TDI	ATD AXR	2	01/2000-12/2007	1896	74	100	1

FABIA (6Y5) Estate Van 01/2000-12/2007

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.9 TDI	ATD AXR	2	01/2000-12/2007	1896	74	101	1

FABIA Combi (6Y5) Estate 04/2000-12/2007

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	AUB BBZ	1	04/2000-12/2007	1390	74	100	1
2.0	AZL	1	04/2000-12/2007	1984	85	116	1
1.9 TDI	ATD AXR	2	04/2000-12/2007	1896	74	100	1

FABIA II (542) Hatchback 12/2006-12/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 12V	CGPB	1	11/2011-12/2014	1198	44	60	1
1.2 TSI	CBZA	1	03/2010-12/2014	1197	63	86	1
1.2 TSI	CBZB	1	03/2010-12/2014	1197	77	105	1
1.4	BXW CGGB	1	01/2007-12/2014	1390	63	86	1
1.4 TSI RS	CAVE CTHE	1	05/2010-12/2014	1390	132	180	1
1.6	BTS CFNA CLSA	1	04/2007-12/2014	1598	77	105	1
1.4 LPG	BXW CGGB	18	01/2007-11/2014	1390	63	86	1
1.2 TDI	CFWA	2	05/2010-12/2014	1199	55	75	1
1.4 TDI	BMS BNV	2	01/2007-03/2010	1422	59	80	1
1.6 TDI	CAYA	2	04/2010-12/2014	1598	55	75	1
1.6 TDI	CAYB	2	03/2010-12/2014	1598	66	90	1
1.6 TDI	CAYC	2	03/2010-12/2014	1598	77	105	1
1.9 TDI	BLS BSW	2	04/2007-03/2010	1896	77	105	1

FABIA II Combi (545) Estate 10/2007-12/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 12V	CGPB	1	11/2011-12/2014	1198	44	60	1
1.2 TSI	CBZA	1	03/2010-12/2014	1197	63	86	1
1.2 TSI	CBZB	1	03/2010-12/2014	1197	77	105	1
1.4	BXW CGGB	1	10/2007-12/2014	1390	63	86	1
1.4 TSI RS	CAVE CTHE	1	05/2010-12/2014	1390	132	180	1
1.6	BTS CFNA	1	10/2007-12/2014	1598	77	105	1
1.4 LPG	BXW CGGB	18	10/2007-11/2014	1390	63	86	1
1.2 TDI	CFWA	2	05/2010-12/2014	1199	55	75	1
1.4 TDI	BMS BNV	2	10/2007-03/2010	1422	59	80	1
1.6 TDI	CAYA	2	04/2010-12/2014	1598	55	75	1
1.6 TDI	CAYB	2	03/2010-12/2014	1598	66	90	1
1.6 TDI	CAYC	2	03/2010-12/2014	1598	77	105	1
1.9 TDI	BLS BSW	2	10/2007-03/2010	1896	77	105	1

FABIA III (NJ3) Hatchback 08/2014-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0	CHYA CHYE	1	08/2014-06/2021	999	44	60	1
1.0	CHYB	1	08/2014-06/2021	999	55	75	1
1.0 TSI	CHZB DKLD	1	08/2014-06/2021	999	70	95	1
1.0 TSI	CHZC DKRC	1	08/2014-06/2021	999	81	110	1
1.2 TSI	CJZC	1	08/2014-06/2021	1197	66	90	1
1.2 TSI	CJZD	1	08/2014-06/2021	1197	81	110	1
1.4 TSI R5	CZCA	1	02/2018-06/2021	1395	92	125	1
1.6	CWVA	1	01/2015-06/2021	1598	81	110	1
1.4 TDI	CUSA	2	05/2015-06/2021	1422	55	75	1
1.4 TDI	CUSB	2	08/2014-06/2021	1422	66	90	1
1.4 TDI	CUTA	2	08/2014-06/2021	1422	77	105	1

FABIA III (NJ5) Estate 08/2014-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0	CHYA CHYE	1	10/2014-12/2022	999	44	60	1
1.0	CHYB	1	10/2014-12/2022	999	55	75	1
1.0 TSI	CHZB DKLD	1	08/2014-12/2022	999	70	95	1
1.0 TSI	CHZC DKRC	1	08/2014-12/2022	999	81	110	1
1.2 TSI	CJZC	1	10/2014-12/2022	1197	66	90	1
1.2 TSI	CJZD	1	10/2014-12/2022	1197	81	110	1
1.6	CWVA	1	01/2015-12/2022	1598	81	110	1
1.4 TDI	CUSA	2	05/2015-12/2022	1422	55	75	1
1.4 TDI	CUSB	2	10/2014-12/2022	1422	66	90	1
1.4 TDI	CUTA	2	10/2014-12/2022	1422	77	105	1

KAMIQ (NW4) SUV 07/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	DKLA	1	07/2019-	999	70	95	1
1.0 TSI	DLAA	1	08/2020-	999	81	110	1
1.0 TSI	DKRF	1	07/2019-	999	85	115	1
1.5 TSI	DPCA	1	07/2019-	1498	110	150	1
1.6 SRE	CWVA	1	07/2019-	1598	81	110	1
1.0 TGI CNG	DBYA	16	11/2019-	999	66	90	1
1.6 TDI	DGTD	2	09/2019-	1598	70	95	1
1.6 TDI	DGTA	2	07/2019-	1598	85	115	1

OCTAVIA (1U2) Hatchback 09/1996-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	AMD	1	04/1999-03/2001	1397	44	60	1
1.4 16V	AXP BCA	1	09/2000-12/2010	1390	55	75	1
1.6	AEH AKL	1	02/1997-12/2007	1595	74	101	1
1.6	AVU BFQ	1	11/2000-12/2010	1595	75	102	1
1.6	AEE	1	09/1996-09/2004	1598	55	75	1
1.8	AGN	1	09/1996-07/2000	1781	92	125	1
1.8 T	AGU ARX ARZ AUM	1	08/1997-12/2010	1781	110	150	1
1.8 T 4x4	ARX	1	05/2001-05/2006	1781	110	150	3
2.0	AEG APK AQY AZH AZJ	1	04/1999-05/2007	1984	85	116	1
RS 1.8 T	AUQ	1	05/2001-01/2006	1781	132	180	1
1.9 SDI	AGP AQM	2	06/1997-12/2003	1896	50	68	1
1.9 TDI	AGR ALH	2	09/1996-03/2010	1896	66	90	1
1.9 TDI	AXR	2	10/2005-12/2010	1896	74	100	1
1.9 TDI	AHF ASV	2	08/1997-01/2006	1896	81	110	1
1.9 TDI	ASZ	2	09/2002-09/2004	1896	96	130	1

OCTAVIA Combi (1U5) Estate 07/1998-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	AXP BCA	1	08/2000-12/2010	1390	55	75	1
1.6	AEH AKL	1	07/1998-12/2007	1595	74	101	1
1.6	AVU BFQ	1	09/2000-12/2010	1595	75	102	1
1.6	AEE	1	07/1998-09/2004	1598	55	75	1
1.8 20V	AGN	1	07/1998-07/2000	1781	92	125	1
1.8 T	AGU ARX ARZ AUM	1	07/1998-12/2010	1781	110	150	1
1.8 T 4x4	ARX	1	05/2001-05/2006	1781	110	150	3
2.0	AEG APK AQY AZH AZJ	1	04/1999-05/2007	1984	85	116	1
2.0 4x4	AZH AZJ	1	08/2000-09/2004	1984	85	116	3
2.0 4x4	ATF	1	01/2000-12/2010	1984	88	120	3
RS 1.8 T	AUQ	1	08/2002-01/2006	1781	132	180	1
1.9 SDI	AGP AQM	2	07/1998-12/2003	1896	50	68	1
1.9 TDI	AGR ALH	2	07/1998-03/2010	1896	66	90	1
1.9 TDI	AXR	2	08/2000-12/2010	1896	74	100	1
1.9 TDI	AHF ASV	2	07/1998-01/2006	1896	81	110	1
1.9 TDI	ASZ	2	09/2002-09/2004	1896	96	130	1
1.9 TDI 4x4	AGR	2	11/1999-02/2006	1896	66	90	3
1.9 TDI 4x4	ATD	2	09/2000-01/2006	1896	74	100	3

OCTAVIA (1U5) Estate Van 08/2000-03/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.9 D	AQM	2	08/2000-12/2003	1896	50	68	1
1.9 TDI	ALH	2	08/2000-03/2010	1896	66	90	1

OCTAVIA II / LAURA (1Z3) Hatchback 02/2004-06/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	02/2010-06/2013	1197	77	105	1
1.4	BCA	1	05/2004-05/2006	1390	55	75	1
1.4	BUD CGGA	1	06/2004-04/2013	1390	59	80	1
1.4 TSI	CAXA	1	11/2008-06/2013	1390	90	122	1
1.6	BGU BSE BSF CCSA CMXA	1	06/2004-06/2013	1595	75	102	1
1.6 FSI	BLF	1	02/2004-10/2008	1598	85	115	1
1.8 T		1	09/2005-12/2008	1781	110	150	1
1.8 TSI	CDAB	1	03/2009-06/2013	1798	112	152	1
1.8 TSI	BZB CDAA	1	06/2007-04/2013	1798	118	160	1
2.0 FSI	BLR BLY BVY BVZ	1	11/2004-10/2008	1984	110	150	1
2.0 TFSI	BWA CCZA	1	10/2005-02/2013	1984	147	200	1
1.6 LPG	BSE CHGA	18	08/2009-11/2012	1595	75	102	1
1.6 MultiFuel	CCSA CMXA	19	01/2008-06/2013	1595	75	102	1
1.6 TDI	CAYC	2	06/2009-04/2013	1598	77	105	1
1.9 TDI	BJB BKC BLS BXE	2	06/2004-12/2010	1896	77	105	1
2.0 TDI	AZV	2	02/2004-05/2010	1968	100	136	1
2.0 TDI	BMM	2	11/2005-05/2010	1968	103	140	1
2.0 TDI 16V	BKD CFHC CLCB	2	02/2004-04/2013	1968	103	140	1
2.0 TDI RS	BMN CEGA	2	04/2006-02/2013	1968	125	170	1

OCTAVIA II Combi (1Z5) Estate 02/2004-06/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	02/2010-04/2013	1197	77	105	1
1.4	BCA	1	05/2004-05/2006	1390	55	75	1
1.4	BUD CGGA	1	05/2006-06/2013	1390	59	80	1
1.4 TSI	CAXA	1	11/2008-06/2013	1390	90	122	1
1.6	BGU BSE BSF CCSA CMXA	1	09/2004-06/2013	1595	75	102	1
1.6 FSI	BLF	1	02/2004-10/2008	1598	85	115	1
1.8 TSI	CDAB	1	03/2009-06/2013	1798	112	152	1
1.8 TSI	BZB CDAA	1	06/2007-04/2013	1798	118	160	1
1.8 TSI 4x4	CDAB	1	03/2009-02/2013	1798	112	152	3
1.8 TSI 4x4	CDAA	1	11/2008-02/2013	1798	118	160	3
2.0 FSI	BLR BLY BVY BVZ	1	11/2004-10/2008	1984	110	150	1
2.0 FSI 4x4	BLX BLY BVX	1	11/2004-04/2009	1984	110	150	3
2.0 TFSI	BWA CCZA	1	10/2005-02/2013	1984	147	200	1
1.6 LPG	CHGA	18	08/2009-11/2012	1595	75	102	1
1.6 MultiFuel	CCSA CMXA	19	01/2008-06/2013	1595	75	102	1
1.6 TDI	CAYC	2	06/2009-04/2013	1598	77	105	1
1.6 TDI 4x4	CAYC	2	06/2009-02/2013	1598	77	105	3
1.9 TDI	BJB BKC BLS BXE	2	09/2004-12/2010	1896	77	105	1
1.9 TDI 4x4	BKC BLS BXE	2	11/2004-12/2010	1896	77	105	3
2.0 TDI	CFHF CLCA	2	03/2010-06/2013	1968	81	110	1
2.0 TDI	BMM	2	11/2005-05/2010	1968	103	140	1
2.0 TDI 16V	AZV	2	02/2004-05/2010	1968	100	136	1
2.0 TDI 16V	BKD CFHC CLCB	2	02/2004-05/2013	1968	103	140	1
2.0 TDI 16V 4x4	BKD CFHC CLCB	2	05/2010-02/2013	1968	103	140	3
2.0 TDI 4x4	BMM	2	07/2006-05/2010	1968	103	140	3
2.0 TDI RS	BMN CEGA	2	04/2006-02/2013	1968	125	170	1

OCTAVIA III (5E3, NL3, NR3) Hatchback 11/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZD DKRA DKRF	1	05/2016-10/2020	999	85	115	1
1.2 TSI	CJZB CYVA	1	11/2012-02/2017	1197	63	86	1
1.2 TSI	CJZA	1	11/2012-02/2017	1197	77	105	1
1.2 TSI	CYVB	1	05/2015-02/2017	1197	81	110	1
1.4 TSI	CHPA	1	11/2012-02/2017	1395	103	140	1
1.4 TSI	CHPB CZDA	1	08/2014-10/2020	1395	110	150	1
1.5 TSI	DADA DPCA	1	02/2017-10/2020	1498	110	150	1
1.6	CWVA	1	01/2014-10/2020	1598	81	110	1
1.8 TSI	CJSA	1	11/2012-10/2020	1798	132	180	1
1.8 TSI 4x4	CJSB	1	05/2014-10/2020	1798	132	180	3
2.0 TSI RS	CHHB	1	05/2013-02/2017	1984	162	220	1
2.0 TSI RS	CHHA	1	05/2015-10/2020	1984	169	230	1
1.4 TSI G-TEC	CPWA	16	11/2013-02/2017	1395	81	110	1
1.6 TDI	CLHB CRKA CXXA DDYB	2	11/2012-10/2020	1598	66	90	1
1.6 TDI	CLHA	2	11/2012-05/2015	1598	77	105	1
1.6 TDI	CRKB CXXB DBKA	2	05/2013-02/2017	1598	81	110	1
1.6 TDI	DDYA DGTE	2	02/2017-10/2020	1598	85	115	1
1.6 TDI 4x4	CLHA	2	05/2013-05/2015	1598	77	105	3
1.6 TDI 4x4	CRKB CXXB	2	05/2015-02/2017	1598	81	110	3
1.6 TDI 4x4	DGTE	2	02/2017-10/2020	1598	85	115	3
2.0 TDI	CKFB CRVC	2	11/2012-02/2017	1968	105	143	1
2.0 TDI	CKFC CRMB CYKA DCYA DFFA	2	11/2012-10/2020	1968	110	150	1
2.0 TDI / TDI RS 4x4	CUNA CUPA DJGA	2	05/2013-10/2020	1968	135	184	3
2.0 TDI 4x4	CKFC CRMB DCYA DFFA	2	05/2013-10/2020	1968	110	150	3
2.0 TDI RS	CUNA CUPA DJGA	2	05/2013-10/2020	1968	135	184	1

OCTAVIA III Combi (5E5, 5E6) Estate 11/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZD DKRA DKRF	1	05/2016-10/2020	999	85	115	1
1.2 TSI	CJZB CYVA	1	11/2012-02/2017	1197	63	86	1
1.2 TSI	CJZA	1	11/2012-02/2017	1197	77	105	1
1.2 TSI	CYVB	1	05/2015-02/2017	1197	81	110	1
1.4 TSI	CHPA	1	11/2012-02/2017	1395	103	140	1
1.4 TSI	CHPB CZDA	1	08/2014-10/2020	1395	110	150	1
1.5 TSI	DADA DPCA	1	02/2017-10/2020	1498	110	150	1
1.6 SRE	CWVA	1	01/2014-02/2017	1598	81	110	1
1.8 TSI	CJSA CJSB	1	11/2012-10/2020	1798	132	180	1
1.8 TSI 4x4	CJSB	1	11/2012-02/2017	1798	132	180	3
2.0 TSI RS	CHHB	1	11/2012-02/2017	1984	162	220	1
2.0 TSI RS	CHHA	1	05/2015-10/2020	1984	169	230	1
1.4 TSI G-TEC	CPWA	16	11/2012-02/2017	1395	81	110	1
1.5 TSI G-TEC	DHFA	16	01/2019-10/2020	1498	96	130	1
1.6 TDI	CLHB CRKA CXXA DDYB	2	11/2012-10/2020	1598	66	90	1
1.6 TDI	CLHA	2	11/2012-05/2015	1598	77	105	1
1.6 TDI	CRKB CXXB DBKA	2	05/2013-02/2017	1598	81	110	1
1.6 TDI	DDYA DGTA DGTE	2	02/2017-10/2020	1598	85	115	1
1.6 TDI 4x4	CLHA	2	11/2012-05/2015	1598	77	105	3
1.6 TDI 4x4	CRKB CXXB DBKA	2	05/2015-02/2017	1598	81	110	3
1.6 TDI 4x4	DGTE	2	02/2017-10/2020	1598	85	115	3
2.0 TDI	CKFB CRVC	2	11/2012-02/2017	1968	105	143	1
2.0 TDI	CKFC CRMB CYKA DCYA DFFA	2	11/2012-10/2020	1968	110	150	1
2.0 TDI / TDI RS 4x4	CUNA CUPA DJGA	2	05/2013-10/2020	1968	135	184	3
2.0 TDI 4x4	CKFC CRMB DCYA DFFA	2	11/2012-10/2020	1968	110	150	3
2.0 TDI RS	CUNA CUPA DJGA	2	05/2013-10/2020	1968	135	184	1

OCTAVIA IV Combi (NX5, PV5) Estate 11/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 TDI 4x4		2	09/2020-	1968	110	150	3

RAPID III (NH3, NK3, NK6) Hatchback 07/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZB DKLD	1	06/2017-12/2019	999	70	95	1
1.0 TSI	CHZC DKRC	1	06/2017-12/2019	999	81	110	1
1.2	CGPC	1	07/2012-06/2015	1198	55	75	1
1.2 TSI	CBZA	1	07/2012-05/2015	1197	63	86	1
1.2 TSI	CJZC	1	05/2015-12/2019	1197	66	90	1
1.2 TSI	CBZB	1	07/2012-05/2015	1197	77	105	1
1.2 TSI	CJZD	1	05/2015-12/2019	1197	81	110	1
1.4 TSI	CAXA	1	07/2012-06/2015	1390	90	122	1
1.4 TSI	CZCA	1	05/2015-03/2022	1395	92	125	1
1.6	CFNA	1	07/2012-06/2015	1598	77	105	1
1.6	CWVA	1	05/2015-03/2022	1598	81	110	1
1.6 SRE	CWVB	1	06/2015-03/2022	1598	66	90	1
1.2 LPG	CBZA	18	07/2012-05/2015	1197	63	86	1
1.2 LPG	CGPC	18	07/2012-06/2015	1198	55	75	1
1.4 TDI	CUSB	2	05/2015-12/2019	1422	66	90	1
1.6 TDI	CAYB	2	08/2013-05/2015	1598	66	90	1
1.6 TDI	CAYC CLNA	2	07/2012-12/2019	1598	77	105	1
1.6 TDI	CXMA	2	05/2015-12/2019	1598	85	115	1

RAPID III Spaceback (NH1) Hatchback 07/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZB DKLD	1	06/2017-12/2019	999	70	95	1
1.0 TSI	CHZC DKRC	1	06/2017-12/2019	999	81	110	1
1.2	CGPC	1	07/2012-06/2015	1198	55	75	1
1.2 TSI	CBZA	1	07/2012-05/2015	1197	63	86	1
1.2 TSI	CJZC	1	05/2015-12/2019	1197	66	90	1
1.2 TSI	CBZB	1	07/2012-05/2015	1197	77	105	1
1.2 TSI	CJZD	1	05/2015-12/2019	1197	81	110	1
1.4 TSI	CAXA	1	07/2012-06/2015	1390	90	122	1
1.4 TSI	CZCA	1	05/2015-12/2019	1395	92	125	1
1.6	CFNA	1	07/2012-06/2015	1598	77	105	1
1.6 SRE	CWVA	1	05/2015-12/2019	1598	81	110	1
1.2 LPG	CBZA	18	07/2012-05/2015	1197	63	86	1
1.2 LPG	CGPC	18	07/2012-06/2015	1198	55	75	1
1.4 TDI	CUSB	2	05/2015-12/2019	1422	66	90	1
1.6 TDI	CAYB	2	08/2013-05/2015	1598	66	90	1
1.6 TDI	CAYC CLNA	2	07/2012-12/2019	1598	77	105	1
1.6 TDI	CXMA	2	05/2015-12/2019	1598	85	115	1

ROOMSTER / PRAKTIK (5J7) MPV 03/2006-05/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2	BME	1	05/2006-01/2007	1198	47	64	1
1.2	BZG CGPA	1	01/2007-05/2015	1198	51	70	1
1.2 TSI	CBZA	1	03/2010-05/2015	1197	63	86	1
1.2 TSI	CBZB	1	03/2010-05/2015	1197	77	105	1
1.4	BXW CGGB	1	09/2006-05/2015	1390	63	86	1
1.6	BTS CFNA	1	09/2006-05/2015	1598	77	105	1
1.4 LPG	BXW CGGB	18	03/2010-05/2015	1390	63	86	1
1.6 LPG	BTS	18	06/2006-07/2010	1598	77	105	1
1.2 TDI	CFWA	2	03/2010-05/2015	1199	55	75	1
1.4 TDI	BNM	2	07/2006-03/2010	1422	51	70	1
1.4 TDI	BMS BNV	2	09/2006-03/2010	1422	59	80	1
1.6 TDI	CAYB	2	03/2010-05/2015	1598	66	90	1
1.6 TDI	CAYC	2	03/2010-05/2015	1598	77	105	1
1.9 TDI	AXR	2	03/2006-05/2006	1896	74	101	1
1.9 TDI	BLS BSW	2	09/2006-03/2010	1896	77	105	1

ROOMSTER / PRAKTIK (5J) Estate Van 03/2007-05/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2	BZG CGPA	1	03/2007-05/2015	1198	51	70	1
1.2 TSI	CBZA	1	03/2010-05/2015	1197	63	86	1
1.4	BXW CGGB	1	03/2007-05/2015	1390	63	86	1
1.2 TDI	CFWA	2	03/2010-05/2015	1199	55	75	1
1.4 TDI	BNM	2	03/2007-03/2010	1422	51	70	1
1.4 TDI	BMS BNV	2	03/2007-03/2010	1422	59	80	1
1.6 TDI	CAYB	2	03/2010-05/2015	1598	66	90	1

SUPERB (3U4) Saloon 12/2001-03/2008

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 T	AWT	1	12/2001-03/2008	1781	110	150	1
2.0	AZM	1	12/2001-03/2008	1984	85	115	1
2.0	BWW	1	02/2006-03/2008	1984	91	124	1
2.8 V6	BBG	1	06/2002-03/2008	2771	140	190	1
2.8 V6	AMX	1	12/2001-03/2008	2771	142	193	1
1.9 TDI	AVB	2	08/2002-10/2005	1896	74	101	1
1.9 TDI	BSV	2	10/2005-05/2007	1896	77	105	1
1.9 TDI	BPZ	2	01/2007-03/2008	1896	85	115	1
1.9 TDI	AVF AWX	2	12/2001-03/2008	1896	96	130	1
2.0 TDI	BWW	2	02/2006-03/2008	1968	91	124	1
2.0 TDI	BSS	2	10/2005-03/2008	1968	103	140	1
2.5 TDI	AYM	2	12/2001-08/2003	2496	114	155	1
2.5 TDI	BDG	2	06/2003-03/2008	2496	120	163	1

YETI (5L) SUV 05/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	09/2009-05/2015	1197	77	105	1
1.2 TSI	CYVB	1	05/2015-12/2017	1197	81	110	1
1.4 TSI	CZCA	1	05/2015-12/2017	1395	92	125	1
1.4 TSI 4x4	CZDA	1	05/2015-12/2017	1395	110	150	3
1.6	CWVA	1	04/2014-12/2017	1598	81	110	1
1.6 TDI	CAYC	2	11/2010-05/2015	1598	77	105	1
2.0 TDI	CFHA CLCA CUUA DFSA	2	11/2009-12/2017	1968	81	110	1
2.0 TDI	CUUB DFSB	2	05/2015-12/2017	1968	110	150	1
2.0 TDI 4x4	CFHF CUUA DFSA	2	11/2009-12/2017	1968	81	110	3
2.0 TDI 4x4	CUUB DFSB	2	05/2015-12/2017	1968	110	150	3

SKODA (SVW)

KAMIQ (0N7) SUV 06/2018-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5		1	06/2018-	1498	81	110	1
1.5		1	06/2019-	1498	82	111	1

KAMIQ GT (0N8) SUV 11/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5		1	11/2019-	1498	82	111	1
TSi230		1	11/2019-	1197	85	116	1

OCTAVIA (913) Hatchback 06/2007-

Vehicle	Fuel	Date	CC	KW	CV	Traction
1.4 TSI	1	08/2009-	1390	96	131	1
1.6	1	06/2007-12/2017	1598	77	105	1
1.6	1	01/2010-12/2015	1598	77	105	1
1.8 TSI	1	06/2007-03/2014	1798	118	160	1
2.0 TSI	1	04/2010-	1984	147	200	1

YETI (0Y6, 0Y7) Closed Off-Road Vehicle 11/2013-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	02/2014-	1598	81	110	1

VW

BEETLE / NOVO FUSCA (5C1, 5C2) Hatchback 04/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	07/2011-07/2019	1197	77	105	1
1.2 TSI 16V	CYVD	1	12/2014-07/2019	1197	77	105	1
1.4 TSI	CAVD CNWA CTHD CTKA	1	10/2011-07/2016	1390	118	160	1
1.4 TSI	CZDA	1	12/2014-07/2019	1395	110	150	1
2.0 TFSI	CBFA CCTA CCZA	1	04/2011-07/2016	1984	147	200	1
2.0 TSI	CPLA CPPA	1	12/2012-07/2019	1984	155	211	1
2.0 TSI	CULC	1	12/2014-09/2018	1984	162	220	1
2.5	CBTA CBUA CCCA	1	04/2011-07/2019	2480	125	170	1
1.6 TDI	CAYC	2	10/2011-07/2016	1598	77	105	1
2.0 TDI	CUUA	2	06/2014-09/2018	1968	81	110	1
2.0 TDI	CFFB CJAA	2	04/2011-07/2016	1968	103	140	1
2.0 TDI	CUUB CVCA DELA	2	07/2014-09/2018	1968	110	150	1

BEETLE (5C7, 5C8) Convertible 12/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	12/2011-07/2019	1197	77	105	1
1.2 TSI 16V	CYVD	1	12/2014-07/2019	1197	77	105	1
1.4 TSI	CAVD CNWA CTHD CTKA	1	12/2011-07/2016	1390	118	160	1
1.4 TSI	CZDA	1	12/2014-09/2018	1395	110	150	1
1.8 TSI		1	12/2013-	1798	125	170	1
2.0 TFSI	CBFA CCTA CCZA	1	12/2011-07/2016	1984	147	200	1
2.0 TSI	CPLA CPPA	1	12/2012-07/2019	1984	155	210	1
2.0 TSI	CULC	1	12/2014-09/2018	1984	162	220	1
2.5	CBTA CBUA CCCA	1	12/2011-07/2016	2480	125	170	1
1.6 TDI	CAYC	2	12/2011-07/2016	1598	77	105	1
2.0 TDI	CUUA	2	06/2014-09/2018	1968	81	110	1
2.0 TDI	CFFB CJAA	2	04/2012-07/2016	1968	103	140	1
2.0 TDI	CUUB CVCA DELA	2	09/2014-09/2018	1968	110	150	1

BORA / JETTA IV (1J2) Saloon 10/1998-12/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	AHW AKQ APE AXP BCA	1	03/2000-05/2005	1390	55	75	1
1.6	AEH AKL APF	1	10/1998-05/2005	1595	74	101	1
1.6	AVU BFQ	1	08/2000-05/2005	1595	75	102	1
1.6		1	06/2002-10/2004	1595	78	107	1
1.6 16V	ATN AUS AZD BCB	1	05/2000-05/2005	1598	77	105	1
1.6 FSI	BAD	1	01/2002-05/2005	1598	81	110	1
1.8	AGN BAF	1	10/1998-05/2005	1781	92	125	1
1.8		1	10/2000-05/2001	1781	110	150	1
1.8 4motion	AGN	1	02/1999-05/2005	1781	92	125	3
1.8 T	AGU ARX AUM AWD AWW	1	05/2000-05/2005	1781	110	150	1
1.8 T	AUQ AWP	1	03/2002-05/2005	1781	132	180	1
2.0	AEG APK AQY AVH AZG AZH AZJ BBW BER BEV BHP CBPA CFEA	1	10/1998-12/2013	1984	85	115	1
2.0 4motion	AZH AZJ	1	04/2000-05/2005	1984	85	115	3
2.3 V5	AGZ	1	10/1998-10/2000	2324	110	150	1
2.3 V5	AQN	1	10/2000-05/2005	2324	125	170	1
2.3 V5 4motion	AGZ	1	12/1998-10/2000	2324	110	150	3
2.3 V5 4motion	AQN	1	10/2000-05/2005	2324	125	170	3
2.8 V6 4motion	AQP AUE BDE	1	03/1999-05/2005	2792	150	204	3
2.8 VR6		1	08/2002-07/2005	2792	128	174	1
2.8 VR6		1	11/1998-07/2005	2792	130	177	1
2.8 VR6		1	02/2002-07/2005	2792	147	200	1
1.9 SDI	AGP AQM	2	10/1998-05/2005	1896	50	68	1
1.9 TDI	AGR ALH	2	10/1998-05/2005	1896	66	90	1
1.9 TDI	ATD AXR BEW	2	09/2000-05/2005	1896	74	101	1
1.9 TDI	AHF ASV	2	10/1998-06/2001	1896	81	110	1
1.9 TDI	AJM AUY	2	12/1998-01/2002	1896	85	115	1
1.9 TDI	ASZ	2	11/2000-05/2005	1896	96	130	1
1.9 TDI	ARL	2	05/2000-05/2005	1896	110	150	1
1.9 TDI 4motion	AGR	2	11/1998-04/2002	1896	66	90	3
1.9 TDI 4motion	ATD	2	09/2000-05/2005	1896	74	101	3
1.9 TDI 4motion	AJM AUY	2	02/1999-06/2001	1896	85	115	3
1.9 TDI 4motion	ASZ	2	11/2000-05/2005	1896	96	130	3
1.9 TDI 4motion	ARL	2	05/2000-05/2005	1896	110	150	3

BORA Variant / JETTA IV (1J6) Estate 05/1999-05/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	AHW AXP BCA	1	09/2001-05/2005	1390	55	75	1
1.6	AEH AKL APF	1	05/1999-05/2005	1595	74	100	1
1.6	AVU BFQ	1	08/2000-05/2005	1595	75	102	1
1.6 16V	ATN AUS AZD BCB	1	02/2000-05/2005	1598	77	105	1
1.6 FSI	BAD	1	01/2002-05/2005	1598	81	110	1
1.8 4motion	AGN	1	05/1999-05/2005	1781	92	125	3
1.8 T	AGU ARX AUM AWD AWW	1	05/2000-05/2005	1781	110	150	1
1.8 T	AUQ AWP	1	05/2002-05/2005	1781	132	180	1
2.0	APK AQY AVH AZG AZH AZJ BEV	1	05/1999-05/2005	1984	85	115	1
2.0 4motion	AZH AZJ	1	04/2000-05/2005	1984	85	115	3
2.0 4motion	ATF	1	12/1999-05/2003	1984	88	120	3
2.3 V5	AGZ	1	05/1999-10/2000	2324	110	150	1
2.3 V5	AQN	1	10/2000-05/2005	2324	125	170	1
2.3 V5 4motion	AGZ	1	05/1999-10/2000	2324	110	150	3
2.3 V5 4motion	AQN	1	10/2000-05/2005	2324	125	170	3
2.8 V6 4motion	AQP AUE BDE	1	05/1999-05/2005	2792	150	204	3
2.8 VR6		1	08/2002-07/2003	2792	130	177	1
2.8 VR6		1	03/2000-05/2000	2792	150	204	1
1.9 TDI	AGR ALH	2	07/2004-05/2005	1896	66	90	1
1.9 TDI	ATD AXR BEW	2	09/2000-05/2005	1896	74	101	1
1.9 TDI	AHF ASV	2	05/1999-06/2001	1896	81	110	1
1.9 TDI	AJM AUY	2	05/1999-06/2001	1896	85	115	1
1.9 TDI	ASZ	2	11/2000-05/2005	1896	96	130	1
1.9 TDI	ARL	2	05/2001-05/2005	1896	110	150	1
1.9 TDI 4motion	ATD	2	09/2000-05/2005	1896	74	101	3
1.9 TDI 4motion	AJM AUY	2	05/1999-06/2001	1896	85	115	3
1.9 TDI 4motion	ASZ	2	11/2000-05/2005	1896	96	130	3
1.9 TDI 4motion	ARL	2	05/2001-05/2005	1896	110	150	3

BORA / JETTA IV (9M2) Saloon 01/2005-12/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	CBPA	1	01/2005-12/2014	1984	85	116	1

CADDY III (2KA, 2KH, 2CA, 2CH) Box Body/MPV 03/2004-03/2016

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZA	1	09/2010-05/2015	1197	63	86	1
1.2 TSI	CBZB	1	09/2010-05/2015	1197	77	105	1
1.4	BCA	1	03/2004-05/2006	1390	55	75	1
1.4	BUD	1	05/2006-08/2010	1390	59	80	1
1.6	BGU BSE BSF	1	04/2004-05/2015	1595	75	102	1
1.6 BiFuel	CHGA	18	05/2011-05/2015	1595	75	102	1
1.6 TDI	CAYE	2	08/2010-05/2015	1598	55	75	1
1.6 TDI	CAYD	2	08/2010-05/2015	1598	75	102	1
1.9 TDI	BSU	2	09/2005-08/2010	1896	55	75	1
1.9 TDI	BJB BLS	2	04/2004-08/2010	1896	77	105	1
1.9 TDI 4motion	BLS	2	11/2008-08/2010	1896	77	105	3
2.0 SDI	BDJ BST	2	03/2004-08/2010	1968	51	70	1
2.0 TDI	CFHE	2	11/2010-05/2015	1968	62	85	1
2.0 TDI	CLCA	2	08/2010-05/2015	1968	81	110	1
2.0 TDI	BMM	2	09/2007-08/2010	1968	103	140	1
2.0 TDI	CFJA	2	05/2012-05/2015	1968	125	170	1
2.0 TDI 16V	CFHC CLCB	2	11/2010-05/2015	1968	103	140	1
2.0 TDI 16V 4motion	CFHC	2	11/2010-05/2015	1968	103	140	3
2.0 TDI 4motion	CFHE	2	12/2010-05/2015	1968	62	85	3
2.0 TDI 4motion	CFHF	2	08/2010-05/2015	1968	81	110	3
2.0 EcoFuel	BSX	8	04/2006-05/2015	1984	80	109	1

CADDY III (2KB, 2KJ, 2CB, 2CJ) MPV 03/2004-03/2016

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZA	1	09/2010-05/2015	1197	63	86	1
1.2 TSI	CBZB	1	09/2010-05/2015	1197	77	105	1
1.4	BCA	1	03/2004-05/2006	1390	55	75	1
1.4	BUD	1	05/2006-08/2010	1390	59	80	1
1.6		1	01/2005-12/2009	1595	65	88	1
1.6		1	03/2005-05/2015	1595	74	101	1
1.6	BGU BSE BSF	1	04/2004-05/2015	1595	75	102	1
1.6 BiFuel	CHGA	18	05/2011-05/2015	1595	75	102	1
1.6 TDI	CAYE	2	08/2010-05/2015	1598	55	75	1
1.6 TDI	CAYD	2	08/2010-05/2015	1598	75	102	1
1.9 D		2	10/2005-06/2009	1896	48	65	1
1.9 TDI	BSU	2	09/2005-08/2010	1896	55	75	1
1.9 TDI	BJB BLS	2	04/2004-08/2010	1896	77	105	1
1.9 TDI 4motion	BLS	2	05/2008-08/2010	1896	77	105	3
2.0 SDI	BDJ BST	2	03/2004-08/2010	1968	51	70	1
2.0 TDI	CLCA	2	08/2010-05/2015	1968	81	110	1
2.0 TDI	BMM	2	09/2007-08/2010	1968	103	140	1
2.0 TDI	CFJA	2	05/2012-05/2015	1968	125	170	1
2.0 TDI 16V	CFHC CLCB	2	11/2010-05/2015	1968	103	140	1
2.0 TDI 16V 4motion	CFHC	2	11/2010-05/2015	1968	103	140	3
2.0 TDI 4motion	CFHF	2	08/2010-05/2015	1968	81	110	3
2.0 EcoFuel	BSX	8	04/2006-05/2015	1984	80	109	1

CROSSPOLO () Saloon 01/2006-

Vehicle	Fuel	Date	CC	KW	CV	Traction
1.4 16V	1	01/2006-	1395	74	101	1
1.4 TDI	2	01/2006-	1395	51	70	2
1.9 TDI	2	01/2006-	1895	74	101	2

EOS (1F7, 1F8) Convertible 03/2006-08/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 TSI	CAXA	1	11/2007-08/2015	1390	90	122	1
1.4 TSI		1	11/2013-	1390	92	125	1
1.4 TSI	CAVD CTHD	1	05/2008-08/2015	1390	118	160	1
1.4 TSI		1	11/2013-	1395	110	150	1
1.6 FSI	BLF	1	06/2006-05/2008	1598	85	115	1
2.0 FSI	BVY BVZ	1	03/2006-05/2008	1984	110	150	1
2.0 TFSI	BPY BWA CAWB CBFA CCTA CCZA	1	03/2006-08/2015	1984	147	200	1
2.0 TFSI		1	11/2013-08/2015	1984	162	220	1
2.0 TSI	CCZB	1	11/2009-08/2015	1984	155	210	1
3.2 V6	BUB CBRA	1	06/2006-05/2009	3189	184	250	1
3.6 V6	CDVA	1	05/2009-11/2010	3597	191	260	1
2.0 TDI	CFFA	2	11/2010-08/2015	1968	100	136	1
2.0 TDI	BMM	2	06/2006-05/2008	1968	103	140	1
2.0 TDI 16V	CBAB CFFB	2	05/2008-08/2015	1968	103	140	1

GOLF IV (1J1) Hatchback 08/1997-04/2008

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0		1	08/1997-05/2002	998	51	69	1
1.0 Turbo		1	08/1997-05/2002	998	82	111	1
1.4 16V	AHW AKQ APE AXP BCA	1	10/1997-05/2004	1390	55	75	1
1.6		1	12/1998-05/2002	1595	68	92	1
1.6	AEH AKL APF	1	08/1997-05/2004	1595	74	100	1
1.6	AVU BFQ	1	08/2000-06/2005	1595	75	102	1
1.6		1	08/2003-06/2005	1595	78	107	1
1.6	BAH	1	02/2001-03/2007	1598	74	101	1
1.6 16V	ATN AUS AZD BCB	1	02/2000-06/2005	1598	77	105	1
1.6 FSI	BAD	1	01/2002-06/2005	1598	81	110	1
1.8		1	10/1997-09/1999	1781	66	90	1
1.8		1	04/1998-05/2002	1781	77	105	1
1.8	AGN	1	08/1997-06/2005	1781	92	125	1
1.8 4motion	AGN	1	05/1998-06/2005	1781	92	125	3
1.8 T	AGU AQA ARZ AUM AWD AWW	1	08/1997-06/2005	1781	110	150	1
1.8 T GTI	AUQ AWP	1	08/2001-06/2005	1781	132	180	1
2.0	AEG APK AQY AVH AZG AZJ BER BEV	1	07/1998-05/2004	1984	85	115	1
2.0 4motion	AZH AZJ	1	10/2000-06/2005	1984	85	115	3
2.3 V5	AGZ	1	08/1997-10/2000	2324	110	150	1
2.3 V5	AQN	1	10/2000-06/2005	2324	125	170	1
2.3 V5 4motion	AGZ	1	12/1998-10/2000	2324	110	150	3
2.3 V5 4motion	AQN	1	10/2000-06/2005	2324	125	170	3
2.8		1	08/1997-09/1999	2792	128	174	1
2.8 VR6		1	01/1999-07/2003	2792	130	177	1
2.8 VR6		1	03/2002-06/2005	2792	147	200	1
2.8 VR6 4motion	AQP AUE BDE	1	03/1999-06/2005	2792	150	204	3
3.2 R32 4motion	BFH BJS BML	1	09/2002-06/2005	3189	177	241	3
1.0		13	08/1998-05/2002	998	43	58	1
2.0 BiFuel	BEH	16	05/2002-05/2003	1984	85	116	1
1.6 D		2	08/1997-07/1998	1588	40	54	2
1.9 SDI	AGP AQM	2	08/1997-06/2005	1896	50	68	1
1.9 TD		2	10/1997-09/1999	1896	55	75	1
1.9 TDI	AGR ALH	2	10/1997-05/2004	1896	66	90	1
1.9 TDI	ATD AXR BEW	2	09/2000-06/2005	1896	74	101	1
1.9 TDI	AHF ASV	2	08/1997-05/2004	1896	81	110	1
1.9 TDI	AJM AUY	2	12/1998-06/2001	1896	85	115	1
1.9 TDI	ASZ	2	11/2000-06/2005	1896	96	130	1
1.9 TDI	ARL	2	05/2000-06/2005	1896	110	150	1
1.9 TDI 4motion	AGR	2	07/1998-04/2002	1896	66	90	3
1.9 TDI 4motion	ATD	2	09/2000-06/2005	1896	74	101	3
1.9 TDI 4motion	AJM AUY	2	09/1999-06/2001	1896	85	115	3
1.9 TDI 4motion	ASZ	2	11/2000-06/2005	1896	96	130	3
1.9 TDI 4motion	ARL	2	02/2000-06/2005	1896	110	150	3

GOLF IV Furgoneta (1J1) Hatchback Van 10/1997-05/2004

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.9 SDI	AQM	2	11/1998-05/2004	1896	50	68	1
1.9 TDI	AGR	2	05/2000-09/2002	1896	66	90	1
1.9 TDI	AHF	2	10/1997-05/2004	1896	81	110	1
1.9 TDI	ASZ	2	04/2001-05/2004	1896	96	130	1
1.9 TDI 4motion	AUY	2	01/2000-04/2001	1896	85	116	3

GOLF IV / CABRIO IV (1E7) Convertible 06/1998-12/2002

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	AFT AKS	1	06/1998-06/2002	1595	74	100	1
1.8	AAM ANN	1	06/1998-06/2002	1781	55	75	1
1.8	ADZ ANP	1	06/1998-06/2002	1781	66	90	1
2.0	ABA AGG AKR ATU AWF AWG	1	06/1998-06/2002	1984	85	115	1
1.9 TDI	AHU ALE	2	06/1998-06/2002	1896	66	90	1
1.9 TDI	AFN AVG	2	06/1998-06/2002	1896	81	110	1

GOLF IV VAN Variant / JETTA IV (1J5) Estate Van 05/1999-06/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	AXP BCA	1	05/2000-06/2006	1390	55	75	1
1.6	AUS AZD BCB	1	05/2000-06/2006	1598	77	105	1
1.9 SDI	AQM	2	05/1999-05/2006	1896	50	68	1
1.9 TDI	AGR ALH	2	05/1999-05/2006	1896	66	90	1
1.9 TDI	ATD AXR	2	02/2000-06/2006	1896	74	101	1
1.9 TDI	AHF ASV	2	05/1999-05/2006	1896	81	110	1
1.9 TDI	AJM	2	05/1999-04/2002	1896	85	116	1
1.9 TDI		2	04/2001-05/2006	1896	96	131	1

GOLF IV Variant / JETTA IV (1J5) Estate 05/1999-06/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	AHW AKQ APE AXP BCA	1	05/1999-06/2006	1390	55	75	1
1.6	AEH AKL APF	1	05/1999-04/2002	1595	74	101	1
1.6	AVU BFQ	1	08/2000-06/2006	1595	75	102	1
1.6 16V	ATN AUS AZD BCB	1	02/2000-06/2006	1598	77	105	1
1.6 FSI	BAD	1	01/2002-06/2006	1598	81	110	1
1.8 4motion	AGN	1	05/1999-06/2006	1781	92	125	3
1.8 T	AGU ARZ AUM	1	05/2000-06/2006	1781	110	150	1
1.8 T		1	09/1999-12/2001	1781	127	173	1
2.0	APK AQY AZJ	1	05/1999-06/2006	1984	85	115	1
2.0 4motion	AZH AZJ	1	10/2000-06/2006	1984	85	115	3
2.0 4motion	ATF	1	12/1999-06/2006	1984	88	120	3
2.3 V5	AGZ	1	05/1999-06/2006	2324	110	150	1
2.3 V5	AQN	1	10/2000-06/2006	2324	125	170	1
2.3 V5 4motion	AGZ	1	05/1999-06/2006	2324	110	150	3
2.3 V5 4motion	AQN	1	10/2000-06/2006	2324	125	170	3
2.8 V6		1	09/2000-12/2004	2792	128	174	1
2.8 V6 4motion	AQP AUE BDE	1	05/1999-06/2006	2792	150	204	3
2.0 Bi-Fuel	BEH	16	02/2002-06/2006	1984	85	116	1
1.9 SDI	AGP AQM	2	05/1999-06/2006	1896	50	68	1
1.9 TDI	AGR ALH	2	05/1999-05/2006	1896	66	90	1
1.9 TDI	ATD AXR	2	09/2000-06/2006	1896	74	101	1
1.9 TDI	AHF ASV	2	05/1999-06/2001	1896	81	110	1
1.9 TDI	AJM AUY	2	08/1999-06/2001	1896	85	115	1
1.9 TDI	ASZ	2	11/2000-06/2006	1896	96	130	1
1.9 TDI	ARL	2	06/2001-06/2006	1896	110	150	1
1.9 TDI 4motion	AGR	2	05/1999-04/2002	1896	66	90	3
1.9 TDI 4motion	ATD	2	09/2000-06/2006	1896	74	101	3
1.9 TDI 4motion	AJM	2	12/1999-04/2001	1896	85	115	3
1.9 TDI 4motion	ASZ	2	11/2000-06/2006	1896	96	130	3
1.9 TDI 4motion	ARL	2	05/2002-06/2005	1896	110	150	3

GOLF V / RABBIT V (1K1) Hatchback Van 07/2003-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
TDI		2	11/2003-02/2006	1896	77	105	1

GOLF V / RABBIT V (1K1) Hatchback 10/2003-07/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0		1	08/2005-	999	48	65	1
1.0		1	10/2005-	999	53	72	1
1.4 16V	BCA	1	10/2003-05/2006	1390	55	75	1
1.4 16V	BUD	1	05/2006-11/2008	1390	59	80	1
1.4 FSI	BKG BLN	1	10/2003-07/2006	1390	66	90	1
1.4 TSI	CAXA	1	05/2007-11/2008	1390	90	122	1
1.4 TSI	BMY	1	05/2006-11/2008	1390	103	140	1
1.4 TSI	BLG	1	11/2005-11/2008	1390	125	170	1
1.6		1	08/2005-	1595	67	91	1
1.6	BGU BSE BSF CCSA	1	01/2004-11/2008	1595	75	102	1
1.6 FSI	BAG BLF BLP	1	10/2003-07/2008	1598	85	115	1
1.8		1	08/2005-	1781	73	99	1
1.8 GTI		1	08/2006-11/2008	1781	132	179	1
2.0	BHY CBPA	1	01/2005-11/2008	1984	85	116	1
2.0 FSI	AXW BLR BLX BLY BVX BVY BVZ	1	01/2004-11/2008	1984	110	150	1
2.0 FSI 4motion	BLX BVX	1	08/2004-11/2008	1984	110	150	3
2.0 GTI	AXX BPY BWA CAWB CBFA CCTA	1	10/2004-02/2009	1984	147	200	1
2.0 GTI	BYD	1	09/2006-12/2008	1984	169	230	1
2.5		1	06/2005-11/2008	2480	110	150	1
3.2 R32		1	01/2004-11/2008	3189	177	241	1
3.2 R32 4motion	BUB CBRA	1	11/2005-11/2008	3189	184	250	3
1.6 FSI		13	02/2006-	1598	74	101	1
1.8 Hybrid		13	08/2005-	1781	73	99	1
1.6 MultiFuel	CCSA	19	10/2007-11/2008	1595	75	102	1
1.9 TDI	BRU BXF BXJ	2	05/2004-11/2008	1896	66	90	1
1.9 TDI	BKC BLS BXE	2	10/2003-11/2008	1896	77	105	1
1.9 TDI 4motion	BKC BLS BXE	2	08/2004-11/2008	1896	77	105	3
2.0 SDI	BDK	2	01/2004-11/2008	1968	55	75	1
2.0 TDI	AZV	2	10/2003-11/2008	1968	100	136	1
2.0 TDI	BMM	2	12/2004-11/2008	1968	103	140	1
2.0 TDI	BMN	2	11/2005-11/2008	1968	125	170	1
2.0 TDI 16V	BKD	2	10/2003-11/2008	1968	103	140	1
2.0 TDI 16V 4motion	BKD	2	08/2004-11/2008	1968	103	140	3
2.0 TDI 4motion	BMM	2	01/2007-11/2008	1968	103	140	3

GOLF PLUS V (5M1, 521) Hatchback 12/2004-12/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0		1	08/2005-	999	48	65	1
1.0		1	10/2005-	999	53	72	1
1.2 TSI	CBZA	1	05/2010-12/2013	1197	63	86	1
1.2 TSI	CBZB	1	11/2009-12/2013	1197	77	105	1
1.4 16V	BCA	1	01/2005-11/2006	1390	55	75	1
1.4 16V	BUD CGGA	1	05/2006-12/2013	1390	59	80	1
1.4 FSI	BLN	1	07/2005-11/2006	1390	66	90	1
1.4 TSI	CAXA	1	06/2007-12/2013	1390	90	122	1
1.4 TSI	BMY	1	05/2006-06/2008	1390	103	140	1
1.4 TSI	CAVD CNWA CTHD	1	06/2008-12/2013	1390	118	160	1
1.4 TSI	BLG	1	05/2006-06/2008	1390	125	170	1
1.6		1	08/2005-	1595	67	91	1
1.6	BSE BSF CCSA CMXA	1	05/2005-12/2013	1595	75	102	1
1.6 FSI	BLF	1	12/2004-05/2008	1598	85	115	1
1.8		1	08/2005-	1781	73	99	1
2.0 FSI	BLR BLY BVY BVZ	1	05/2005-06/2008	1984	110	150	1
1.8 Hybrid		13	08/2005-	1781	73	99	1
1.6 BiFuel	CHGA	18	05/2009-12/2013	1595	75	102	1
1.6 MultiFuel	CCSA CMXA	19	11/2007-12/2013	1595	75	102	1
1.6 TDI	CAYB	2	02/2009-12/2013	1598	66	90	1
1.6 TDI	CAYC	2	03/2009-12/2013	1598	77	105	1
1.9 TDI	BRU BXF BXJ	2	05/2005-12/2008	1896	66	90	1
1.9 TDI	BKC BLS BXE	2	01/2005-01/2009	1896	77	105	1
2.0 TDI	CBDC CLCA	2	01/2009-12/2013	1968	81	110	1
2.0 TDI	BEE	2	05/2005-05/2007	1968	96	131	1
2.0 TDI	AZV CBDA CFHB	2	05/2005-12/2013	1968	100	136	1
2.0 TDI	BMM	2	12/2005-05/2011	1968	103	140	1
2.0 TDI 16V	BKD CBDB CFHC	2	01/2005-12/2013	1968	103	140	1

GOLF V Variant / BORA V / JETTA V / VENTO V (1K5) Estate 01/2007-07/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 TSI	CAXA	1	06/2007-07/2009	1390	90	122	1
1.4 TSI	BMY	1	06/2007-07/2009	1390	103	140	1
1.4 TSI	CAVD	1	07/2008-07/2009	1390	118	160	1
1.4 TSI	BLG	1	06/2007-07/2009	1390	125	170	1
1.6	BSE BSF CCSA	1	06/2007-07/2009	1595	75	102	1
2.0 TFSI	BWA CAWB CBFA CCTA	1	06/2007-07/2009	1984	147	200	1
1.6 MultiFuel	CCSA	19	11/2007-07/2009	1595	75	102	1
1.9 TDI	BLS BXE	2	06/2007-07/2009	1896	77	105	1
1.9 TDI 4motion	BLS	2	01/2008-07/2009	1896	77	105	3
2.0 TDI	AZV	2	06/2007-07/2009	1968	100	136	1
2.0 TDI		2	06/2007-07/2009	1968	100	136	2
2.0 TDI	BMM	2	06/2007-07/2009	1968	103	140	1
2.0 TDI 16V	BKD CBDB	2	06/2007-07/2009	1968	103	140	1

GOLF VI / JETTA VI (5K1) Hatchback 10/2008-12/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZA	1	05/2010-11/2012	1197	63	86	1
1.2 TSI	CBZB	1	11/2008-11/2012	1197	77	105	1
1.4	CGGA	1	10/2008-11/2012	1390	59	80	1
1.4 TSI	CAXA	1	10/2008-11/2012	1390	90	122	1
1.4 TSI	CAVD CNWA CTHD	1	10/2008-11/2012	1390	118	160	1
1.6	BSE BSF CCSA CMXA	1	10/2008-11/2012	1595	75	102	1
1.8 TSI	CDAA	1	06/2009-01/2011	1798	118	160	1
2.0 Flex		1	10/2008-	1984	88	120	1
2.0 GTI	CBFA CCTA CCZA	1	06/2009-11/2013	1984	147	200	1
2.0 GTI	CCZB	1	04/2009-11/2012	1984	155	210	1
2.0 GTI	CDLG	1	05/2011-11/2012	1984	173	235	1
2.5	CBTA CBUA	1	07/2009-05/2013	2480	125	170	1
1.6 BiFuel	CHGA	18	03/2009-11/2012	1595	75	102	1
1.6 MultiFuel	CCSA CMXA	19	10/2008-11/2012	1595	75	102	1
1.6 TDI	CAYB	2	02/2009-11/2012	1598	66	90	1
1.6 TDI	CAYC	2	02/2009-11/2012	1598	77	105	1
2.0 TDI	CBDC CLCA	2	10/2008-11/2012	1968	81	110	1
2.0 TDI	CBAA CFFA	2	10/2008-11/2012	1968	100	136	1
2.0 TDI	CBAB CFFB CJAA	2	10/2008-05/2013	1968	103	140	1
2.0 TDI	CBBB CFGB	2	04/2009-11/2012	1968	125	170	1
2.0 TDI 4motion	CBAB CFFB	2	05/2009-11/2012	1968	103	140	3

GOLF VI / JETTA VI (5K1_) Hatchback Van 10/2008-11/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZA	1	05/2010-11/2012	1197	63	86	1
1.2 TSi BlueMotion	CBZB	1	05/2009-11/2012	1197	77	105	1
1.4 TSI	CAVD	1	10/2008-11/2012	1390	118	160	1
2.0 GTI	CCZB	1	02/2009-11/2012	1984	155	211	1
TSi	CAXA	1	10/2008-11/2012	1390	90	122	1
1.6 TDI	CAYB	2	02/2009-11/2012	1598	66	90	1
1.6 TDi BlueMotion	CAYC	2	05/2009-11/2012	1598	77	105	1
2.0 TDI	CFFB CJAA	2	09/2009-11/2012	1968	103	140	1
2.0 TDI	CFGB	2	05/2010-11/2012	1968	125	170	1

GOLF VI / JETTA VI (521) Hatchback Van 01/2009-08/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	11/2009-08/2014	1197	77	105	1
1.4 TSI	CAXA	1	01/2009-08/2014	1390	90	122	1
1.4 TSI	CAVD	1	01/2009-09/2012	1390	118	160	1
1.6 TDI	CAYB	2	02/2009-08/2014	1598	66	90	1
1.6 TDI	CAYC	2	02/2009-08/2014	1598	77	105	1
2.0 TDI	CFHC	2	11/2009-08/2014	1968	103	140	1

GOLF VI VAN Variant / JETTA VI (AJ5) Estate Van 07/2009-05/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	09/2009-05/2014	1197	77	105	1
1.4 TSI	CAXA	1	07/2009-05/2014	1390	90	122	1
1.4 TSI	CAVD	1	07/2009-10/2012	1390	118	160	1
1.6 TDI	CAYB	2	12/2009-10/2012	1598	66	90	1
1.6 TDi BlueMotion	CAYC	2	07/2009-05/2014	1598	77	105	1
2.0 TDI	CBDB CFHC	2	07/2009-05/2014	1968	103	140	1

GOLF VI Variant / JETTA VI (AJ5) Estate 07/2009-07/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZA	1	07/2010-07/2013	1197	63	86	1
1.2 TSI	CBZB	1	07/2009-07/2013	1197	77	105	1
1.4	BUD CGGA	1	07/2009-07/2013	1390	59	80	1
1.4 TSI	CAXA	1	07/2009-07/2013	1390	90	122	1
1.4 TSI	CAVD CNWA CTHD CTKA	1	07/2009-07/2013	1390	118	160	1
1.6	BSE BSF CCSA	1	07/2009-07/2013	1595	75	102	1
2.5		1	07/2009-	2480	125	170	1
1.6 BiFuel	BSF	18	07/2009-12/2010	1595	75	102	1
1.6 TDI	CAYB	2	12/2009-07/2013	1598	66	90	1
1.6 TDI	CAYC	2	07/2009-07/2013	1598	77	105	1
1.6 TDI 4motion	CAYC	2	07/2009-07/2013	1598	77	105	3
2.0 TDI	CBDA CFHB	2	07/2009-07/2013	1968	100	136	1
2.0 TDI	CBDB CFHC CJAA	2	07/2009-07/2013	1968	103	140	1
2.0 TDI		2	07/2009-07/2013	1968	103	140	2

GOLF VI / JETTA VI (517) Convertible 03/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	03/2011-05/2016	1197	77	105	1
1.2 TSI 16V	CJZA CYVD	1	11/2013-05/2016	1197	77	105	1
1.4 TSI	CAXA	1	11/2011-05/2016	1390	90	122	1
1.4 TSI	CAVD CNWA CTHD CTKA	1	03/2011-05/2016	1390	118	160	1
1.4 TSI	CXSB CZCA	1	11/2013-05/2016	1395	92	125	1
1.4 TSI	CHPB CZDA	1	11/2013-05/2016	1395	110	150	1
2.0 GTI	CCZB	1	05/2012-05/2016	1984	155	211	1
2.0 R	CDLA	1	01/2013-05/2016	1984	195	265	1
2.0 TSI	CULC	1	11/2013-05/2016	1984	162	220	1
1.6 TDI	CAYC	2	03/2011-05/2016	1598	77	105	1
2.0 TDI	CUUA	2	11/2013-05/2016	1968	81	110	1
2.0 TDI	CFHC	2	11/2011-05/2016	1968	103	140	1
2.0 TDI	CUUB	2	11/2013-05/2016	1968	110	150	1

GOLF VII / JETTA VII (5G1) Hatchback Van 08/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSi BlueMotion	CJZB	1	08/2012-03/2017	1197	63	86	1
1.2 TSi BlueMotion	CJZA	1	11/2012-03/2017	1197	77	105	1
1.4 TSi BlueMotion	CXSA	1	05/2013-03/2017	1395	90	122	1
2.0 GTI	CHHB	1	04/2013-03/2017	1984	162	220	1
2.0 GTI	CHHA	1	04/2015-03/2017	1984	169	230	1
1.6 TDi BlueMotion	CRKA	2	04/2013-03/2017	1598	66	90	1
1.6 TDi BlueMotion	CLHA	2	08/2012-03/2017	1598	77	105	1
1.6 TDi BlueMotion	CRKB CXXB	2	11/2013-03/2017	1598	81	110	1
2.0 GTD	CUNA	2	04/2013-03/2017	1968	135	184	1
2.0 TDI BlueMotion		2	05/2013-05/2014	1968	110	150	1
2.0 TDi BlueMotion 4motion	CRBC	2	05/2013-05/2014	1968	110	150	3

GOLF VII / JETTA VII (5G1, BQ1, BE1, BE2) Hatchback 08/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 TGI	DHFA	16	11/2018-08/2020	1498	96	130	1

GOLF VII VAN Variant / JETTA VII (BA5) Estate Van 04/2013-03/2017

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSi BlueMotion	CJZB CYVA	1	05/2013-03/2017	1197	63	86	1
1.2 TSi BlueMotion	CJZA	1	04/2013-03/2017	1197	77	105	1
1.4 TSi BlueMotion	CXSA	1	05/2013-03/2017	1395	90	122	1
1.6 TDi BlueMotion	CLHB CRKA CXXA	2	05/2013-03/2017	1598	66	90	1
1.6 TDi BlueMotion	CLHA	2	05/2013-03/2017	1598	77	105	1
1.6 TDi BlueMotion	CRKB	2	05/2013-03/2017	1598	81	110	1
1.6 TDi BlueMotion 4motion	CLHA	2	05/2013-03/2017	1598	77	105	3
2.0 TDI BlueMotion	CRBC CRLB	2	04/2013-03/2017	1968	110	150	1
2.0 TDi BlueMotion 4motion	CRBC CRLB	2	04/2013-03/2017	1968	110	150	3

JETTA VI / VENTO (162, 163, AV3, AV2) Saloon 01/2008-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TSI	CBZB	1	10/2010-12/2017	1197	77	105	1
1.2 TSI 16V	CYVD	1	08/2014-12/2017	1197	77	105	1
1.4 TSI	CAXA CMSB	1	05/2011-12/2017	1390	90	122	1
1.4 TSI	CAVA CTHA	1	04/2011-12/2017	1390	110	150	1
1.4 TSI	CAVD CTHD	1	04/2011-12/2017	1390	118	160	1
1.4 TSI	CZCA	1	08/2014-12/2017	1395	92	125	1
1.4 TSI	CZDA CZTA	1	08/2014-12/2017	1395	110	150	1
1.6	CFNB	1	03/2013-03/2016	1598	63	86	1
1.6	CFNA CLRA	1	12/2011-04/2018	1598	77	105	1
1.6	CWVA	1	09/2015-04/2018	1598	81	110	1
1.6 MPi	CWVB	1	09/2015-04/2018	1598	66	90	1
1.8 TSI	CPKA CPRA	1	07/2014-12/2017	1798	125	170	1
2.0	CBPA CKJA	1	06/2010-12/2017	1984	85	115	1
2.0 TFSI	CBFA CCTA CCZA	1	12/2010-07/2014	1984	147	200	1
2.0 TSI	CPLA CPPA	1	12/2012-12/2017	1984	155	211	1
2.5	CBTA CBUA CCCA	1	04/2010-12/2017	2480	125	170	1
1.4 TSI Hybrid	CNLA CRJA	13	04/2011-12/2017	1395	125	170	1
1.6 TDI	CAYC	2	04/2010-07/2015	1598	77	105	1
2.0 TDI	CLCA CUUA	2	10/2010-12/2017	1968	81	110	1
2.0 TDI	CFFB CFHC CJAA CLCB	2	02/2011-12/2017	1968	103	140	1
2.0 TDI	CUUB CVCA DELA DGMA	2	07/2014-12/2017	1968	110	150	1

NEW BEETLE / BETTLE / NOVO FUSCA (9C1, 1C1) Hatchback 01/1998-07/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	BCA	1	11/2001-09/2010	1390	55	75	1
1.6	AWH	1	10/1999-09/2000	1595	74	100	1
1.6	AYD BFS	1	06/2000-09/2010	1595	75	102	1
1.8 T	AGU APH AVC AWU AWV BKF	1	10/1999-09/2010	1781	110	150	1
1.8 T	AWP BNU	1	11/2001-06/2005	1781	132	180	1
2.0	AEG APK AQY AVH AZG AZJ BER BEV	1	01/1998-09/2010	1984	85	115	1
2.3 V5	AQN	1	10/2000-09/2010	2324	125	170	1
2.5	BPR BPS	1	07/2005-09/2010	2480	110	150	1
3.2 RSI 4motion (1C9)	AXJ	1	04/2000-05/2001	3188	165	224	3
1.9 TDI	ALH	2	01/1998-06/2004	1896	66	90	1
1.9 TDI	ATD AXR BEW	2	02/2001-09/2010	1896	74	101	1
1.9 TDI	BSW	2	07/2005-09/2010	1896	77	105	1

NEW BEETLE / BETTLE (1Y7) Convertible 09/2002-07/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	BCA	1	01/2003-09/2010	1390	55	75	1
1.6	BFS	1	01/2003-09/2010	1595	75	102	1
1.8 T	AWU AWV BKF	1	01/2003-09/2010	1781	110	150	1
2.0	AZJ BDC BEV BGD	1	09/2002-10/2010	1984	85	115	1
2.5	BPR BPS	1	07/2005-09/2010	2480	110	150	1
1.9 TDI	AXR BEW	2	06/2003-07/2005	1896	74	100	1
1.9 TDI	BSW	2	07/2005-09/2010	1896	77	105	1

PASSAT B5 (3B2) Saloon 08/1996-12/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ADP AHL ANA ARM	1	10/1996-11/2000	1595	74	101	1
1.8	AFY	1	01/1997-11/2000	1781	85	115	1
1.8	ADR APT ARG	1	10/1996-11/2000	1781	92	125	1
1.8 Syncro/4motion	ADR APT ARG	1	12/1996-08/2000	1781	92	125	3
1.8 T	AEB ANB APU ATW AUG	1	10/1996-11/2000	1781	110	150	1
1.8 T Syncro	AEB	1	11/1996-08/2000	1781	110	150	3
2.0	ASU AUZ	1	04/2000-11/2000	1984	88	120	1
2.0 4motion	ASU	1	04/2000-11/2000	1984	88	120	3
2.3 VR5	AGZ	1	10/1996-11/2000	2324	110	150	1
2.3 VR5 Syncro/4motion	AGZ	1	10/1997-11/2000	2324	110	150	3
2.8 Syncro	AGE	1	05/1997-09/1999	2771	132	180	3
2.8 V6	AGE	1	05/1997-09/1999	2771	132	180	1
2.8 V6	ATX BBG	1	09/1999-11/2000	2771	140	190	1
2.8 V6	ACK AHA APR AQD	1	08/1996-11/2000	2771	142	193	1
2.8 V6 4motion	ATX	1	09/1999-11/2000	2771	140	190	3
2.8 V6 Syncro/4motion	ACK AHA ALG APR AQD	1	10/1996-11/2000	2771	142	193	3
1.9 TDI	AHH AHU	2	10/1996-11/2000	1896	66	90	1
1.9 TDI	AVB	2	02/2000-11/2000	1896	74	101	1
1.9 TDI	AFN AVG	2	10/1996-11/2000	1896	81	110	1
1.9 TDI	AJM ATJ	2	08/1998-11/2000	1896	85	115	1
1.9 TDI 4motion	ATJ	2	08/1999-11/2000	1896	85	115	3
1.9 TDI Syncro/4motion	AFN AVG	2	06/1997-08/2000	1896	81	110	3
2.5 TDI	AFB AKN	2	07/1998-11/2000	2496	110	150	1
2.5 TDI Syncro/4motion	AFB AKN	2	12/1998-11/2000	2496	110	150	3

PASSAT B5 Variant (3B5) Estate 05/1997-12/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ADP AHL ANA ARM	1	06/1997-11/2000	1595	74	101	1
1.8	AFY	1	06/1997-11/2000	1781	85	115	1
1.8	ADR APT ARG	1	06/1997-11/2000	1781	92	125	1
1.8 Syncro/4motion	ADR APT ARG	1	06/1997-11/2000	1781	92	125	3
1.8 T	AEB ANB APU ATW AUG	1	05/1997-11/2000	1781	110	150	1
2.0	ASU AUZ	1	04/2000-11/2000	1984	88	120	1
2.0 4motion	ASU AUZ	1	04/2000-11/2000	1984	88	120	3
2.3 VR5	AGZ	1	06/1997-11/2000	2324	110	150	1
2.3 VR5 Syncro/4motion	AGZ	1	10/1997-11/2000	2324	110	150	3
2.8		1	05/1997-09/1999	2771	132	180	1
2.8 V6	AGE	1	09/1997-09/1999	2771	132	180	1
2.8 V6	ATX	1	09/1999-11/2000	2771	140	190	1
2.8 V6	ACK AHA APR AQD ATQ	1	06/1997-11/2000	2771	142	193	1
2.8 V6 4motion	ATX	1	09/1999-11/2000	2771	140	190	3
2.8 V6 Syncro/4motion	ACK AHA ALG APR AQD ATQ	1	06/1997-11/2000	2771	142	193	3
1.9 TDI	AHH AHU	2	06/1997-11/2000	1896	66	90	1
1.9 TDI	AVB	2	02/2000-11/2000	1896	74	101	1
1.9 TDI	AFN AVG	2	06/1997-11/2000	1896	81	110	1
1.9 TDI	AJM ATJ	2	08/1998-11/2000	1896	85	115	1
1.9 TDI 4motion	AJM ATJ	2	08/1999-11/2000	1896	85	115	3
1.9 TDI Syncro/4motion	AFN AVG	2	06/1997-08/2000	1896	81	110	3
2.5 TDI	AFB AKN	2	07/1998-11/2000	2496	110	150	1
2.5 TDI Syncro/4motion	AFB AKN	2	12/1998-11/2000	2496	110	150	3

PASSAT B5 Variant (3B6) Estate 09/2000-08/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ALZ	1	11/2000-05/2005	1595	75	102	1
1.8 4motion	AWM	1	11/2003-05/2005	1781	125	170	3
1.8 T	AWM	1	05/2002-08/2005	1781	125	170	1
1.8 T 20V	AWT	1	11/2000-05/2005	1781	110	150	1
2.0	AZM	1	11/2000-05/2005	1984	85	115	1
2.0	ALT	1	11/2001-05/2005	1984	96	130	1
2.0 4motion	AZM	1	11/2000-05/2005	1984	85	115	3
2.3 VR5	AZX	1	11/2000-05/2005	2324	125	170	1
2.3 VR5 4motion	AZX	1	11/2000-05/2005	2324	125	170	3
2.8	BBG	1	10/2000-05/2005	2771	140	190	1
2.8	ATQ	1	10/2000-08/2005	2771	142	193	1
2.8 4motion	BBG	1	10/2000-05/2005	2771	140	190	3
2.8 4motion	AMX ATQ	1	11/2000-05/2005	2771	142	193	3
4.0 W8 4motion	BDN BDP	1	09/2001-09/2004	3999	202	275	3
1.9 TDI	AVB	2	11/2000-05/2005	1896	74	101	1
1.9 TDI	AVF AWX	2	11/2000-05/2005	1896	96	130	1
1.9 TDI 4motion	AVF	2	11/2000-05/2005	1896	96	130	3
2.0 TDI	BGW BHW	2	12/2003-05/2005	1968	100	136	1
2.5 TDI	AKN	2	11/2000-05/2005	2496	110	150	1
2.5 TDI	BDG	2	05/2003-05/2005	2496	120	163	1
2.5 TDI 4motion	AKN	2	11/2000-05/2005	2496	110	150	3
2.5 TDI 4motion	BAU BDH	2	01/2003-05/2005	2496	132	180	3

PASSAT B5 (3B3) Saloon 10/2000-12/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	ALZ	1	11/2000-05/2005	1595	75	102	1
1.8		1	03/2003-03/2005	1781	92	125	1
1.8 T	AWM	1	02/2001-11/2005	1781	125	170	1
1.8 T 20V	AWT	1	11/2000-05/2005	1781	110	150	1
1.8 T 4motion	AWM	1	11/2003-05/2005	1781	125	170	3
2.0	AZM	1	11/2000-05/2005	1984	85	115	1
2.0	ALT	1	11/2001-05/2005	1984	96	130	1
2.0 4motion	AZM	1	11/2000-05/2005	1984	85	115	3
2.3 V5	AZX	1	11/2000-05/2005	2324	125	170	1
2.3 V5 4motion	AZX	1	11/2000-05/2005	2324	125	170	3
2.8	BBG	1	10/2000-05/2005	2771	140	190	1
2.8	AMX ATQ	1	05/2002-05/2003	2771	142	193	1
2.8 4motion	BBG	1	10/2000-05/2005	2771	140	190	3
2.8 4motion	AMX ATQ	1	11/2000-05/2005	2771	142	193	3
4.0 W8 4motion	BDN BDP	1	09/2001-09/2004	3999	202	275	3
1.9 TDI	AVB	2	11/2000-05/2005	1896	74	101	1
1.9 TDI	AVF AWX	2	11/2000-05/2005	1896	96	130	1
1.9 TDI 4motion	AVF	2	11/2000-05/2005	1896	96	130	3
2.0 TDI	BGW BHW	2	12/2003-05/2005	1968	100	136	1
2.5 TDI	AKN	2	11/2000-05/2005	2496	110	150	1
2.5 TDI	BDG	2	05/2003-05/2005	2496	120	163	1
2.5 TDI 4motion	AFB AKN	2	11/2000-05/2005	2496	110	150	3
2.5 TDI 4motion	BAU BDH	2	01/2003-05/2005	2496	132	180	3

POLO III (6N1) Hatchback 10/1994-10/1999

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
100 1.4 16V	AFH	1	04/1996-10/1999	1390	74	100	1
120 1.6 16V GTI	AJV	1	09/1998-10/1999	1598	88	120	1

POLO III CLASSIC / DERBY / FLIGHT (6V2) Saloon 01/1995-11/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	05/1996-09/2001	1595	65	88	1
1.6	BAH CCRA	1	11/2002-07/2006	1598	74	101	1
100 1.6	AEH AFT AKL APF AUR	1	12/1995-09/2001	1595	74	100	1
1.8		13	05/1996-09/2001	1781	74	101	1
110 1.9 TDI	AFN ASV	2	06/1998-01/2002	1896	81	110	1
90 1.9 TDI	AGR AHU ALE ALH	2	09/1996-09/2001	1896	66	90	1

POLO III Variant (6V5) Estate 04/1997-09/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	AEH AFT AKL APF AUR	1	05/1997-09/2001	1595	74	101	1
1.8	ADZ	1	05/1997-09/2001	1781	66	90	1
1.9 TDI	AGR AHU ALE ALH	2	05/1997-09/2001	1896	66	90	1
1.9 TDI	AFN ASV	2	06/1998-09/2001	1896	81	110	1

POLO III (6N2) Hatchback 10/1999-10/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	AHW APE AUA	1	10/1999-09/2001	1390	55	75	1
1.4 16V	AFK AQQ AUB	1	10/1999-09/2001	1390	74	101	1
1.6 16V GTI	ARC AVY	1	10/1999-09/2001	1598	92	125	1
1.4 TDI	AMF	2	10/1999-09/2001	1422	55	75	1
1.4 TDI		2	01/2000-10/2000	1422	66	90	1
1.9 TDI		2	10/1999-	1895	65	89	2

POLO IV (9N_, 9A_) Hatchback 10/2001-10/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	BLM	1	08/2002-11/2009	1390	61	83	1
1.4 16V	AUA BBY BKY	1	10/2001-05/2008	1390	55	75	1
1.4 16V	BUD	1	05/2006-11/2009	1390	59	80	1
1.4 16V	AUB BBZ	1	10/2001-05/2008	1390	74	101	1
1.4 FSI	AXU	1	02/2002-07/2006	1390	63	86	1
1.6 16V	BTS	1	05/2006-11/2009	1598	77	105	1
1.8 GTI	BJX	1	09/2005-11/2009	1781	110	150	1
1.8 GTi Cup Edition	BBU	1	05/2006-11/2009	1781	132	180	1
1.4 BiFuel	BUD	18	05/2006-11/2009	1390	60	82	1
1.4 TDI	BNM BWB	2	04/2005-11/2009	1422	51	70	1
1.4 TDI	AMF BAY	2	10/2001-06/2005	1422	55	75	1
1.4 TDI	BMS BNV	2	04/2005-11/2009	1422	59	80	1
1.9 TDI	ATD AXR BMT	2	10/2001-11/2009	1896	74	101	1
1.9 TDI	ASZ BLT	2	11/2003-11/2009	1896	96	130	1

POLO IV (9N2) Saloon 09/2002-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.9 TDI	ATD	2	07/2003-12/2010	1896	74	101	1

POLO IV / DERBY (9A4, 9A2, 9N2, 9A6) Saloon 09/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	BBY BKY	1	11/2002-04/2012	1390	55	75	1
1.4	BBZ	1	11/2003-06/2005	1390	74	101	1
1.6	BAH CCRA CFZA	1	09/2002-	1598	74	101	1
1.4 TDI	BAY	2	07/2003-06/2005	1422	55	75	1
1.9 SDI	ASY	2	09/2002-04/2012	1896	47	64	1

POLO V (6R1, 6C1) Hatchback 03/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZB	1	11/2014-10/2017	999	70	95	1
1.0 TSI	CHZC	1	11/2014-10/2017	999	81	110	1
1.2 TSI	CBZC	1	05/2011-05/2014	1197	66	90	1
1.2 TSI	CBZB	1	11/2009-05/2022	1197	77	105	1
1.2 TSI	CJZD	1	01/2014-10/2017	1197	81	110	1
1.2 TSI 16V	CJZC	1	02/2014-10/2017	1197	66	90	1
1.4 (6R1)	CDDA CGGB CLPA	1	03/2009-05/2014	1390	63	85	1
1.4 GTi	CAVE CTHE	1	05/2010-05/2014	1390	132	180	1
1.4 TSI	CPTA	1	10/2012-05/2014	1395	103	140	1
1.4 TSI	CZEA	1	05/2014-10/2017	1395	110	150	1
1.6	CWVB	1	07/2014-10/2017	1598	66	90	1
1.6	CFNA CLSA	1	01/2010-05/2022	1598	77	105	1
1.6	CWVA	1	07/2014-10/2017	1598	81	110	1
1.8 GTI	DAJA DAJB	1	11/2014-10/2017	1798	141	192	1
2.0 R WRC	CDLJ	1	08/2013-05/2014	1984	162	220	1
1.4 TDI	CUSB	2	02/2014-10/2017	1422	66	90	1
1.4 TDI	CUTA CYZA	2	05/2014-10/2017	1422	77	105	1
1.6 TDI	CAYB	2	06/2009-05/2014	1598	66	90	1
1.6 TDI	CAYC CLNA	2	06/2009-08/2015	1598	77	105	1

POLO V (6R) Hatchback Van 03/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZB	1	11/2014-10/2017	999	70	95	1
1.2 TSI	CJZC	1	02/2014-10/2017	1197	66	90	1
1.2 TSI	CBZC	1	05/2011-05/2014	1197	66	90	1
1.2 TSI	CJZD	1	01/2014-10/2017	1197	81	110	1
1.2 TSi BlueMotion	CBZB	1	11/2009-05/2014	1197	77	105	1
1.4	CGGB	1	03/2009-05/2014	1390	63	86	1
1.4 GTi	CAVE	1	05/2010-05/2014	1390	132	179	1
1.4 TSI	CZEA	1	05/2014-10/2017	1395	110	150	1
1.4 TDI	CUSB	2	02/2014-10/2017	1422	66	90	1
1.6 TDI	CAYC	2	06/2009-05/2014	1598	77	105	1
1.6 TDi BlueMotion	CAYB	2	06/2009-05/2014	1598	66	90	1

POLO V / VENTO (602, 604, 612, 614) Saloon 05/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4		1	06/2009-	1390	55	75	1
1.4		1	12/2010-05/2022	1390	63	85	1
1.4 TSI	CZCA	1	05/2016-03/2020	1395	92	125	1
1.6	CFNB	1	11/2010-05/2015	1598	63	86	1
1.6	CWVB	1	05/2015-03/2020	1598	66	90	1
1.6		1	05/2009-	1598	74	101	1
1.6	CFNA CLSA	1	05/2010-05/2022	1598	77	105	1
1.6	CWVA	1	05/2015-03/2020	1598	81	110	1
1.6 TDI		2	07/2010-	1598	77	105	2

POLO VI (AW1, BZ1, AE1) Hatchback 06/2017-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZL DKLA	1	06/2017-	999	70	95	1
1.0 TSI	DLAA	1	07/2020-	999	81	110	1
1.0 TSI	CHZJ DKJA DKRF	1	09/2017-	999	85	116	1
1.5 TSI	DADA DPCA	1	10/2018-08/2021	1498	110	150	1
1.6 TDI	DGTD	2	11/2017-02/2021	1598	70	95	1

SCIROCCO III (137, 138) Coupe 05/2008-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 TSI	CAXA CMSB	1	08/2008-11/2017	1390	90	122	1
1.4 TSI	CAVD CNWA CTHD CTKA	1	05/2008-11/2017	1390	118	160	1
1.4 TSI	CXSB CZCA	1	11/2013-11/2017	1395	92	125	1
1.4 TSI	CZDA	1	07/2015-11/2017	1395	110	150	1
2.0 TFSI	CAWB	1	05/2008-11/2009	1984	147	200	1
2.0 TSI	CULA	1	11/2013-11/2017	1984	132	180	1
2.0 TSI	CCZB	1	11/2009-11/2017	1984	155	210	1
2.0 TSI	CULC	1	11/2013-11/2017	1984	162	220	1
2.0 TDI	CFHB	2	11/2010-11/2017	1968	100	136	1
2.0 TDI	CBDB CFHC	2	08/2008-11/2017	1968	103	140	1
2.0 TDI	CUUB	2	11/2013-11/2017	1968	110	150	1
2.0 TDI	CBBB CFGB	2	05/2009-11/2017	1968	125	170	1
2.0 TDI	CFGC	2	01/2013-11/2017	1968	130	177	1
2.0 TDI	CUWA CUXA	2	05/2014-11/2017	1968	135	184	1

SCIROCCO III (137) Hatchback Van 06/2008-05/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 TSI	CAXA	1	08/2008-05/2014	1390	90	122	1
1.4 TSI	CAVD	1	06/2008-05/2014	1390	118	160	1
2.0 TFSI	CCZB	1	11/2009-05/2014	1984	155	211	1
2.0 TDI	CBDB CFHC	2	08/2008-05/2014	1968	103	140	1
2.0 TDI	CBBB CFGB	2	05/2009-05/2014	1968	125	170	1

T-CROSS (C11, D31) SUV 12/2018-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 TSI	CHZL DKLA DLAC	1	12/2018-	999	70	95	1
1.0 TSI	DLAA	1	06/2020-	999	81	110	1
1.0 TSI	DKJA DKRF	1	12/2018-	999	85	116	1
1.5 TSI	DADA DPCA	1	01/2020-	1498	110	150	1
1.6 TDI	DGTD	2	12/2018-	1598	70	95	1

VW (FAW)

CADDY (9HB) Van 04/2004-12/2007

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	03/2005-	1595	75	102	1
2.0		1	03/2005-	1996	51	69	1

Return
