Product 180858 - Web Catalogo

Description: Brake pad set
Axe: Front-Rear
No. of Pieces: 4
Barcode: 8424073010643
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=180858
Weight (gr.): 1280

System: Ate - Teves
R90 Homologation: 90R-01030/134

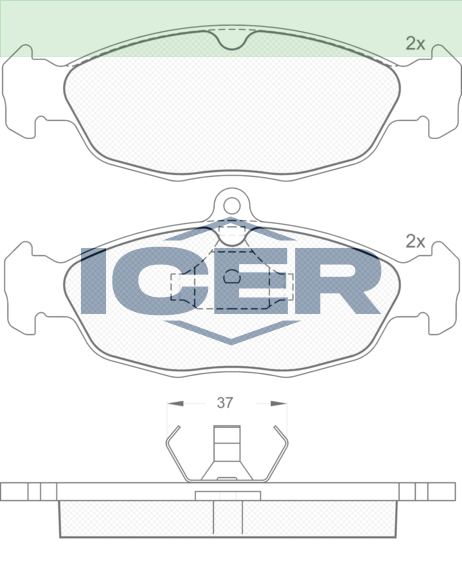

Measures: 140.1x58.3x16.8; 141.3x48.1x16.8

Reference applications

Brand	OE Reference
DAEWOO	1104 6148
DAEWOO	1104 6148 XX2
DAEWOO	1104 6948 322
DAEWOO	1104 6948 372
OPEL	16 05 087
OPEL	16 05 455
OPEL	16 05 810
OPEL	16 05 824
OPEL	16 05 881
OPEL	16 05 907
OPEL	90 374 748
OPEL	93 176 120
OPEL	93 192 639
OPEL	93 220 081
RENAULT	86 60 004 663
RENAULT	86 71 016 574
VAUXHALL	90 421 736
VAUXHALL	90 442 995
VAUXHALL	90 485 140
VAUXHALL	90 510 331

Maker	Cross reference
ATE	13.0460-7051.2
ATE	13.0463-7051.2
ATE	600048
ATE	607051
B.M.	DB1275
BENDIX ANTIGUO	571492B
BENDIX ANTIGUO	571924B
BENDIX-ROULUNDS	510118
BENDIXX ANTIGUO	571924X
BOSCH	0 986 460 938
BOSCH	0 986 560 938
BREMBO	P 59 011
DELPHI LOCKHEED	LP702
FERODO	FDB732
FMSI	D1139-8250
FMSI	D688-7563
GIRLING	6110402
HELLA-PAGID	8DB 355 007-531
HELLA-PAGID	T1045
MINTEX	MDB1556
NECTO	FD6391A
NECTO	FD6391E
ROAD HOUSE	2393.00
ROAD HOUSE	2393.20
TEXTAR	20547 168 0 5 T4037
TEXTAR	2054701
TRW	GDB1040
VALEO	598039
VALEO	598356
WVA	20547
WVA	21311
WVA	21353

BUICK

SAIL () Saloon 07/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	07/2002-	1598	68	92	1

CHEVROLET

CORSA () Saloon 03/1994-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 (19, 98)	L45(61CUL4) X 10 YE	1	08/1997-07/2002	995	50	68	1
1.0 (19)	C 10 NE L11(61CUL4) X 10 E	1	03/1994-07/2000	999	44	60	1
1.4 GLS	2H6	1	08/1994-07/1997	1389	44	60	1

CORSA () Hatchback 03/1994-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 (08, 68, 73, 78)	B 10 NZ LA2(61CUL4)	1	03/1994-07/2000	999	37	50	1
1.0 (08, 68)	C 10 NE L11(61CUL4) X 10 E	1	03/1994-07/2000	999	44	60	1
1.0 16V (08, 68, 73, 78)	L45(61CUL4) X 10 YE	1	08/1997-07/2002	995	50	68	1
1.4 GLS (08, 68, 73, 78)	2H6(85CUL4) LQ5(85CUL4)	1	08/1994-07/1997	1389	44	60	1

CORSA () Pickup 08/1994-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0	X 10 YE	1	08/1997-07/2002	996	50	68	1
1.0	X 10 E	1	08/1997-07/2000	999	44	60	1
1.4 GLS	2H6	1	08/1994-07/1997	1389	44	60	1
1.0 Ethanol		19	08/1999-07/2002	996	47	64	1

PRISMA () Saloon 10/2006-

Vehicle	Fuel	Date	CC	KW	CV	Traction
1.0	1	03/2009-01/2011	999	57	78	1
1.0 Flex	1	12/2008-01/2011	999	57	78	1
1.0 Flex	1	01/2013-	999	59	80	1
1.4	1	09/2011-11/2013	1389	63	86	1
1.4	1	10/2006-	1389	66	90	1
1.4	1	03/2009-	1389	69	94	1
1.4	1	01/2013-	1389	72	98	1
1.4 Flex	1	01/2011-	1389	63	86	1
1.4 Flex	1	10/2006-09/2009	1389	65	88	1
1.4 Flex	1	03/2009-	1389	69	94	1
1.4 Flex	1	10/2006-	1389	71	97	1
1.4 Flex	1	01/2013-	1389	78	106	1

TIGRA () Coupe 08/1997-09/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	L91	1	09/1998-12/1999	1598	73	99	1

CHRYSLER

NEON (PL) Saloon 05/1994-09/2000

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	ECC	1	10/1996-09/2000	1996	118	160	1

DAEWOO

LANOS (KLAT) Saloon 02/1997-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3	L13(82CUL4)	1	05/1997-	1349	55	75	1
1.5	LX6(91CUL4)	1	05/1997-	1498	63	86	1
1.5	L43(91CUL4)	1	10/1997-06/1999	1498	73	99	1

LANOS / SENS (KLAT) Hatchback 04/1997-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3	L13(82CUL4)	1	05/1997-	1349	55	75	1
1.5	LX6(91CUL4)	1	05/1997-	1498	63	86	1
1.5	L43(91CUL4)	1	10/1997-06/1999	1498	73	99	1

LEMANS () Saloon 09/1990-05/1997

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5	G15MG	1	09/1990-07/1995	1498	65	88	1
1.6	A16D	1	09/1990-07/1995	1598	55	75	1
2.0 GSE	C20LE	1	09/1990-07/1993	1998	72	98	1

NEXIA / CIELO () Hatchback 02/1995-08/1997

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 (08, 68)	G15MF	1	08/1996-08/1997	1498	44	60	1
1.5 (08, 68)	G15MF	1	02/1995-08/1997	1498	52	71	1
1.5 (08, 68)	G15MF	1	02/1995-08/1997	1498	55	75	1

NEXIA / CIELO () Saloon 02/1995-06/2008

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 (19)	G15MF	1	08/1996-08/1997	1498	44	60	1
1.5 (19)	G15MF	1	02/1995-08/1997	1498	52	71	1
1.5 (19)	G15MF	1	02/1995-08/1997	1498	55	75	1
1.5 (19)	G15MF	1	08/1997-06/2008	1498	59	80	1

RACER () Hatchback 01/1986-12/1997

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5	G15MF	1	03/1995-12/1997	1498	52	71	1

HOLDEN

ASTRA (LB, LC) Hatchback 08/1984-07/1987

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 TR City		1	08/1984-	1795			1

ASTRA (TR) Hatchback 08/1995-09/1998

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 CD		1	08/1995-09/1998	1598	74	101	1

ASTRA (TR) Saloon 08/1995-09/1998

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 CD		1	08/1995-01/1998	1598	74	101	1

BARINA (SB) Hatchback 04/1994-02/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 SB		1	04/1994-	1195			1

COMBO (SB) Van 03/1996-09/2002

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 S.B.		1	03/1996-	1395			1

JAGUAR

XJ (XJ40, XJ81) Saloon 10/1986-12/1995

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
4.0	9EPCNA	1	10/1989-08/1994	3980	166	226	2
4.0	9EPCNA	1	10/1989-08/1994	3980	187	254	2
6 3.2 24V	9BPMNA	1	09/1990-11/1994	3239	146	199	2
6 4.0	9EPCNA	1	09/1989-11/1994	3980	163	222	2

XJ / VANDEN PLAS (X300, X330) Saloon 09/1994-12/1999

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
12 6.0		1	09/1994-09/1997	5993	229	311	2
6 3.2	9JPGRB	1	11/1994-07/1997	3239	155	211	2
6 Sovereign 4.0	9JPFRB	1	09/1994-07/1997	3980	177	241	2
R Super Charged 4.0	9KPDRB	1	11/1994-07/1997	3980	235	320	2

XK 8 (X100) Convertible 03/1996-12/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
4.0	EC	1	02/1998-07/2005	3996	267	363	2

XK 8 (X100) Coupe 03/1996-12/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
4.0	AJ26 AJ-V8	1	05/1996-07/2005	3996	216	294	2
4.0	EC	1	02/1998-07/2005	3996	267	363	2

OPEL

ASTRA F (T92) Hatchback 09/1991-10/2000

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (F08, M08, F68, M68)	14 NV	1	09/1991-09/1993	1389	55	75	1
1.4 (F08, M08, F68, M68)	14 SE	1	09/1992-01/1998	1389	60	82	1
1.4 i (F08, M08, F68, M68)	C 14 NZ X 14 NZ	1	09/1991-01/1998	1389	44	60	1
1.4 i 16V (F08, M08, F68, M68)	X 14 XE	1	09/1996-02/1998	1389	66	90	1
1.4 Si (F08, M08, F68, M68)	C 14 SE	1	03/1992-01/1998	1389	60	82	1
1.6 (F08, M08, F68, M68)	16 LZ2 16 NZR	1	09/1995-01/1998	1598	55	75	1
1.6 i (F08, M08, F68, M68)	X 16 SZ	1	05/1993-07/1996	1598	52	71	1
1.6 i (F08, M08, F68, M68)	C 16 NZ X 16 SZR	1	09/1991-01/1998	1598	55	75	1
1.6 i 16V (F08, M08, F68, M68)	X 16 XEL	1	08/1994-01/1998	1598	74	100	1
1.6 Si (F08, M08, F68, M68)	C 16 SE	1	03/1992-12/1994	1598	74	101	1
1.8 i (F08, M08, F68, M68)	C 18 NZ	1	09/1991-01/1998	1796	66	90	1
1.7 D (F08, M08, F68, M68)	17 D	2	12/1991-09/1992	1699	42	57	1
1.7 D (F08, M08, F68, M68)	17 DR	2	07/1992-01/1998	1699	44	60	1
1.7 TD (F08, M08, F68, M68)	X 17 DTL	2	11/1994-01/1998	1699	50	68	1
1.7 TDS (F08, M08, F68, M68)	17 TD	2	12/1991-01/1998	1686	60	82	1

ASTRA F (T92) Saloon 09/1991-01/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (F19, M19)	14 NV	1	09/1991-09/1993	1389	55	75	1
1.4 (F19, M19)	14 SE	1	09/1992-09/1998	1389	60	82	1
1.4 i (F19, M19)	C 14 NZ X 14 NZ	1	09/1991-09/1998	1389	44	60	1
1.4 i 16V (F19, M19)	X 14 XE	1	02/1996-09/1998	1389	66	90	1
1.4 Si (F19, M19)	C 14 SE	1	03/1992-09/1998	1389	60	82	1
1.6 (F19, M19)	16 LZ2 16 NZR	1	09/1995-09/1998	1598	55	75	1
1.6 i (F19, M19)	X 16 SZ	1	05/1993-07/1996	1598	52	71	1
1.6 i (F19, M19)	C 16 NZ X 16 SZR	1	03/1992-09/1998	1598	55	75	1
1.6 i 16V (F19, M19)	X 16 XEL	1	08/1994-09/1998	1598	74	100	1
1.6 Si (F19, M19)	C 16 SE	1	05/1992-12/1994	1598	74	100	1
1.8 i (F19, M19)	C 18 NZ	1	03/1992-09/1998	1796	66	90	1
1.7 D (F19, M19)	17 D	2	03/1992-09/1992	1699	42	57	1
1.7 D (F19, M19)	17 DR	2	07/1992-09/1998	1699	44	60	1
1.7 TD (F19, M19)	X 17 DTL	2	11/1994-09/1998	1699	50	68	1
1.7 TDS (F19, M19)	17 TD	2	03/1992-09/1998	1686	60	82	1

ASTRA F (T92) Estate 09/1991-01/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (F35, M35)	14 NV	1	09/1991-09/1993	1389	55	75	1
1.4 (F35, M35)	14 SE	1	09/1992-01/1998	1389	60	82	1
1.4 i (F35, M35)	C 14 NZ X 14 NZ	1	09/1991-01/1998	1389	44	60	1
1.4 i 16V (F35, M35)	X 14 XE	1	02/1996-01/1998	1389	66	90	1
1.4 Si (F35, M35)	C 14 SE	1	03/1992-01/1998	1389	60	82	1
1.6 (F35, M35)	16 LZ2 16 NZR	1	09/1995-01/1998	1598	55	75	1
1.6 i (F35, M35)	X 16 SZ	1	05/1993-07/1996	1598	52	71	1
1.6 i (F35, M35)	C 16 NZ X 16 SZR	1	09/1991-01/1998	1598	55	75	1
1.6 i 16V (F35, M35)	X 16 XEL	1	08/1994-01/1998	1598	74	100	1
1.6 Si (F35, M35)	C 16 SE	1	03/1992-12/1994	1598	74	101	1
1.8 i (F35, M35)	C 18 NZ	1	09/1991-01/1998	1796	66	90	1
1.7 D (F35, M35)	17 D	2	12/1991-09/1992	1699	42	57	1
1.7 D (F35, M35)	17 DR	2	07/1992-01/1998	1699	44	60	1
1.7 TD (F35, M35)	X 17 DTL	2	11/1994-01/1998	1699	50	68	1
1.7 TDS (F35, M35)	17 TD	2	12/1991-01/1998	1686	60	82	1

ASTRA F (T92) Estate Van 10/1991-01/1999

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4		1	10/1991-	1395	44	60	1
1.4		1	10/1991-	1395	54	74	1
1.4		1	10/1991-	1395	60	81	1
1.4 i (F70)	C 14 NZ	1	10/1991-01/1999	1389	44	60	1
1.6		1	10/1991-	1595	54	74	1
1.6 i (F70)	X 16 SZ	1	02/1993-07/1996	1598	52	71	1
1.6 i (F70)	C 16 NZ X 16 SZR	1	10/1991-02/1998	1598	55	75	1
1.6 i (F70)	C 16 SE	1	03/1992-12/1994	1598	74	101	1
1.8 i		1	10/1991-	1795	65	89	1
1.8 i (F70)	C 18 NZ	1	06/1993-08/1994	1796	66	90	1
1.7 D		2	10/1991-	1695	42	57	2
1.7 D (F70)	17 D	2	12/1991-09/1992	1699	42	57	1
1.7 D (F70)	17 DR	2	07/1992-01/1999	1699	44	60	1
1.7 TD (F70)	X 17 DTL	2	08/1994-01/1999	1699	50	68	1

ASTRA F (T92) Convertible 03/1993-03/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i 16V	X 14 XE	1	01/1996-03/2001	1389	66	90	1
1.4 Si	C 14 SE	1	05/1993-03/2001	1389	60	82	1
1.6 i	X 16 SZ	1	03/1993-08/1996	1598	52	71	1
1.6 i	X 16 SZR	1	01/1996-03/2001	1598	55	75	1

ASTRA F CLASSIC (T92) Hatchback 01/1998-08/2002

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i (M08, M68, F08, F68)	X 14 NZ	1	01/1998-08/2002	1389	44	60	1
1.6 i (F08, M08, F68, M68)	X 16 SZR	1	01/1998-08/2002	1598	55	75	1

ASTRA F CLASSIC (T92) Saloon 01/1998-08/2002

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i (F19, M19)	X 14 NZ	1	01/1998-08/2002	1389	44	60	1
1.6 i (F19, M19)	X 16 SZR	1	01/1998-08/2002	1598	55	75	1

ASTRA F CLASSIC (T92) Estate 01/1998-01/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i (F35, M35)	X 14 NZ	1	01/1998-01/2005	1389	44	60	1
1.6 i (F35, M35)	X 16 SZR	1	01/1998-01/2005	1598	55	75	1

COMBO B (71_) Box Body/MPV 07/1994-10/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2	C 12 NZ X 12 SZ	1	07/1994-10/2001	1195	33	45	1
1.4	C 14 NZ X 14 SZ	1	07/1994-10/2001	1389	44	60	1
1.4	C 14 SE	1	07/1994-10/2001	1389	60	82	1
1.4 16V	X 14 XE	1	08/1999-10/2001	1389	66	90	1
1.7 D	17 D (4EE1) X 17 D (4EE1)	2	07/1994-10/2001	1686	44	60	1

CORSA A (S83) Saloon 09/1982-03/1993

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 (F11, M11, F19, M19)	10 S	1	09/1982-09/1992	993	33	45	1
1.2 i (F11, M11, F19, M19)	C 12 NZ	1	09/1989-03/1993	1195	33	45	1
1.2 S (F11, M11, M19, F19)	12 ST	1	09/1982-03/1993	1196	40	55	1
1.3 GL		1	09/1982-03/1993	1297	55	75	1
1.4 i (F11, M11, F19, M19)	C 14 NZ	1	10/1989-03/1993	1389	44	60	1
1.4 S (F11, M11, F19, M19)	14 NV	1	09/1989-03/1993	1389	53	72	1
1.5 D (F11, M11, F19, M19)	15 D (4EC1)	2	10/1987-11/1992	1488	37	50	1
1.5 TD (F11, M11, F19, M19)	15 DT (T4EC1)	2	10/1987-03/1993	1488	49	67	1

CORSA A (S83) Hatchback 09/1982-03/1993

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 (F08, M08, F68, M68)	10 S	1	09/1982-03/1993	993	33	45	1
1.2 (F08, M08, F68, M68)	12 S	1	09/1982-08/1990	1196	44	60	1
1.2 i (F08, M08, F68, M68)	C 12 NZ	1	09/1989-03/1993	1195	33	45	1
1.2 N (F08, M08, F68, M68)	12 NV	1	01/1990-03/1993	1196	38	52	1
1.2 S (F08, M08, F68, M68)	12 ST	1	09/1982-02/1990	1196	40	55	1
1.3 GL		1	09/1982-03/1993	1297	55	75	1
1.3 i (F08, M08, F68, M68)	C 13 N	1	09/1986-09/1990	1297	44	60	1
1.4 i (F08, M08, F68, M68)	C 14 NZ	1	01/1985-03/1993	1389	40	54	1
1.4 i (F08, M08, F68, M68)	C 14 NZ	1	01/1990-03/1993	1389	44	60	1
1.4 S (F08, M08, F68, M68)	14 NV	1	01/1990-03/1993	1389	53	72	1
1.4 Si (F08, M08, F68, M68)	C 14 SE	1	09/1991-03/1993	1389	60	82	1
1.6 GSI (F08, M08, F68, M68)	C 16 SEI	1	09/1989-03/1993	1598	72	98	1
1.6 GSI (F08, M08, F68, M68)	E 16 SE	1	05/1988-03/1992	1598	74	100	1
1.6 GSI (F08, M08, M68, F68)	C 16 NZ	1	08/1988-09/1992	1598	55	75	1
1.6 GSI Cat (F08, M08, F68, M68)	C 16 SE	1	02/1992-03/1993	1598	74	101	1
1.5 D (F08, M08, F68, M68)	15 D (4EC1)	2	09/1987-03/1993	1488	37	50	1
1.5 TD (F08, M08, F68, M68)	15 DT (T4EC1)	2	03/1988-03/1993	1488	49	67	1

CORSA A (S83) Hatchback Van 02/1986-09/1994

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 (F08, W5L)	10 S	1	02/1986-04/1989	993	33	45	1
1.2 (F08, W5L)	12 ST	1	02/1986-04/1989	1196	40	54	1
1.2 (F08, W5L)	12 S	1	02/1986-07/1990	1196	44	60	1
1.5 D (F08, W5L)	15 D (4EC1)	2	06/1987-04/1989	1488	37	50	1

CORSA B / VITA B (S93) Hatchback 03/1993-10/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 i 12V (F08, F68, M68)	X 10 XE	1	11/1996-09/2000	973	40	54	1
1.2 i (F08, F68, M68)	C 12 NZ X 12 SZ	1	03/1993-09/2000	1195	33	45	1
1.2 i (F08, F68, M68)	12 NZ	1	03/1993-09/2000	1195	33	45	1
1.2 i 16V (F08, F68, M68)	X 12 XE	1	03/1998-09/2000	1199	48	65	1
1.4 (F08, F68, M68)	C 14 SE	1	04/1993-08/1994	1389	54	73	1
1.4 i (F08, F68, M68)	C 14 NZ X 14 SZ	1	03/1993-09/2000	1389	40	54	1
1.4 i (F08, F68, M68)	C 14 NZ X 14 SZ	1	03/1993-09/2000	1389	44	60	1
1.4 i 16V (F08, F68, M68)	C 14 SEL	1	08/1997-09/2000	1389	63	86	1
1.4 i 16V (F08, F68, M68)	X 14 XE	1	09/1994-09/2000	1389	66	90	1
1.4 i 16V (F08, F68, M68)		1	09/1994-09/2000	1389	67	91	1
1.4 Si (F08, F68, M68)	C 14 SE	1	03/1993-09/2000	1389	60	82	1
1.6 GSI 16V (F08, F68, M68)	C 16 XE	1	03/1993-09/2000	1598	80	109	1
1.6 i 16V (F08, F68, M68)	C 16 SEL	1	08/1997-09/2000	1598	74	100	1
1.6 i 16V (F08, F68, M68)	X 16 XE	1	09/1994-09/2000	1598	78	106	1
1.5 D (F08, F68, M68)	15 D	2	03/1993-09/2000	1488	37	50	1
1.5 TD (F08, F68, M68)	15 TD X 15 TD	2	03/1993-09/2000	1488	49	67	1
1.7 D (F08, F68, M68)	17 D (4EE1) X 17 D (4EE1)	2	02/1996-09/2000	1686	44	60	1

CORSA B (S93) Hatchback Van 08/1994-12/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 (F08, W5L)	C 12 NZ	1	08/1994-12/2001	1195	33	45	1
1.4 i (F08, W5L)	C 14 NZ X 14 SZ	1	08/1999-09/2000	1389	44	60	1
1.5 D (F08, W5L)	15 D X 15 D	2	09/1994-05/1997	1488	37	50	1
1.7 D (F08, W5L)	17 D (4EE1) X 17 D (4EE1)	2	08/1999-09/2000	1686	44	60	1

CORSA B (S93) Estate 04/1998-12/2002

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i 16V (F35)	X 14 XE	1	01/1999-12/2002	1389	66	90	1
1.7 D (F35)	X 17 D	2	01/1999-12/2002	1686	44	60	1

KADETT E (T85) Estate Van 01/1986-07/1994

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.7 D (C25, D25)	17 DR	2	07/1992-07/1994	1699	44	60	1

TIGRA A (S93) Coupe 07/1994-12/2000

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V (F07)	X 14 XE	1	08/1997-12/2000	1389	63	86	1
1.4 16V (F07)	X 14 XE	1	07/1994-12/2000	1389	66	90	1
1.6 16V (F07)	C 16 SEL	1	08/1997-08/1998	1598	74	100	1
1.6 16V (F07)	X 16 XE	1	07/1994-08/1998	1598	78	106	1

VECTRA A (J89) Hatchback 04/1988-12/1995

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 S (F68, M68)	14 NV	1	04/1988-06/1992	1389	55	75	1
1.6 (F68, M68)	C 16 LZ2	1	08/1992-07/1993	1598	51	69	1
1.6 (F68, M68)	E 16 NZ	1	08/1988-06/1994	1598	65	88	1
1.6 i (F68, M68)	X 16 SZ	1	09/1993-11/1995	1598	52	71	1
1.6 i (F68, M68)	16 LZ2	1	09/1993-11/1995	1598	55	75	1
1.6 i Cat (F68, M68)	C 16 NZ C 16 NZ2	1	09/1988-11/1995	1598	55	75	1
1.6 S	16 SV	1	09/1988-05/1993	1598	60	82	1
1.8 i (F68, M68)	18 SV	1	09/1988-10/1990	1796	66	90	1
1.8 i Cat (F68, M68)	C 18 NZ	1	03/1990-11/1995	1796	66	90	1
1.7 D (F68, M68)	17 D	2	09/1988-09/1992	1699	42	57	1
1.7 TD (F68, M68)	17 TD	2	03/1990-11/1995	1686	60	82	1

VECTRA A (J89) Saloon 08/1988-12/1995

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 S (F19, M19)	14 NV	1	09/1988-06/1992	1389	55	75	1
1.6		1	08/1992-06/1994	1598	65	88	1
1.6 (F19, M19)	C 16 LZ2	1	08/1992-07/1993	1598	51	69	1
1.6 (F19, M19)	16 SV	1	09/1988-05/1993	1598	60	82	1
1.6 i (F19, M19)	X 16 SZ	1	09/1993-11/1995	1598	52	71	1
1.6 i (F19, M19)	C 16 NZ C 16 NZ2 E 16 NZ	1	09/1988-11/1995	1598	55	75	1
1.6 i (F19, M19)	16 LZ2 C 16 LZ2	1	09/1993-11/1995	1598	55	75	1
1.8 i Cat (F19, M19)	C 18 NZ	1	03/1990-11/1995	1796	66	90	1
1.8 S (F19, M19)	18 SV	1	09/1989-10/1990	1796	66	90	1
1.7 D (F19, M19)	17 D	2	10/1988-09/1992	1699	42	57	1
1.7 TD (F19, M19)	17 TD	2	03/1990-11/1995	1686	60	82	1

VAUXHALL

ASTRAVAN Mk III (F) (T92) Estate Van 01/1991-08/1998

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i (F70)	C 14 NZ	1	09/1991-08/1995	1389	44	60	1
1.6 i (F70)	X 16 SZ	1	09/1994-08/1996	1598	52	71	1
1.6 i (F70)	C 16 NZ	1	10/1991-08/1998	1598	55	75	1
1.7 D (F70)	17 D	2	09/1991-08/1993	1699	42	57	1
1.7 D (F70)	17 DR	2	10/1991-12/1994	1699	44	60	1
1.7 TD (F70)	17 TD	2	09/1995-08/1996	1686	60	82	1
1.7 TD (F70)	X 17 DTL	2	09/1994-08/1998	1700	50	68	1

ASTRA Mk III (F) (T92) Estate 03/1991-12/1998

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i	C 14 NZ X 14 NZ	1	09/1991-02/1998	1389	44	60	1
1.4 i	C 14 SE	1	03/1991-02/1998	1389	60	82	1
1.4 i 16V	X 14 XE	1	02/1996-01/1998	1389	66	90	1
1.4 S		1	09/1991-02/1998	1389	55	75	1
1.6 i	X 16 SZ	1	07/1994-02/1998	1598	52	71	1
1.6 i	C 16 NZ E 16 NZ X 16 SZR	1	09/1991-12/1998	1598	55	75	1
1.6 Si	C 16 SE	1	03/1991-12/1994	1598	74	100	1
1.8 i	C 18 NZ	1	09/1991-02/1998	1796	66	90	1
1.7 D	17 D	2	12/1991-02/1998	1699	42	57	1
1.7 D	17 DR	2	03/1991-12/1994	1699	44	60	1
1.7 TD	17 TD	2	12/1991-02/1998	1686	60	82	1
1.7 TD	X 17 DTL	2	01/1994-02/1998	1700	50	68	1

ASTRA Mk III (F) (T92) Hatchback 09/1991-02/1998

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i	C 14 NZ X 14 NZ	1	09/1991-02/1998	1389	44	60	1
1.4 i	C 14 SE	1	03/1992-02/1998	1389	60	82	1
1.4 i 16V	X 14 XE	1	02/1996-02/1998	1389	66	90	1
1.4 S	14 NV	1	09/1991-02/1998	1389	55	75	1
1.6 i	X 16 SZ	1	02/1993-12/1996	1598	52	71	1
1.6 i	16 NZR C 16 NZ E 16 NZ X 16 SZR	1	09/1991-02/1998	1598	55	75	1
1.6 i	C 16 SE	1	03/1992-02/1998	1598	74	100	1
1.8 i	C 18 NZ	1	09/1991-02/1998	1796	66	90	1
1.7 D	17 D	2	12/1991-02/1998	1699	42	57	1
1.7 D	17 DR	2	09/1991-12/1994	1699	44	60	1
1.7 TD	17 TD	2	12/1991-02/1998	1686	60	82	1
1.7 TD	X 17 DTL	2	08/1994-02/1998	1700	50	68	1

ASTRA Mk III (F) (T92) Saloon 09/1991-09/1998

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i	C 14 NZ	1	04/1992-09/1998	1389	44	60	1
1.4 i	C 14 SE	1	04/1992-09/1998	1389	60	82	1
1.6 i	X 16 SZ	1	08/1994-07/1996	1598	52	71	1
1.6 i	C 16 NZ X 16 SZR	1	03/1992-09/1998	1598	55	75	1
1.6 i	C 16 SE	1	05/1992-12/1994	1598	74	100	1
1.8 i	C 18 NZ	1	03/1992-09/1998	1796	66	90	1
1.7 D	17 D	2	03/1992-09/1992	1699	42	57	1
1.7 D	17 DR	2	07/1992-09/1998	1699	44	60	1
1.7 TD	17 TD	2	12/1991-09/1998	1686	60	82	1
1.7 TD	X 17 DTL	2	08/1994-09/1998	1700	50	68	1

ASTRA Mk III (F) (T92) Convertible 09/1991-03/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i		1	05/1993-03/2001	1389	60	82	1
1.4 i 16V		1	01/1996-03/2001	1389	66	90	1
1.6 i	X 16 SZ	1	03/1993-08/1996	1598	52	71	1
1.6 i	X 16 SZR	1	01/1996-03/2001	1598	55	75	1
1.8 i (F08)	C 18 NZ	1	09/1991-02/1998	1796	66	90	1

CARLTON Mk III (V87) Estate 09/1986-03/1994

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	E 18 NVR	1	09/1987-03/1994	1796	65	88	2

CAVALIER Mk III (J89) Saloon 08/1988-11/1995

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 S	14 NV	1	09/1988-11/1995	1389	55	75	1
1.6	16 SV	1	09/1988-05/1993	1598	60	82	1
1.6 i	X 16 SZ	1	09/1993-11/1995	1598	52	71	1
1.6 i	C 16 NZ E 16 NZ	1	09/1988-11/1995	1598	55	75	1
1.8	E 18 NVR	1	09/1989-08/1992	1796	65	88	1
1.7 D	17 D	2	09/1988-09/1992	1699	42	57	1
1.7 D	17 DR	2	07/1992-11/1995	1699	44	60	1
1.7 TD	17 TD	2	09/1988-11/1995	1686	60	82	1

CAVALIER Mk III CC (J89) Hatchback 09/1988-11/1995

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 S	14 NV	1	09/1988-11/1995	1389	55	75	1
1.6	16 SV	1	09/1988-05/1993	1598	60	82	1
1.6 i	X 16 SZ	1	09/1993-11/1995	1598	52	71	1
1.6 i	C 16 NZ E 16 NZ	1	09/1988-11/1995	1598	55	75	1
1.8 i Cat	18 SV C 18 NZ	1	03/1990-11/1995	1796	66	90	1
1.7 D	17 D	2	09/1988-09/1992	1699	42	57	1
1.7 D	17 DR	2	07/1992-11/1995	1699	44	60	1
1.7 TD	17 TD	2	09/1988-11/1995	1686	60	82	1

COMBO Mk I (B) (S93) Box Body/MPV 07/1994-10/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2		1	07/1994-10/2001	1195	33	45	1
1.4	C 14 NZ X 14 SZ	1	07/1994-10/2001	1389	44	60	1
1.4		1	07/1994-10/2001	1389	60	82	1
1.4 16V	X 14 XE	1	08/1999-10/2001	1389	66	90	1
1.7 D		2	07/1994-10/2001	1686	44	60	1

CORSA Mk I (B) (S93) Hatchback 12/1992-09/2000

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 i 12V	X 10 XE	1	11/1996-09/2000	973	40	54	1
1.2 i	C 12 NZ X 12 SZ	1	03/1993-09/2000	1195	33	45	1
1.2 i 16V	X 12 XE	1	03/1998-09/2000	1199	48	65	1
1.4 i	C 14 NZ X 14 SZ	1	03/1993-09/2000	1389	44	60	1
1.4 i 16V	X 14 XE	1	09/1994-09/2000	1389	66	90	1
1.4 i S	C 14 SE	1	03/1993-09/2000	1389	60	82	1
1.6 GSI 16V	C 16 XE	1	03/1993-09/2000	1598	80	109	1
1.6 i 16V	X 16 XE	1	09/1994-09/2000	1598	78	106	1
1.5 D	15 D	2	12/1992-12/1996	1488	37	50	1
1.5 TD	X 15 TD	2	03/1993-10/1996	1488	49	67	1
1.7 D	X 17 D	2	02/1996-09/2000	1686	44	60	1

CORSAVAN Mk I (B) (S93) Hatchback Van 01/1994-09/2000

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i	C 14 NZ X 14 SZ	1	01/1994-09/2000	1389	44	60	1
1.5 D	15 D	2	08/1994-12/1995	1488	37	50	1
1.5 D		2	01/1994-	1495	37	50	2
1.7 D	X 17 D	2	01/1994-09/2000	1686	44	60	1

NOVA (S83) Saloon 09/1982-12/1993

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 N		1	02/1992-12/1993	1196	33	45	1
1.4 S	14 NV	1	01/1990-02/1993	1389	55	75	1
1.5 TD	15 DT (T4EC1)	2	01/1990-02/1993	1488	49	67	1

NOVA CC (S83) Hatchback 05/1983-03/1993

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0	10 S	1	05/1983-03/1993	993	33	45	1
1.2	C 12 NZ	1	09/1989-03/1993	1196	33	45	1
1.2 N	12 NV	1	01/1990-03/1993	1196	38	52	1
1.3 i Cat		1	09/1989-03/1993	1297	44	60	1
1.4 i	C 14 NZ	1	01/1990-03/1993	1389	44	60	1
1.4 i S	C 14 SE	1	09/1991-03/1993	1389	60	82	1
1.4 S	14 NV	1	01/1990-03/1993	1389	55	75	1
1.6 GSI	C 16 SEI	1	09/1989-03/1993	1598	72	98	1
1.6 GSI	E 16 SE	1	05/1988-03/1992	1598	74	100	1
1.6 GSI Cat	C 16 SE	1	02/1992-03/1993	1598	74	101	1
1.5 D	15 D	2	09/1987-03/1993	1488	37	50	1
1.5 TD	15 DT (T4EC1)	2	01/1990-03/1993	1488	49	67	1

NOVAVAN (S83) Hatchback Van 01/1990-10/1994

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 D	15 D	2	01/1991-10/1994	1488	37	50	1

TIGRA MK I (S93) Coupe 07/1994-12/2000

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	X 14 XE	1	07/1994-12/2000	1389	66	90	1
1.6 16V	X 16 XE	1	07/1994-12/2000	1598	78	106	1

Return
