Product 181533
- Description
- Brake pad set
- Axe
- Front
- No. of Pieces
- 4
- Barcode
-
8424073084637
- Url
- https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=181533
- Weight (gr.)
- 1955
- System
- Ate - Teves
- R90 Homologation
-
90R-01111/571

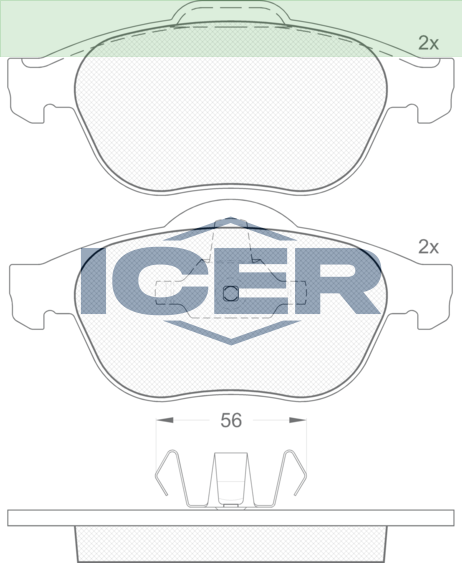

- Measures
- 155.2x70.95x18.2
- 156.3x68.15x18.2
| Brand | OE Reference |
|---|---|
| RENAULT | 41 06 077 16R |
| RENAULT | 77 01 206 747 |
| RENAULT | 77 01 207 615 |
| RENAULT | 77 01 207 977 |
| RENAULT | 77 01 209 810 |
| RENAULT | 77 02 207 615 |
| RENAULT | 86 60 004 764 |
| RENAULT | 86 71 016 752 |
| Maker | Cross reference |
|---|---|
| ATE | 13.0460-7159.2 |
| ATE | 607159 |
| BENDIX ANTIGUO | 573025B |
| BENDIX-ROULUNDS | 510378 |
| BOSCH | 0 986 424 616 |
| BREMBO | P 68 032 |
| DELPHI LOCKHEED | LP3691 |
| FERODO | FDB1541 |
| FMSI | D1501-8700 |
| GIRLING | 6114682 |
| HELLA-PAGID | 8DB 355 009-111 |
| HELLA-PAGID | T1214 |
| MINTEX | MDB2600 |
| NECTO | FD6990A |
| ROAD HOUSE | 2843.10 |
| TEXTAR | 23248 183 1 5 T4115 |
| TEXTAR | 2324802 |
| TRW | GDB1468 |
| WVA | 23245 |
| WVA | 23248 |
| WVA | 23660 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 (JK09) |
F4R 792 |
1 | 11/2002-01/2015 | 1998 | 100 | 136 | 1 |
| 2.0 (JK0A, JK1D, JK0N) |
F4R 796 F4R 797 F4R 896 F4R 897 |
1 | 04/2005- | 1998 | 125 | 170 | 1 |
| 2.0 (JK0K) |
F4R 790 |
1 | 11/2002-12/2015 | 1998 | 98 | 133 | 1 |
| 2.0 Turbo (JK0A, JK0B, JK0N) |
F4R 794 F4R 795 F4R 796 F4R 797 |
1 | 11/2002- | 1998 | 120 | 163 | 1 |
| 3.5 V6 (JK00, JK0F, JK0P, JK0S, JK0W) |
V4Y 711 V4Y 715 |
1 | 11/2002- | 3498 | 177 | 241 | 1 |
| 1.9 dCi (JK0U, JK0G) |
F9Q 680 F9Q 820 F9Q 826 |
2 | 11/2002- | 1870 | 88 | 120 | 1 |
| 1.9 dCi (JK0U) |
F9Q 820 |
2 | 04/2003-02/2005 | 1870 | 85 | 116 | 1 |
| 2.0 dCi (JK01, JK02, JK1J, JK1K, JK1H) |
M9R 740 M9R 750 M9R 814 M9R 815 M9R 858 |
2 | 01/2006- | 1995 | 110 | 150 | 1 |
| 2.0 dCi (JK02, JK03) |
M9R 740 M9R 750 M9R 760 M9R 761 M9R 762 M9R 763 |
2 | 01/2006- | 1995 | 96 | 131 | 1 |
| 2.0 dCi (JK03, JK04, JK1C, JK1G, JK1J, JK1K) |
M9R 760 M9R 761 M9R 762 M9R 763 M9R 812 M9R 815 M9R 859 |
2 | 01/2006- | 1995 | 127 | 173 | 1 |
| 2.2 dCi (JK07) |
G9T 645 |
2 | 02/2006- | 2188 | 102 | 139 | 1 |
| 2.2 dCi (JK0H) |
G9T 742 G9T 743 |
2 | 11/2002-08/2006 | 2188 | 110 | 150 | 1 |
| 3.0 dCi |
P9X 701 P9X 715 |
2 | 09/2005- | 2958 | 120 | 163 | 1 |
| 3.0 dCi (JK0E, JK0Y) |
P9X 715 |
2 | 01/2006-01/2015 | 2958 | 133 | 181 | 1 |
| 3.0 dCi (JK0J, JK0V) |
P9X 701 |
2 | 11/2002-08/2006 | 2958 | 130 | 177 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 16V (BG1G, BG1H) |
K4M 716 |
1 | 02/2005-08/2007 | 1598 | 82 | 112 | 1 |
| 2.0 16V (BG03, BG0Z, BG0T, BG1Y) |
F4R 784 F4R 786 F4R 787 |
1 | 01/2005-09/2007 | 1998 | 125 | 170 | 1 |
| 2.0 16V (BG1Y) |
F4R 886 F4R 887 |
1 | 01/2005-09/2007 | 1998 | 150 | 204 | 1 |
| 2.0 16V Turbo (BG0S, BG1L, BG1M) |
F4R 764 F4R 765 |
1 | 01/2003-03/2005 | 1998 | 120 | 163 | 1 |
| 2.9 V6 24V | 1 | 03/2001-08/2007 | 2946 | 155 | 211 | 1 | |
| 2.9 V6 24V | 1 | 09/2002-12/2005 | 2946 | 157 | 210 | 1 | |
| 3.0 V6 24V (BG01, BG02, BG0D, BG0Y) |
L7X 731 |
1 | 03/2001-08/2007 | 2946 | 152 | 207 | 1 |
| 2.0 dCi (BG14, BG1S) |
M9R 760 |
2 | 01/2006-08/2007 | 1995 | 127 | 173 | 1 |
| 2.0 dCi (BG1T) |
M9R 740 |
2 | 08/2005-08/2006 | 1995 | 110 | 150 | 1 |
| 2.2 dCi |
G9T 600 G9T 605 G9T 706 G9T 707 |
2 | 05/2005-08/2007 | 2188 | 102 | 140 | 1 |
| 2.2 dCi (BG09) |
G9T 600 |
2 | 04/2004-10/2005 | 2188 | 85 | 116 | 1 |
| 2.2 dCi (BG0F) |
G9T 700 G9T 702 |
2 | 10/2001-08/2006 | 2188 | 110 | 150 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 16V |
K4M 716 |
1 | 02/2005-08/2007 | 1598 | 82 | 112 | 1 |
| 2.0 16V (KG03, KG0Z, KG0T, KG1Y) |
F4R 784 F4R 786 F4R 787 |
1 | 01/2005-09/2007 | 1998 | 125 | 170 | 1 |
| 2.0 16V (KG1Y) |
F4R 886 F4R 887 |
1 | 01/2005-09/2007 | 1998 | 150 | 204 | 1 |
| 2.0 16V Turbo (KG0S, KG1L, KG03) |
F4R 764 F4R 765 |
1 | 01/2003-08/2005 | 1998 | 120 | 163 | 1 |
| 2.9 V6 24V |
L7X 731 |
1 | 10/2003-12/2007 | 2946 | 155 | 211 | 1 |
| 2.9 V6 24V | 1 | 09/2002-12/2005 | 2946 | 157 | 210 | 1 | |
| 3.0 V6 24V (KG0D, KG01) |
L7X 731 |
1 | 03/2001-12/2007 | 2946 | 152 | 207 | 1 |
| 2.0 dCi (KG1S) |
M9R 760 |
2 | 01/2006-12/2007 | 1995 | 127 | 173 | 1 |
| 2.0 dCi (KG1T) |
M9R 740 |
2 | 08/2005-08/2006 | 1995 | 110 | 150 | 1 |
| 2.2 dCi (KG09) |
G9T 600 |
2 | 04/2004-10/2005 | 2188 | 85 | 116 | 1 |
| 2.2 dCi (KG0F, KG1N) |
G9T 600 G9T 706 G9T 707 |
2 | 05/2005-12/2007 | 2188 | 102 | 140 | 1 |
| 2.2 dCi (KG0F) |
G9T 702 |
2 | 10/2001-08/2006 | 2188 | 110 | 150 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 16V Turbo |
F4R 766 F4R 767 |
1 | 04/2004- | 1998 | 125 | 170 | 1 |
| 2.0 16V Turbo (BJ0K) |
F4R 762 F4R 763 |
1 | 06/2002-08/2009 | 1998 | 120 | 163 | 1 |
| 2.0 Turbo |
F4R 867 |
1 | 04/2005- | 1998 | 108 | 147 | 1 |
| 3.5 (BJ01) |
V4Y 715 |
1 | 10/2004- | 3498 | 170 | 231 | 1 |
| 3.5 V6 (BJ0R, BJ0V, BJ0U) |
V4Y 701 V4Y 711 V4Y 715 |
1 | 06/2002- | 3498 | 177 | 241 | 1 |
| 2.0 dCi (BJ03, BJ0B) |
M9R 760 M9R 762 M9R 763 |
2 | 01/2006- | 1995 | 127 | 173 | 1 |
| 2.0 dCi (BJ03) |
M9R 760 |
2 | 08/2005- | 1995 | 110 | 150 | 1 |
| 2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H) |
G9T 600 G9T 606 G9T 607 G9T 700 G9T 702 |
2 | 09/2004- | 2188 | 102 | 140 | 1 |
| 2.2 dCi (BJ0E, BJ0F) |
G9T 702 G9T 703 |
2 | 06/2002-08/2009 | 2188 | 110 | 150 | 1 |
| 2.2 dCi (BJ0H) |
G9T 600 G9T 702 |
2 | 04/2004- | 2188 | 85 | 116 | 1 |
| 2.2 dCi (BJ0M) |
G9T 700 G9T 702 |
2 | 12/2004- | 2188 | 83 | 113 | 1 |
| 3.0 dCi (BJ0J, BJ0N) |
P9X 701 |
2 | 06/2002-06/2006 | 2958 | 130 | 177 | 1 |
| 3.0 dCi (BJ0S) |
P9X 715 |
2 | 06/2006-08/2009 | 2958 | 133 | 181 | 1 |
