Product 181622-204 - Web Catalogo

Description: Brake pad set
Axe: Rear
No. of Pieces: 4
Barcode: 8424073140081
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=181622-204
Weight (gr.): 835

System: Trw
R90 Homologation: 90R-02A0110/1635

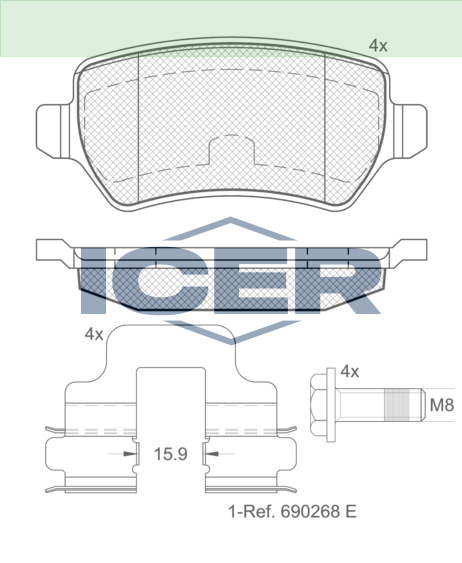

Measures: 95.4x42.6x15.2

Reference applications

Brand	OE Reference
OPEL	16 05 122
OPEL	16 05 128
OPEL	16 05 233
OPEL	16 05 995
OPEL	93 169 143
OPEL	93 179 164
OPEL	93 188 727
OPEL	93 190 577
OPEL	95 507 655

Maker	Cross reference
BENDIX-ROULUNDS	510239
BREMBO	P 10 013
DELPHI LOCKHEED	LP1681
FMSI	D1932-8471
HELLA-PAGID	8DB 355 011-361
HELLA-PAGID	T1451
MINTEX	MDB2223
TEXTAR	23417 152 1 4 T657
TEXTAR	2341702
TEXTAR	2341781
TRW	GDB1831
VALEO	302410
VALEO	601701
WVA	23417
WVA	23837
WVA	25779

CHEVROLET

ASTRA () Estate 09/1994-12/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 GLS		1	08/2002-12/2011	1796	81	110	1
2.0		1	02/1996-	1998	85	116	1
2.0	X 20 XEV	1	10/1999-07/2002	1998	94	128	1
2.0	C 20 SEL	1	08/2002-07/2005	1998	100	136	1
2.2		1	01/2001-12/2003	2198	108	147	1

ASTRA () Hatchback 09/1998-12/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8		1	08/2002-06/2005	1796	92	125	1
1.8		1	08/2006-03/2009	1796	103	140	1
1.8 (08, 48)	C 18 NE C 18 YE LC5(110CUL4)	1	09/1998-12/2011	1796	81	110	1
2.0	C 20 SEJ	1	03/1999-07/2002	1998	82	112	1
2.0		1	09/2003-	1998	84	114	1
2.0	LE4(122CUL4)	1	08/2002-12/2011	1998	85	116	1
2.0	X 20 XEV	1	03/1999-07/2002	1998	94	128	1
2.0 (08, 48)	L34(122CUL4)	1	08/2002-07/2005	1998	100	136	1
2.0 Flex		1	04/2009-	1998	103	140	1
2.2	Z 22 SE	1	08/2000-08/2004	2198	108	147	1
2.4		1	08/2005-	2405	108	147	1
1.7 Di	Y 17 DT	2	08/2000-08/2003	1686	55	75	1
2.0 DTI	LD1	2	08/2002-12/2011	1995	74	101	1

ASTRA () Saloon 10/1998-12/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	2H9	1	08/2002-06/2005	1796	92	125	1
1.8		1	08/2006-03/2009	1796	103	140	1
1.8 Flexfuel	C 18 NE C 18 YE	1	03/1999-12/2011	1796	81	110	1
2.0		1	09/2003-12/2011	1998	84	114	1
2.0 Flex		1	04/2009-12/2011	1998	103	140	1
2.0 GL	LE4(122CUL4)	1	10/1998-07/2002	1998	82	112	1
2.0 GL	LE4(122CUL4)	1	08/2002-12/2011	1998	85	116	1
2.0 GLS	X 20 XEV	1	03/1999-07/2002	1998	94	128	1
2.0 GLS (69)	C 20 SEL L34(122CUL4)	1	08/2002-12/2011	1998	100	136	1
2.2		1	09/2000-12/2002	2197	101	137	1
2.0 DI		2	01/1999-07/2003	1995	61	83	2
2.0 DTi GLS	LD1	2	08/2002-12/2011	1995	74	101	1

COMBO () Van 04/2001-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3 CDTi	Z 13 DTJ	1	10/2006-10/2012	1248	55	75	1
1.4	Z 14 EXP	1	10/2006-10/2012	1364	66	90	1

CORSA () Saloon 03/1994-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 GLS (19)	B 16 NE L01(98CUL4)	1	08/1994-07/2002	1598	68	92	1
1.6 GS	L91	1	08/1997-07/2002	1598	75	102	1
1.7 D	2H7	2	08/2000-07/2002	1686	44	60	1

CORSA () Hatchback 03/1994-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 GLS (08, 68)	C 16 NE L01(98CUL4)	1	08/1994-07/2002	1598	68	92	1
1.7 D		2	08/2000-07/2002	1686	44	60	2

CORSA () Pickup 08/1994-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (80)	C 16 NE L01(98CUL4)	1	08/1994-07/2002	1598	68	92	1

CORSA () Estate 01/1996-12/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 GLS (35)	C 16 NE L01(98CUL4)	1	08/1997-07/2002	1598	68	92	1
1.7 D	2H7	2	08/2000-07/2002	1686	44	60	1

MERIVA () MPV 02/2002-07/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4		1	07/2007-07/2012	1389	73	99	1
1.4 Flex		1	07/2007-07/2012	1389	77	105	1
1.8		1	02/2002-	1796	75	102	1
1.8		1	01/2004-07/2012	1796	78	106	1
1.8		1	03/2003-07/2012	1796	82	111	1
1.8		1	05/2003-05/2008	1796	92	125	1
1.8 (75)	L79(110CUL4)	1	03/2003-02/2006	1796	90	122	1
1.8 Flex (75)		19	09/2005-07/2012	1796	84	114	1
1.8 Joy Flexpower(75)	LMD(110CUL4)	19	11/2003-08/2005	1796	81	109	1
1.7 D		2	08/2002-01/2008	1686	55	75	2

VIVA () Saloon 09/2003-03/2008

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8		1	09/2003-03/2008	1796	90	122	1
1.8	2H9	1	09/2003-03/2008	1796	92	125	1

ZAFIRA / NABIRA (F75) MPV 02/1999-12/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	C 18 YE	1	02/1999-07/2001	1796	81	110	1
1.8		1	07/2000-06/2005	1796	92	125	1
2.0	LE4(122CUL4)	1	04/2001-07/2004	1998	85	116	1
2.0	X 20 XE	1	08/2004-12/2012	1998	89	121	1
2.0	C 20 SEL L34(122CUL4)	1	04/2001-07/2012	1998	100	136	1
2.0 Flexpower		1	08/2004-07/2005	1998	94	128	1
2.2		1	04/2001-07/2004	2198	91	124	1
2.2	Z 22 SE	1	09/2001-12/2005	2198	108	147	1
2.2	Z 22 SE	1	09/2001-12/2005	2198	110	150	1
2.2	Z 22 YH	1	09/2005-12/2006	2198	110	150	1
2.0 Flex	LMC(122CUL4)	19	02/2009-03/2012	1998	103	140	1

HOLDEN

ASTRA (TS) Hatchback 02/1998-10/2005

Vehicle	Fuel	Date	CC	KW	CV	Traction
1.8 i	1	02/1998-08/2000	1796	85	116	1
1.8 i	1	09/2000-10/2004	1796	92	125	1
2.0 i Turbo	1	05/2003-07/2004	1998	147	200	1
2.2 i	1	09/2000-07/2004	2198	108	147	1

ASTRA (TS) Saloon 02/1998-10/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 i		1	02/1998-08/2000	1796	85	116	1
1.8 i		1	09/2000-10/2004	1796	92	125	1

ASTRA (TS) Convertible 02/2001-12/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 i Turbo		1	06/2002-07/2004	1998	147	200	1

BARINA (XC) Hatchback 09/2000-12/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 Efi		1	01/2004-02/2005	1364	66	90	1

COMBO (XC) Van 08/2001-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i		1	04/2005-12/2012	1364	66	90	1
1.6 i		1	09/2002-04/2005	1598	62	84	1

ZAFIRA (TT) MPV 07/2000-02/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.2 i		1	06/2001-02/2006	2198	108	147	1

KIA

CERATO III / FORTE III / K3 EURO (YD) Hatchback 09/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 DGI		1	09/2017-	1999	121	164	1
2.0 DGI	G4NC	1	06/2013-	1999	129	175	1

VENGA (YN) Hatchback 02/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 CVVT	G4FA	1	02/2010-03/2019	1396	66	90	1
1.6 CVVT	G4FC	1	02/2010-03/2019	1591	92	125	1
1.4 LPG	G4FA	18	02/2010-03/2019	1396	66	90	1
1.4 CRDi 75	D4FC	2	02/2010-03/2019	1396	55	75	1
1.4 CRDi 75	D4FC	2	02/2010-03/2019	1396	57	78	1
1.4 CRDi 90	D4FC	2	02/2010-03/2019	1396	66	90	1
1.6 CRDi 115	D4FB	2	02/2010-03/2019	1582	85	116	1
1.6 CRDi 128	D4FB	2	02/2010-03/2019	1582	94	128	1

VENGA (YN) Hatchback Van 02/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
CVVT	G4FA	1	04/2015-	1396	66	90	1
CVVT	G4FC	1	02/2015-	1591	92	125	1
CRDi	D4FC	2	04/2015-	1396	57	77	1
CRDi	D4FC	2	04/2015-	1396	66	90	1

OPEL

ASTRA G (T98) Hatchback 02/1998-12/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 16V (F08, F48)	X 12 XE	1	02/1998-09/2000	1199	48	65	1
1.2 16V (F08, F48)	Z 12 XE	1	09/2000-01/2005	1199	55	75	1
1.4 (F08, F48)	Z 14 XEP	1	09/2007-12/2009	1364	66	90	1
1.4 16V (F08, F48)	X 14 XE Z 14 XE	1	02/1998-01/2005	1389	66	90	1
1.6 (F08, F48)	X 16 SZR	1	02/1998-09/2000	1598	55	75	1
1.6 (F08, F48)	Z 16 SE	1	09/2000-01/2005	1598	62	84	1
1.6 (F08, F48)	Z 16 XEP	1	11/2002-01/2005	1598	76	103	1
1.6 16V (F08, F48)	C 16 SEL X 16 XEL Z 16 XE	1	02/1998-01/2005	1598	74	101	1
1.8 (F08, F48)		1	02/2003-01/2004	1796	81	110	1
1.8 16V (F08, F48)	X 18 XE1	1	02/1998-09/2000	1796	85	116	1
1.8 16V (F08, F48)	Z 18 XE	1	09/2000-01/2005	1796	92	125	1
2.0 16V (F08, F48)	X 20 XEV	1	02/1998-01/2005	1998	100	136	1
2.0 16V OPC (F08, F48)	X 20 XER	1	11/1999-09/2002	1998	118	160	1
2.0 OPC (F08, F48)	Z 20 LET	1	09/2002-01/2005	1998	141	192	1
2.0 OPC (F08, F48)	Z 20 LET	1	11/2002-01/2005	1998	147	200	1
2.2 16V (F08, F48)	Z 22 SE	1	06/2000-01/2005	2198	108	147	1
1.4 LPG (F08, F48)	X 14 XE Z 14 XE	18	02/1998-01/2005	1389	66	90	1
1.6 LPG (F08, F48)	X 16 XEL Z 16 XE	18	03/1998-01/2005	1598	74	101	1
1.6 LPG (F08, F48)	Z 16 XEP	18	11/2002-06/2007	1598	76	103	1
1.7 CDTI (F08, F48)	Z 17 DTL	2	04/2003-01/2005	1686	59	80	1
1.7 DTI 16V (F08, F48)	Y 17 DT	2	02/2000-01/2005	1686	55	75	1
1.7 TD (F08, F48)	X 17 DTL	2	02/1998-08/2000	1699	50	68	1
2.0 DI (F08, F48)	X 20 DTL Y 20 DTL	2	02/1998-01/2005	1995	60	82	1
2.0 DTI 16V (F08, F48)	Y 20 DTH	2	08/1999-01/2005	1995	74	101	1
2.2 DTI (F08, F48)	Y 22 DTR	2	09/2002-01/2005	2172	86	117	1
2.2 DTI (F08, F48)	Y 22 DTR	2	09/2002-01/2005	2172	92	125	1

ASTRA G (T98) Estate 02/1998-07/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 16V (F35)	X 12 XE	1	02/1998-09/2000	1199	48	65	1
1.2 16V (F35)	Z 12 XE	1	09/2000-07/2004	1199	55	75	1
1.4 16V (F35)	X 14 XE Z 14 XE	1	06/1998-07/2004	1389	66	90	1
1.6 (F35)	X 16 SZR	1	02/1998-09/2000	1598	55	75	1
1.6 (F35)	Z 16 SE	1	09/2000-07/2004	1598	62	84	1
1.6 (F35)	Z 16 XEP	1	12/2002-05/2004	1598	76	103	1
1.6 16V (F35)	X 16 XEL Z 16 XE	1	02/1998-07/2004	1598	74	101	1
1.8 16V (F35)	X 18 XE1	1	02/1998-09/2000	1796	85	116	1
1.8 16V (F35)	Z 18 XE	1	09/2000-07/2004	1796	92	125	1
2.0 16V (F35)	X 20 XEV	1	02/1998-07/2004	1998	100	136	1
2.0 OPC (F35)	Z 20 LET	1	09/2002-07/2004	1998	141	192	1
2.0 OPC (F35)	Z 20 LET	1	11/2002-07/2004	1998	147	200	1
2.2 16V (F35)	Z 22 SE	1	03/2001-07/2004	2198	108	147	1
1.6 CNG (F35)	Z 16 YNG	16	03/2003-07/2004	1598	71	97	1
1.4 LPG (F35)	X 14 XE Z 14 XE	18	03/1998-07/2004	1389	66	90	1
1.6 LPG (F35)	X 16 XEL Z 16 XE	18	03/1998-07/2004	1598	74	101	1
1.6 LPG (F35)	Z 16 XEP	18	06/2002-07/2004	1598	76	103	1
1.7 CDTI (F35)	Z 17 DTL	2	04/2003-05/2004	1686	59	80	1
1.7 DTI 16V (F35)	Y 17 DT	2	02/2000-07/2004	1686	55	75	1
1.7 TD (F35)	X 17 DTL	2	02/1998-08/2000	1699	50	68	1
2.0 DI (F35)	X 20 DTL Y 20 DTL	2	02/1998-07/2004	1995	60	82	1
2.0 DTI 16V (F35)	Y 20 DTH	2	08/1999-07/2004	1995	74	101	1
2.2 DTI (F35)	Y 22 DTR	2	09/2002-07/2004	2172	86	117	1
2.2 DTI (F35)	Y 22 DTR	2	09/2002-07/2004	2172	92	125	1

ASTRA G (T98) Saloon 03/1998-12/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 16V (F69)	X 12 XE	1	09/1998-09/2000	1199	48	65	1
1.2 16V (F69)	Z 12 XE	1	09/2000-01/2005	1199	55	75	1
1.4 (F69)	Z 14 XEP	1	09/2007-12/2009	1364	66	90	1
1.4 16V (F69)	X 14 XE Z 14 XE	1	09/1998-01/2005	1389	66	90	1
1.6 (F69)	X 16 SZR	1	09/1998-09/2000	1598	55	75	1
1.6 (F69)	Z 16 SE	1	09/2000-01/2005	1598	62	84	1
1.6 (F69)	Z 16 XEP	1	12/2002-12/2009	1598	76	103	1
1.6 16V (F69)	X 16 XEL Z 16 XE	1	09/1998-01/2005	1598	74	101	1
1.8		1	02/2003-01/2005	1796	81	110	1
1.8 16V (F69)	X 18 XE1	1	09/1998-09/2000	1796	85	116	1
1.8 16V (F69)	Z 18 XE	1	06/2000-01/2005	1796	92	125	1
2.0 16V (F69)	X 20 XEV	1	09/1998-01/2005	1998	100	136	1
2.2 16V (F69)	Z 22 SE	1	03/2001-01/2005	2198	108	147	1
1.4 LPG (F69)	X 14 XE Z 14 XE	18	03/1998-01/2005	1389	66	90	1
1.6 LPG (F69)	X 16 XEL Z 16 XE	18	06/2002-01/2005	1598	74	101	1
1.7 CDTI (F69)	Z 17 DTL	2	04/2003-12/2009	1686	59	80	1
1.7 DTI 16V (F69)	Y 17 DT	2	02/2000-01/2005	1686	55	75	1
1.7 TD (F69)	X 17 DTL	2	09/1998-08/2000	1699	50	68	1
2.0 DI (F69)	X 20 DTL Y 20 DTL	2	09/1998-01/2005	1995	60	82	1
2.0 DTI 16V (F69)	Y 20 DTH	2	08/1999-01/2005	1995	74	101	1
2.2 DTI (F69)	Y 22 DTR	2	09/2002-01/2005	2172	86	117	1
2.2 DTI (F69)	Y 22 DTR	2	09/2002-01/2005	2172	92	125	1

ASTRA G (F70) Estate Van 09/1998-04/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 (F70)	X 12 XE	1	09/1998-08/2000	1199	48	65	1
1.4 (F70)	X 14 XE Z 14 XE	1	09/1998-04/2005	1389	66	90	1
1.6 (F70)	X 16 SZR	1	01/1999-09/2000	1598	55	75	1
1.6 (F70)	Z 16 SE	1	09/2000-04/2005	1598	62	84	1
1.6 (F70)	C 16 SEL Z 16 XE	1	09/1998-01/2004	1598	74	101	1
1.6 (F70)	Z 16 XEP	1	02/2004-11/2004	1598	76	103	1
1.7 CDTi (F70)	Z 17 DTL	2	07/2003-11/2004	1686	59	80	1
1.7 DTI 16V (F70)	Y 17 DT	2	02/2000-04/2005	1686	55	75	1
1.7 TD (F70)	X 17 DTL	2	01/1999-04/2005	1699	50	68	1
2.0 DI (F70)	X 20 DTL Y 20 DTL	2	01/1999-04/2005	1995	60	82	1
2.0 DTI (F70)	Y 20 DTH	2	09/2000-04/2005	1995	74	101	1

ASTRA G (T98) Coupe 03/2000-06/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V (F07)	Z 16 XE	1	03/2000-05/2005	1598	74	101	1
1.6 16V (F07)	Z 16 XEP	1	03/2000-05/2005	1598	76	103	1
1.8 16V (F07)	X 18 XE1	1	03/2000-10/2000	1796	85	116	1
1.8 16V (F07)	Z 18 XE	1	09/2000-05/2005	1796	92	125	1
2.0 16V Turbo (F07)	Z 20 LET	1	09/2000-08/2001	1998	140	190	1
2.0 16V Turbo (F07)	Z 20 LET	1	08/2001-05/2005	1998	141	192	1
2.0 16V Turbo (F07)	Z 20 LET	1	11/2002-05/2005	1998	147	200	1
2.2 16V (F07)	Z 22 SE	1	09/2000-05/2005	2198	108	147	1
2.2 DTI (F07)	Y 22 DTR	2	09/2002-05/2005	2172	92	125	1

ASTRA G (T98) Convertible 03/2001-10/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (F67)	Z 16 XEP	1	01/2003-10/2005	1598	76	103	1
1.6 16V (F67)	Z 16 XE	1	03/2001-10/2005	1598	74	101	1
1.8 16V (F67)	Z 18 XE	1	03/2001-10/2005	1796	92	125	1
2.0 16V Turbo (F67)	Z 20 LET	1	11/2002-10/2005	1998	147	200	1
2.0 OPC (F67)	Z 20 LET	1	03/2002-10/2005	1998	141	192	1
2.2 16V (F67)	Z 22 SE	1	03/2001-10/2005	2198	108	147	1
2.2 DTI (F67)	Y 22 DTR	2	09/2002-10/2005	2172	92	125	1

ASTRA G CLASSIC (T98) Saloon 03/2004-07/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V (F69)	Z 14 XE	1	05/2004-07/2009	1389	66	90	1
1.6 16V (F69)	Z 16 XE	1	03/2004-01/2008	1598	74	101	1

ASTRA G CLASSIC (T98) Hatchback 03/2004-07/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V (F08, F48)	Z 14 XE	1	05/2004-07/2009	1389	66	90	1
1.6 (F08, F48)	Z 16 XEP	1	03/2006-06/2008	1598	76	103	1
1.6 16V (F08, F48)	Z 16 XE	1	05/2004-02/2006	1598	74	101	1
1.7 CDTI (F08, F48)	Z 17 DTL	2	06/2004-07/2009	1686	59	80	1

ASTRA G CLASSIC Caravan (F35) Estate 03/2004-07/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (F35)	Z 14 XEP	1	10/2007-07/2009	1364	66	90	1
1.4 16V	Z 14 XE	1	07/2004-09/2007	1389	66	90	1
1.6	Z 16 XE	1	06/2004-02/2006	1598	74	101	1
1.6	Z 16 XEP	1	02/2006-07/2009	1598	76	103	1
1.7 CDTi	Z 17 DTL	2	05/2004-07/2009	1686	59	80	1

ASTRA H (A04) Hatchback 01/2004-05/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2		1	10/2006-	1199	48	65	1
1.2 (L48)	Z 12 XEP	1	08/2005-10/2010	1229	59	80	1
1.4		1	04/2004-10/2004	1364	59	80	1
1.4 (L48)	Z 14 XEL	1	04/2004-10/2004	1364	55	75	1
1.4 (L48)	Z 14 XEP	1	03/2004-10/2010	1364	66	90	1
1.6 (L48)	Z 16 XE1 Z 16 XEP	1	03/2004-10/2010	1598	77	105	1
1.6 (L48)	A 16 XER Z 16 XER	1	12/2006-05/2014	1598	85	116	1
1.6 CNG		1	11/2005-	1598	69	94	1
1.6 Turbo (L48)	A 16 LET Z 16 LET	1	02/2007-10/2010	1598	132	180	1
1.8 (L48)	Z 18 XE	1	01/2004-10/2010	1796	92	125	1
1.8 (L48)	A 18 XER Z 18 XER	1	01/2006-10/2010	1796	103	140	1
2.0 Turbo (L48)	Z 20 LEL	1	03/2004-10/2010	1998	125	170	1
2.0 Turbo (L48)	Z 20 LER	1	09/2004-10/2010	1998	147	200	1
2.0 Turbo (L48)	Z 20 LEH	1	03/2005-10/2010	1998	177	240	1
1.4 LPG (L48)	Z 14 XEP	18	08/2009-10/2010	1364	66	90	1
1.3 CDTI (L48)	Z 13 DTH	2	08/2005-10/2010	1248	66	90	1
1.7 CDTI (L48)	Z 17 DTL	2	03/2004-10/2010	1686	59	80	1
1.7 CDTI (L48)	Z 17 DTH	2	03/2004-10/2010	1686	74	100	1
1.7 CDTI (L48)	A 17 DTJ Z 17 DTJ	2	02/2007-05/2014	1686	81	110	1
1.7 CDTI (L48)	A 17 DTR Z 17 DTR	2	02/2007-05/2014	1686	92	125	1
1.9 CDTI (L48)	Z 19 DTL	2	09/2005-10/2010	1910	74	100	1
1.9 CDTI (L48)	Z 19 DT	2	06/2004-10/2010	1910	88	120	1
1.9 CDTI (L48)	Z 19 DTH	2	09/2004-10/2010	1910	110	150	1
1.9 CDTI 16V (L48)	Z 19 DTJ	2	04/2004-10/2010	1910	88	120	1

ASTRA H (L70) Estate Van 02/2004-10/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 EcoTec (L70)	Z 14 XEP	1	12/2004-12/2012	1364	66	90	1
1.6 EcoTec (L70)	Z 16 XEP	1	02/2004-11/2004	1598	76	103	1
1.6 EcoTec (L70)	Z 16 XER	1	10/2006-12/2010	1598	85	116	1
1.3 CDTI (L70)	Z 13 DTH	2	08/2005-10/2010	1248	66	90	1
1.7 CDTI (L70)	Z 17 DTL	2	12/2004-07/2007	1686	59	80	1
1.7 CDTI (L70)	Z 17 DTH	2	03/2004-10/2010	1686	74	101	1
1.7 CDTI (L70)	A 17 DTJ Z 17 DTJ	2	02/2007-10/2014	1686	81	110	1
1.7 CDTI (L70)	A 17 DTR Z 17 DTR	2	02/2007-10/2010	1686	92	125	1
1.9 CDTI (L70)	Z 19 DTL	2	08/2005-12/2012	1910	74	101	1
1.9 CDTI (L70)	Z 19 DT	2	09/2005-10/2010	1910	88	120	1
1.9 CDTI (L70)	Z 19 DTH	2	09/2004-10/2010	1910	110	150	1
1.9 CDTI 16V (L70)	Z 19 DTJ	2	08/2004-10/2010	1910	88	120	1

ASTRA H (A04) Estate 08/2004-05/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (L35)	Z 14 XEL	1	08/2004-10/2010	1364	55	75	1
1.4 (L35)	Z 14 XEP	1	08/2004-10/2010	1364	66	90	1
1.6 (L35)	Z 16 XE1 Z 16 XEP	1	08/2004-10/2010	1598	77	105	1
1.6 (L35)	A 16 XER Z 16 XER	1	12/2006-05/2014	1598	85	116	1
1.6 CNG		1	11/2005-	1598	69	94	1
1.6 Turbo (L35)	A 16 LET Z 16 LET	1	02/2007-10/2010	1598	132	180	1
1.8 (L35)	Z 18 XE	1	08/2004-10/2010	1796	92	125	1
1.8 (L35)	A 18 XER Z 18 XER	1	08/2005-05/2014	1796	103	140	1
2.0 Turbo (L35)	Z 20 LEL	1	08/2004-10/2010	1998	125	170	1
2.0 Turbo (L35)	Z 20 LER	1	09/2004-10/2010	1998	147	200	1
1.4 LPG (L35)	Z 14 XEP	18	08/2009-10/2010	1364	66	90	1
1.6 LPG (L35)	Z 16 XER	18	08/2009-10/2010	1598	85	116	1
1.3 CDTI (L35)	Z 13 DTH	2	08/2005-10/2010	1248	66	90	1
1.7 CDTI (L35)	Z 17 DTL	2	08/2004-10/2010	1686	59	80	1
1.7 CDTI (L35)	Z 17 DTH	2	08/2004-10/2010	1686	74	101	1
1.7 CDTI (L35)	A 17 DTJ Z 17 DTJ	2	02/2007-05/2014	1686	81	110	1
1.7 CDTI (L35)	A 17 DTR Z 17 DTR	2	02/2007-05/2014	1686	92	125	1
1.9 CDTI		2	12/2004-	1910	103	140	2
1.9 CDTI (L35)	Z 19 DTL	2	09/2005-10/2010	1910	74	100	1
1.9 CDTI (L35)	Z 19 DT	2	09/2005-10/2010	1910	88	120	1
1.9 CDTI (L35)	Z 19 DTH	2	09/2004-10/2010	1910	110	150	1
1.9 CDTI 16V (L35)	Z 19 DTJ	2	08/2004-10/2010	1910	88	120	1

ASTRA H GTC (A04) Hatchback 03/2005-10/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2		1	10/2006-	1199	48	65	1
1.2 (L08)		1	08/2005-10/2010	1229	59	80	1
1.4 (L08)	Z 14 XEL	1	03/2005-10/2010	1364	55	75	1
1.4 (L08)	Z 14 XEP	1	03/2005-10/2010	1364	66	90	1
1.6 (L08)	Z 16 XE1 Z 16 XEP	1	03/2005-10/2010	1598	77	105	1
1.6 (L08)	Z 16 XER	1	12/2006-10/2010	1598	85	116	1
1.6 CNG		1	11/2005-	1598	69	94	1
1.6 Turbo (L08)	A 16 LET Z 16 LET	1	02/2007-10/2010	1598	132	180	1
1.8 (L08)	Z 18 XE	1	03/2005-10/2010	1796	92	125	1
1.8 (L08)	Z 18 XER	1	01/2006-10/2010	1796	103	140	1
2.0 Turbo (L08)	Z 20 LEL	1	03/2005-10/2010	1998	125	170	1
2.0 Turbo (L08)	Z 20 LER	1	03/2005-10/2010	1998	147	200	1
2.0 Turbo (L08)	Z 20 LEH	1	08/2005-10/2010	1998	177	240	1
1.3 CDTI (L08)	Z 13 DTH	2	04/2005-10/2010	1248	66	90	1
1.7 CDTi (L08)	Z 17 DTL	2	03/2005-10/2010	1686	59	80	1
1.7 CDTi (L08)	Z 17 DTH	2	03/2005-10/2010	1686	74	101	1
1.7 CDTi (L08)	A 17 DTJ Z 17 DTJ	2	02/2007-10/2010	1686	81	110	1
1.7 CDTi (L08)	A 17 DTR Z 17 DTR	2	02/2007-10/2010	1686	92	125	1
1.9 CDTi (L08)	Z 19 DTL	2	01/2006-10/2010	1910	74	101	1
1.9 CDTi (L08)	Z 19 DT	2	09/2005-10/2010	1910	88	120	1
1.9 CDTi (L08)	Z 19 DTH	2	03/2005-10/2010	1910	110	150	1
1.9 CDTi 16V (L08)	Z 19 DTJ	2	03/2005-10/2010	1910	88	120	1

ASTRA H TwinTop (A04) Convertible 09/2005-10/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (L67)	Z 14 XEP	1	10/2005-10/2010	1364	66	90	1
1.6 (L67)	Z 16 XE1 Z 16 XEP	1	09/2005-10/2010	1598	77	105	1
1.6 (L67)	Z 16 XER	1	12/2006-10/2010	1598	85	116	1
1.6 Turbo (L67)	A 16 LET Z 16 LET	1	02/2007-10/2010	1598	132	180	1
1.8 (L67)	Z 18 XE	1	09/2005-10/2010	1796	92	125	1
1.8 (L67)	A 18 XER Z 18 XER	1	09/2005-10/2010	1796	103	140	1
2.0 Turbo (L67)	Z 20 LEL	1	09/2005-10/2010	1998	125	170	1
2.0 Turbo (L67)	Z 20 LER	1	09/2005-10/2010	1998	147	200	1
1.9 CDTi (L67)	Z 19 DTH	2	09/2005-10/2010	1910	110	150	1

ASTRA H CLASSIC (A04) Estate 12/2006-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (L35)	Z 14 XEP	1	01/2009-	1364	66	90	1
1.6 (L35)	Z 16 XER	1	12/2006-05/2014	1598	85	116	1
1.8 (L35)	Z 18 XER	1	01/2012-05/2014	1796	103	140	1
1.7 CDTI (L35)	Z 17 DTJ	2	01/2009-	1686	81	110	1
1.7 CDTI (L35)	A 17 DTR Z 17 DTR	2	01/2009-	1686	92	125	1

ASTRA H (A04) Saloon 02/2007-05/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (L69)	Z 14 XEP	1	02/2007-06/2010	1364	66	90	1
1.6 (L69)	Z 16 XEP	1	02/2007-06/2010	1598	77	105	1
1.6 (L69)	Z 16 XER	1	02/2007-05/2014	1598	85	116	1
1.8 (L69)	A 18 XER Z 18 XER	1	02/2007-09/2012	1796	103	140	1
1.3 CDTi (L69)	Z 13 DTH	2	02/2007-10/2010	1248	66	90	1
1.7 CDTi (L69)	Z 17 DTH	2	02/2007-10/2010	1686	74	101	1
1.7 CDTi (L69)	Z 17 DTJ	2	02/2007-05/2014	1686	81	110	1

ASTRA H CLASSIC (A04) Saloon 02/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (L69)	Z 16 XER	1	01/2009-05/2014	1598	85	116	1
1.8 (L69)	Z 18 XER	1	02/2007-09/2012	1796	103	140	1
1.7 CDTi (L69)	Z 17 DTJ	2	01/2009-	1686	81	110	1
1.7 CDTi (L69)	A 17 DTR Z 17 DTR	2	01/2009-	1686	92	125	1

ASTRA H CLASSIC (A04) Hatchback 01/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (L48)	Z 14 XEP	1	01/2009-	1364	66	90	1
1.6 (L48)	Z 16 XER	1	01/2009-	1598	85	116	1
1.8 (L48)	Z 18 XER	1	02/2013-	1796	103	140	1
1.3 CDTI (L48)	Z 13 DTH	2	01/2009-	1248	66	90	1
1.7 CDTI (L48)	A 17 DTJ Z 17 DTJ	2	01/2009-	1686	81	110	1
1.7 CDTI (L48)	A 17 DTR Z 17 DTR	2	01/2009-	1686	92	125	1

COMBO C () Box Body/MPV 10/2001-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	Z 14 XEP	1	08/2005-	1364	66	90	1
1.6	Z 16 SE	1	10/2001-	1598	64	87	1
1.6 CNG 16V	Z 16 YNG	16	06/2006-	1598	69	94	1
1.6 CNG 16V	Z 16 YNG	16	04/2005-	1598	71	97	1
1.3 CDTI 16V	Z 13 DT	2	08/2005-	1248	51	69	1
1.3 CDTI 16V	Z 13 DTJ	2	10/2005-12/2012	1248	55	75	1
1.7 CDTI 16V	Z 17 DTH	2	12/2004-	1686	74	101	1
1.7 DI 16V	Y 17 DTL	2	10/2001-	1686	48	65	1
1.7 DTI 16V	Y 17 DT	2	10/2001-	1686	55	75	1

COMBO C Tour () MPV 10/2001-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	Z 14 XEP	1	10/2004-12/2011	1364	66	90	1
1.6		1	10/2001-09/2006	1598	62	84	1
1.6	Z 16 SE	1	10/2001-09/2006	1598	64	87	1
1.6 CNG	Z 16 YNG	16	06/2006-12/2011	1598	69	94	1
1.6 CNG	Z 16 YNG	16	04/2005-01/2011	1598	71	97	1
1.3 CDTI 16V	Y 13 DT Z 13 DT	2	06/2004-01/2011	1248	51	69	1
1.3 CDTI 16V	Z 13 DTJ	2	10/2005-12/2011	1248	55	75	1
1.7 CDTI 16V	Z 17 DTH	2	07/2004-12/2011	1686	74	101	1
1.7 DI 16V	Y 17 DTL	2	10/2001-06/2004	1686	48	65	1
1.7 DTI 16V	Y 17 DT	2	10/2001-06/2004	1686	55	75	1

CORSA B CLASSIC () Saloon 08/1994-12/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4		1	07/2000-12/2003	1364	66	90	1
1.4		1	07/2000-05/2001	1389	66	90	1
1.8	Z 18 XEL	1	01/2002-12/2005	1796	79	107	1

CORSA C (X01) Hatchback Van 09/2000-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (W5L, F08)	Z 14 XEP	1	08/2003-06/2012	1364	66	90	1
1.3 CDTI 16V (F08, W5L)	Z 13 DT	2	07/2005-06/2006	1248	51	69	1
1.3 CDTI 16V (F08, W5L)	Z 13 DT	2	07/2005-06/2006	1248	59	80	1
1.7 CDTi (F08, W5L)	Z 17 DTH	2	08/2003-12/2012	1686	74	101	1
1.7 DTI 16V (F08, W5L)	Y 17 DT	2	09/2000-07/2003	1686	55	75	1

CORSA C (X01) Saloon 09/2000-12/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.7 CDTi	Z 17 DTH	2	01/2005-12/2008	1686	74	100	1

CORSA C / VITA C (X01) Hatchback 09/2000-12/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 (F08, F68)	Z 10 XE	1	09/2000-06/2003	973	43	58	1
1.0 (F08, F68)	Z 10 XEP	1	06/2003-12/2009	998	44	60	1
1.2 (F08, F68)	Z 12 XE	1	09/2000-12/2009	1199	55	75	1
1.2 Twinport (F08, F68)	Z 12 XEP	1	07/2004-12/2009	1229	59	80	1
1.4 (F08, F68)		1	01/2002-12/2009	1389	60	82	1
1.4 (F08, F68)	Z 14 XE	1	09/2000-12/2009	1389	66	90	1
1.4 Twinport (F08, F68)	Z 14 XEP	1	06/2003-12/2009	1364	66	90	1
1.6		1	05/2003-12/2009	1598	69	92	1
1.8 (F08, F68)	Z 18 XEL	1	01/2002-12/2009	1796	79	107	1
1.8 (F08, F68)	Z 18 XE	1	09/2000-12/2009	1796	92	125	1
1.3 CDTI (F08, F68)	Y 13 DT Z 13 DT	2	06/2003-12/2009	1248	51	70	1
1.7 CDTI (F08, F68)	Z 17 DTH	2	06/2003-12/2009	1686	74	100	1
1.7 DI (F08, F68)	Y 17 DTL	2	09/2000-12/2009	1686	48	65	1
1.7 DTI (F08, F68)	Y 17 DT	2	09/2000-12/2009	1686	55	75	1

MERIVA A (X03) MPV 05/2003-05/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V Twinport (E75)	Z 14 XEP	1	07/2004-05/2010	1364	66	90	1
1.6 (E75)	Z 16 SE	1	05/2003-05/2010	1598	64	87	1
1.6 (E75)	Z 16 XEP	1	01/2006-05/2010	1598	77	105	1
1.6 16V (E75)	Z 16 XE	1	05/2003-01/2006	1598	74	100	1
1.6 Turbo (E75)	Z 16 LET	1	09/2005-05/2010	1598	132	180	1
1.8 (E75)	Z 18 XE	1	05/2003-05/2010	1796	92	125	1
1.4 16V Twinport LPG (E75)	Z 14 XEP	18	07/2004-05/2010	1364	66	90	1
1.3 CDTI (E75)	Y 13 DT Z 13 DT	2	04/2005-05/2010	1248	51	69	1
1.3 CDTI (E75)	Z 13 DTJ	2	09/2003-05/2010	1248	55	75	1
1.7 CDTI (E75)	Z 17 DT Z 17 DTH	2	09/2003-05/2010	1686	74	100	1
1.7 CDTI (E75)	Z 17 DTR	2	09/2006-05/2010	1686	92	125	1
1.7 DTI (E75)	Y 17 DT	2	09/2003-05/2010	1686	55	75	1

MERIVA B (S10) MPV 06/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (75)	A 14 NEL B 14 NEL	1	06/2010-03/2017	1364	88	120	1
1.4 (75)	A 14 NET B 14 NET	1	06/2010-03/2017	1364	103	140	1
1.4 (75)	A 14 XER B 14 XER	1	06/2010-03/2017	1398	74	100	1
1.4 LPG (75)	A 14 NEL B 14 NEL	18	06/2011-03/2017	1364	88	120	1
1.3 CDTI (75)	A 13 DTC	2	06/2010-10/2013	1248	55	75	1
1.3 CDTI (75)	A 13 DTE	2	06/2010-11/2014	1248	70	95	1
1.6 CDTi (75)	B 16 DTC	2	01/2014-01/2017	1598	70	95	1
1.6 CDTi (75)	B 16 DTE B 16 DTL B 16 DTN	2	03/2014-03/2017	1598	81	110	1
1.6 CDTi (75)	B 16 DTH	2	08/2013-01/2017	1598	100	136	1
1.7 CDTI (75)	A 17 DT	2	06/2010-01/2017	1686	74	100	1
1.7 CDTI (75)	A 17 DTC A 17 DTI	2	06/2010-06/2015	1686	81	110	1
1.7 CDTI (75)	A 17 DTS	2	06/2010-10/2013	1686	96	131	1

MERIVA B VAN (S10) Box Body/MPV 06/2010-03/2017

Vehicle	Fuel	Date	CC	KW	CV	Traction
1.4 ECOTEC (75)	1	01/2013-03/2017	1398	74	101	1
1.3 CDTI (75)	2	01/2013-11/2014	1248	70	95	1
1.6 CDTi (75)	2	01/2014-01/2017	1598	70	95	1
1.6 CDTi (75)	2	03/2014-03/2017	1598	81	110	1
1.7 CDTI (75)	2	01/2013-01/2017	1686	74	101	1
1.7 CDTI (75)	2	01/2013-10/2013	1686	81	110	1
1.7 CDTI (75)	2	01/2013-10/2013	1686	96	131	1

ZAFIRA A (T98) MPV 04/1999-06/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (F75)	Z 16 XE	1	10/2003-06/2005	1598	76	103	1
1.6 16V (F75)	X 16 XEL Z 16 XE	1	04/1999-06/2005	1598	74	101	1
1.8		1	02/2003-06/2005	1796	81	110	1
1.8 16V (F75)	X 18 XE1	1	04/1999-09/2000	1796	85	116	1
1.8 16V (F75)	Z 18 XE	1	09/2000-06/2005	1796	92	125	1
2.0 OPC (F75)	Z 20 LET	1	09/2001-06/2005	1998	141	192	1
2.0 OPC (F75)	Z 20 LET	1	11/2002-06/2005	1998	147	200	1
2.2 16V (F75)	Z 22 SE	1	09/2000-06/2005	2198	108	147	1
1.6 CNG (F75)	Z 16 YNG	16	09/2001-06/2005	1598	71	97	1
1.6 LPG (F75)	X 16 XEL Z 16 XE	18	04/1999-06/2005	1598	74	101	1
1.6 LPG (F75)	Z 16 XEP	18	10/2003-06/2005	1598	76	103	1
2.0 DI (F75)		2	07/1999-06/2000	1995	63	86	1
2.0 DI 16V (F75)	X 20 DTL Y 20 DTL	2	07/1999-06/2005	1995	60	82	1
2.0 DTI 16V (F75)	Y 20 DTH	2	09/2000-06/2005	1995	74	101	1
2.2 DTI 16V (F75)	Y 22 DTR	2	01/2002-06/2005	2172	86	117	1
2.2 DTI 16V (F75)	Y 22 DTR	2	01/2002-06/2005	2172	92	125	1

ZAFIRA B (A05) Box Body/MPV 07/2005-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 VAN (M75)	A 18 XER Z 18 XER	1	07/2005-04/2015	1796	103	140	1
2.0 VAN (M75)	Z 20 LER	1	07/2005-12/2010	1998	147	200	1
2.2 DGi VAN (M75)	Z 22 YH	1	07/2005-12/2011	2198	110	150	1
1.6 CNG Turbo VAN (M75)	A 16 XNT Z 16 XNT	16	02/2009-04/2015	1598	110	150	1
1.6 CNG VAN (M75)	Z 16 YNG	16	07/2005-04/2015	1598	69	94	1
1.7 CDTI VAN (M75)	A 17 DTJ Z 17 DTJ	2	01/2008-04/2015	1686	81	110	1
1.7 CDTI VAN (M75)	A 17 DTR	2	01/2008-04/2015	1686	92	125	1
1.9 CDTI VAN (M75)	Z 19 DT	2	07/2005-04/2015	1910	88	120	1
1.9 CDTI VAN (M75)	Z 19 DTH	2	07/2005-04/2015	1910	110	150	1

ZAFIRA / ZAFIRA FAMILY B (A05) MPV 07/2005-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (M75)	Z 16 XE1 Z 16 XEP	1	07/2005-09/2012	1598	77	105	1
1.6 (M75)	A 16 XER Z 16 XER	1	01/2008-04/2015	1598	85	115	1
1.8 (M75)	A 18 XEL	1	06/2013-04/2015	1796	88	120	1
1.8 (M75)	A 18 XER Z 18 XER	1	07/2005-04/2015	1796	103	140	1
2.0 (M75)	Z 20 LER	1	07/2005-12/2010	1998	147	200	1
2.0 (M75)	Z 20 LEH	1	01/2006-12/2010	1998	177	241	1
2.2 (M75)	Z 22 YH	1	07/2005-12/2012	2198	110	150	1
1.6 CNG (M75)	Z 16 YNG	16	07/2005-04/2015	1598	69	94	1
1.6 CNG Turbo (M75)	A 16 XNT Z 16 XNT	16	04/2010-04/2015	1598	110	150	1
1.8 LPG (M75)	Z 18 XER	18	07/2009-04/2015	1796	103	140	1
1.6 FlexFuel (M75)	Z 16 XER	19	08/2008-12/2012	1598	85	116	1
1.7 CDTI (M75)	A 17 DTJ Z 17 DTJ	2	01/2008-04/2015	1686	81	110	1
1.7 CDTI (M75)	A 17 DTR	2	03/2007-04/2015	1686	92	125	1
1.9 CDTI (M75)	Z 19 DTL	2	07/2005-12/2010	1910	74	100	1
1.9 CDTI (M75)	Z 19 DT	2	07/2005-04/2015	1910	88	120	1
1.9 CDTI (M75)	Z 19 DTH	2	07/2005-04/2015	1910	110	150	1

SATURN

ASTRA (U.S.A.) Hatchback 09/2003-12/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	2H0	1	09/2007-12/2009	1796	104	141	1

SUBARU

TRAVIQ () MPV 08/2000-08/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.2		1	08/2000-08/2005	2198	108	147	1

VAUXHALL

ASTRAVAN Mk IV (G) (T98) Estate Van 01/1993-08/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	Z 14 XE	1	09/2000-05/2005	1389	66	90	1
1.6 i	X 16 SZR	1	08/1998-09/2000	1598	55	75	1
1.6 i	Z 16 SE	1	09/2000-08/2006	1598	62	84	1
1.6 Dualfuel	X 16 SZR	18	02/1998-12/2000	1598	55	75	1
1.6 Dualfuel	Z 16 SE	18	09/2000-10/2004	1598	62	84	1
1.6 Dualfuel	Z 16 XE	18	07/2000-08/2005	1598	74	101	1
1.6 Dualfuel 16V	Z 16 XEP	18	10/2004-12/2005	1598	77	105	1
1.7 CDTi	Z 17 DTL	2	07/2003-08/2006	1686	59	80	1
1.7 DTI 16V	Y 17 DT	2	04/2001-08/2006	1686	55	75	1
1.7 TD	X 17 DTL	2	08/1998-08/2006	1700	50	68	1
2.0 DI	X 20 DTL Y 20 DTL	2	08/1998-08/2006	1995	60	82	1
2.0 DTI	Y 20 DTH	2	04/2004-08/2006	1995	74	100	1

ASTRA Mk IV (G) (T98) Hatchback 02/1998-05/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V (F08, F48)	X 14 XE Z 14 XE	1	02/1998-05/2005	1389	66	90	1
1.6 (F08, F48)	X 16 SZR	1	02/1998-09/2000	1598	55	75	1
1.6 (F08, F48)	Z 16 SE	1	09/2000-05/2005	1598	62	84	1
1.6 (F08, F48)	Z 16 XEP	1	12/2002-05/2005	1598	76	103	1
1.6 16V (F08, F48)	X 16 XEL Z 16 XE	1	02/1998-05/2005	1598	74	101	1
1.8 16V (F08, F48)	X 18 XE1	1	02/1998-09/2000	1796	85	116	1
1.8 16V (F08, F48)	Z 18 XE	1	09/2000-05/2005	1796	92	125	1
2.0 (F08)	Z 20 LET	1	08/2002-05/2005	1998	147	199	1
2.0 16V (F08)	X 20 XEV	1	02/1998-05/2005	1998	100	136	1
2.0 SRI Turbo (F08)	Z 20 LET	1	11/2001-05/2005	1998	141	192	1
2.2 16V (F08, F48)	Z 22 SE	1	03/2001-05/2005	2198	108	147	1
1.4 16V Dualfuel (F08, F48)	X 14 XE Z 14 XE	18	09/1999-06/2003	1389	66	90	1
1.6 Dualfuel (F08, F48)	X 16 SZR	18	02/1998-12/2000	1598	55	75	1
1.6 Dualfuel (F08, F48)	Z 16 SE	18	09/2002-05/2005	1598	63	85	1
1.6 Dualfuel (F08, F48)	X 16 XEL Z 16 XE	18	09/1999-08/2004	1598	74	101	1
1.6 Dualfuel (F08)	Z 16 SE	18	07/2000-05/2005	1598	62	86	1
1.8 16V Dualfuel (F08, F48)	Z 18 XE	18	09/2002-05/2005	1796	87	118	1
1.8 16V Dualfuel (F08, F48)	Z 18 XE	18	07/2002-12/2003	1796	92	125	1
1.7 CDTI 16V (F08, F48)	Z 17 DTL	2	04/2003-05/2005	1686	59	80	1
1.7 DTI 16V (F08, F48)	Y 17 DT	2	02/2000-05/2005	1686	55	75	1
1.7 TD (F08, F48)	X 17 DTL	2	02/1998-08/2000	1700	50	68	1
2.0 DI (F48)	X 20 DTL Y 20 DTL	2	02/1998-05/2005	1995	60	82	1
2.0 DTI 16V (F48)	Y 20 DTH	2	08/1999-05/2005	1995	74	101	1

ASTRA Mk IV (G) (T98) Saloon 02/1998-05/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	X 14 XE Z 14 XE	1	09/1998-05/2005	1389	66	90	1
1.6	X 16 SZR	1	09/1998-09/2000	1598	55	75	1
1.6	Z 16 SE	1	09/2000-05/2005	1598	62	84	1
1.6 16V	X 16 XEL Z 16 XE	1	09/1998-05/2005	1598	74	101	1
1.8 16V	X 18 XE1	1	02/1998-07/2004	1796	85	116	1
1.8 16V	Z 18 XE	1	02/1998-07/2004	1796	92	125	1
2.0 16V	X 20 XEV	1	09/1998-05/2005	1998	100	136	1
1.6 Dualfuel		18	02/1998-12/2000	1598	55	75	1
1.6 Dualfuel	Z 16 SE	18	07/2000-05/2005	1598	62	86	1
1.6 Dualfuel	Z 16 SE	18	09/2002-05/2005	1598	63	85	1
1.6 Dualfuel	X 16 XEL Z 16 XE	18	09/1999-08/2004	1598	74	101	1
1.8 16V Dualfuel	Z 18 XE	18	02/1998-07/2004	1796	87	118	1
1.8 16V Dualfuel		18	07/2002-12/2003	1796	92	125	1
1.7 CDTI 16V	Z 17 DTL	2	04/2003-05/2005	1686	59	80	1
1.7 DTI 16V	Y 17 DT	2	02/2000-05/2005	1686	55	75	1
1.7 TD	X 17 DTL	2	09/1998-08/2000	1700	50	68	1
2.0 DI	X 20 DTL Y 20 DTL	2	02/1998-07/2004	1995	60	82	1
2.0 DTI 16V	Y 20 DTH	2	02/1998-07/2004	1995	74	101	1

ASTRA Mk IV (G) (T98) Estate 02/1998-05/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	X 14 XE Z 14 XE	1	02/1998-05/2005	1389	66	90	1
1.6	X 16 SZR	1	03/1998-04/2004	1598	55	75	1
1.6	Z 16 SE	1	03/1998-04/2004	1598	62	84	1
1.6	Z 16 XEP	1	12/2002-05/2005	1598	76	103	1
1.6 16V	X 16 XEL Z 16 XE	1	03/1998-04/2004	1598	74	101	1
1.8 16V	X 18 XE1	1	02/1998-08/2000	1796	85	116	1
1.8 16V	Z 18 XE	1	09/2000-05/2005	1796	92	125	1
2.2 16V	Z 22 SE	1	03/2001-05/2005	2198	108	147	1
1.4 16V Dualfuel	X 14 XE Z 14 XE	18	09/1999-06/2003	1389	66	90	1
1.6 Dualfuel	X 16 SZR	18	02/1998-12/2000	1598	55	75	1
1.6 Dualfuel	Z 16 SE	18	07/2000-05/2005	1598	62	86	1
1.6 Dualfuel	Z 16 SE	18	03/1998-04/2004	1598	63	85	1
1.6 Dualfuel	X 16 XEL Z 16 XE	18	09/1999-08/2004	1598	74	101	1
1.8 16V Dualfuel	Z 18 XE	18	09/2002-05/2005	1796	87	118	1
1.8 16V Dualfuel	Z 18 XE	18	07/2002-12/2003	1796	92	125	1
1.7 CDTI 16V	Z 17 DTL	2	04/2003-05/2005	1686	59	80	1
1.7 DTI 16V	Y 17 DT	2	02/2000-05/2005	1686	55	75	1
1.7 TD	X 17 DTL	2	02/1998-08/2000	1700	50	68	1
2.0 DI	X 20 DTL Y 20 DTL	2	03/1998-04/2004	1995	60	82	1
2.0 DTI 16V	Y 20 DTH	2	03/1998-04/2004	1995	74	101	1

ASTRA Mk IV (G) (T98) Coupe 03/2000-08/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	Z 16 XEP	1	03/2000-08/2005	1598	76	103	1
1.8 16V	X 18 XE1	1	03/2000-08/2005	1796	85	115	1
1.8 16V	Z 18 XE	1	09/2000-08/2005	1796	92	125	1
2.0 16V Turbo	Z 20 LET	1	09/2000-08/2005	1998	140	190	1
2.2 16V	Z 22 SE	1	03/2000-08/2005	2198	108	147	1
1.8 16V Dualfuel	Z 18 XE	18	09/2002-08/2005	1796	87	118	1
1.8 16V Dualfuel	Z 18 XE	18	07/2002-08/2004	1796	92	125	1

ASTRA Mk IV (G) (T98) Convertible 03/2001-10/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	Z 16 XE	1	03/2001-10/2005	1598	74	101	1
1.6 16V	Z 16 XEP	1	03/2003-10/2005	1598	76	103	1
1.8 16V	Z 18 XE	1	03/2001-10/2005	1796	92	125	1
2.0	Z 20 LET	1	09/2002-10/2005	1998	147	200	1
2.0 Turbo	Z 20 LET	1	03/2002-10/2005	1998	141	192	1
2.2 16V	Z 22 SE	1	03/2001-10/2005	2198	108	147	1

ASTRA Mk V (H) (A04) Hatchback 01/2004-03/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (L48)	Z 14 XEP	1	01/2004-05/2009	1364	66	90	1
1.6 (L48)	Z 16 XE1 Z 16 XEP	1	01/2004-05/2009	1598	77	105	1
1.6 (L48)	A 16 XER Z 16 XER	1	01/2004-05/2009	1598	85	115	1
1.6 Turbo (L48)	A 16 LET Z 16 LET	1	09/2006-09/2009	1598	132	180	1
1.8 (L48)	Z 18 XE	1	01/2004-05/2009	1796	92	125	1
1.8 (L48)	A 18 XER Z 18 XER	1	01/2004-05/2009	1796	103	140	1
2.0 Turbo (L48)	Z 20 LEL	1	01/2004-05/2009	1998	125	170	1
2.0 Turbo (L48)	Z 20 LER	1	01/2004-05/2009	1998	147	200	1
2.0 Turbo (L48)	Z 20 LEH	1	01/2004-05/2009	1998	177	240	1
1.3 CDTI (L48)	Z 13 DTH	2	01/2004-05/2009	1248	66	90	1
1.7 CDTI (L48)	Z 17 DTL	2	01/2004-05/2009	1686	59	80	1
1.7 CDTI (L48)	Z 17 DTH	2	01/2004-05/2009	1686	74	100	1
1.7 CDTI (L48)	A 17 DTJ Z 17 DTJ	2	01/2004-03/2011	1686	81	110	1
1.9 CDTI (L48)	Z 19 DT	2	01/2004-05/2009	1910	88	120	1
1.9 CDTI (L48)	Z 19 DTH	2	01/2004-05/2009	1910	110	150	1
1.9 CDTI 16V (L48)	Z 19 DTJ	2	01/2004-05/2009	1910	88	120	1

ASTRA Mk V (H) (A04) Estate 08/2004-10/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (L35)	Z 14 XEP	1	08/2004-03/2009	1364	66	90	1
1.6 (L35)	Z 16 XE1 Z 16 XEP	1	08/2004-03/2009	1598	77	105	1
1.6 (L35)	Z 16 XER	1	08/2004-03/2011	1598	85	115	1
1.6 (L35)	A 16 LET Z 16 LET	1	08/2004-03/2009	1598	132	180	1
1.8 (L35)	Z 18 XE	1	10/2004-03/2009	1796	92	125	1
1.8 (L35)	A 18 XER Z 18 XER	1	12/2005-10/2010	1796	103	140	1
2.0 Turbo (L35)	Z 20 LEL	1	08/2004-10/2010	1998	125	170	1
2.0 Turbo (L35)	Z 20 LER	1	08/2004-10/2010	1998	147	200	1
1.3 CDTI (L35)	Z 13 DTH	2	08/2004-03/2009	1248	66	90	1
1.7 CDTI (L35)	Z 17 DTL	2	08/2004-05/2009	1686	59	80	1
1.7 CDTI (L35)	Z 17 DTH	2	08/2004-03/2009	1686	74	100	1
1.7 CDTI (L35)	A 17 DTJ Z 17 DTJ	2	08/2004-10/2012	1686	81	110	1
1.9 CDTI (L35)	Z 19 DT	2	08/2004-03/2009	1910	88	120	1
1.9 CDTI (L35)	Z 19 DTH	2	08/2004-03/2009	1910	110	150	1
1.9 CDTI 16V (L35)	Z 19 DTJ	2	08/2004-03/2009	1910	88	120	1

ASTRA Mk V (H) Sport Hatch (A04) Hatchback 02/2005-11/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i 16V (L08)	Z 14 XEP	1	03/2005-11/2010	1364	66	90	1
1.6 (L08)	Z 16 XEP	1	02/2005-11/2010	1598	77	105	1
1.6 (L08)	A 16 LET Z 16 LET	1	10/2006-11/2010	1598	132	179	1
1.6 i 16V (L08)	A 16 XER Z 16 XER	1	12/2006-11/2010	1598	85	116	1
1.8 (L08)	Z 18 XE	1	02/2005-11/2010	1796	92	125	1
1.8 i 16V (L08)	A 18 XER Z 18 XER	1	03/2007-11/2010	1796	103	140	1
2.0 Turbo (L08)	Z 20 LEL	1	02/2005-11/2010	1998	125	170	1
2.0 VXR (L08)	Z 20 LEH	1	02/2009-11/2010	1998	176	240	1
1.3 CDTI (L08)	Z 13 DTH	2	04/2005-11/2010	1248	66	90	1
1.7 CDTi (L08)	Z 17 DTH	2	02/2005-11/2010	1686	74	100	1
1.7 CDTi (L08)	A 17 DTJ Z 17 DTJ	2	02/2007-11/2009	1686	81	110	1
1.9 CDTi (L08)	Z 19 DTL	2	08/2005-11/2010	1910	74	101	1
1.9 CDTi (L08)	Z 19 DT	2	02/2005-11/2010	1910	88	120	1
1.9 CDTi (L08)	Z 19 DTH	2	02/2005-11/2010	1910	110	150	1

ASTRAVAN Mk V (H) (A04) Estate Van 03/2005-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 i	Z 14 XEP	1	03/2005-	1364	66	90	1
1.6	Z 16 XE1 Z 16 XEP	1	03/2005-	1598	76	103	1
1.3 CDTi	Z 13 DTH	2	08/2005-	1248	66	90	1
1.7 CDTi	Z 17 DTL	2	03/2005-07/2006	1686	59	80	1
1.7 CDTi	Z 17 DTH	2	03/2005-11/2011	1686	74	101	1
1.7 CDTi	A 17 DTJ Z 17 DTJ	2	06/2011-12/2013	1686	81	110	1
1.7 CDTi	A 17 DTR Z 17 DTR	2	11/2011-	1686	92	125	1
1.9 CDTI	Z 19 DT	2	03/2005-11/2011	1910	88	120	1
1.9 CDTI	Z 19 DTH	2	03/2005-11/2011	1910	110	150	1

ASTRA Mk V (H) TwinTop (A04) Convertible 09/2005-08/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (L67)	Z 16 XEP	1	09/2005-11/2010	1598	77	105	1
1.6 i 16V (L67)	A 16 XER Z 16 XER	1	10/2006-08/2011	1598	85	116	1
1.8 (L67)	A 18 XER Z 18 XER	1	05/2008-11/2010	1796	103	140	1
2.0 (L67)	Z 20 LEL	1	02/2006-11/2010	1998	125	170	1
2.0 Turbo (L67)	Z 20 LER	1	01/2006-11/2010	1998	147	200	1
1.9 CDTi (L67)	Z 19 DTH	2	01/2006-11/2010	1910	110	150	1

COMBO Mk II (C) (F25) Box Body/MPV 09/2001-02/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V	Z 14 XE	1	10/2001-05/2007	1389	66	90	1
1.4 i 16V	Z 14 XEP	1	01/2004-11/2011	1364	66	90	1
1.6	Z 16 SE	1	09/2001-10/2004	1598	62	84	1
1.6	Z 16 SE	1	10/2001-11/2011	1598	64	87	1
1.6 CNG 16V	Y 16 YNG Z 16 YNG	16	06/2006-02/2012	1598	69	94	1
1.6 CNG 16V	Z 16 YNG	16	04/2005-02/2012	1598	71	97	1
1.3 CDTI 16V	Y 13 DT Z 13 DT	2	09/2004-02/2012	1248	51	69	1
1.3 CDTI 16V	Z 13 DTJ	2	10/2005-11/2011	1248	55	75	1
1.7 CDTI 16V	Z 17 DTH	2	12/2004-11/2011	1686	74	101	1
1.7 DI 16V	Y 17 DTL	2	09/2001-11/2011	1686	48	65	1
1.7 DTI 16V	Y 17 DT	2	10/2001-11/2011	1686	55	75	1

COMBO TOUR Mk II (C) (F25) MPV 09/2001-02/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	Z 14 XEP	1	10/2004-09/2010	1364	66	90	1
1.6	Z 16 SE	1	10/2001-06/2004	1598	64	87	1
1.6 CNG	Z 16 YNG	16	06/2006-09/2010	1598	69	94	1
1.6 CNG	Z 16 YNG	16	04/2005-02/2012	1598	71	97	1
1.3 CDTI 16V	Z 13 DT	2	09/2004-09/2006	1248	51	69	1
1.3 CDTI 16V	Z 13 DTJ	2	07/2006-02/2012	1248	55	75	1
1.7 CDTI 16V	Z 17 DTH	2	12/2004-09/2010	1686	74	101	1
1.7 DI 16V	Y 17 DTL	2	09/2001-06/2004	1686	48	65	1
1.7 DTI 16V	Y 17 DT	2	10/2001-02/2012	1686	55	75	1

CORSA Mk II (C) (X01) Hatchback 08/2000-04/2007

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 12V (F08, F68)	Z 10 XE	1	09/2000-10/2003	973	43	58	1
1.0 12V (F08, F68)	Z 10 XEP	1	11/2003-10/2006	998	44	60	1
1.2 16V (F08, F68)	Z 12 XE	1	09/2000-10/2006	1199	55	75	1
1.2 Twinport (F08, F68)	Z 12 XEP	1	07/2004-10/2006	1229	59	80	1
1.4 16V (F08, F68)	Z 14 XE	1	09/2000-10/2006	1389	66	90	1
1.4 Twinport (F08, F68)	Z 14 XEP	1	06/2003-10/2006	1364	66	90	1
1.8 16V (F08, F68)	Z 18 XE	1	08/2000-09/2006	1796	92	125	1
1.2 16V Dualfuel (F08)	Z 12 XE	18	08/2001-10/2006	1199	55	75	1
1.3 CDTI 16V (F08, F68)	Y 13 DT Z 13 DT	2	10/2003-04/2007	1248	51	69	1
1.7 CDTI 16V (F08, F68)	Z 17 DTH	2	08/2000-09/2006	1686	74	100	1
1.7 DI 16V (F08, F68)	Y 17 DTL	2	08/2000-09/2006	1686	48	65	1
1.7 DTI 16V (F08, F68)	Y 17 DT	2	08/2000-09/2006	1686	55	75	1

CORSAVAN Mk II (C) (X01) Hatchback Van 09/2000-11/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (F08)	Z 14 XEP	1	11/2003-06/2006	1364	66	89	1
1.7 DTI 16V (F08)	Y 17 DT	2	09/2000-06/2006	1686	55	75	1

MERIVA Mk I (A) (X03) MPV 01/2003-06/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 16V Twinport	Z 14 XEP	1	01/2003-06/2010	1364	66	90	1
1.6 i	Z 16 SE	1	01/2003-06/2010	1598	64	87	1
1.6 i 16V	Z 16 XE	1	01/2003-09/2005	1598	74	100	1
1.6 i 16V Twinport	Z 16 XEP	1	05/2003-06/2010	1598	77	105	1
1.6 Turbo	Z 16 LET	1	05/2006-06/2010	1598	132	180	1
1.8 i 16V	Z 18 XE	1	05/2003-06/2010	1796	92	125	1
1.3 CDTi	Y 13 DT Z 13 DT	2	04/2005-06/2010	1248	51	69	1
1.3 CDTi	Z 13 DTJ	2	01/2003-10/2009	1248	55	75	1
1.7 CDTi	Z 17 DTH	2	09/2003-08/2005	1686	74	100	1
1.7 DTI	Y 17 DT	2	06/2003-06/2010	1686	55	75	1

MERIVA Mk II (B) (S10) MPV 06/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	A 14 NEL B 14 NEL	1	06/2010-	1364	88	120	1
1.4	A 14 NET B 14 NET	1	06/2010-	1364	103	140	1
1.4	A 14 XER B 14 XER	1	06/2010-	1398	74	101	1
1.4 LPG	A 14 NEL	18	06/2011-	1364	88	120	1
1.3 CDTi	A 13 DTC	2	06/2010-	1248	55	75	1
1.3 CDTi	A 13 DTE	2	06/2010-	1248	70	95	1
1.6 CDTi	B 16 DTC	2	01/2014-	1598	70	95	1
1.6 CDTi	B 16 DTE B 16 DTL B 16 DTN	2	07/2014-	1598	81	110	1
1.6 CDTi	B 16 DTH	2	08/2013-	1598	100	136	1
1.7 CDTi	A 17 DT	2	06/2010-	1686	74	101	1
1.7 CDTi	A 17 DTC A 17 DTI	2	06/2010-	1686	81	110	1
1.7 CDTi	A 17 DTS	2	06/2010-	1686	96	131	1

ZAFIRA Mk I (A) (T98) MPV 11/1998-08/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V	X 16 XEL Z 16 XE	1	04/1999-08/2005	1598	74	101	1
1.8 16V	X 18 XE1	1	05/1999-08/2000	1796	85	116	1
1.8 16V	Z 18 XE	1	09/2000-08/2005	1796	92	125	1
2.0	Z 20 LET	1	06/2002-06/2005	1998	147	199	1
2.0 GSI Turbo	Z 20 LET	1	09/2001-06/2005	1998	141	192	1
2.2 16V	Z 22 SE	1	11/1998-08/2004	2198	108	147	1
1.6 CNG	Z 16 YNG	16	09/2001-06/2005	1598	71	97	1
1.6 Dualfuel	X 16 XEL	18	11/1998-08/2005	1598	74	101	1
1.8 Dualfuel	Z 18 XE	18	09/2000-08/2005	1796	92	125	1
2.0 DI 16V	X 20 DTL	2	10/1999-08/2005	1995	60	82	1
2.0 DTI 16V	Y 20 DTH	2	04/1999-08/2005	1995	74	101	1

ZAFIRA Mk II (B) (A05) MPV 04/2005-11/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	Z 16 XE1 Z 16 XEP	1	07/2005-11/2014	1598	77	105	1
1.6	A 16 XER Z 16 XER	1	12/2007-11/2014	1598	85	115	1
1.8	A 18 XEL	1	04/2013-11/2014	1796	88	120	1
1.8	A 18 XER Z 18 XER	1	04/2005-11/2014	1796	103	140	1
2.0	Z 20 LER	1	07/2005-11/2014	1998	147	200	1
2.0	Z 20 LEH	1	01/2006-11/2014	1998	176	240	1
2.2	Z 22 YH	1	07/2005-11/2014	2198	110	150	1
1.7 CDTi	A 17 DTJ Z 17 DTJ	2	04/2009-11/2014	1686	81	110	1
1.7 CDTi	A 17 DTR	2	01/2008-11/2014	1686	92	125	1
1.9 CDTI	Z 19 DT	2	07/2005-11/2014	1910	88	120	1
1.9 CDTI	Z 19 DTH	2	07/2005-11/2014	1910	110	150	1

Return
