Product 181622-703


Description

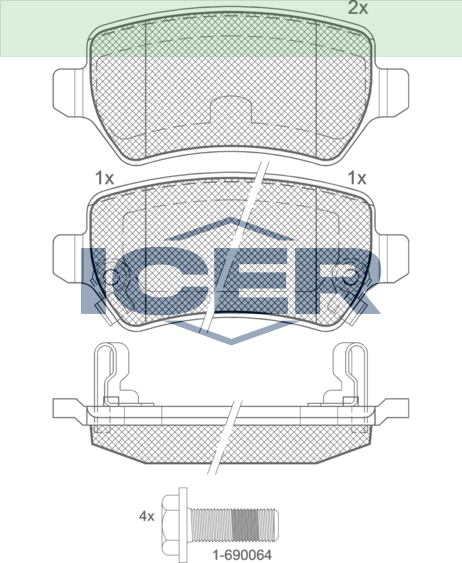

Brake pad set
Axe
Rear
No. of Pieces
4
Barcode
EAN13 Code
8424073088659
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=181622-703
Weight (gr.)
805
System
Trw
R90 Homologation
R90 90R-01110/1231
Measures
95.4x42.6x15.2
Brand OE Reference
KIA 58302-1PA30
KIA 58302-A2A20
KIA 58302-A2A30
OPEL 16 05 086
OPEL 16 05 625
OPEL 16 05 967
RENAULT 86 60 004 467
RENAULT 86 71 016 663
SATURN 9319 3613
VAUXHALL 93 170 602
VAUXHALL 93 176 118
Maker Cross reference
ATE 13.0460-2794.2
ATE 13.0460-2868.2
ATE 602794
ATE 602868
B.M. DB1511
BENDIX ANTIGUO 573122B
BENDIX-ROULUNDS 510239
BENDIX-ROULUNDS 511116
BENDIXSP ANTIGUO 573122
BOSCH 0 986 424 646
BREMBO P 10 013
BREMBO P 30 120
BREMBO P 59 038
BREMBO P 59 038X
DELPHI LOCKHEED LP1717
DELPHI LOCKHEED LP2188
DELPHI LOCKHEED LP2209
DELPHI LOCKHEED LP3615
FERODO FDB1521
FMSI D1362-8471
FMSI D2054-9287
GIRLING 6115151
GIRLING 6118311
GIRLING 6135857
HELLA-PAGID 8DB 355 018-781
HELLA-PAGID 8DB 355 040-611
HELLA-PAGID T5158
MINTEX MDB2357
MINTEX MDB4179
NECTO FD6955A
ROAD HOUSE 2957.02
ROAD HOUSE 2957.22
TEXTAR 23417 152 1 5 T428
TEXTAR 2341703
TEXTAR 25780 150 5
TEXTAR 2578001
TRW GDB1515
TRW GDB3585
VALEO 598584
WVA 23415
WVA 23416
WVA 23417
WVA 23654
WVA 23655
WVA 23837
WVA 23838
WVA 23839
WVA 25779
WVA 25780
WVA 25781
Vehicle Engine Fuel Date CC KW CV Traction
1.8 GLS 1 08/2002-12/2011 1796 81 110 1
2.0 1 02/1996- 1998 85 116 1
2.0

X 20 XEV

1 10/1999-07/2002 1998 94 128 1
2.0

C 20 SEL

1 08/2002-07/2005 1998 100 136 1
2.2 1 01/2001-12/2003 2198 108 147 1
Vehicle Engine Fuel Date CC KW CV Traction
1.8 1 08/2002-06/2005 1796 92 125 1
1.8 1 08/2006-03/2009 1796 103 140 1
1.8 (08, 48)

C 18 NE

C 18 YE

LC5(110CUL4)

1 09/1998-12/2011 1796 81 110 1
2.0

C 20 SEJ

1 03/1999-07/2002 1998 82 112 1
2.0 1 09/2003- 1998 84 114 1
2.0

LE4(122CUL4)

1 08/2002-12/2011 1998 85 116 1
2.0

X 20 XEV

1 03/1999-07/2002 1998 94 128 1
2.0 (08, 48)

L34(122CUL4)

1 08/2002-07/2005 1998 100 136 1
2.0 Flex 1 04/2009- 1998 103 140 1
2.2

Z 22 SE

1 08/2000-08/2004 2198 108 147 1
2.4 1 08/2005- 2405 108 147 1
1.7 Di

Y 17 DT

2 08/2000-08/2003 1686 55 75 1
2.0 DTI

LD1

2 08/2002-12/2011 1995 74 101 1
Vehicle Engine Fuel Date CC KW CV Traction
1.8

2H9

1 08/2002-06/2005 1796 92 125 1
1.8 1 08/2006-03/2009 1796 103 140 1
1.8 Flexfuel

C 18 NE

C 18 YE

1 03/1999-12/2011 1796 81 110 1
2.0 1 09/2003-12/2011 1998 84 114 1
2.0 Flex 1 04/2009-12/2011 1998 103 140 1
2.0 GL

LE4(122CUL4)

1 10/1998-07/2002 1998 82 112 1
2.0 GL

LE4(122CUL4)

1 08/2002-12/2011 1998 85 116 1
2.0 GLS

X 20 XEV

1 03/1999-07/2002 1998 94 128 1
2.0 GLS (69)

C 20 SEL

L34(122CUL4)

1 08/2002-12/2011 1998 100 136 1
2.2 1 09/2000-12/2002 2197 101 137 1
2.0 DI 2 01/1999-07/2003 1995 61 83 2
2.0 DTi GLS

LD1

2 08/2002-12/2011 1995 74 101 1
Vehicle Engine Fuel Date CC KW CV Traction
1.3 CDTi

Z 13 DTJ

1 10/2006-10/2012 1248 55 75 1
1.4

Z 14 EXP

1 10/2006-10/2012 1364 66 90 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 GLS (19)

B 16 NE

L01(98CUL4)

1 08/1994-07/2002 1598 68 92 1
1.6 GS

L91

1 08/1997-07/2002 1598 75 102 1
1.7 D

2H7

2 08/2000-07/2002 1686 44 60 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 GLS (08, 68)

C 16 NE

L01(98CUL4)

1 08/1994-07/2002 1598 68 92 1
1.7 D 2 08/2000-07/2002 1686 44 60 2
Vehicle Engine Fuel Date CC KW CV Traction
1.6 (80)

C 16 NE

L01(98CUL4)

1 08/1994-07/2002 1598 68 92 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 GLS (35)

C 16 NE

L01(98CUL4)

1 08/1997-07/2002 1598 68 92 1
1.7 D

2H7

2 08/2000-07/2002 1686 44 60 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 1 07/2007-07/2012 1389 73 99 1
1.4 Flex 1 07/2007-07/2012 1389 77 105 1
1.4 Flex 1 09/2008-07/2012 1398 73 99 1
1.8 1 02/2002- 1796 75 102 1
1.8 1 01/2004-07/2012 1796 78 106 1
1.8 1 03/2003-07/2012 1796 82 111 1
1.8 1 05/2003-05/2008 1796 92 125 1
1.8 (75)

L79(110CUL4)

1 03/2003-02/2006 1796 90 122 1
1.8 Flex 1 11/2003-08/2005 1796 77 105 1
1.8 Flex (75) 19 09/2005-07/2012 1796 84 114 1
1.8 Joy Flexpower(75)

LMD(110CUL4)

19 11/2003-08/2005 1796 81 109 1
1.7 D 2 08/2002-01/2008 1686 55 75 2
Vehicle Engine Fuel Date CC KW CV Traction
1.8 1 09/2003-03/2008 1796 90 122 1
1.8

2H9

1 09/2003-03/2008 1796 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
1.8

C 18 YE

1 02/1999-07/2001 1796 81 110 1
1.8 1 07/2000-06/2005 1796 92 125 1
2.0

LE4(122CUL4)

1 04/2001-07/2004 1998 85 116 1
2.0

X 20 XE

1 08/2004-12/2012 1998 89 121 1
2.0

C 20 SEL

L34(122CUL4)

1 04/2001-07/2012 1998 100 136 1
2.0 Flexpower 1 08/2004-07/2005 1998 94 128 1
2.2 1 04/2001-07/2004 2198 91 124 1
2.2

Z 22 SE

1 09/2001-12/2005 2198 108 147 1
2.2

Z 22 SE

1 09/2001-12/2005 2198 110 150 1
2.2

Z 22 YH

1 09/2005-12/2006 2198 110 150 1
2.0 Flex

LMC(122CUL4)

19 02/2009-03/2012 1998 103 140 1
Vehicle Engine Fuel Date CC KW CV Traction
2.2

Z 22 YH

1 07/2005- 2198 110 150 1
Vehicle Engine Fuel Date CC KW CV Traction
1.8 TS CD 5D 11" ABS 1 08/1984- 1795 1
1.8 TS CD 5D 10" 1 08/1984- 1795 1
Vehicle Engine Fuel Date CC KW CV Traction
1.8 i 1 02/1998-08/2000 1796 85 116 1
1.8 i 1 09/2000-10/2004 1796 92 125 1
2.0 i Turbo 1 05/2003-07/2004 1998 147 200 1
2.2 i 1 09/2000-07/2004 2198 108 147 1
Vehicle Engine Fuel Date CC KW CV Traction
1.8 i 1 02/1998-08/2000 1796 85 116 1
1.8 i 1 09/2000-10/2004 1796 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
2.0 i Turbo 1 06/2002-07/2004 1998 147 200 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 Efi 1 01/2004-02/2005 1364 66 90 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 i 1 04/2005-12/2012 1364 66 90 1
1.6 i 1 09/2002-04/2005 1598 62 84 1
Vehicle Engine Fuel Date CC KW CV Traction
2.2 i 1 06/2001-02/2006 2198 108 147 1
Vehicle Engine Fuel Date CC KW CV Traction
1.2 1 11/2010- 1197 59 80 1
1.4

G4FA

1 11/2010-07/2019 1396 66 90 1
1.4

G4FA

1 11/2010-07/2019 1396 74 100 1
1.6

G4FC

1 11/2010-07/2019 1591 92 125 1
1.4 CRDi

D4FC

2 06/2011-07/2019 1396 57 78 1
1.4 CRDi

D4FC

2 11/2010-07/2019 1396 66 90 1
1.6 CRDI

D4FB

2 06/2011-07/2019 1582 85 116 1
Vehicle Engine Fuel Date CC KW CV Traction
1.0 T-GDI

G3LC

1 07/2015-07/2018 998 74 100 1
1.0 T-GDI

G3LC

1 07/2015-07/2018 998 88 120 1
1.4 CVVT

G4FA

1 05/2012-07/2018 1396 66 90 1
1.4 CVVT

G4FA

1 05/2012-07/2018 1396 73 100 1
1.4 MPI

G4LC

1 04/2015-07/2018 1368 74 101 1
1.6 CVVT

G4FC

1 01/2013-07/2018 1591 95 130 1
1.6 CVVT

G4FC

1 11/2014-07/2018 1591 96 131 1
1.6 GDI

G4FD

1 05/2012-07/2018 1591 99 135 1
1.6 GT

G4FJ

1 06/2013-07/2018 1591 150 204 1
1.4 LPG 18 05/2012-07/2018 1396 72 98 1
1.4 CRDi 90

D4FC

2 05/2012-07/2018 1396 66 90 1
1.6 CRDi 110

D4FB

2 05/2012-07/2018 1582 81 110 1
1.6 CRDi 128

D4FB

2 05/2012-07/2018 1582 94 128 1
1.6 CRDi 136

D4FB

2 07/2015-07/2018 1582 100 136 1
1.6 CRDi 90 2 05/2012- 1582 66 90 1
Vehicle Engine Fuel Date CC KW CV Traction
1.0 T-GDI

G3LC

1 04/2015-07/2018 998 74 101 1
1.0 T-GDI

G3LC

1 04/2015-07/2018 998 88 120 1
1.4 CVVT

G4FA

1 04/2015-07/2018 1396 73 100 1
1.6 GDI

G4FD

1 04/2015-07/2018 1591 99 135 1
1.4 CRDi

D4FC

2 04/2015-07/2018 1396 66 90 1
1.6 CRDI

D4FB

2 07/2012-07/2018 1582 94 128 1
Vehicle Engine Fuel Date CC KW CV Traction
1.0 T-GDI

G3LC

1 07/2015-07/2018 998 74 100 1
1.0 T-GDI

G3LC

1 07/2015-07/2018 998 88 120 1
1.4 CVVT

G4FA

1 09/2012-07/2015 1396 73 100 1
1.4 MPI

G4LC

1 04/2015-07/2018 1368 74 101 1
1.6 CVVT

G4FC

1 11/2014-07/2018 1591 95 130 1
1.6 CVVT

G4FC

1 11/2014-07/2018 1591 96 131 1
1.6 GDI

G4FD

1 09/2012-07/2018 1591 99 135 1
1.4 LPG

G4FA

18 01/2013-07/2018 1396 72 98 1
1.4 CRDi 90

D4FC

2 09/2012-07/2018 1396 66 90 1
1.6 CRDi 110

D4FB

2 03/2013-07/2018 1582 81 110 1
1.6 CRDi 128

D4FB

2 09/2012-07/2015 1582 94 128 1
1.6 CRDi 136

D4FB

2 07/2015-07/2018 1582 100 136 1
Vehicle Engine Fuel Date CC KW CV Traction
2.0 DGI 1 09/2017- 1999 121 164 1
2.0 DGI

G4NC

1 06/2013- 1999 129 175 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 CVVT

G4FA

1 05/2012-07/2018 1396 73 99 1
1.6 GDI

G4FD

1 04/2015-07/2018 1591 99 135 1
1.4 CRDi

D4FC

2 05/2015-07/2018 1396 66 90 1
1.6 CRDI

D4FB

2 10/2012-07/2018 1582 94 128 1
Vehicle Engine Fuel Date CC KW CV Traction
1.0 T-GDI

G3LC

1 07/2015-07/2018 998 74 100 1
1.0 T-GDI

G3LC

1 07/2015-07/2018 998 88 120 1
1.4 CVVT

G4FA

1 03/2013-07/2015 1396 73 100 1
1.4 CVVT

G4FA

1 07/2013-07/2018 1396 74 101 1
1.4 MPI 1 07/2013-07/2018 1368 73 100 1
1.4 MPI

G4LC

1 04/2015-07/2018 1368 74 101 1
1.6 CVVT

G4FC

1 03/2013-07/2018 1591 95 130 1
1.6 GDI

G4FD

1 03/2013-07/2018 1591 99 135 1
1.6 GT

G4FJ

1 06/2013-07/2018 1591 150 204 1
1.4 CRDi 90

D4FC

2 03/2013-07/2018 1396 66 90 1
1.6 CRDi 110

D4FB

2 03/2013-07/2018 1582 81 110 1
1.6 CRDi 128

D4FB

2 03/2013-07/2015 1582 94 128 1
1.6 CRDi 136

D4FB

2 07/2015-07/2018 1582 100 136 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 CVVT

G4FA

1 02/2010- 1396 66 90 1
1.6 CVVT

G4FC

1 02/2010- 1591 92 125 1
1.4 LPG

G4FA

18 02/2010- 1396 66 90 1
1.4 CRDi 75

D4FC

2 02/2010- 1396 55 75 1
1.4 CRDi 75

D4FC

2 02/2010- 1396 57 78 1
1.4 CRDi 90

D4FC

2 02/2010- 1396 66 90 1
1.6 CRDi 115

D4FB

2 02/2010- 1582 85 116 1
1.6 CRDi 128

D4FB

2 02/2010- 1582 94 128 1
Vehicle Engine Fuel Date CC KW CV Traction
CVVT

G4FA

1 04/2015- 1396 66 90 1
CVVT

G4FC

1 02/2015- 1591 92 125 1
CRDi

D4FC

2 04/2015- 1396 57 77 1
CRDi

D4FC

2 04/2015- 1396 66 90 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V LPG

11194

18 11/2008-12/2013 1390 65 88 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 Comfort 1 09/2003-01/2005 1364 66 90 1
Vehicle Engine Fuel Date CC KW CV Traction
1.2 16V (F08, F48)

X 12 XE

1 02/1998-09/2000 1199 48 65 1
1.2 16V (F08, F48)

Z 12 XE

1 09/2000-01/2005 1199 55 75 1
1.4 (F08, F48)

Z 14 XEP

1 09/2007-12/2009 1364 66 90 1
1.4 16V (F08, F48)

X 14 XE

Z 14 XE

1 02/1998-01/2005 1389 66 90 1
1.6 1 06/2002-03/2004 1598 70 95 1
1.6 (F08, F48)

X 16 SZR

1 02/1998-09/2000 1598 55 75 1
1.6 (F08, F48)

Z 16 SE

1 09/2000-01/2005 1598 62 84 1
1.6 (F08, F48)

Z 16 XEP

1 11/2002-01/2005 1598 76 103 1
1.6 16V (F08, F48)

C 16 SEL

X 16 XEL

Z 16 XE

1 02/1998-01/2005 1598 74 101 1
1.8 (F08, F48) 1 02/2003-01/2004 1796 81 110 1
1.8 16V (F08, F48)

X 18 XE1

1 02/1998-09/2000 1796 85 116 1
1.8 16V (F08, F48)

Z 18 XE

1 09/2000-01/2005 1796 92 125 1
2.0 16V (F08, F48)

X 20 XEV

1 02/1998-01/2005 1998 100 136 1
2.0 16V OPC (F08, F48)

X 20 XER

1 11/1999-09/2002 1998 118 160 1
2.0 OPC (F08, F48)

Z 20 LET

1 09/2002-01/2005 1998 141 192 1
2.0 OPC (F08, F48)

Z 20 LET

1 11/2002-01/2005 1998 147 200 1
2.2 16V (F08, F48)

Z 22 SE

1 06/2000-01/2005 2198 108 147 1
1.4 LPG (F08, F48)

X 14 XE

Z 14 XE

18 02/1998-01/2005 1389 66 90 1
1.6 LPG (F08, F48)

X 16 XEL

Z 16 XE

18 03/1998-01/2005 1598 74 101 1
1.6 LPG (F08, F48)

Z 16 XEP

18 11/2002-06/2007 1598 76 103 1
1.7 CDTI (F08, F48)

Z 17 DTL

2 04/2003-01/2005 1686 59 80 1
1.7 DTI 16V (F08, F48)

Y 17 DT

2 02/2000-01/2005 1686 55 75 1
1.7 TD (F08, F48)

X 17 DTL

2 02/1998-08/2000 1699 50 68 1
2.0 DI (F08, F48)

X 20 DTL

Y 20 DTL

2 02/1998-01/2005 1995 60 82 1
2.0 DTI 16V (F08, F48)

Y 20 DTH

2 08/1999-01/2005 1995 74 101 1
2.2 DTI (F08, F48)

Y 22 DTR

2 09/2002-01/2005 2172 86 117 1
2.2 DTI (F08, F48)

Y 22 DTR

2 09/2002-01/2005 2172 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
1.2 16V (F35)

X 12 XE

1 02/1998-09/2000 1199 48 65 1
1.2 16V (F35)

Z 12 XE

1 09/2000-07/2004 1199 55 75 1
1.4 16V (F35)

X 14 XE

Z 14 XE

1 06/1998-07/2004 1389 66 90 1
1.6 (F35)

X 16 SZR

1 02/1998-09/2000 1598 55 75 1
1.6 (F35)

Z 16 SE

1 09/2000-07/2004 1598 62 84 1
1.6 (F35)

Z 16 XEP

1 12/2002-05/2004 1598 76 103 1
1.6 16V (F35)

X 16 XEL

Z 16 XE

1 02/1998-07/2004 1598 74 101 1
1.8 1 02/2003-07/2004 1796 81 110 1
1.8 16V (F35)

X 18 XE1

1 02/1998-09/2000 1796 85 116 1
1.8 16V (F35)

Z 18 XE

1 09/2000-07/2004 1796 92 125 1
2.0 16V (F35)

X 20 XEV

1 02/1998-07/2004 1998 100 136 1
2.0 OPC (F35)

Z 20 LET

1 09/2002-07/2004 1998 141 192 1
2.0 OPC (F35)

Z 20 LET

1 11/2002-07/2004 1998 147 200 1
2.2 16V (F35)

Z 22 SE

1 03/2001-07/2004 2198 108 147 1
1.6 CNG (F35)

Z 16 YNG

16 03/2003-07/2004 1598 71 97 1
1.4 LPG (F35)

X 14 XE

Z 14 XE

18 03/1998-07/2004 1389 66 90 1
1.6 LPG (F35)

X 16 XEL

Z 16 XE

18 03/1998-07/2004 1598 74 101 1
1.6 LPG (F35)

Z 16 XEP

18 06/2002-07/2004 1598 76 103 1
1.7 CDTI (F35)

Z 17 DTL

2 04/2003-05/2004 1686 59 80 1
1.7 DTI 16V (F35)

Y 17 DT

2 02/2000-07/2004 1686 55 75 1
1.7 TD (F35)

X 17 DTL

2 02/1998-08/2000 1699 50 68 1
2.0 DI (F35)

X 20 DTL

Y 20 DTL

2 02/1998-07/2004 1995 60 82 1
2.0 DTI 16V (F35)

Y 20 DTH

2 08/1999-07/2004 1995 74 101 1
2.2 DTI (F35)

Y 22 DTR

2 09/2002-07/2004 2172 86 117 1
2.2 DTI (F35)

Y 22 DTR

2 09/2002-07/2004 2172 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
1.2 16V (F69)

X 12 XE

1 09/1998-09/2000 1199 48 65 1
1.2 16V (F69)

Z 12 XE

1 09/2000-01/2005 1199 55 75 1
1.4 (F69)

Z 14 XEP

1 09/2007-12/2009 1364 66 90 1
1.4 16V (F69)

X 14 XE

Z 14 XE

1 09/1998-01/2005 1389 66 90 1
1.6 (F69)

X 16 SZR

1 09/1998-09/2000 1598 55 75 1
1.6 (F69)

Z 16 SE

1 09/2000-01/2005 1598 62 84 1
1.6 (F69)

Z 16 XEP

1 12/2002-12/2009 1598 76 103 1
1.6 16V (F69)

X 16 XEL

Z 16 XE

1 09/1998-01/2005 1598 74 101 1
1.8 1 02/2003-01/2005 1796 81 110 1
1.8 16V (F69)

X 18 XE1

1 09/1998-09/2000 1796 85 116 1
1.8 16V (F69)

Z 18 XE

1 06/2000-01/2005 1796 92 125 1
2.0 16V (F69)

X 20 XEV

1 09/1998-01/2005 1998 100 136 1
2.2 16V (F69)

Z 22 SE

1 03/2001-01/2005 2198 108 147 1
1.4 LPG (F69)

X 14 XE

Z 14 XE

18 03/1998-01/2005 1389 66 90 1
1.6 LPG (F69)

X 16 XEL

Z 16 XE

18 06/2002-01/2005 1598 74 101 1
1.7 CDTI (F69)

Z 17 DTL

2 04/2003-12/2009 1686 59 80 1
1.7 DTI 16V (F69)

Y 17 DT

2 02/2000-01/2005 1686 55 75 1
1.7 TD (F69)

X 17 DTL

2 09/1998-08/2000 1699 50 68 1
2.0 DI (F69)

X 20 DTL

Y 20 DTL

2 09/1998-01/2005 1995 60 82 1
2.0 DTI 16V (F69)

Y 20 DTH

2 08/1999-01/2005 1995 74 101 1
2.2 DTI (F69)

Y 22 DTR

2 09/2002-01/2005 2172 86 117 1
2.2 DTI (F69)

Y 22 DTR

2 09/2002-01/2005 2172 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
1.2 (F70)

X 12 XE

1 09/1998-08/2000 1199 48 65 1
1.4 (F70)

X 14 XE

Z 14 XE

1 09/1998-04/2005 1389 66 90 1
1.4 ABS 1 09/1998- 1395 65 89 1
1.6 (F70)

X 16 SZR

1 01/1999-09/2000 1598 55 75 1
1.6 (F70)

Z 16 SE

1 09/2000-04/2005 1598 62 84 1
1.6 (F70)

C 16 SEL

Z 16 XE

1 09/1998-01/2004 1598 74 101 1
1.6 (F70)

Z 16 XEP

1 02/2004-11/2004 1598 76 103 1
1.6 Manual ABS 1 09/1998- 1595 74 100 1
1.7 CDTi (F70)

Z 17 DTL

2 07/2003-11/2004 1686 59 80 1
1.7 DTI 16V (F70)

Y 17 DT

2 02/2000-04/2005 1686 55 75 1
1.7 TD (F70)

X 17 DTL

2 01/1999-04/2005 1699 50 68 1
2.0 DI (F70)

X 20 DTL

Y 20 DTL

2 01/1999-04/2005 1995 60 82 1
2.0 DTI (F70)

Y 20 DTH

2 09/2000-04/2005 1995 74 101 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 16V (F07)

Z 16 XE

1 03/2000-05/2005 1598 74 101 1
1.6 16V (F07)

Z 16 XEP

1 03/2000-05/2005 1598 76 103 1
1.8 16V (F07)

X 18 XE1

1 03/2000-10/2000 1796 85 116 1
1.8 16V (F07)

Z 18 XE

1 09/2000-05/2005 1796 92 125 1
2.0 16V Turbo (F07)

Z 20 LET

1 09/2000-08/2001 1998 140 190 1
2.0 16V Turbo (F07)

Z 20 LET

1 08/2001-05/2005 1998 141 192 1
2.0 16V Turbo (F07)

Z 20 LET

1 11/2002-05/2005 1998 147 200 1
2.2 16V (F07)

Z 22 SE

1 09/2000-05/2005 2198 108 147 1
2.2 DTI (F07)

Y 22 DTR

2 09/2002-05/2005 2172 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 (F67)

Z 16 XEP

1 01/2003-10/2005 1598 76 103 1
1.6 16V (F67)

Z 16 XE

1 03/2001-10/2005 1598 74 101 1
1.8 16V (F67)

Z 18 XE

1 03/2001-10/2005 1796 92 125 1
2.0 16V Turbo (F67)

Z 20 LET

1 11/2002-10/2005 1998 147 200 1
2.0 OPC (F67)

Z 20 LET

1 03/2002-10/2005 1998 141 192 1
2.2 16V (F67)

Z 22 SE

1 03/2001-10/2005 2198 108 147 1
2.2 DTI (F67)

Y 22 DTR

2 09/2002-10/2005 2172 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V (F69)

Z 14 XE

1 05/2004-07/2009 1389 66 90 1
1.6 16V (F69)

Z 16 XE

1 03/2004-01/2008 1598 74 101 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V (F08, F48)

Z 14 XE

1 05/2004-07/2009 1389 66 90 1
1.6 (F08, F48)

Z 16 XEP

1 03/2006-06/2008 1598 76 103 1
1.6 16V (F08, F48)

Z 16 XE

1 05/2004-02/2006 1598 74 101 1
1.7 CDTI (F08, F48)

Z 17 DTL

2 06/2004-07/2009 1686 59 80 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (F35)

Z 14 XEP

1 10/2007-07/2009 1364 66 90 1
1.4 16V

Z 14 XE

1 07/2004-09/2007 1389 66 90 1
1.6

Z 16 XE

1 06/2004-02/2006 1598 74 101 1
1.6

Z 16 XEP

1 02/2006-07/2009 1598 76 103 1
1.7 CDTi

Z 17 DTL

2 05/2004-07/2009 1686 59 80 1
Vehicle Engine Fuel Date CC KW CV Traction
1.2 1 10/2006- 1199 48 65 1
1.2 (L48)

Z 12 XEP

1 08/2005-10/2010 1229 59 80 1
1.4 1 04/2004-10/2004 1364 59 80 1
1.4 (L48)

Z 14 XEL

1 04/2004-10/2004 1364 55 75 1
1.4 (L48)

Z 14 XEP

1 03/2004-10/2010 1364 66 90 1
1.6 (L48)

Z 16 XE1

Z 16 XEP

1 03/2004-10/2010 1598 77 105 1
1.6 (L48)

A 16 XER

Z 16 XER

1 12/2006-05/2014 1598 85 116 1
1.6 CNG 1 11/2005- 1598 69 94 1
1.6 Turbo (L48)

A 16 LET

Z 16 LET

1 02/2007-10/2010 1598 132 180 1
1.8 (L48)

Z 18 XE

1 01/2004-10/2010 1796 92 125 1
1.8 (L48)

A 18 XER

Z 18 XER

1 01/2006-10/2010 1796 103 140 1
2.0 Turbo (L48)

Z 20 LEL

1 03/2004-10/2010 1998 125 170 1
2.0 Turbo (L48)

Z 20 LER

1 09/2004-10/2010 1998 147 200 1
2.0 Turbo (L48)

Z 20 LEH

1 03/2005-10/2010 1998 177 240 1
1.4 LPG (L48)

Z 14 XEP

18 08/2009-10/2010 1364 66 90 1
1.3 CDTI (L48)

Z 13 DTH

2 08/2005-10/2010 1248 66 90 1
1.7 CDTI (L48)

Z 17 DTL

2 03/2004-10/2010 1686 59 80 1
1.7 CDTI (L48)

Z 17 DTH

2 03/2004-10/2010 1686 74 100 1
1.7 CDTI (L48)

A 17 DTJ

Z 17 DTJ

2 02/2007-05/2014 1686 81 110 1
1.7 CDTI (L48)

A 17 DTR

Z 17 DTR

2 02/2007-05/2014 1686 92 125 1
1.9 CDTI (L48)

Z 19 DTL

2 09/2005-10/2010 1910 74 100 1
1.9 CDTI (L48)

Z 19 DT

2 06/2004-10/2010 1910 88 120 1
1.9 CDTI (L48)

Z 19 DTH

2 09/2004-10/2010 1910 110 150 1
1.9 CDTI 16V (L48)

Z 19 DTJ

2 04/2004-10/2010 1910 88 120 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 EcoTec (L70)

Z 14 XEP

1 12/2004-12/2012 1364 66 90 1
1.6 EcoTec (L70)

Z 16 XEP

1 02/2004-11/2004 1598 76 103 1
1.6 EcoTec (L70)

Z 16 XER

1 10/2006-12/2010 1598 85 116 1
1.3 CDTI (L70)

Z 13 DTH

2 08/2005-10/2010 1248 66 90 1
1.7 CDTI (L70)

Z 17 DTL

2 12/2004-07/2007 1686 59 80 1
1.7 CDTI (L70)

Z 17 DTH

2 03/2004-10/2010 1686 74 101 1
1.7 CDTI (L70)

A 17 DTJ

Z 17 DTJ

2 02/2007-10/2014 1686 81 110 1
1.7 CDTI (L70)

A 17 DTR

Z 17 DTR

2 02/2007-10/2010 1686 92 125 1
1.9 CDTI (L70)

Z 19 DTL

2 08/2005-12/2012 1910 74 101 1
1.9 CDTI (L70)

Z 19 DT

2 09/2005-10/2010 1910 88 120 1
1.9 CDTI (L70)

Z 19 DTH

2 09/2004-10/2010 1910 110 150 1
1.9 CDTI 16V (L70)

Z 19 DTJ

2 08/2004-10/2010 1910 88 120 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (L35)

Z 14 XEL

1 08/2004-10/2010 1364 55 75 1
1.4 (L35)

Z 14 XEP

1 08/2004-10/2010 1364 66 90 1
1.6 (L35)

Z 16 XE1

Z 16 XEP

1 08/2004-10/2010 1598 77 105 1
1.6 (L35)

A 16 XER

Z 16 XER

1 12/2006-05/2014 1598 85 116 1
1.6 CNG 1 11/2005- 1598 69 94 1
1.6 Turbo (L35)

A 16 LET

Z 16 LET

1 02/2007-10/2010 1598 132 180 1
1.8 (L35)

Z 18 XE

1 08/2004-10/2010 1796 92 125 1
1.8 (L35)

A 18 XER

Z 18 XER

1 08/2005-05/2014 1796 103 140 1
2.0 Turbo (L35)

Z 20 LEL

1 08/2004-10/2010 1998 125 170 1
2.0 Turbo (L35)

Z 20 LER

1 09/2004-10/2010 1998 147 200 1
1.4 LPG (L35)

Z 14 XEP

18 08/2009-10/2010 1364 66 90 1
1.6 LPG (L35)

Z 16 XER

18 08/2009-10/2010 1598 85 116 1
1.3 CDTI (L35)

Z 13 DTH

2 08/2005-10/2010 1248 66 90 1
1.7 CDTI (L35)

Z 17 DTL

2 08/2004-10/2010 1686 59 80 1
1.7 CDTI (L35)

Z 17 DTH

2 08/2004-10/2010 1686 74 101 1
1.7 CDTI (L35)

A 17 DTJ

Z 17 DTJ

2 02/2007-05/2014 1686 81 110 1
1.7 CDTI (L35)

A 17 DTR

Z 17 DTR

2 02/2007-05/2014 1686 92 125 1
1.9 CDTI 2 12/2004- 1910 103 140 2
1.9 CDTI (L35)

Z 19 DTL

2 09/2005-10/2010 1910 74 100 1
1.9 CDTI (L35)

Z 19 DT

2 09/2005-10/2010 1910 88 120 1
1.9 CDTI (L35)

Z 19 DTH

2 09/2004-10/2010 1910 110 150 1
1.9 CDTI 16V (L35)

Z 19 DTJ

2 08/2004-10/2010 1910 88 120 1
Vehicle Engine Fuel Date CC KW CV Traction
1.2 1 10/2006- 1199 48 65 1
1.2 (L08) 1 08/2005-10/2010 1229 59 80 1
1.4 (L08)

Z 14 XEL

1 03/2005-10/2010 1364 55 75 1
1.4 (L08)

Z 14 XEP

1 03/2005-10/2010 1364 66 90 1
1.6 (L08)

Z 16 XE1

Z 16 XEP

1 03/2005-10/2010 1598 77 105 1
1.6 (L08)

Z 16 XER

1 12/2006-10/2010 1598 85 116 1
1.6 CNG 1 11/2005- 1598 69 94 1
1.6 Turbo (L08)

A 16 LET

Z 16 LET

1 02/2007-10/2010 1598 132 180 1
1.8 (L08)

Z 18 XE

1 03/2005-10/2010 1796 92 125 1
1.8 (L08)

Z 18 XER

1 01/2006-10/2010 1796 103 140 1
2.0 Turbo (L08)

Z 20 LEL

1 03/2005-10/2010 1998 125 170 1
2.0 Turbo (L08)

Z 20 LER

1 03/2005-10/2010 1998 147 200 1
2.0 Turbo (L08)

Z 20 LEH

1 08/2005-10/2010 1998 177 240 1
1.3 CDTI (L08)

Z 13 DTH

2 04/2005-10/2010 1248 66 90 1
1.7 CDTi (L08)

Z 17 DTL

2 03/2005-10/2010 1686 59 80 1
1.7 CDTi (L08)

Z 17 DTH

2 03/2005-10/2010 1686 74 101 1
1.7 CDTi (L08)

A 17 DTJ

Z 17 DTJ

2 02/2007-10/2010 1686 81 110 1
1.7 CDTi (L08)

A 17 DTR

Z 17 DTR

2 02/2007-10/2010 1686 92 125 1
1.9 CDTi (L08)

Z 19 DTL

2 01/2006-10/2010 1910 74 101 1
1.9 CDTi (L08)

Z 19 DT

2 09/2005-10/2010 1910 88 120 1
1.9 CDTi (L08)

Z 19 DTH

2 03/2005-10/2010 1910 110 150 1
1.9 CDTi 16V (L08)

Z 19 DTJ

2 03/2005-10/2010 1910 88 120 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (L67)

Z 14 XEP

1 10/2005-10/2010 1364 66 90 1
1.6 (L67)

Z 16 XE1

Z 16 XEP

1 09/2005-10/2010 1598 77 105 1
1.6 (L67)

Z 16 XER

1 12/2006-10/2010 1598 85 116 1
1.6 Turbo (L67)

A 16 LET

Z 16 LET

1 02/2007-10/2010 1598 132 180 1
1.8 (L67)

Z 18 XE

1 09/2005-10/2010 1796 92 125 1
1.8 (L67)

A 18 XER

Z 18 XER

1 09/2005-10/2010 1796 103 140 1
2.0 Turbo (L67)

Z 20 LEL

1 09/2005-10/2010 1998 125 170 1
2.0 Turbo (L67)

Z 20 LER

1 09/2005-10/2010 1998 147 200 1
1.9 CDTi (L67)

Z 19 DTH

2 09/2005-10/2010 1910 110 150 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (L35)

Z 14 XEP

1 01/2009- 1364 66 90 1
1.6 (L35)

Z 16 XER

1 12/2006-05/2014 1598 85 116 1
1.8 (L35)

Z 18 XER

1 01/2012-05/2014 1796 103 140 1
1.7 CDTI (L35)

Z 17 DTJ

2 01/2009- 1686 81 110 1
1.7 CDTI (L35)

A 17 DTR

Z 17 DTR

2 01/2009- 1686 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (L69)

Z 14 XEP

1 02/2007-06/2010 1364 66 90 1
1.6 (L69)

Z 16 XEP

1 02/2007-06/2010 1598 77 105 1
1.6 (L69)

Z 16 XER

1 02/2007-05/2014 1598 85 116 1
1.8 (L69)

A 18 XER

Z 18 XER

1 02/2007-09/2012 1796 103 140 1
1.3 CDTi (L69)

Z 13 DTH

2 02/2007-10/2010 1248 66 90 1
1.7 CDTi (L69)

Z 17 DTH

2 02/2007-10/2010 1686 74 101 1
1.7 CDTi (L69)

Z 17 DTJ

2 02/2007-05/2014 1686 81 110 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 (L69)

Z 16 XER

1 01/2009-05/2014 1598 85 116 1
1.8 (L69)

Z 18 XER

1 02/2007-09/2012 1796 103 140 1
1.7 CDTi (L69)

Z 17 DTJ

2 01/2009- 1686 81 110 1
1.7 CDTi (L69)

A 17 DTR

Z 17 DTR

2 01/2009- 1686 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (L48)

Z 14 XEP

1 01/2009- 1364 66 90 1
1.6 (L48)

Z 16 XER

1 01/2009- 1598 85 116 1
1.8 (L48)

Z 18 XER

1 02/2013- 1796 103 140 1
1.3 CDTI (L48)

Z 13 DTH

2 01/2009- 1248 66 90 1
1.7 CDTI (L48)

A 17 DTJ

Z 17 DTJ

2 01/2009- 1686 81 110 1
1.7 CDTI (L48)

A 17 DTR

Z 17 DTR

2 01/2009- 1686 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V

Z 14 XEP

1 08/2005- 1364 66 90 1
1.6

Z 16 SE

1 10/2001- 1598 64 87 1
1.6 CNG 16V

Z 16 YNG

16 06/2006- 1598 69 94 1
1.6 CNG 16V

Z 16 YNG

16 04/2005- 1598 71 97 1
1.3 CDTI 16V

Z 13 DT

2 08/2005- 1248 51 69 1
1.3 CDTI 16V

Z 13 DTJ

2 10/2005-12/2012 1248 55 75 1
1.7 CDTI 16V

Z 17 DTH

2 12/2004- 1686 74 101 1
1.7 DI 16V

Y 17 DTL

2 10/2001- 1686 48 65 1
1.7 DTI 16V

Y 17 DT

2 10/2001- 1686 55 75 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4

Z 14 XEP

1 10/2004-12/2011 1364 66 90 1
1.6 1 10/2001-09/2006 1598 62 84 1
1.6

Z 16 SE

1 10/2001-09/2006 1598 64 87 1
1.6 CNG

Z 16 YNG

16 06/2006-12/2011 1598 69 94 1
1.6 CNG

Z 16 YNG

16 04/2005-01/2011 1598 71 97 1
1.3 CDTI 16V

Y 13 DT

Z 13 DT

2 06/2004-01/2011 1248 51 69 1
1.3 CDTI 16V

Z 13 DTJ

2 10/2005-12/2011 1248 55 75 1
1.7 CDTI 16V

Z 17 DTH

2 07/2004-12/2011 1686 74 101 1
1.7 DI 16V

Y 17 DTL

2 10/2001-06/2004 1686 48 65 1
1.7 DTI 16V

Y 17 DT

2 10/2001-06/2004 1686 55 75 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 1 07/2000-12/2003 1364 66 90 1
1.4 1 07/2000-05/2001 1389 66 90 1
1.8

Z 18 XEL

1 01/2002-12/2005 1796 79 107 1
Vehicle Engine Fuel Date CC KW CV Traction
1.3 CDTI 16V (F08, W5L)

Z 13 DT

2 07/2005-06/2006 1248 51 69 1
1.3 CDTI 16V (F08, W5L)

Z 13 DT

2 07/2005-06/2006 1248 59 80 1
Vehicle Engine Fuel Date CC KW CV Traction
1.7 CDTi

Z 17 DTH

2 01/2005-12/2008 1686 74 100 1
Vehicle Engine Fuel Date CC KW CV Traction
1.0 (F08, F68)

Z 10 XE

1 09/2000-06/2003 973 43 58 1
1.0 (F08, F68)

Z 10 XEP

1 06/2003-12/2009 998 44 60 1
1.2 (F08, F68)

Z 12 XE

1 09/2000-12/2009 1199 55 75 1
1.2 Twinport (F08, F68)

Z 12 XEP

1 07/2004-12/2009 1229 59 80 1
1.4 (F08, F68) 1 01/2002-12/2009 1389 60 82 1
1.4 Twinport (F08, F68)

Z 14 XEP

1 06/2003-12/2009 1364 66 90 1
1.6 1 05/2003-12/2009 1598 69 92 1
1.6 (F08, F68) 1 09/2000-12/2009 1598 62 84 1
1.8 (F08, F68)

Z 18 XEL

1 01/2002-12/2009 1796 79 107 1
1.3 CDTI (F08, F68)

Y 13 DT

Z 13 DT

2 06/2003-12/2009 1248 51 70 1
1.7 CDTI (F08, F68)

Z 17 DTH

2 06/2003-12/2009 1686 74 100 1
1.7 DI (F08, F68)

Y 17 DTL

2 09/2000-12/2009 1686 48 65 1
1.7 DTI (F08, F68)

Y 17 DT

2 09/2000-12/2009 1686 55 75 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V Twinport (E75)

Z 14 XEP

1 07/2004-05/2010 1364 66 90 1
1.6 (E75)

Z 16 SE

1 05/2003-05/2010 1598 64 87 1
1.6 (E75)

Z 16 XEP

1 01/2006-05/2010 1598 77 105 1
1.6 16V (E75)

Z 16 XE

1 05/2003-01/2006 1598 74 100 1
1.6 Turbo (E75)

Z 16 LET

1 09/2005-05/2010 1598 132 180 1
1.8 (E75)

Z 18 XE

1 05/2003-05/2010 1796 92 125 1
1.4 16V Twinport LPG (E75)

Z 14 XEP

18 07/2004-05/2010 1364 66 90 1
1.3 CDTI (E75)

Y 13 DT

Z 13 DT

2 04/2005-05/2010 1248 51 69 1
1.3 CDTI (E75)

Z 13 DTJ

2 09/2003-05/2010 1248 55 75 1
1.7 CDTI (E75)

Z 17 DT

Z 17 DTH

2 09/2003-05/2010 1686 74 100 1
1.7 CDTI (E75)

Z 17 DTR

2 09/2006-05/2010 1686 92 125 1
1.7 DTI (E75)

Y 17 DT

2 09/2003-05/2010 1686 55 75 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (75)

A 14 NEL

B 14 NEL

1 06/2010-03/2017 1364 88 120 1
1.4 (75)

A 14 NET

B 14 NET

1 06/2010-03/2017 1364 103 140 1
1.4 (75)

A 14 XER

B 14 XER

1 06/2010-03/2017 1398 74 100 1
1.4 LPG (75)

A 14 NEL

B 14 NEL

18 06/2011-03/2017 1364 88 120 1
1.3 CDTI (75)

A 13 DTC

2 06/2010-10/2013 1248 55 75 1
1.3 CDTI (75)

A 13 DTE

2 06/2010-11/2014 1248 70 95 1
1.6 CDTi (75)

B 16 DTC

2 01/2014-01/2017 1598 70 95 1
1.6 CDTi (75)

B 16 DTE

B 16 DTL

B 16 DTN

2 03/2014-03/2017 1598 81 110 1
1.6 CDTi (75)

B 16 DTH

2 08/2013-01/2017 1598 100 136 1
1.7 CDTI (75)

A 17 DT

2 06/2010-01/2017 1686 74 100 1
1.7 CDTI (75)

A 17 DTC

A 17 DTI

2 06/2010-06/2015 1686 81 110 1
1.7 CDTI (75)

A 17 DTS

2 06/2010-10/2013 1686 96 131 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 ECOTEC (75) 1 01/2013-03/2017 1398 74 101 1
1.3 CDTI (75) 2 01/2013-11/2014 1248 70 95 1
1.6 CDTi (75) 2 01/2014-01/2017 1598 70 95 1
1.6 CDTi (75) 2 03/2014-03/2017 1598 81 110 1
1.7 CDTI (75) 2 01/2013-01/2017 1686 74 101 1
1.7 CDTI (75) 2 01/2013-10/2013 1686 81 110 1
1.7 CDTI (75) 2 01/2013-10/2013 1686 96 131 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 (F75)

Z 16 XE

1 10/2003-06/2005 1598 76 103 1
1.6 16V (F75)

X 16 XEL

Z 16 XE

1 04/1999-06/2005 1598 74 101 1
1.8 1 02/2003-06/2005 1796 81 110 1
1.8 16V (F75)

X 18 XE1

1 04/1999-09/2000 1796 85 116 1
1.8 16V (F75)

Z 18 XE

1 09/2000-06/2005 1796 92 125 1
2.0 OPC (F75)

Z 20 LET

1 09/2001-06/2005 1998 141 192 1
2.0 OPC (F75)

Z 20 LET

1 11/2002-06/2005 1998 147 200 1
2.2 16V (F75)

Z 22 SE

1 09/2000-06/2005 2198 108 147 1
1.6 CNG (F75)

Z 16 YNG

16 09/2001-06/2005 1598 71 97 1
1.6 LPG (F75)

X 16 XEL

Z 16 XE

18 04/1999-06/2005 1598 74 101 1
1.6 LPG (F75)

Z 16 XEP

18 10/2003-06/2005 1598 76 103 1
2.0 DI (F75) 2 07/1999-06/2000 1995 63 86 1
2.0 DI 16V (F75)

X 20 DTL

Y 20 DTL

2 07/1999-06/2005 1995 60 82 1
2.0 DTI 16V (F75)

Y 20 DTH

2 09/2000-06/2005 1995 74 101 1
2.2 DTI 16V (F75)

Y 22 DTR

2 01/2002-06/2005 2172 86 117 1
2.2 DTI 16V (F75)

Y 22 DTR

2 01/2002-06/2005 2172 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
1.8 VAN (M75)

A 18 XER

Z 18 XER

1 07/2005-04/2015 1796 103 140 1
1.6 CNG Turbo VAN (M75)

A 16 XNT

Z 16 XNT

16 02/2009-04/2015 1598 110 150 1
1.7 CDTI VAN (M75)

A 17 DTJ

Z 17 DTJ

2 01/2008-04/2015 1686 81 110 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 (M75)

Z 16 XE1

Z 16 XEP

1 07/2005-09/2012 1598 77 105 1
1.6 (M75)

A 16 XER

Z 16 XER

1 01/2008-04/2015 1598 85 115 1
1.8 (M75)

A 18 XER

Z 18 XER

1 07/2005-04/2015 1796 103 140 1
2.0 (M75)

Z 20 LER

1 07/2005-12/2010 1998 147 200 1
2.0 (M75)

Z 20 LEH

1 01/2006-12/2010 1998 177 241 1
2.2 (M75)

Z 22 YH

1 07/2005-12/2012 2198 110 150 1
1.6 CNG (M75)

Z 16 YNG

16 07/2005-04/2015 1598 69 94 1
1.6 CNG Turbo (M75)

A 16 XNT

Z 16 XNT

16 04/2010-04/2015 1598 110 150 1
1.7 CDTI (M75)

A 17 DTJ

Z 17 DTJ

2 01/2008-04/2015 1686 81 110 1
1.7 CDTI (M75)

A 17 DTR

2 03/2007-04/2015 1686 92 125 1
1.9 CDTI (M75)

Z 19 DTL

2 07/2005-12/2010 1910 74 100 1
1.9 CDTI (M75)

Z 19 DT

2 07/2005-04/2015 1910 88 120 1
1.9 CDTI (M75)

Z 19 DTH

2 07/2005-04/2015 1910 110 150 1
Vehicle Engine Fuel Date CC KW CV Traction
1.8

2H0

1 09/2007-12/2009 1796 104 141 1
All models 1 09/2003- 1
Vehicle Engine Fuel Date CC KW CV Traction
2.2 1 08/2000-08/2005 2198 108 147 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V

Z 14 XE

1 09/2000-05/2005 1389 66 90 1
1.6 i

X 16 SZR

1 08/1998-09/2000 1598 55 75 1
1.6 i

Z 16 SE

1 09/2000-08/2006 1598 62 84 1
1.6 Dualfuel

X 16 SZR

18 02/1998-12/2000 1598 55 75 1
1.6 Dualfuel

Z 16 SE

18 09/2000-10/2004 1598 62 84 1
1.6 Dualfuel

Z 16 XE

18 07/2000-08/2005 1598 74 101 1
1.6 Dualfuel 16V

Z 16 XEP

18 10/2004-12/2005 1598 77 105 1
1.7 CDTi

Z 17 DTL

2 07/2003-08/2006 1686 59 80 1
1.7 DTI 16V

Y 17 DT

2 04/2001-08/2006 1686 55 75 1
1.7 TD

X 17 DTL

2 08/1998-08/2006 1700 50 68 1
2.0 DI

X 20 DTL

Y 20 DTL

2 08/1998-08/2006 1995 60 82 1
2.0 DTI

Y 20 DTH

2 04/2004-08/2006 1995 74 100 1
Vehicle Engine Fuel Date CC KW CV Traction
1.2 16V (F08, F48) 1 09/2000-05/2005 1199 55 75 1
1.4 16V (F08, F48)

X 14 XE

Z 14 XE

1 02/1998-05/2005 1389 66 90 1
1.6 (F08, F48)

X 16 SZR

1 02/1998-09/2000 1598 55 75 1
1.6 (F08, F48)

Z 16 SE

1 09/2000-05/2005 1598 62 84 1
1.6 16V (F08, F48)

X 16 XEL

Z 16 XE

1 02/1998-05/2005 1598 74 101 1
1.8 16V (F08, F48)

X 18 XE1

1 02/1998-09/2000 1796 85 116 1
1.8 16V (F08, F48)

Z 18 XE

1 09/2000-05/2005 1796 92 125 1
2.0 (F08)

Z 20 LET

1 08/2002-05/2005 1998 147 199 1
2.0 16V (F08)

X 20 XEV

1 02/1998-05/2005 1998 100 136 1
2.0 SRI Turbo (F08)

Z 20 LET

1 11/2001-05/2005 1998 141 192 1
2.2 16V (F08, F48)

Z 22 SE

1 03/2001-05/2005 2198 108 147 1
1.4 16V Dualfuel (F08, F48)

X 14 XE

Z 14 XE

18 09/1999-06/2003 1389 66 90 1
1.6 Dualfuel (F08)

Z 16 SE

18 07/2000-05/2005 1598 62 86 1
1.6 Dualfuel (F08, F48)

X 16 SZR

18 02/1998-12/2000 1598 55 75 1
1.6 Dualfuel (F08, F48)

Z 16 SE

18 09/2002-05/2005 1598 63 85 1
1.6 Dualfuel (F08, F48)

X 16 XEL

Z 16 XE

18 09/1999-08/2004 1598 74 101 1
1.8 16V Dualfuel (F08, F48)

Z 18 XE

18 09/2002-05/2005 1796 87 118 1
1.8 16V Dualfuel (F08, F48)

Z 18 XE

18 07/2002-12/2003 1796 92 125 1
1.7 CDTI 16V (F08, F48)

Z 17 DTL

2 04/2003-05/2005 1686 59 80 1
1.7 DTI 16V (F08, F48)

Y 17 DT

2 02/2000-05/2005 1686 55 75 1
1.7 TD (F08, F48)

X 17 DTL

2 02/1998-08/2000 1700 50 68 1
2.0 DI (F48)

X 20 DTL

Y 20 DTL

2 02/1998-05/2005 1995 60 82 1
2.0 DTI 16V (F48)

Y 20 DTH

2 08/1999-05/2005 1995 74 101 1
Vehicle Engine Fuel Date CC KW CV Traction
1.2 16V 1 09/2000-05/2005 1199 55 75 1
1.4 16V

X 14 XE

Z 14 XE

1 09/1998-05/2005 1389 66 90 1
1.6

X 16 SZR

1 09/1998-09/2000 1598 55 75 1
1.6

Z 16 SE

1 09/2000-05/2005 1598 62 84 1
1.6 16V

X 16 XEL

Z 16 XE

1 09/1998-05/2005 1598 74 101 1
1.8 16V

X 18 XE1

1 02/1998-07/2004 1796 85 116 1
1.8 16V

Z 18 XE

1 02/1998-07/2004 1796 92 125 1
2.0 16V

X 20 XEV

1 09/1998-05/2005 1998 100 136 1
2.0 16V 1 10/1999-05/2005 1998 118 160 1
2.2 16V 1 03/2001-05/2005 2198 108 147 2
1.6 Dualfuel 18 02/1998-12/2000 1598 55 75 1
1.6 Dualfuel

Z 16 SE

18 07/2000-05/2005 1598 62 86 1
1.6 Dualfuel

Z 16 SE

18 09/2002-05/2005 1598 63 85 1
1.6 Dualfuel

X 16 XEL

Z 16 XE

18 09/1999-08/2004 1598 74 101 1
1.8 16V Dualfuel

Z 18 XE

18 02/1998-07/2004 1796 87 118 1
1.8 16V Dualfuel 18 07/2002-12/2003 1796 92 125 1
1.7 CDTI 16V

Z 17 DTL

2 04/2003-05/2005 1686 59 80 1
1.7 DTI 16V

Y 17 DT

2 02/2000-05/2005 1686 55 75 1
1.7 TD

X 17 DTL

2 09/1998-08/2000 1700 50 68 1
2.0 DI

X 20 DTL

Y 20 DTL

2 02/1998-07/2004 1995 60 82 1
2.0 DTI 16V

Y 20 DTH

2 02/1998-07/2004 1995 74 101 1
Vehicle Engine Fuel Date CC KW CV Traction
1.2 16V 1 09/2000-05/2005 1199 55 75 1
1.4 16V

X 14 XE

Z 14 XE

1 02/1998-05/2005 1389 66 90 1
1.6

X 16 SZR

1 03/1998-04/2004 1598 55 75 1
1.6

Z 16 SE

1 03/1998-04/2004 1598 62 84 1
1.6

Z 16 XEP

1 12/2002-05/2005 1598 76 103 1
1.6 16V

X 16 XEL

Z 16 XE

1 03/1998-04/2004 1598 74 101 1
1.8 16V

X 18 XE1

1 02/1998-08/2000 1796 85 116 1
1.8 16V

Z 18 XE

1 09/2000-05/2005 1796 92 125 1
2.0 16V 1 02/1998-05/2005 1998 100 136 1
2.2 16V

Z 22 SE

1 03/2001-05/2005 2198 108 147 1
1.4 16V Dualfuel

X 14 XE

Z 14 XE

18 09/1999-06/2003 1389 66 90 1
1.6 Dualfuel

X 16 SZR

18 02/1998-12/2000 1598 55 75 1
1.6 Dualfuel

Z 16 SE

18 07/2000-05/2005 1598 62 86 1
1.6 Dualfuel

Z 16 SE

18 03/1998-04/2004 1598 63 85 1
1.6 Dualfuel

X 16 XEL

Z 16 XE

18 09/1999-08/2004 1598 74 101 1
1.8 16V Dualfuel

Z 18 XE

18 09/2002-05/2005 1796 87 118 1
1.8 16V Dualfuel

Z 18 XE

18 07/2002-12/2003 1796 92 125 1
1.7 CDTI 16V

Z 17 DTL

2 04/2003-05/2005 1686 59 80 1
1.7 DTI 16V

Y 17 DT

2 02/2000-05/2005 1686 55 75 1
1.7 TD

X 17 DTL

2 02/1998-08/2000 1700 50 68 1
2.0 DI

X 20 DTL

Y 20 DTL

2 03/1998-04/2004 1995 60 82 1
2.0 DTI 16V

Y 20 DTH

2 03/1998-04/2004 1995 74 101 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 16V

Z 16 XEP

1 03/2000-08/2005 1598 76 103 1
1.8 16V

X 18 XE1

1 03/2000-08/2005 1796 85 115 1
1.8 16V

Z 18 XE

1 09/2000-08/2005 1796 92 125 1
2.0 16V Turbo

Z 20 LET

1 09/2000-08/2005 1998 140 190 1
2.2 16V

Z 22 SE

1 03/2000-08/2005 2198 108 147 1
1.8 16V Dualfuel

Z 18 XE

18 09/2002-08/2005 1796 87 118 1
1.8 16V Dualfuel

Z 18 XE

18 07/2002-08/2004 1796 92 125 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 16V

Z 16 XE

1 03/2001-10/2005 1598 74 101 1
1.6 16V

Z 16 XEP

1 03/2003-10/2005 1598 76 103 1
1.8 16V

Z 18 XE

1 03/2001-10/2005 1796 92 125 1
2.0

Z 20 LET

1 09/2002-10/2005 1998 147 200 1
2.0 Turbo

Z 20 LET

1 03/2002-10/2005 1998 141 192 1
2.2 16V

Z 22 SE

1 03/2001-10/2005 2198 108 147 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (L48)

Z 14 XEP

1 01/2004-05/2009 1364 66 90 1
1.6 (L48)

Z 16 XE1

Z 16 XEP

1 01/2004-05/2009 1598 77 105 1
1.6 (L48)

A 16 XER

Z 16 XER

1 01/2004-05/2009 1598 85 115 1
1.6 Turbo (L48)

A 16 LET

Z 16 LET

1 09/2006-09/2009 1598 132 180 1
1.8 (L48)

Z 18 XE

1 01/2004-05/2009 1796 92 125 1
1.8 (L48)

A 18 XER

Z 18 XER

1 01/2004-05/2009 1796 103 140 1
2.0 Turbo (L48)

Z 20 LEL

1 01/2004-05/2009 1998 125 170 1
2.0 Turbo (L48)

Z 20 LER

1 01/2004-05/2009 1998 147 200 1
2.0 Turbo (L48)

Z 20 LEH

1 01/2004-05/2009 1998 177 240 1
1.3 CDTI (L48)

Z 13 DTH

2 01/2004-05/2009 1248 66 90 1
1.7 CDTI (L48)

Z 17 DTL

2 01/2004-05/2009 1686 59 80 1
1.7 CDTI (L48)

Z 17 DTH

2 01/2004-05/2009 1686 74 100 1
1.7 CDTI (L48)

A 17 DTJ

Z 17 DTJ

2 01/2004-03/2011 1686 81 110 1
1.7 TD 2 01/2004-05/2009 1686 79 108 2
1.9 CDTI (L48)

Z 19 DT

2 01/2004-05/2009 1910 88 120 1
1.9 CDTI (L48)

Z 19 DTH

2 01/2004-05/2009 1910 110 150 1
1.9 CDTI 16V (L48)

Z 19 DTJ

2 01/2004-05/2009 1910 88 120 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (L35)

Z 14 XEP

1 08/2004-03/2009 1364 66 90 1
1.6 (L35)

Z 16 XE1

Z 16 XEP

1 08/2004-03/2009 1598 77 105 1
1.6 (L35)

Z 16 XER

1 08/2004-03/2011 1598 85 115 1
1.6 (L35)

A 16 LET

Z 16 LET

1 08/2004-03/2009 1598 132 180 1
1.8 (L35)

Z 18 XE

1 10/2004-03/2009 1796 92 125 1
1.8 (L35)

A 18 XER

Z 18 XER

1 12/2005-10/2010 1796 103 140 1
2.0 Turbo (L35)

Z 20 LEL

1 08/2004-10/2010 1998 125 170 1
2.0 Turbo (L35)

Z 20 LER

1 08/2004-10/2010 1998 147 200 1
1.3 CDTI (L35)

Z 13 DTH

2 08/2004-03/2009 1248 66 90 1
1.7 CDTI (L35)

Z 17 DTL

2 08/2004-05/2009 1686 59 80 1
1.7 CDTI (L35)

Z 17 DTH

2 08/2004-03/2009 1686 74 100 1
1.7 CDTI (L35)

A 17 DTJ

Z 17 DTJ

2 08/2004-10/2012 1686 81 110 1
1.7 TD 2 08/2004-03/2009 1686 79 108 2
1.9 CDTI 2 08/2004-03/2009 1910 88 120 2
1.9 CDTI (L35) 2 08/2004-03/2009 1910 74 100 1
1.9 CDTI (L35)

Z 19 DT

2 08/2004-03/2009 1910 88 120 1
1.9 CDTI (L35)

Z 19 DTH

2 08/2004-03/2009 1910 110 150 1
1.9 CDTI 16V (L35)

Z 19 DTJ

2 08/2004-03/2009 1910 88 120 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 i 16V (L08)

Z 14 XEP

1 03/2005-11/2010 1364 66 90 1
1.6 (L08)

Z 16 XEP

1 02/2005-11/2010 1598 77 105 1
1.6 (L08)

A 16 LET

Z 16 LET

1 10/2006-11/2010 1598 132 179 1
1.6 i 16V (L08)

A 16 XER

Z 16 XER

1 12/2006-11/2010 1598 85 116 1
1.8 (L08)

Z 18 XE

1 02/2005-11/2010 1796 92 125 1
1.8 i 16V (L08)

A 18 XER

Z 18 XER

1 03/2007-11/2010 1796 103 140 1
2.0 Turbo (L08)

Z 20 LEL

1 02/2005-11/2010 1998 125 170 1
2.0 VXR (L08)

Z 20 LEH

1 02/2009-11/2010 1998 176 240 1
1.3 CDTI (L08)

Z 13 DTH

2 04/2005-11/2010 1248 66 90 1
1.7 CDTi (L08)

Z 17 DTH

2 02/2005-11/2010 1686 74 100 1
1.7 CDTi (L08)

A 17 DTJ

Z 17 DTJ

2 02/2007-11/2009 1686 81 110 1
1.9 CDTi (L08)

Z 19 DTL

2 08/2005-11/2010 1910 74 101 1
1.9 CDTi (L08)

Z 19 DT

2 02/2005-11/2010 1910 88 120 1
1.9 CDTi (L08)

Z 19 DTH

2 02/2005-11/2010 1910 110 150 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 i

Z 14 XEP

1 03/2005- 1364 66 90 1
1.6

Z 16 XE1

Z 16 XEP

1 03/2005- 1598 76 103 1
1.3 CDTi

Z 13 DTH

2 08/2005- 1248 66 90 1
1.7 CDTi

Z 17 DTL

2 03/2005-07/2006 1686 59 80 1
1.7 CDTi

Z 17 DTH

2 03/2005-11/2011 1686 74 101 1
1.7 CDTi

A 17 DTJ

Z 17 DTJ

2 06/2011-12/2013 1686 81 110 1
1.7 CDTi

A 17 DTR

Z 17 DTR

2 11/2011- 1686 92 125 1
1.9 CDTI

Z 19 DT

2 03/2005-11/2011 1910 88 120 1
1.9 CDTI

Z 19 DTH

2 03/2005-11/2011 1910 110 150 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 1 10/2006-11/2010 1598 132 179 1
1.6 (L67)

Z 16 XEP

1 09/2005-11/2010 1598 77 105 1
1.6 i 16V (L67)

A 16 XER

Z 16 XER

1 10/2006-08/2011 1598 85 116 1
1.8 (L67)

A 18 XER

Z 18 XER

1 05/2008-11/2010 1796 103 140 1
2.0 (L67)

Z 20 LEL

1 02/2006-11/2010 1998 125 170 1
2.0 Turbo (L67)

Z 20 LER

1 01/2006-11/2010 1998 147 200 1
1.9 CDTi (L67)

Z 19 DTH

2 01/2006-11/2010 1910 110 150 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V

Z 14 XE

1 10/2001-05/2007 1389 66 90 1
1.4 i 16V

Z 14 XEP

1 01/2004-11/2011 1364 66 90 1
1.6

Z 16 SE

1 09/2001-10/2004 1598 62 84 1
1.6

Z 16 SE

1 10/2001-11/2011 1598 64 87 1
1.6 CNG 16V

Y 16 YNG

Z 16 YNG

16 06/2006-02/2012 1598 69 94 1
1.6 CNG 16V

Z 16 YNG

16 04/2005-02/2012 1598 71 97 1
1.3 CDTI 16V

Y 13 DT

Z 13 DT

2 09/2004-02/2012 1248 51 69 1
1.3 CDTI 16V

Z 13 DTJ

2 10/2005-11/2011 1248 55 75 1
1.7 CDTI 16V

Z 17 DTH

2 12/2004-11/2011 1686 74 101 1
1.7 DI 16V

Y 17 DTL

2 09/2001-11/2011 1686 48 65 1
1.7 DTI 16V

Y 17 DT

2 10/2001-11/2011 1686 55 75 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4

Z 14 XEP

1 10/2004-09/2010 1364 66 90 1
1.6

Z 16 SE

1 10/2001-06/2004 1598 64 87 1
1.6 CNG

Z 16 YNG

16 06/2006-09/2010 1598 69 94 1
1.6 CNG

Z 16 YNG

16 04/2005-02/2012 1598 71 97 1
1.3 CDTI 16V

Z 13 DT

2 09/2004-09/2006 1248 51 69 1
1.3 CDTI 16V

Z 13 DTJ

2 07/2006-02/2012 1248 55 75 1
1.7 CDTI 16V

Z 17 DTH

2 12/2004-09/2010 1686 74 101 1
1.7 DI 16V

Y 17 DTL

2 09/2001-06/2004 1686 48 65 1
1.7 DTI 16V

Y 17 DT

2 10/2001-02/2012 1686 55 75 1
Vehicle Engine Fuel Date CC KW CV Traction
1.0 12V (F08, F68)

Z 10 XE

1 09/2000-10/2003 973 43 58 1
1.0 12V (F08, F68)

Z 10 XEP

1 11/2003-10/2006 998 44 60 1
1.2 16V (F08, F68)

Z 12 XE

1 09/2000-10/2006 1199 55 75 1
1.2 Twinport (F08, F68)

Z 12 XEP

1 07/2004-10/2006 1229 59 80 1
1.4 Twinport (F08, F68)

Z 14 XEP

1 06/2003-10/2006 1364 66 90 1
1.6 1 08/2000-10/2004 1598 62 84 1
1.6 CNG 1 05/2003-10/2006 1598 69 92 1
1.2 16V Dualfuel (F08)

Z 12 XE

18 08/2001-10/2006 1199 55 75 1
1.3 CDTI 16V (F08, F68)

Y 13 DT

Z 13 DT

2 10/2003-04/2007 1248 51 69 1
1.7 CDTI 16V (F08, F68)

Z 17 DTH

2 08/2000-09/2006 1686 74 100 1
1.7 DI 16V (F08, F68)

Y 17 DTL

2 08/2000-09/2006 1686 48 65 1
1.7 DTI 16V (F08, F68)

Y 17 DT

2 08/2000-09/2006 1686 55 75 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V Twinport

Z 14 XEP

1 01/2003-06/2010 1364 66 90 1
1.6 i

Z 16 SE

1 01/2003-06/2010 1598 64 87 1
1.6 i 16V

Z 16 XE

1 01/2003-09/2005 1598 74 100 1
1.6 i 16V Twinport

Z 16 XEP

1 05/2003-06/2010 1598 77 105 1
1.6 Turbo

Z 16 LET

1 05/2006-06/2010 1598 132 180 1
1.8 i 16V

Z 18 XE

1 05/2003-06/2010 1796 92 125 1
1.3 CDTi

Y 13 DT

Z 13 DT

2 04/2005-06/2010 1248 51 69 1
1.3 CDTi

Z 13 DTJ

2 01/2003-10/2009 1248 55 75 1
1.7 CDTi

Z 17 DTH

2 09/2003-08/2005 1686 74 100 1
1.7 CDTi 2 08/2006-06/2010 1686 92 125 2
1.7 DTI

Y 17 DT

2 06/2003-06/2010 1686 55 75 1
Vehicle Engine Fuel Date CC KW CV Traction
1.4

A 14 NEL

B 14 NEL

1 06/2010- 1364 88 120 1
1.4

A 14 NET

B 14 NET

1 06/2010- 1364 103 140 1
1.4

A 14 XER

B 14 XER

1 06/2010- 1398 74 101 1
1.4 LPG

A 14 NEL

18 06/2011- 1364 88 120 1
1.3 CDTi

A 13 DTC

2 06/2010- 1248 55 75 1
1.3 CDTi

A 13 DTE

2 06/2010- 1248 70 95 1
1.7 CDTi

A 17 DT

2 06/2010- 1686 74 101 1
1.7 CDTi

A 17 DTS

2 06/2010- 1686 96 131 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6 16V

X 16 XEL

Z 16 XE

1 04/1999-08/2005 1598 74 101 1
1.8 16V

X 18 XE1

1 05/1999-08/2000 1796 85 116 1
1.8 16V

Z 18 XE

1 09/2000-08/2005 1796 92 125 1
2.0

Z 20 LET

1 06/2002-06/2005 1998 147 199 1
2.0 GSI Turbo

Z 20 LET

1 09/2001-06/2005 1998 141 192 1
2.2 16V

Z 22 SE

1 11/1998-08/2004 2198 108 147 1
1.6 CNG

Z 16 YNG

16 09/2001-06/2005 1598 71 97 1
1.6 Dualfuel

X 16 XEL

18 11/1998-08/2005 1598 74 101 1
1.8 Dualfuel

Z 18 XE

18 09/2000-08/2005 1796 92 125 1
2.0 DI 16V

X 20 DTL

2 10/1999-08/2005 1995 60 82 1
2.0 DTI 16V

Y 20 DTH

2 04/1999-08/2005 1995 74 101 1
Vehicle Engine Fuel Date CC KW CV Traction
1.6

Z 16 XE1

Z 16 XEP

1 07/2005-11/2014 1598 77 105 1
1.6

A 16 XER

Z 16 XER

1 12/2007-11/2014 1598 85 115 1
1.8

A 18 XER

Z 18 XER

1 04/2005-11/2014 1796 103 140 1
2.0

Z 20 LER

1 07/2005-11/2014 1998 147 200 1
2.0

Z 20 LEH

1 01/2006-11/2014 1998 176 240 1
2.2

Z 22 YH

1 07/2005-11/2014 2198 110 150 1
1.7 CDTi

A 17 DTJ

Z 17 DTJ

2 04/2009-11/2014 1686 81 110 1
1.9 CDTI

Z 19 DT

2 07/2005-11/2014 1910 88 120 1
1.9 CDTI

Z 19 DTH

2 07/2005-11/2014 1910 110 150 1
Return
