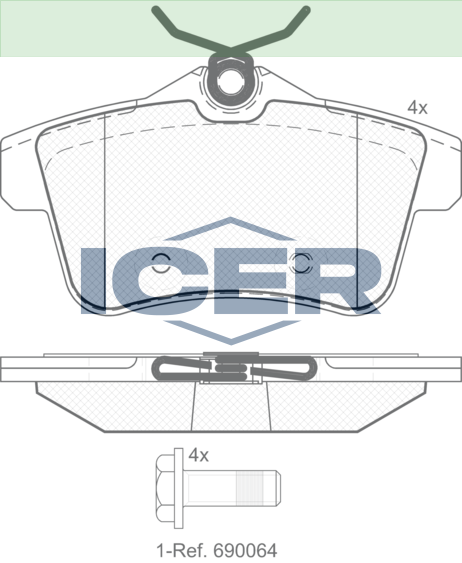

Product 181928

Description
Brake pad set
Axe
Rear
No. of Pieces
4
Barcode
EAN13 Code
8424073098733
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=181928
Weight (gr.)
1155
System
Trw
R90 Homologation
R90 90R-01110/2641
Measures
103.8x56x17.5
Reference applications
Brand OE Reference
CITROËN 16 085 206 80
CITROËN 16 086 816 80
CITROËN 16 168 727 80
DS 16 172 726 80
DS 16 478 738 80
PEUGEOT 16 118 380 80
PEUGEOT 16 231 808 80
PEUGEOT 16 364 112 80
PEUGEOT 4254.35
PEUGEOT 4254.44
PEUGEOT 4254.46
RENAULT 86 60 000 784
RENAULT 86 60 004 437
Maker Cross reference
ATE 13.0460-2761.2
ATE 602761
BENDIX ANTIGUO 573315B
BENDIX-ROULUNDS 510766
BOSCH 0 986 494 437
BREMBO P 06 102
BREMBO P 61 114
BREMBO P 61 114X
DELPHI LOCKHEED LP2180
FERODO FDB4224
FMSI D1831-9062
GIRLING 6118281
HELLA-PAGID 8DB 355 031-811
HELLA-PAGID T1844
MINTEX MDB3023
MINTEX MDB3444
NECTO FD7427A
ROAD HOUSE 21418.00
TEXTAR 24922 162 1 4
TEXTAR 24922 173 1 4
TEXTAR 2492201
TEXTAR 2492203
TEXTAR 2492204
TRW GDB1828
VALEO 601061
VALEO 610366
WVA 24922
CITROËN
C4 II (NC_) Hatchback 02/2009-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 THP 110 (NCHNZ6, NCHNV6)

HNZ (EB2DT)

 1 02/2015-12/2017 1199 81 110 1
1.2 THP 130 (NCHNYM, NCHNYT)

HNY (EB2DTS)

 1 04/2014-12/2017 1199 96 130 1
1.4 VTi 95 (NC8FP0)

8FP (EP3C)

 1 11/2009-11/2015 1397 70 95 1
1.6 (NCNFU0) 1 01/2010- 1587 81 110 1
1.6 Flex 1 11/2009- 1587 81 110 1
1.6 Flex 1 11/2009- 1587 83 113 1
1.6 THP 155

5FV (EP6CDT)

 1 11/2009-12/2016 1598 115 156 1
1.6 VTi 120 (NC5FS0, NC5FS9)

5FS (EP6C)

 1 11/2009-12/2016 1598 88 120 1
2.0 Flex 1 11/2009- 1997 103 140 1
2.0 Flex 1 11/2009- 1997 111 151 1
1.6 VTi 120 LPG (NC5FS0)

5FS (EP6C)

 18 09/2011- 1598 88 120 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 07/2014- 1560 73 99 1
1.6 BlueHDi 115

BHX (DV6FC)

 2 08/2014- 1560 85 115 1
1.6 BlueHDi 120

BHZ (DV6FC)

 2 02/2015- 1560 88 120 1
1.6 HDi 110

9HR (DV6C)

 2 11/2009- 1560 82 112 1
1.6 HDi 115

9HD (DV6C)

 2 07/2012- 1560 84 114 1
1.6 HDi 90

9HJ (DV6DTEDM)

9HP (DV6DTED)

 2 11/2009- 1560 68 92 1
2.0 HDi / BlueHDi 150

AHR (DW10FD)

RHE (DW10CTED4)

 2 11/2009- 1997 110 150 1
2.0 HDi / BlueHDi 160

RHH (DW10CTED4)

 2 10/2010- 1997 120 163 1
C4 II (NC_) Hatchback Van 11/2009-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 BlueHDi

BHY (DV6FD)

 2 07/2014- 1560 73 99 1
1.6 BlueHDi

BHZ (DV6FC)

 2 02/2015- 1560 88 120 1
1.6 HDi

9HP (DV6DTED)

 2 06/2010- 1560 68 92 1
1.6 HDi

9HR (DV6C)

 2 11/2009- 1560 82 111 1
C4 II (NC_) Saloon 01/2013-
Vehicle Engine Fuel Date CC KW CV Traction
1.6

NFP (EC5)

 1 01/2013- 1587 85 116 1
1.6

5FS (EP6C)

 1 01/2013- 1598 88 120 1
1.6 Flex 1 12/2014- 1598 127 173 1
2.0 16V 1 09/2013- 1997 105 143 1
2.0 Flex 1 08/2013- 1997 111 151 1
C4 II PICASSO (DD_) Box Body/MPV 01/2013-
Vehicle Engine Fuel Date CC KW CV Traction
e-HDi (DD9HC8, DD9HCT) 2 02/2013- 1560 85 116 1
C4 III (BA_, BB_, BC_) Hatchback 10/2020-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 PureTech 130 (BAHNSA, BAHNSB) 1 10/2020- 1199 96 130 1
DS4 (NX_) Hatchback 03/2011-07/2015
Vehicle Engine Fuel Date CC KW CV Traction
1.2 THP 130

HNY (EB2DTS)

 1 07/2014-07/2015 1199 96 130 1
1.6 THP 150

5FE (EP6CDTMD)

 1 04/2011-07/2015 1598 110 150 1
1.6 THP 155

5FV (EP6CDT)

 1 04/2011-07/2015 1598 115 156 1
1.6 THP 165

5FM (EP6CDTM)

5GZ (EP6FDT)

 1 01/2012-07/2015 1598 121 165 1
1.6 THP160

5FM (EP6CDTM)

 1 04/2012-07/2015 1598 120 163 1
1.6 THP200

5FU (EP6DTX)

 1 04/2011-07/2015 1598 147 200 1
1.6 VTI 120

5FS (EP6C)

 1 04/2011-07/2015 1598 88 120 1
1.6 BlueHDi 115

BHX (DV6FC)

 2 07/2014-07/2015 1560 85 115 1
1.6 BlueHDi 120

BHZ (DV6FC)

 2 07/2014-07/2015 1560 88 120 1
1.6 HDi 110

9HR (DV6C)

 2 04/2011-07/2015 1560 82 112 1
1.6 HDi 115

9HD (DV6C)

 2 08/2012-07/2015 1560 84 114 1
1.6 HDi 90

9HP (DV6DTED)

 2 05/2011-07/2015 1560 68 92 1
2.0 BlueHDi 150

AHX (DW10FD)

 2 07/2014-07/2015 1997 110 150 1
2.0 BlueHDi 180

AHW (DW10FC)

 2 07/2014-07/2015 1997 133 180 1
2.0 HDi / BlueHDi 135

AHS (DW10FD)

AHV (DW10FD)

RHD (DW10CB)

RHD (DW10CTED4)

 2 09/2011-07/2015 1997 100 136 1
2.0 HDi 165

RHH (DW10CTED4)

 2 04/2011-07/2015 1997 120 163 1
1.6 HDi 110 14 04/2011-07/2015 1560 81 110 1
DS5 () Hatchback 09/2011-12/2016
Vehicle Engine Fuel Date CC KW CV Traction
1.6 THP 150

5FE (EP6CDTMD)

 1 11/2011-07/2015 1598 110 150 1
1.6 THP 155

5FV (EP6CDT)

 1 11/2011-07/2015 1598 115 156 1
1.6 THP 165

5FM (EP6CDTM)

5FM (EP6DT)

5GZ (EP6FDT)

 1 01/2012-07/2015 1598 121 165 1
1.6 THP200

5FU (EP6DTX)

 1 11/2011-07/2015 1598 147 200 1
1.6 THP 165 Hybrid

5GZ (EP6FDT)

 13 06/2012-07/2015 1598 121 165 1
2.0 HDi 135 Hybrid4 13 12/2011- 1997 100 136 3
1.6 BlueHDi 120

BHZ (DV6FC)

 2 07/2014-07/2015 1560 88 120 1
1.6 HDi

BHX (DV6FC)

 2 11/2013-07/2015 1560 85 115 1
1.6 HDi 110

9HR (DV6C)

 2 11/2011-07/2015 1560 82 112 1
1.6 HDi 115

9HD (DV6C)

 2 06/2012-07/2015 1560 84 114 1
2.0 BlueHDi 150

AHX (DW10FD)

 2 07/2014-07/2015 1997 110 150 1
2.0 BlueHDi 180

AHW (DW10FC)

 2 08/2013-07/2015 1997 133 180 1
2.0 HDi 135

RHD (DW10CB)

 2 11/2011-07/2015 1997 100 136 1
2.0 HDi 165

RHH (DW10CTED4)

 2 11/2011-07/2015 1997 120 163 1
2.0 HDi 165 Hybrid4 4x4

RHC (DW10CTED4)

 14 12/2011-07/2015 1997 120 163 3
2.0 HDi 200 Hybrid4 A las 4 ruedas 14 12/2011-07/2015 1997 147 200 3
DS
DS 4 / DS 4 CROSSBACK (NX_) Hatchback 07/2015-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 THP 130 (NXHNYM)

HNY (EB2DTS)

 1 07/2015-12/2018 1199 96 130 1
1.6 THP 150

5FE (EP6CDTMD)

 1 10/2016-12/2018 1598 110 150 1
1.6 THP 165

5GZ (EP6FDT)

 1 07/2015-12/2018 1598 121 165 1
1.6 THP 210

5GM (EP6FDTX)

 1 07/2015-12/2018 1598 155 210 1
1.6 THP160

5FM (EP6CDTM)

 1 07/2015-12/2018 1598 120 163 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 04/2016-12/2018 1560 73 99 1
1.6 BlueHDi 115

BHX (DV6FC)

 2 07/2015-12/2018 1560 85 116 1
1.6 BlueHDi 120

BHZ (DV6FC)

 2 07/2015-12/2018 1560 88 120 1
2.0 BlueHDi 150

AHR (DW10FD)

 2 07/2015-12/2018 1997 110 150 1
2.0 BlueHDi 180

AHW (DW10FC)

 2 07/2015-12/2018 1997 133 180 1
DS 5 (KF_) Hatchback 01/2015-12/2018
Vehicle Engine Fuel Date CC KW CV Traction
1.6 THP 165 (KF5GZT)

5GZ (EP6FDT)

 1 07/2015-12/2018 1598 121 165 1
1.6 THP 210

5GM (EP6FDTX)

 1 04/2015-12/2018 1598 155 210 1
1.6 BlueHDi 115

BHX (DV6C)

 2 06/2015-12/2018 1560 85 116 1
1.6 BlueHDi 120

BHZ (DV6FC)

 2 06/2015-12/2018 1560 88 120 1
2.0 BlueHDi 135

AHV (DW10FDD)

 2 06/2015-12/2018 1997 100 136 1
2.0 BlueHDi 150

AHR (DW10FD)

 2 04/2015-12/2018 1997 110 150 1
2.0 BlueHDi 180

AHW (DW10FC)

 2 04/2015-12/2018 1997 133 180 1
2.0 Hybrid4 4x4

RHC (DW10CTED4)

 14 04/2015-12/2018 1997 120 163 3
Hybrid4

RHC (DW10CTED4)

 14 04/2015-12/2018 1997 147 200 3
DS (CAPSA)
DS 4S () Hatchback 01/2016-
Vehicle Engine Fuel Date CC KW CV Traction
THP130 1 04/2016- 1199 100 136 1
THP180 1 04/2016- 1598 123 167 1
THP200 1 04/2016- 1751 150 204 1
DS 5 () Hatchback 09/2013-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 THP160

5F06 10FJBZ (EP6CDTM)

 1 09/2013-12/2017 1598 120 163 1
1.6 THP160

5G02 10UF01 (EP6FDTM)

 1 09/2015-12/2020 1598 123 167 1
1.6 THP200

5F03 (EP6CDTX)

 1 09/2013-12/2015 1598 147 200 1
1.8 THP 200

6G01 10UF51 (EP8FDT)

 1 09/2015-12/2020 1751 150 204 1
DS 5 LS () Saloon 01/2014-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 THP160

5F06 10FJBZ (EP6CDTM)

 1 03/2014- 1598 120 163 1
1.6 THP160

5G02 10UF01 (EP6FDTM)

 1 04/2016- 1598 123 167 1
1.6 THP200

5F03 (EP6CDTX)

 1 03/2014- 1598 147 200 1
1.8 THP 200

6G01 10UF51 (EP8FDT)

 1 04/2016- 1751 150 204 1
1.8 VTi 140

WFZ (EC8)

 1 01/2014-12/2015 1813 102 139 1
DS 6 () SUV 09/2014-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 THP200 1 09/2014- 1598 147 200 1
1.8 THP 200 1 09/2015- 1751 150 204 1
PEUGEOT
308 (4A_, 4C_) Hatchback 09/2007-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 GTI

EP6CDTX

 1 07/2010-10/2014 1598 147 200 1
308 CC (4B_) Convertible 02/2009-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 THP

EP6CDTX

 1 10/2010-12/2014 1598 147 200 1
508 (8D_) Saloon 11/2010-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 THP

5FN (EP6CDT)

 1 11/2010-12/2018 1598 110 150 1
1.6 THP

5FV (EP6CDT)

 1 11/2010-12/2018 1598 115 156 1
1.6 THP

5GZ (EP6FDT)

 1 01/2012-12/2018 1598 120 163 1
1.6 VTi

5FH (EP6C)

 1 11/2010-12/2018 1598 85 116 1
1.6 VTi

5FS (EP6C)

 1 11/2010-12/2018 1598 88 120 1
1.6 BlueHDi 120

BHZ (DV6FC)

 2 03/2014-12/2018 1560 88 120 1
1.6 HDi

9HL (DV6C)

9HR (DV6C)

 2 11/2010-12/2018 1560 82 112 1
1.6 HDi

9HD (DV6CTED)

 2 02/2012-12/2018 1560 84 115 1
2.0 BlueHDi 150

AHX (DW10FD)

 2 04/2014-12/2018 1997 110 150 1
2.0 BlueHDi 180

AHW (DW10FC)

 2 04/2014-12/2018 1997 133 180 1
2.0 HDi

RHR (DW10BTED4)

 2 11/2010-12/2018 1997 100 136 1
2.0 HDi

RHA (DW10CTED4)

RHF (DW10BTED4)

 2 11/2010-12/2018 1997 103 140 1
2.0 HDi

RHH (DW10CTED4)

 2 11/2010-12/2018 1997 120 163 1
2.2 HDi

4HL (DW12C)

 2 11/2010-12/2018 2179 150 204 1
2.0 HDi Hybrid4 AWC

RHC (DW10CTED4)

 14 11/2010-12/2018 1997 120 163 3
2.0 HDi Hybrid4 AWC

RHC (DW10CTED4)

 14 11/2010-12/2018 1997 147 200 3
508 SW (8E_) Estate 11/2010-
Vehicle Engine Fuel Date CC KW CV Traction
1.6

5GZ (EP6FDT)

 1 02/2012-12/2018 1598 121 165 1
1.6 THP

5FE (EP6CDTM)

5FN (EP6CDT)

 1 11/2010-12/2018 1598 110 150 1
1.6 THP

5FV (EP6CDT)

 1 11/2010-12/2018 1598 115 156 1
1.6 VTi

5FH (EP6C)

 1 11/2010-12/2018 1598 85 116 1
1.6 VTi

5FS (EP6C)

 1 11/2010-12/2018 1598 88 120 1
2.0 HDi RXH Hybrid4 13 12/2011- 1997 147 200 3
1.6 BlueHDi 120

BHZ (DV6FC)

 2 03/2014-12/2018 1560 88 120 1
1.6 HDi

9HL (DV6C)

9HR (DV6C)

 2 11/2010-12/2018 1560 82 112 1
1.6 HDi

9HL (DV6C)

9HR (DV6C)

 2 02/2012-12/2018 1560 84 115 1
2.0 BlueHDi 150

AHX (DW10FD)

 2 04/2014-12/2018 1997 110 150 1
2.0 BlueHDi 180

AHW (DW10FC)

 2 04/2014-12/2018 1997 133 180 1
2.0 HDi

RHR (DW10BTED4)

 2 11/2010-12/2018 1997 100 136 1
2.0 HDi

RHA (DW10CTED4)

RHF (DW10BTED4)

 2 11/2010-12/2018 1997 103 140 1
2.0 HDi

RHH (DW10CTED4)

 2 11/2010-12/2018 1997 120 163 1
2.0 HDi 180 RXH 2 10/2014-12/2018 1997 133 181 1
2.2 HDi

4HL (DW12C)

 2 11/2010-12/2018 2179 150 204 1
2.0 HDi RXH Hybrid4

RHC (DW10CTED4)

 14 11/2010-12/2018 1997 147 200 3
3008 (0U_) MPV 05/2009-12/2017
Vehicle Engine Fuel Date CC KW CV Traction
1.2

HNY (EB2DTS)

 1 01/2015-08/2016 1199 96 131 1
1.6 THP

5FE (EP6CDTM)

5FE (EP6CDTMD)

5FX (EP6DT)

 1 06/2009-08/2016 1598 110 150 1
1.6 THP

5FV (EP6CDT)

 1 06/2009-08/2016 1598 115 156 1
1.6 THP

5FM (EP6CDTM)

 1 09/2010-08/2016 1598 120 163 1
1.6 Turbo

5GZ (EP6FDT)

 1 05/2014-08/2016 1598 121 165 1
1.6 VTi

5FS (EP6C)

5FW (EP6)

EP6

 1 06/2009-08/2016 1598 88 120 1
1.6 BlueHDi 120

BHZ (DV6FC)

 2 05/2014-08/2016 1560 88 120 1
1.6 HDi

9HZ (DV6TED4)

 2 06/2009-08/2016 1560 80 109 1
1.6 HDi

9HR (DV6C)

 2 12/2009-08/2016 1560 82 112 1
1.6 HDi

9HD (DV6CTED)

 2 03/2013-08/2016 1560 84 114 1
1.6 HDi 115 / BlueHDi 115

9HC (DV6C)

BHX (DV6FC)

 2 02/2013-08/2016 1560 85 116 1
2.0 HDi

RHD (DW10CB)

 2 09/2011-08/2016 1997 100 136 1
2.0 HDi

RHH (DW10CTED4)

 2 06/2009-08/2016 1997 120 163 1
2.0 HDi 150 / BlueHDi 150 (RWRHEJ, RWRHE8)

AHX (DW10FD)

RHE (DW10CTED4)

 2 06/2009-08/2016 1997 110 150 1
2.0 BlueHDi 135 Hybrid 14 01/2015-12/2016 1997 100 136 1
2.0 BlueHDi 135 Hybrid 14 09/2015-12/2016 1997 100 136 1
2.0 BlueHDi 150 Hybrid 14 01/2015-12/2016 1997 110 150 1
2.0 HDi Hybrid4

RHC (DW10CTED4)

 14 02/2011-08/2016 1997 120 163 3
2.0 HDi Hybrid4 (0URHCA)

RHC (DW10CTED4)

 14 02/2011-08/2016 1997 147 200 3
3008 (0U_) Box Body/MPV 05/2009-12/2017
Vehicle Engine Fuel Date CC KW CV Traction
HDi (0URHHT) 2 06/2009-08/2016 1997 120 163 1
HDi 110 (0U9HZ8, 0U9HZT) 2 06/2009-08/2016 1560 80 109 1
HDi 150 (0URHEM) 2 06/2009-08/2016 1997 110 150 1
5008 (0U_, 0E_) MPV 06/2009-
Vehicle Engine Fuel Date CC KW CV Traction
1.2

HNY (EB2DTS)

 1 01/2015-03/2017 1199 96 131 1
1.6 16V

5FS (EP6C)

5FW (EP6)

EP6

 1 09/2009-03/2017 1598 88 120 1
1.6 16V

5FV (EP6CDT)

 1 09/2009-03/2017 1598 115 156 1
1.6 THP 150

5FX (EP6DT)

 1 02/2012-03/2017 1598 110 150 1
1.6 THP 163

5GZ (EP6FDT)

 1 02/2012-03/2017 1598 120 163 1
1.6 THP 165

5GZ (EP6FDT)

 1 02/2012-03/2017 1598 121 165 1
1.6 BlueHDi 115 2 11/2014-03/2017 1560 85 116 1
1.6 BlueHDi 120

BHZ (DV6FC)

 2 05/2014-03/2017 1560 88 120 1
1.6 HDi

9HZ (DV6TED4)

 2 09/2009-03/2017 1560 80 110 1
1.6 HDi

9HR (DV6C)

 2 08/2010-03/2017 1560 82 112 1
1.6 HDi

9HD (DV6C)

 2 03/2013-03/2017 1560 84 114 1
2.0 HDi

RHH (DW10CTED4)

 2 09/2009-03/2017 1997 120 163 1
2.0 HDi 136 / BlueHDi 136

AHV (DW10FD)

RHD (DW10CB)

RHD (DW10CTED4)

 2 02/2012-03/2017 1997 100 136 1
2.0 HDi 150 / BlueHDi 150 (RWRHEJ, RWRHE8)

AHX (DW10FD)

RHE (DW10CTED4)

 2 06/2009-03/2017 1997 110 150 1
5008 (0U_) Box Body/MPV 06/2009-03/2017
Vehicle Engine Fuel Date CC KW CV Traction
HDi (0U9HR8) 2 08/2010-03/2017 1560 82 111 1
HDi / e-HDi (0U9HD8, 0U9HDA) 2 03/2013-03/2017 1560 84 114 1
HDi 136 (0URHEM) 2 02/2012-03/2017 1997 100 136 1
HDi 150 (0URHEM) 2 06/2009-03/2017 1997 110 150 1
HDi 165 (0URHHT) 2 06/2009-03/2017 1997 120 163 1
RCZ () Coupe 03/2010-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 16V

5FV (EP6CDT)

 1 03/2010-12/2015 1598 115 156 1
1.6 16V

5FM (EP6CDTM)

 1 01/2011-12/2015 1598 121 165 1
1.6 16V

EP6CDTX

 1 06/2010-12/2015 1598 147 200 1
1.6 THP 150

5FE (EP6CDTMD)

 1 03/2011-12/2015 1598 110 150 1
1.6 THP 270

5FG (EP6CDTR)

 1 06/2013-12/2015 1598 199 270 1
2.0 HDi

RHH (DW10CTED4)

 2 03/2010-12/2015 1997 120 163 1
Return
