Product 78BD0033-2

Description
Brake disc
Axe
Front
No. of Pieces
2
Barcode
EAN13 Code
8424073141996
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD0033-2
Weight (gr.)
12412
R90 Homologation
R90 90R-02C0452/0118

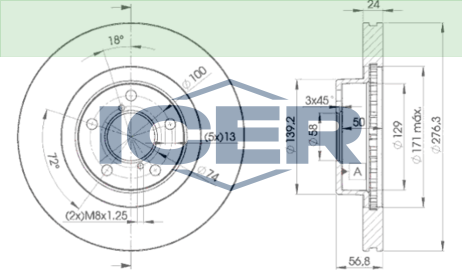

Measures
Ø276.3x24x56.8
Brake Disc Type: Vented
Minimum thickness [mm]: 22
Hole Arrangement/Number: 5
Bolt Hole Circle Ø [mm]: 100
Wheel Hub Diameter [mm]: 58
Reference applications
Brand OE Reference
SUBARU 26300-AE050
SUBARU 26300-AE070
SUBARU 26300-AE071
SUBARU 26310-AA081
SUBARU 26310-AA091
SUBARU 26310-AA092
SUBARU 26310-AA120
SUBARU 26310-AA121
Maker Cross reference
ATE 24.0124-0145.1
BENDIX ANTIGUO 561667B
BOSCH 0 986 479 147
BOSCH 0 986 479 E69
BREMBO 09.5674.10
BREMBO 09.5674.24
BREMBO 09.5674.76
DELPHI LOCKHEED BG2827
FERODO DDF679
GIRLING 6014371
HELLA-PAGID 53305
LETEC LBS003V
MINTEX MDC804
NECTO WN1038
ROAD HOUSE 6715.10
SANLI SL34569
TEXTAR 92094600
TRW DF1437
VALEO 186503
CHEVROLET
FORESTER () Hatchback 06/2002-09/2008
Vehicle Engine Fuel Date CC KW CV Traction
2.0 1 06/2002-09/2008 1994 88 120 1
2.0 1 03/2003-03/2006 1994 92 125 1
SCION
FR (U.S.A.) Coupe 09/2011-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 S 1 09/2012- 1998 149 203 2
SUBARU
BRZ (ZC6) Coupe 06/2012-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (ZC6)

FA20D

 1 06/2012- 1998 147 200 2
2.0 (ZC6) 1 08/2016- 1998 152 207 2
FORESTER (SF_) SUV 03/1997-09/2002
Vehicle Engine Fuel Date CC KW CV Traction
2.0 16V AWD 1 03/1997-02/2002 1994 184 250 3
2.0 AWD (SF5)

EJ202

 1 08/1997-09/2002 1994 90 122 3
2.0 AWD (SF5)

EJ202

 1 06/1998-09/2002 1994 92 125 3
2.0 S Turbo AWD (SF5)

EJ205

 1 06/1998-04/2001 1994 125 170 3
2.0 S Turbo AWD (SF5)

EJ205

 1 04/2001-09/2002 1994 130 177 3
2.5 AWD

EJ25D

 1 07/1997-05/2002 2457 123 167 3
2.5 Turbo AWD

EJ250

 1 09/1998-05/2002 2457 160 218 3
FORESTER II (SG_) SUV 02/2002-12/2012
Vehicle Engine Fuel Date CC KW CV Traction
2.0 AWD (SG5)

EJ201

 1 06/2002-05/2005 1994 92 125 3
2.0 X AWD (SG5)

EJ201

EJ204

 1 06/2005-05/2008 1994 116 158 3
FORESTER III (SH_) SUV 12/2007-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 AWD (SH5)

EJ204

 1 01/2008-09/2013 1994 110 150 3
FORESTER V (SK_) SUV 04/2018-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 AWD (SK7)

FB20C

FB20D

 1 04/2018- 1995 115 156 3
2.5 AWD (SK9)

FB25C

FB25D

 1 04/2018- 2498 136 185 3
i AWD (SK7) 1 06/2020- 1995 113 154 3
2.0 e-Boxer Hybrid AWD (SKE)

FB20X

 13 04/2018- 1995 107 145 3
2.0 e-Boxer Hybrid AWD (SKE)

FB20X

 13 04/2018- 1995 110 150 3
IMPREZA (GC) Saloon 08/1992-09/2001
Vehicle Engine Fuel Date CC KW CV Traction
2.0 Turbo GT AWD (GC8)

EJ20 (TURBO)

 1 03/1994-12/2000 1994 155 211 3
2.0 Turbo GT AWD (GC8)

EJ205

 1 06/1998-12/2000 1994 160 218 3
IMPREZA (GF) Estate 08/1992-12/2000
Vehicle Engine Fuel Date CC KW CV Traction
2.0 i Turbo AWD (GF8)

EJ20 (TURBO)

 1 03/1994-12/2000 1994 155 211 3
2.0 Turbo GT AWD (GF8)

EJ205

 1 06/1998-12/2000 1994 160 218 3
IMPREZA II (GD) Saloon 09/1999-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 i AWD (GD9)

EJ201

 1 12/2000-06/2009 1994 92 125 3
2.0 i R AWD (GD9)

EJ204

 1 09/2005-03/2007 1994 118 160 3
2.5 AWD (GDE)

EJ251

 1 03/2001-09/2005 2457 130 177 3
2.5 i AWD (GDE)

EJ251

 1 12/2002-09/2005 2457 112 152 3
IMPREZA II (GG) Estate 10/2000-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 AWD (GG9)

EJ201

 1 12/2000-12/2007 1994 92 125 3
2.0 i R AWD (GG9)

EJ20

EJ204

 1 09/2005-06/2007 1994 118 160 3
IMPREZA III (GE, GV) Saloon 01/2007-
Vehicle Engine Fuel Date CC KW CV Traction
1.5 AWD (GE3)

EL15

 1 02/2008- 1498 79 107 3
2.0 i AWD (GE7)

EJ204

 1 01/2011- 1994 110 150 3
IMPREZA III (GR, GH, G3) Hatchback 03/2007-
Vehicle Engine Fuel Date CC KW CV Traction
1.5 AWD

EL154

 1 09/2008-12/2011 1498 85 116 3
2.0 AWD (GH7) 1 04/2007-08/2009 1994 103 140 3
2.0 R AWD (GH7)

EJ204

 1 01/2008-03/2012 1994 110 150 3
1.5 BiFuel AWD

EL154

 18 01/2010-03/2012 1498 79 107 3
2.0 R BiFuel AWD

EJ204

 18 01/2009-03/2012 1994 110 150 3
2.0 D AWD

EE20Z

 2 01/2011-12/2011 1998 80 109 3
IMPREZA IV / WRX (GJ_) Saloon 07/2011-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 AWD (GJ3)

FB16

 1 01/2015- 1599 85 115 3
1.6 AWD (GJ3)

FB16A

FB16B

 1 06/2012-09/2016 1600 84 114 3
1.6 Tracción delantera (GJ2) 1 06/2012-09/2016 1600 84 114 1
2.0 AWD (GJ7)

FB20B

 1 07/2011- 1995 110 150 3
IMPREZA IV / WRX (GP_) Hatchback 10/2011-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 i (GP2)

FB16A

FB16B

 1 06/2012-09/2016 1600 84 114 1
1.6 i AWD

FB16B

 1 06/2012- 1600 84 114 3
1.6 i AWD (GP3)

FB16

 1 12/2011-10/2016 1599 85 115 3
LEGACY / LIBERTY (BC) Saloon 01/1989-12/1995
Vehicle Engine Fuel Date CC KW CV Traction
2000 Turbo 4WD (BC5)

EJ20-GN

 1 05/1992-07/1994 1994 147 200 3
LEGACY / LIBERTY (BC, BF, BJ) Estate 01/1989-08/1994
Vehicle Engine Fuel Date CC KW CV Traction
2.2 (BF7)

EJ22

 1 05/1989-10/1991 2212 100 136 1
2000 Turbo Super 4WD (BF5)

EJ20-GN

 1 05/1992-07/1994 1994 147 200 3
LEGACY II / LIBERTY (BD) Saloon 01/1994-10/1999
Vehicle Engine Fuel Date CC KW CV Traction
2.5 i 4WD (BD9)

EJ25D

 1 06/1996-03/1999 2457 110 150 3
LEGACY II / LIBERTY (BG) Estate 02/1994-12/1999
Vehicle Engine Fuel Date CC KW CV Traction
2.5 i 4WD (BG9)

EJ25D

 1 06/1996-11/1998 2457 110 150 3
LEGACY II OUTBACK / LIBERTY OUTBACK (BG) Estate 01/1996-12/1999
Vehicle Engine Fuel Date CC KW CV Traction
2.5 (BG9)

EJ25D

 1 01/1996-12/1999 2457 110 150 3
LEGACY III / LIBERTY (BH) Estate 10/1998-08/2003
Vehicle Engine Fuel Date CC KW CV Traction
2.5 AWD (BH9)

EJ25

 1 12/1998-08/2003 2457 115 156 3
LEGACY III / LIBERTY (BE) Saloon 10/1998-08/2003
Vehicle Engine Fuel Date CC KW CV Traction
2.5 AWD (BE9)

EJ25

 1 10/1998-08/2003 2457 115 156 3
LEGACY IV / LIBERTY (BL) Saloon 09/2003-12/2015
Vehicle Engine Fuel Date CC KW CV Traction
2.0 2WD

EJ20Y

 1 08/2005-03/2012 1994 132 179 2
2.0 AWD (BL5)

EJ202

 1 09/2003-10/2005 1994 101 138 3
2.5 AWD (BL9)

EJ25

 1 09/2003-04/2009 2457 121 165 3
LEGACY IV / LIBERTY (BP) Estate 09/2003-12/2009
Vehicle Engine Fuel Date CC KW CV Traction
2.0 AWD (BP5)

EJ202

 1 09/2003-10/2005 1994 101 138 3
2.5 AWD (BP9)

EJ25

 1 09/2003-04/2009 2457 121 165 3
LEGACY V / LIBERTY (BR) Estate 06/2008-12/2014
Vehicle Engine Fuel Date CC KW CV Traction
2.0 i AWD

EJ204

 1 09/2009-12/2014 1994 110 150 3
2.0 i AWD

FB20

 1 06/2012-12/2014 1995 110 150 3
2.5 i AWD (BR9)

EJ253

 1 09/2009-12/2014 2457 123 167 3
2.5 i AWD (BR9)

EJ25

 1 05/2009-12/2014 2457 125 170 3
2.5 i AWD (BRM)

FB25

 1 07/2012-12/2014 2498 127 173 3
2.5 CNG AWD

FB25B

 16 04/2013-12/2014 2498 127 173 3
2.0 i LPG AWD

EJ204

 18 09/2009-12/2011 1994 108 147 3
LEGACY V / LIBERTY (BM) Saloon 05/2009-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 i AWD

EJ204

 1 06/2009-12/2015 1994 118 160 3
2.0 i AWD (BM5)

EJ204

 1 09/2009-12/2014 1994 110 150 3
2.5 i AWD

EJ253

 1 01/2012-12/2014 2457 125 170 3
2.5 i AWD (BM9)

EJ253

 1 09/2009-12/2014 2457 123 167 3
2.5 i AWD (BMM)

FB25

FB25A

FB25B

 1 07/2012-12/2014 2498 127 173 3
2.0 i LPG AWD

EJ204

 18 09/2009-12/2011 1994 108 147 3
OUTBACK III (BL, BP) Estate 09/2003-06/2010
Vehicle Engine Fuel Date CC KW CV Traction
2.0 AWD (BP5) 1 09/2003-10/2005 1994 101 137 3
TOYOTA
GT 86 / 86 / TOYOTA 86 (ZN6_) Coupe 03/2012-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (ZN6)

FA20D

 1 10/2012- 1998 149 203 2
2.0 (ZN6AC_, ZN6BC_, ZN6K)

4U-GSE

FA20

FA20D

 1 03/2012- 1998 147 200 2
