Product 78BD0187-1

Description: Brake disc
Axe: Front
No. of Pieces: 1
Barcode: 8424073142238
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD0187-1
Weight (gr.): 7190

R90 Homologation: 90R-02C0339/0048

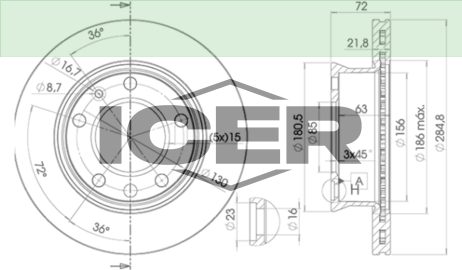

Measures: Ø284.8x21.8x72
: Brake Disc Type: Vented; Minimum thickness [mm]: 19; Hole Arrangement/Number: 5; Bolt Hole Circle Ø [mm]: 130; Wheel Hub Diameter [mm]: 85

Reference applications

Brand	OE Reference
MERCEDES-BENZ	903 421 00 12
MERCEDES-BENZ	903 421 01 12

Maker	Cross reference
ATE	24.0122-0245.1
ATE	422245
BENDIX ANTIGUO	569169B
BOSCH	0 986 479 212
BREMBO	09.A922.14
DELPHI LOCKHEED	BG4067
FERODO	FCR361A
GIRLING	6061945
HELLA-PAGID	8DD 355 118.051
MINTEX	MDC2127
ROAD HOUSE	61275.10
SANLI	SL34962
TEXTAR	93127800
TRW	DF6194S

MERCEDES-BENZ

SPRINTER 3-Ton. (B903) Platform/Chassis 01/1995-05/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
314 (903.011, 903.012, 903.013, 903.022, 903.612,...	M 111.979 M 111.984	1	02/1995-05/2006	2295	105	143	2
314 4x4 (903.612, 903.613, 903.622)	M 111.984	1	02/1995-05/2006	2295	105	143	3
314 NGT (903.611, 903.612, 903.613, 903.622, 903.012,...	M 111.979 M 111.984	16	02/1995-05/2006	2295	95	129	2
308 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...	OM 611.987	2	04/2000-05/2006	2148	60	82	2
308 D 2.3 (903.311, 903.322)	OM 601.943	2	02/1995-04/2000	2299	58	79	2
308 D 2.3 (903.311, 903.322)	OM 601.943	2	11/1996-04/2000	2299	60	82	2
310 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,...	OM 602.980	2	01/1997-04/2000	2874	75	102	2
310 D 2.9 4x4 (903.421, 903.422, 903.423)	OM 602.980	2	01/1997-04/2000	2874	75	102	3
311 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...	OM 611.981	2	04/2000-05/2006	2148	80	109	2
311 CDI 4x4 (903.612, 903.613, 903.622, 903.623)	OM 611.981	2	04/2000-05/2006	2148	80	109	3
312 D 2.9 (903.411, 903.412, 903.421, 903.422, 903.423)	OM 602.980	2	12/1998-09/2001	2874	85	116	2
312 D 2.9 (903.411, 903.412, 903.421, 903.422, 903.423)	OM 602.980	2	02/1995-04/2000	2874	90	122	2
312 D 2.9 4x4 (903.411)		2	02/1995-04/2000	2874	90	122	3
313 CDI (903.611, 903.612, 903.621, 903.622)	OM 611.981	2	04/2000-05/2006	2148	95	129	2
313 CDI 4x4 (903.612, 903.613, 903.622, 903.623)	OM 611.981	2	04/2000-05/2006	2148	95	129	3
316 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...	OM 612.981 OM 647.981	2	04/2000-05/2006	2685	115	156	2
316 CDI 4x4 (903.612, 903.613, 903.622, 903.623)	OM 612.981 OM 647.981	2	08/2002-05/2006	2685	115	156	3
308 E (903.312, 903.322)		11	01/1996-05/2006		40	54	2

SPRINTER 3-Ton. (B903) Van 01/1995-05/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
314 (903.061, 903.062, 903.063, 903.661, 903.662)	M 111.979 M 111.984	1	02/1995-05/2006	2295	105	143	2
314 4x4 (903.661, 903.662, 903.663)	M 111.984	1	02/1995-05/2006	2295	105	143	3
314 NGT (903.661, 903.061, 903.062, 903.063, 903.662)	M 111.979 M 111.984	16	02/1995-05/2006	2295	95	129	2
2.3 D		2	06/1997-12/1999	2299	58	79	2
308 CDI (903.661, 903.662, 903.663)	OM 611.987	2	04/2000-05/2006	2148	60	82	2
308 D 2.3 (903.361, 903.362, 903.363)	OM 601.943	2	02/1995-04/2000	2299	58	79	2
308 D 2.3 (903.361)	OM 601.943	2	02/1995-04/2000	2299	60	82	2
310 D 2.9 (903.461, 903.462, 903.463)	OM 602.980	2	02/1995-04/2000	2874	75	102	2
310 D 2.9 4x4 (903.461, 903.462)	OM 602.980	2	06/1997-04/2000	2874	75	102	3
311 CDI (903.661, 903.662, 903.663)	OM 611.981	2	04/2000-05/2006	2148	80	109	2
311 CDI 4x4 (903.662, 903.663)	OM 611.981	2	08/2002-05/2006	2148	80	109	3
312 D 2.9 (903.461, 903.462, 903.463)	OM 602.980	2	02/1995-04/2000	2874	90	122	2
312 D 2.9 4x4 (903.461, 903.462)	OM 602.980	2	05/1997-08/2002	2874	90	122	3
313 CDI (903.663, 903.662, 903.661)	OM 611.981	2	04/2000-05/2006	2148	95	129	2
313 CDI 4x4 (903.662, 903.663)	OM 611.981	2	08/2002-05/2006	2148	95	129	3
316 CDI (903.661, 903.662, 903.663)	OM 612.981 OM 647.981	2	04/2000-05/2006	2685	115	156	2
316 CDI 4x4 (903.662, 903.663)	OM 612.981 OM 647.981	2	02/2001-05/2006	2685	115	156	3
308 E (903.362)		11	01/1996-05/2006		40	54	2

SPRINTER 3-Ton. (B903) Bus 01/1995-05/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
314 (903.071, 903.072, 903.073, 903.671, 903.672,...	M 111.979 M 111.984	1	02/1995-05/2006	2295	105	143	2
314 4x4 (903.672, 903.673)	M 111.984	1	02/1995-05/2006	2295	105	143	3
314 NGT (903.072, 903.671, 903.672)	M 111.979 M 111.984	16	02/1995-05/2006	2295	95	129	2
2.3 D		2	06/1997-12/1999	2299	58	79	2
308 CDI (903.671, 903.672, 903.673)	OM 611.987	2	04/2000-05/2006	2148	60	82	2
308 D (903.371, 903.372, 903.373)	OM 601.943	2	03/1997-04/2000	2299	60	82	2
308 D (903.372, 903.373)	OM 601.943	2	02/1995-04/2000	2299	58	79	2
310 D (903.471, 903.472, 903.473)	OM 602.980	2	01/1997-12/1999	2874	75	102	2
310 D 4x4 (903.472, 903.473)	OM 602.980	2	05/1997-08/2002	2874	75	102	3
311 CDI (903.671, 903.672)	OM 611.981	2	04/2000-05/2006	2148	80	109	2
311 CDI 4x4 (903.672, 903.673)	OM 611.981	2	08/2002-05/2006	2148	80	109	3
312 D 2.9 (903.471, 903.472, 903.473)	OM 602.980	2	02/1995-04/2000	2874	90	122	2
312 D 2.9 4x4 (903.473)	OM 602.980	2	05/1997-08/2002	2874	90	122	3
313 CDI (903.671, 903.672)	OM 611.981	2	04/2000-05/2006	2148	95	129	2
313 CDI 4x4 (903.672, 903.673)	OM 611.981	2	08/2002-05/2006	2148	95	129	3
316 CDI (903.671, 903.672, 903.673)	OM 612.981 OM 647.981	2	04/2000-05/2006	2685	115	156	2
316 CDI 4x4 (903.672, 903.673)	OM 612.981 OM 647.981	2	08/2002-05/2006	2685	115	156	3
308 E (903.372)		11	01/1996-05/2006		40	54	2

SPRINTER 4-Ton. (B904) Platform/Chassis 02/1995-05/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
414 (904.012, 904.013, 904.612, 904.613)	M 111.979 M 111.984	1	02/1995-05/2006	2295	105	143	2
414 4x4 (904.012, 904.013, 904.612, 904.613)	M 111.979 M 111.984	1	05/1997-05/2006	2295	105	143	3
2.3 D		2	06/1997-12/1999	2299	58	79	2
408 CDI	OM 611.987	2	04/2000-05/2006	2148	60	82	2
408 D	OM 601.943	2	02/1996-05/2006	2299	58	79	2
410 D	OM 602.980	2	02/1996-05/2006	2874	75	102	2
410 D 4x4	OM 602.980	2	05/1997-05/2006	2874	75	102	3
411 CDI	OM 611.981	2	04/2000-05/2006	2148	80	109	2
411 CDI 4x4	OM 611.981	2	04/2000-05/2006	2148	80	109	3
412 D	OM 602.980	2	02/1996-05/2006	2874	85	115	2
412 D	OM 602.980	2	02/1996-05/2006	2874	90	122	2
412 D 4x4	OM 602.980	2	05/1997-05/2006	2874	85	115	3
412 D 4x4	OM 602.980	2	05/1997-05/2006	2874	90	122	3
413 CDI	OM 611.981	2	04/2000-05/2006	2148	95	129	2
413 CDI 4x4	OM 611.981	2	04/2000-05/2006	2148	95	129	3
416 CDI	OM 612.981 OM 647.981	2	04/2000-05/2006	2685	115	156	2
416 CDI 4x4	OM 612.981 OM 647.981	2	04/2000-05/2006	2685	115	156	3

SPRINTER 4-Ton. (B904) Van 02/1995-05/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
414 (904.062, 904.063, 904.662, 904.663)	M 111.979 M 111.984	1	02/1996-05/2006	2295	105	143	2
414 4x4 (904.062, 904.063, 904.662, 904.663)	M 111.979 M 111.984	1	05/1997-05/2006	2295	105	143	3
2.3 D		2	06/1997-12/1999	2299	58	79	2
408 CDI	OM 611.987	2	04/2000-05/2006	2148	60	82	2
408 D	OM 601.943	2	02/1996-05/2006	2299	58	79	2
410 D	OM 602.980	2	02/1996-05/2006	2874	75	102	2
410 D 4x4	OM 602.980	2	05/1997-05/2006	2874	75	102	3
411 CDI	OM 611.981	2	04/2000-05/2006	2148	80	109	2
411 CDI 4x4	OM 611.981	2	04/2000-05/2006	2148	80	109	3
412 D	OM 602.980	2	02/1996-05/2006	2874	85	115	2
412 D	OM 602.980	2	02/1996-05/2006	2874	90	122	2
412 D 4x4	OM 602.980	2	05/1997-05/2006	2874	85	115	3
412 D 4x4	OM 602.980	2	05/1997-05/2006	2874	90	122	3
413 CDI	OM 611.981	2	04/2000-05/2006	2148	95	129	2
413 CDI 4x4	OM 611.981	2	04/2000-05/2006	2148	95	129	3
416 CDI	OM 612.981 OM 647.981	2	04/2000-05/2006	2685	115	156	2
416 CDI 4x4	OM 612.981 OM 647.981	2	04/2000-05/2006	2685	115	156	3

SPRINTER 4-Ton. (B904) Bus 02/1996-05/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
414 (904.662, 904.663)	M 111.979 M 111.984	1	02/1996-05/2006	2295	105	143	2
408 CDI (904.662, 904.663)	OM 611.987	2	04/2000-05/2006	2148	60	82	2
411 CDI (904.662, 904.663)	OM 611.981	2	04/2000-05/2006	2148	80	109	2
413 CDI (904.663, 904.662)	OM 611.981	2	04/2000-05/2006	2148	95	129	2
416 CDI (904.662, 904.663)	OM 612.981	2	04/2000-05/2006	2685	115	156	2
