Product 78BD0410-2

Description
Brake disc
Axe
Front
No. of Pieces
2
Barcode
EAN13 Code
8424073142368
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD0410-2
Weight (gr.)
13260
R90 Homologation
R90 90R-02C0538/0081

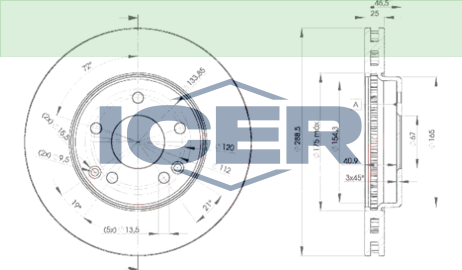

Measures
Ø288.5x25x46.5
Brake Disc Type: Vented
Minimum thickness [mm]: 22.4
Hole Arrangement/Number: 5
Bolt Hole Circle Ø [mm]: 112
Wheel Hub Diameter [mm]: 67
Reference applications
Brand OE Reference
MERCEDES-BENZ 203 421 03 12
MERCEDES-BENZ 203 421 05 12 64
MERCEDES-BENZ 210 421 07 12
MERCEDES-BENZ 210 421 24 12
MERCEDES-BENZ 210 421 24 12 64
MERCEDES-BENZ 210 421 25 12 64
Maker Cross reference
ATE 24.0125-0110.1
BENDIX ANTIGUO 562013B
BOSCH 0 986 478 624
BREMBO 09.6845.14
BREMBO 09.8411.10
DELPHI LOCKHEED BG3240
FERODO DDF1135
GIRLING 6027791
GIRLING 6041801
GIRLING 6041805
HELLA-PAGID 52137
HELLA-PAGID 54059
LETEC LBM015V
MINTEX MDC852
NECTO WN1154
NECTO WN817
ROAD HOUSE 6495.10
ROAD HOUSE 6751.10
SANLI SL32146
TEXTAR 92072500
TEXTAR 92105900
TRW DF2779
TRW DF4180
VALEO 186467
VALEO 186864
CHRYSLER
CROSSFIRE () Coupe 07/2003-12/2008
Vehicle Engine Fuel Date CC KW CV Traction
3.2

EGX

 1 07/2003-12/2008 3199 160 218 2
CROSSFIRE () Convertible 05/2004-12/2008
Vehicle Engine Fuel Date CC KW CV Traction
3.2

EGX

 1 05/2004-12/2008 3199 160 218 2
MERCEDES-BENZ
C-Class (W202) Saloon 03/1993-05/2000
Vehicle Engine Fuel Date CC KW CV Traction
C 240 (202.026)

M 112.910

 1 06/1997-05/2000 2398 125 170 2
C 280 (202.028)

M 104.941

 1 05/1993-05/2000 2799 142 193 2
C 250 Turbo-D (202.128)

OM 605.960

 2 10/1995-05/2000 2497 110 150 2
C-Class T-Model (S202) Estate 06/1996-03/2001
Vehicle Engine Fuel Date CC KW CV Traction
C 200 T Kompressor (202.087)

M 111.956

 1 09/2000-03/2001 1998 120 163 2
C 200 T Kompressor (202.087)

M 111.944

 1 11/1996-03/2001 1998 141 192 2
C 230 T Kompressor (202.085)

M 111.975

 1 06/1997-09/2000 2295 142 193 2
C 240 T (202.086)

M 112.910

 1 06/1997-09/2000 2398 125 170 2
C 240 T (202.088)

M 112.915

 1 09/2000-03/2001 2597 125 170 2
C 280 T (202.089)

M 112.920

 1 06/1997-03/2001 2799 145 197 2
C 250 T Turbo-D (202.188)

OM 605.960

 2 06/1996-03/2001 2497 110 150 2
C-Class II (W203) Saloon 05/2000-12/2007
Vehicle Engine Fuel Date CC KW CV Traction
C 180 (203.035)

M 111.951

 1 10/2000-05/2002 1998 95 129 2
C 180 Kompressor (203.046)

M 271.946

 1 05/2002-02/2007 1796 105 143 2
C 200 CGI Kompressor (203.743)

M 271.942

 1 07/2003-02/2007 1796 125 170 2
C 200 Kompressor (203.045)

M 271.940

 1 05/2002-02/2007 1796 120 163 2
C 200 Kompressor (203.045)

M 111.955

 1 05/2000-06/2002 1998 120 163 2
C 230 (203.052)

M 272.920

 1 01/2005-02/2007 2496 150 204 2
C 230 Kompressor (203.040)

M 271.948

 1 02/2004-02/2007 1796 141 192 2
C 200 CDI (203.004)

OM 611.962

 2 02/2001-06/2003 2148 75 102 2
C 200 CDI (203.004)

OM 611.962

 2 09/2000-06/2003 2148 85 116 2
C 200 CDI (203.007)

OM 646.962

OM 646.963

 2 04/2003-02/2007 2148 90 122 2
C 220 CDI (203.006, 203.008)

OM 611.962

OM 646.963

 2 05/2000-02/2007 2148 105 143 2
C 220 CDI (203.006)

OM 611.962

 2 05/2000-02/2007 2148 100 136 2
C 220 CDI (203.008)

OM 646.963

 2 04/2003-02/2007 2148 110 150 2
C-Class II T-Model (S203) Estate 03/2001-08/2007
Vehicle Engine Fuel Date CC KW CV Traction
C 180 (203.235)

M 111.951

 1 03/2001-05/2002 1998 95 129 2
C 180 Kompressor (203.246)

M 271.946

 1 05/2002-08/2007 1796 105 143 2
C 200 CGI Kompressor (203.743)

M 271.942

 1 07/2003-08/2007 1796 125 170 2
C 200 Kompressor (203.245)

M 271.940

 1 05/2002-08/2007 1796 120 163 2
C 200 Kompressor (203.245)

M 111.955

 1 03/2001-05/2002 1998 120 163 2
C 200 CDI (203.204)

OM 611.962

OM 646.962

 2 03/2001-08/2007 2148 75 102 2
C 200 CDI (203.204)

OM 611.962

 2 03/2001-08/2007 2148 85 116 2
C 200 CDI (203.207)

OM 646.962

OM 646.963

 2 04/2003-08/2007 2148 90 122 2
C 220 CDI (203.206, 203.208)

OM 611.962

 2 03/2001-08/2007 2148 105 143 2
C 220 CDI (203.208)

OM 646.963

 2 02/2004-08/2007 2148 110 150 2
C-Class III T-Model (S204) Estate 08/2007-08/2014
Vehicle Engine Fuel Date CC KW CV Traction
C 180 Kompressor (204.246)

M 271.952

 1 08/2007-08/2014 1796 115 156 2
C 200 CDI (204.207)

OM 646.811

 2 08/2007-12/2009 2148 100 136 2
CLC-Class (CL203) Coupe 05/2008-06/2011
Vehicle Engine Fuel Date CC KW CV Traction
CLC 160 (203.731)

M 271.911

 1 02/2009-06/2011 1597 95 129 2
CLC 180 Kompressor (203.746)

M 271.946

 1 05/2008-06/2011 1796 105 143 2
CLC 200 CDI (203.707)

OM 646.962

 2 05/2008-06/2011 2148 90 122 2
CLC 220 CDI (203.708)

OM 646.963

 2 05/2008-06/2011 2148 100 136 2
CLC 220 CDI (203.708)

OM 646.963

 2 05/2008-06/2011 2148 110 150 2
CLK-Class (C208) Coupe 06/1997-12/2003
Vehicle Engine Fuel Date CC KW CV Traction
CLK 200 (208.335)

M 111.945

 1 06/1997-06/2002 1998 100 136 2
CLK 200 Kompressor (208.445)

M 111.956

 1 06/2000-06/2002 1998 120 163 2
CLK 200 Kompressor (208.445)

M 111.944

 1 06/1997-06/2000 1998 141 192 2
CLK 230 Kompressor (208.448)

M 111.973

M 111.975

 1 06/1997-06/2000 2295 142 193 2
CLK 230 Kompressor (208.448)

M 111.982

 1 06/2000-06/2002 2295 145 197 2
CLK-Class (A208) Convertible 03/1998-03/2002
Vehicle Engine Fuel Date CC KW CV Traction
CLK 200 (208.435)

M 111.941

M 111.945

 1 03/1998-03/2002 1998 100 136 2
CLK 200 Kompressor (208.445)

M 111.956

 1 06/2000-03/2002 1998 120 163 2
CLK 200 Kompressor (208.445)

M 111.944

 1 03/1998-06/2000 1998 141 192 2
CLK 230 Kompressor (208.448)

M 111.982

 1 06/2000-03/2002 2295 145 197 2
CLK-Class II (C209) Coupe 05/2002-03/2010
Vehicle Engine Fuel Date CC KW CV Traction
CLK 200 CGI (209.343)

M 271.942

 1 07/2003-05/2009 1796 125 170 2
CLK 200 Kompressor (209.442)

M 271.940

 1 09/2002-05/2009 1796 120 163 2
CLK 220 CDI (209.308)

OM 646.966

 2 01/2005-05/2009 2148 110 150 2
E-Class II (W210) Saloon 06/1995-08/2003
Vehicle Engine Fuel Date CC KW CV Traction
E 200 (210.035)

M 111.942

 1 06/1995-08/2000 1998 100 136 2
E 200 Kompressor (210.048)

M 111.957

 1 08/2000-03/2002 1998 120 163 2
E 200 Kompressor (210.048)

M 111.947

 1 06/1997-03/2002 1998 137 186 2
E 230 (210.037)

M 111.970

 1 06/1995-06/1997 2295 110 150 2
E 240 (210.061)

M 112.911

 1 06/1997-08/2000 2398 125 170 2
E 240 (210.062)

M 112.914

 1 08/2000-03/2002 2597 125 170 2
E 200 CDI (210.007)

OM 611.961

 2 07/1999-03/2002 2148 85 116 2
E 200 CDI (210.007)

OM 611.961

 2 06/1998-03/2002 2151 75 102 2
E 200 D (210.003)

OM 604.917

 2 01/1996-03/2002 1997 65 88 2
E 220 CDI (210.006)

OM 611.961

 2 07/1999-03/2002 2148 105 143 2
E 220 CDI (210.006)

OM 611.961

 2 06/1998-07/1999 2151 92 125 2
E 220 D

OM 604.912

 2 05/1996-03/2002 2155 55 75 2
E 220 D (210.004)

OM 604.912

 2 06/1995-07/1999 2155 70 95 2
E 250 D (210.010)

OM 605.912

 2 06/1995-07/1999 2497 83 113 2
E 250 Turbo-D (210.015)

OM 605.962

 2 06/1997-07/1999 2497 110 150 2
E 270 CDI (210.016)

OM 612.961

 2 07/1999-03/2002 2685 120 163 2
E 270 CDI (210.016)

OM 612.961

 2 07/1999-03/2002 2685 125 170 2
E 290 Turbo-D (210.017)

OM 602.982

 2 03/1996-07/1999 2874 95 129 2
E 300 D (210.020)

OM 606.912

 2 06/1995-06/1997 2996 100 136 2
E-Class II T-Model (S210) Estate 06/1996-03/2003
Vehicle Engine Fuel Date CC KW CV Traction
E 200 T (210.235)

M 111.942

 1 06/1996-08/2000 1998 100 136 2
E 200 T Kompressor (210.248)

M 111.947

 1 06/1997-03/2003 1998 137 186 2
E 230 T (210.237)

M 111.970

 1 06/1996-06/1997 2295 110 150 2
E 240 T (210.261)

M 112.911

 1 06/1997-03/2003 2398 125 170 2
E 240 T (210.262)

M 112.914

 1 08/2000-03/2003 2597 125 170 2
E 220 T CDI (210.206)

OM 611.961

 2 05/1999-03/2003 2148 100 136 2
E 220 T CDI (210.206)

OM 611.961

 2 07/1999-03/2003 2148 105 143 2
E 220 T CDI (210.206)

OM 611.961

 2 06/1998-07/1999 2151 92 125 2
E 250 T D (210.210)

OM 605.912

 2 06/1996-07/1999 2497 83 113 2
E 250 T Turbo-D (210.215)

OM 605.962

 2 06/1997-07/1999 2497 110 150 2
E 290 T Turbo-D (210.217)

OM 602.982

 2 06/1996-07/1999 2874 95 129 2
SLK-Class (R170) Convertible 04/1996-04/2004
Vehicle Engine Fuel Date CC KW CV Traction
200 (170.435)

M 111.946

 1 09/1996-03/2000 1998 100 136 2
200 Kompressor (170.445)

M 111.958

 1 03/2000-04/2004 1998 120 163 2
200 Kompressor (170.445)

M 111.943

 1 10/1996-03/2000 1998 141 192 2
230 (170.449) 1 09/2000-04/2004 2295 143 194 2
230 Kompressor (170.449)

M 111.973

 1 09/1996-03/2000 2295 142 193 2
230 Kompressor (170.449)

M 111.983

 1 03/2000-04/2004 2295 145 197 2
SLK-Class II (R171) Convertible 03/2004-12/2011
Vehicle Engine Fuel Date CC KW CV Traction
200 Kompressor (171.445)

M 271.944

 1 03/2004-02/2011 1796 120 163 2
