Product 78BD1023-2

Description
Brake disc
Axe
Rear
No. of Pieces
2
Barcode
EAN13 Code
8424073142870
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD1023-2
Weight (gr.)
11160
R90 Homologation
R90 90R-02C0453/0106

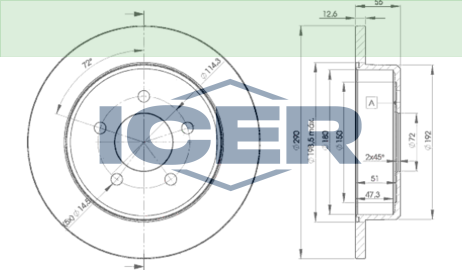

Measures
Ø290x12.5x56
Brake Disc Type: solid
Minimum thickness [mm]: 11.3
Hole Arrangement/Number: 5
Bolt Hole Circle Ø [mm]: 114.3
Wheel Hub Diameter [mm]: 72
Reference applications
Brand OE Reference
CHRYSLER 4721023
CHRYSLER 4721023 AF
CHRYSLER 4721023A G
Maker Cross reference
ATE 24.0113-0196.1
BENDIX BRAKING-TMD BDS1884
BOSCH 0 986 479 102
LETEC LBU011S
ROAD HOUSE 6746.00
SANLI SL11046
TRW DF4336
CHRYSLER
GRAND VOYAGER III VAN (GS) Box Body/MPV 01/1995-12/2001
Vehicle Engine Fuel Date CC KW CV Traction
3.8 1 01/1999-12/1999 3778 131 178 3
VOYAGER / GRAND VOYAGER IV (RG) Box Body/MPV 02/2000-02/2008
Vehicle Engine Fuel Date CC KW CV Traction
2.4 1 01/2001-12/2006 2429 108 147 1
3.3 1 02/2000-08/2007 3301 128 174 1
2.5 CRD 2 01/2001-02/2008 2499 105 143 1
2.8 CRD 2 04/2004-02/2008 2777 110 150 1
RAM VAN (RG) Box Body/MPV 11/2005-07/2009
Vehicle Engine Fuel Date CC KW CV Traction
2.5 CRD 2 01/2006-04/2008 2499 105 143 1
2.8 CRD 2 11/2005-07/2009 2777 110 150 1
VOYAGER III / GRAND VOYAGER III (GS_, NS_) MPV 01/1995-03/2001
Vehicle Engine Fuel Date CC KW CV Traction
3.8

EGH

 1 01/1995-09/2000 3778 121 165 1
3.8

EGH

 1 10/1997-09/2000 3778 131 178 1
3.8

EGH

 1 09/1997-12/2000 3778 134 182 1
3.8 AWD 1 09/1997-12/2000 3778 134 182 3
3.8 i AWD

L00

 1 01/1995-03/2001 3778 122 166 3
3.8 i AWD

EGH

 1 01/1995-03/2001 3778 131 178 3
VOYAGER III VAN (GS_) Box Body/MPV 01/1995-12/2001
Vehicle Engine Fuel Date CC KW CV Traction
3.8 AWD (GSHC52) 1 10/1995-09/1997 3778 122 166 3
3.8 AWD (GSHC52) 1 10/1997-03/2001 3778 131 178 3
2.5 TD (GSHY52, GSHZ52) 2 01/1995-03/2001 2499 85 116 1
VOYAGER IV / GRAND VOYAGER IV / TOWN & COUNTRY IV (RG, RS) MPV 09/1999-12/2008
Vehicle Engine Fuel Date CC KW CV Traction
2.4

EDZ

 1 02/2000-12/2008 2429 108 147 1
2.4

EDZ

 1 04/2003-12/2007 2429 111 151 1
3.3

EGA

EGM

 1 02/2000-12/2008 3301 128 174 1
3.3

EGM

 1 10/2000-09/2002 3301 131 178 1
3.3 1 09/2000-12/2007 3301 134 182 1
3.3 AWD

EGA

 1 02/2000-12/2008 3301 128 174 3
3.8

EGH

 1 02/2000-12/2008 3778 160 218 1
3.8 AWD

EGH

 1 02/2000-12/2008 3778 160 218 3
3.3 Flex-Fuel 19 02/2000-12/2008 3301 128 174 1
2.5 CRD

EDK

 2 08/2005-12/2008 2499 88 120 1
2.5 CRD

ENJ

 2 02/2000-12/2008 2499 105 141 1
2.8 CRD

ENR

 2 06/2004-12/2008 2777 110 150 1
VOYAGER IV VAN (S_) Box Body/MPV 09/1999-12/2008
Vehicle Engine Fuel Date CC KW CV Traction
3.3 (SYM53, SYH53) 1 10/2000-06/2007 3301 128 174 1
3.8 (SYX53) 1 10/2000-06/2007 3778 160 218 1
3.8 AWD (SCH53) 1 10/2000-06/2007 3778 160 218 3
DODGE
CARAVAN IV (RG_) MPV 02/2000-12/2007
Vehicle Engine Fuel Date CC KW CV Traction
3.3

EGA

 1 02/2000-12/2007 3301 128 174 1
3.3

EGM

 1 04/2001-05/2007 3301 132 179 1
3.3 AWD

EGA

 1 02/2000-12/2007 3301 128 174 3
3.8

EGH

 1 04/2001-05/2007 3778 154 209 1
3.8

EGH

 1 02/2000-12/2007 3778 160 218 1
3.8 AWD

EGH

 1 04/2001-12/2007 3778 153 208 3
3.8 AWD 1 04/2001-05/2007 3778 154 209 3
3.8 AWD

EGH

 1 02/2000-12/2007 3778 160 218 3
GRAND CARAVAN IV (U.S.A.) Van 09/2000-12/2007
Vehicle Engine Fuel Date CC KW CV Traction
3.3

EGA

 1 09/2006-12/2007 3301 126 171 1
JEEP
CHEROKEE III / LIBERTY (KJ) Closed Off-Road Vehicle 03/2001-01/2008
Vehicle Engine Fuel Date CC KW CV Traction
2.4 Laredo

ED1

 1 10/2001-09/2004 2429 108 147 2
3.7 Laredo

EKG

 1 10/2001-09/2004 3700 150 204 2
PLYMOUTH
VOYAGER III () MPV 01/1995-03/2001
Vehicle Engine Fuel Date CC KW CV Traction
3.8 i

EGH

 1 01/1995-03/2001 3778 122 166 1
3.8 i AWD

EGH

 1 01/1995-03/2001 3778 122 166 3
