Product 78BD1703-2 - Web Catalogo

Description: Brake disc
Axe: Rear
No. of Pieces: 2
Barcode: 8424073143297
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD1703-2
Weight (gr.): 6444

R90 Homologation: 90R-02C0415/0034

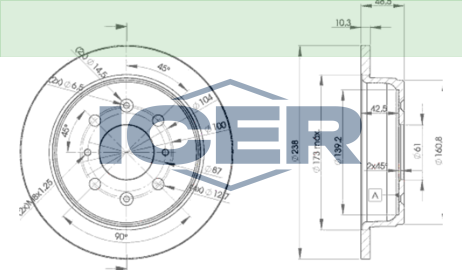

Measures: Ø239x9x47.5
: Brake Disc Type: solid; Minimum thickness [mm]: 8; Hole Arrangement/Number: 4; Bolt Hole Circle Ø [mm]: 100; Wheel Hub Diameter [mm]: 61

Reference applications

Brand	OE Reference
ACURA	42510-SR3-A10
ACURA	42510-SR3-A11
HONDA	42510-SR3-000
HONDA	42510-SR3-G00
HONDA	42510-SR3-J00
HONDA	42510-SR3-J01

Maker	Cross reference
ATE	24.0109-0111.1
BOSCH	0 986 479 101
BREMBO	08.5719.10
HELLA-PAGID	8DD 355 134-141
LETEC	LBH030S
ROAD HOUSE	6521.00
TRW	DF2657
TRW	DF4191

ACURA

INTEGRA () Saloon 01/1985-12/1990

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5	D15A1	1	01/1985-12/1990	1488	63	85	1
1.6	D16A3	1	01/1985-12/1990	1590	74	100	1
1.6 i	D16A8	1	01/1985-12/1990	1590	88	120	1

INTEGRA () Hatchback 01/1985-12/1990

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5	D15A1	1	01/1985-12/1990	1488	63	85	1
1.6	D16A1	1	01/1985-12/1990	1590	74	100	1
1.6 i	D16A8	1	01/1985-12/1990	1590	88	120	1

INTEGRA () Coupe 01/1985-12/1990

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5	D15A1	1	01/1985-12/1990	1488	63	85	1
1.6	D16A3	1	01/1985-12/1990	1590	74	100	1
1.6 i	D16A8	1	01/1985-12/1990	1590	88	120	1

INTEGRA II () Hatchback 10/1990-09/1993

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8		1	10/1990-09/1993	1850	77	105	1

INTEGRA III () Hatchback 10/1993-09/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 LS		1	10/1993-09/2001	1797	125	170	1

INTEGRA III () Saloon 10/1993-09/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 GS-R		1	10/1993-09/2001	1797	147	200	1
1.8 LS		1	10/1993-09/2001	1797	125	170	1

HONDA

BEAT (PP_) Convertible 01/1991-09/1996

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
0.7 (PP1)	E07A	1	05/1991-09/1996	656	47	64	2

CITY III (3A_, SX8) Saloon 02/1997-11/1999

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 (CG3)	D15B7	1	02/1997-11/1999	1493	77	105	1

CITY III (3A2/3A3) Saloon 12/1999-09/2003

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 (3A3)	B15B9 D15B7	1	12/1999-09/2003	1493	77	105	1

CITY IV / FIT ARIA (GE4) Saloon 11/2002-03/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 FF		1	10/2005-07/2008	1497	79	107	1

CITY IV / FIT ARIA (GD_) Saloon 12/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 VTEC (GD8)	L15A1	1	12/2002-07/2008	1497	81	110	1

CIVIC V (EG) Hatchback 10/1991-11/1995

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	10/1991-09/1995	1590	96	131	1
1.6 16V Vtec (EG5)	D16Z6	1	10/1991-11/1995	1590	92	125	1
1.6 VTi 16V (EG6)	B16A2	1	10/1991-11/1995	1595	118	160	1

CIVIC V (EG, EH) Saloon 10/1991-12/1996

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5	D15B2	1	10/1993-12/1995	1493	66	90	1
1.6 16V Vtec (EH9)	D16Z6 D16Z7	1	10/1991-11/1995	1590	92	125	1
1.6 4x4	D16Z7	1	01/1992-10/1995	1590	92	125	3
1.6 EX		1	08/1993-10/1995	1590	88	120	1
1.6 VTi (EG9)	B16A2	1	10/1991-11/1995	1595	118	160	1

CIVIC VI / BALLADE (EJ, EK, SO) Saloon 06/1995-03/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	10/1995-12/2000	1590	93	126	1
1.6		1	10/1995-09/2000	1590	118	160	1
1.6 i Vtec (EK1, SO4)	D16Y6 D16Y8	1	11/1995-02/2001	1590	92	125	1
1.6 i Vtec 4x4	D16Z7	1	11/1995-02/2001	1590	92	125	3
1.6 VTi (EK4, SO4)	B16A2	1	11/1995-02/2001	1595	118	160	1
1.7 (EK9)		1	11/1997-03/2001	1668	92	125	1

CIVIC VI (EJ, EK) Hatchback 10/1995-03/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 VTEC Type R		1	08/1997-09/2000	1595	136	185	1
1.6 VTi (EK4)	B16A2	1	11/1995-02/2001	1595	118	160	1

CRX III (EH, EG) Targa 03/1992-12/1998

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 (EG1)	D15B7	1	01/1994-04/1998	1493	77	105	1
1.6 ESi (EH6)	D16Y8 D16Z6	1	03/1992-12/1998	1590	92	125	1
1.6 i VTi (EG2)	B16A2 B16A3	1	03/1992-12/1998	1595	118	160	1

INTEGRA I-II (DA) Hatchback 10/1985-08/1993

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (DA6, DA8)		1	09/1989-08/1993	1595	125	170	1

INTEGRA III (DC) Coupe 07/1993-11/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5	D15B	1	09/1995-08/1999	1493	96	131	1
1.8 (DC2)	B18B2	1	07/1993-11/2001	1834	107	146	1

JAZZ (GD_, GE3, GE2) Hatchback 06/2001-12/2008

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 iDSi (GD3)	L15A2 L15A4	1	01/2004-12/2006	1497	66	90	1
1.5 VTEC (GD3)	L15A1	1	04/2002-07/2008	1497	81	110	1
1.7	D17A2	1	10/2003-09/2007	1668	92	125	1
1.4 LX Flex		19	12/2006-10/2008	1339	61	83	1

JAZZ II (GE_, GG_, GP_, ZA_) Hatchback 10/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 (GG1)	L12B1	1	07/2008-	1198	66	90	1
1.3 i (GE6, GG3, GG6)	L13Z1 L13Z2	1	07/2008-	1339	73	100	1

NSX (NA) Coupe 06/1990-09/2005

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.0 24V Vtec Automatik (NA1)	C30A4	1	06/1990-09/2005	2977	188	256	2
