Product 78BD1815-2 - Web Catalogo

Description: Brake disc
Axe: Front
No. of Pieces: 2
Barcode: 8424073143372
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD1815-2
Weight (gr.): 7612

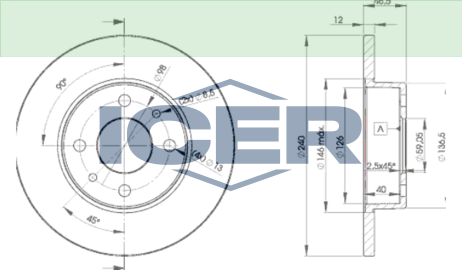

Measures: Ø240x12x46.5
: Brake Disc Type: solid; Minimum thickness [mm]: 10.8; Hole Arrangement/Number: 4; Bolt Hole Circle Ø [mm]: 98; Wheel Hub Diameter [mm]: 59

Reference applications

Brand	OE Reference
AUTOBIANCHI	5 961 814
FIAT	7 173 842 3

Maker	Cross reference
ATE	24.0112-0122.1
BOSCH	0 986 478 353
BREMBO	08.4753.10
BREMBO	08.4753.14
LETEC	LBY029S
ROAD HOUSE	6111.00
TRW	DF1791

AUTOBIANCHI

Y10 (156) Hatchback 03/1985-10/1995

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3 i.e. GT	146A5.046	1	06/1989-10/1995	1297	54	73	1
1.3 i.e. GT	156B.000	1	06/1989-10/1995	1301	57	78	1

FIAT

DUNA / PRÈMIO (146_) Saloon 01/1987-12/1991

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
60 1.1	146 A6.000	1	01/1987-12/1991	1116	43	58	1
70 1.3	146 A5.000	1	01/1987-12/1991	1301	49	67	1
1.7 DS	149 B3.000	2	01/1987-12/1991	1698	44	60	1

DUNA Weekend / PRÈMIO (146_) Estate 01/1987-10/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
60 1.1	146 A6.000	1	01/1987-12/1991	1116	43	58	1
70 1.3	146 A5.000	1	01/1987-12/1991	1301	49	67	1
1.7 DS	146 B2.000 149 B3.000	2	01/1987-12/1991	1698	44	60	1

DUNA / PRÈMIO (146_) Saloon 07/1991-07/1996

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.1	146 A4.048	1	07/1991-07/1996	1116	43	58	1
1.4		1	07/1991-07/1996	1372	51	69	1

ELBA (146_) Estate 10/1985-12/1997

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3	127 A2.011	1	04/1986-12/1993	1297	43	58	1
1.3	146 A5.000	1	04/1991-02/1995	1301	49	67	1
1.4	146 D5.000	1	10/1993-02/1995	1372	49	67	1
1.5	149 C1.000	1	01/1992-12/1996	1498	49	67	1
1.5	149 C1.000	1	04/1986-10/1992	1498	52	71	1
1.5	149 C1.000	1	01/1992-12/1996	1498	55	75	1
1.6	146 C6.000 146 D6.000	1	01/1994-12/1996	1581	69	94	1
1.7 D	146 B2.000	2	04/1991-10/1997	1698	42	57	1
1.7 D	146 B2.000	2	04/1989-12/1996	1698	43	58	1

FIORINO (147_) Pickup 10/1977-10/1989

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0	156 A.000	1	12/1986-10/1989	1049	41	56	1
1.3		1	12/1978-06/1988	1297	46	63	1
1.3 D	127 A5.000	2	05/1984-12/1988	1302	33	45	1

FIORINO (147_) Box Body/MPV 01/1980-10/1993

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.1 60	146 A9.000	1	11/1986-04/1988	1116	40	55	1
1.3		1	09/1981-04/1988	1297	46	63	1
1.3	146 A5.000	1	12/1987-08/1993	1301	49	67	1
1.5		1	01/1988-08/1993	1498	55	75	1
1.7 D		2	01/1988-10/1993	1697	42	57	2
1.7 D		2	12/1987-12/1990	1698	44	60	2

FIORINO II (146_) Box Body/MPV 01/1988-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0		1	01/1995-12/1996	994	41	56	1
1.0 iE		1	11/1992-04/1996	999	33	45	1
1.2		1	01/2004-06/2014	1242	50	68	1
1.3		1	05/1988-09/1998	1297	43	58	1
1.3		1	05/1988-11/1993	1297	44	60	1
1.3		1	05/1988-11/1993	1297	60	82	1
1.4		1	01/1989-03/2000	1372	46	63	1
1.4	146 C5.000	1	11/1992-10/1996	1372	52	71	1
1.5		1	05/1988-11/1993	1497	52	71	1
1.5		1	09/2000-12/2004	1497	57	78	1
1.5 Bipower		1	01/2004-12/2005	1498	52	71	1
1.5 SPI		1	11/1994-09/1996	1497	49	67	1
60 1.1	146 A9.000	1	05/1988-12/1993	1116	40	54	1
70 1.3	146 A5.000	1	01/1988-12/1994	1301	49	67	1
70 i.e. 1.4	146 C5.000 146 D5.000	1	05/1994-05/2001	1372	49	67	1
75 i.e. 1.5	149 C1.000	1	05/1988-12/1993	1498	55	75	1
75 i.e. 1.6	146 C6.000 146 D6.000	1	10/1993-05/2001	1581	55	75	1
1.7 D	146 B2.000	2	01/1988-10/1999	1697	44	60	1
1.7 TD	146 D7.000	2	11/1996-05/2000	1697	46	63	1
1.7 TD		2	01/2004-12/2005	1698	52	70	2
60 1.7 D	146 B2.000	2	05/1988-10/1996	1697	42	57	1
60 1.7 D	149 B3.000	2	05/1988-05/2000	1698	44	60	1
65 1.7 TD	146 D7.000	2	01/1997-05/2001	1698	46	63	1

FIORINO II (146_) Pickup 01/1988-05/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0		1	08/1995-11/1995	994	42	57	1
1.3		1	06/1994-09/1998	1297	43	58	1
1.3		1	05/1988-11/1993	1297	44	60	1
1.3		1	05/1988-11/1993	1297	60	82	1
1.3	146 A5.000	1	01/1988-12/1994	1301	49	67	1
1.4		1	01/1989-03/2000	1372	46	63	1
1.4	146 D5.000	1	05/1994-05/2001	1372	49	67	1
1.4	146 C5.000	1	10/1993-10/1996	1372	52	71	1
1.5 iE		1	01/1988-10/1992	1498	55	75	1
1.5 SPI		1	11/1994-09/1996	1497	49	67	1
1.6		1	05/1991-10/1994	1580	65	88	1
1.6	146 C6.000 146 D6.000	1	01/1994-05/2001	1581	55	75	1
1.6		1	01/1988-12/1997	1581	59	81	1
1.6		1	01/1988-12/1997	1581	61	84	1
1.7 D	146 B2.000	2	10/1993-10/1999	1697	42	57	1
1.7 D	149 B3.000	2	05/1988-10/1999	1698	44	60	1
1.7 TD	146 D7.000	2	01/1997-05/2001	1698	46	63	1

FIORINO II (146_) MPV 01/1988-05/2000

Vehicle	Fuel	Date	CC	KW	CV	Traction
1.1 (146C4)	1	01/1988-10/1992	1116	40	54	1
1.3 (146AW)	1	01/1988-10/1992	1301	49	67	1
1.4 (146RE)	1	11/1996-05/2000	1372	49	67	1
1.4 iE (146RB)	1	10/1993-10/1996	1372	52	71	1
1.5 (149A9)	1	01/1988-10/1992	1498	55	75	1
1.6 iE (146RC, 146RF)	1	10/1993-05/2000	1581	55	75	1
1.7 (146CI)	2	01/1988-10/1992	1698	44	60	1

MILLE (146_) Hatchback 10/1988-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4		1	10/1988-03/2001	1372	49	67	1

PALIO Weekend (178_, 173_, 373_, 374_, 171_) Estate 04/1996-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	178 B2.000	1	07/1997-08/2001	1372	51	69	1

PANDA (141_) Hatchback 03/1980-07/2004

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
0.9 Fire S A las 4 ruedas	146 A.048	1	10/1980-04/1986	903	33	45	3
1100	156 C.046	1	05/1991-12/1999	1108	37	50	1
1100	176 B2.000 187 A1.000	1	02/1995-09/2003	1108	40	54	1
1100 4x4	176 B2.000	1	02/1995-07/2004	1108	40	54	3
1100 Trekking 4x4	156 C.046	1	10/1991-07/2004	1108	37	50	3

PANDA (141_) Hatchback Van 01/1986-02/2004

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.1	156 C.046	1	05/1991-03/1995	1108	37	50	3
1.1	187 A1.000	1	09/2000-02/2004	1108	40	54	1
1.1 4x4	187 A1.000	1	09/2000-02/2004	1108	40	54	3
D	156 A5.000	2	05/1986-04/1991	1302	27	37	1

PENNY (257_) Estate Van 01/1986-12/1990

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.1	146 A6.000	1	01/1986-12/1990	1116	43	58	1
1.3	146 A5.000	1	01/1986-12/1990	1301	49	67	1
1.3 D	146 B1.000	2	04/1986-12/1988	1301	33	45	1
1.7 D	149 B3.000	2	01/1986-12/1990	1698	44	60	1

PREMIO (146_) Saloon 03/1985-12/1996

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3	127 A2.011	1	03/1985-06/1992	1297	43	58	1
1.5 (146AK04)	146 D1.011	1	03/1985-12/1996	1497	49	67	1
1.5 i.e.	138 B3.011	1	06/1992-12/1996	1499	55	75	1
1.6	159 A3.000	1	03/1985-12/1996	1581	62	84	1
1.6 i.e.	146 B7.011 160 A2.011	1	08/1993-12/1996	1581	60	82	1

UNO I-IV (146_, 158_) Hatchback 01/1983-12/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 75 iE		1	01/1994-10/1995	1498	56	76	1
60 1.1	160 A3.000	1	04/1989-12/1992	1108	42	57	1
75 i.e. 1.5	138 C2.048 149 C1.000	1	10/1985-12/1993	1498	55	75	1
1.7 D	146 B2.000	2	11/1994-08/2000	1697	43	58	1
1.9 D	149 B5.046	2	09/1989-03/1994	1929	44	60	1
1.9 D		2	01/1989-12/1991	1929	58	79	1
60 Diesel 1.7	149 B3.000	2	07/1986-08/1989	1698	44	60	1
60 Diesel 1.7 (146E)	146 B2.000	2	09/1989-12/1993	1698	42	57	1

UNO II (146_) Van 02/1988-12/2013

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.7 D	146 B2.000 149 B4.046	2	02/1988-02/1992	1697	43	58	1

INNOCENTI

ELBA () Estate 08/1991-12/1996

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3 (146CW)	146 A5.000	1	08/1991-12/1996	1301	49	67	1
1.4 i.e. (146EN, 146EQ)	146 C5.000 146 D5.000	1	09/1994-12/1996	1372	49	67	1
1.5 i.e. (146C9)	149 C1.000	1	08/1992-09/1994	1498	55	75	1
1.6 i.e. (146EO, 146ER)	146 C6.000 146 D6.000	1	09/1994-12/1996	1580	55	75	1
1.7 D (146DI, 146EI)	146 B2.000	2	08/1991-12/1996	1697	42	57	1

LANCIA

Y10 (156_) Hatchback 03/1985-12/1995

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 Fire A las 4 ruedas (156AE)	156 A2.100	1	12/1986-02/1989	999	32	44	3
1.0 Fire A las 4 ruedas (156AE)	156 A2.000 156 A2.246	1	12/1987-02/1992	999	33	45	3
1.0 Fire A las 4 ruedas (156AE)	156 A2.000	1	12/1987-02/1990	999	37	50	3
1.0 Turbo (156D)	156 A1.000	1	03/1985-02/1989	1049	62	84	1
1.3 i.e. (156AB)	156 B.000	1	11/1987-05/1993	1301	56	76	1
1.3 i.e. (156AF)	146 A 5.046 156 B.000	1	02/1989-12/1995	1297	53	72	1
