Product 78BD1973-2


Description
Brake disc
Axe
Front
No. of Pieces
2
Barcode
EAN13 Code
8424073143419
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD1973-2
Weight (gr.)
22452
R90 Homologation
R90 90R-02C0452/0091

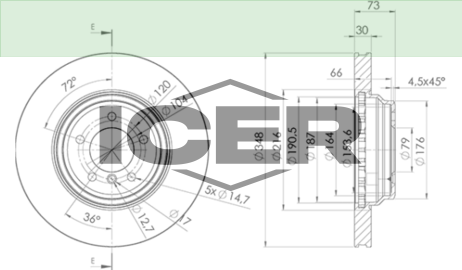

Measures
Ø348x30x73
Brake Disc Type: Vented
Minimum thickness [mm]: 28
Hole Arrangement/Number: 5
Bolt Hole Circle Ø [mm]: 120
Wheel Hub Diameter [mm]: 79
Brand OE Reference
BMW 34 11 6 770 729
BMW 34 11 6 855 000
Maker Cross reference
ATE 24.0130-0192.1
ATE 430192
BENDIX ANTIGUO 562519BC
BOSCH 0 986 479 265
BOSCH 0 986 479 585
BREMBO 09.A599.10
BREMBO 09.A599.11
DELPHI LOCKHEED BG9019
FERODO DDF1634
GIRLING 6047755
HELLA-PAGID 8DD 355 113-531
LETEC LBB047V
MINTEX MDC1909
ROAD HOUSE 61080.10
SANLI SL36285
TEXTAR 92155300
TEXTAR 92155303
VALEO 197176
Vehicle Engine Fuel Date CC KW CV Traction
330 i xDrive

N53 B30 A

1 09/2008-10/2011 2996 200 272 3
330 xi

N52 B30 A

1 09/2005-08/2007 2996 190 258 3
330 xi

N53 B30 A

1 09/2007-08/2008 2996 200 272 3
330i

N52 B30 A

N52 B30 BF

1 12/2004-10/2011 2996 190 258 2
330i

N53 B30 A

1 09/2007-10/2011 2996 200 272 2
335 i

N54 B30 A

N55 B30 A

1 03/2006-12/2011 2979 220 299 2
335 i

N54 B30 A

1 03/2006-12/2011 2979 224 305 2
335 i

N54 B30 A

N55 B30 A

1 09/2006-12/2011 2979 225 306 2
335 i

N54 B30 A

N55 B30 A

1 03/2006-12/2011 2979 240 326 2
335 i xDrive 1 05/2008-10/2011 2979 224 305 3
335 i xDrive

N54 B30 A

N55 B30 A

1 09/2008-10/2011 2979 225 306 3
335 i xDrive

N54 B30 A

N55 B30 A

1 05/2008-10/2011 2979 240 326 3
335 xi

N54 B30 A

1 03/2007-08/2008 2979 225 306 3
335 xi

N54 B30 A

1 09/2006-06/2008 2979 240 326 3
325 d

M57 D30 (306D3)

2 09/2006-02/2010 2993 145 197 2
325 d

N57 D30 A

2 03/2010-10/2011 2993 150 204 2
330 d

M57 D30 (306D3)

N57 D30 A

2 09/2005-12/2011 2993 155 211 2
330 d

M57 D30 (306D3)

2 09/2005-09/2008 2993 170 231 2
330 d

N57 D30 A

2 09/2008-10/2011 2993 180 245 2
330 d xDrive

N57 D30 A

2 09/2008-10/2011 2993 180 245 3
330 xd

M57 D30 (306D3)

2 09/2005-08/2008 2993 170 231 3
335 d

M57 D30 (306D5)

2 09/2006-12/2011 2993 210 286 2
Vehicle Engine Fuel Date CC KW CV Traction
330 i xDrive

N53 B30 A

1 09/2007-06/2012 2996 200 272 3
330 xi

N52 B30 A

1 09/2005-08/2007 2996 190 258 3
330 xi

N53 B30 A

1 09/2007-06/2012 2996 200 272 3
330i

N52 B30 A

1 08/2005-08/2007 2996 190 258 2
330i

N53 B30 A

1 09/2007-06/2012 2996 200 272 2
330i 1 03/2007-06/2012 2996 200 272 2
335 i

N54 B30 A

N55 B30 A

1 09/2006-06/2012 2979 225 306 2
335 i

N54 B30 A

N55 B30 A

1 09/2006-06/2012 2979 240 326 2
335 i xDrive

N54 B30 A

N55 B30 A

1 09/2008-06/2012 2979 225 306 3
335 i xDrive

N54 B30 A

N55 B30 A

1 09/2008-06/2012 2979 240 326 3
335 xi

N54 B30 A

N55 B30 A

1 03/2007-08/2008 2979 225 306 3
335 xi

N54 B30 A

1 03/2007-08/2008 2979 240 326 3
325 d

M57 D30 (306D3)

2 09/2006-06/2012 2993 145 197 2
325 d

N57 D30 A

2 02/2010-06/2012 2993 150 204 2
330 d

M57 D30 (306D3)

N57 D30 A

2 06/2005-05/2012 2993 155 211 2
330 d

M57 D30 (306D3)

2 12/2004-08/2008 2993 170 231 2
330 d

N57 D30 A

2 02/2008-05/2012 2993 180 245 2
330 d xDrive

N57 D30 A

2 01/2009-06/2012 2993 180 245 3
330 xd

M57 D30 (306D3)

2 09/2005-06/2012 2993 170 231 3
335 d

M57 D30 (306D5)

2 09/2006-06/2012 2993 210 286 2
Vehicle Engine Fuel Date CC KW CV Traction
330 xi

N52 B30 A

1 09/2006-08/2007 2996 200 272 3
330i

N52 B30 A

N52 B30 AF

N52 B30 BF

1 09/2006-02/2010 2996 200 272 2
330i

N53 B30 A

1 09/2007-06/2013 2996 200 272 2
335 i 1 03/2007-06/2013 2979 224 305 2
335 i

N54 B30 A

N55 B30 A

1 06/2006-06/2013 2979 225 306 2
335 i

N54 B30 A

N55 B30 A

1 06/2006-06/2013 2979 240 326 2
335 i xDrive

N54 B30 A

1 01/2009-06/2013 2979 224 305 3
335 i xDrive

N54 B30 A

N55 B30 A

1 11/2008-12/2013 2979 225 306 3
335 i xDrive

N55 B30 A

1 11/2008-06/2013 2979 240 326 3
335 xi

N54 B30 A

N55 B30 A

1 03/2007-02/2010 2979 225 306 3
335 xi

N54 B30 A

1 03/2007-02/2010 2979 240 326 3
325 d

N57 D30 A

2 09/2009-06/2013 2993 150 204 2
330 d

M57 D30 (306D3)

2 03/2006-08/2008 2993 170 231 2
330 d

N57 D30 A

2 01/2009-06/2013 2993 180 245 2
330 d xDrive

N57 D30 A

2 02/2010-06/2013 2993 180 245 3
330 xd

M57 D30 (306D3)

2 03/2006-08/2008 2993 170 231 3
330 xd

N57 D30 A

2 03/2008-02/2010 2993 180 245 3
335 d

M57 D30 (306D5)

2 03/2006-03/2013 2993 210 286 2
Vehicle Engine Fuel Date CC KW CV Traction
330i

N52 B30 A

N52 B30 AF

1 03/2010-10/2013 2996 190 258 2
330i

N53 B30 A

1 03/2007-10/2013 2996 200 272 2
330i

N52 B30 A

1 03/2007-02/2010 2996 200 272 2
335 i

N54 B30 A

N55 B30 A

1 12/2006-10/2013 2979 225 306 2
335 i

N54 B30 A

N55 B30 A

1 05/2006-10/2013 2979 240 326 2
330 d

M57 D30 (306D3)

2 03/2007-12/2013 2993 170 231 2
330 d

N57 D30 A

2 01/2009-09/2013 2993 180 245 2
Vehicle Engine Fuel Date CC KW CV Traction
sDrive20i

N20 B20 A

1 09/2011-06/2015 1997 135 184 2
xDrive 35 i

N55 B30 A

1 03/2011-06/2015 2979 225 306 3
xDrive28i

N52 B30 A

1 09/2009-08/2011 2996 190 258 3
xDrive28i

N52 B30 A

1 03/2010-06/2011 2996 194 264 3
