Product 78BD2090-2

Description
Brake disc
Axe
Front
No. of Pieces
2
Barcode
EAN13 Code
8424073143617
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD2090-2
Weight (gr.)
10630
R90 Homologation
R90 90R-02C0074/0061

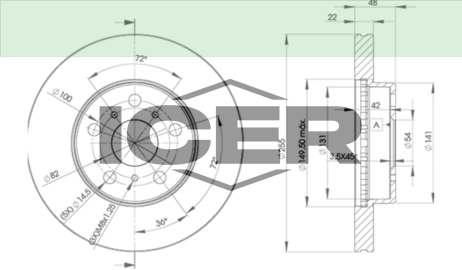

Measures
Ø255x22x48
Brake Disc Type: Vented
Minimum thickness [mm]: 21
Hole Arrangement/Number: 5
Bolt Hole Circle Ø [mm]: 100
Wheel Hub Diameter [mm]: 54
Reference applications
Brand OE Reference
TOYOTA 43512-32090
TOYOTA 46512-32180
Maker Cross reference
ATE 24.0122-0154.1
ATE 422154
BENDIX ANTIGUO 561442B
BREMBO 09.5616.10
DELPHI LOCKHEED BG2596
FERODO DDF403
GIRLING 6030371
HELLA-PAGID 8DD 355 103-581
MINTEX MDC717
NECTO WN711
ROAD HOUSE 6170.10
TEXTAR 92065800
TRW DF3037
TOYOTA
CAMRY (_V1_) Saloon 10/1982-07/1988
Vehicle Engine Fuel Date CC KW CV Traction
2.0 4WD

3S-FE

 1 03/1983-07/1986 1998 88 120 3
CAMRY (_V2_) Saloon 08/1986-02/1993
Vehicle Engine Fuel Date CC KW CV Traction
1.8 (SV20_, SV20R)

1S-L

 1 10/1986-08/1988 1832 66 90 1
2.0 (SV21_, SV21)

3S-FE

 1 11/1986-05/1991 1998 94 128 1
2.0 (SV21_, SV21) 1 10/1986-07/1990 1998 103 140 1
2.0 (SV21_, SV21R)

3S-FE

 1 11/1986-02/1993 1998 89 121 1
2.0 (SV21_) 1 10/1986-12/1991 1998 86 117 1
2.0 (SV22, SV21) 1 09/1989-06/1991 1998 82 112 1
2.0 4WD (SV25_, SV25)

3S-FE

 1 10/1987-06/1991 1998 88 120 3
2.0 4WD (SV25_, SV25)

3S-FE

 1 08/1988-05/1991 1998 94 128 3
2.5 (VZV21_, VZV21R)

2VZ-FE

 1 10/1986-06/1991 2507 118 160 1
2.0 Turbo-D (CV20_, CV20)

2C-T

 2 11/1986-05/1991 1974 62 84 1
2.0 Turbo-D (CV20_, CV20)

2C-T

 2 10/1986-05/1991 1974 63 86 1
CAMRY (_V2_) Estate 11/1986-02/1993
Vehicle Engine Fuel Date CC KW CV Traction
1.8 (SV20_, SV20RG)

1S

 1 11/1986-08/1989 1832 66 90 1
1.8 (SV20_) 1 11/1986-03/1989 1832 88 120 1
2.0 (SV21_, SV21)

3S-FE

 1 11/1986-05/1991 1998 94 128 1
2.0 (SV21_, SV21RG)

3S-FE

 1 11/1986-02/1993 1998 89 121 1
2.0 (SV22) 1 09/1989-04/1991 1998 82 112 1
2.0 4WD (SV25_, SV25)

3S-FE

 1 08/1988-05/1991 1998 94 128 3
2.0 Turbo-D (CV20_, CV20)

2C-T

 2 11/1986-05/1991 1974 62 84 1
2.0 Turbo-D (CV20_, CV20)

2C-T

 2 11/1988-05/1991 1974 63 86 1
CARINA V (_T17_) Saloon 12/1987-06/1992
Vehicle Engine Fuel Date CC KW CV Traction
1.6 (AT171_, AT171)

4A-F

 1 12/1987-08/1990 1587 66 90 1
1.6 (AT171_, AT171)

4A-FE

 1 12/1987-03/1992 1587 72 98 1
1.6 (AT171_, AT171)

4A-FE

 1 12/1987-03/1992 1587 75 102 1
2.0 (ST170)

3S-FE

 1 12/1987-03/1992 1998 94 128 1
2.0 GLI (ST171)

3S-FE

 1 12/1987-03/1992 1998 89 121 1
2.0 D (CT170_, CT170)

2C

 2 03/1988-06/1992 1974 54 73 1
CARINA V (_T17_) Hatchback 12/1987-06/1992
Vehicle Engine Fuel Date CC KW CV Traction
1.6 (AT171_)

4A-F

 1 12/1987-11/1989 1587 66 90 1
1.6 (AT171_)

4A-FE

 1 12/1987-03/1992 1587 72 98 1
1.6 (AT171_)

4A-FE

 1 12/1987-03/1992 1587 75 102 1
2.0 GLi (ST170)

3S-FE

 1 12/1987-03/1992 1998 94 128 1
2.0 GLI (ST171)

3S-FE

 1 12/1987-03/1992 1998 89 121 1
2.0 D (CT170_)

2C-L

 2 03/1988-06/1992 1974 54 73 1
CARINA V (_T17_) Estate 12/1987-04/1992
Vehicle Engine Fuel Date CC KW CV Traction
1.6 (AT171_, AT171)

4A-FE

 1 12/1987-03/1992 1587 72 98 1
1.6 (AT171_, AT171G)

4A-F

 1 12/1987-12/1989 1587 66 90 1
1.6 (AT171_, AT171G)

4A-FE

 1 12/1987-03/1992 1587 75 102 1
2.0 (ST171_, ST171R)

3S-FE

 1 12/1987-04/1992 1998 89 121 1
2.0 GLi (ST171_, ST171R)

3S-FE

 1 12/1987-03/1992 1998 94 128 1
2.0 D (CT170_, CT170)

2C-L

 2 12/1987-01/1992 1974 54 73 1
CORONA IX (_T17_) Saloon 11/1987-09/1993
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (ST171) 1 12/1987-01/1992 1998 89 121 1
CORONA X (_T19_) Saloon 10/1991-04/1998
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (ST191_, ST191)

3S-FE

 1 02/1992-09/1997 1998 93 126 1
VISTA II (_V2_) Saloon 08/1986-06/1990
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (SV21) 1 10/1986-06/1990 1998 88 120 1
