Product 78BD2500-2 - Web Catalogo

Description: Brake disc
Axe: Front
No. of Pieces: 2
Barcode: 8424073143884
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD2500-2
Weight (gr.): 5940

R90 Homologation: 90R-02C0415/0015

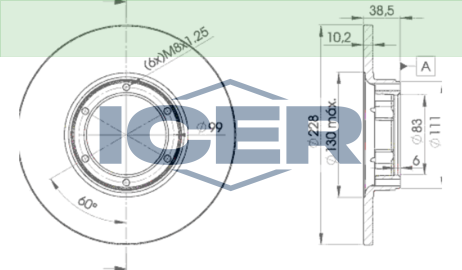

Measures: Ø228x10x38.5
: Brake Disc Type: solid; Minimum thickness [mm]: 9; Hole Arrangement/Number: 6; Bolt Hole Circle Ø [mm]: 99; Wheel Hub Diameter [mm]: 83

Reference applications

Brand	OE Reference
ARO	10230001202
ARO	77 00 502 515
DACIA	26 77 502 515
DACIA	26 77 509 150
RENAULT	77 01 466 540

Maker	Cross reference
ATE	24.0110-0139.1
BENDIX ANTIGUO	561043B
BOSCH	0 986 478 103
BREMBO	08.2138.10
COMLINE	ADC5123
COMLINE	AND7408
FERODO	DDF016C
LETEC	LBR752S
ROAD HOUSE	6033.00
SANLI	SL10437
TEXTAR	92009203
TRW	DF1005

ARO

10-11 / Enduro () Closed Off-Road Vehicle 06/1980-10/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1,3	810-02	1	06/1980-11/1986	1289	40	54	3
1,4	IAP 810-R-99	1	06/1984-10/1999	1397	46	63	3
1.6		1	06/1998-10/1999	1557	67	91	3
1.6	HN	1	06/1988-10/1999	1595	55	75	3
1.6 16V		1	06/1998-10/1999	1598	78	106	3
1.6 D	F8M 700	2	09/1986-10/1999	1596	40	54	3
1.6 TD		2	08/1988-10/1999	1588	51	70	3
1.6 TD		2	01/1989-12/1992	1588	59	80	3
1.9 D	F8QA6	2	09/1992-10/2006	1870	48	65	3
1.9 TD	F8QT	2	06/1997-10/2006	1870	69	94	3

240-244 (24-32 Series) () Closed Off-Road Vehicle 04/1978-12/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.4	2RZ-FE	1	01/1999-12/2006	2438	103	140	3
2.5	ARO L25	1	04/1978-12/1998	2495	59	80	3
2.5	ARO L25	1	01/1980-12/1998	2495	60	82	3
2.5	ARO L25	1	01/1989-12/2006	2495	63	86	3
2.9 V6		1	01/1998-12/2006	2935	108	147	3
3.0	ARO L30	1	01/1992-12/2006	3007	70	95	3
3.0	ARO L30	1	01/1996-12/2002	3007	74	101	3
2.4 D	2L-T	2	01/2000-12/2006	2446	66	90	3
2.5 D	XD3P	2	01/1983-12/1998	2498	52	71	3
2.5 TD	XD3TP	2	01/1995-12/1998	2498	67	91	3
2.5 TD	XD3TP	2	01/1992-12/2006	2498	70	95	3
2.5 TD	VM-425HLT	2	01/1992-12/2006	2499	74	101	3
2.7 D		2	09/1989-12/1998	2660	50	68	3
2.7 D	ARO L-27D	2	04/1985-12/1998	2660	52	71	3
2.7 D	ARO L-27D	2	01/1983-12/1998	2660	60	82	3
2.7 TD		2	04/1985-12/2006	2660	64	87	3
3.1 D	ARO D-127	2	01/1980-12/1983	3119	47	64	3

SPARTANA () Open Off-Road Vehicle 01/1997-10/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1,2 AWD	C3G 702	1	01/1997-12/2003	1239	40	54	3
1.2	C3G 702	1	01/1999-10/2006	1239	40	54	2

DACIA

1210 () Saloon 06/1983-12/1994

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2	103-00	1	06/1983-12/1994	1185	36	49	1

1300 () Saloon 12/1972-05/1983

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3	810-02/-99	1	12/1972-05/1983	1289	40	54	1

1300 () Estate 12/1972-05/1983

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3	810-02/-99	1	12/1972-05/1983	1289	40	54	1

1304 () Pickup 06/1983-04/2004

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3	810-02/-99	1	06/1983-08/1990	1289	40	54	1
1.3		1	09/1990-04/2004	1289	41	56	1

1307 () Platform/Chassis 06/1984-11/1994

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4		1	06/1984-11/1994	1397	48	65	1

1309 () Platform/Chassis 09/1990-11/1994

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4		1	09/1990-11/1994	1397	48	65	1

1309 () Pickup 12/1994-08/2001

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	12/1994-08/2001	1557	53	72	1

1310 (U, X) Saloon 05/1983-07/2004

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3	810-02/-99	1	05/1983-07/2004	1289	40	54	1
1.4		1	09/1985-12/1994	1397	48	65	1
1.4		1	06/2000-07/2004	1397	50	68	1
1.4 Classic		1	01/1995-07/2004	1397	46	63	1
1.5		1	01/1995-07/2004	1557	46	63	1

1310 () Estate 05/1983-07/2004

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3	810-02/-99	1	05/1983-07/2004	1289	40	54	1
1.4		1	01/1995-07/2004	1397	46	63	1
1.5		1	01/1995-07/2004	1557	46	63	1

1325 / LIBERTA () Hatchback 05/1989-05/1996

Vehicle	Fuel	Date	CC	KW	CV	Traction
1.3	1	06/1989-05/1992	1289	40	54	1
1.4	1	05/1989-05/1996	1397	48	65	1
1.6 D	2	07/1994-05/1996	1588	51	69	1

1410 () Saloon 09/1985-12/1998

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	102-00	1	09/1985-12/1998	1397	48	65	1

1410 () Estate 09/1985-12/1998

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	102-00	1	09/1985-12/1998	1397	48	65	1

DUSTER () Closed Off-Road Vehicle 03/1984-12/1993

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 4WD		1	03/1984-12/1993	1397	48	65	3
1.6 D 4WD	F8M 700	2	03/1988-12/1993	1596	41	56	3

RENAULT

R 4 (112_) Hatchback 04/1962-12/1993

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
0.7	680.702	1	04/1962-04/1971	746	15	20	1
0.8 (1123)	800 800 705	1	10/1962-09/1983	845	19	26	1
0.8 (1123)	800 705 B1B 707	1	10/1983-10/1988	845	21	29	1
0.8 (1123)	800 01	1	09/1971-12/1988	845	25	34	1
1.0	689 710	1	12/1985-06/1993	956	31	42	1
1.0 (112C)	C1C 708	1	06/1987-06/1993	956	25	34	1
1.1	C1E 714	1	06/1986-06/1990	1108	32	44	1
1.1	688 712	1	02/1978-03/1984	1108	33	45	1
1.1 (1128, S128)	688 712 C1E 714 C1E 719	1	06/1978-06/1990	1108	25	34	1

R 4 (R21_, R23_) Box Body/MPV 09/1966-12/1993

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
0.8	839 706	1	09/1971-08/1982	782	19	26	1
0.8 (2106)	800 01	1	09/1966-12/1988	845	25	34	1
0.8 (2391)	800 705 B1B 707	1	04/1983-07/1989	845	21	29	1
1.0	C1C 708	1	06/1987-12/1993	956	25	34	1
1.1 (2370, 210B)	688 711 688 712 C1E 714 C1E 718 C1E 719	1	10/1976-07/1989	1108	25	34	1
1.1 (239B)	C1E 718 C1E 719	1	07/1982-05/1989	1108	26	35	1

R 5 (238_) Hatchback Van 01/1972-12/1985

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
0.8 (2381)	800 710	1	10/1972-08/1984	845	26	35	1
1.0 (2382)	689 710	1	01/1972-12/1985	956	32	44	1
1.1	688 713 C1E 726 C1E 750 C1E 752 C1E 754	1	09/1980-12/1985	1108	33	45	1
1.3 (2387)	810 726	1	03/1976-08/1982	1289	32	44	1

R 5 / LE CAR (122_) Hatchback 01/1972-12/1985

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
0.8 (1221, 1391, 1220)	800 710	1	10/1972-08/1984	845	26	35	1
0.8 (1221, 1391)	800 710	1	01/1982-12/1984	845	27	37	1
1.0 (1222, 1392)	689 710	1	01/1972-12/1985	956	32	44	1
1.1 (1227, 1397)	688 713 C1E 726	1	09/1980-12/1985	1108	33	45	1
1.3 (1224, 1394)	810 725	1	09/1975-09/1984	1289	47	64	1
1.3 (1225, 1395)	810 719	1	06/1979-09/1984	1289	33	45	1
1.3 (1225)	810 726	1	09/1976-09/1979	1289	31	42	1
1.3 Automatik (1225, 1395)	810 729	1	06/1979-09/1984	1289	40	54	1
1.4	C6J 750	1	06/1984-01/1985	1397	81	110	1
1.4	840 730	1	09/1980-03/1985	1397	118	160	2
1.4 (1229, 1399)	847 725 C2J 713	1	01/1982-12/1985	1397	46	63	1
1.4 Alpine A5 (1223)	840 725	1	09/1977-09/1981	1397	68	93	1
1.4 Alpine Turbo (122B)	840 726 C6J 750	1	10/1981-01/1985	1397	79	108	1
1.4 Automatik (1229, 1399)	847 712	1	06/1982-09/1984	1397	43	59	1
1.4 Turbo (8220)	840 730	1	06/1980-01/1985	1397	118	160	2

R 6 (118_) Hatchback 10/1969-04/1987

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
0.8	800.02	1	10/1969-04/1980	845	25	34	1
1.1	688.10	1	08/1970-04/1987	1108	33	45	1
1.1	688.10	1	07/1971-04/1980	1108	35	48	1

R 12 (117_) Saloon 10/1969-12/1984

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3 (1170)	810.02	1	07/1975-04/1980	1289	37	50	1
1.3 (1170)	810-02/97	1	10/1969-08/1980	1289	40	54	1
1.3 TS (1177)	810.05 810.06	1	08/1972-08/1980	1289	44	60	1
1.4 (1179)	C1J 791	1	08/1976-05/1979	1397	49	67	1
1.6	821.10 821.11	1	08/1970-08/1976	1565	50	68	1
1.6 Gordini (1173)	807.20 821.20	1	08/1970-12/1974	1565	83	113	1

R 12 (117_, 133_) Estate 08/1970-12/1983

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3 (1170)	810.02	1	07/1975-04/1980	1289	37	50	1
1.3 (1170)	810-02/97	1	10/1970-08/1980	1289	40	54	1
1.3 (1337)	810.05 810.06	1	08/1973-08/1980	1289	44	60	1
1.6	821.10 821.11	1	08/1970-08/1976	1565	50	68	1
1.6		1	08/1970-08/1976	1565	75	102	1
1.6		1	08/1970-07/1975	1565	83	113	1

R 12 () Estate Van 07/1975-02/1983

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3	810.02	1	07/1975-04/1980	1289	37	50	1

R 15 (130_) Coupe 09/1971-10/1980

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3 (1300)	810.05	1	03/1972-10/1980	1289	44	60	1

R 17 () Coupe 03/1972-10/1980

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6	807.10	1	03/1972-10/1980	1565	66	90	1
1.6	843.05	1	06/1974-08/1979	1647	68	92	1
1.6 Gordini	844.12	1	03/1974-10/1980	1605	79	108	1

R 18 (134_) Saloon 04/1978-11/1994

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (1340)	847 720 847 722	1	04/1978-07/1986	1397	47	64	1
1.6 (1341)	841 717 A2M 723	1	04/1982-07/1986	1647	54	73	1
1.6 (1341)	841 725 841 726	1	04/1978-09/1982	1647	58	79	1
1.6 TS (1342)	A6M 725 A6M 726	1	05/1982-07/1986	1647	71	97	1

R 18 Variable (135_) Estate 02/1979-11/1994

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 (1350)	847 720 847 722	1	05/1979-07/1986	1397	47	64	1
1.6 (1351)	841 717 A2M 723	1	01/1982-07/1986	1647	54	73	1
1.6 (1351)	841 725 841 726	1	05/1979-09/1982	1647	58	79	1
1.6 4x4	841 725	1	02/1979-06/1981	1647	58	79	3
1.6 TS	A6M 725 A6M 726	1	05/1982-07/1986	1647	71	97	1

R 18 () Estate Van 05/1979-07/1986

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4	847 720 847 722	1	05/1979-07/1986	1397	47	64	1

RODEO 6 (ACL_) Convertible 05/1970-11/1981

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.1	688.10	1	08/1973-11/1981	1108	35	48	1
