Product 78BD3107-2 - Web Catalogo

Description: Brake disc
Axe: Front
No. of Pieces: 2
Barcode: 8424073144508
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD3107-2
Weight (gr.): 14900

R90 Homologation: 90R-02C0452/0127

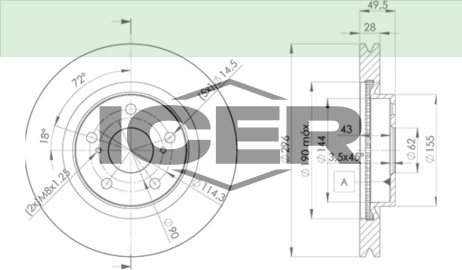

Measures: Ø296x28x49.5
: Brake Disc Type: Vented; Minimum thickness [mm]: 25; Hole Arrangement/Number: 5; Bolt Hole Circle Ø [mm]: 114.3; Wheel Hub Diameter [mm]: 62

Reference applications

Brand	OE Reference
TOYOTA	43512-06150
TOYOTA	43512-33130
TOYOTA	43512-42050
TOYOTA	43512-42090
TOYOTA	43512-42100

Maker	Cross reference
ATE	24.0128-0159.1
ATE	428159
BENDIX ANTIGUO	562621BC
BOSCH	0 986 479 768
BREMBO	09.A417.10
BREMBO	09.A417.11
DELPHI LOCKHEED	BG4114
FERODO	DDF1646
FERODO	DDF3055C
GIRLING	6048285
HELLA-PAGID	8DD 355 118-561
LETEC	LBT060V
MINTEX	MDC1850
ROAD HOUSE	61189.10
SANLI	SL36277
TEXTAR	92168803
TEXTAR	98200 1688 0 1
TRW	DF4828S
VALEO	197152

EMGRAND (GEELY)

EC8 () Saloon 08/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	JLD-4G20	1	08/2010-12/2012	1997	100	136	1
2.0	JLD-4G20	1	08/2010-12/2017	1997	104	141	1
2.4	JLD-4G24	1	08/2010-	2378	115	156	1
2.4	JLD-4G24	1	10/2010-	2378	119	162	1

GEELY

VISION SUV () SUV 08/2016-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.3	JLB-4G13T	1	08/2016-	1299	98	133	1

LEXUS

ES V (_V4_) Saloon 03/2006-12/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
240 (ACV40_)		1	08/2009-06/2012	2362	123	167	1
3.5 (GSV40_, GSV40)	2GR-FE	1	05/2006-06/2012	3456	204	277	1
3.5 (GSV40_)	2GR-FE	1	09/2010-06/2012	3456	200	272	1

ES VI (_V6_) Saloon 06/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
200 (ASV61_)	6AR-FSE	1	08/2015-06/2018	1998	110	150	1
200 (ASV61_)		1	08/2015-06/2018	1998	123	167	1
250 (AV60_)	2AR-FE	1	06/2012-06/2018	2494	133	181	1
250 (AVV60_, ASV60_)	2AR-FE	1	06/2012-06/2018	2494	135	184	1
350 (GSV60_, GSV60R)	2GR-FE	1	06/2012-06/2018	3456	204	277	1
350 (GSV60_)	2GR-FE	1	06/2012-06/2018	3456	183	249	1
350 (GSV60_)	2GR-FE	1	06/2012-06/2018	3456	200	272	1
350 4WD (GSV60_)		1	06/2012-06/2018	3456	204	277	3
300h (ASV60_, AVV60_, AVV60R)	2AR-FXE	13	06/2012-06/2018	2494	151	205	1
300h (ASV60_, AVV60_)		13	09/2012-06/2018	2493	149	203	1

SCION

TC II (U.S.A.) Coupe 09/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.5		1	09/2012-	2494	133	181	1

TOYOTA

AURION (_V4_) Saloon 03/2006-09/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.5 (GSV40)	2GR-FE	1	03/2006-09/2011	3456	200	272	1

AURION II (_V5_) Saloon 09/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.5 (GSV50)	2GR-FE	1	09/2011-	3456	200	272	1

AURIS / BLADE (_E15_) Hatchback 10/2006-09/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 Hybrid (ZWE150_, ZWE150R)	2ZR-FXE	13	09/2010-09/2012	1798	100	136	1

AVALON III (_X3_) Saloon 01/2005-11/2012

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.5 (GSX30_)	2GR-FE	1	10/2005-11/2012	3456	198	269	1

AVALON IV (_X4_) Saloon 09/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.5 (GSX40_)	2GR-FE	1	09/2012-03/2018	3456	200	272	1
3.5 (GSX40_)	2GR-FE	1	10/2012-03/2018	3456	204	277	1
2.5 Hybrid (AVX40_)	2AR-FXE	13	09/2012-03/2018	2494	149	203	1

CAMRY (_V3_) Saloon 08/2001-11/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.5		1	01/2006-11/2006	3456	197	268	1

CAMRY (_V4_) Saloon 01/2006-12/2014

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 (ACV41_)	1AZ-FE	1	05/2006-09/2011	1998	108	147	1
2.4 (ACV40_, ACV40R)	2AZ-FE	1	01/2006-09/2011	2362	123	167	1
2.4 (ACV40_)	2AZ-FE	1	01/2006-09/2011	2362	127	173	1
2.4 (ACV40)	2AZ-FE	1	01/2006-09/2011	2362	116	158	1
2.5 (ASV40_)		1	01/2006-09/2011	2494	124	169	1
2.5 (ASV40_)	2AR-FE	1	01/2010-09/2011	2494	129	175	1
2.5 (ASV40_)		1	01/2010-12/2011	2494	133	181	1
3.5 (GSV40_, GSV40R)	2GR-FE	1	01/2006-12/2011	3456	200	272	1
3.5 (GSV40_)	2GR-FE	1	09/2006-12/2014	3456	204	277	1
3.5 (GSV40_)		1	01/2008-09/2011	3456	209	284	1
2.4 Hybrid (AHV40R)	2AZ-FXE	13	01/2006-09/2011	2362	140	190	1

CAMRY (_V5_) Saloon 09/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 (ACV51_, ACV51)	1AZ-FE	1	09/2011-11/2014	1998	109	148	1
2.0 (ASV51_)	6AR-FSE	1	01/2015-03/2018	1998	110	150	1
2.0 (ASV51_)	6AR-FSE	1	01/2015-03/2018	1998	123	167	1
2.5 (ASV50_, ASV50R)	2AR-FE	1	09/2011-03/2018	2494	133	181	1
2.5 (ASV50_, ASV50R)	2AR-FE	1	01/2012-03/2018	2494	135	184	1
2.5 (ASV50_)	2AR-FE	1	10/2011-03/2018	2494	131	178	1
3.5 (GSV50_)	2GR-FE	1	12/2012-03/2018	3456	183	249	1
3.5 (GSV50_)		1	09/2011-03/2018	3456	200	272	1
3.5 (GSV50_)	2GR-FE	1	09/2011-12/2017	3456	204	277	1
2.5 Hybrid (AVV50_, AVV50R)		13	09/2011-04/2017	2494	149	203	1

CAMRY (_V7_, _VA7_, _VH7_) Saloon 06/2017-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.5 XLE (GSV70)		1	12/2017-	3456	228	310	1

MARK X ZiO (_A1_) MPV 09/2007-

Vehicle	Fuel	Date	CC	KW	CV	Traction
2.4 (ANA10)	1	09/2007-	2362	120	163	1
2.4 4WD (ANA15)	1	09/2007-	2362	120	163	3
3.5 (GGA10)	1	09/2007-	3456	206	280	1

MATRIX II (_E14_) Hatchback 01/2008-12/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 (ZRE142_)	2ZR-FE	1	01/2008-05/2014	1797	97	132	1
2.4 (AZE14_)	2AZ-FE	1	01/2008-05/2014	2362	117	159	1
2.4 4WD (AZE144)	2AZ-FE	1	01/2009-12/2010	2362	117	159	3

MIRAI (JPD1_) Saloon 12/2014-05/2020

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
FCV (JPD10_)	4JM	7	12/2014-05/2020		113	154	1

PRIUS III V PLUS / PRIUS ALPHA (_W4_) MPV 05/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 Hybrid (ZVW40W, ZVW41W)	2ZR-FXE	13	05/2011-	1798	100	136	1

PRIUS III PLUS VAN (_W4_) Box Body/MPV 05/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 Hybrid (ZVW40)		13	11/2014-	1798	100	136	1

RAV 4 III / VANGUARD (_A3_) SUV 06/2005-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 (ZSA35_, ZSA35R)	3ZR-FAE	1	12/2008-06/2013	1987	116	158	1
2.0 (ZSA35)	3ZR-FAE	1	03/2009-06/2013	1987	109	148	1
2.0 4WD (ZSA30_, ZSA30R)	3ZR-FAE	1	12/2008-06/2013	1987	116	158	3
2.0 4WD (ZSA30)	3ZR-FAE	1	03/2009-06/2013	1987	109	148	3
2.4 (ACA36, ACA38)	2AZ-FE	1	11/2005-12/2013	2362	125	170	1
2.4 4WD (ACA31, ACA33)	2AZ-FE	1	11/2005-06/2013	2362	125	170	3
2.5 (ASA38)	2AR-FE	1	11/2008-06/2013	2494	132	180	1
2.5 (ASA38)	2AR-FE	1	11/2005-12/2012	2494	135	184	1
2.5 4WD (ASA33)	2AR-FE	1	11/2008-06/2013	2494	132	180	3
3.5 (GSA38)		1	01/2006-12/2012	3456	201	273	1
2.2 D (ALA35_)	2AD-FHV 2AD-FTV	2	12/2008-06/2013	2231	110	150	1
2.2 D 4WD (ALA30_, ALA30R)	2AD-FHV 2AD-FTV	2	12/2008-06/2013	2231	110	150	3
2.2 D 4WD (ALA30)	2AD-FTV	2	11/2005-12/2010	2231	98	133	3

RAV4 IV (_A4_) SUV 12/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 (ZSA42)	3ZR-FE	1	12/2012-09/2019	1987	105	143	1
2.0 (ZSA42)	3ZR-FE	1	12/2012-09/2019	1987	107	146	1
2.0 4WD (ZSA44_, ZSA44R)	3ZR-FAE	1	12/2012-10/2018	1987	111	151	3
2.0 4WD (ZSA44_)	3ZR-FAE	1	04/2015-10/2018	1987	112	151	3
2.0 4WD (ZSA44)	3ZR-FE	1	12/2012-09/2019	1987	107	146	3
2.5 (ASA42)	2AR-FE	1	01/2013-12/2018	2494	131	178	1
2.5 (ASA42)	2AR-FE	1	12/2012-11/2018	2494	132	180	1
2.5 4WD (ASA44)	2AR-FE	1	12/2012-12/2018	2494	131	178	3
2.5 4WD (ASA44)	2AR-FE	1	12/2012-10/2018	2494	132	180	3
2.5 Hybrid 4WD (AVA44, AVA44_)	2AR-FXE	13	11/2015-11/2018	2494	145	197	3
2.0 D (ALA40_, ALA40R)	1AD-FTV	2	12/2012-11/2018	1998	91	124	1
2.0 D (WWA42_)	2WW	2	10/2015-11/2018	1995	105	143	1
2.0 D 4WD (ALA41_)	1AD-FTV	2	01/2013-11/2018	1998	91	124	3
2.2 D 4WD (ALA49)	2AD-FHV 2AD-FTV	2	12/2012-09/2019	2231	110	150	3
2.2 D 4WD (ALA49)	2AD-FHV	2	12/2012-09/2019	2231	130	177	3

RAV4 IV (_A4_) SUV Van 12/2012-

Vehicle	Fuel	Date	CC	KW	CV	Traction
2.0 VVTi 4WD (ZSA44)	1	12/2012-11/2018	1987	111	151	3
2.0 VVTi 4WD (ZSA44)	1	12/2012-11/2018	1987	112	152	3
2.0 D4d (ALA40)	2	12/2012-11/2018	1998	91	124	1
2.0 D4d (WWA42)	2	10/2015-11/2018	1995	105	143	1
2.2 D4d 4WD (ALA49)	2	12/2012-11/2018	2231	110	150	3
D4d 4WD (ALA41)	2	11/2013-11/2018	1998	91	124	3

ZELAS (AGT20_) Coupe 08/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.5 VVT-i (AGT20_)	2AR-FE	1	08/2010-06/2016	2494	131	178	1
