Product 78BD3276-2
- Description
- Brake disc
- Axe
- Rear
- No. of Pieces
- 2
- Barcode
-
8424073144782
- Url
- https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD3276-2
- Weight (gr.)
- 9100
- R90 Homologation
-
90R-02C0100/0692

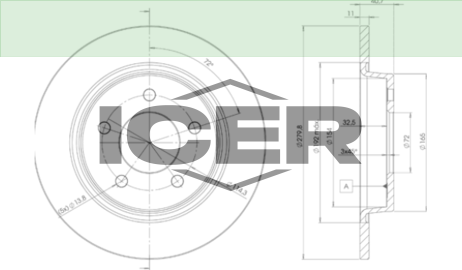

- Measures
- Ø279.8x11x40.7
-
Brake Disc Type:
solid -
Minimum thickness [mm]:
9 -
Hole Arrangement/Number:
5 -
Bolt Hole Circle Ø [mm]:
114,3 -
Wheel Hub Diameter [mm]:
72
| Brand | OE Reference |
|---|---|
| MAZDA | BP6Y 26 251B |
| MAZDA | BP6Y 26 251C |
| MAZDA | BP6Y 26 251D |
| MAZDA | BP6Y 26 251E |
| Maker | Cross reference |
|---|---|
| ATE | 24.0111-0160.1 |
| BOSCH | 0 986 479 181 |
| BREMBO | 08.9975.76 |
| DELPHI LOCKHEED | BG3930 |
| FERODO | DDF1546 |
| TEXTAR | 92130603 |
| TRW | DF4420 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 (BK10F, BKEP) |
LF17 |
1 | 10/2003-06/2006 | 1999 | 104 | 141 | 1 |
| 2.0 (BKEP) |
LF50 LF72 LFDE LFN7 LFN8 LFVE |
1 | 10/2003-12/2009 | 1999 | 110 | 150 | 1 |
| 2.3 |
L3-VE |
1 | 03/2004-03/2009 | 2261 | 118 | 160 | 1 |
| 2.3 (BK3P) | 1 | 04/2004-03/2009 | 2261 | 126 | 171 | 1 | |
| 2.0 MZR-CD (BK12) |
RF7J RF8G |
2 | 12/2006-06/2009 | 1998 | 105 | 143 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 (BK10F, BKEP) | 1 | 10/2003-06/2006 | 1999 | 104 | 141 | 1 | |
| 2.0 (BKEP) |
LF50 LF72 LFDE LFN7 LFN8 LFVE |
1 | 10/2003-12/2009 | 1999 | 110 | 150 | 1 |
| 2.3 DiSi Turbo MPS (BK3P) |
L3YH |
1 | 06/2006-06/2009 | 2261 | 184 | 250 | 1 |
| 2.3 MPS Turbo (BK14) |
L3M6 |
1 | 12/2006-06/2009 | 2261 | 191 | 260 | 1 |
| 2.3 MZR (BK3P) |
L3-VE |
1 | 10/2003-03/2009 | 2261 | 115 | 156 | 1 |
| 2.0 MZR-CD (BK14) |
RF7J RF8G |
2 | 07/2006-06/2009 | 1998 | 105 | 143 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 MZR (BLEFW) |
LF5H LF5W |
1 | 01/2009-09/2014 | 1999 | 110 | 150 | 1 |
| 2.5 | 1 | 01/2012-12/2013 | 2488 | 125 | 170 | 1 | |
| 2.5 (BL10) |
L5-VE |
1 | 03/2009-09/2014 | 2488 | 122 | 166 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.8 (CR19) |
L823 |
1 | 02/2005-05/2010 | 1798 | 85 | 116 | 1 |
| 2.0 (CREW) |
LFF7 |
1 | 02/2005-05/2010 | 1999 | 107 | 146 | 1 |
| 2.3 (CR3W) | 1 | 02/2005-09/2008 | 2261 | 122 | 166 | 1 | |
| 2.0 CD (CR19) |
RF7J |
2 | 02/2005-05/2010 | 1998 | 81 | 110 | 1 |
| 2.0 CD (CR19) |
RF7J |
2 | 02/2005-05/2010 | 1998 | 105 | 143 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.8 MZR |
L850 |
1 | 09/2010- | 1798 | 85 | 116 | 1 |
| 2.0 |
LF-ZB |
1 | 01/2011- | 1999 | 108 | 147 | 1 |
| 2.0 (CWEFW) |
LF-ZB |
1 | 06/2010- | 1999 | 106 | 144 | 1 |
| 2.0 (CWEFW) |
LF-ZB |
1 | 09/2010- | 1999 | 110 | 150 | 1 |
| 2.0 (CWFFW) | 1 | 08/2014- | 1998 | 111 | 151 | 1 | |
| 1.6 CD |
Y650 Y655 Y6Y1 |
2 | 07/2010- | 1560 | 85 | 116 | 1 |
