Product 78BD3403-2

Description
Brake disc
Axe
Rear
No. of Pieces
2
Barcode
EAN13 Code
8424073144928
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD3403-2
Weight (gr.)
19692

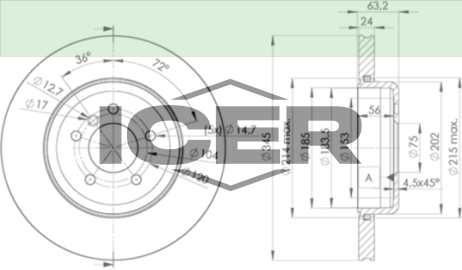

Measures
Ø345x24x63.2
Brake Disc Type: Vented
Minimum thickness [mm]: 22.4
Hole Arrangement/Number: 5
Bolt Hole Circle Ø [mm]: 120
Wheel Hub Diameter [mm]: 75
Reference applications
Brand OE Reference
BMW 34 21 6 763 827
Maker Cross reference
ATE 24.0124-0201.2
ATE 424201
BOSCH 0 986 479 729
BREMBO 09.C418.13
FERODO DDF2154C
GIRLING 6066245
HELLA-PAGID 8DD 355 119-341
HELLA-PAGID 8DD 355 132-531
SANLI SL34969
TEXTAR 92182503
TEXTAR 98200 1825 0 1
BMW
5 Serie V (E60) Saloon 12/2001-03/2010
Vehicle Engine Fuel Date CC KW CV Traction
525 i

N52 B25 A

N52 B25 B

N52 B25 BF

 1 03/2005-12/2009 2497 160 218 2
525 i

N53 B30 A

 1 01/2007-03/2010 2996 155 211 2
525 i

N53 B30 A

 1 01/2007-03/2010 2996 160 218 2
530 xi

N53 B30 A

 1 02/2007-08/2008 2996 200 272 3
530i

M54 B30 (306S3)

 1 12/2001-02/2005 2979 170 231 2
530i

N52 B30 A

N52 B30 BF

 1 03/2005-03/2007 2996 190 258 2
530i

N53 B30 A

 1 03/2007-12/2009 2996 200 272 2
535i

N54 B30 A

 1 04/2006-12/2009 2979 225 306 2
540 i

N62 B40 A

 1 09/2005-02/2007 4000 220 299 2
540 i

N62 B40 A

 1 03/2007-12/2009 4000 225 306 2
545 i

N62 B44 A

 1 07/2003-08/2005 4398 245 333 2
550i

N62 B48 B

 1 09/2005-12/2009 4799 270 367 2
525 d

M57 D30 (306D3)

 2 01/2007-03/2010 2993 145 197 2
530 d

M57 D30 (306D2)

M57 D30 (306D3)

 2 09/2002-12/2009 2993 155 211 2
530 d

M57 D30 (306D2)

 2 09/2002-09/2005 2993 160 218 2
530 d

M57 D30 (306D3)

 2 09/2005-03/2007 2993 170 231 2
530 d

M57 D30 (306D3)

 2 02/2007-12/2009 2993 173 235 2
530 xd

M57 D30 (306D3)

 2 03/2007-08/2007 2993 173 235 3
535 d

M57 D30 (306D4)

 2 09/2004-03/2010 2993 200 272 2
535 d

M57 D30 (306D5)

 2 01/2007-03/2010 2993 210 286 2
5 Serie V Touring (E61) Estate 03/2004-12/2010
Vehicle Engine Fuel Date CC KW CV Traction
525 i

N52 B25 A

N52 B25 B

N52 B25 BF

 1 03/2005-05/2010 2497 160 218 2
525 i

N53 B30 A

 1 01/2007-12/2010 2996 160 218 2
530 xi

N53 B30 A

 1 09/2006-09/2008 2996 200 272 3
530i

N52 B30 A

N52 B30 BF

 1 09/2004-02/2007 2996 190 258 2
530i

N53 B30 A

 1 01/2007-12/2010 2996 200 272 2
545 i

N62 B44 A

 1 06/2004-12/2010 4398 245 333 2
550i

N62 B48 A

N62 B48 B

 1 07/2005-12/2010 4799 270 367 2
525 d

M57 D30 (306D3)

 2 03/2007-05/2010 2993 145 197 2
530 d

M57 D30 (306D2)

 2 03/2004-09/2005 2993 160 218 2
530 d

M57 D30 (306D3)

 2 02/2005-02/2007 2993 170 231 2
530 d

M57 D30 (306D3)

 2 02/2007-05/2010 2993 173 235 2
535 d

M57 D30 (306D4)

 2 09/2004-12/2010 2993 200 272 2
535 d

M57 D30 (306D5)

 2 01/2007-12/2010 2993 210 286 2
6 Serie II (E63) Coupe 09/2003-12/2010
Vehicle Engine Fuel Date CC KW CV Traction
630 i

N53 B30 A

 1 09/2007-08/2010 2996 200 272 2
645 Ci

N62 B44 A

 1 09/2003-08/2005 4398 245 333 2
650 i

N62 B48 B

 1 09/2005-08/2010 4799 270 367 2
635 d

M57 D30 (306D5)

 2 07/2007-07/2010 2993 210 286 2
6 Serie II (E64) Convertible 03/2004-12/2010
Vehicle Engine Fuel Date CC KW CV Traction
630 i

N53 B30 A

 1 09/2007-08/2010 2996 200 272 2
645 Ci

N62 B44 A

 1 04/2004-08/2005 4398 245 333 2
650 i

N62 B48 B

 1 09/2005-08/2010 4799 270 367 2
635 d

M57 D30 (306D5)

 2 07/2007-07/2010 2993 210 286 2
