Product 78BD4294-2 - Web Catalogo

Product 78BD4294-2

Description: Brake disc
Axe: Front
No. of Pieces: 2
Barcode: 8424073145819
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD4294-2
Weight (gr.): 13884

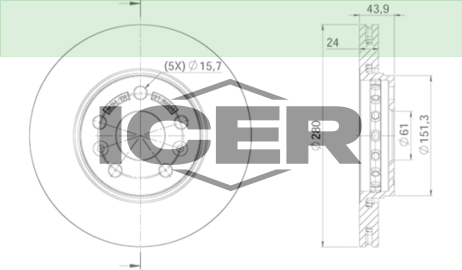

Measures: Ø280x24x43.9
: Brake Disc Type: Vented; Minimum thickness [mm]: 21.8; Hole Arrangement/Number: 5; Bolt Hole Circle Ø [mm]: 108; Wheel Hub Diameter [mm]: 61

Reference applications

Brand	OE Reference
MERCEDES-BENZ	415 420 00 01
MERCEDES-BENZ	415 420 07 01
RENAULT	77 01 209 839
RENAULT	82 01 464 604

Maker	Cross reference
ATE	24.0124-0222.1
ATE	424222
BENDIX-ROULUNDS	522071
BOSCH	0 986 479 555
BOSCH	0 986 479 S66
BREMBO	09.A727.20
BREMBO	09.A727.21
DELPHI LOCKHEED	BG4317
DELPHI LOCKHEED	BG5282C
FERODO	DDF1733
GIRLING	6061101
HELLA-PAGID	8DD 355 116-451
LETEC	LBC029V
MINTEX	MDC2238
SANLI	SL33830
TEXTAR	92202403
TEXTAR	98200 2024 0 1
TRW	DF6110
VALEO	197485

MERCEDES-BENZ

CITAN (W415) Box Body/MPV 11/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
112 (415.603)	M 200.711	1	06/2013-08/2021	1197	84	114	1
108 CDI (415.601, 415.603)	OM 607.951	2	11/2012-08/2021	1461	55	75	1
109 CDI (415.601, 415.603, 415.605)	OM 607.951	2	11/2012-08/2021	1461	66	90	1
111 CDI (415.603, 415.605)	OM 607.951	2	06/2013-08/2021	1461	81	110	1

CITAN (W415) MPV 11/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
112 (415.703)	M 200.711	1	06/2013-08/2021	1197	84	114	1
108 CDI (415.703)	OM 607.951	2	11/2012-08/2021	1461	55	75	1
109 CDI (415.703)	OM 607.951	2	11/2012-08/2021	1461	66	90	1
111 CDI (415.703, 415.705)	OM 607.951	2	06/2013-08/2021	1461	81	110	1

CITAN Mixto (Double Cabin) (W415) Box Body/MPV 11/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
109 CDI (415.603, 415.605)	OM 607.951	2	11/2012-08/2021	1461	66	90	1
111 CDI (415.603, 415.605)	OM 607.951	2	06/2013-08/2021	1461	81	110	1

NISSAN

NV 250 (X61) Van 07/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
dCi 115	K9K 872	2	07/2019-	1461	85	116	1
dCi 80	K9K 872	2	07/2019-	1461	59	80	1
dCi 95	K9K 872	2	07/2019-	1461	70	95	1

NV 250 (X61) Bus 07/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
dCi 115	K9K 872	2	07/2019-	1461	85	116	1
dCi 80	K9K 872	2	07/2019-	1461	59	80	1
dCi 95	K9K 872	2	07/2019-	1461	70	95	1

RENAULT

KANGOO EXPRESS (FC0/1_) Box Body/MPV 08/1997-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.5 dCi (FC1E)	K9K 714	2	06/2005-	1461	50	68	1

KANGOO II / GRAND KANGOO (KW0/1_) MPV 02/2008-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TCe 115 (KW02, KW14)	H5F 400 H5F 408 H5F 412	1	07/2013-	1197	84	115	1
1.6 (KW00, KW0Y, KW0E, KW0N, KW0P)	K7M 750	1	02/2008-	1598	64	87	1
1.6 16V (KW03, KW09, KW0D, KW0U, KW0W, KW13)	K4M 830 K4M 831 K4M 834 K4M 835 K4M 836	1	02/2008-	1598	78	106	1
1.6 16V FLEX (KW01)	K4M 834 K4M 835	19	02/2008-	1598	78	106	1
1.5 dCi	K9K 804	2	02/2008-	1461	78	106	1
1.5 dCi 105 (KW0F)	K9K 806	2	02/2008-	1461	76	103	1
1.5 dCi 110 (KW06, KW12)	K9K 636 K9K 646 K9K 647 K9K 648	2	03/2013-	1461	81	110	1
1.5 dCi 110 (KW0C, KW0H)	K9K 804 K9K 816	2	09/2010-	1461	80	110	1
1.5 dCi 70 (KW0V, KW0A)	K9K 800 K9K 802	2	02/2008-	1461	50	68	1
1.5 dCi 75 (KW07, KW10, KW04)	K9K 608 K9K 628 K9K 808	2	11/2012-	1461	55	75	1
1.5 dCi 85 (KW0K, KW0L, KW0B)	K9K 802 K9K 812	2	02/2008-	1461	63	86	1
1.5 dCi 90 (KW05, KW08, KW0G, KW11)	K9K 608 K9K 628 K9K 808	2	06/2008-	1461	66	90	1
1.5 dCi 95 (KW16)	K9K 872	2	03/2019-	1461	70	95	1
Z.E.		11	10/2011-		44	60	1

KANGOO II EXPRESS (FW0/1_) Box Body/MPV 02/2008-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.2 TCe 115 (FW02, FW14)	H5F 400 H5F 408 H5F 412	1	07/2013-	1197	84	115	1
1.6		1	09/2008-	1598	81	110	1
1.6 (FW00, FW0E, FW0N, FW0P, FW0Y)	K7M 750	1	02/2008-	1598	64	87	1
1.6 16V (FW03, FW09, FW0D, FW0U, FW0W, FW13)	K4M 830 K4M 831 K4M 834	1	02/2008-	1598	78	106	1
1.6 16V LPG (FW03, FW09, FW0W)	K4M 834	18	02/2008-	1598	78	106	1
1.5 dCi 105 (FW0F)	K9K 806	2	02/2008-	1461	76	103	1
1.5 dCi 110 (FW06, FW12)	K9K 636 K9K 646 K9K 647 K9K 648	2	09/2013-	1461	81	110	1
1.5 dCi 110 (FW0C, FW0H)	K9K 804 K9K 816	2	09/2010-	1461	80	109	1
1.5 dCi 70 (FW0A, KW0V)	K9K 800	2	02/2008-	1461	50	68	1
1.5 dCi 75 (FW07, FW10, FW04)	K9K 608 K9K 628 K9K 808	2	09/2010-	1461	55	75	1
1.5 dCi 85 (FW0K, FW0L, FW0B)	K9K 802 K9K 812	2	02/2008-	1461	63	86	1
1.5 dCi 90 (FW0G, FW05, FW08, FW11)	K9K 608 K9K 628 K9K 808	2	06/2009-	1461	66	90	1

KANGOO II BE BOP (KW0/1_) MPV 02/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (KW0D)	K4M 830	1	02/2009-12/2012	1598	78	106	1
1.5 dCi	K9K 804	2	06/2009-	1461	80	110	1
1.5 dCi (KW0F)	K9K 806	2	02/2009-12/2012	1461	76	103	1
1.5 dCi (KW0G)	K9K 808	2	06/2009-12/2012	1461	66	90	1
1.5 dCi 75	K9K 802	2	09/2010-	1461	55	75	1
