Product 78BD4642-2 - Web Catalogo

Description: Brake disc
Axe: Front
No. of Pieces: 2
Barcode: 8424073145987
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD4642-2
Weight (gr.): 10480

R90 Homologation: 90R-02C0100/0571

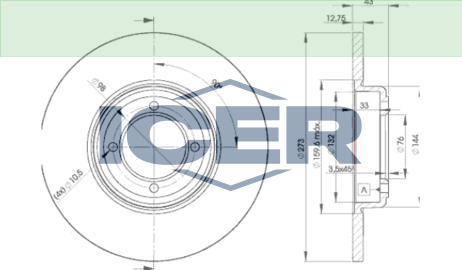

Measures: Ø273x12.7x43
: Brake Disc Type: solid; Minimum thickness [mm]: 10.7; Hole Arrangement/Number: 4; Bolt Hole Circle Ø [mm]: 98; Wheel Hub Diameter [mm]: 76

Reference applications

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	XM7	1	09/1979-08/1982	1796	55	75	2
1.8 (A01, A03)	XM	1	07/1968-02/1971	1796	60	82	2
1.8 (M03)	XM7	1	01/1971-06/1983	1796	58	79	2
1.8 Injection (A02)	KF5 KF6	1	07/1968-02/1971	1796	71	97	2
2.0	XN1	1	09/1979-08/1982	1971	69	94	2
2.0 (A11, A13, MY1, MY3)	106 (XN1)	1	03/1971-06/1986	1971	71	97	2
2.0 TI (A12, A14)	107 (XN2)	1	01/1971-06/1983	1971	78	106	2
1.9 D (M20)	XD4X88	2	03/1973-07/1986	1948	40	54	2
2.1 D	XD90	2	09/1979-08/1982	2112	43	58	2
2.1 D	XD4X90	2	09/1979-08/1982	2112	49	67	2
2.1 D (A20, M20)	XD4X90	2	02/1971-07/1986	2112	48	65	2
2.3 D (A40, A45)	134 (XD2)	2	07/1975-12/1983	2304	51	69	2

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	107 (XN2)	1	10/1974-08/1982	1971	75	102	2
2.0	107 (XN2)	1	08/1982-08/1984	1971	78	106	2
2.7	140 (ZMJ)	1	10/1977-08/1984	2664	106	144	2

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 (F01, E01)	XM7	1	04/1971-07/1986	1796	54	73	2
2.0 (D11, F11)	XN1	1	04/1971-07/1986	1971	68	92	2
2.1 D (E20, F20)	XD4X90	2	04/1971-07/1986	2112	48	65	2
2.3 D (D40, F40)	134 (XD2)	2	07/1975-07/1986	2304	51	69	2

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	107 (XN2)	1	10/1974-08/1982	1971	75	102	2
2.0	107 (XN2)	1	08/1982-08/1984	1971	78	106	2

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	105 (XM7)	1	06/1981-10/1985	1796	55	75	2
1.8	105 (XM7)	1	01/1982-10/1985	1796	60	82	2
1.8	105C (XM7A)	1	09/1985-10/1986	1796	62	84	2
2.0		1	04/1983-09/1985	1971	66	90	2
2.0	XN1	1	09/1983-09/1985	1971	69	94	2
2.0	106 (XN1)	1	11/1980-12/1985	1971	71	97	2
2.0	106E (XN1A)	1	09/1985-09/1995	1971	72	98	2
2.0	XN1	1	05/1979-03/1982	1971	79	107	2
2.0 GTI		1	10/1989-08/1991	1995	83	113	2
2.0 TI, STI	829 (ZEJ)	1	08/1979-10/1986	1995	81	110	2
2.2	851X (ZDJL)	1	03/1986-12/1993	2165	84	114	2
2.2	851 (ZDJ)	1	05/1981-10/1984	2165	85	116	2
2.2		1	10/1985-08/1991	2165	89	121	2
2.2 GTI	851B (ZDJL)	1	08/1983-12/1993	2165	90	122	2
2.2 GTI		1	08/1983-12/1993	2165	96	130	2
2.2 Turbo		1	07/1985-09/1988	2155	132	179	2
2.2 Turbo Injection	176X (N9TE)	1	01/1986-12/1987	2155	110	150	2
2.2 Turbo Injection	176B (N9TE)	1	03/1984-10/1988	2155	114	155	2
2.2 Turbo Injection	176W (N9TEA)	1	06/1987-12/1988	2155	128	174	2
2.3 D	XD2	2	05/1979-09/1984	2304	51	69	2
2.3 Turbo Diesel	147 (XD2S)	2	09/1980-06/1986	2304	59	80	2
2.5 Diesel	155 (XD3)	2	10/1981-11/1990	2498	51	69	2
2.5 Diesel	155 (XD3)	2	06/1981-12/1993	2498	55	75	2
2.5 Turbo Diesel	152A (XD3T)	2	10/1983-12/1993	2498	66	90	2
2.5 Turbo Diesel	XD3T	2	10/1983-12/1990	2498	70	95	2
2.5 Turbo Diesel	152B (XD3TE)	2	10/1986-12/1993	2498	77	105	2

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	XM7	1	04/1982-09/1985	1796	55	75	2
1.8		1	10/1985-09/1989	1796	62	84	1
2.0		1	04/1982-11/1987	1971	60	82	2
2.0	106 (XN1)	1	08/1983-12/1985	1971	69	94	2
2.0	106E (XN1A)	1	09/1985-11/1987	1971	72	98	2
2.0		1	10/1985-09/1989	1995	81	110	2
2.0		1	10/1985-08/1991	1995	83	113	1
2.2	851X (ZDJL)	1	01/1986-12/1993	2165	84	114	2
2.2		1	10/1985-08/1991	2165	89	121	1
2.2 GTI	851B (ZDJL)	1	09/1985-12/1986	2165	90	122	2
2.2 Ti		1	01/1984-09/1985	2165	96	131	2
2.3 D	XD2	2	06/1982-09/1984	2304	51	69	2
2.3 Diesel	147 (XD2S)	2	04/1982-06/1986	2304	59	80	2
2.5 D	XD3T	2	10/1985-08/1991	2498	70	95	2
2.5 Diesel	155 (XD3)	2	01/1986-12/1993	2498	51	70	2
2.5 Diesel	155 (XD3)	2	08/1983-12/1993	2498	55	75	2
2.5 Turbo Diesel	152A (XD3T)	2	10/1985-11/1987	2498	66	90	2
2.5 Turbo Diesel	152B (XD3TE)	2	10/1986-12/1993	2498	77	105	2

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0		1	03/1983-02/1987	1971	70	95	2
2.7 SL	112 (ZM)	1	08/1977-05/1983	2664	100	136	2
2.7 TI, STI	140 (ZMJ)	1	08/1977-05/1983	2664	106	144	2
2.8 GTI	154A (ZMJK)	1	09/1983-07/1987	2849	110	150	2
2.3 TD	147 (XD2S)	2	09/1979-05/1983	2304	59	80	2
2.5 TD	152A (XD3T)	2	08/1983-12/1986	2498	66	90	2

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.1	5N2	1	06/1980-12/1983	2156	85	116	2
2.3 Turbo Diesel	XD2S	2	08/1981-12/1987	2304	59	80	2
