Product 78BD4650-2

Description
Brake disc
Axe
Rear
No. of Pieces
2
Barcode
EAN13 Code
8424073146038
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD4650-2
Weight (gr.)
11312
R90 Homologation
R90 90R-02C0453/0099

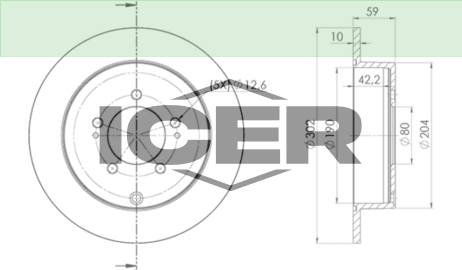

Measures
Ø302x10x59
Brake Disc Type: solid
Minimum thickness [mm]: 8.4
Hole Arrangement/Number: 5
Bolt Hole Circle Ø [mm]: 114.3
Wheel Hub Diameter [mm]: 80
Reference applications
Brand OE Reference
MITSUBISHI 46 15A 035
MITSUBISHI 46 15A 192
PEUGEOT 16 06 292 80
PEUGEOT 16 092 481 80
PEUGEOT 16 115 004 80
PEUGEOT 16 116 678 80
PEUGEOT 4249.61
PEUGEOT 4249.62
PEUGEOT 4249.F4
Maker Cross reference
ATE 24.0110-0330.1
ATE 410330
BOSCH 0 986 479 318
BREMBO 08.A755.10
BREMBO 08.A755.11
BREMBO 08.A755.1X
BREMBO 08.C247.1X
DELPHI LOCKHEED BG4161
FERODO DDF1737
GIRLING 6049634
HELLA-PAGID 8DD 355 114-561
LETEC LBMT024S
MINTEX MDC2041
TEXTAR 92167003
TEXTAR 98200 1670 0 1
TRW DF4963
VALEO 197116
CITROËN
C4 AIRCROSS () SUV 08/2010-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 1 04/2012- 1998 110 150 1
2.0 AWC 1 04/2012- 1998 110 150 3
C-CROSSER (VU_, VV_) SUV 02/2007-
Vehicle Engine Fuel Date CC KW CV Traction
2.4 16V

SFZ (4B12 MMC)

 1 08/2008-12/2012 2360 125 170 3
2.2 HDi

4HK (DW12ME5)

4HN (DW12MTED4)

 2 02/2007-12/2012 2179 115 156 3
C-CROSSER (VU_) SUV Van 02/2007-12/2012
Vehicle Engine Fuel Date CC KW CV Traction
2.2 HDi (VU4HNH) 2 06/2007-12/2012 2179 115 156 3
C-CROSSER ENTERPRISE (VU_, VV_) SUV Van 01/2009-
Vehicle Engine Fuel Date CC KW CV Traction
2.4 16V

4B12

 1 01/2009- 2360 125 170 3
2.2 HDi

4HN (DW12MTED4)

 2 01/2009- 2179 115 156 3
MITSUBISHI
LANCER V EX / GALANT FORTIS / LANCER SERIE R / LANCER FORTIS (CY_A, CZ_A) Saloon 03/2007-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 i (CY4A)

4B11

 1 04/2007- 1998 113 154 1
2.0 i Ralliart 4WD (CY4A)

4B11-T/C

 1 10/2008- 1998 177 241 3
LANCER V EX Sportback / GALANT FORTIS Sportback (CX_A) Hatchback 10/2007-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 i 1 10/2007- 1998 113 154 1
2.0 Ralliart 1 08/2011- 1998 184 250 1
2.0 Ralliart 4WD (CX4A)

4B11-T/C

 1 10/2008- 1998 177 241 3
OUTLANDER II (CW_W) SUV 09/2005-12/2012
Vehicle Engine Fuel Date CC KW CV Traction
2.0 1 06/2009-11/2012 1998 118 160 1
2.0 (CW4W)

4B11

 1 11/2006-11/2012 1998 108 147 1
2.0 4WD

4B11

 1 11/2006-11/2012 1998 108 147 3
2.4 (CW5W)

4B12

 1 11/2006-11/2012 2360 125 170 1
2.4 4WD (CW5W)

4B12

 1 09/2007-11/2012 2360 125 170 3
3.0 1 11/2006-11/2012 2998 162 220 1
3.0 1 10/2009-11/2012 2998 177 241 1
3.0 4WD (CW6W)

6B31

 1 11/2006-11/2012 2998 162 220 3
3.0 4WD (CW6W)

6B31

 1 09/2010-12/2012 2998 169 230 3
3.0 AWD

6B31

 1 11/2006-12/2010 2998 164 223 3
3.0 AWD 1 09/2009-11/2012 2998 172 234 3
2.4 Flex 4WD

4B12

 19 09/2007-11/2012 2360 125 170 3
2.0 DI-D (CW8W)

BSY

 2 02/2007-11/2012 1968 103 140 3
2.2 DI-D

4N14

 2 11/2006-11/2012 2268 130 177 1
2.2 DI-D 4WD

4HK

4HN

 2 08/2007-11/2012 2179 115 156 3
2.2 DI-D 4WD

4N14

 2 09/2010-11/2012 2268 103 140 3
2.2 DI-D 4WD

4N14

 2 11/2006-11/2012 2268 130 177 3
OUTLANDER II (CW_W) SUV Van 11/2006-12/2012
Vehicle Engine Fuel Date CC KW CV Traction
Di-D 4WD (CW1W) 2 09/2010-12/2012 2268 130 177 3
Di-D 4WD (CW8W) 2 12/2006-06/2010 1968 103 140 3
OUTLANDER II (CW_W) Van 12/2006-11/2012
Vehicle Engine Fuel Date CC KW CV Traction
2.0 DI-D 2 12/2006-11/2012 1968 103 140 2
2.2 DI-D 2 09/2010-11/2012 2268 130 177 2
OUTLANDER III / PHEV III (GG_W, GF_W, ZJ, ZL, ZK) SUV 11/2010-
Vehicle Engine Fuel Date CC KW CV Traction
3.0 GT 4WD

6B31

 1 08/2012- 2998 167 227 3
PEUGEOT
4007 (VU_, VV_) SUV 02/2007-
Vehicle Engine Fuel Date CC KW CV Traction
2.4 16V

SFY (4B12-MMC)

SFZ (4B12-MMC)

 1 02/2007-03/2013 2360 125 170 3
2.2 HDi

4HK (DW12ME5)

4HN (DW12MTED4)

 2 02/2007-03/2013 2179 115 156 3
4007 (VU_, VV_) SUV Van 02/2007-03/2013
Vehicle Engine Fuel Date CC KW CV Traction
HDi 155 (VU4HNH, VV4HK8) 2 02/2007-03/2013 2179 115 156 3
