Product 78BD4684-2

Description: Brake disc
Axe: Front
No. of Pieces: 2
Barcode: 8424073146137
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD4684-2
Weight (gr.): 19590

R90 Homologation: 90R-02C0339/1729

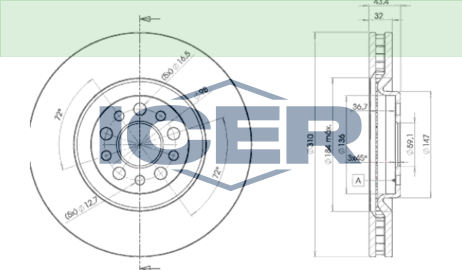

Measures: Ø309x32x43.7
: Brake Disc Type: Vented; Minimum thickness [mm]: 30; Hole Arrangement/Number: 5; Bolt Hole Circle Ø [mm]: 98; Wheel Hub Diameter [mm]: 59

Reference applications

Brand	OE Reference
FIAT	9 464 640 587
LANCIA	1 489 738 080
PEUGEOT	14 897 380 80
PEUGEOT	4246.Z7
PEUGEOT	4246.Z8
PEUGEOT	4249.79

Maker	Cross reference
ATE	24.0132-0126.1
BENDIX BRAKING-TMD	BDS1888
BOSCH	0 986 479 168
BREMBO	09.7680.20
FERODO	DDF1180C
ROAD HOUSE	6658.10
ROAD HOUSE	6980.10
SANLI	SL34624
TEXTAR	92118103
TRW	DF4257

CITROËN

C8 (EA_, EB_) MPV 06/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.0 V6	XFX (ES9J4S)	1	07/2002-	2946	150	204	1
2.0 HDi 165	RHH (DW10CTED4)	2	03/2006-	1997	120	163	1
2.2 HDi	4HP (DW12BTED4) 4HR (DW12BTED4)	2	06/2007-	2179	120	163	1
2.2 HDi	4HT (DW12BTED4)	2	06/2006-12/2012	2179	125	170	1

C8 (EA_, EB_) Box Body/MPV 06/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.0 (EBXFWF, EAXFWF)		1	11/2003-10/2007	2946	150	204	1
HDi (EB4HWB)		2	11/2003-07/2006	2179	94	128	1

JUMPY / DISPATCH (BU_, BV_, BW_, BX_) Platform/Chassis 10/1999-10/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 HDi 95	RHX (DW10BTED)	2	10/1999-10/2006	1997	69	94	1

FIAT

ULYSSE II (179_) MPV 08/2002-06/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.2 JTD	4HP 4HR	2	03/2008-06/2011	2179	120	163	1

LANCIA

PHEDRA (179_) MPV 09/2002-11/2010

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.0 V6 (179.BXD11)	ES9 J4S	1	09/2002-11/2010	2946	150	204	1
2.2 D Multijet (179.AXM1B, 179.AXP11, 179.BXM1B,...	4HS 4HT	2	03/2008-11/2010	2179	125	170	1
2.2 JTD (179.AXN1B, 179.AXQ11, 179.BXN1B, 179.BXQ11)	4HP 4HR	2	04/2006-11/2010	2179	120	163	1

PEUGEOT

807 (EB_) MPV 06/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
3.0 V6	XFX (ES9J4S)	1	06/2002-	2946	150	204	1
2.0 HDi	RHH (DW10CTED4)	2	06/2009-	1997	120	163	1
2.2 HDi	4HW (DW12BTED4)	2	06/2002-	2179	94	128	1
2.2 HDi	4HR (DW12BTED4)	2	06/2006-	2179	120	163	1

807 (EB_) Box Body/MPV 06/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 HDi		2	05/2010-	1997	120	163	1
HDi (EB4HWGF)		2	04/2004-05/2006	2179	94	128	1
