Product 78BD4745-1

Description
Brake disc
Axe
Rear
No. of Pieces
1
Barcode
EAN13 Code
8424073146335
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD4745-1
Weight (gr.)
5250
R90 Homologation
R90 90R-02C0559/0102

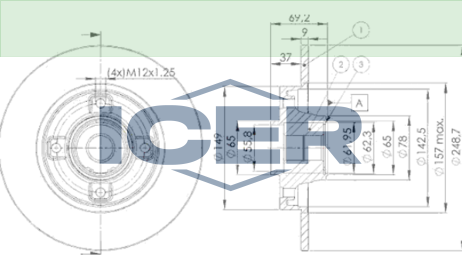

Measures
Ø249x9x69
Brake Disc Type: solid
Minimum thickness [mm]: 7
Hole Arrangement/Number: 4
Bolt Hole Circle Ø [mm]: 108
Wheel Hub Diameter [mm]: 56
Reference applications
Brand OE Reference
CITROËN 16 192 379 80
DS 4249.19
DS 4249.32
PEUGEOT 4246.19
PEUGEOT E169195
PEUGEOT E169506
VAUXHALL 3 648 487
Maker Cross reference
ATE 24.0109-0100.2
BREMBO 08.9512.27
LETEC LBC027S
SANLI SL200079K
TRW DF2059BS
VALEO 675408
CITROËN
C3 AIRCROSS () MPV 08/2010-
Vehicle Engine Fuel Date CC KW CV Traction
1.5 1 11/2015- 1449 66 90 1
C3 II Picasso (SH_) MPV 12/2008-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 THP 110 (SHHNZ6)

HNZ (EB2DT)

 1 01/2015-12/2015 1199 81 110 1
1.6 VTi 115 (SH5FP0, SH5FP8)

5FP (EP6)

 1 07/2009-12/2015 1598 84 114 1
1.4 VTi 95 LPG (SH8FN0)

8FN (EP3)

 18 09/2010-11/2015 1397 70 95 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 01/2015-08/2017 1560 73 99 1
1.6 HDi 90

9HP (DV6DTED)

 2 07/2010-03/2015 1560 68 92 1
C3 II (SC_) Hatchback 09/2009-
Vehicle Engine Fuel Date CC KW CV Traction
1.0 VTi 68

ZMZ (EB0)

 1 08/2012-09/2016 999 50 68 1
1.2 THP 110

HNZ (EB2DT)

 1 10/2014-09/2016 1199 81 110 1
1.2 VTI 82

HMZ (EB2)

HMZ (EB2F)

 1 06/2012-09/2016 1199 60 82 1
1.4 VTi

8FR (EP3)

 1 11/2009-09/2016 1397 72 98 1
1.5 1 08/2012-09/2016 1449 66 90 1
1.6 VTi 1 11/2013- 1587 85 116 1
1.4 LPG

KFT (TU3A)

 18 07/2010-09/2016 1360 54 73 1
1.4 LPG

8FN (EP3)

 18 06/2013-09/2016 1397 70 95 1
1.2 PureTech Flex 19 06/2016-06/2021 1199 66 90 1
1.5 Flex 19 08/2012-12/2016 1449 68 92 1
1.6 VTi 120 Flex

EC5

 19 07/2012-09/2016 1587 90 122 1
1.6 VTi Flex

EC5

 19 10/2016-06/2021 1587 87 118 1
1.4 HDi 70 (SC8HZC, SC8HR0, SC8HP4)

8HR (DV4C)

8HZ (DV4TD)

 2 11/2009-09/2016 1398 50 68 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 07/2014-09/2016 1560 73 99 1
1.6 BlueHDi 75

9HK (DV6ETEDM)

BHW (DV6FE)

 2 04/2015-09/2016 1560 55 75 1
1.6 HDi 115

9HD (DV6C)

 2 09/2012-09/2016 1560 84 114 1
1.6 HDi 90

9HX (DV6ATED4)

 2 11/2009-09/2016 1560 66 90 1
C3 II (SC_) Hatchback Van 06/2010-
Vehicle Engine Fuel Date CC KW CV Traction
1.4 HDi

8HR (DV4C)

 2 06/2010-09/2016 1398 50 68 1
1.6 BlueHDi

BHW (DV6FE)

 2 03/2015-09/2016 1560 55 75 1
C3 III (SX) Hatchback 07/2016-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 THP 110

HNP (EB2ADT)

HNV (EB2DTM)

HNZ (EB2DT)

 1 07/2016- 1199 81 110 1
1.2 VTi 68

HMM (EB2FAD)

HMP (EB2FB)

 1 07/2016- 1199 50 68 1
1.2 VTI 82

HMZ (EB2F)

 1 07/2016- 1199 60 82 1
1.6 VTi (SXNFPT)

NFP (EC5)

 1 02/2017- 1587 85 115 1
1.2 VTi 82 LPG

HMZ (EB2F)

 18 07/2016- 1199 60 82 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 07/2016- 1560 73 99 1
1.6 BlueHDi 75

BHW (DV6FE)

 2 07/2016- 1560 55 75 1
C3 III Van (SX_, SY_) Hatchback Van 07/2016-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 VTi 1 07/2016- 1199 60 82 1
BlueHDi 75

BHW (DV6FE)

 2 03/2019- 1560 55 75 1
C3 III AIRCROSS II (2R_, 2C_) SUV 06/2017-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 PureTech 110 (2RHNZB, 2RHNZW, 2RHNPX, 2RHNPJ)

HNP (EB2ADT)

HNV (EB2DTM)

HNZ (EB2DT)

 1 06/2017- 1199 81 110 1
1.2 PureTech 130 (2RHNYH)

HNS (EB2ADTS)

HNY (EB2DTS)

 1 07/2017- 1199 96 131 1
1.2 PureTech 82 (2RHMRC, 2RHMZB)

HMR (EB2FA)

HMZ (EB2F)

 1 06/2017- 1199 60 82 1
1.5 BlueHDi 100 (2CYHYJ)

YHY (DV5RD)

 2 08/2018- 1499 73 99 1
1.5 BlueHDi 100 (2CYHYJ)

YHY (DV5RD)

 2 08/2018- 1499 75 102 1
1.5 BlueHDi 110

YHS (DV5RCE)

 2 10/2020- 1499 81 110 1
1.5 BlueHDi 120 (2CYHXX)

YHX (DV5RC)

 2 08/2018- 1499 88 120 1
1.6 BlueHDi 100 (2CBHYB)

BHY (DV6FD)

 2 07/2017- 1560 73 99 1
1.6 BlueHDi 115 (2CBHXH)

BHX (DV6FC)

 2 06/2017- 1560 85 115 1
1.6 BlueHDi 120 (2CBHZH)

BHZ (DV6FC)

 2 07/2017- 1560 88 120 1
1.6 HDi 92 (2C9HPA)

9HP (DV6D)

9HP (DV6DTED)

 2 10/2017- 1560 68 92 1
C4 (LC_) Hatchback 11/2004-12/2014
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V

KFU (ET3J4)

 1 11/2004-07/2011 1360 65 88 1
1.6 16V

NFU (TU5JP4)

 1 11/2004-07/2011 1587 80 109 1
2.0 16V

RFN (EW10J4)

 1 11/2004-07/2007 1997 100 136 1
2.0 16V

RFJ (EW10A)

 1 11/2004-07/2011 1997 103 140 1
2.0 16V

RFJ (EW10A)

 1 09/2006-07/2009 1997 105 143 1
2.0 16V

RFK (EW10J4S)

 1 11/2004-07/2008 1997 130 177 1
1.6 16V Bio-Flex

NFU (TU5JP4)

 19 09/2007-07/2008 1587 80 109 1
1.6 HDi

9HX (DV6ATED4)

 2 11/2004-07/2011 1560 66 90 1
1.6 HDi

9HY (DV6TED4)

9HZ (DV6TED4)

 2 11/2004-07/2011 1560 80 109 1
1.6 HDi 2 04/2010-11/2012 1560 80 109 1
1.6 HDi 2 04/2010-11/2012 1560 84 114 1
1.6 HDi 2 07/2006-07/2011 1560 85 116 1
2.0 HDi

RHZ (DW10ATED)

 2 04/2007-07/2008 1997 81 110 1
C4 (LA_) Coupe 11/2004-12/2013
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V

KFU (ET3J4)

 1 11/2004-07/2011 1360 65 88 1
1.6 16V

NFU (TU5JP4)

 1 11/2004-07/2011 1587 80 109 1
1.6 THP

5FT (EP6DT)

 1 06/2008-07/2011 1598 103 140 1
2.0 16V

RFN (EW10J4)

 1 11/2004-07/2007 1997 100 136 1
2.0 16V

RFK (EW10J4S)

 1 11/2004-12/2010 1997 130 177 1
2.0 VTR

RFJ (EW10A)

 1 10/2006-12/2007 1997 103 140 1
1.6 HDi

9HX (DV6ATED4)

 2 11/2004-07/2011 1560 66 90 1
1.6 HDi

9HY (DV6TED4)

9HZ (DV6TED4)

 2 11/2004-07/2011 1560 80 109 1
2.0 HDi

RHR (DW10BTED4)

 2 11/2004-12/2010 1997 100 136 1
C4 (LR_) Hatchback Van 02/2005-12/2010
Vehicle Engine Fuel Date CC KW CV Traction
2.0 HDi

RHR (DW10BTED4)

 2 02/2005-12/2010 1997 100 136 1
C4 / C4 PALLAS () Saloon 07/2006-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 16V

NFU (TU5JP4)

 1 07/2006-07/2011 1587 80 109 1
2.0 16V 1 06/2007-11/2014 1997 101 138 1
2.0 16V

RFJ (EW10A)

 1 07/2006-07/2011 1997 103 140 1
2.0 Exclusive 16V

RFJ (EW10A)

 1 07/2007-11/2014 1997 105 143 1
1.6 HDi 2 04/2010-11/2012 1560 80 109 1
1.6 HDi 2 04/2010-11/2012 1560 84 114 1
1.6 HDi 2 07/2006-08/2013 1560 85 116 1
C4 Grand Picasso (UA_) MPV 10/2006-
Vehicle Engine Fuel Date CC KW CV Traction
1.8 i 16V

6FY (EW7A)

 1 10/2006-12/2010 1749 92 125 1
2.0 i 16V

RFJ (EW10A)

 1 10/2006-08/2013 1997 103 140 1
1.6 HDi

9HY (DV6TED4)

9HZ (DV6TED4)

 2 10/2006-06/2011 1560 80 109 1
2.0 HDi 138

RHJ (DW10BTED4)

RHR (DW10BTED4)

 2 10/2006-12/2013 1997 100 136 1
C4 Picasso (UD_) MPV 10/2006-12/2015
Vehicle Engine Fuel Date CC KW CV Traction
1.8 i 16V

6FY (EW7A)

 1 02/2007-12/2011 1749 92 125 1
2.0 i 16V

RFJ (EW10A)

 1 09/2007-08/2013 1997 103 140 1
1.8 Bifuel

6FY (EW7A)

 19 01/2009-10/2012 1749 92 125 1
1.6 HDi 110

9HR (DV6C)

 2 09/2010-08/2013 1560 82 112 1
2.0 HDi 138

RHJ (DW10BTED4)

RHR (DW10BTED4)

 2 10/2006-08/2013 1997 100 136 1
C4 CACTUS () Hatchback 09/2014-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 PureTech 130

HNS (EB2ADTS)

HNY (EB2DTS)

 1 11/2017- 1199 96 131 1
1.2 THP 110

HNP (EB2ADT)

HNV (EB2DTM)

HNZ (EB2DT)

 1 09/2014- 1199 81 110 1
1.2 VTi 75 / PureTech 75

HMU (EB2D)

HMU (EB2FD)

 1 09/2014- 1199 55 75 1
1.2 VTI 82

HMZ (EB2F)

 1 09/2014- 1199 60 82 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 09/2014- 1560 73 99 1
1.6 HDi 90

9HJ (DV6DTEDM)

9HP (DV6D)

9HP (DV6DTED)

 2 09/2014- 1560 68 92 1
DS3 (SA_) Hatchback 11/2009-12/2016
Vehicle Engine Fuel Date CC KW CV Traction
1.2 THP 110

HNZ (EB2DT)

 1 10/2014-03/2015 1199 81 110 1
1.6 Racing

5FF (EP6DTS)

 1 02/2011-07/2015 1598 149 203 1
1.6 Racing

5FD (EP6DTS)

 1 02/2011-07/2015 1598 152 207 1
1.6 THP 165

5GZ (EP6FDT)

 1 10/2014-06/2015 1598 121 165 1
1.6 THP160

5FM (EP6DT)

 1 01/2012-07/2015 1598 120 163 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 07/2014-07/2015 1560 73 99 1
1.6 BlueHDi 75

BHW (DV6FE)

 2 03/2015-07/2015 1560 55 75 1
DS3 () Convertible 01/2013-07/2015
Vehicle Engine Fuel Date CC KW CV Traction
1.2 THP 110

HNZ (EB2DT)

 1 10/2014-07/2015 1199 81 110 1
1.6 Racing

5FF (EP6DTS)

 1 03/2014-07/2015 1598 149 203 1
1.6 Racing

5FD (EP6DTS)

 1 03/2014-07/2015 1598 152 207 1
1.6 THP 165

5FM (EP6DT)

 1 02/2015-07/2015 1598 120 163 1
1.6 THP 165

5GZ (EP6FDT)

 1 10/2014-07/2015 1598 121 165 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 07/2014-07/2015 1560 73 99 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 07/2014-07/2015 1560 75 102 1
1.6 BlueHDi 115

BHX (DV6FC)

 2 10/2013-07/2015 1560 85 115 1
1.6 BlueHDi 120

BHZ (DV6FC)

 2 07/2014-07/2015 1560 88 120 1
DS
DS 3 (SA_) Hatchback 04/2015-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 THP 110 / PureTech 110 (SAHNPS, SAHNZ6, SAHNZT)

HNP (EB2ADT)

HNZ (EB2DT)

 1 04/2015-07/2019 1199 81 110 1
1.2 THP 130 (SAHNYM)

HNY (EB2DTS)

 1 09/2015-07/2019 1199 96 130 1
1.6 THP (SA5GWM)

5GW (EP6FDT)

 1 07/2015-07/2019 1598 110 150 1
1.6 THP (SA5GZM)

5GZ (EP6FDT)

 1 07/2015-07/2019 1598 120 163 1
1.6 THP 165 (SA5GZM)

5GZ (EP6FDT)

 1 07/2015-07/2019 1598 121 165 1
1.6 THP 208 (SA5GRM)

5GR (EP6FDTX)

 1 09/2015-07/2019 1598 153 208 1
1.4 HDi 70 (SA8HR4, SA8HP4) 2 07/2015-12/2016 1398 50 68 1
1.6 BlueHDi 100 (SABHY0, SABHYT)

BHY (DV6FD)

 2 04/2015-07/2019 1560 73 99 1
1.6 BlueHDi 116 (SABHXM)

BHX (DV6FC)

 2 07/2015-07/2019 1560 85 116 1
1.6 BlueHDi 120 (SABHZM)

BHZ (DV6FC)

 2 07/2015-07/2019 1560 88 120 1
1.6 BlueHDi 75 (SABHW6)

BHW (DV6FE)

 2 07/2015-07/2019 1560 55 75 1
DS 3 (SB_) Convertible 07/2015-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 THP 110

HNP (EB2ADT)

HNZ (EB2DT)

 1 07/2015-07/2019 1199 81 110 1
1.2 THP 130

HNY (EB2DTS)

 1 09/2015-07/2019 1199 96 130 1
1.2 VTI 82

HMZ (EB2F)

 1 07/2015-07/2019 1199 60 82 1
1.6 THP

5GZ (EP6FDT)

 1 07/2015-07/2019 1598 120 163 1
1.6 THP (SB5GWM)

5GX (EP6FDTMD)

 1 07/2015-07/2019 1598 110 150 1
1.6 THP 165

5GZ (EP6FDT)

 1 07/2015-07/2019 1598 121 165 1
1.6 THP 208

5GR (EP6FDTX)

 1 09/2015-07/2019 1598 153 208 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 07/2015-07/2019 1560 73 99 1
1.6 BlueHDi 116

BHX (DV6FC)

 2 07/2015-07/2019 1560 85 116 1
1.6 BlueHDi 120

BHZ (DV6FC)

 2 07/2015-07/2019 1560 88 120 1
OPEL
CROSSLAND X (P17, P2QO) SUV 03/2017-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 (75)

B 12 XE (EB2F)

D 12 XE (EB2FA)

 1 03/2017- 1199 60 82 1
1.2 (75)

B 12 XHL (EB2DT)

D 12 XHL (EB2ADT)

F 12 XHL

 1 03/2017- 1199 81 110 1
1.2 (75)

B 12 XHT (EB2DTS)

D 12 XHT (EB2ADTS)

F 12 XHT (EB2ADTS)

 1 03/2017- 1199 96 131 1
1.2 LPG (75)

B 12 XE (EB2F)

 18 10/2017- 1199 60 82 1
1.6 Turbo D(75)

B 16 DT (DV6FD)

 2 03/2017- 1560 73 99 1
1.6 Turbo D(75)

B 16 DTH (DV6FC)

 2 08/2017- 1560 85 116 1
1.6 Turbo D(75)

B 16 DTH (DV6FC)

 2 03/2017- 1560 88 120 1
PEUGEOT
207 (WA_, WC_) Hatchback 02/2006-
Vehicle Engine Fuel Date CC KW CV Traction
1.4

KFV (TU3A)

 1 02/2006-10/2013 1360 53 72 1
1.4 16V

KFU (ET3J4)

 1 02/2006-10/2013 1360 65 88 1
1.4 16V

8FS (EP3)

EP3

EP3C

 1 06/2007-10/2013 1397 70 95 1
1.6

N6A (TU5JP4)

 1 08/2008-12/2013 1587 81 110 1
1.6 16V 1 08/2008-12/2013 1587 79 106 1
1.6 16V

NFU (TU5JP4)

 1 02/2006-10/2013 1587 80 109 1
1.6 16V RC

5FY (EP6DTS)

 1 02/2007-12/2012 1598 128 174 1
1.6 16V Turbo

5FX (EP6DT)

 1 02/2006-10/2013 1598 110 150 1
1.6 16V Turbo

5FR (EP6DT)

 1 10/2009-12/2012 1598 115 156 1
1.6 16V VTi

EP6

 1 09/2008-12/2012 1598 81 110 1
1.6 16V VTi

5FS (EP6C)

5FW (EP6)

EP6

 1 02/2007-12/2012 1598 88 120 1
1.6 Flex

N6A (TU5JP4)

 19 08/2008-12/2013 1587 83 113 1
1.4 HDi

8HR (DV4C)

8HZ (DV4TD)

 2 02/2006-12/2015 1398 50 68 1
1.4 HDi

8HZ (DV4TD)

 2 02/2011-12/2015 1398 52 70 1
1.6 HDi

9HV (DV6TED4B)

9HV (DV6TED4BU)

9HX (DV6ATED4)

 2 02/2006-10/2013 1560 66 90 1
1.6 HDi

9HP (DV6DTED)

 2 11/2009-12/2012 1560 68 92 1
1.6 HDi

9HY (DV6TED4)

9HZ (DV6TED4)

 2 02/2006-10/2013 1560 80 109 1
1.6 HDi 110

9HR (DV6C)

 2 08/2009-12/2012 1560 82 112 1
1.9 D 2 10/2008-12/2012 1868 51 69 1
2.0 HDi 2 10/2008-12/2012 1997 66 90 1
207 (WA_, WC_) Hatchback Van 04/2006-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 VTi

5FW (EP6)

 1 03/2007-12/2012 1598 88 120 1
1.6 HDi

9HX (DV6ATED4)

 2 04/2007-10/2012 1560 66 90 1
1.6 HDi

9HP (DV6DTED)

 2 11/2009-03/2013 1560 68 92 1
1.6 HDi

9HZ (DV6TED4)

 2 04/2006-12/2012 1560 80 109 1
207 CC (WD_) Convertible 02/2007-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 16V

5FS (EP6C)

5FW (EP6)

EP6

 1 02/2007-10/2013 1598 88 120 1
1.6 16V Turbo

5FX (EP6DT)

 1 02/2007-12/2012 1598 110 150 1
1.6 16V Turbo

5FR (EP6DT)

5FV (EP6CDT)

 1 10/2009-12/2013 1598 115 156 1
1.6 HDi

9HZ (DV6TED4)

 2 02/2007-01/2015 1560 80 109 1
1.6 HDi

9HR (DV6C)

 2 08/2009-10/2013 1560 82 112 1
207 SW (WK_) Estate 02/2007-
Vehicle Engine Fuel Date CC KW CV Traction
1.4

KFT (TU3A)

KFV (TU3A)

 1 06/2007-12/2012 1360 54 73 1
1.4 16V

8FS (EP3)

EP3

EP3C

 1 06/2007-10/2013 1397 70 95 1
1.6 1 08/2008-12/2012 1587 81 110 1
1.6 16V

5FS (EP6C)

5FW (EP6)

EP6

 1 06/2007-10/2013 1598 88 120 1
1.6 16V Turbo

5FX (EP6DT)

 1 02/2007-12/2012 1598 110 150 1
1.6 Flex 19 08/2008-12/2013 1587 83 113 1
1.6 HDi

9HV (DV6TED4B)

9HV (DV6TED4BU)

 2 06/2007-12/2012 1560 66 90 1
1.6 HDi

9HP (DV6DTED)

 2 11/2009-12/2013 1560 68 92 1
1.6 HDi

9HZ (DV6TED4)

 2 06/2007-12/2012 1560 80 109 1
1.6 HDi

9HR (DV6C)

 2 08/2009-10/2013 1560 82 112 1
2.0 HDi 2 10/2008-12/2012 1997 66 90 1
207 SW (WK_) Estate Van 08/2007-12/2012
Vehicle Engine Fuel Date CC KW CV Traction
1.6 HDi

9HX (DV6ATED4)

 2 08/2007-12/2012 1560 66 90 1
1.6 HDi

9HZ (DV6TED4)

 2 08/2007-12/2012 1560 80 109 1
208 (CA_, CC_) Hatchback 03/2012-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 PureTech 82

HMR (EB2FA)

HMZ (EB2F)

 1 03/2018-12/2019 1199 61 82 1
1.2 VTi 68 / PureTech 68

HMM (EB2FAD)

HMP (EB2FB)

 1 08/2016-12/2019 1199 50 68 1
1.6

EC5F

 1 01/2013-12/2019 1587 85 116 1
1.6 GTI

5FU (EP6CDTX)

 1 08/2012-12/2019 1598 147 200 1
1.6 GTI

5GR (EP6FDTX)

 1 10/2014-12/2019 1598 153 208 1
1.6 THP 165

5GZ (EP6FDT)

 1 03/2015-12/2019 1598 121 165 1
1.4 GPL

EP3C

 18 10/2013-12/2019 1397 70 95 1
1.5 Flex 19 01/2013-12/2016 1449 68 92 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 01/2015-12/2019 1560 73 100 1
1.6 BlueHDi 120

BHZ (DV6FC)

 2 01/2015-12/2019 1560 88 120 1
1.6 e-HDi

9HR (DV6C)

 2 07/2015-12/2019 1560 82 112 1
1.6 HDi

BHX (DV6FC)

 2 01/2015-12/2019 1560 85 116 1
208 (CR_) Hatchback Van 02/2013-12/2019
Vehicle Engine Fuel Date CC KW CV Traction
1.2 VTI 68 / PureTech 68 (CRHMP6, CRHMM6)

HMM (EB2FAD)

HMP (EB2FB)

 1 06/2015-12/2019 1199 50 68 1
1.2 VTI 82 / PureTech 82 (CRHMZ6, CRHMRP)

HMR (EB2FA)

HMZ (EB2)

HMZ (EB2F)

 1 06/2015-12/2019 1199 60 82 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 06/2015-12/2019 1560 73 99 1
307 (3A/C) Hatchback 08/2000-
Vehicle Engine Fuel Date CC KW CV Traction
1.4

KFW (TU3JP)

 1 08/2000-09/2003 1360 55 75 1
1.4 16V

KFU (ET3J4)

 1 11/2003-07/2007 1360 65 88 1
1.6

NFU (TU5JP4)

 1 07/2006-04/2012 1587 81 110 1
1.6 16V

NFU (TU5JP4)

 1 08/2000-11/2007 1587 80 109 1
2.0

RFJ (EW10A)

RFN (EW10J4)

 1 08/2008-12/2011 1997 105 143 1
2.0 16V

RFN (EW10J4)

 1 08/2000-06/2005 1997 100 136 1
2.0 16V

RFJ (EW10A)

 1 03/2005-11/2007 1997 103 140 1
2.0 16V

RFK (EW10J4S)

 1 06/2005-11/2007 1997 130 177 1
1.6 Flex

N6A (TU5JP4)

 19 07/2006-12/2012 1587 83 113 1
1.4 HDi

8HX (DV4TD)

8HZ (DV4TD)

 2 10/2001-06/2005 1398 50 68 1
1.6 HDi 110

9HY (DV6TED4)

9HZ (DV6TED4)

 2 02/2004-03/2009 1560 80 109 1
2.0 HDi 135

RHR (DW10BTED4)

 2 10/2003-11/2007 1997 100 136 1
2.0 HDI 90

RHY (DW10TD)

 2 08/2000-03/2007 1997 66 90 1
307 () Saloon 01/2001-
Vehicle Engine Fuel Date CC KW CV Traction
1.6 1 08/2006-12/2012 1587 81 110 1
2.0 1 09/2006-12/2008 1997 103 140 1
2.0 1 03/2004-04/2009 1997 105 143 1
2.0 HDi 2 09/2006-03/2012 1997 80 109 1
307 (3E) Estate 03/2002-
Vehicle Engine Fuel Date CC KW CV Traction
1.4

KFW (TU3JP)

 1 04/2002-09/2003 1360 55 75 1
1.4 16V

KFU (ET3J4)

 1 11/2003-07/2007 1360 65 88 1
1.6 16V

NFU (TU5JP4)

 1 03/2002-04/2008 1587 80 109 1
2.0

RFN (EW10J4)

 1 03/2002-06/2005 1997 100 136 1
2.0 16V

RFJ (EW10A)

 1 03/2005-04/2008 1997 103 140 1
2.0 16V

RFK (EW10J4S)

 1 06/2005-04/2008 1997 130 177 1
1.4 HDi

8HZ (DV4TD)

 2 03/2002-06/2005 1398 50 68 1
1.6 HDi

9HV (DV6TED4B)

9HV (DV6TED4BU)

9HX (DV6ATED4)

9HX (DV6AUTED4)

 2 04/2005-04/2008 1560 66 90 1
1.6 HDi 110

9HY (DV6TED4)

9HZ (DV6TED4)

 2 02/2004-04/2008 1560 80 109 1
2.0 HDi 135

RHR (DW10BTED4)

 2 02/2004-04/2008 1997 100 136 1
2.0 HDI 90

RHY (DW10TD)

 2 03/2002-04/2008 1997 66 90 1
307 SW (3H) Estate 03/2002-
Vehicle Engine Fuel Date CC KW CV Traction
1.4

KFW (TU3JP)

 1 04/2002-09/2003 1360 55 75 1
1.4 16V

KFU (ET3J4)

 1 11/2003-07/2007 1360 65 88 1
2.0 16V

RFJ (EW10A)

 1 10/2005-12/2009 1997 105 143 1
1.4 HDi 2 04/2002-06/2005 1398 51 69 2
1.4 HDi 70 2 03/2002-06/2005 1398 50 68 1
307 SW (3E_, 3H_) Estate Van 04/2002-12/2009
Vehicle Engine Fuel Date CC KW CV Traction
1.4 HDi

8HZ (DV4TD)

 2 04/2002-06/2005 1398 51 69 1
1.6 HDi

9HX (DV6ATED4)

 2 04/2006-10/2008 1560 66 90 1
2.0 HDi

RHY (DW10TD)

 2 04/2003-04/2008 1997 66 90 1
2.0 HDi

RHZ (DW10ATED)

 2 01/2003-12/2009 1997 79 107 1
2.0 HDi

RHR (DW10BTED4)

 2 04/2004-11/2007 1997 100 136 1
307 (3B) Convertible 03/2003-06/2009
Vehicle Engine Fuel Date CC KW CV Traction
2.0 16V 1 10/2005-04/2009 1997 105 143 1
2.0 16V

RFK (EW10J4S)

 1 10/2003-04/2009 1997 130 177 1
2.0 16V

RFK (EW10J4S)

 1 04/2005-06/2009 1997 132 180 1
2.0 HDi 135

RHR (DW10BTED4)

 2 06/2005-04/2009 1997 100 136 1
408 () Saloon 02/2010-
Vehicle Engine Fuel Date CC KW CV Traction
1.6

EC5F

 1 01/2012- 1587 85 116 1
1.6 1 02/2012-12/2016 1598 121 165 1
1.6 16V 1 02/2010- 1598 80 109 1
1.6 THP 150

5FE (EP6CDTMD)

 1 01/2011- 1598 110 150 1
1.6 THP160 1 01/2011- 1598 120 163 1
1.6 VTi

5FS (EP6C)

 1 01/2012- 1598 88 120 1
2.0 16V 1 02/2010- 1997 108 147 1
2.0 Flex 19 03/2011-12/2016 1997 111 151 1
1.6 HDi 2 01/2012- 1560 82 112 1
1.6 HDi

9HD (DV6C)

 2 11/2016- 1560 84 114 1
1.6 HDi

9HL (DV6C)

 2 11/2010- 1560 85 116 1
2008 (CU_) SUV 03/2013-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 THP 110 / PureTech 110 (SAHNPS, SAHNZ6, SAHNZT)

HNP (EB2ADT)

HNV (EB2DTM)

HNZ (EB2DT)

 1 01/2015- 1199 81 110 1
1.2 THP 130 / PureTech 130

HNS (EB2ADTS)

HNY (EB2DTS)

 1 01/2015-11/2019 1199 96 130 1
1.2 VTi

HMZ (EB2)

HMZ (EB2F)

 1 03/2013-12/2018 1199 60 82 1
1.6 THP 165

5GY (EP6FDTM)

5GZ (EP6FDT)

 1 02/2016- 1598 121 165 1
1.6 VTi

5FS (EP6C)

 1 05/2013- 1598 85 116 1
1.6 VTi

5FS (EP6C)

 1 03/2013- 1598 88 120 1
1.4 HDi

8HR (DV4C)

 2 06/2013- 1398 50 68 1
1.6 BlueHDi

BHX (DV6FC)

 2 07/2014- 1560 85 116 1
1.6 BlueHDi 100

BHY (DV6FD)

 2 01/2015- 1560 73 100 1
1.6 BlueHDi 120

BHZ (DV6FC)

 2 07/2014- 1560 88 120 1
1.6 BlueHDi 75

BHW (DV6FE)

 2 01/2015- 1560 55 75 1
1.6 HDi

9HP (DV6DTED)

 2 03/2013- 1560 68 92 1
1.6 HDi

9HD (DV6C)

 2 03/2013- 1560 84 114 1
VAUXHALL
CROSSLAND X (P17) SUV 03/2017-
Vehicle Engine Fuel Date CC KW CV Traction
1.2 (75)

B 12 XE (EB2F)

D 12 XE (EB2FA)

 1 03/2017- 1199 61 83 1
1.2 (75)

B 12 XHL (EB2DT)

B 12 XHT (EB2DTS)

D 12 XHL (EB2ADT)

 1 03/2017- 1199 81 110 1
1.2 (75)

B 12 XHT (EB2DTS)

D 12 XHT (EB2ADTS)

F 12 XHT (EB2ADTS)

 1 03/2017- 1199 96 131 1
1.6 Turbo D(75)

B 16 DT (DV6FD)

 2 03/2017- 1560 73 99 1
1.6 Turbo D(75)

B 16 DTH (DV6FC)

 2 03/2017- 1560 88 120 1
Return
