Product 78BD4753-2

Description
Brake disc
Axe
Front
No. of Pieces
2
Barcode
EAN13 Code
8424073146397
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD4753-2
Weight (gr.)
16892

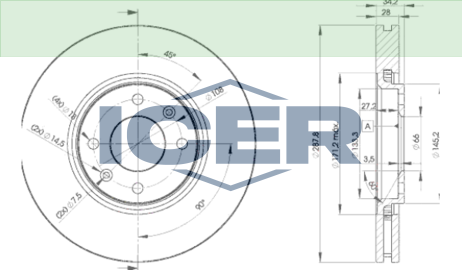

Measures
Ø289x28x34
Brake Disc Type: Vented
Minimum thickness [mm]: 26
Hole Arrangement/Number: 4
Bolt Hole Circle Ø [mm]: 108
Wheel Hub Diameter [mm]: 66
Reference applications
Brand OE Reference
CITROËN 4246.R6
CITROËN 4246.T8
CITROËN 4246.W3
Maker Cross reference
ATE 24.0128-0128.1
BOSCH 0 986 478 980
BREMBO 09.7877.10
DELPHI LOCKHEED BG3675
LETEC LBC013V
ROAD HOUSE 6587.10
SANLI SL32304
TEXTAR 92107800
TRW DF4141
CITROËN
(RE_) Estate Van 09/2004-01/2008
Vehicle Engine Fuel Date CC KW CV Traction
2.0 HDi (RERHRH)

RHR (DW10BTED4)

 2 09/2004-01/2008 1997 100 136 1
C5 (DC_) Hatchback 03/2001-03/2005
Vehicle Engine Fuel Date CC KW CV Traction
3.0 Carlsson HP 1 08/2001-08/2004 2946 173 235 1
3.0 V6 (DCXFXC, DCXFXF)

XFX (ES9J4S)

 1 03/2001-08/2004 2946 152 207 1
3.0 V6 (DCXFXF)

XFX (ES9J4S)

 1 05/2001-08/2004 2946 157 213 1
2.2 HDi (DC4HXB, DC4HXE)

4HX (DW12TED4)

 2 03/2001-08/2004 2179 98 133 1
C5 (DE_) Estate 06/2001-09/2004
Vehicle Engine Fuel Date CC KW CV Traction
3.0 Carlsson

XFX (ES9J4S)

 1 09/2003-08/2004 2946 173 235 1
3.0 V6 (DEXFXC, DEXFXF)

XFX (ES9J4S)

 1 06/2001-08/2004 2946 152 207 1
2.2 HDi (DE4HXB, DE4HXE)

4HX (DW12TED4)

 2 06/2001-08/2004 2179 98 133 1
C5 (DE_) Estate Van 06/2002-08/2004
Vehicle Engine Fuel Date CC KW CV Traction
2.2 HDi (DE4HXB, DE4HXF) 2 06/2002-08/2004 2179 98 133 1
C5 (RC_) Hatchback 08/2004-
Vehicle Engine Fuel Date CC KW CV Traction
3.0 Carlsson HP

XFX (ES9J4S)

 1 09/2004-01/2008 2946 173 235 1
3.0 V6

XFV (ES9A)

 1 10/2004-04/2007 2946 155 211 1
3.0 V6 (RCXFUF)

XFU (ES9A)

XFX (ES9J4S)

 1 09/2004-09/2008 2946 152 207 1
2.2 HDi

4HP (DW12BTED4)

4HR (DW12BTED4)

 2 05/2006-01/2008 2179 120 163 1
2.2 HDi

4HT (DW12BTED4)

 2 04/2006-08/2008 2179 125 170 1
2.2 HDi (RC4HXE)

4HX (DW12TED4)

 2 09/2004-08/2008 2179 98 133 1
C5 (RE_) Estate 09/2004-
Vehicle Engine Fuel Date CC KW CV Traction
3.0 (REXFUJ)

XFX (ES9J4S)

 1 09/2004-01/2008 2946 173 235 1
3.0 V6 (REXFUF)

XFU (ES9A)

 1 09/2004-01/2008 2946 152 207 1
3.0 V6 (REXFUJ)

XFU (ES9A)

 1 10/2004-04/2007 2946 155 211 1
2.2 HDi (RE4HPE, RE4HP2, RE4HRE, RE4HR2)

4HP (DW12BTED4)

4HR (DW12BTED4)

 2 05/2006-01/2008 2179 120 163 1
2.2 HDi (RE4HTE, RE4HT2)

4HT (DW12BTED4)

 2 04/2006-08/2008 2179 125 170 1
2.2 HDi (RE4HXE)

4HX (DW12TED4)

 2 09/2004-09/2006 2179 98 133 1
XANTIA (X1_, X2_) Hatchback 03/1993-04/2003
Vehicle Engine Fuel Date CC KW CV Traction
2.0 16V 1 06/1998-11/2000 1998 99 135 1
3.0 i 24V

XFZ (ES9J4)

 1 01/1997-04/2003 2946 140 190 1
2.0 HDI 109

RHZ (DW10ATED)

 2 02/1999-04/2003 1997 80 109 1
2.0 HDI 90

RHY (DW10TD)

 2 03/1999-04/2003 1997 66 90 1
XANTIA (X1_, X2_) Estate 06/1995-04/2003
Vehicle Engine Fuel Date CC KW CV Traction
3.0 V6

XFZ (ES9J4)

 1 01/1998-04/2003 2946 140 190 1
2.0 HDI 109

RHZ (DW10ATED)

 2 02/1999-04/2003 1997 80 109 1
XANTIA (X2_) Estate Van 12/1997-04/2003
Vehicle Engine Fuel Date CC KW CV Traction
1.9 DT 2 12/1997-12/2000 1905 66 90 1
XANTIA (X2) Estate 01/1998-04/2003
Vehicle Engine Fuel Date CC KW CV Traction
2.0 Turbo 1 01/1998-04/2003 1998 108 147 1
1.9 Turbo D 2 01/1998-04/2003 1905 66 90 1
2.1 Turbo D 12V 2 01/1998-02/1999 2088 80 109 1
XANTIA (X2) Hatchback 01/1998-04/2003
Vehicle Engine Fuel Date CC KW CV Traction
2.0 Turbo 1 01/1998-04/2003 1998 108 147 1
3.0 V6 1 01/1998-04/2003 2946 140 190 1
1.9 Turbo D 2 01/1998-04/2003 1905 66 90 1
2.1 Turbo D 12V 2 01/1998-02/1999 2088 80 109 1
