Product 78BD5271-2 - Web Catalogo

Description: Brake disc
Axe: Front
No. of Pieces: 2
Barcode: 8424073146847
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD5271-2
Weight (gr.): 18608

R90 Homologation: 90R-02C0452/0130

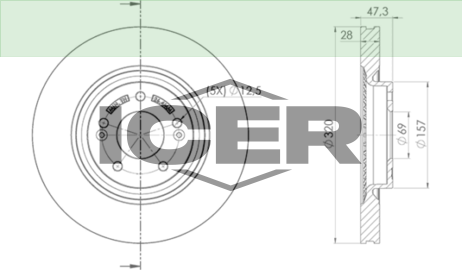

Measures: Ø320x28x47.3
: Brake Disc Type: Vented; Minimum thickness [mm]: 26.4; Hole Arrangement/Number: 5; Bolt Hole Circle Ø [mm]: 114.3; Wheel Hub Diameter [mm]: 69

Reference applications

Brand	OE Reference
HYUNDAI	51712-4C000
KIA	51712-2T000
KIA	51712-2T100
MITSUBISHI	4615A230

Maker	Cross reference
ATE	24.0128-0256.1
ATE	24.0128-0332.1
ATE	428258
BOSCH	0 986 479 A21
BOSCH	0 986 479 J92
BREMBO	09.D765.1E
FERODO	DDF2805C
GIRLING	6075921
HELLA-PAGID	8DD 355 117-971
LETEC	LBD057V
MINTEX	MDC2343
ROAD HOUSE	61436.10
TEXTAR	92237803
TEXTAR	92237805
TEXTAR	98200 2378 0 1

HYUNDAI

GRANDEUR V / AZERA V (HG) Saloon 01/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.4 16V	G4KE	1	01/2011-10/2016	2359	148	201	1
2.4 GDI		1	02/2011-04/2016	2359	140	190	1
3.0	G6DG	1	02/2011-10/2016	2999	199	271	1
3.0 GDi	G6DG	1	12/2011-	2999	195	265	1
2.2 D		2	09/2014-10/2016	2199	149	203	1

GRANDEUR VI / AZERA VI (IG) Saloon 11/2016-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.4 GDI	G4KJ	1	11/2016-	2359	140	190	1
3.0 GDi	G6DL	1	11/2016-	2999	192	261	1
3.0 GDi		1	11/2016-	2999	196	266	1
3.0 MPI	G6DE	1	10/2017-	2999	184	250	1
2.4 Hybrid		13	04/2017-	2359	147	200	1
3.0 LPG		18	11/2016-	2999	173	235	1
2.2 CRDi		2	11/2016-	2199	149	203	1

i20 III (BC3, BI3) Hatchback 08/2020-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 T-GDi N		1	11/2020-	1598	150	204	1

i40 (VF) Estate Van 07/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.7 CRDi	D4FD	2	05/2015-05/2019	1685	85	116	1

i40 I CW (VF) Estate 07/2011-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 GDI	G4FD	1	07/2011-05/2019	1591	99	135	1
2.0 GDI	G4NC	1	12/2014-05/2019	1999	121	165	1
2.0 GDI	G4NC	1	07/2011-05/2019	1999	130	177	1
1.7 CRDi	D4FD	2	07/2011-05/2019	1685	85	116	1
1.7 CRDi	D4FD	2	07/2011-05/2019	1685	100	136	1
1.7 CRDi	D4FD	2	03/2012-05/2019	1685	103	140	1

i40 (VF) Saloon 03/2012-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 GDI	G4FD	1	03/2012-05/2019	1591	99	135	1
2.0 GDI	G4NC	1	12/2014-05/2019	1999	121	165	1
2.0 GDI		1	03/2012-05/2019	1999	122	166	1
2.0 GDI	G4NC	1	03/2012-05/2019	1999	131	178	1
1.7 CRDi	D4FD	2	03/2012-05/2019	1685	85	116	1
1.7 CRDi	D4FD	2	03/2012-05/2019	1685	100	136	1
1.7 CRDi	D4FD	2	10/2012-05/2019	1685	103	140	1
1.7 CRDi	D4FD	2	01/2015-05/2019	1685	104	141	1

ix35 / TUCSON II (LM, EL, ELH) SUV 08/2009-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	G4NA	1	11/2013-12/2015	1999	114	155	1
2.0 4WD	G4NA	1	09/2014-12/2015	1999	113	154	3
2.0 4WD	G4NA	1	09/2014-06/2015	1999	116	158	3
2.0 AWD	G4NA	1	11/2013-12/2015	1999	114	155	3
2.4 GDI		1	09/2013-12/2015	2359	136	185	1
2.4 GDI 4WD		1	01/2013-12/2015	2359	136	185	3
FCEV		7	10/2012-		53	72	1
Fuel Cell		7	09/2014-12/2015		100	136	1

KONA (OS, OSE, OSI) SUV 06/2017-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 T-GDI	G4FJ	1	07/2017-12/2020	1591	130	177	1
1.6 T-GDI		1	11/2020-04/2023	1598	146	199	1
1.6 T-GDi 4WD	G4FJ	1	06/2017-03/2023	1591	130	177	3
1.6 T-GDi 4WD		1	11/2020-04/2023	1598	146	199	3
1.6 CRDi e-VGT AWD	D4FE	2	08/2018-08/2021	1598	100	136	3
1.6 CRDi hybrid 48V		14	11/2020-08/2021	1598	100	136	1
1.6 CRDi Hybrid 48V 4WD		14	11/2020-08/2021	1598	100	136	3

KONA (OS, OSE, OSI) SUV Van 06/2017-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 GDI Hybrid	G4LE	13	06/2019-	1580	104	141	1

NEXO (FE) SUV 03/2018-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
FCEV	FM12	7	03/2018-		120	163	1

SONATA VI / i45 VI (YF) Saloon 06/2009-12/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	G4KD	1	06/2009-06/2014	1998	110	150	1
2.0	G4NA	1	09/2010-12/2015	1999	115	157	1
2.0	G4NA	1	10/2012-06/2014	1999	126	172	1
2.0 i	G4KD	1	09/2012-06/2014	1998	120	163	1
2.0 i	G4KD	1	01/2011-06/2014	1998	121	165	1
2.4	G4KC	1	06/2009-11/2010	2359	128	174	1
2.4	G4KC	1	01/2010-12/2015	2359	130	177	1
2.4	G4KC	1	11/2010-12/2015	2359	131	178	1
2.4	G4KJ	1	09/2011-12/2014	2359	142	193	1
2.0 Hybrid	G4NA	13	01/2011-06/2014	1999	110	150	1

SONATA VII (LF) Saloon 03/2014-06/2023

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	G4KH	1	09/2014-12/2019	1998	180	245	1
2.0		1	06/2014-12/2019	1999	113	154	1
2.0		1	06/2014-12/2019	1999	114	155	1
2.0 CVVT	G4NA	1	11/2014-12/2019	1999	110	150	1
2.0 MPi	G4NA	1	06/2014-12/2019	1999	115	157	1
2.4		1	03/2017-12/2019	2359	126	171	1
2.4	G4KE	1	12/2014-12/2019	2359	131	178	1
2.4	G4KJ	1	09/2014-12/2019	2359	138	188	1
2.4 GDI	G4KJ	1	09/2014-12/2019	2359	142	193	1

KIA

CADENZA / K7 (VG) Saloon 01/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.4		1	06/2013-12/2017	2359	127	173	1
2.4	G4KC G4KE	1	01/2010-12/2015	2359	132	180	1
2.4		1	01/2010-12/2015	2359	148	201	1
2.7		1	01/2010-12/2015	2656	147	200	1
3.0 GDi	L6DB	1	01/2010-12/2015	2999	175	238	1
3.0 GDi		1	01/2010-12/2015	2999	199	271	1
3.3 GDI		1	01/2010-12/2015	3342	216	294	1
3.3 GDI	G6DH	1	09/2013-12/2015	3342	218	296	1
3.5 CVVT	G6DC	1	01/2010-12/2015	3470	213	290	1
2.4 700h	G4KK	13	06/2013-12/2015	2359	147	200	1

CADENZA II / K7 (YG) Saloon 01/2016-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.4 GDI	G4KJ	1	01/2016-06/2019	2359	140	190	1
3.3	G6DF	1	01/2016-	3342	191	260	1
3.3 GDI	G6DM	1	01/2016-	3342	209	284	1
3.3 GDI	G6DM	1	01/2016-06/2019	3342	213	290	1
3.3 MPI	G6DF	1	01/2016-	3342	199	271	1
2.4 Hybrid	G4KK	13	01/2016-	2359	147	200	1

CEE'D III (CD) Hatchback 03/2018-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 T-GDI GT	G4FJ	1	10/2018-	1591	150	204	1
1.6 CRDi 115 Eco-Dynamics+	D4FE	14	12/2019-	1598	85	116	1
1.6 CRDi 136 Eco-Dynamics+	D4FE	14	12/2019-	1598	100	136	1

CEE'D III Sport Wagon (CD) Estate 03/2018-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 CRDi 115 Eco-Dynamics+	D4FE	14	12/2019-	1598	85	116	1
1.6 CRDi 136 Eco-Dynamics+	D4FE	14	12/2019-	1598	100	136	1

OPTIMA III / K5 (FSGDS6B) Saloon 01/2010-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	G4KD	1	03/2012-12/2015	1998	125	170	1
2.0	G4KH	1	09/2010-12/2015	1998	204	277	1
2.0 CVVL	G4KD	1	03/2012-12/2015	1998	121	165	1
2.4	G4KJ	1	03/2012-12/2015	2359	132	179	1
2.4	G4KJ	1	09/2010-12/2015	2359	149	203	1
1.7 CRDi	D4FD	2	03/2012-12/2015	1685	100	136	1

OPTIMA IV / K5 (JF) Saloon 09/2015-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0		1	09/2015-12/2019	1999	113	154	1
2.0 CVVL	G4ND	1	09/2015-12/2017	1999	124	168	1
2.4 GDI	G4KJ	1	09/2015-12/2019	2359	138	188	1
2.4 MPi	G4KE	1	09/2015-12/2019	2359	126	171	1
2.4 MPi	G4KE	1	09/2015-12/2019	2359	131	178	1

PRO CEE´D III (CD) Estate 10/2018-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 T-GDI	G4FJ	1	10/2018-	1591	147	200	1
1.6 T-GDI GT	G4FJ	1	10/2018-	1591	150	204	1

PRO CEE´D III (CD) Estate Van 10/2018-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 T-GDI GT	G4FJ	1	10/2018-	1591	150	204	1

SELTOS (SP2, SP2I) SUV 08/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 T-GDi (SP2)		1	09/2019-	1591	130	177	1
1.6 T-GDi 4WD (SP2)	G4FJ	1	09/2019-06/2022	1591	130	177	3

SOUL II (PS) Hatchback 02/2014-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 CVVT		1	07/2016-12/2018	1591	95	129	1
1.6 CVVT Flex		19	09/2014-12/2018	1591	94	128	1

XCEED (CD) SUV 06/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.0 T-GDI	G3LC	1	06/2019-	998	88	120	1
1.4 T-GDI	G4LD	1	06/2019-12/2020	1353	103	140	1
1.5 T-GDI		1	01/2021-	1482	118	160	1
1.6 T-GDI	G4FJ	1	06/2019-	1591	147	200	1
1.6 T-GDI	G4FJ	1	06/2019-	1591	150	204	1
1.0 T-GDI MHEV		13	08/2021-	998	88	120	1
1.6 CRDi 115	D4FE	2	06/2019-	1598	85	116	1
1.6 CRDi 136	D4FE	2	06/2019-	1598	100	136	1
1.6 CRDi 115 Eco-Dynamics+	D4FE	14	12/2019-	1598	85	116	1
1.6 CRDi 136 Eco-Dynamics+	D4FE	14	12/2019-	1598	100	136	1

XCEED (CD) SUV Van 06/2019-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.4 T-GDI	G4LD	1	06/2019-12/2020	1353	103	140	1
1.6 T-GDI	G4FJ	1	06/2019-	1591	150	204	1
1.6 CRDI	D4FE	2	06/2019-	1598	100	136	1

MITSUBISHI

ECLIPSE CROSS (GK_, GL_) SUV 10/2017-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
Plug-in Hybrid 4WD (GL3W)		13	01/2021-	2360	138	188	3
