Product 78BD5624-2

Description: Brake disc
Axe: Front
No. of Pieces: 2
Barcode: 8424073147318
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD5624-2
Weight (gr.): 15644

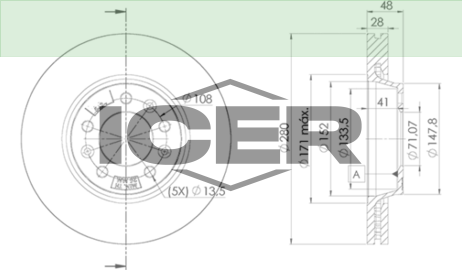

Measures: Ø280x28x48
: Brake Disc Type: Vented; Minimum thickness [mm]: 25; Hole Arrangement/Number: 5; Bolt Hole Circle Ø [mm]: 108; Wheel Hub Diameter [mm]: 71.1

Reference applications

Brand	OE Reference
CITROËN	4249.21
CITROËN	4249.J9
FIAT	9 404 249 878
FIAT	9 467 548 387
PEUGEOT	4249.20
PEUGEOT	4249.87
TOYOTA	SU001-A1063

Maker	Cross reference
ATE	24.0128-0214.1
ATE	428214
BOSCH	0 986 479 266
BREMBO	09.A422.10
DELPHI LOCKHEED	BG4084
FERODO	DDF1601
GIRLING	6048585
HELLA-PAGID	8DD 355 113-661
LETEC	LBP020V
MINTEX	MDC1844
ROAD HOUSE	61052.10
SANLI	SL34104
TEXTAR	92156900
TRW	DF4858S
VALEO	197188

CITROËN

JUMPY II / DISPATCH (VF7) Bus 01/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 HDi 90 16V	9HU (DV6UTED4)	2	01/2007-03/2016	1560	66	90	1
1.6 HDi 90 8V	9HH (DV6DUM) 9HM (DV6UC)	2	01/2007-03/2016	1560	66	90	1

JUMPY II / DISPATCH () Van 01/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 HDi 90 16V	9HU (DV6UTED4)	2	01/2007-03/2016	1560	66	90	1
1.6 HDi 90 8V	9HH (DV6DUM) 9HM (DV6UC)	2	01/2007-03/2016	1560	66	90	1

FIAT

SCUDO II (270_, 272_) Bus 01/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 D Multijet	9HU	2	01/2007-03/2016	1560	66	90	1

SCUDO II (270_, 272_) Van 01/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 D Multijet	9HU	2	01/2007-03/2016	1560	66	90	1

SCUDO II (270_, 272_) Platform/Chassis 01/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 D Multijet	9HU	2	01/2007-03/2016	1560	66	90	1

PEUGEOT

EXPERT II (VF3A_, VF3U_, VF3X_) Van 01/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 HDi 90 16V	9HU (DV6UTED4)	2	01/2007-	1560	66	90	1
1.6 HDi 90 8V	9HH (DV6DUM) 9HM (DV6UC)	2	01/2007-	1560	66	90	1

EXPERT II () Platform/Chassis 01/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 16V (X_RFH)		1	01/2007-03/2016	1997	103	140	1
1.6 HDi 90 16V	9HU (DV6UTED4)	2	01/2007-	1560	66	90	1

EXPERT II Tepee (VF3X_) Bus 01/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 HDi 90 16V	9HU (DV6UTED4)	2	01/2007-03/2016	1560	66	90	1
1.6 HDi 90 8V	9HH (DV6DUM) 9HM (DV6UC)	2	01/2007-03/2016	1560	66	90	1

TOYOTA

PROACE (MDX_) Van 06/2013-03/2016

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 D (MDX9)	3WZ-TV	2	06/2013-03/2016	1560	66	90	1
2.0 D (MDX3)	4WZ-FTW	2	06/2013-03/2016	1997	94	128	1
2.0 D (MDX6)	4WZ-FHV	2	06/2013-03/2016	1997	120	163	1
