Product 78BD5782-1

Description
Brake disc
Axe
Rear
No. of Pieces
1
Barcode
EAN13 Code
8424073147424
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD5782-1
Weight (gr.)
5114

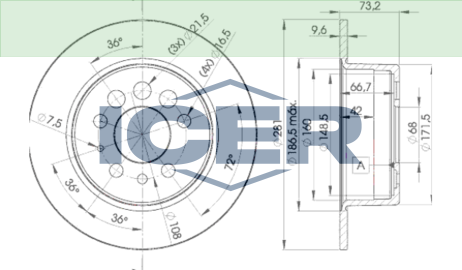

Measures
Ø281x9.6x73.2
Brake Disc Type: solid
Minimum thickness [mm]: 8.4
Hole Arrangement/Number: 5
Bolt Hole Circle Ø [mm]: 108
Wheel Hub Diameter [mm]: 68
Reference applications
Brand OE Reference
VOLVO 1 205 782
VOLVO 1 205 782 4
VOLVO 2 707 36
VOLVO 2 707 362
Maker Cross reference
ATE 24.0110-0189.1
BENDIX BRAKING-TMD BDS1950
BOSCH 0 986 478 143
BREMBO 08.3441.20
BREMBO 08.3441.24
LETEC LBV001S
ROAD HOUSE 6283.00
SANLI SL10321
TRW DF1674
MITSUBISHI
LANCER CARGO IV (CS_W) Estate Van 09/2003-06/2008
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (CS9W) 1 09/2003-06/2008 1997 99 135 1
VOLVO
240 (P242, P244) Saloon 08/1974-12/1993
Vehicle Engine Fuel Date CC KW CV Traction
2.0

B 20 A

 1 08/1974-07/1976 1986 60 82 2
2.0 1 09/1974-12/1975 1986 60 82 2
2.0

B 19 A

 1 08/1976-07/1979 1986 66 90 2
2.0

B 19 A

B 19 K

 1 09/1978-08/1983 1986 71 97 2
2.0

B 19 E

 1 08/1984-08/1989 1986 74 101 2
2.0

B 200 K

 1 08/1984-07/1985 1986 76 103 2
2.0

B 19 E

B 200 F

 1 01/1990-12/1993 1986 82 111 2
2.0

B 200 E

 1 09/1984-12/1993 1986 89 121 2
2.0

B 19 ET

 1 10/1982-08/1984 1986 100 136 2
2.1

B 21 A

 1 08/1974-07/1975 2127 71 97 2
2.1

B 21 A

 1 08/1975-07/1980 2127 74 100 2
2.1

B 21 A

 1 01/1983-12/1984 2127 78 106 2
2.1

B 21 A

 1 08/1980-07/1984 2127 79 107 2
2.1

B 21 E

 1 08/1974-09/1983 2127 90 122 2
2.1 Turbo

B 21 ET

 1 08/1980-07/1984 2127 114 155 2
2.3

B 230 F

 1 08/1986-07/1987 2315 83 113 2
2.3

B 230 A

 1 08/1984-07/1986 2316 81 110 2
2.3

B 23 A

 1 08/1980-07/1984 2316 82 112 2
2.3

B 230 K

 1 08/1986-12/1988 2316 85 115 2
2.3

B 230 E

 1 08/1983-07/1985 2316 96 131 2
2.3

B 23 E

 1 08/1984-12/1989 2316 98 133 2
2.3

B 23 E

B 23 F

 1 08/1980-07/1983 2316 100 136 2
2.3

B 23 E

 1 08/1978-12/1982 2316 103 140 2
2.3 i Cat

B 230 F

 1 08/1986-07/1993 2316 85 115 2
2.7 GLT6

B 27 E

 1 08/1979-07/1980 2664 104 141 2
2.8

B 28 E

 1 10/1982-09/1984 2849 114 155 2
2.4 Diesel

D 24

 2 08/1987-08/1993 2383 58 79 2
2.4 Diesel

D 24

 2 08/1978-07/1985 2383 60 82 2
240 Kombi (P245) Estate 08/1974-12/1993
Vehicle Engine Fuel Date CC KW CV Traction
2.0

B 20 A

 1 08/1974-07/1975 1986 60 82 2
2.0

B 19 A

 1 08/1976-01/1982 1986 66 90 2
2.0

B 19 A

B 19 K

 1 08/1980-12/1984 1986 71 97 2
2.0

B 200 K

 1 08/1984-07/1985 1986 76 103 2
2.0

B 200 F

 1 09/1988-12/1993 1986 82 111 2
2.0

B 200 E

 1 08/1983-07/1993 1986 86 117 2
2.0

B 19 ET

 1 10/1982-08/1984 1986 100 136 2
2.1

B 21 A

 1 08/1974-07/1975 2127 71 97 2
2.1

B 21 A

 1 08/1975-07/1980 2127 74 100 2
2.1

B 21 A

 1 08/1980-07/1984 2127 79 107 2
2.1

B 21 F

 1 08/1980-07/1984 2127 80 109 2
2.1 1 01/1977-08/1978 2127 86 117 1
2.1

B 21 E

 1 08/1974-09/1983 2127 90 122 2
2.1 Turbo

B 21 ET

 1 08/1980-07/1985 2127 114 155 2
2.3

B 230 A

 1 08/1984-07/1986 2316 81 110 2
2.3

B 23 A

 1 08/1980-07/1984 2316 82 112 2
2.3

B 230 F

 1 08/1986-07/1987 2316 83 113 2
2.3

B 230 K

 1 08/1986-12/1988 2316 85 115 2
2.3

B 230 E

 1 08/1984-07/1985 2316 96 131 2
2.3

B 23 E

 1 08/1984-12/1988 2316 98 133 2
2.3

B 23 E

 1 08/1980-12/1984 2316 100 136 2
2.3 Cat

B 230 F

 1 08/1991-07/1992 2316 100 136 2
2.3 i Cat

B 230 F

 1 08/1986-07/1993 2316 85 115 2
2.7 GLT6

B 27 E

 1 08/1979-07/1980 2664 104 141 2
2.8

B 28 A

 1 10/1981-09/1982 2849 95 129 2
2.8

B 28 E

 1 10/1980-09/1982 2849 114 155 2
2.0 D

D 20

 2 09/1978-10/1980 1985 50 68 2
2.4 Diesel

D 24

 2 08/1988-08/1993 2383 58 79 2
2.4 Diesel

D 24

 2 04/1979-08/1993 2383 60 82 2
260 (P262, P264) Saloon 08/1974-07/1982
Vehicle Engine Fuel Date CC KW CV Traction
2.7

B 27 A

 1 08/1976-07/1982 2664 92 125 2
2.7

B 27 E

 1 08/1974-07/1980 2664 103 140 2
2.7

B 27 E

B 27 F

 1 08/1978-07/1982 2664 109 148 2
2.8

B 28 A

 1 08/1980-07/1982 2849 95 129 2
2.8

B 28 E

 1 08/1980-07/1982 2849 114 155 2
260 (P265) Estate 07/1975-07/1982
Vehicle Engine Fuel Date CC KW CV Traction
2.7

B 27 A

 1 08/1975-07/1977 2664 92 125 2
2.7

B 27 E

 1 07/1975-07/1982 2664 103 140 2
2.7

B 27 F

 1 10/1978-07/1982 2664 109 148 2
2.8

B 28 F

 1 08/1980-07/1982 2849 114 155 2
260 (P262) Coupe 09/1975-12/1985
Vehicle Engine Fuel Date CC KW CV Traction
2.7

B 27 E

 1 08/1977-07/1978 2664 103 140 2
2.8

B 28 F

 1 09/1979-12/1981 2849 114 155 2
740 (744) Saloon 04/1983-12/1992
Vehicle Engine Fuel Date CC KW CV Traction
2.0

B 200 K

 1 09/1988-08/1990 1986 76 103 2
2.0

B 200 F

 1 09/1990-08/1992 1986 82 111 2
2.0

B 200 E

 1 01/1987-08/1988 1986 86 117 2
2.0

B 200 G

 1 08/1985-07/1992 1986 89 121 2
2.0

B 19 ET

 1 12/1983-07/1984 1986 110 150 2
2.0

B 200 ET

 1 01/1986-08/1990 1986 118 160 2
2.0

B 200 ET

 1 01/1985-12/1985 1986 120 163 2
2.0

B 204 FTE

 1 09/1990-08/1992 1986 147 200 2
2.0 GLE

B 19 E

 1 04/1983-07/1984 1986 85 116 2
2.0 GLE

B 204 E

 1 09/1987-08/1990 1986 103 140 2
2.0 Turbo

B 200 FT

 1 09/1990-08/1991 1986 114 155 2
2.3

B 230 F

 1 09/1985-12/1989 2315 83 113 2
2.3

B 230 A

 1 08/1984-07/1986 2316 82 112 2
2.3

B 23 A

B 230 F

 1 08/1984-07/1990 2316 84 114 2
2.3

B 230 F

 1 08/1987-07/1992 2316 85 115 2
2.3

B 230 K

 1 10/1984-07/1988 2316 86 117 2
2.3

B 23 E

 1 08/1983-07/1984 2316 95 129 2
2.3

B 230 E

B 230 FB

 1 08/1984-12/1992 2316 96 131 2
2.3 1 07/1990-12/1992 2316 96 131 2
2.3

B 234 F

 1 08/1988-08/1992 2316 111 151 2
2.3

B 234 F

 1 08/1988-07/1991 2316 114 156 2
2.3

B 234 F

 1 08/1987-07/1989 2316 117 159 2
2.3 GLE

B 23 E

 1 08/1984-12/1985 2316 103 140 2
2.3 Turbo

B 230 FT

 1 08/1986-07/1989 2316 115 156 2
2.3 Turbo

B 230 FT

 1 08/1989-07/1990 2316 121 165 2
2.3 Turbo

B 230 FT

B 230 GT

 1 09/1989-08/1991 2316 125 170 2
2.3 Turbo

B 230 ET

 1 08/1985-12/1988 2316 134 182 2
2.3 Turbo

B 230 FT

 1 08/1989-07/1990 2316 140 190 2
2.4 Diesel

D 24

 2 08/1984-07/1992 2383 60 82 2
2.4 TD

D 24 T

 2 08/1985-12/1990 2383 80 109 2
2.4 TD

D 24 T

 2 08/1984-07/1990 2383 83 113 2
2.4 TD

D 24 TIC

 2 08/1986-10/1988 2383 90 122 2
740 Kombi (745) Estate 08/1984-12/1992
Vehicle Engine Fuel Date CC KW CV Traction
2.0

B 200 K

 1 09/1988-08/1990 1986 76 103 2
2.0

B 200 F

 1 08/1989-07/1991 1986 82 112 2
2.0

B 200 E

 1 01/1987-08/1988 1986 86 117 2
2.0

B 200 E

B 200 G

 1 08/1985-07/1992 1986 89 121 2
2.0

B 204 FTE

 1 09/1990-08/1992 1986 147 200 2
2.0 16V

B 204 E

 1 09/1987-08/1990 1986 100 136 2
2.0 GLE 1 09/1987-08/1990 1986 103 140 1
2.0 Turbo

B 200 FT

 1 09/1990-08/1991 1986 114 155 2
2.0 Turbo

B 200 ET

 1 09/1987-08/1990 1986 115 156 2
2.0 Turbo

B 200 ET

 1 05/1985-08/1987 1986 118 160 2
2.0 Turbo

B 200 ET

 1 05/1985-08/1987 1986 121 165 2
2.3

B 230 A

 1 08/1985-07/1986 2316 82 112 2
2.3

B 230 F

 1 08/1985-12/1989 2316 83 113 2
2.3

B 230 K

 1 09/1985-07/1990 2316 84 114 2
2.3

B 230 F

 1 08/1987-07/1992 2316 85 115 2
2.3

B 230 F

 1 01/1988-10/1990 2316 87 118 2
2.3

B 230 E

 1 08/1985-07/1988 2316 96 131 2
2.3

B 230 FB

 1 07/1990-12/1992 2316 96 131 2
2.3

B 234 F

 1 07/1989-08/1992 2316 111 151 2
2.3

B 234 F

 1 08/1988-07/1990 2316 114 156 2
2.3

B 234 F

 1 08/1987-07/1989 2316 117 159 2
2.3 GL 1 08/1984-08/1987 2316 89 121 1
2.3 GLE 1 08/1984-08/1987 2316 103 140 1
2.3 Turbo

B 230 FT

 1 08/1986-07/1989 2316 115 156 2
2.3 Turbo

B 230 FT

B 230 GT

 1 08/1989-07/1990 2316 121 165 2
2.3 Turbo

B 230 FT

B 230 GT

 1 09/1989-08/1991 2316 125 170 2
2.3 Turbo

B 230 ET

 1 08/1985-07/1988 2316 134 182 2
2.3 Turbo

B 230 FT

 1 08/1989-07/1990 2316 140 190 2
2.4 Diesel

D 24

 2 08/1985-07/1988 2383 60 82 2
2.4 TD Interc.

D 24 TIC

 2 08/1986-07/1988 2383 90 122 2
2.4 Turbo-Diesel

D 24 T

 2 09/1985-07/1992 2383 80 109 2
760 (704, 764) Saloon 08/1981-07/1992
Vehicle Engine Fuel Date CC KW CV Traction
2.3

B 230 K

 1 08/1984-08/1987 2316 84 114 2
2.3

B 230 FT

 1 01/1988-07/1992 2316 121 165 2
2.3

B 23 ET

 1 01/1984-03/1986 2316 127 173 2
2.3

B 230 ET

 1 08/1984-08/1987 2316 130 176 2
2.3 Turbo

B 230 FT

 1 09/1987-08/1990 2316 115 156 2
2.3 Turbo

B 23 ET

 1 08/1982-07/1984 2316 127 173 2
2.3 Turbo

B 230 ET

 1 08/1984-10/1988 2316 134 182 2
2.8

B 28 A

 1 01/1982-12/1987 2849 95 130 2
2.8

B 280 F

 1 05/1986-08/1991 2849 105 143 2
2.8

B 28 E

B 280 E

 1 08/1981-07/1988 2849 115 156 2
2.8

B 280 E

 1 09/1987-08/1990 2849 125 170 2
2.8 (764)

B 280 F

 1 08/1986-07/1990 2849 108 147 2
2.4 D 2 01/1982-07/1992 2383 60 82 2
2.4 TD Interc.

D 24 TIC

 2 08/1987-07/1992 2383 85 115 2
2.4 TDiC 2 09/1987-08/1990 2383 90 122 2
2.4 Turbo Diesel

D 24 T

 2 04/1987-07/1992 2383 80 109 2
2.4 Turbo Diesel

D 24 T

 2 08/1982-07/1987 2383 82 112 2
760 Kombi (704, 765) Estate 01/1982-07/1992
Vehicle Engine Fuel Date CC KW CV Traction
2.3

B 230 K

 1 08/1984-08/1987 2316 84 114 2
2.3

B 230 FT

 1 09/1983-12/1990 2316 121 165 2
2.3 Turbo

B 230 FT

 1 09/1987-08/1990 2316 115 156 2
2.3 Turbo

B 230 ET

 1 08/1984-08/1990 2316 134 182 2
2.8

B 280 E

 1 09/1986-10/1988 2849 112 152 2
2.8

B 280 E

 1 08/1984-08/1990 2849 125 170 2
2.8 (765)

B 28 A

 1 05/1986-12/1987 2849 95 130 2
2.8 (765)

B 280 F

 1 05/1986-08/1991 2849 105 143 2
2.8 (765)

B 28 E

B 280 E

 1 08/1986-08/1990 2849 115 156 2
2.4 D

D 24

 2 01/1982-07/1992 2383 60 82 2
2.4 TD

D 24 T

 2 04/1983-10/1989 2383 80 109 2
2.4 TD Interc. (765)

D 24 TIC

 2 08/1987-07/1992 2383 85 116 2
2.4 TDiC 2 09/1987-08/1990 2383 90 122 2
780 (782) Coupe 04/1986-11/1990
Vehicle Engine Fuel Date CC KW CV Traction
2.9

B 280 F

 1 08/1987-07/1990 2849 108 147 2
2.9

B 280 E

 1 08/1986-07/1987 2849 115 156 2
2.4 D

D 24 TIC

 2 04/1986-07/1990 2383 90 122 2
940 (944) Saloon 08/1990-03/1995
Vehicle Engine Fuel Date CC KW CV Traction
2.0

B 200 F

 1 01/1992-07/1994 1986 82 112 2
2.0

B 200 E

B 200 G

 1 09/1990-09/1993 1986 89 121 2
2.0

B 204 FT

 1 09/1990-09/1993 1986 102 139 2
2.0 GL

B 204 E

 1 09/1990-04/1992 1986 103 140 2
2.0 Turbo

B 200 FT

 1 08/1990-12/1994 1986 114 155 2
2.3

B 230 FD

 1 08/1992-07/1994 2316 85 116 2
2.3

B 230 FB

B 230 G

 1 08/1990-12/1994 2316 96 131 2
2.3

B 230 FK

 1 05/1991-03/1995 2316 99 135 2
2.3

B 234 F

B 234 G

 1 08/1990-07/1991 2316 114 156 2
2.3

B 230 FT

 1 09/1990-09/1993 2316 118 160 2
2.3 Turbo

B 230 FT

 1 08/1990-07/1994 2316 121 165 2
2.3 Turbo

B 230 FT+

 1 08/1991-07/1993 2316 140 190 2
2.4 D

D 24

 2 08/1990-12/1994 2383 60 82 2
2.4 TD Intercooler

D 24 TIC

 2 08/1990-12/1994 2383 90 122 2
2.4 Turbo Diesel

D 24 T

 2 08/1990-12/1994 2383 80 109 2
940 Kombi (945) Estate 08/1990-10/1995
Vehicle Engine Fuel Date CC KW CV Traction
2.0

B 200 F

 1 01/1992-07/1994 1986 82 112 2
2.0 GL

B 204 E

 1 09/1990-04/1992 1986 103 140 2
2.0 Turbo

B 200 FT

 1 01/1991-07/1995 1986 114 155 2
2.3

B 230 FD

 1 08/1992-07/1994 2316 85 116 2
2.3

B 230 FB

 1 08/1990-12/1994 2316 96 131 2
2.3

B 234 F

 1 08/1990-07/1991 2316 114 155 2
2.3

B 230 FB

 1 09/1990-09/1993 2316 118 160 2
2.3 Turbo

B 230 FT

 1 08/1990-07/1994 2316 121 165 2
2.3 Turbo

B 230 FT+

 1 08/1991-07/1993 2316 140 190 2
2.4 D

D 24

 2 08/1990-07/1995 2383 60 82 2
2.4 TD 2 05/1991-03/1995 2383 95 130 2
2.4 TD Intercooler

D 24 TIC

 2 08/1990-08/1994 2383 90 122 2
2.4 Turbo Diesel

D 24 T

 2 08/1990-07/1994 2383 80 109 2
940 (945) Estate 09/1990-10/1998
Vehicle Engine Fuel Date CC KW CV Traction
2.0

B 200 G

 1 11/1994-12/1995 1986 89 121 2
2.0

B 204 FT

 1 10/1994-05/1997 1986 102 139 2
2.0 GLT

B 200 GT

 1 10/1994-05/1997 1986 139 189 2
2.0 Turbo

B 200 FT

 1 04/1996-10/1998 1986 114 155 2
2.3

B 230 FD

 1 08/1994-07/1995 2316 85 116 2
2.3

B 230 FB

 1 08/1994-10/1998 2316 96 131 2
2.3 1 10/1994-05/1997 2316 113 154 1
2.3 ti

B 230 FK

 1 01/1995-10/1998 2316 99 135 2
2.3 Turbo

B 230 FT

 1 08/1994-10/1998 2316 121 165 2
2.3 Turbo

B 230 FT

 1 08/1995-10/1998 2316 126 171 2
2.4 TD Interc.

D 24 TIC

 2 08/1994-10/1998 2383 90 122 2
940 (944) Saloon 08/1994-12/1998
Vehicle Engine Fuel Date CC KW CV Traction
2.0

B 200 G

 1 11/1994-12/1995 1986 89 121 2
2.0

B 204 FT

 1 10/1994-05/1997 1986 102 139 2
2.0 GLT

B 200 GT

 1 10/1994-05/1997 1986 139 189 2
2.0 Turbo

B 200 FT

 1 04/1996-10/1998 1986 114 155 2
2.3

B 230 FD

 1 08/1994-07/1995 2316 85 116 2
2.3

B 230 FB

 1 08/1994-10/1998 2316 96 131 2
2.3 1 10/1994-05/1997 2316 113 154 1
2.3 ti

B 230 FK

 1 01/1995-10/1998 2316 99 135 2
2.3 Turbo

B 230 FT

 1 08/1994-10/1998 2316 121 165 2
2.3 Turbo

B 230 FT

 1 01/1995-12/1998 2316 126 171 2
2.4 TD Interc.

D 24 TIC

 2 08/1994-10/1998 2383 90 122 2
960 (964) Saloon 08/1990-07/1994
Vehicle Engine Fuel Date CC KW CV Traction
2.0

B 200 F

 1 09/1990-09/1993 1986 82 111 2
2.0

B 204 E

 1 09/1990-08/1993 1986 103 140 2
2.0

B 204 FT

 1 08/1990-09/1993 1986 140 190 2
2.3 Turbo

B 230 FT

 1 09/1990-08/1993 2316 121 165 2
2.8 GL

B 280 F

 1 09/1990-05/1992 2849 108 147 2
2.8 GL 1 09/1990-05/1992 2849 115 156 1
2.9

B 6304 F

B 6304 FS

B 6304 GS

 1 08/1990-07/1994 2922 150 204 2
2.4 TD Interc.

D 24 TIC

 2 09/1991-07/1994 2383 85 115 2
960 Kombi (965) Estate 08/1990-07/1994
Vehicle Engine Fuel Date CC KW CV Traction
2.0

B 204 E

 1 09/1990-08/1993 1986 103 140 2
2.0

B 204 FT

 1 08/1990-09/1993 1986 140 190 2
2.3 Turbo

B 230 FT

 1 09/1990-08/1993 2316 121 165 2
2.8

B 280 F

 1 09/1990-05/1992 2849 108 147 2
2.8 1 09/1990-05/1992 2849 115 156 1
2.9

B 6304 F

B 6304 S

 1 08/1990-07/1994 2922 150 204 2
2.4 TD Interc.

D 24 TIC

 2 09/1991-07/1994 2383 85 115 2
2.4 TDi

D 24 TIC

 2 09/1990-08/1993 2383 90 122 2
Return
