Product 78BD6472-2
- Description
- Brake disc
- Axe
- Front
- No. of Pieces
- 2
- Barcode
-
8424073147929
- Url
- https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD6472-2
- Weight (gr.)
- 22576

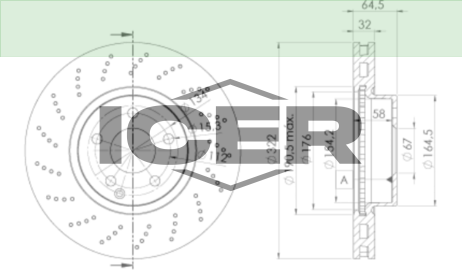

- Measures
- Ø322x32x64.5
-
Brake Disc Type:
perforated/vented -
Minimum thickness [mm]:
29 -
Hole Arrangement/Number:
5 -
Bolt Hole Circle Ø [mm]:
112 -
Wheel Hub Diameter [mm]:
67
| Brand | OE Reference |
|---|---|
| MERCEDES-BENZ | 000 421 1112 |
| MERCEDES-BENZ | 000 421 3012 |
| MERCEDES-BENZ | 204 421 1012 |
| Maker | Cross reference |
|---|---|
| ATE | 24.0132-0100.1 |
| ATE | 432100 |
| BENDIX ANTIGUO | 562634BC |
| BOSCH | 0 986 479 408 |
| BREMBO | 09.A621.31 |
| DELPHI LOCKHEED | BG9076 |
| GIRLING | 6048625 |
| HELLA-PAGID | 8DD 355 114-231 |
| MINTEX | MDC2053 |
| SANLI | SL34918L |
| TEXTAR | 92163400 |
| TEXTAR | 92163405 |
| TRW | DF4862S |
| VALEO | 197478 |
| VALEO | 672874 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| C 350 4-matic (203.087) |
M 272.960 M 272.970 |
1 | 01/2005-02/2007 | 3498 | 200 | 272 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| C 350 4-matic (203.287) |
M 272.970 |
1 | 01/2005-08/2007 | 3498 | 200 | 272 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| C 280 (204.054) |
M 272.947 |
1 | 01/2007-01/2014 | 2996 | 170 | 231 | 2 |
| C 280 4-matic (204.081) |
M 272.948 |
1 | 07/2007-01/2014 | 2996 | 170 | 231 | 3 |
| C 300 (204.054) |
M 272.947 |
1 | 07/2009-01/2014 | 2996 | 170 | 231 | 2 |
| C 300 4-matic (204.080) |
M 276.957 |
1 | 02/2011-01/2014 | 3498 | 185 | 252 | 3 |
| C 300 4-matic (204.081) |
M 272.948 |
1 | 07/2007-01/2014 | 2996 | 170 | 231 | 3 |
| C 350 (204.056) |
M 272.961 |
1 | 01/2007-01/2014 | 3498 | 200 | 272 | 2 |
| C 350 (204.057) |
M 276.957 |
1 | 01/2011-01/2014 | 3498 | 225 | 306 | 2 |
| C 350 4-matic (204.087) |
M 272.971 |
1 | 07/2007-01/2014 | 3498 | 200 | 272 | 3 |
| C 350 4-matic (204.088) |
M 276.957 |
1 | 01/2011-01/2014 | 3498 | 225 | 306 | 3 |
| C 350 CGI (204.065) |
M 272.982 |
1 | 09/2008-01/2014 | 3498 | 215 | 292 | 2 |
| C 250 CDI (204.003) |
OM 651.911 |
2 | 08/2008-01/2014 | 2143 | 150 | 204 | 2 |
| C 250 CDI 4-matic (204.082) |
OM 651.912 |
2 | 01/2011-01/2014 | 2143 | 150 | 204 | 3 |
| C 300 CDI 4-matic (204.092) |
OM 642.832 |
2 | 01/2011-01/2014 | 2987 | 170 | 231 | 3 |
| C 320 CDI (204.022) |
OM 642.960 |
2 | 01/2007-01/2014 | 2987 | 165 | 224 | 2 |
| C 320 CDI 4-matic (204.089) |
OM 642.961 |
2 | 07/2007-01/2014 | 2987 | 165 | 224 | 3 |
| C 350 CDI (204.022) |
OM 642.960 |
2 | 07/2009-01/2014 | 2987 | 165 | 224 | 2 |
| C 350 CDI (204.023) |
OM 642.834 |
2 | 06/2011-01/2014 | 2987 | 195 | 265 | 2 |
| C 350 CDI (204.025) |
OM 642.830 |
2 | 10/2009-01/2014 | 2987 | 170 | 231 | 2 |
| C 350 CDI 4-matic (204.092) |
OM 642.961 |
2 | 07/2009-01/2014 | 2987 | 165 | 224 | 3 |
| C 350 CDI 4-matic (204.092) |
OM 642.832 |
2 | 10/2009-01/2014 | 2987 | 170 | 231 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| C 280 (204.254) |
M 272.947 |
1 | 08/2007-08/2014 | 2996 | 170 | 231 | 2 |
| C 300 (204.254) |
M 272.947 |
1 | 08/2007-08/2014 | 2996 | 170 | 231 | 2 |
| C 350 (204.256) |
M 272.961 |
1 | 08/2007-08/2014 | 3498 | 200 | 272 | 2 |
| C 350 CGI (204.257) |
M 276.957 |
1 | 06/2011-08/2014 | 3498 | 225 | 306 | 2 |
| C 250 CDI 4-matic (204.282) |
OM 651.912 |
2 | 04/2010-08/2014 | 2143 | 150 | 204 | 3 |
| C 300 CDI 4-matic (204.292) |
OM 642.832 |
2 | 06/2011-08/2014 | 2987 | 170 | 231 | 3 |
| C 320 CDI (204.222) |
OM 642.960 |
2 | 08/2007-08/2014 | 2987 | 165 | 224 | 2 |
| C 320 CDI 4-matic (204.289) |
OM 642.961 |
2 | 08/2007-12/2011 | 2987 | 165 | 224 | 3 |
| C 350 CDI (204.223) |
OM 642.834 |
2 | 06/2011-08/2014 | 2987 | 195 | 265 | 2 |
| C 350 CDI (204.225) |
OM 642.830 |
2 | 08/2007-08/2014 | 2987 | 165 | 224 | 2 |
| C 350 CDI (204.225) |
OM 642.830 |
2 | 10/2009-08/2014 | 2987 | 170 | 231 | 2 |
| C 350 CDI 4-matic (204.292) |
OM 642.961 |
2 | 08/2007-12/2011 | 2987 | 165 | 224 | 3 |
| C 350 CDI 4-matic (204.292) |
OM 642.832 |
2 | 10/2009-08/2014 | 2987 | 170 | 231 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| C 350 (204.357) |
M 276.957 |
1 | 06/2011- | 3498 | 225 | 306 | 2 |
| C 350 4-matic (204.388) |
M 276.957 |
1 | 09/2013- | 3498 | 225 | 306 | 3 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| E 250 CDI | 2 | 08/2008-12/2008 | 2143 | 150 | 204 | 2 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| E 180 (212.040) |
M 274.910 |
1 | 08/2013-12/2015 | 1595 | 115 | 156 | 2 |
| E 200 (212.034) |
M 274.920 |
1 | 01/2013-12/2016 | 1991 | 135 | 184 | 2 |
| E 200 CGI (212.048, 212.148) |
M 271.820 M 271.860 |
1 | 08/2009-12/2015 | 1796 | 135 | 184 | 2 |
| E 250 (212.036) |
M 274.920 |
1 | 01/2013-12/2016 | 1991 | 155 | 211 | 2 |
| E 250 (212.052) | 1 | 05/2009-12/2011 | 2496 | 150 | 204 | 2 | |
| E 250 CGI (212.047, 212.147) |
M 271.860 |
1 | 01/2009-12/2015 | 1796 | 150 | 204 | 2 |
| E 300 (212.054) |
M 272.952 |
1 | 01/2009-12/2013 | 2996 | 170 | 231 | 2 |
| E 300 (212.055) |
M 276.952 |
1 | 07/2011-12/2015 | 3498 | 185 | 252 | 2 |
| E 300 4-matic (212.080) |
M 276.952 |
1 | 07/2011-12/2015 | 3498 | 185 | 252 | 3 |
| E 350 (212.056) |
M 272.980 |
1 | 01/2009-12/2013 | 3498 | 200 | 272 | 2 |
| E 350 (212.059) |
M 276.952 |
1 | 09/2011-12/2015 | 3498 | 225 | 306 | 2 |
| E 350 4-matic (212.087) |
M 272.977 |
1 | 01/2009-08/2011 | 3498 | 200 | 272 | 3 |
| E 350 4-matic (212.088) |
M 276.952 |
1 | 09/2011-12/2015 | 3498 | 225 | 306 | 3 |
| E 350 CGI (212.057) |
M 272.982 M 272.983 |
1 | 01/2009-08/2011 | 3498 | 215 | 292 | 2 |
| E 400 (212.065) |
M 276.820 |
1 | 01/2013-12/2016 | 2996 | 245 | 333 | 2 |
| E 400 4-matic (212.067) |
M 276.820 |
1 | 01/2013-12/2016 | 2996 | 245 | 333 | 3 |
| E 400 4-matic (212.099) |
M 276.850 |
1 | 07/2014-12/2015 | 3498 | 245 | 333 | 3 |
| E 200 NGT (212.035) |
M 274.920 |
16 | 07/2013-12/2015 | 1991 | 115 | 156 | 2 |
| E 200 CDI / BlueTEC (212.205, 212.206) |
OM 651.925 |
2 | 01/2009-12/2015 | 2143 | 100 | 136 | 2 |
| E 220 BlueTEC (212.001) |
OM 651.924 |
2 | 05/2014-12/2015 | 2143 | 130 | 177 | 2 |
| E 220 BlueTEC 4-matic (212.211) |
OM 651.924 |
2 | 01/2015-12/2015 | 2143 | 125 | 170 | 3 |
| E 220 CDI |
OM 651.924 |
2 | 01/2009-12/2015 | 2143 | 120 | 163 | 2 |
| E 220 CDI / BlueTEC (212.202, 212.201) |
OM 651.924 |
2 | 01/2009-12/2016 | 2143 | 125 | 170 | 2 |
| E 250 CDI / BlueTEC 4-matic (212.282, 212.297) |
OM 651.924 |
2 | 01/2011-12/2015 | 2143 | 150 | 204 | 3 |
| E 250 CDI / BlueTEC(212.004) |
OM 651.924 |
2 | 01/2009-12/2016 | 2143 | 150 | 204 | 2 |
| E 300 CDI (212.020) |
OM 642.850 |
2 | 12/2009-12/2010 | 2987 | 150 | 204 | 2 |
| E 300 CDI / BlueTEC (212.227, 212.221) |
OM 642.850 OM 642.852 |
2 | 03/2011-12/2015 | 2987 | 170 | 231 | 2 |
| E 350 BlueTEC |
OM 642.852 |
2 | 01/2013-12/2015 | 2987 | 185 | 252 | 2 |
| E 350 BlueTEC (212.024) |
OM 642.850 |
2 | 01/2009-12/2015 | 2987 | 155 | 211 | 2 |
| E 350 BlueTEC (212.026) |
OM 642.852 |
2 | 05/2014-12/2015 | 2987 | 190 | 258 | 2 |
| E 350 BlueTEC 4-matic (212.294) |
OM 642.858 |
2 | 01/2013-12/2015 | 2987 | 185 | 252 | 3 |
| E 350 BlueTEC 4-matic (212.294) |
OM 642.858 |
2 | 05/2014-12/2015 | 2987 | 190 | 258 | 3 |
| E 350 CDI | 2 | 09/2010-12/2015 | 2987 | 157 | 214 | 2 | |
| E 350 CDI (212.023) |
OM 642.852 |
2 | 03/2011-12/2015 | 2987 | 195 | 265 | 2 |
| E 350 CDI (212.025) |
OM 642.850 |
2 | 01/2009-12/2015 | 2987 | 170 | 231 | 2 |
| E 350 CDI 4-matic (212.093) |
OM 642.856 |
2 | 09/2009-08/2011 | 2987 | 170 | 231 | 3 |
| E 350 CDI 4-matic (212.093) |
OM 642.858 |
2 | 03/2011-12/2015 | 2987 | 195 | 265 | 3 |
| E 300 Hybrid / BlueTEC Hybrid (212.298) |
OM 651.924 |
14 | 12/2011-12/2016 | 2143 | 150 | 204 | 2 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| E 200 (207.334) |
M 274.920 |
1 | 06/2013-12/2016 | 1991 | 135 | 184 | 2 |
| E 200 CGI (207.348) |
M 271.820 M 271.860 |
1 | 01/2010-12/2016 | 1796 | 135 | 184 | 2 |
| E 250 (207.336) |
M 274.920 |
1 | 06/2013-12/2016 | 1991 | 155 | 211 | 2 |
| E 250 CGI (207.347) |
M 271.860 |
1 | 01/2009-12/2016 | 1796 | 150 | 204 | 2 |
| E 300 (207.355) |
M 276.957 |
1 | 04/2011-06/2016 | 3498 | 185 | 252 | 2 |
| E 320 (207.362) |
M 276.820 |
1 | 07/2014-12/2016 | 2996 | 200 | 272 | 2 |
| E 350 (207.359) |
M 276.957 |
1 | 04/2011-12/2014 | 3498 | 225 | 306 | 2 |
| E 350 4-matic (207.388) |
M 276.957 |
1 | 02/2013-12/2016 | 3498 | 225 | 306 | 3 |
| E 350 CGI (207.357) |
M 272.982 M 272.984 |
1 | 01/2009-12/2011 | 3498 | 215 | 292 | 2 |
| E 400 (207.361) |
M 276.850 |
1 | 07/2014-12/2016 | 3498 | 245 | 333 | 2 |
| E 400 (207.365) |
M 276.820 |
1 | 06/2013-12/2016 | 2996 | 245 | 333 | 2 |
| E 220 BlueTEC (207.301) |
OM 651.911 |
2 | 05/2014-12/2016 | 2143 | 130 | 177 | 2 |
| E 220 CDI (207.302) |
OM 651.911 |
2 | 02/2010-12/2014 | 2143 | 120 | 163 | 2 |
| E 220 CDI / d (207.302, 207.301) |
OM 651.911 |
2 | 01/2010-12/2016 | 2143 | 125 | 170 | 2 |
| E 250 CDI / BlueTEC / d (207.403, 207.404) |
OM 651.911 |
2 | 01/2009-12/2016 | 2143 | 150 | 204 | 2 |
| E 350 BlueTEC (207.326) |
OM 642.838 |
2 | 06/2013-12/2016 | 2987 | 185 | 252 | 2 |
| E 350 BlueTEC / d (207.326) |
OM 642.838 |
2 | 05/2014-12/2016 | 2987 | 190 | 258 | 2 |
| E 350 CDI (207.322) |
OM 642.836 |
2 | 01/2009-06/2011 | 2987 | 170 | 231 | 2 |
| E 350 CDI (207.323) |
OM 642.838 |
2 | 06/2011-06/2013 | 2987 | 195 | 265 | 2 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| E 200 (212.234) |
M 274.920 |
1 | 11/2012-12/2016 | 1991 | 135 | 184 | 2 |
| E 200 CGI (212.248) |
M 271.860 |
1 | 11/2009-12/2016 | 1796 | 135 | 184 | 2 |
| E 250 (212.236) |
M 274.920 |
1 | 11/2012-12/2016 | 1991 | 155 | 211 | 2 |
| E 250 CGI (212.247) |
M 271.860 |
1 | 11/2009-12/2013 | 1796 | 150 | 204 | 2 |
| E 300 (212.254) |
M 272.952 |
1 | 11/2009-12/2011 | 2996 | 170 | 231 | 2 |
| E 300 (212.255) |
M 276.952 |
1 | 07/2011-12/2016 | 3498 | 185 | 252 | 2 |
| E 300 4-matic (212.280) |
M 276.952 |
1 | 07/2011-12/2016 | 3498 | 185 | 252 | 3 |
| E 350 (212.256) |
M 272.980 |
1 | 08/2009-12/2011 | 3498 | 200 | 272 | 2 |
| E 350 (212.259) |
M 276.952 |
1 | 09/2011-12/2014 | 3498 | 225 | 306 | 2 |
| E 350 4-matic (212.287) |
M 272.977 |
1 | 11/2009-12/2011 | 3498 | 200 | 272 | 3 |
| E 350 4-matic (212.288) |
M 276.952 |
1 | 09/2011-12/2016 | 3498 | 225 | 306 | 3 |
| E 350 CGI (212.257) |
M 272.983 |
1 | 11/2009-12/2011 | 3498 | 215 | 292 | 2 |
| E 400 (212.265) |
M 276.820 |
1 | 01/2013-12/2016 | 2996 | 245 | 333 | 2 |
| E 400 4-matic (212.267) |
M 276.820 |
1 | 01/2013-12/2016 | 2996 | 245 | 333 | 3 |
| E 400 4-matic (212.299) |
M 276.850 |
1 | 07/2014-12/2016 | 3498 | 245 | 333 | 3 |
| E 200 CDI / BlueTEC (212.205, 212.206) |
OM 651.925 |
2 | 11/2009-12/2016 | 2143 | 100 | 136 | 2 |
| E 220 BlueTEC |
OM 651.924 |
2 | 05/2015-12/2016 | 2143 | 130 | 177 | 2 |
| E 220 BlueTEC 4-matic (212.211) |
OM 651.924 |
2 | 12/2014-12/2016 | 2143 | 125 | 170 | 3 |
| E 220 CDI (212.202) |
OM 651.924 |
2 | 08/2009-08/2014 | 2143 | 120 | 163 | 2 |
| E 220 CDI / BlueTEC (212.202, 212.201) |
OM 651.924 |
2 | 11/2009-12/2016 | 2143 | 125 | 170 | 2 |
| E 250 CDI / BlueTEC 4-matic (212.282, 212.297) |
OM 651.924 |
2 | 07/2010-12/2016 | 2143 | 150 | 204 | 3 |
| E 250 CDI / BlueTEC(212.004) |
OM 651.924 |
2 | 11/2009-12/2016 | 2143 | 150 | 204 | 2 |
| E 300 CDI (212.220) |
OM 642.850 |
2 | 12/2009-12/2010 | 2987 | 150 | 204 | 2 |
| E 300 CDI / BlueTEC (212.227, 212.221) |
OM 642.850 OM 642.852 |
2 | 11/2009-12/2016 | 2987 | 170 | 231 | 2 |
| E 350 BlueTEC |
OM 642.852 |
2 | 11/2012-12/2016 | 2987 | 185 | 252 | 2 |
| E 350 BlueTEC (212.224) |
OM 642.850 |
2 | 11/2009-12/2013 | 2987 | 155 | 211 | 2 |
| E 350 BlueTEC (212.226) |
OM 642.852 |
2 | 07/2014-12/2016 | 2987 | 190 | 258 | 2 |
| E 350 BlueTEC 4-matic (212.294) |
OM 642.858 |
2 | 11/2012-12/2016 | 2987 | 185 | 252 | 3 |
| E 350 CDI (212.223) |
OM 642.852 |
2 | 07/2011-12/2013 | 2987 | 195 | 265 | 2 |
| E 350 CDI (212.225) |
OM 642.850 |
2 | 11/2009-12/2011 | 2987 | 170 | 231 | 2 |
| E 350 CDI 4-matic (212.293) |
OM 642.856 |
2 | 11/2009-12/2011 | 2987 | 170 | 231 | 3 |
| E 350 CDI 4-matic (212.293) |
OM 642.858 |
2 | 07/2011-12/2013 | 2987 | 195 | 265 | 3 |
| E 300 Hybrid / BlueTEC Hybrid (212.298) |
OM 651.924 |
14 | 12/2011-12/2016 | 2143 | 150 | 204 | 2 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| E 200 (207.434) |
M 274.920 |
1 | 03/2013-12/2016 | 1991 | 135 | 184 | 2 |
| E 200 CGI (207.448) |
M 271.820 M 271.860 |
1 | 01/2010-12/2016 | 1796 | 135 | 184 | 2 |
| E 250 (207.436) |
M 274.920 |
1 | 06/2013-12/2016 | 1991 | 155 | 211 | 2 |
| E 250 CGI (207.447) |
M 271.860 |
1 | 01/2010-12/2016 | 1796 | 150 | 204 | 2 |
| E 300 (207.455) |
M 276.957 |
1 | 04/2011-12/2016 | 3498 | 185 | 252 | 2 |
| E 320 (207.462) |
M 276.820 |
1 | 07/2014-12/2016 | 2996 | 200 | 272 | 2 |
| E 350 (207.456) |
M 272.961 M 272.988 |
1 | 03/2010-12/2011 | 3498 | 200 | 272 | 2 |
| E 350 (207.459) |
M 276.957 |
1 | 04/2011-12/2014 | 3498 | 225 | 306 | 2 |
| E 350 CGI (207.457) |
M 272.982 M 272.984 |
1 | 01/2010-12/2014 | 3498 | 215 | 292 | 2 |
| E 400 (207.461) |
M 276.850 |
1 | 07/2014-12/2016 | 3498 | 245 | 333 | 2 |
| E 400 (207.465) |
M 276.820 |
1 | 06/2013-12/2016 | 2996 | 245 | 333 | 2 |
| E 220 BlueTEC (207.401) |
OM 651.911 |
2 | 05/2014-12/2016 | 2143 | 130 | 177 | 2 |
| E 220 CDI (207.402) |
OM 651.911 |
2 | 02/2010-12/2016 | 2143 | 120 | 163 | 2 |
| E 220 CDI / BlueTEC / d (207.402, 207.401) |
OM 651.911 |
2 | 01/2010-12/2016 | 2143 | 125 | 170 | 2 |
| E 250 CDI / BlueTEC / d (207.403, 207.404) |
OM 651.911 |
2 | 01/2010-12/2016 | 2143 | 150 | 204 | 2 |
| E 350 BlueTEC (207.426) |
OM 642.838 |
2 | 06/2013-12/2016 | 2987 | 185 | 252 | 2 |
| E 350 BlueTEC/ d (207.426) |
OM 642.838 |
2 | 05/2014-12/2016 | 2987 | 190 | 258 | 2 |
| E 350 CDI (207.422) |
OM 642.836 |
2 | 01/2010-12/2011 | 2987 | 170 | 231 | 2 |
| E 350 CDI (207.423) |
OM 642.838 |
2 | 04/2011-12/2013 | 2987 | 195 | 265 | 2 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 250 d (172.404) |
OM 651.980 |
2 | 01/2016-10/2017 | 2143 | 150 | 204 | 2 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 250 CDI / d (172.403) |
OM 651.980 |
2 | 01/2012- | 2143 | 150 | 204 | 2 |
