Product 78BD6474-2

Description
Brake disc
Axe
Rear
No. of Pieces
2
Barcode
EAN13 Code
8424073147943
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD6474-2
Weight (gr.)
10472
R90 Homologation
R90 90R-02C0453/0099

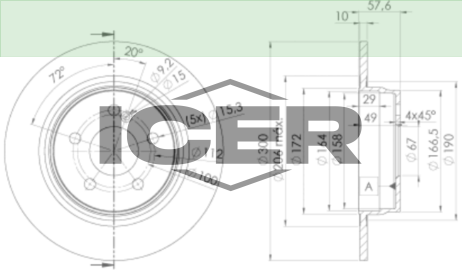

Measures
Ø300x10x57.7
Brake Disc Type: solid
Minimum thickness [mm]: 8.3
Hole Arrangement/Number: 5
Bolt Hole Circle Ø [mm]: 112
Wheel Hub Diameter [mm]: 67
Reference applications
Brand OE Reference
MERCEDES-BENZ 204 423 06 12
MERCEDES-BENZ 204 423 09 12
MERCEDES-BENZ 204 423 15 12
Maker Cross reference
ATE 24.0110-0328.1
ATE 410328
BENDIX ANTIGUO 562620BC
BOSCH 0 986 479 410
BREMBO 08.A612.40
FERODO DDF1691
GIRLING 6048054
HELLA-PAGID 8DD 355 114-211
LETEC LBM041S
MINTEX MDC2025
SANLI SL11162
TEXTAR 92163300
TRW DF4805
VALEO 197127
MERCEDES-BENZ
C-Class III (W204) Saloon 01/2007-01/2015
Vehicle Engine Fuel Date CC KW CV Traction
C 180 CGI (204.031)

M 274.910

 1 01/2008-01/2014 1595 115 156 2
C 180 CGI (204.049)

M 271.820

 1 01/2007-01/2014 1796 115 156 2
C 180 Kompressor (204.046)

M 271.910

 1 01/2008-01/2014 1597 115 156 2
C 180 Kompressor (204.046)

M 271.952

 1 01/2007-01/2014 1796 115 156 2
C 200 (204.048)

M 271.820

 1 05/2011-01/2014 1796 137 186 2
C 200 CGI (204.048)

M 271.820

M 271.860

 1 01/2007-01/2014 1796 135 184 2
C 200 Kompressor (204.041)

M 271.950

 1 01/2007-01/2014 1796 135 184 2
C 230 (204.052)

M 272.921

 1 01/2007-01/2014 2496 150 204 2
C 230 4-matic (204.085)

M 272.911

 1 07/2007-01/2014 2496 150 204 3
C 250 CGI (204.047)

M 271.860

 1 07/2009-01/2014 1796 150 204 2
C 280 (204.054)

M 272.947

 1 01/2007-01/2014 2996 170 231 2
C 280 4-matic (204.081)

M 272.948

 1 07/2007-01/2014 2996 170 231 3
C 300 (204.054)

M 272.947

 1 07/2009-01/2014 2996 170 231 2
C 300 4-matic (204.081)

M 272.948

 1 07/2007-01/2014 2996 170 231 3
C 180 CDI (204.000)

OM 651.913

 2 04/2010-03/2014 2143 88 120 2
C 200 CDI (204.001)

OM 651.913

 2 11/2009-03/2014 2143 100 136 2
C 200 CDI (204.007, 204.006)

OM 646.811

OM 646.812

 2 01/2007-12/2009 2148 100 136 2
C 220 CDI (204.002)

OM 651.911

 2 10/2008-01/2014 2143 120 163 2
C 220 CDI (204.002)

OM 651.911

 2 12/2008-01/2014 2143 125 170 2
C 220 CDI (204.008)

OM 646.811

 2 01/2007-11/2008 2148 120 163 2
C 220 CDI (204.008)

OM 646.811

 2 01/2007-11/2008 2148 125 170 2
C 220 CDI 4-matic (204.084)

OM 651.912

 2 02/2013-01/2014 2143 125 170 3
C 250 CDI 4-matic (204.082)

OM 651.912

 2 01/2011-01/2014 2143 150 204 3
C-Class III T-Model (S204) Estate 08/2007-08/2014
Vehicle Engine Fuel Date CC KW CV Traction
C 180 (204.231)

M 274.910

 1 02/2012-08/2014 1595 115 156 2
C 180 CGI (204.249)

M 271.820

 1 11/2009-08/2014 1796 115 156 2
C 180 Kompressor (204.246)

M 271.910

 1 01/2008-08/2014 1597 115 156 2
C 180 Kompressor (204.246)

M 271.952

 1 08/2007-08/2014 1796 115 156 2
C 200 CGI (204.248)

M 271.820

M 271.860

 1 08/2007-08/2014 1796 135 184 2
C 200 Kompressor (204.241)

M 271.950

 1 08/2007-08/2014 1796 135 184 2
C 230 (204.252)

M 272.921

 1 08/2007-08/2014 2496 150 204 2
C 250 (204.252)

M 272.921

 1 02/2008-12/2012 2496 150 204 2
C 250 CGI (204.247)

M 271.860

 1 07/2009-08/2014 1796 150 204 2
C 280 (204.254)

M 272.947

 1 08/2007-08/2014 2996 170 231 2
C 300 (204.254)

M 272.947

 1 08/2007-08/2014 2996 170 231 2
C 180 CDI (204.200)

OM 651.913

 2 04/2010-08/2014 2143 88 120 2
C 200 CDI (204.201)

OM 651.913

 2 08/2010-08/2014 2143 100 136 2
C 200 CDI (204.207)

OM 646.811

 2 08/2007-12/2009 2148 100 136 2
C 220 CDI (204.202)

OM 651.911

 2 12/2008-08/2014 2143 120 163 2
C 220 CDI (204.202)

OM 651.911

 2 12/2008-08/2014 2143 125 170 2
C 220 CDI (204.208)

OM 646.811

 2 08/2007-11/2008 2148 120 163 2
C 220 CDI (204.208)

OM 646.811

 2 08/2007-11/2008 2148 125 170 2
C 220 CDI 4-matic (204.284)

OM 651.912

 2 02/2013-08/2014 2143 125 170 3
C 250 CDI (204.203)

OM 651.911

 2 01/2009-08/2014 2143 150 204 2
C 250 CDI 4-matic (204.282)

OM 651.912

 2 04/2010-08/2014 2143 150 204 3
C-Class III (C204) Coupe 01/2011-
Vehicle Engine Fuel Date CC KW CV Traction
C 180 (204.331)

M 274.910

 1 01/2013- 1595 115 156 2
C 200 CGI (204.348)

M 271.860

 1 06/2011- 1796 135 184 2
C 250 (204.347)

M 271.860

 1 06/2011- 1796 150 204 2
C 220 CDI (204.302)

OM 651.911

 2 06/2011- 2143 120 163 2
C 220 CDI (204.302)

OM 651.911

 2 06/2011- 2143 125 170 2
E-Class IV (W212) Saloon 01/2009-
Vehicle Engine Fuel Date CC KW CV Traction
E 200 NGT (212.041)

M 271.958

 16 03/2011-12/2015 1796 120 163 2
E-Class IV (C207) Coupe 01/2009-
Vehicle Engine Fuel Date CC KW CV Traction
E 200 (207.334)

M 274.920

 1 06/2013-12/2016 1991 135 184 2
E 200 CGI (207.348)

M 271.820

M 271.860

 1 01/2010-12/2016 1796 135 184 2
E 250 (207.336)

M 274.920

 1 06/2013-12/2016 1991 155 211 2
E 250 CGI (207.347)

M 271.860

 1 01/2009-12/2016 1796 150 204 2
E 220 BlueTEC (207.301)

OM 651.911

 2 05/2014-12/2016 2143 130 177 2
E 220 CDI (207.302)

OM 651.911

 2 02/2010-12/2014 2143 120 163 2
E 220 CDI / d (207.302, 207.301)

OM 651.911

 2 01/2010-12/2016 2143 125 170 2
E 250 CDI / BlueTEC / d (207.403, 207.404)

OM 651.911

 2 01/2009-12/2016 2143 150 204 2
E-Class IV (A207) Convertible 01/2010-
Vehicle Engine Fuel Date CC KW CV Traction
E 200 (207.434)

M 274.920

 1 03/2013-12/2016 1991 135 184 2
E 200 CGI (207.448)

M 271.820

M 271.860

 1 01/2010-12/2016 1796 135 184 2
E 250 (207.436)

M 274.920

 1 06/2013-12/2016 1991 155 211 2
E 250 CGI (207.447)

M 271.860

 1 01/2010-12/2016 1796 150 204 2
E 220 BlueTEC (207.401)

OM 651.911

 2 05/2014-12/2016 2143 130 177 2
E 220 CDI (207.402)

OM 651.911

 2 02/2010-12/2016 2143 120 163 2
E 220 CDI / BlueTEC / d (207.402, 207.401)

OM 651.911

 2 01/2010-12/2016 2143 125 170 2
E 250 CDI / BlueTEC / d (207.403, 207.404)

OM 651.911

 2 01/2010-12/2016 2143 150 204 2
E 350 CDI (207.422)

OM 642.836

 2 01/2010-12/2011 2987 170 231 2
