Product 78BD6546-2 - Web Catalogo

Product 78BD6546-2

Description: Brake disc
Axe: Rear
No. of Pieces: 2
Barcode: 8424073148001
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD6546-2
Weight (gr.): 14440

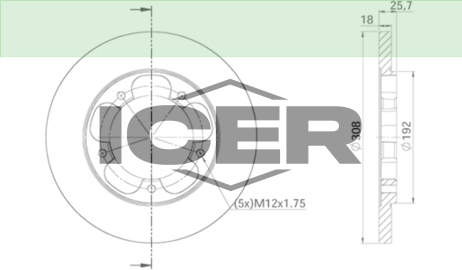

Measures: Ø308x18x25.7
: Brake Disc Type: solid; Minimum thickness [mm]: 15; Hole Arrangement/Number: 5; Bolt Hole Circle Ø [mm]: 0; Wheel Hub Diameter [mm]: 122.5

Reference applications

Brand	OE Reference
FORD	CK4Z-2C026
FORD	CK4Z-ZC026-C

Maker	Cross reference
SANLI	SL17931

FORD

TRANSIT V (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) Bus 04/2006-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.2 TDCi RWD	CVRC	2	10/2011-08/2014	2198	114	155	2

TRANSIT VI V363 (FAD, FBD) Bus 08/2013-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 EcoBlue	BJFA BJFB YLF6 YLFA YLFB YLFS	2	03/2016-	1995	77	105	1
2.0 EcoBlue	BKFA BKFB YMF6 YMFA YMFB YMFS	2	03/2016-	1995	96	130	1
2.0 EcoBlue	BLFA BLFB YNF6 YNFA YNFB YNFS	2	03/2016-06/2024	1995	125	170	1
2.0 EcoBlue RWD	YMHA	2	05/2019-	1995	96	130	2
2.0 EcoBlue RWD		2	05/2022-	1995	121	165	2
2.2 TDCi	DRF5 DRFF DRFG	2	08/2013-12/2018	2198	74	100	1
2.2 TDCi	CY14 CYF5 CYFG USF6	2	08/2013-12/2018	2198	92	125	1
2.2 TDCi 4x4	CY24 CYR5	2	08/2013-12/2018	2198	92	125	3
2.2 TDCi A las 4 ruedas		2	08/2015-12/2018	2198	114	155	3
2.2 TDCi RWD	DRR5	2	08/2013-12/2018	2198	74	100	2
2.2 TDCi RWD	CYR5 USR6	2	08/2013-12/2018	2198	92	125	2
2.2 TDCi RWD	UHR5	2	08/2013-	2198	99	135	2
2.2 TDCi RWD	CV24 CVR5 UYR6	2	08/2013-12/2018	2198	114	155	2

TRANSIT VI V363 (FCD, FDD) Van 08/2013-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 EcoBlue	BJFA BJFB YLF6 YLFA YLFB YLFS	2	03/2016-	1995	77	105	1
2.0 EcoBlue	BKFA BKFB YMF6 YMFA YMFB YMFS	2	03/2016-	1995	96	130	1
2.0 EcoBlue	BLFA BLFB YNF6 YNFA YNFB YNFS	2	03/2016-06/2024	1995	125	170	1
2.0 EcoBlue RWD	BJRA YLR6 YLRA	2	03/2016-	1995	77	105	2
2.0 EcoBlue RWD	BKRA YMHA YMR6	2	03/2016-	1995	96	130	2
2.0 EcoBlue RWD		2	05/2022-	1995	121	165	2
2.0 EcoBlue RWD	BLHA BLRA YNR6	2	03/2016-06/2024	1995	125	170	2
2.2 TDCi	DRF5 DRFF DRFG	2	08/2013-12/2018	2198	74	100	1
2.2 TDCi	CY14 CYF5 CYFG USF6	2	08/2013-12/2018	2198	92	125	1
2.2 TDCi	CVF5	2	08/2013-12/2018	2198	114	155	1
2.2 TDCi 4x4	CY24 CYR5	2	08/2013-12/2018	2198	92	125	3
2.2 TDCi 4x4	CV24 CVR5	2	08/2015-12/2018	2198	114	155	3
2.2 TDCi RWD	DRR5	2	08/2013-12/2018	2198	74	100	2
2.2 TDCi RWD	CYR5 USR6	2	08/2013-12/2018	2198	92	125	2
2.2 TDCi RWD	CV24 CVR5 UYR6	2	08/2013-12/2018	2198	114	155	2
E-TRANSIT		11	03/2022-		135	184	2
E-TRANSIT		11	03/2022-		198	269	2

TRANSIT VI V363 (FED, FFD) Platform/Chassis 08/2013-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 EcoBlue	BJFA BJFB YLF6 YLFA YLFB YLFS	2	03/2016-	1995	77	105	1
2.0 EcoBlue	BKFA BKFB YMF6 YMFA YMFB YMFS	2	03/2016-	1995	96	130	1
2.0 EcoBlue	BLFA BLFB YNF6 YNFA YNFB YNFS	2	03/2016-06/2024	1995	125	170	1
2.0 EcoBlue RWD	BJRA YLR6 YLRA	2	03/2016-	1995	77	105	2
2.0 EcoBlue RWD	BKRA YMHA YMR6	2	03/2016-	1995	96	130	2
2.0 EcoBlue RWD		2	05/2022-	1995	121	165	2
2.0 EcoBlue RWD	BLHA BLRA YNR6	2	03/2016-06/2024	1995	125	170	2
2.2 TDCi	DRF5 DRFF DRFG	2	08/2013-12/2018	2198	74	100	1
2.2 TDCi	CY14 CYF5 CYFG USF6	2	08/2013-12/2018	2198	92	125	1
2.2 TDCi	CVF5	2	08/2013-12/2018	2198	114	155	1
2.2 TDCi 4x4	CY24 CYR5	2	08/2013-12/2018	2198	92	125	3
2.2 TDCi 4x4	CV24 CVR5	2	08/2013-12/2018	2198	114	155	3
2.2 TDCi RWD	DRR5	2	08/2013-12/2018	2198	74	100	2
2.2 TDCi RWD	CYR5 USR6	2	08/2013-12/2018	2198	92	125	2
2.2 TDCi RWD	UHR5	2	08/2013-12/2018	2198	99	135	2
2.2 TDCi RWD	CV24 CVR5 UYR6	2	08/2013-	2198	114	155	2
E-TRANSIT		11	03/2022-		135	184	2
E-TRANSIT		11	03/2022-		198	269	2

FORD AUSTRALIA

TRANSIT (VO) Van 09/2014-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.2 TDCi		2	09/2014-	2198	114	155	2

TRANSIT (VO) Platform/Chassis 09/2014-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.2 TDCi		2	09/2014-	2198	114	155	2
