Product 78BD8716-2

Description
Brake disc
Axe
Front
No. of Pieces
2
Barcode
EAN13 Code
8424073148933
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD8716-2
Weight (gr.)
12004
R90 Homologation
R90 90R-02C0452/0086

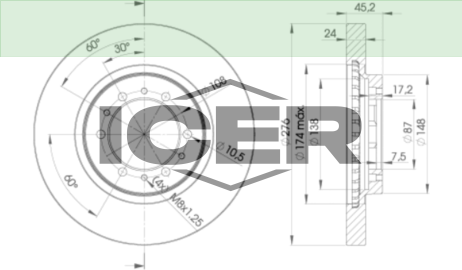

Measures
Ø276x24x45
Brake Disc Type: Vented
Minimum thickness [mm]: 22.4
Hole Arrangement/Number: 6
Bolt Hole Circle Ø [mm]: 108
Wheel Hub Diameter [mm]: 87
Reference applications
Brand OE Reference
MITSUBISHI MB618716
MITSUBISHI MB928697
MITSUBISHI MR129648
MITSUBISHI MR129649
Maker Cross reference
ATE 24.0124-0140.1
ATE 424140
BENDIX ANTIGUO 562067B
BOSCH 0 986 478 844
BREMBO 09.8071.10
DELPHI LOCKHEED BG3099
FERODO DDF1109
GIRLING 6031181
HELLA-PAGID 8DD 355 105-131
MINTEX MDC1473
NECTO WN1124
ROAD HOUSE 6462.10
SANLI SL31633
TEXTAR 92079800
TRW DF3118
VALEO 186719
GREAT WALL
PEGASUS () SUV 02/2004-12/2008
Vehicle Engine Fuel Date CC KW CV Traction
2.2 RHG Royale 1 02/2004-12/2008 2237 74 101 2
MITSUBISHI
L200 II / COLT-RODEO / MIGHTY MAX / TRITON (K3_T, K2_T, K1_T, K0_T) Pickup 01/1983-06/1999
Vehicle Engine Fuel Date CC KW CV Traction
2.5 TD 4WD (K34T)

4D56-T

 2 11/1992-08/1996 2477 64 87 3
L200 III / COLT-RODEO / STRADA / TRITON (K7_T, K6_T, K5_T) Pickup 01/1996-12/2011
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (K62T)

4G63 (SOHC 16V)

 1 06/1996-12/2007 1997 90 122 2
2.4 4WD (K75T)

4G64 (16V)

 1 06/1996-12/2007 2351 97 132 3
2.4 i 1 10/1996-12/2006 2351 97 132 2
3.0 1 08/2001-11/2005 2972 108 147 2
3.0 4WD (K76T)

6G72 (SOHC 24V)

 1 08/2001-11/2005 2972 108 147 3
3.0 i (K66T)

6G72 (SOHC 24V)

 1 06/1996-08/2006 2972 133 181 2
3.0 i 4WD (K76T)

6G72 (SOHC 24V)

 1 06/1996-08/2006 2972 133 181 3
2.5 D (K64T)

4D56 (8V)

 2 06/1996-12/2007 2477 55 75 2
2.5 D 4WD 2 01/1996-12/2005 2477 55 75 3
2.5 DI-D 4x4 (K74T) 2 01/2004-12/2007 2477 89 121 3
2.5 TD 2 07/1997-01/2001 2477 73 99 2
2.5 TD (K64T)

4D56-T

 2 08/2001-11/2005 2477 66 90 2
2.5 TD 4WD 2 07/1997-12/2003 2477 64 87 3
2.5 TD 4WD (K74T)

4D56-TD

 2 06/1996-12/2007 2477 73 99 3
2.5 TD 4WD (K74T)

4D56-T

 2 09/2001-12/2007 2477 85 115 3
2.5 TD 4WD (K74T)

4D56-T

 2 08/2001-12/2007 2477 98 133 3
2.8 D 4WD (K77T) 2 10/1996-03/2003 2835 71 97 3
2.8 D 4WD (K77T) 2 09/1996-07/2003 2835 103 140 3
2.8 TD 4WD (K77T)

4M40-T

 2 04/2003-06/2006 2835 92 125 3
L200 III / COLT-RODEO / STRADA / TRITON (K6_T, K7_T) Platform/Chassis 01/1996-12/2006
Vehicle Engine Fuel Date CC KW CV Traction
3.0 (K66T) 1 08/2000-12/2006 2972 133 181 2
2.8 D 4WD (K77T) 2 10/1996-03/2003 2835 71 97 3
2.8 TD 4WD (K77T) 2 04/2003-12/2006 2835 92 125 3
L200 IV / TRITON (KA_T, KB_T) Pickup 01/2004-12/2018
Vehicle Engine Fuel Date CC KW CV Traction
2.5 DI-D 4WD (KB4T)

4D56-HP

 2 11/2005-12/2015 2477 100 136 3
L 300 III / L300 STARWAGON / DELICA (P0_W, P1_W, P2_W, P3_W) Bus 08/1986-12/2013
Vehicle Engine Fuel Date CC KW CV Traction
2.4 4WD (P24W)

G64B

 1 11/1986-12/1990 2351 80 109 3
2.4 4WD (P24W)

4G64 (8V)

 1 08/1986-05/2004 2351 82 112 3
2.4 GLX 1 11/1986-08/1997 2351 82 112 1
2.5 TD 4WD (P25W, P35W)

4D56-T

 2 12/1987-05/2004 2477 64 87 3
L 300 III / L300 EXPRESS / DELICA (P0_V, P1_V, P2_V) Van 11/1986-12/2013
Vehicle Engine Fuel Date CC KW CV Traction
2.4 4WD (P24V, P24W) 1 11/1986-08/1997 2351 82 112 3
2.5 TD

4D56-T

 2 02/1987-08/1997 2477 64 87 2
2.5 TD 4WD (P25V)

4D56-T

 2 11/1991-05/2003 2477 64 87 3
PAJERO II / MONTERO / PAJERO SFX / SHOGUN (V3_W, V2_W, V4_W, V5_W) Closed Off-Road Vehicle 12/1990-05/2001
Vehicle Engine Fuel Date CC KW CV Traction
1.8 GDi 4WD 1 11/1997-08/1999 1834 96 131 3
2.4 (V21W)

4G64 (12V)

 1 04/1991-10/1999 2351 82 112 3
2.4 (V21W) 1 03/1996-11/1999 2351 107 145 3
2.6 4WD

4G54

 1 03/1991-10/1997 2555 76 103 3
2.6 4WD (V21W, V32W) 1 05/1991-10/1993 2555 79 107 3
3.0 4WD 1 09/1991-12/1993 2972 113 154 3
3.0 4WD

6G72 (SOHC 24V)

 1 11/1997-04/2000 2972 130 177 3
3.0 4WD 1 09/1993-12/1996 2972 132 180 3
3.0 V6 24V (V43W, V23W)

6G72 (SOHC 24V)

 1 06/1997-10/1999 2972 130 177 3
3.0 V6 24V (V43W, V23W)

6G72 (SOHC 24V)

 1 06/1994-05/1997 2972 133 181 3
3.0 V6 4WD (V23W, V43W)

6G72 (SOHC 12V)

 1 12/1990-12/1997 2972 110 150 3
3.5 4WD (V25W, V45W) 1 09/1996-10/1999 3497 149 203 3
3.5 V6 24V 1 09/1993-12/1996 3497 159 216 3
2.5 TD 4WD (V24W)

4D56-TD

 2 12/1990-10/1999 2477 73 99 3
2.5 TDiC (V44W, V24W)

4D56-T

 2 03/1991-08/1999 2477 73 99 3
2.5 TDiC 4WD (V34W) 2 12/1990-06/1993 2477 62 84 3
2.8 D (V46W, V26W)

4M40-T

 2 11/1993-10/1999 2835 103 140 3
2.8 TD (V46W, V26W)

4M40-T

 2 06/1994-10/1999 2835 92 125 3
2.8 TDiC 4WD (V46W, V26W, V36W) 2 11/1993-07/1997 2835 71 97 3
PAJERO II / MONTERO / SHOGUN (V2_C, V4_C) Open Off-Road Vehicle 12/1990-04/2000
Vehicle Engine Fuel Date CC KW CV Traction
1.8 GDI 1 06/1998-04/2000 1834 96 131 3
2.4 (V21C)

4G64 (12V)

 1 04/1991-04/2000 2351 82 112 3
3.0 V6 (V23C)

6G72 (SOHC 12V)

 1 12/1990-12/1995 2972 110 150 3
3.0 V6 24V (V23C)

6G72 (SOHC 24V)

 1 06/1994-04/2000 2972 130 177 3
3.0 V6 24V (V23C)

6G72 (SOHC 24V)

 1 06/1994-04/2000 2972 133 181 3
2.5 TD 4WD (V24C)

4D56-TD

 2 12/1990-04/2000 2477 73 99 3
2.5 TDiC (V24W, V24C) 2 03/1991-08/1999 2477 73 99 3
PAJERO III / MONTERO / SHOGUN (V7_W, V6_W) Closed Off-Road Vehicle 01/1999-09/2007
Vehicle Engine Fuel Date CC KW CV Traction
3.5 (V65W, V75W)

6G74 (DOHC 24V)

 1 04/2000-01/2007 3497 149 203 3
2.5 TDi (V64W, V74W)

4D56-T

 2 09/2001-12/2006 2477 85 115 3
2.5 TDi (V64W)

4D56-T

 2 04/2000-12/2006 2477 73 99 3
3.2 DI-D (V68W, V78W)

4M41

 2 04/2000-10/2006 3200 121 165 3
PAJERO III / MONTERO / SHOGUN (V6_W, V7_W) Open Off-Road Vehicle 02/2000-12/2006
Vehicle Engine Fuel Date CC KW CV Traction
2.5 TDi (V64W, V74W)

4D56-T

 2 09/2001-12/2006 2477 85 115 3
3.2 DI-D (V68W, V78W)

4M41

 2 10/2001-12/2006 3200 118 160 3
PAJERO II CLASSIC / MONTERO CLASSIC / SHOGUN CLASSIC (V2_W, V6_W, V7_W) Closed Off-Road Vehicle 07/2001-
Vehicle Engine Fuel Date CC KW CV Traction
2.5 TD (V24W)

4D56-T

 2 07/2001- 2477 85 115 3
PAJERO SPORT / G-WAGON / MONTERO SPORT / CHALLENGER (K7_, K9_) Closed Off-Road Vehicle 07/1996-
Vehicle Engine Fuel Date CC KW CV Traction
1.8 4WD (K90W)

4G93 (SOHC 16V)

 1 03/2001-02/2005 1834 84 114 3
2.5 TD 2 01/2010-12/2011 2477 110 150 3
2.5 TD (K94W, K74T)

4D56-T

 2 07/2002- 2477 85 115 3
2.5 TD (K94W)

4D56-T

 2 11/1998- 2477 73 99 3
2.5 TD (K94W)

4D56-T

 2 08/2003- 2477 98 133 3
2.5 TD 4WD (K94W)

4D56-T

 2 11/1997-10/1998 2477 83 112 3
2.8 TDi (K77T)

4M40-T

 2 11/1998-10/2003 2835 92 125 3
