Product 78BD8761-2

Description
Brake disc
Axe
Front
No. of Pieces
2
Barcode
EAN13 Code
8424073193667
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD8761-2
Weight (gr.)
16636
R90 Homologation
R90 90R-02C0538/0082

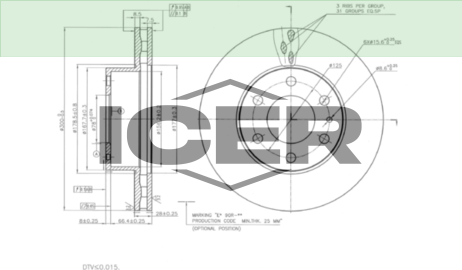

Measures
Ø300x28x74.4
Brake Disc Type: Vented
Minimum thickness [mm]: 25
Hole Arrangement/Number: 6
Bolt Hole Circle Ø [mm]: 125
Wheel Hub Diameter [mm]: 78
Reference applications
Brand OE Reference
IVECO 2996131
IVECO 504121605
IVECO 5801639518
Maker Cross reference
BREMBO 09.9758.10
FERODO FCR314C
TEXTAR 92155900
TEXTAR 92155903
IVECO
() Bus 09/2011-02/2014
Vehicle Engine Fuel Date CC KW CV Traction
35S17, 40C17, 45C17, 50C17 2 09/2011-02/2014 2998 125 170 2
DAILY III () Van 05/1999-10/2009
Vehicle Engine Fuel Date CC KW CV Traction
29 L 10 V (ALJA43A2, ALJA42A2, ALJA41A2)

F1AE0481A

 2 09/2002-07/2007 2287 70 95 2
DAILY IV () Bus 05/2006-12/2016
Vehicle Engine Fuel Date CC KW CV Traction
35S14, 35S14 /P

F1AE0481H

 2 05/2006-08/2011 2287 100 136 2
DAILY IV () Platform/Chassis 05/2006-03/2012
Vehicle Engine Fuel Date CC KW CV Traction
29L10

F1AE0481F

 2 05/2006-08/2011 2287 70 95 2
29L12

F1AE0481G

 2 05/2006-08/2011 2287 85 116 2
29L14

F1AE0481H

 2 05/2006-08/2011 2287 100 136 2
35C10, 35S10

F1AE0481F

 2 05/2006-08/2011 2287 70 95 2
35C11, 35S11, 35S11 D, 35S11 /P

F1AE0481U

 2 07/2007-08/2011 2287 78 106 2
35C12, 35S12

F1AE0481G

F1AE0481R

 2 05/2006-08/2011 2287 85 116 2
35C13, 35C13 /P, 35S13 D, 35S13, 35S13 /P

F1AE0481V

 2 07/2007-08/2011 2287 93 126 2
35C14, 35C14 /P, 35S14, 35S14 /P, 35S14 D, 35S14 D/P

F1CE3481L

 2 09/2009-08/2011 2998 103 140 2
35C14, 35S14, 35S14 /P

F1AE0481H

 2 05/2006-08/2011 2287 100 136 2
35C17, 35C17 /P, 35S17, 35S17 /P, 35S17 D

F1CE3481C

 2 07/2007-08/2011 2998 125 170 2
35C18, 35S18

F1CE0481H

 2 05/2006-08/2011 2998 130 176 2
35S17 W, 35S17 WD

F1CE3481C

 2 07/2007-08/2011 2998 125 170 3
35S18W

F1CE0481H

 2 06/2006-08/2011 2998 130 177 3
40C10

F1AE0481F

 2 05/2006-08/2011 2287 70 95 2
55S17 W, 55S17 WD

F1CE3481C

 2 07/2007-08/2011 2998 125 170 3
55S18W

F1CE0481H

 2 06/2006-08/2011 2998 130 177 3
60C15, 60C15 /P, 60C15 D, 60C15 D/P

F1CE0481F

 2 05/2006-08/2011 2998 107 146 2
60C18

F1CE0481H

 2 05/2006-08/2011 2998 130 176 2
65C15, 65C15 /P, 65C15 D, 65C15 D/P

F1CE0481F

 2 05/2006-08/2011 2998 107 146 2
65C18

F1CE0481H

 2 05/2006-08/2011 2998 130 176 2
35C14 G, 35C14 G/P, 35S14 G, 35S14 G/P, 35C14 GD,...

F1CE0441A

 8 07/2007-08/2011 2998 100 136 2
DAILY IV () Van 05/2006-03/2012
Vehicle Engine Fuel Date CC KW CV Traction
29L10 V

F1AE0481F

 2 05/2006-08/2011 2287 70 95 2
29L12 V, 29L12 V/P

F1AE0481G

 2 05/2006-08/2011 2287 85 116 2
29L14 C, 29L14 C/P, 29L14 V, 29L14 V/P

F1AE0481H

 2 05/2006-08/2011 2287 100 136 2
35C10, 35S10

F1AE0481F

 2 05/2006-08/2011 2287 70 95 2
35C11 V, 35S11 V

F1AE0481U

 2 07/2007-08/2011 2287 78 106 2
35C12 V, 35C12 V/P, 35S12 V, 35S12 V/P

F1AE0481G

F1AE0481R

 2 05/2006-08/2011 2287 85 116 2
35C13 V, 35C13 V/P, 35S13 V, 35S13 V/P

F1AE0481V

 2 07/2007-08/2011 2287 93 126 2
35C14 V, 35C14 V/P, 35S14 V, 35S14 V/P

F1CE3481L

 2 09/2009-08/2011 2998 103 140 2
35C17 V, 35C17 V/P, 35S17 V, 35S17 V/P

F1CE3481C

 2 07/2007-08/2011 2998 125 170 2
35C18 V, 35C18 V/P, 35S18 V, 35S18 V/P

F1CE0481H

 2 05/2006-08/2011 2998 130 176 2
35S14 2 08/2007-03/2012 2998 100 136 2
35S14 C, 35S14 C/P, 35S14 V, 35S14 V/P, 35C14 V,...

F1AE0481H

 2 05/2006-08/2011 2287 100 136 2
35S15

F1CE0481L

 2 06/2006-08/2011 2998 107 145 2
40C10 V

F1AE0481F

 2 05/2006-08/2011 2287 70 95 2
40C11 V

F1AE0481U

 2 07/2007-08/2011 2287 78 106 2
60C15 V

F1CE0481F

 2 05/2006-08/2011 2998 107 146 2
60C18

F1CE0481H

 2 05/2006-08/2011 2998 130 176 2
65C15

F1CE0481F

 2 05/2006-08/2011 2998 107 146 2
65C18

F1CE0481H

 2 05/2006-08/2011 2998 130 176 2
35C14 GV, 35C14 GV/P, 35S14 GV, 35S14 GV/P

F1CE0441A

 8 07/2007-08/2011 2998 100 136 2
DAILY IV () Dump Truck 05/2006-08/2011
Vehicle Engine Fuel Date CC KW CV Traction
35C10 K

F1AE0481F

 2 05/2006-08/2011 2287 70 95 2
35C11 K, 35C11 DK, 35S11 K, 35S11 DK

F1AE0481U

 2 07/2007-08/2011 2287 78 106 2
35C12

F1AE0481G

 2 05/2006-08/2011 2287 85 116 2
35C13 K, 35C13 DK, 35S13 K, 35S13 DK

F1AE0481V

 2 07/2007-08/2011 2287 93 126 2
35C14 K, 35C14 DK, 35S14 K, 35S14 DK

F1CE3481L

 2 09/2009-08/2011 2998 103 140 2
35C17 K, 35C17 DK, 35S17 K, 35S17 DK

F1CE3481C

 2 07/2007-08/2011 2998 125 170 2
35C18

F1CE0481H

 2 05/2006-08/2011 2998 130 176 2
35S14 K, 35S14 DK

F1AE0481H

 2 07/2007-08/2011 2287 100 136 2
60C15

F1CE0481F

 2 05/2006-08/2011 2998 107 146 2
60C18

F1CE0481H

 2 05/2006-08/2011 2998 130 176 2
DAILY V () Platform/Chassis 09/2011-02/2014
Vehicle Engine Fuel Date CC KW CV Traction
26L11, 29L11, 29S11, 35C11D, 35S11, 40C11

F1AE3481A

 2 09/2011-02/2014 2287 78 106 2
29L15, 35S15, 35C15, 40C15, 50C15

F1AE3481C

 2 09/2011-02/2014 2287 107 146 2
29S13, 29L13, 29L13D, 35S13, 35C13D, 40C13

F1AE3481B

 2 09/2011-02/2014 2287 93 126 2
35C15, 35S15, 40C15, 45C15, 50C15, 60C15, 65C15, 70C15

F1CE3481B

F1CE3481J

 2 09/2011-02/2014 2998 107 146 2
35C17, 35S17, 40C17, 45C17, 50C17, 60C17, 65C17, 70C17

F1CE3481C

F1CE3481K

 2 09/2011-02/2014 2998 125 170 2
35C21, 35S21, 40C21, 45C21, 50C21, 60C21, 65C21, 70C21

F1CE3481D

 2 09/2011-02/2014 2998 150 205 2
35S60E Electric 11 09/2011-02/2014 60 82 2
NaturalPower 35S14, 35C14, 40C14, 50C14, 65C14, 70C14

F1CE0441A

 8 09/2011-02/2014 2998 100 136 2
DAILY V () Van 09/2011-02/2014
Vehicle Engine Fuel Date CC KW CV Traction
29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V

F1AE3481C

 2 09/2011-02/2014 2287 107 146 2
29S11, 29L11, 35C11, 35S11, 40C11

F1AE3481A

 2 09/2011-02/2014 2287 78 106 2
29S13, 29L13, 35C13, 35S13, 40C13, 40S13

F1AE3481B

 2 09/2011-02/2014 2287 93 126 2
35C15 V, 40C15 V, 45C15 V, 50C15 V, 60C15 V,65C15 V

F1CE3481B

F1CE3481J

 2 09/2011-02/2014 2998 107 146 2
35C17, 35S17, 40C17, 45C17, 50C17, 60C17, 65C17, 70C17

F1CE3481C

F1CE3481K

 2 09/2011-02/2014 2998 125 170 2
35C21 V, 35S21 V, 40C21 V, 45C21 V, 50C21 V

F1CE3481D

 2 09/2011-02/2014 2998 150 204 2
35S14

F1CE3481L

 2 04/2012-02/2014 2998 110 150 2
35S60E Electric 11 09/2011-02/2014 60 82 2
NaturalPower 35S14, 35C14, 40C14, 50C14, 65C14, 70C14

F1CE0441A

 8 09/2011-02/2014 2998 100 136 2
DAILY V () Dump Truck 09/2011-02/2014
Vehicle Engine Fuel Date CC KW CV Traction
35C11K, 35S11DKP

F1AE3481A

 2 09/2011-02/2014 2287 78 106 2
35C15K, 35S15DKP, 50C15K, 60C15K, 65C15DK, 70C15K

F1CE3481B

 2 09/2011-02/2014 2998 107 146 2
35C17K, 35S17DKP, 50C17K, 65C17DK 70C17K

F1CE3481C

F1CE3481K

 2 09/2011-02/2014 2998 125 170 2
DAILY VI (40C_, 65C_, 70C_, 35C_, 35S_, 50C_, 33S_) Platform/Chassis 03/2014-
Vehicle Engine Fuel Date CC KW CV Traction
33S11, 35S11, 35C11

F1AFL411A

 2 03/2014-07/2021 2287 78 106 2
33S12, 35S12, 35C12

F1AGL411H

 2 04/2016- 2287 85 116 2
33S13, 35S13, 35C13

F1AFL411B

 2 03/2014- 2287 93 126 2
33S14, 35S14, 35C14, 38S14

F1AGL411J

 2 04/2016- 2287 100 136 2
33S15, 35S15, 35C15

F1AFL411C

 2 03/2014- 2287 107 146 2
33S16, 35S16, 35C16, 40C16, 42S16, 50C16

F1AGL411G

 2 04/2016- 2287 115 156 2
35S14, 35S15, 35C15, 40S14, 40C15, 50C15, 60C5, 65C15,...

F1CE3481J

F1CFL411E

F1CFL411J

 2 03/2014- 2998 107 146 2
35S16, 35C16, 40C16, 42S16, 50C16, 60C16, 65C16, 70C16 2 04/2019- 2998 118 160 2
35S17, 35C17, 40C17, 45S17,45C17, 50C17, 60C17, 65C17,...

F1CFL411F

F1CFL411H

 2 03/2014- 2998 125 170 2
35S17, 55S17 4x4

F1CFL411F

 2 03/2014- 2998 125 170 3
35S21, 35C21, 40C21, 45C21, 50C21, 60C21, 65C21, 70C21

F1CFL411G

F1CGL411C

 2 03/2014- 2998 150 204 2
35S60E, 35C60E 11 10/2015- 60 82 2
45C80E, 50C80E 11 10/2015- 80 109 2
NaturalPower 35S14, 35C14, 40C14, 50C14, 65C14, 70C14

F1CFA401A

 8 03/2014- 2998 100 136 2
DAILY VI () Van 03/2014-
Vehicle Engine Fuel Date CC KW CV Traction
33S11, 35S11, 35C11

F1AFL411A

 2 03/2014-07/2021 2287 78 106 2
33S12, 35S12, 35C12

F1AGL411H

 2 04/2016- 2287 85 116 2
33S13, 35S13, 35C13

F1AFL411B

 2 03/2014- 2287 93 126 2
33S14, 35S14, 35C14, 42S14

F1AGL411J

 2 04/2016- 2287 100 136 2
33S15, 35S15, 35C15

F1AFL411C

 2 03/2014- 2287 107 146 2
33S16, 35S16, 35C16, 38S16, 40C16, 42S16, 50C16

F1AGL411G

 2 04/2016- 2287 115 156 2
35S15, 35C15, 40C15, 45C15, 50C15, 65C15, 70C15

F1CE3481J

F1CFL411E

F1CFL411J

 2 03/2014- 2998 107 146 2
35S17, 35C17, 40C17, 50C17, 55C17, 60C17, 65C17, 70C17

F1CFL411F

F1CFL411H

 2 03/2014- 2998 125 170 2
35S21, 35C21, 40C21, 42S21, 50C21, 60C21, 65C21, 70C21 2 07/2021- 2998 152 207 2
35S21, 35C21, 40C21, 50C21, 60C21, 65C21, 70C21

F1CFL411G

F1CGL411C

 2 03/2014- 2998 150 204 2
35S21, 35C21, 40C21, 50C21, 60C21, 65C21, 70C21 2 04/2019- 2998 155 211 2
35S60E 11 10/2015- 60 82 2
50C80E 11 10/2015- 80 109 2
NaturalPower 35S14, 35C14, 40C14, 50C14, 65C14, 70C14

F1CFA401A

F1CFA401B

 8 03/2014- 2998 100 136 2
DAILY VI () Van 03/2014-
Vehicle Engine Fuel Date CC KW CV Traction
33S12, 35S12

F1AGL411H

 2 04/2016- 2287 85 116 2
33S16, 35S16

F1AGL411G

 2 04/2016- 2287 115 156 2
35S15, 35C15, 40C15, 50C15, 60C15, 65C15, 70C15 2 04/2016- 2998 110 150 2
40C15, 50C15, 65C15 2 03/2014-04/2016 2998 107 146 2
40C17, 50C17, 65C17 2 03/2014-04/2016 2998 125 170 2
50C16 2 03/2014- 2998 114 155 2
35S/E 11 09/2016- 60 82 2
45C/E, 50C/E 11 09/2016- 80 109 2
NaturalPower 35S14, 35C14, 40C14, 50C14, 65C14, 70C14 8 04/2016- 2998 100 136 2
DAILY VI CITYS () Bus 03/2014-
Vehicle Engine Fuel Date CC KW CV Traction
40C15, 50C15, 60C15

F1CE3481J

F1CFL411E

 2 03/2014- 2998 107 146 2
40C15, 50C15, 60C15 2 04/2016- 2998 110 150 2
40C17, 50C17, 60C17

F1CFL411F

 2 03/2014- 2998 125 170 2
40C18, 50C18, 60C18 2 04/2016- 2998 132 180 2
50C80E 11 04/2016- 80 109 2
NaturalPower 40C14, 50C14, 60C14 8 03/2014- 2998 100 136 2
DAILY VI LINE () Bus 06/2014-
Vehicle Engine Fuel Date CC KW CV Traction
40C15, 50C15, 60C15

F1CE3481J

F1CFL411E

 2 06/2014-10/2016 2998 107 146 2
40C17, 50C17, 60C17

F1CFL411F

 2 06/2014-10/2016 2998 125 170 2
50C80E 11 10/2015- 80 109 2
50C14 Natural Power

F1CFA401A

 8 06/2014- 2998 100 136 2
DAILY VI TOURYS () Bus 06/2014-
Vehicle Engine Fuel Date CC KW CV Traction
50C17, 65C17

F1CFL411F

 2 06/2014-10/2016 2998 125 170 2
50C18, 65C18 2 11/2016- 2998 132 180 2
