Product 78BD9000-2

Description
Brake disc
Axe
Front
No. of Pieces
2
Barcode
EAN13 Code
8424073149046
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD9000-2
Weight (gr.)
10336
R90 Homologation
R90 90R-02C0452/0077

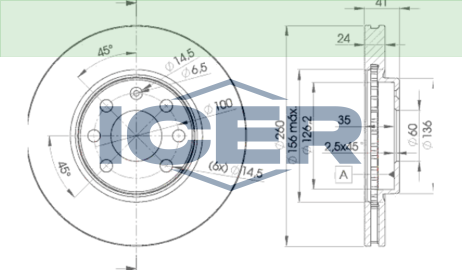

Measures
Ø260x24x41
Brake Disc Type: Vented
Minimum thickness [mm]: 21
Hole Arrangement/Number: 4
Bolt Hole Circle Ø [mm]: 100
Wheel Hub Diameter [mm]: 60
Reference applications
Brand OE Reference
OPEL 5 69 000
OPEL 91 27 967
VAUXHALL 91 279 67
VAUXHALL 91 960 50
Maker Cross reference
ATE 24.0124-0166.1
ATE 424166
BOSCH 0 986 478 730
BREMBO 09.8601.10
DELPHI LOCKHEED BG3569
LETEC LBG012V
ROAD HOUSE 6611.10
SANLI SL32430
TRW DF4165
CHEVROLET
CORSA II () Hatchback 03/2000-02/2012
Vehicle Engine Fuel Date CC KW CV Traction
1.8 1 08/2002-08/2005 1796 82 111 1
1.8 Flex

LMD

 19 08/2002-08/2005 1796 84 114 1
CORSA II () Saloon 02/2002-
Vehicle Engine Fuel Date CC KW CV Traction
1.8 1 08/2002- 1796 82 111 1
1.8 Flex

X 18 XF

 19 08/2002- 1796 84 114 1
OPEL
COMBO C () Box Body/MPV 10/2001-
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V

Z 14 XEP

 1 08/2005- 1364 66 90 1
1.6

Z 16 SE

 1 10/2001- 1598 64 87 1
1.3 CDTI 16V

Z 13 DT

 2 08/2005- 1248 51 69 1
1.3 CDTI 16V

Z 13 DTJ

 2 10/2005-12/2012 1248 55 75 1
1.7 DI 16V

Y 17 DTL

 2 10/2001- 1686 48 65 1
1.7 DTI 16V

Y 17 DT

 2 10/2001- 1686 55 75 1
COMBO C Tour () MPV 10/2001-
Vehicle Engine Fuel Date CC KW CV Traction
1.4

Z 14 XEP

 1 10/2004-12/2011 1364 66 90 1
1.6 1 10/2001-09/2006 1598 62 84 1
1.6

Z 16 SE

 1 10/2001-09/2006 1598 64 87 1
1.3 CDTI 16V

Y 13 DT

Z 13 DT

 2 06/2004-01/2011 1248 51 69 1
1.3 CDTI 16V

Z 13 DTJ

 2 10/2005-12/2011 1248 55 75 1
1.7 DI 16V

Y 17 DTL

 2 10/2001-06/2004 1686 48 65 1
1.7 DTI 16V

Y 17 DT

 2 10/2001-06/2004 1686 55 75 1
CORSA C (X01) Hatchback Van 09/2000-
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (W5L, F08)

Z 14 XEP

 1 08/2003-06/2012 1364 66 90 1
1.3 CDTI 16V (F08, W5L)

Z 13 DT

 2 07/2005-06/2006 1248 51 69 1
1.3 CDTI 16V (F08, W5L)

Z 13 DT

 2 07/2005-06/2006 1248 59 80 1
1.7 CDTi (F08, W5L)

Z 17 DTH

 2 08/2003-12/2012 1686 74 101 1
1.7 DI 16V (F08, W5L)

Y 17 DTL

 2 09/2000-07/2003 1686 48 65 1
1.7 DTI 16V (F08, W5L)

Y 17 DT

 2 09/2000-07/2003 1686 55 75 1
CORSA C / VITA C (X01) Hatchback 09/2000-12/2009
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (F08, F68) 1 01/2002-12/2009 1389 60 82 1
1.4 (F08, F68)

Z 14 XE

 1 09/2000-12/2009 1389 66 90 1
1.4 Twinport (F08, F68)

Z 14 XEP

 1 06/2003-12/2009 1364 66 90 1
1.6 (F08, F68) 1 09/2000-12/2009 1598 62 84 1
1.8 (F08, F68)

Z 18 XEL

 1 01/2002-12/2009 1796 79 107 1
1.8 (F08, F68)

Z 18 XE

 1 09/2000-12/2009 1796 92 125 1
1.3 CDTI (F08, F68)

Y 13 DT

Z 13 DT

 2 06/2003-12/2009 1248 51 70 1
1.7 CDTI (F08, F68)

Z 17 DTH

 2 06/2003-12/2009 1686 74 100 1
1.7 DI (F08, F68)

Y 17 DTL

 2 09/2000-12/2009 1686 48 65 1
1.7 DTI (F08, F68)

Y 17 DT

 2 09/2000-12/2009 1686 55 75 1
CORSA C Utility () Pickup 01/2003-12/2012
Vehicle Engine Fuel Date CC KW CV Traction
1.4 1 01/2003-12/2010 1389 66 90 1
1.8 1 01/2003-12/2010 1796 79 107 1
1.7 D 2 01/2003-12/2006 1686 42 57 2
1.7 DTI 2 01/2003-12/2010 1686 55 75 2
MERIVA A (X03) MPV 05/2003-05/2010
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V Twinport (E75)

Z 14 XEP

 1 07/2004-05/2010 1364 66 90 1
1.6 (E75)

Z 16 SE

 1 05/2003-05/2010 1598 64 87 1
1.4 16V Twinport LPG (E75)

Z 14 XEP

 18 07/2004-05/2010 1364 66 90 1
TIGRA B TwinTop (X04) Convertible 06/2004-
Vehicle Engine Fuel Date CC KW CV Traction
1.4 (R97)

Z 14 XEP

 1 06/2004-12/2010 1364 66 90 1
1.8 (R97)

Z 18 XE

 1 06/2004-12/2010 1796 92 125 1
1.3 CDTI (R97)

Z 13 DT

 2 06/2004-12/2010 1248 51 69 1
VAUXHALL
COMBO Mk II (C) (F25) Box Body/MPV 09/2001-02/2012
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V

Z 14 XE

 1 10/2001-05/2007 1389 66 90 1
1.4 i 16V

Z 14 XEP

 1 01/2004-11/2011 1364 66 90 1
1.6

Z 16 SE

 1 09/2001-10/2004 1598 62 84 1
1.6

Z 16 SE

 1 10/2001-11/2011 1598 64 87 1
1.6 CNG 16V

Y 16 YNG

Z 16 YNG

 16 06/2006-02/2012 1598 69 94 1
1.6 CNG 16V

Z 16 YNG

 16 04/2005-02/2012 1598 71 97 1
1.3 CDTI 16V

Y 13 DT

Z 13 DT

 2 09/2004-02/2012 1248 51 69 1
1.3 CDTI 16V

Z 13 DTJ

 2 10/2005-11/2011 1248 55 75 1
1.7 DI 16V

Y 17 DTL

 2 09/2001-11/2011 1686 48 65 1
1.7 DTI 16V

Y 17 DT

 2 10/2001-11/2011 1686 55 75 1
COMBO TOUR Mk II (C) (F25) MPV 09/2001-02/2012
Vehicle Engine Fuel Date CC KW CV Traction
1.4

Z 14 XEP

 1 10/2004-09/2010 1364 66 90 1
1.6

Z 16 SE

 1 10/2001-06/2004 1598 64 87 1
1.6 CNG

Z 16 YNG

 16 06/2006-09/2010 1598 69 94 1
1.6 CNG

Z 16 YNG

 16 04/2005-02/2012 1598 71 97 1
1.3 CDTI 16V

Z 13 DT

 2 09/2004-09/2006 1248 51 69 1
1.3 CDTI 16V

Z 13 DTJ

 2 07/2006-02/2012 1248 55 75 1
1.7 DI 16V

Y 17 DTL

 2 09/2001-06/2004 1686 48 65 1
1.7 DTI 16V

Y 17 DT

 2 10/2001-02/2012 1686 55 75 1
CORSA Mk II (C) (X01) Hatchback 08/2000-04/2007
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V (F08, F68)

Z 14 XE

 1 09/2000-10/2006 1389 66 90 1
1.4 Twinport (F08, F68)

Z 14 XEP

 1 06/2003-10/2006 1364 66 90 1
1.8 16V (F08, F68)

Z 18 XE

 1 08/2000-09/2006 1796 92 125 1
1.3 CDTI 16V (F08, F68)

Y 13 DT

Z 13 DT

 2 10/2003-04/2007 1248 51 69 1
1.7 CDTI 16V (F08, F68)

Z 17 DTH

 2 08/2000-09/2006 1686 74 100 1
1.7 DI 16V (F08, F68)

Y 17 DTL

 2 08/2000-09/2006 1686 48 65 1
1.7 DTI 16V (F08, F68)

Y 17 DT

 2 08/2000-09/2006 1686 55 75 1
CORSAVAN Mk II (C) (X01) Hatchback Van 09/2000-11/2006
Vehicle Engine Fuel Date CC KW CV Traction
1.2 16V (F08)

Z 12 XEP

 1 07/2004-11/2006 1229 59 80 1
1.4 (F08)

Z 14 XEP

 1 11/2003-06/2006 1364 66 89 1
1.2 16V Dualfuel (F08)

Z 12 XEP

 18 07/2004-12/2005 1229 59 80 1
1.3 CDTI 16V (F08)

Z 13 DT

 2 04/2004-06/2006 1248 52 70 1
1.7 DI 16V (F08)

Y 17 DTL

 2 09/2000-06/2006 1686 48 65 1
1.7 DTI 16V (F08)

Y 17 DT

 2 09/2000-06/2006 1686 55 75 1
MERIVA Mk I (A) (X03) MPV 01/2003-06/2010
Vehicle Engine Fuel Date CC KW CV Traction
1.4 16V Twinport

Z 14 XEP

 1 01/2003-06/2010 1364 66 90 1
1.6 i

Z 16 SE

 1 01/2003-06/2010 1598 64 87 1
TIGRA Twin Top (X04) Convertible 06/2004-08/2009
Vehicle Engine Fuel Date CC KW CV Traction
1.4

Z 14 XEP

 1 06/2004-08/2009 1364 66 90 1
1.8

Z 18 XE

 1 06/2004-08/2009 1796 92 125 1
1.3 CDTi

Z 13 DT

 2 06/2004-08/2009 1248 51 69 1
