Product 78BD9003-2 - Web Catalogo

Description: Brake disc
Axe: Front
No. of Pieces: 2
Barcode: 8424073149060
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD9003-2
Weight (gr.): 14164

R90 Homologation: 90R-02C0452/0083

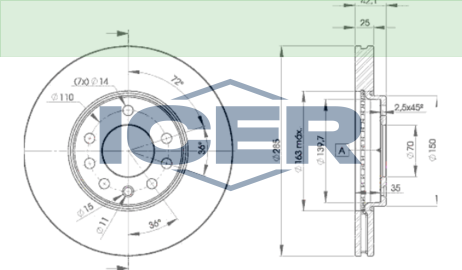

Measures: Ø285x25x42
: Brake Disc Type: Vented; Minimum thickness [mm]: 22; Hole Arrangement/Number: 5; Bolt Hole Circle Ø [mm]: 110; Wheel Hub Diameter [mm]: 70

Reference applications

Brand	OE Reference
FIAT	4 683 649 1
FIAT	4 683 649 10
FIAT	4 683 649 13
FIAT	4 684 407 1
OPEL	5 69 003
SAAB	91 56 807
VAUXHALL	93 171 497

Maker	Cross reference
ATE	24.0125-0141.1
BOSCH	0 986 479 107
BREMBO	09.9165.10
LETEC	LBG031V
ROAD HOUSE	6689.10
SANLI	SL33638
TEXTAR	92118705
TRW	DF4293

CADILLAC

BLS () Saloon 04/2006-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 T AWD	B207R LK9(122CUL4)	1	04/2006-12/2010	1998	154	210	3
2.0 T Flexpower	Z 20 LER	19	12/2007-	1998	147	200	1
1.9 D	Z 19 DTR	2	12/2007-	1910	132	180	1

BLS Wagon () Estate 12/2007-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 T	Z 20 NET	1	12/2007-12/2010	1998	129	175	1
2.0 T	Z 20 NER	1	12/2007-	1998	154	210	1
2.0 T AWD	B207R	1	12/2007-12/2010	1998	154	210	3
2.8 T	Z 28 NET	1	12/2007-	2792	188	255	1
2.0 T Flexpower	Z 20 LER	19	12/2007-	1998	147	200	1
1.9 D	Z19DTH	2	12/2007-	1910	110	150	1
1.9 D	Z 19 DTR	2	12/2007-	1910	132	180	1

CHEVROLET

VECTRA () Saloon 03/1996-11/2006

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.2	L61	1	04/2002-04/2004	2198	108	147	1

VECTRA II () Saloon 01/2005-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.2	Z 22 YH	1	01/2005-07/2006	2198	114	155	1

FIAT

CROMA II (194_) Estate 06/2005-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 16V (194AXG1A)	939 A4.000	1	12/2005-12/2011	1796	103	140	1
2.2 16V	194 A1.000	1	06/2005-12/2010	2198	108	147	1
1.9 D Multijet	939 A7.000	2	06/2005-12/2011	1910	85	115	1
1.9 D Multijet	939 A8.000	2	12/2005-10/2007	1910	100	136	1
1.9 D Multijet (194AXB1B)	939 A1.000	2	06/2005-12/2011	1910	88	120	1

CROMA II (194_) Estate Van 04/2006-12/2011

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.9 MJTD (194AXB1B)	939 A1.000	2	04/2006-12/2011	1910	88	120	1

OPEL

SIGNUM (Z03) Hatchback 05/2003-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 (F48)	Z 18 XE	1	05/2003-07/2005	1796	90	122	1
1.8 (F48)	Z 18 XER	1	09/2005-12/2008	1796	103	140	1
2.0 Turbo (F48)	Z 20 NET	1	05/2003-12/2008	1998	129	175	1
2.2 direct (F48)	Z 22 YH	1	05/2003-09/2008	2198	114	155	1
2.8		1	10/2006-	2792	206	280	1
2.8 V6 Turbo (F48)	Z 28 NEL	1	09/2005-12/2008	2792	169	230	1
2.8 V6 Turbo (F48)	Z 28 NET	1	01/2006-12/2008	2792	184	250	1
1.9 CDTI (F48)	Z 19 DTL	2	08/2005-02/2008	1910	74	100	1
1.9 CDTI (F48)	Z 19 DT	2	04/2004-02/2008	1910	88	120	1
1.9 CDTI (F48)	Z 19 DTH	2	04/2004-02/2008	1910	110	150	1
2.0 DTI (F48)	Y 20 DTH	2	05/2003-04/2004	1995	74	100	1
2.2 DTI (F48)	Y 22 DTR	2	05/2003-04/2004	2172	92	125	1

VECTRA C (Z02) Saloon 04/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (F69)	Z 16 XEP	1	08/2005-08/2008	1598	77	105	1
1.6 16V (F69)	Z 16 XE	1	04/2002-10/2005	1598	74	100	1
1.8 (F69)	Z 18 XEL	1	04/2002-07/2008	1796	81	110	1
1.8 (F69)	Z 18 XER	1	08/2005-08/2008	1796	103	140	1
1.8 16V	Z 18 XE	1	04/2002-09/2008	1796	90	122	1
2.2 16V (F69)	Z 22 SE	1	04/2002-12/2008	2198	108	147	1
2.2 DGi (F69)	Z 22 YH	1	10/2003-08/2008	2198	114	155	1
1.9 CDTI (F69)	Z 19 DTL	2	10/2005-08/2008	1910	74	100	1
1.9 CDTI (F69)	Z 19 DT	2	04/2004-01/2009	1910	88	120	1
1.9 CDTI (F69)	Z 19 DTH	2	04/2004-08/2008	1910	110	150	1
2.0 DTI 16V (F69)	Y 20 DTH	2	04/2002-08/2006	1995	74	101	1
2.2 DTI 16V (F69)	Y 22 DTR	2	04/2002-12/2004	2172	86	117	1
2.2 DTI 16V (F69)	Y 22 DTR	2	04/2002-07/2004	2172	92	125	1

VECTRA C (Z02) Hatchback 08/2002-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (F68)	Z 16 XE	1	08/2005-08/2008	1598	74	100	1
1.6 (F68)	Z 16 XEP	1	01/2006-08/2008	1598	77	105	1
1.8 (F68)	Z 18 XER	1	08/2005-08/2008	1796	103	140	1
1.8 16V (F68)	Z 18 XEL	1	08/2002-12/2006	1796	81	110	1
1.8 16V (F68)	Z 18 XE	1	08/2002-09/2008	1796	90	122	1
2.2 16V (F68)	Z 22 SE	1	08/2002-08/2008	2198	108	147	1
2.2 DGi (F68)	Z 22 YH	1	10/2003-08/2008	2198	114	155	1
1.9 CDTI (F68)	Z 19 DTL	2	06/2005-08/2008	1910	74	100	1
1.9 CDTI (F68)	Z 19 DT	2	04/2004-01/2009	1910	88	120	1
1.9 CDTI (F68)	Z 19 DTH	2	04/2004-08/2008	1910	110	150	1
2.0 DTI 16V (F68)	Y 20 DTH	2	08/2002-08/2005	1995	74	101	1
2.2 DTI 16V (F68)	Y 22 DTR	2	08/2002-06/2008	2172	86	117	1
2.2 DTI 16V (F68)	Y 22 DTR	2	08/2002-07/2006	2172	92	125	1

VECTRA C (Z02) Estate 10/2003-

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 (F35)	Z 16 XEP	1	12/2005-08/2008	1598	77	105	1
1.6 16V (F35)	Z 16 XE	1	06/2004-09/2005	1598	74	100	1
1.8 (F35)	Z 18 XE	1	10/2003-09/2006	1796	90	122	1
1.8 (F35)	Z 18 XER	1	08/2005-08/2008	1796	103	140	1
2.2 direct (F35)	Z 22 YH	1	10/2003-08/2008	2198	114	155	1
1.9 CDTI (F35)	Z 19 DTL	2	06/2005-08/2008	1910	74	100	1
1.9 CDTI (F35)	Z 19 DT	2	04/2004-01/2009	1910	88	120	1
1.9 CDTI (F35)	Z 19 DTH	2	04/2004-08/2008	1910	110	150	1
2.0 DTI (F35)	Y 20 DTH	2	10/2003-08/2005	1995	74	100	1
2.2 DTI (F35)	Y 22 DTR	2	10/2003-12/2005	2172	92	125	1

SAAB

9-3 II (YS3F, E79, D79, D75) Saloon 09/2002-02/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1,8t	B207E	1	09/2002-02/2015	1998	110	150	1
1.8 i	Z 18 XE	1	01/2004-02/2015	1796	90	122	1
2.0 T	B207L	1	09/2002-02/2015	1998	129	175	1
2.0 T16		1	06/2006-02/2015	1998	143	194	1
2.0 Turbo Performance	B207R	1	04/2004-02/2015	1998	185	252	1
2.8 Turbo V6	B284R	1	05/2008-12/2010	2792	206	280	1
1,8t BioPower	B207E	19	01/2007-02/2015	1998	110	150	1
1,8t BioPower	B207L	19	05/2009-02/2015	1998	129	175	1
2.0 t Biopower	B207L	19	01/2007-02/2015	1998	129	175	1
1.9 TiD	Z 19 DT	2	09/2004-02/2015	1910	88	120	1
1.9 TiD	Z 19 DTH	2	09/2004-02/2015	1910	110	150	1
1.9 TTiD	A 19 DTR Z 19 DTR	2	12/2007-02/2015	1910	132	180	1
2.2 TiD	D223L	2	09/2002-02/2015	2171	92	125	1

9-3 II (YS3F) Convertible 08/2003-02/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1,8t	B207E	1	08/2003-02/2015	1998	110	150	1
2.0		1	09/2004-12/2005	1998	130	177	1
2.0	B207L	1	04/2006-09/2007	1998	143	194	1
2.0 T	B207L	1	08/2003-02/2015	1998	129	175	1
2.0 Turbo Performance	B207R	1	04/2004-02/2015	1998	185	252	1
1,8t BioPower	B207E	19	01/2007-02/2015	1998	110	150	1
2.0 t Biopower	B207L	19	01/2007-02/2015	1998	129	175	1
2.0 t Biopower	B207L	19	01/2007-02/2015	1998	129	175	1
2.0 t Biopower		19	06/2007-02/2015	1998	145	197	1
1.9 TiD	Z 19 DTH	2	01/2006-02/2015	1910	110	150	1
1.9 TTiD	A 19 DTR Z 19 DTR	2	12/2007-02/2015	1910	132	180	1

9-3 II (E50) Estate 03/2005-02/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8 i	Z 18 XE	1	03/2005-02/2015	1796	90	122	1
1.8 T	B207E	1	03/2005-02/2015	1998	110	150	1
1.8t 2.0	B207E	1	03/2005-02/2015	1998	110	150	1
2.0		1	04/2006-09/2007	1998	143	194	1
2.0 T	B207E	1	03/2005-02/2015	1998	110	150	1
2.0 T	B207L	1	03/2005-02/2015	1998	129	175	1
2.0 T16	B207L	1	04/2006-02/2015	1998	143	194	1
2.8 Turbo V6	B284R	1	05/2008-12/2010	2792	206	280	1
2.0 t Biopower	B207L	19	01/2007-02/2015	1998	129	175	1
2.0 t Biopower	B207R	19	06/2007-02/2015	1998	145	197	1
1.9 TiD	Z 19 DT	2	03/2005-02/2015	1910	88	120	1
1.9 TiD	Z 19 DTH	2	03/2005-02/2015	1910	110	150	1
1.9 TTiD	Z 19 DTR	2	12/2007-02/2015	1910	132	180	1

9-3X (YS3) Estate 02/2009-02/2015

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0 T16 XWD	A 20 NFT	1	01/2011-02/2015	1998	162	220	3

VAUXHALL

SIGNUM (Z03) Hatchback 03/2003-10/2008

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.8	Z 18 XE	1	06/2003-07/2005	1796	90	122	1
1.8	Z 18 XER	1	08/2005-05/2008	1796	103	140	1
2.0 i Turbo	Z 20 NET	1	03/2003-10/2008	1998	129	175	1
2.2 i	Z 22 YH	1	05/2003-05/2008	2198	114	155	1
2.8 V6 Turbo	Z 28 NEL	1	07/2005-05/2008	2792	169	230	1
1.9 CDTI	Z 19 DT	2	04/2004-03/2008	1910	88	120	1
1.9 CDTI 16V	Z 19 DTH	2	04/2004-03/2008	1910	110	150	1
2.0 DTI	Y 20 DTH	2	05/2003-04/2004	1994	74	100	1
2.2 DTI	Y 22 DTR	2	05/2003-05/2008	2172	92	125	1

VECTRA Mk II (C) (Z02) Saloon 01/2000-10/2008

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	01/2006-07/2008	1598	77	105	1
1.6 16V		1	06/2004-07/2008	1598	74	100	1
1.8		1	04/2002-07/2008	1796	81	110	1
1.8	Z 18 XER	1	01/2006-07/2008	1796	103	140	1
1.8 16V	Z 18 XE	1	04/2002-07/2008	1796	90	122	1
2.0 16V Turbo	Z 20 NET	1	01/2000-10/2008	1998	129	175	1
2.2 16V	Z 22 SE	1	01/2002-10/2008	2198	108	147	1
2.2 direct	Z 22 YH	1	01/2002-10/2008	2198	114	155	1
1.8 16V Dualfuel	Z 18 XE	18	04/2002-07/2008	1796	90	122	1
1.9 CDTI		2	10/2005-07/2008	1910	74	100	2
1.9 CDTI	Z 19 DT	2	04/2002-09/2008	1910	88	120	1
1.9 CDTI 16V	Z 19 DTH	2	04/2004-08/2008	1910	110	150	1
2.0 DTI 16V	Y 20 DTH	2	04/2002-10/2008	1995	74	101	1
2.2 DTI 16V	Y 22 DTR	2	04/2002-10/2008	2172	92	125	1

VECTRA Mk II (C) GTS (Z02) Hatchback 08/2002-05/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6		1	01/2006-07/2008	1598	77	105	1
1.6 16V		1	06/2004-07/2008	1598	74	100	1
1.8	Z 18 XER	1	01/2006-07/2008	1796	103	140	1
1.8 16V	Z 18 XE	1	08/2002-07/2008	1796	90	122	1
2.0 16V Turbo	Z 20 NET	1	03/2003-07/2008	1998	129	175	1
2.2 16V	Z 22 SE	1	08/2002-07/2008	2198	108	147	1
2.2 direct	Z 22 YH	1	10/2003-08/2005	2198	114	155	1
1.8 16V Dualfuel	Z 18 XE	18	08/2002-07/2008	1796	90	122	1
1.9 CDTI		2	10/2005-07/2008	1910	74	100	2
1.9 CDTI	Z 19 DT	2	08/2002-07/2008	1910	88	120	1
1.9 CDTI 16V	Z 19 DTH	2	04/2004-07/2008	1910	110	150	1
2.0 DTI 16V	Y 20 DTH	2	08/2002-07/2008	1995	74	101	1
2.2 DTI 16V	Y 22 DTR	2	08/2002-07/2008	2172	92	125	1

VECTRA Mk II (C) (Z02) Estate 10/2003-05/2009

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
1.6 16V		1	06/2004-07/2008	1598	74	100	1
1.8	Z 18 XER	1	01/2006-07/2008	1796	103	140	1
1.8 16V	Z 18 XE	1	10/2003-08/2005	1796	90	122	1
2.0 16V Turbo	Z 20 NET	1	10/2003-07/2008	1998	129	175	1
2.2 direct	Z 22 YH	1	10/2003-07/2008	2198	114	155	1
1.9 CDTI		2	10/2005-07/2008	1910	74	100	2
1.9 CDTI	Z 19 DT	2	04/2004-07/2008	1910	88	120	1
1.9 CDTI 16V	Z 19 DTH	2	04/2004-05/2009	1910	110	150	1
2.0 DTI 16V	Y 20 DTH	2	10/2003-07/2008	1995	74	101	1
2.2 DTI 16V	Y 22 DTR	2	10/2003-07/2008	2172	92	125	1
