Product 78BD9063-2 - Web Catalogo

Description: Brake disc
Axe: Front
No. of Pieces: 2
Barcode: 8424073149268
Url: https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD9063-2
Weight (gr.): 10970

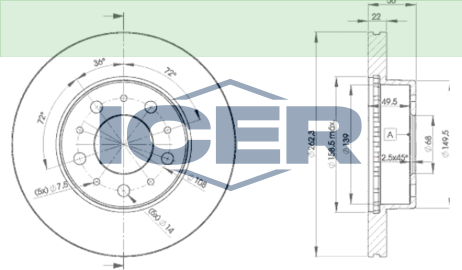

Measures: Ø262x22x56
: Brake Disc Type: Vented; Minimum thickness [mm]: 20; Hole Arrangement/Number: 5; Bolt Hole Circle Ø [mm]: 108; Wheel Hub Diameter [mm]: 68

Reference applications

Brand	OE Reference
VOLVO	1 359 906
VOLVO	1 359 906 3

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	B 200 K	1	09/1988-08/1990	1986	76	103	2
2.0	B 200 E	1	01/1987-08/1988	1986	86	117	2
2.0	B 200 G	1	08/1985-07/1992	1986	89	121	2
2.0	B 200 ET	1	01/1986-08/1990	1986	118	160	2
2.0 GLE	B 204 E	1	09/1987-08/1990	1986	103	140	2
2.3	B 230 F	1	09/1985-12/1989	2315	83	113	2
2.3	B 23 A B 230 F	1	08/1984-07/1990	2316	84	114	2
2.3	B 230 F	1	08/1987-07/1992	2316	85	115	2
2.3	B 230 E B 230 FB	1	08/1984-12/1992	2316	96	131	2
2.3		1	07/1990-12/1992	2316	96	131	2
2.3	B 234 F	1	08/1988-08/1992	2316	111	151	2
2.3	B 234 F	1	08/1988-07/1991	2316	114	156	2
2.3	B 234 F	1	08/1987-07/1989	2316	117	159	2
2.3 Turbo	B 230 FT	1	08/1986-07/1989	2316	115	156	2
2.3 Turbo	B 230 FT	1	08/1989-07/1990	2316	121	165	2
2.3 Turbo	B 230 FT B 230 GT	1	09/1989-08/1991	2316	125	170	2
2.3 Turbo	B 230 ET	1	08/1985-12/1988	2316	134	182	2
2.3 Turbo	B 230 FT	1	08/1989-07/1990	2316	140	190	2
2.4 Diesel	D 24	2	08/1984-07/1992	2383	60	82	2
2.4 TD	D 24 T	2	08/1984-07/1990	2383	83	113	2
2.4 TD	D 24 TIC	2	08/1986-10/1988	2383	90	122	2

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.0	B 200 K	1	09/1988-08/1990	1986	76	103	2
2.0	B 200 F	1	08/1989-07/1991	1986	82	112	2
2.0	B 200 E	1	01/1987-08/1988	1986	86	117	2
2.0	B 200 E B 200 G	1	08/1985-07/1992	1986	89	121	2
2.0 16V	B 204 E	1	09/1987-08/1990	1986	100	136	2
2.0 GLE		1	09/1987-08/1990	1986	103	140	1
2.0 Turbo	B 200 ET	1	09/1987-08/1990	1986	115	156	2
2.0 Turbo	B 200 ET	1	05/1985-08/1987	1986	118	160	2
2.3	B 230 F	1	08/1985-12/1989	2316	83	113	2
2.3	B 230 K	1	09/1985-07/1990	2316	84	114	2
2.3	B 230 F	1	08/1987-07/1992	2316	85	115	2
2.3	B 230 F	1	01/1988-10/1990	2316	87	118	2
2.3	B 230 E	1	08/1985-07/1988	2316	96	131	2
2.3	B 230 FB	1	07/1990-12/1992	2316	96	131	2
2.3	B 234 F	1	07/1989-08/1992	2316	111	151	2
2.3	B 234 F	1	08/1988-07/1990	2316	114	156	2
2.3	B 234 F	1	08/1987-07/1989	2316	117	159	2
2.3 Turbo	B 230 FT	1	08/1986-07/1989	2316	115	156	2
2.3 Turbo	B 230 FT B 230 GT	1	08/1989-07/1990	2316	121	165	2
2.3 Turbo	B 230 FT B 230 GT	1	09/1989-08/1991	2316	125	170	2
2.3 Turbo	B 230 ET	1	08/1985-07/1988	2316	134	182	2
2.3 Turbo	B 230 FT	1	08/1989-07/1990	2316	140	190	2
2.4 Diesel	D 24	2	08/1985-07/1988	2383	60	82	2
2.4 TD Interc.	D 24 TIC	2	08/1986-07/1988	2383	90	122	2
2.4 Turbo-Diesel	D 24 T	2	09/1985-07/1992	2383	80	109	2

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.4 TDiC		2	09/1987-08/1990	2383	90	122	2

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.3	B 230 FT	1	09/1983-12/1990	2316	121	165	2
2.8	B 280 E	1	09/1986-10/1988	2849	112	152	2
2.4 TD	D 24 T	2	04/1983-10/1989	2383	80	109	2
2.4 TDiC		2	09/1987-08/1990	2383	90	122	2

Vehicle	Engine	Fuel	Date	CC	KW	CV	Traction
2.9	B 280 F	1	08/1987-07/1990	2849	108	147	2
