Product 78BD9196-2

Description
Brake disc
Axe
Front
No. of Pieces
2
Barcode
EAN13 Code
8424073170651
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD9196-2
Weight (gr.)
18380
R90 Homologation
R90 90R-02C0074/1462

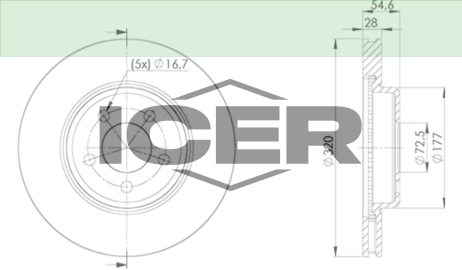

Measures
Ø320x28x54.6
Brake Disc Type: Vented
Minimum thickness [mm]: 26.5
Hole Arrangement/Number: 5
Bolt Hole Circle Ø [mm]: 115
Wheel Hub Diameter [mm]: 72.5
Reference applications
Brand OE Reference
CHRYSLER 00K04779196AG
CHRYSLER 04779196AB
CHRYSLER 04779196AE
CHRYSLER 04779196AF
CHRYSLER 4779196AD
CHRYSLER 4779196AE
CHRYSLER 4779196AF
CHRYSLER 4779196AG
CHRYSLER K04779196AD
CHRYSLER K04779196AE
CHRYSLER K04779196AF
DODGE 4779196AB
Maker Cross reference
ATE 24.0128-0266.1
ATE 428266
FERODO DDF2065C
HELLA-PAGID 8DD 355 117-801
MINTEX MDC2319
SANLI SL34211
TEXTAR 92235403
TEXTAR 98200 2354 0 1
CHRYSLER
300 (U.S.A.) Saloon 09/2004-12/2011
Vehicle Engine Fuel Date CC KW CV Traction
5.7 1 09/2004-12/2007 254 345 1
300 C (LX, LE) Saloon 09/2004-
Vehicle Engine Fuel Date CC KW CV Traction
2.7

EES

 1 01/2007-11/2012 2736 130 177 2
2.7 1 09/2009-12/2010 2736 133 181 1
2.7

EER

 1 09/2004-12/2012 2736 142 193 2
3.5

EGG

 1 09/2004-11/2012 3518 183 249 2
3.5 1 01/2005-12/2010 3518 186 253 2
3.5 AWD

EGG

 1 09/2004-12/2010 3518 186 253 3
5.7

EZB

EZD

EZH

 1 09/2004-12/2008 5654 250 340 2
5.7 1 09/2004-08/2008 5654 250 340 1
5.7 1 12/2009-11/2012 5654 256 348 1
5.7

EZH

 1 09/2008- 5654 268 364 2
5.7 AWD

EZD

 1 09/2008- 5654 268 364 3
6.1 SRT8

ESF

 1 06/2005-11/2012 6059 317 431 2
3.0 CRD

EXL

 2 09/2005-11/2012 2987 160 218 2
3.0 V6 CRD

EXL

 2 11/2010-11/2012 2987 155 211 2
300 C Touring (LX, LE) Estate 09/2004-12/2010
Vehicle Engine Fuel Date CC KW CV Traction
2.7

EES

 1 01/2007-12/2010 2736 130 177 2
2.7

EER

 1 09/2004-12/2010 2736 142 193 2
3.5

EGG

 1 09/2004-12/2010 3518 183 249 2
5.7

EZB

EZD

EZH

 1 09/2004-12/2010 5654 250 340 2
5.7 AWD

EZB

EZH

 1 04/2005-12/2010 5654 250 340 3
6.1 SRT8

ESF

 1 06/2005-12/2010 6059 317 431 2
3.0 CRD

EXL

 2 09/2005-12/2010 2987 160 218 2
300 C II (LX) Saloon 09/2010-
Vehicle Engine Fuel Date CC KW CV Traction
3.6

ERB

 1 09/2011-08/2019 3604 210 286 2
3.6

ERB

 1 07/2011-12/2023 3604 215 292 2
3.6 1 04/2015-12/2023 3604 216 294 2
3.6

ERB

 1 01/2011-12/2023 3604 218 296 2
5.7 AWD 1 09/2010- 5654 271 369 3
6.4 1 01/2012- 6424 401 545 1
6.4 SRT8

ESG

 1 09/2011- 6417 350 476 2
3.6 Flexfuel

ERB

 19 09/2010- 3604 218 296 2
DODGE
CHALLENGER III () Coupe 09/2007-
Vehicle Engine Fuel Date CC KW CV Traction
6.1 SRT8

ESF

 1 01/2008- 6059 313 426 2
6.1 SRT8

ESF

 1 09/2007- 6059 317 431 2
6.4

ESG

ESH

 1 09/2014- 6417 362 492 2
CHARGER VI () Saloon 06/2005-12/2010
Vehicle Engine Fuel Date CC KW CV Traction
2.7 1 09/2008-12/2010 2736 133 181 2
2.7

EER

 1 04/2006-12/2010 2736 141 192 2
3.5

EGG

 1 06/2005-12/2010 3518 186 253 2
5.7 R/T

EZA

 1 06/2005-12/2008 5654 254 345 2
5.7 R/T AWD 1 09/2008-12/2010 5654 276 375 3
CHARGER VII () Saloon 09/2010-
Vehicle Engine Fuel Date CC KW CV Traction
3.6

ERB

 1 06/2012- 3604 215 292 2
3.6

ERB

 1 01/2011- 3604 218 296 2
5.7

EZH

 1 06/2012- 5654 272 370 2
5.7 R/T

EZH

 1 09/2010- 5654 276 375 2
5.7 Flexfuel

EZH

 19 09/2010-12/2014 5654 276 375 2
