Product 78BD9209-2
- Description
- Brake disc
- Axe
- Rear
- No. of Pieces
- 2
- Barcode
-
8424073149435
- Url
- https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=78BD9209-2
- Weight (gr.)
- 9216
- R90 Homologation
-
90R-02C0453/0098

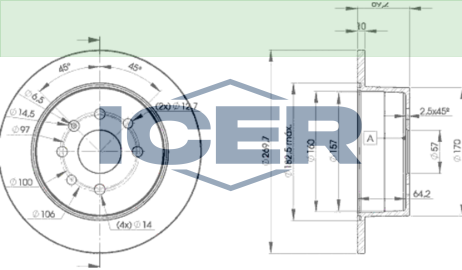

- Measures
- Ø270x10x69.2
-
Brake Disc Type:
solid -
Minimum thickness [mm]:
8 -
Hole Arrangement/Number:
4 -
Bolt Hole Circle Ø [mm]:
106 -
Wheel Hub Diameter [mm]:
57
| Brand | OE Reference |
|---|---|
| OPEL | 5 69 209 |
| VAUXHALL | 90 512 909 |
| Maker | Cross reference |
|---|---|
| ATE | 24.0110-0225.1 |
| BENDIX BRAKING-TMD | BDS2041 |
| BOSCH | 0 986 478 420 |
| BREMBO | 08.7014.10 |
| ROAD HOUSE | 6454.00 |
| TRW | DF2772 |
| VALEO | 672848 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 2.0 |
LE4(122CUL4) |
1 | 03/1996-12/2005 | 1998 | 81 | 110 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 i 16V (F68) |
X 16 XEL Y 16 XE Z 16 XE |
1 | 10/1995-07/2002 | 1598 | 74 | 101 | 1 |
| 1.8 i 16V (F68) |
X 18 XE1 Z 18 XEL |
1 | 10/1995-09/2000 | 1796 | 85 | 116 | 1 |
| 1.8 i 16V (F68) |
X 18 XE |
1 | 10/1995-09/2000 | 1799 | 85 | 116 | 1 |
| 2.0 i 16V (F68) |
C 20 SEL |
1 | 07/2000-07/2003 | 1998 | 85 | 116 | 1 |
| 2.2 i 16V (F68) |
C 22 SEL |
1 | 07/2000-07/2002 | 2198 | 102 | 139 | 1 |
| 1.8 FlexFuel (F68) |
X 18 XE |
18 | 01/1999-09/2000 | 1799 | 85 | 116 | 1 |
| 1.7 TD (F68) |
X 17 DT (TC4EE1) |
2 | 10/1995-12/1998 | 1686 | 60 | 82 | 1 |
| 2.0 DTI 16V (F68) |
X 20 DTH Y 20 DTH |
2 | 06/1997-07/2003 | 1995 | 74 | 101 | 1 |
| 2.2 DTI 16V (F68) |
Y 22 DTR |
2 | 09/2000-04/2002 | 2172 | 88 | 120 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 i 16V (F19) |
X 16 XEL Y 16 XE Z 16 XE |
1 | 10/1995-04/2002 | 1598 | 74 | 100 | 1 |
| 1.8 i 16V (F19) |
X 18 XE1 Z 18 XEL |
1 | 10/1995-09/2000 | 1796 | 85 | 115 | 1 |
| 1.8 i 16V (F19) |
X 18 XE |
1 | 10/1995-09/2000 | 1799 | 85 | 116 | 1 |
| 2.2 i 16V (F19) |
C 22 SEL |
1 | 07/2000-07/2002 | 2198 | 102 | 139 | 1 |
| 1.7 TD (F19) |
X 17 DT (TC4EE1) |
2 | 10/1995-12/1998 | 1686 | 60 | 82 | 1 |
| 2.0 DTI 16V (F19) |
X 20 DTH Y 20 DTH |
2 | 06/1997-04/2002 | 1995 | 74 | 101 | 1 |
| 2.2 DTI 16V (F19) |
Y 22 DTR |
2 | 09/2000-04/2002 | 2172 | 88 | 120 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 i (F35) |
X 16 SZR |
1 | 11/1996-06/2000 | 1598 | 55 | 75 | 1 |
| 1.6 i (F35) |
16 LZ2 |
1 | 11/1996-06/2000 | 1598 | 55 | 75 | 1 |
| 1.6 i 16V (F35) |
X 16 XEL Y 16 XE Z 16 XE |
1 | 11/1996-07/2002 | 1598 | 74 | 100 | 1 |
| 1.8 i 16V (F35) |
X 18 XE1 Z 18 XEL |
1 | 11/1996-09/2000 | 1796 | 85 | 115 | 1 |
| 1.8 i 16V (F35) |
X 18 XE |
1 | 11/1996-09/2000 | 1799 | 85 | 116 | 1 |
| 2.0 i 16V (F35) |
C 20 SEL |
1 | 07/2000-07/2003 | 1998 | 85 | 116 | 1 |
| 2.2 i 16V (F35) |
C 22 SEL |
1 | 07/2000-07/2002 | 2198 | 102 | 139 | 1 |
| 1.7 TD (F35) |
X 17 DT (TC4EE1) |
2 | 11/1996-12/1997 | 1686 | 60 | 82 | 1 |
| 2.0 DI 16V (F35) |
X 20 DTL |
2 | 11/1996-06/2000 | 1995 | 60 | 82 | 1 |
| 2.0 DTI 16V (F35) |
X 20 DTH Y 20 DTH |
2 | 06/1997-07/2003 | 1995 | 74 | 101 | 1 |
| 2.2 DTI 16V (F35) |
Y 22 DTR |
2 | 09/2000-04/2002 | 2172 | 88 | 120 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 i (F19) |
X 16 SZR |
1 | 08/1995-10/2001 | 1598 | 55 | 75 | 1 |
| 1.6 i 16V (F19) |
X 16 XEL Y 16 XE Z 16 XE |
1 | 08/1995-10/2001 | 1598 | 74 | 100 | 1 |
| 1.8 i 16V (F19) |
X 18 XE1 |
1 | 10/1995-09/2000 | 1796 | 85 | 115 | 1 |
| 1.8 i 16V (F19) |
X 18 XE |
1 | 10/1995-09/2000 | 1799 | 85 | 116 | 1 |
| 1.8 Dualfuel (F19) |
Z 18 XE |
18 | 09/2000-03/2002 | 1796 | 92 | 125 | 1 |
| 1.7 TD (F19) | 2 | 10/1995-11/1996 | 1686 | 60 | 82 | 1 | |
| 2.0 DTI 16V (F19) |
X 20 DTH Y 20 DTH |
2 | 08/1995-10/2001 | 1995 | 74 | 101 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 i (F68) |
X 16 SZR |
1 | 08/1995-10/2001 | 1598 | 55 | 75 | 1 |
| 1.6 i 16V (F68) |
X 16 XEL Y 16 XE Z 16 XE |
1 | 08/1995-10/2001 | 1598 | 74 | 101 | 1 |
| 1.8 i 16V (F68) |
X 18 XE1 |
1 | 10/1995-09/2000 | 1796 | 85 | 116 | 1 |
| 1.8 i 16V (F68) |
X 18 XE |
1 | 09/1995-09/2000 | 1799 | 85 | 116 | 1 |
| 1.8 Dualfuel (F68) |
Z 18 XE |
18 | 09/2000-07/2003 | 1796 | 92 | 125 | 1 |
| 1.7 TD (F68) | 2 | 10/1995-11/1996 | 1686 | 60 | 82 | 1 | |
| 2.0 DTI 16V (F68) |
X 20 DTH Y 20 DTH |
2 | 06/1997-10/2001 | 1995 | 74 | 101 | 1 |
| Vehicle | Engine | Fuel | Date | CC | KW | CV | Traction |
|---|---|---|---|---|---|---|---|
| 1.6 i | 1 | 11/1996-03/2002 | 1598 | 55 | 75 | 1 | |
| 1.6 i 16V | 1 | 11/1996-03/2002 | 1598 | 74 | 100 | 1 | |
| 1.8 i 16V (F35) |
X 18 XE1 |
1 | 11/1996-09/2000 | 1796 | 85 | 115 | 1 |
| 1.8 i 16V (F35) |
X 18 XE |
1 | 09/1996-09/2000 | 1799 | 85 | 116 | 1 |
| 1.8 Dualfuel (F35) |
Z 18 XE |
18 | 09/2000-03/2002 | 1796 | 92 | 125 | 1 |
| 2.0 DI 16V (F35) |
X 20 DTL |
2 | 08/1995-10/2001 | 1995 | 60 | 82 | 1 |
| 2.0 DTI 16V (F35) |
X 20 DTH Y 20 DTH |
2 | 08/1995-10/2001 | 1995 | 74 | 101 | 1 |
