Product 79PB4039 C

Description
Parking Brake Kit
Axe
Rear
No. of Pieces
4
Barcode
EAN13 Code
8424073206350
QR Code
Url
https://catalogonuevo.icerbrakes.com/Producto/Details?idProducto=79PB4039+C
Weight (gr.)
1800
R90 Homologation
R90 90R-01489/126

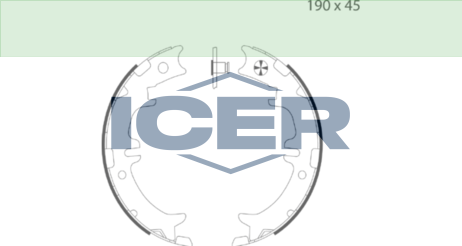

Measures
Reference applications
Brand OE Reference
LEXUS 46540-28010
LEXUS 46540-50010
LEXUS 4654044010
LEXUS 4654048020
LEXUS 46550-28010
LEXUS 46550-50010
LEXUS 4655044010
LEXUS 4655048020
LEXUS 46590-28010
LEXUS 46590-50010
LEXUS 4659044010
LEXUS 4659048020
TOYOTA 4654028010
TOYOTA 4654028020
TOYOTA 4654048010
TOYOTA 4654050010
TOYOTA 4655028010
TOYOTA 4655028020
TOYOTA 4655048010
TOYOTA 4655050010
TOYOTA 4658050010
TOYOTA 4659028010
TOYOTA 4659028020
TOYOTA 4659048010
TOYOTA 4659050010
Maker Cross reference
ATE 03.0137-0400.2
BOSCH 0 986 487 615
BREMBO S 83542
DELPHI LOCKHEED LS1892
FERODO FSB674
GIRLING 5184469
HELLA-PAGID 8DA 355 050-541
MINTEX MFR611
TEXTAR 91060500
LEXUS
GS (JZS147_) Saloon 01/1993-08/1997
Vehicle Engine Fuel Date CC KW CV Traction
300 (JZS147_, JZS147R)

2JZ-GE

 1 01/1993-08/1997 2997 156 212 2
GS II (_S16_) Saloon 08/1997-12/2004
Vehicle Engine Fuel Date CC KW CV Traction
300 1 08/1997-12/1999 2997 168 228 1
300 (JZS160

2JZ-GE

 1 11/2001-12/2004 2997 164 223 2
300 (JZS160_, JZS160R)

2JZ-GE

 1 10/2000-12/2004 2997 161 219 2
300 (JZS160_, JZS160R)

2JZ-GE

 1 08/1997-10/2000 2997 163 222 2
400 (UZS160_, UZS160R)

1UZ-FE

 1 12/1997-11/2000 3969 216 294 2
430 (UZS161_, UZS161R)

3UZ-FE

 1 11/2000-12/2004 4293 208 283 2
430 (UZS161_)

3UZ-FE

 1 09/2000-12/2004 4293 224 305 2
IS (_E1_) Saloon 04/1999-07/2005
Vehicle Engine Fuel Date CC KW CV Traction
200 (GXE10)

1G-FE

 1 04/1999-07/2005 1988 114 155 2
300 1 09/2000-07/2005 2997 161 219 1
300 (JCE10)

2JZ-GE

 1 09/2001-07/2005 2997 157 213 2
IS SportCross (_E1_) Estate 10/2001-10/2005
Vehicle Engine Fuel Date CC KW CV Traction
200 (GXE10_, GXE10R)

1G-FE

 1 10/2002-10/2005 1988 114 155 2
300 1 10/2001-07/2005 2997 161 219 1
300 (JCE10_, JCE10R)

2JZ-GE

 1 10/2001-10/2005 2997 157 213 2
LS II (_F2_) Saloon 10/1994-12/2000
Vehicle Engine Fuel Date CC KW CV Traction
400 (UCF20_, UCF20R)

1UZ-FE

 1 12/1994-08/1997 3969 194 264 2
400 (UCF20_, UCF20R)

1UZ-FE

 1 09/1998-10/2000 3969 203 276 2
400 (UCF20_, UCF20R)

1UZ-FE

 1 09/1997-10/2000 3969 209 284 2
400 (UCF20_)

1UZ-FE

 1 10/1994-08/0200 3969 186 253 2
400 (UCF20_)

1UZ-FE

 1 10/1997-12/2000 3969 216 294 2
RX II (_U3_) SUV 02/2003-12/2008
Vehicle Engine Fuel Date CC KW CV Traction
300 (MCU35_, MCU35R)

1MZ-FE

 1 05/2003-12/2008 2995 150 204 3
330 1 09/2005-12/2006 3311 166 226 1
330 1 09/2005-12/2006 3311 166 226 1
330 (MCU38_, MCU38R)

3MZ-FE

 1 04/2003-01/2006 3311 171 232 1
330 AWD (MCU38)

3MZ-FE

 1 04/2003-12/2008 3311 171 232 3
350 (GSU30_)

2GR-FE

 1 01/2006-12/2008 3456 203 276 1
350 (GSU30)

2GR-FE

 1 09/2006-12/2008 3456 201 273 1
350 AWD (GSU35_, GSU35R)

2GR-FE

 1 02/2006-12/2008 3456 203 276 3
400h (MHU38_, MHU38R)

3MZ-FE

 13 09/2005-12/2008 3311 200 272 1
400h (MHU38_)

3MZ-FE

 13 09/2005-12/2008 3311 155 211 1
400h AWD (MHU38_, MHU38R) 13 09/2005-12/2008 3311 200 272 3
400h AWD (MHU38_)

3MZ-FE

 13 09/2004-12/2008 3311 155 211 3
SC (_ZZ3_) Coupe 08/1991-07/2000
Vehicle Engine Fuel Date CC KW CV Traction
300 (JZZ31)

2JZ-GE

 1 01/1995-03/2000 2997 162 220 2
400 1 09/1997-06/2000 3969 216 294 1
400 (UZZ30)

1UZ-FE

 1 09/1991-07/2000 3969 186 253 2
400 (UZZ30)

1UZ-FE

 1 08/1991-12/1997 3969 194 264 2
SC II / SOARER (UZZ40_) Convertible 01/2001-07/2010
Vehicle Engine Fuel Date CC KW CV Traction
430 1 05/2001-12/2005 4293 233 317 1
430 (UZZ40_, UZZ40R)

3UZ-FE

 1 05/2001-07/2010 4293 210 286 2
430 (UZZ40_)

3UZ-FE

 1 01/2001-07/2010 4293 215 292 2
430 (UZZ40_) 1 01/2001-07/2005 4293 223 303 1
430 (UZZ40_)

3UZ-FE

 1 05/2001-07/2010 4293 244 332 2
TOYOTA
ALPHARD (_H1_) MPV 04/2003-04/2008
Vehicle Engine Fuel Date CC KW CV Traction
2.4 (ANH10W)

2AZ-FE

 1 09/2003-04/2008 2362 117 159 1
2.4 4WD (ANH15W)

2AZ-FE

 1 09/2003-04/2008 2362 117 159 3
3.0 (MNH10)

1MZ-FE

 1 04/2003-04/2008 2995 162 220 1
3.0 4WD (MNH15W)

1MZ-FE

 1 04/2003-04/2008 2995 162 220 3
2.4 Hybrid 4WD (ATH10W)

2AZ-FXE

 13 09/2003-04/2008 2362 117 159 3
ALTEZZA GITA (_XE1_) Estate 10/1998-12/2005
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (GXE10)

1G-FE

1G-GE

 1 01/1999-06/2001 1988 114 155 2
3.0 (JCE10)

2JZ-GE

 1 07/2001-11/2005 2997 157 214 2
3.0 (JCE10)

2JZ-GE

 1 07/2001-11/2005 2997 162 220 2
ALTEZZA (_E1_) Saloon 01/1999-11/2005
Vehicle Engine Fuel Date CC KW CV Traction
2.0 VVTi (GXE10)

1G-FE

 1 01/1999-05/2005 1988 118 160 2
2.0 VVTi (SXE10)

3S-GE

 1 10/1998-11/2005 1998 147 200 2
2.0 VVTi (SXE10)

3S-GE

 1 02/1999-11/2005 1998 154 209 2
ARISTO (_S14_) Saloon 10/1990-07/1997
Vehicle Engine Fuel Date CC KW CV Traction
3.0 (JZS147)

2JZ-GE

 1 10/1990-07/1997 2997 169 230 2
3.0 (JZS147)

2JZ-GTE

 1 10/1990-09/1996 2997 205 279 2
4.0 4WD (UZS143)

1UZ-FE

 1 10/1992-07/1997 3969 173 235 3
ARISTO II (_S16_) Saloon 08/1997-10/2004
Vehicle Engine Fuel Date CC KW CV Traction
3.0 (JZS160)

2JZ-GE

 1 08/1997-09/2004 2997 170 231 2
3.0 (JZS161)

2JZ-GTE

 1 08/1997-09/2004 2997 206 280 2
4.3 1 04/1999-09/2004 4293 224 305 1
AVENSIS II VERSO / IPSUM / PICNIC / VERSO SPORTVAN (_M2_) MPV 05/2001-12/2011
Vehicle Engine Fuel Date CC KW CV Traction
2.0 VVT-i (ACM20_, ACM20R)

1AZ-FE

 1 08/2001-11/2009 1998 110 150 1
2.4 VVT-i (ACM21_, ACM21R)

2AZ-FE

 1 05/2001-12/2011 2362 118 160 1
2.4 VVT-i (ACM21)

2AZ-FE

 1 08/2001-08/2007 2362 115 156 1
2.4 VVT-i 4WD (ACM26_, ACM26W)

2AZ-FE

 1 11/2003-08/2006 2362 115 156 3
2.4 VVT-i 4WD (ACM26_, ACM26W)

2AZ-FE

 1 05/2001-12/2010 2362 118 160 3
2.0 D (CLM20_, CLM20R)

1CD-FTV

 2 08/2001-08/2005 1995 85 116 1
CELSIOR II (UCF2_) Saloon 05/1993-08/2000
Vehicle Engine Fuel Date CC KW CV Traction
4.0 (UCF20,UCF21)

1UZ-FE

 1 10/1994-07/1997 3969 195 265 2
4.0 (UCF20,UCF21)

1UZ-FE

 1 07/1997-08/2000 3969 206 280 2
CELSIOR III (UCF3_) Saloon 09/2000-08/2006
Vehicle Engine Fuel Date CC KW CV Traction
4.3 VVTi (UCF30, UCF31)

3UZ-FE

 1 09/2000-08/2006 4293 208 283 2
ESTIMA EMINA / LUCIDA (_R1_, _R2_) MPV 05/1990-12/1999
Vehicle Engine Fuel Date CC KW CV Traction
2.4 (TCR10G, TCR11G, TCR10W)

2TZ-FE

 1 05/1990-12/1999 2438 99 135 2
2.4 4x4 (TCR10G, TCR11G)

2TZ-FZE

 1 09/1993-12/1999 2438 118 160 3
2.4 4x4 (TCR20G, TCR21G)

2TZ-FE

 1 05/1990-12/1999 2438 99 135 3
GRANVIA (_H2_, _H1_) MPV 08/1995-12/2004
Vehicle Engine Fuel Date CC KW CV Traction
2.7 (RCH11W_, RCH11W)

3RZ-FE

 1 08/1995-09/1998 2694 107 145 2
3.4 (VCH10W, VCH16W, VCH26W) 1 08/1995-12/2004 3378 140 190 2
3.0 TDi (KCH10)

1KZ-TE

 2 08/1995-12/2004 2982 96 131 2
HARRIER II (_U3_) SUV 02/2003-12/2013
Vehicle Engine Fuel Date CC KW CV Traction
2.4 (ACU30_, ACU30W)

2AZ-FE

 1 02/2003-12/2013 2362 118 160 1
2.4 4WD (ACU35_, ACU35W)

2AZ-FE

 1 10/2003-06/2012 2362 118 160 3
3.0 (MCU30)

1MZ-FE

 1 08/2003-01/2006 2995 164 223 1
3.0 4WD (MCU36W, MCU35)

1MZ-FE

 1 08/2003-01/2006 2995 164 223 3
3.3 Hybrid (MHU38_) 1 04/2006-12/2008 3311 155 211 1
3.5 (GSU30_, GSU30W, GSU31W)

2GR-FE

 1 04/2005-12/2008 3456 206 280 1
3.5 4WD (GSU35_, GSU36_, GSU35W, GSU36W)

2GR-FE

 1 04/2005-12/2008 3456 206 280 3
3.3 Hybrid 4WD (MHU38_, MHU38W)

3MZ-FE

 13 03/2005-09/2013 3311 200 272 3
ISIS (_M1_) MPV 07/2004-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 VVTi (ANM10G)

1AZ-FSE

 1 07/2004-08/2009 1998 114 155 1
2.0 VVTi (ZGM11W)

3ZR-FAE

 1 09/2009-08/2014 1987 116 158 1
2.0 VVTi 4WD (ANM15G)

1AZ-FSE

 1 07/2004-08/2014 1998 114 155 3
MARK II (_X11_) Saloon 10/2000-11/2004
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (GX110)

1G-FE

 1 10/2000-11/2004 1988 118 160 2
2.5 (JZX110)

1JZ-FSE

 1 10/2002-11/2004 2491 147 200 2
2.5 (JZX110)

1JZ-GTE

 1 10/2000-11/2004 2491 206 280 2
NOAH-VOXY II / NAV1 (_R7_) MPV 06/2007-
Vehicle Engine Fuel Date CC KW CV Traction
2.0 (ZRR70)

3ZR-FE

 1 06/2007-12/2013 1987 103 140 1
2.0 4WD (ZRR75G)

3ZR-FE

 1 06/2007-12/2013 1987 103 140 3
PREVIA / ESTIMA / TARAGO (_R1_, _R2_) MPV 01/1990-08/2000
Vehicle Engine Fuel Date CC KW CV Traction
2.4 1 05/1990-12/1999 2438 110 150 1
2.4 (TCR10_)

2TZ-FZE

 1 09/1993-12/1997 2438 118 160 2
2.4 (TCR11_, TCR10_, TCR10R, TCR11R)

2TZ-FE

 1 05/1990-08/2000 2438 97 132 2
2.4 4WD (TCR20_)

2TZ-FZE

 1 09/1993-12/1997 2438 118 160 3
2.4 4WD (TCR21_, TCR20_, TCR21R, TCR20R)

2TZ-FE

 1 01/1990-08/2000 2438 97 132 3
2.4 4WD (TCR21G, TCR20G)

2TZ-FE

 1 01/1992-12/1999 2438 99 135 3
PREVIA II / ESTIMA / TARAGO (_R3_) MPV 02/2000-02/2006
Vehicle Engine Fuel Date CC KW CV Traction
2.0 1 10/2000-08/2003 1998 94 128 1
2.4 1 07/2002-12/2005 2362 96 131 1
2.4 1 02/2000-01/2006 2362 118 160 1
2.4 (ACR30)

2AZ-FE

 1 02/2000-02/2006 2362 115 156 1
2.4 (ACR30)

2AZ-FE

 1 02/2000-01/2006 2362 125 170 1
2.4 4WD (ACR30)

2AZ-FE

 1 02/2000-01/2006 2362 125 170 3
3.0 (MCR30W)

1MZ-FE

 1 08/2000-12/2005 2995 162 220 1
3.0 4WD (MCR40W)

1MZ-FE

 1 02/2000-12/2005 2995 162 220 3
2.0 D-4D (CLR30_, CLR30R)

1CD-FTV

 2 03/2001-01/2006 1995 85 116 1
RAV 4 II (_A2_) SUV 05/2000-11/2005
Vehicle Engine Fuel Date CC KW CV Traction
1.8 (ZCA25_, ZCA26_, ZCA25W, ZCA26W)

1ZZ-FE

 1 08/2000-11/2005 1794 92 125 1
2.0 (ACA26)

1AZ-FE

 1 09/2000-12/2003 1998 110 150 1
2.0 4WD (ACA21, ACA20)

1AZ-FE

1AZ-FSE

 1 05/2000-11/2005 1998 110 150 3
2.4 (ACA28)

2AZ-FE

 1 08/2000-11/2005 2362 120 163 1
2.4 4WD (ACA23, ACA22)

2AZ-FE

 1 08/2003-11/2005 2362 112 152 3
2.4 4WD (ACA23, ACA22) 1 08/2003-11/2005 2362 120 163 3
2.4 4WD (ACA23)

2AZ-FE

 1 05/2000-11/2005 2362 122 166 3
2.0 D 4WD (CLA20_, CLA21_, CLA20R, CLA21R)

1CD-FTV

 2 05/2001-11/2005 1995 85 116 3
SOARER III (_Z3_) Coupe 09/1990-12/2000
Vehicle Engine Fuel Date CC KW CV Traction
2.5 Turbo (JZZ30)

1JZ-GTE

 1 09/1990-09/2000 2491 206 280 2
3.0 (JZZ31)

2JZ-GE

 1 09/1990-09/2000 2997 166 226 2
4.0 (UZZ31, UZZ32, UZZ30)

1UZ-FE

 1 05/1991-09/1997 3969 191 260 2
SUPRA IV (_A8_) Coupe 05/1993-07/2002
Vehicle Engine Fuel Date CC KW CV Traction
3.0 i (JZA80_, JZA80R)

2JZ-GE

 1 05/1993-07/2002 2997 168 228 2
3.0 i Bi-Turbo (JZA80_, JZA80R)

2JZ-GTE

 1 05/1993-07/2002 2997 243 330 2
VENZA (_V1_) SUV 11/2008-
Vehicle Engine Fuel Date CC KW CV Traction
2.7 (AGV10_)

1AR-FE

 1 11/2008-04/2012 2672 135 184 1
2.7 (AGV10_)

1AR-FE

 1 11/2008-11/2016 2672 136 185 1
2.7 4WD (AGV15_)

1AR-FE

 1 11/2008-04/2012 2672 135 184 3
2.7 4WD (AGV15_)

1AR-FE

 1 11/2008-11/2016 2672 136 185 3
3.5 (GGV10_)

2GR-FE

 1 11/2008-11/2016 3456 200 272 1
3.5 4WD (GGV15_)

2GR-FE

 1 11/2008-11/2016 3456 200 272 3
VEROSSA (_X11_) Saloon 10/2000-04/2004
Vehicle Engine Fuel Date CC KW CV Traction
2.0 VVTi 4WD (GX115)

1G-FE

 1 10/2000-11/2003 1988 118 160 3
2.5 VVTi (JZX110)

1JZ-GTE

 1 10/2000-11/2003 2491 206 280 2
Return
